Chapter 12: The RAG Pipeline - Loading & Splitting Docs

Theoretical Foundations

At its heart, the Retrieval-Augmented Generation (RAG) pipeline is an exercise in context management. Large Language Models (LLMs) possess vast general knowledge, but they are often ignorant of specific, private, or up-to-date information—your company's internal documentation, a user's chat history, or the latest financial reports. RAG bridges this gap by injecting relevant, specific context into the model's prompt before it generates a response. However, the quality of this injection is entirely dependent on the quality of the data preparation.

The first stage of this pipeline—Loading and Splitting—is analogous to the construction of a library's card catalog system. Imagine a library that receives a massive, unorganized shipment of books, reports, and manuscripts. Simply dumping these documents onto the floor makes them useless; no one can find a specific paragraph or fact. To make this knowledge accessible, the library must first ingest (load) each document, disassemble it into manageable chunks (splitting), and index it by topic and key terms (embedding). This is precisely what we do in the RAG pipeline. We are not just reading files; we are deconstructing human knowledge into discrete, searchable units.

The Data Contract: Why TypeScript is Non-Negotiable

Before we even touch a document, we must establish a strict data contract. In the context of AI pipelines, data flows through multiple transformations: from raw text to structured documents, from documents to vector embeddings, and from embeddings to database records. A single type mismatch—a string where a number is expected, or an undefined field—can cause catastrophic failures that are difficult to debug in production.

This is where the philosophy of Strict Type Discipline becomes paramount. By enabling strict: true in our tsconfig.json, we enforce that every variable, function parameter, and return value has an explicit, verifiable type. This is not merely a stylistic choice; it is a defensive mechanism. Consider the Document interface, a foundational data structure in LangChain.js. It typically contains pageContent (the text) and metadata (information about the source, page number, etc.).

// The canonical Document interface in LangChain.js
export interface Document<Metadata extends Record<string, any> = Record<string, any>> {
  pageContent: string;
  metadata: Metadata;
}

Without strict typing, a developer might accidentally pass a null value into pageContent or a non-object into metadata. In a JavaScript environment, this might only surface as a runtime error when the vector store rejects the document. In TypeScript with strictNullChecks enabled, the compiler flags this error before the code ever runs:

// This will cause a TypeScript compilation error with strictNullChecks enabled
const badDocument: Document = {
  pageContent: null, // Error: Type 'null' is not assignable to type 'string'.
  metadata: {}
};

This discipline ensures that every component in our pipeline—from the PDF loader to the text splitter—operates on a predictable, well-defined data shape, eliminating an entire class of bugs that are notoriously hard to trace in distributed AI systems.

The Loading Phase: Unifying Disparate Data Sources

The first step in the pipeline is loading, which involves reading data from various sources and converting it into the standard Document format. In a web development context, this is equivalent to creating a unified API client that fetches data from different backends (REST, GraphQL, gRPC) and normalizes it into a single, consistent frontend data model.

LangChain.js provides a suite of document loaders for this purpose. Each loader is a specialized adapter for a specific data format or source. For instance, a PDFLoader parses binary PDF data, extracts text, and preserves page numbers as metadata. A CSVLoader reads tabular data and converts each row into a document. A DirectoryLoader can recursively scan a filesystem, applying the appropriate loader based on file extension.

The "Why" here is abstraction. A developer shouldn't need to know the intricacies of parsing a .docx file versus a .txt file. By using a loader, we abstract away the parsing logic and receive a standardized Document object every time. This is critical for building scalable, maintainable systems. If we later decide to switch from loading local files to fetching documents from an S3 bucket, we only change the loader, not the downstream logic that processes the documents.

The Analogy: Loading as a Universal Adapter

Think of document loaders as universal power adapters. Your laptop (the RAG pipeline) needs a specific input voltage and connector (the Document format). You have various power sources: a US wall outlet (PDF), a European outlet (HTML), or a USB port (JSON). Instead of modifying your laptop for each outlet, you use a specific adapter (the loader) that converts the source's native format into the standard your laptop requires. The laptop doesn't care where the power came from; it only cares that the input is stable and standardized.

The Splitting Phase: The Art of Contextual Chunking

Once documents are loaded, we face a fundamental constraint of LLMs: the context window. This is the finite amount of text the model can process in a single prompt. If a document is larger than this window, it must be split into smaller chunks. However, naive splitting—like cutting text every 500 characters—can destroy meaning. A sentence might be severed mid-thought, or a crucial piece of context might be separated from the information it explains.

This is where text splitting strategies come into play. The goal is to create chunks that are both semantically coherent and within the model's token limit. LangChain.js offers several splitters, each with a different logic:

RecursiveCharacterTextSplitter: This is the most common and versatile splitter. It attempts to split text recursively on a hierarchy of separators (e.g., \n\n, \n, , ""). It starts with the largest logical separator (paragraphs) and only moves to smaller ones (sentences, words) if the resulting chunks are still too large. This preserves the natural structure of the text.
CharacterTextSplitter: A simpler splitter that uses a fixed separator (like a newline) to break text. It's less context-aware but useful for uniformly formatted data like logs or code files.
MarkdownHeaderTextSplitter: For Markdown documents, this splitter uses the header hierarchy (#, ##, ###) to create chunks. This is incredibly powerful because it ensures that each chunk is a self-contained section of the document, with its own context provided by the header.

The Web Dev Analogy: Splitting as Code Chunking in Bundlers

Consider a modern JavaScript bundler like Webpack or Vite. When you import a large library, the bundler doesn't ship the entire library in one massive file. Instead, it performs code splitting, breaking the library into smaller, logical chunks that are loaded on-demand. This is exactly what we do with documents. A 50-page PDF is like a massive JavaScript bundle; it's inefficient to load it all at once. By splitting it into coherent chunks (e.g., one chunk per section or per page), we enable efficient, targeted retrieval. Just as a bundler uses dynamic import() to load code when needed, our RAG pipeline will later use vector search to load only the most relevant chunks into the LLM's context window.

The Under the Hood: Preparing for Vector Storage

After loading and splitting, we have a collection of Document objects. But this is still just raw text. To enable semantic search, we need to convert this text into a numerical representation that captures its meaning—this is the role of embeddings (to be covered in the next chapter). However, the loading and splitting stage must prepare the data optimally for this conversion.

A critical consideration is chunk size and overlap. The RecursiveCharacterTextSplitter in LangChain.js allows us to specify both a chunkSize (e.g., 1000 characters) and a chunkOverlap (e.g., 200 characters). The overlap is crucial for maintaining context. If a sentence is split between two chunks, the overlapping section ensures that the second chunk still contains the end of the first sentence, preventing loss of meaning.

Furthermore, we must preserve and enrich metadata. During loading, we might extract the source file path, page number, or author. During splitting, we should propagate this metadata to each child chunk. This allows for powerful filtering later. For example, we can instruct the retrieval system to "only search within documents from Q4 2023" or "prioritize chunks from the 'Technical Specifications' section." This metadata acts as a secondary filter, narrowing the search space before semantic similarity is even calculated.

Visualization of the Pipeline

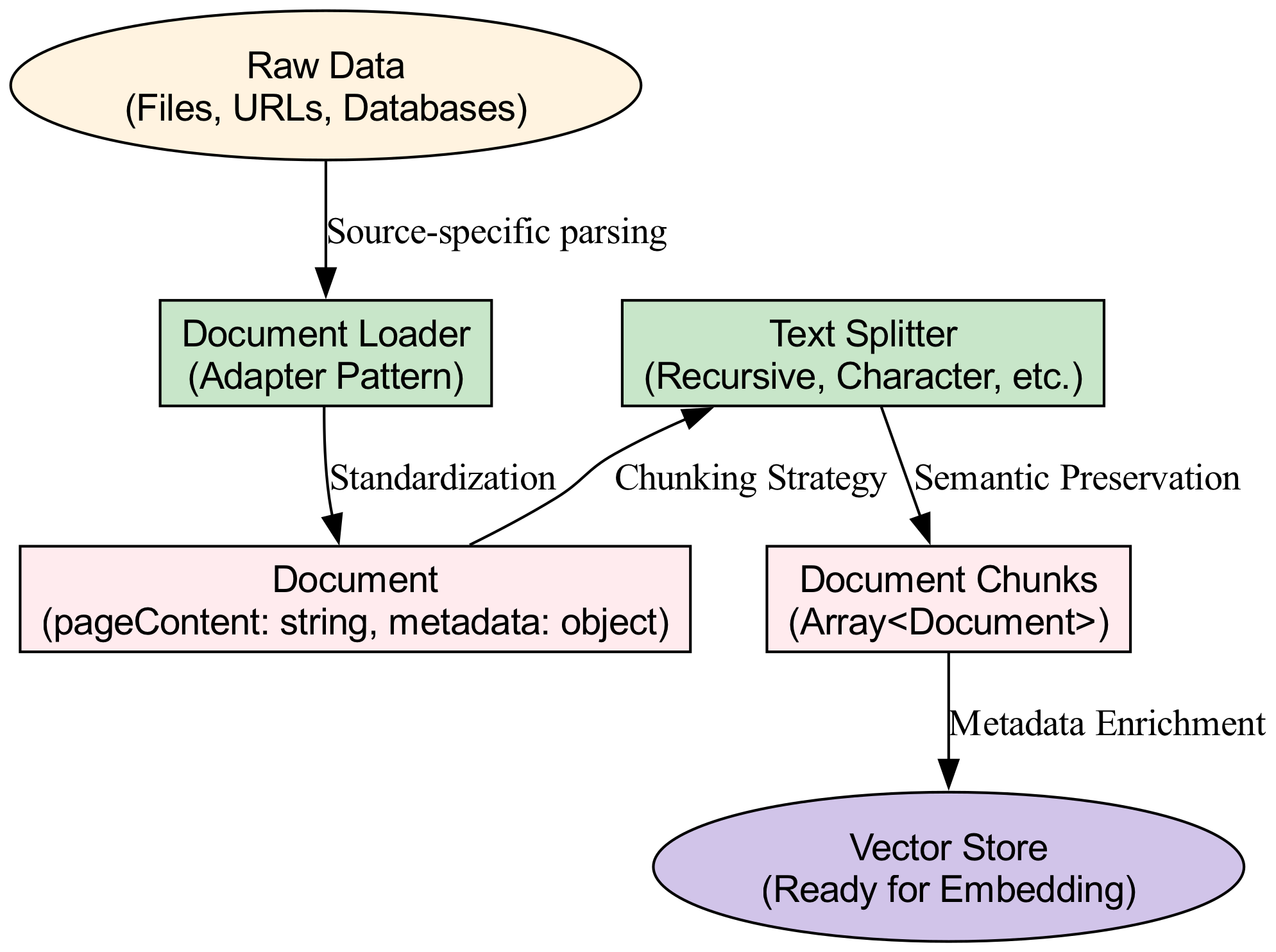

The following diagram illustrates the flow from raw data to prepared documents, highlighting the strict type transformations at each stage.

This diagram illustrates the data preparation pipeline, where raw data is first filtered by strict metadata constraints to narrow the search space before undergoing semantic similarity calculations for final document retrieval.

The Role of Suspense Boundaries in the UI Layer

While the theoretical foundations of loading and splitting are backend-centric, their impact is felt acutely in the frontend, especially in a React application using the App Router. When a user requests information that triggers a RAG pipeline, the process is asynchronous. The pipeline must load documents, split them, generate embeddings, perform a vector search, and finally, the LLM must generate a response.

In a modern React application, we manage this asynchronous data flow using Suspense Boundaries. A Suspense boundary allows us to wrap a component that performs an async data fetch and provide a fallback UI (like a loading spinner or skeleton screen) while the data is being prepared. This is crucial for user experience. Without it, the entire page might freeze or show a blank screen while the heavy computation of the RAG pipeline occurs on the server.

For example, a component that displays the RAG-generated answer would be wrapped in Suspense:

// Example of a React Server Component using Suspense
import { Suspense } from 'react';
import { RAGAnswer } from './components/RAGAnswer';
import { LoadingSpinner } from './components/LoadingSpinner';

export default function Page({ query }: { query: string }) {
  return (
    <main>
      <h1>Your Question: {query}</h1>
      <Suspense fallback={<LoadingSpinner />}>
        {/* The RAGAnswer component will await the entire pipeline */}
        <RAGAnswer question={query} />
      </Suspense>
    </main>
  );
}

Here, the Suspense boundary acts as a contract: "While RAGAnswer is resolving its asynchronous data (the result of the RAG pipeline), show LoadingSpinner." This decouples the UI from the complex backend orchestration, providing a smooth, progressive loading experience. The loading and splitting stage is the first step in this asynchronous chain; its efficiency directly impacts how quickly the Suspense fallback can be replaced with meaningful content.

Summary: The Criticality of the First Mile

The loading and splitting stage is often overlooked in favor of more glamorous topics like embedding models or LLM fine-tuning. However, it is the critical first mile of the RAG pipeline. Errors introduced here—poorly chunked text, lost metadata, or inconsistent data types—are irreversible. No amount of sophisticated retrieval or powerful LLMs can compensate for a foundation built on fragmented, context-poor data.

By adhering to Strict Type Discipline, we ensure the pipeline is robust and maintainable. By leveraging document loaders, we abstract away the complexity of diverse data sources. By employing intelligent text splitters, we preserve semantic coherence within the constraints of the LLM's context window. And by enriching metadata, we enable precise, filterable retrieval. This stage transforms a chaotic collection of data into a structured, searchable knowledge base, ready for the next phases of the RAG pipeline: embedding and vector storage.

Basic Code Example

In a SaaS application context—such as a customer support chatbot or an internal knowledge base—data ingestion is the foundational step of the RAG pipeline. Before an LLM can generate answers based on specific documents, those documents must be loaded from a source (like a file system, a web URL, or a database) and split into manageable "chunks."

This example demonstrates a minimal, self-contained Node.js script using LangChain.js. We will: 1. Load a text document from a local file. 2. Split the document into smaller chunks using a RecursiveCharacterTextSplitter. 3. Log the resulting chunks to the console, simulating the step before sending them to a vector store.

Prerequisites

To run this code, you need a Node.js environment and the following dependencies:

npm install langchain @langchain/community

The Code

/**
 * RAG Pipeline: Data Ingestion (Loading & Splitting)
 *
 * This script demonstrates the first stage of a RAG pipeline. It loads a text
 * document and splits it into chunks suitable for embedding and retrieval.
 *
 * Context: SaaS Application / Node.js Environment
 * Dependencies: langchain, @langchain/community
 */

import { RecursiveCharacterTextSplitter } from 'langchain/text_splitter';
import { Document } from '@langchain/core/documents';
import * as fs from 'fs';
import * as path from 'path';

/**
 * 1. SETUP & MOCK DATA
 *
 * In a real SaaS app, this data would come from a database, an API, or a file upload.
 * For this standalone example, we create a dummy text file to simulate a document.
 */
const setupMockDocument = async (): Promise<string> => {
    const fileName = 'user_manual.txt';
    const filePath = path.join(process.cwd(), fileName);

    // A long text to demonstrate chunking
    const content = `
        Chapter 1: Introduction to the System
        The system is designed for high performance and scalability. It utilizes a distributed architecture to ensure reliability.

        Chapter 2: Installation
        To install the software, run the setup.exe file. Ensure you have Node.js v18+ installed.
        Follow the on-screen prompts. If you encounter errors, check the logs in the /var/log directory.

        Chapter 3: Configuration
        Configuration is handled via the config.json file. Key parameters include API keys and timeout settings.
        Always keep your API keys secure. Do not commit them to version control.

        Chapter 4: Troubleshooting
        Common issues include connection timeouts and memory leaks. To resolve memory leaks, monitor heap usage.
        Restarting the service often resolves transient network issues. Contact support if problems persist.
    `;

    // Write the file to disk
    fs.writeFileSync(filePath, content.trim());
    console.log(`[System] Mock document created: ${fileName}`);
    return filePath;
};

/**
 * 2. LOAD THE DOCUMENT
 *
 * While LangChain offers specialized loaders (e.g., PDFLoader, WebLoader),
 * we use the native Node.js 'fs' module here for maximum simplicity and clarity.
 * In a production app, you would use `TextLoader` from `@langchain/community/document_loaders/fs/text`.
 */
const loadDocument = async (filePath: string): Promise<Document> => {
    console.log(`[Loader] Reading file from: ${filePath}`);

    const text = fs.readFileSync(filePath, 'utf-8');

    // LangChain's Document object wraps raw content with metadata
    return new Document({
        pageContent: text,
        metadata: {
            source: filePath,
            chunkId: 0 // Initial metadata
        }
    });
};

/**
 * 3. SPLIT THE DOCUMENT
 *
 * LLMs have limited context windows. We must split large documents into smaller chunks.
 *
 * Strategy: RecursiveCharacterTextSplitter
 * - It attempts to split by characters (newlines, spaces) recursively.
 * - It prioritizes keeping meaningful units (like paragraphs) together.
 * - 'chunkSize': The maximum size of a chunk (in characters).
 * - 'chunkOverlap': How much text overlaps between consecutive chunks (preserves context).
 */
const splitDocument = async (document: Document): Promise<Document[]> => {
    console.log(`[Splitter] Initializing RecursiveCharacterTextSplitter...`);

    const splitter = new RecursiveCharacterTextSplitter({
        chunkSize: 500,    // Small chunks for this demo
        chunkOverlap: 50   // Slight overlap to maintain flow
    });

    console.log(`[Splitter] Splitting document...`);
    const chunks = await splitter.splitDocuments([document]);

    return chunks;
};

/**
 * 4. MAIN EXECUTION FLOW
 *
 * Orchestrates the loading and splitting process.
 */
const runRagIngestion = async () => {
    try {
        // Step A: Prepare environment
        const filePath = await setupMockDocument();

        // Step B: Load raw data
        const rawDocument = await loadDocument(filePath);

        // Step C: Process data (Splitting)
        const chunks = await splitDocument(rawDocument);

        // Step D: Output results
        console.log('\n=== RAG Pipeline: Ingestion Results ===');
        console.log(`Total Chunks Generated: ${chunks.length}\n`);

        chunks.forEach((chunk, index) => {
            console.log(`--- Chunk ${index + 1} ---`);
            console.log(`Content: "${chunk.pageContent.replace(/\n/g, ' ').trim()}"`);
            console.log(`Metadata: ${JSON.stringify(chunk.metadata)}`);
            console.log(`Size: ${chunk.pageContent.length} chars\n`);
        });

        // Cleanup: Remove the mock file
        fs.unlinkSync(filePath);
        console.log('[System] Cleanup complete.');

    } catch (error) {
        console.error('[Error] Pipeline failed:', error);
    }
};

// Execute the script
runRagIngestion();

Line-by-Line Explanation

1. Setup and Mock Data

setupMockDocument Function:
- Why: To make this example self-contained, we simulate a real-world scenario where a user uploads a text file or a system ingests a knowledge base document.
- How: We define a string content representing a "User Manual" with distinct chapters. We use Node.js's fs (File System) module to write this string to a physical file named user_manual.txt in the current working directory (process.cwd()).
- Under the Hood: This mimics the entry point of a SaaS application (e.g., an API endpoint receiving a file upload).

2. Loading the Document

loadDocument Function:
- Why: Data ingestion starts by reading the raw data. LangChain represents data as Document objects, which contain pageContent (the text) and metadata (context like source URL, page number, etc.).
- How: We use fs.readFileSync to read the text file. We then instantiate a new Document from @langchain/core/documents.
- Under the Hood:
  - pageContent: Holds the full text of the manual.
  - metadata: We attach a source property. In a real app, this is crucial for citing sources in the final LLM response (e.g., "Answer derived from Chapter 2 of user_manual.txt").

3. Splitting the Document

splitDocument Function:
- Why: This is the core of this chapter. LLMs (like GPT-4) have token limits (e.g., 128k tokens). If we feed the entire manual into the context window, it might exceed the limit or dilute the relevance of the specific information needed. Splitting (chunking) ensures we only process relevant sections.
- How: We instantiate RecursiveCharacterTextSplitter.
  - chunkSize: 500: We limit chunks to roughly 500 characters. This is small for demonstration; production values are often 1000–2000 tokens (approx. 4000–8000 characters).
  - chunkOverlap: 50: When splitting, the last 50 characters of Chunk 1 are repeated in the first 50 characters of Chunk 2. This prevents context loss at the boundaries (e.g., a sentence split exactly in half).
- Under the Hood: The RecursiveCharacterTextSplitter attempts to split by generic separators (like \n\n, \n, , ""). It tries to keep paragraphs intact. If a paragraph is still too large, it splits by characters recursively. This is generally more effective than a simple "fixed-size" split.

4. Execution

runRagIngestion Function:
- This orchestrates the flow: Create file -> Read file -> Split text -> Log results.
- Output: The console logs the number of chunks and the content of each. You will notice that the text is broken down into smaller segments, each with metadata preserved.

Visualizing the Data Flow

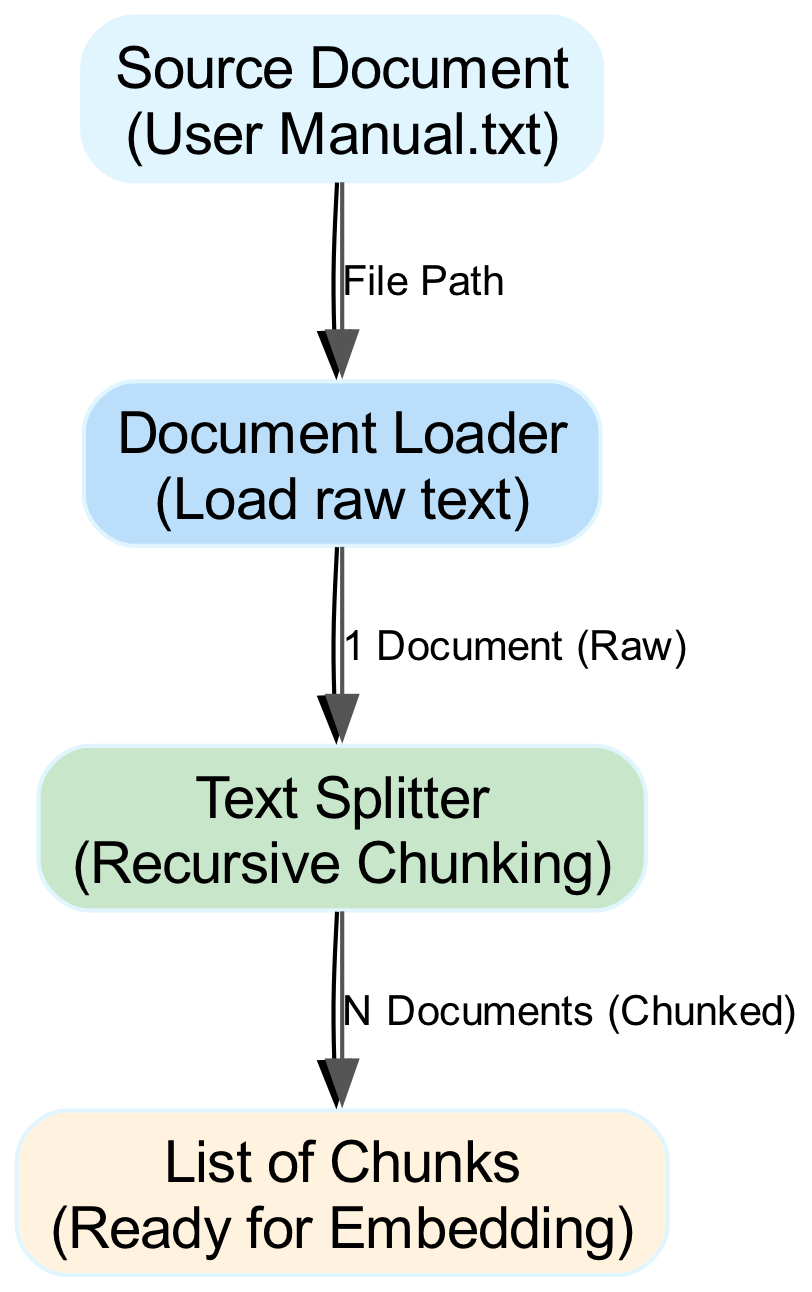

The following diagram illustrates how a single large document flows through the ingestion stage to become multiple manageable chunks.

A single large document is broken down into smaller, manageable segments during the ingestion stage, with metadata preserved for each chunk.

Common Pitfalls

When implementing the loading and splitting stage in a production TypeScript environment (e.g., a Next.js API route or a Vercel serverless function), watch out for these specific issues:

1. Vercel/AWS Lambda Timeouts (The "Cold Start" Problem) * Issue: Serverless functions have strict execution time limits (e.g., 10s on Vercel Hobby). Loading large documents (e.g., a 50MB PDF) and splitting them synchronously can exceed this limit, causing the request to hang or fail. * Solution: * Offload ingestion to a background job (e.g., using Inngest, Upstash QStash, or a dedicated worker). * For web uploads, stream the file processing rather than loading the whole file into memory at once.

2. Incorrect Splitter Configuration (Hallucinated Context) * Issue: If chunkSize is too large, you hit token limits. If chunkOverlap is zero or too small, the semantic meaning of a sentence might be lost when it is split exactly at the boundary. * Example: "The server status is [CHUNK BREAK] active." If the first chunk only contains "The server status is" and lacks the word "active," the embedding vector might represent a neutral or negative status rather than an active one. * Solution: Always use an overlap (10-15% of chunk size) and test your splitter on representative data.

3. File System Access in Serverless Environments * Issue: The example uses fs.writeFileSync. In serverless environments (Vercel, AWS Lambda), the file system is ephemeral and read-only (except for /tmp). Writing files to the root directory will fail. * Solution: * For local testing, fs is fine. * For production, pass the raw text buffer directly to the splitter without writing to disk. * Code adjustment: Instead of fs.readFileSync, use the buffer from the incoming HTTP request (e.g., req.body).

4. Async/Await Loop Blocking * Issue: Ingesting hundreds of documents in a for loop using await sequentially is slow. If you process 100 PDFs one by one, the total time is the sum of all individual processing times. * Solution: Use Promise.all() to process documents in parallel, but be mindful of memory usage.

// BAD: Sequential
for (const file of files) {
   await processFile(file);
}

// GOOD: Parallel (if memory permits)
await Promise.all(files.map(file => processFile(file)));

5. Metadata Loss * Issue: When splitting a document, the metadata from the original document is usually copied to every resulting chunk. However, if your splitter logic is custom, you might accidentally strip metadata, making it impossible to trace a chunk back to its source file later. * Solution: Verify that the splitDocuments method preserves the metadata object. If writing a custom splitter, ensure you explicitly copy metadata to new Document instances.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
