Chapter 1: The App Router & AI - Why Server Components Matter

Theoretical Foundations

In our previous exploration of the Modern Stack, we established that Generative UI is not merely about producing static HTML; it's about the dynamic, programmatic construction of user interfaces by an AI agent. To build this efficiently, we must shift our architectural mindset. The traditional client-heavy model—where the browser receives a minimal HTML shell and then downloads a large JavaScript bundle to fetch data and render everything—creates a significant bottleneck for streaming AI responses. Every token from the LLM (Large Language Model) requires a round-trip to the server, and the client must re-render the entire component tree to incorporate new UI elements.

The Next.js App Router introduces a paradigm shift: React Server Components (RSCs). To understand RSCs, we must first understand what they are not. They are not client-side components that simply run on the server. They are a fundamentally different species of component with distinct capabilities and limitations.

Analogy: The Architect vs. The Interior Designer

Imagine building a house. * Client Components (Traditional React): These are like the Interior Designers. They arrive at the site (the browser) with a truck full of furniture, paint, and tools (JavaScript bundle). They need to walk through every room, measure dimensions, and assemble furniture on-site. This is resource-intensive and happens entirely on the client's dime (CPU and memory). * Server Components (RSC): These are the Architects and Builders. They work in a factory (the server) where they have access to all raw materials (databases, file systems, AI models). They construct the walls, lay the flooring, and install the plumbing. When the house is ready, they ship the finished structure (HTML) to the client. The client simply walks in and enjoys the space.

In the context of Generative UI, the Architect (RSC) is responsible for the heavy lifting: querying the vector database for context, calling the LLM, parsing the response, and constructing the React component tree. The client (Interior Designer) only handles the finishing touches: interactivity, animations, and user input.

The Hydration Cost and the "Island" Architecture

To understand why Server Components are critical for AI, we must revisit the concept of Hydration. In a standard Next.js application (Pages Router or Client Components), the server sends HTML that looks like the final page, but it is inert. It lacks event listeners (click, change, submit) and state management.

When the client loads the JavaScript bundle, React performs hydration: 1. It parses the HTML. 2. It matches the HTML elements to the React component tree. 3. It attaches event listeners and initializes state.

Why is this a problem for Generative UI? Generative UI is unpredictable. The AI might decide to render a <DataGrid /> in one response and a <MarkdownViewer /> in the next. In a client-heavy architecture, the client must download the JavaScript logic for all possible components upfront, just in case the AI uses them. This bloats the bundle size.

Furthermore, hydration creates a "waterfall" of execution. The client cannot start processing the AI stream until the initial HTML is hydrated. If the AI response is 500 tokens long, the client must wait for the entire network transfer, hydrate the initial state, then start receiving the stream, and then re-render.

Server Components solve this by eliminating the hydration cost for the generated UI. Because RSCs render exclusively on the server, the resulting HTML is "static" in the sense that it requires no client-side JavaScript to exist. It is pure markup. The client receives this markup instantly and displays it. There is no hydration step for the RSCs. The only hydration that occurs is for the "Client Islands" (like a "Like" button or a text input) embedded within that Server Component tree.

Progressive Enhancement and Server Actions

In the context of Generative UI, user interaction often triggers further generation (e.g., a user clicks "Regenerate" or submits a follow-up prompt). In traditional frameworks, this requires complex client-side state management and API route handlers.

The App Router utilizes Server Actions to handle this. A Server Action is an asynchronous function that runs on the server and can be invoked from the client without manually creating an API endpoint.

The Principle of Progressive Enhancement: This is a core tenet of robust web development. A Server Action is fundamentally a standard HTML <form> submission. If JavaScript fails to load, the form still submits, the server processes the action, and returns a new page. This ensures the application is always functional.

However, when JavaScript does load (which is the norm), we can use the useTransition hook to wrap the Server Action call. This tells React: "Run this function in the background, don't block the UI, and don't reload the page."

Analogy: The Waiter vs. The Self-Service Kiosk * Traditional Client Fetching (Self-Service Kiosk): You (the client) must navigate the menu, select items, and send the order to the kitchen (server) via a specific API wire. If the kiosk software crashes, you cannot order. * Server Actions (The Waiter): You simply tell the waiter (Server Action) what you want. The waiter takes the order to the kitchen. You don't need to know how the kitchen works. If the waiter's tablet (JavaScript) dies, they can still write the order on a notepad (standard form submission) and hand it to the kitchen.

In Generative UI, when a user submits a prompt, we invoke a Server Action. This action initiates the AI generation on the server. The server then streams the resulting UI components back to the client.

Streaming and the "HTML Stream" vs. "JSON Payload"

This is the most critical distinction for Generative UI performance.

Traditional Streaming (JSON): When using an API route with a standard client component, the stream consists of text tokens. 1. Server sends: {"content": "The "} 2. Client receives, parses JSON, updates state, triggers re-render. 3. Server sends: {"content": "cat "} 4. Client receives, parses JSON, updates state, triggers re-render.

This involves serialization (JSON.stringify), network overhead, and repeated React re-renders (Reconciliation).

RSC Streaming (RSC Payload): The App Router streams a special binary format (the RSC payload) that represents the React component tree itself. 1. Server renders <ChatMessage>The cat</ChatMessage>. 2. Server streams the rendered component (not the raw text) to the client. 3. Client receives the HTML for <ChatMessage>The cat</ChatMessage> and "plops" it into the DOM.

The client does not need to run JavaScript to figure out how to render the text. The server has already done the work. This is significantly faster and reduces the client's CPU load.

Visualizing the Data Flow

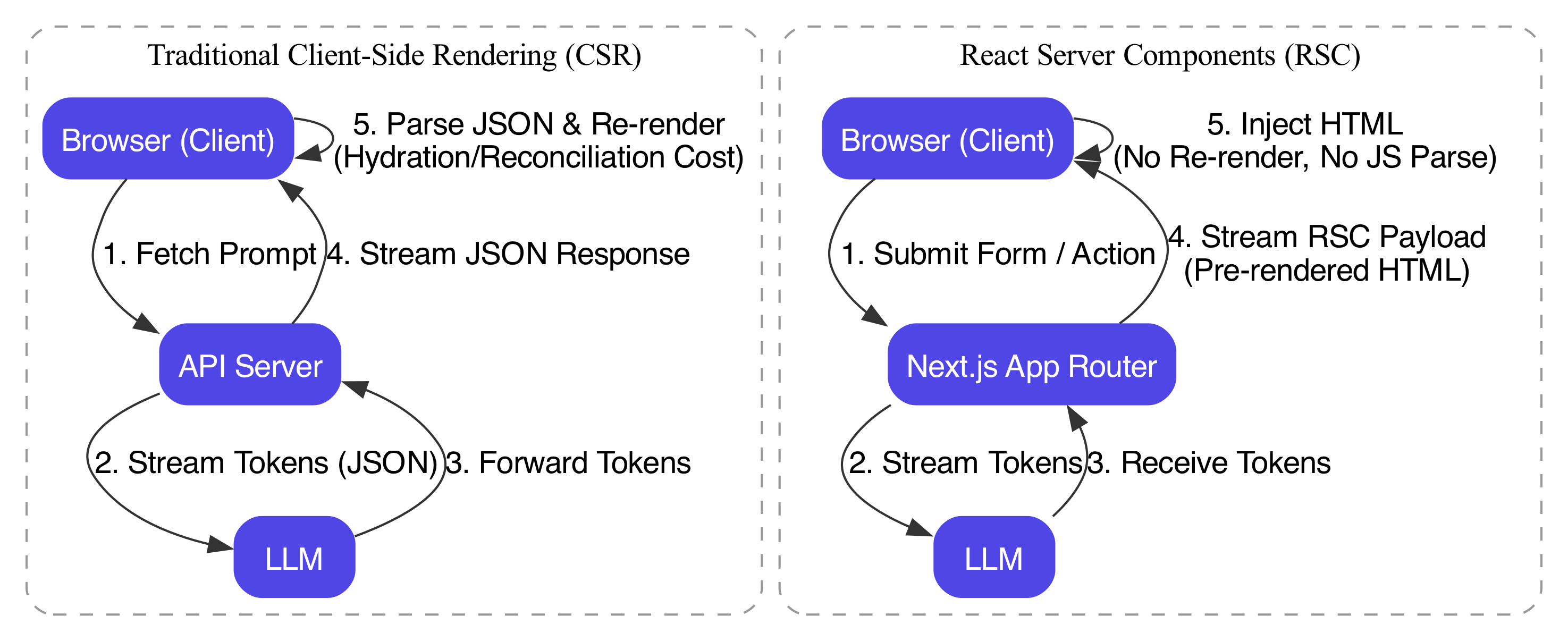

The following diagram illustrates the difference between the traditional Client-Side Rendering (CSR) approach and the Server Component approach for a Generative UI task.

Hold "Ctrl" to enable pan & zoom

The diagram contrasts the traditional Client-Side Rendering (CSR) pipeline, which burdens the client's CPU by processing heavy generative models and rendering logic locally, against the Server Component approach, which offloads these intensive computations to the server to deliver a lighter, faster stream of UI updates to the client.

Under the Hood: The Component Tree and Reconciliation

When we build Generative UI, we are often creating dynamic component trees. For example, an AI might generate a list of items, where each item is a card with different content.

In a client-side environment, if the list changes, React's Reconciliation algorithm (the diffing algorithm) must compare the previous virtual DOM with the new one to determine the minimal set of changes to apply to the real DOM. This is computationally expensive if the list is large or changes frequently.

With Server Components, the "diffing" happens on the server. The server generates the entire new component tree for the response. It then streams the delta (the changes) to the client in the RSC payload format.

The "Why" for Generative UI: Generative UI is often "all-or-nothing." While we stream tokens to show progress, the final UI state is a cohesive structure. By rendering this structure on the server, we ensure that the client receives a consistent, fully formed HTML fragment. We avoid the "jank" of incremental client-side rendering where text jumps around as state updates.

Theoretical Foundations

1. Separation of Concerns: Server Components handle data fetching, AI inference, and structural rendering. Client Components handle user interaction and stateful UI.
2. Zero-Bundle-Size Components: We can import heavy libraries (like database clients or AI SDKs) inside Server Components without adding a single byte to the client JavaScript bundle.
3. Direct Access to Infrastructure: Server Components can directly access the file system, database, and third-party APIs (like OpenAI) without the need for an intermediate API layer or environment variable exposure to the client.

By anchoring our Generative UI architecture in Server Components, we treat the server as the "generator" and the client as the "viewer," optimizing for the specific constraints of streaming AI data.

Basic Code Example

In the context of a SaaS web application, such as a customer support chatbot, the Next.js App Router allows us to render UI directly on the server. This example demonstrates a simple Server Component that generates a "greeting card" interface based on a user's name. It utilizes the Vercel AI SDK's streamText function to generate a personalized message. The key here is that the entire component, including the data fetching and UI generation logic, runs on the server. This minimizes the client-side JavaScript bundle, ensuring that the user receives a fully rendered HTML page immediately, which is critical for perceived performance in AI-driven applications.

// File: app/greeting-card/page.tsx
// This is a Next.js Server Component. It runs exclusively on the server.
// It does not execute any client-side JavaScript by default.

import { streamText } from 'ai'; // Vercel AI SDK for streaming text generation
import { openai } from '@ai-sdk/openai'; // Provider for OpenAI models
import { Suspense } from 'react'; // React feature for handling async UI boundaries

// Define the props for the component (passed via URL search params in this example)
interface GreetingCardProps {
  searchParams: {
    name?: string;
  };
}

/**
 * Generates a greeting card UI using Server Components and AI streaming.
 * @param {GreetingCardProps} props - The component props.
 * @returns {Promise<JSX.Element>} A React component that renders the greeting card.
 */
export default async function GreetingCard({ searchParams }: GreetingCardProps) {
  const name = searchParams.name || 'Guest'; // Default to 'Guest' if no name is provided

  // 1. SERVER-SIDE AI GENERATION
  // We call the LLM directly from the server. The result is a stream.
  const result = await streamText({
    model: openai('gpt-3.5-turbo'),
    prompt: `Generate a warm, professional greeting for a SaaS dashboard user named ${name}.
             Keep it under 50 words. Mention the benefit of using the app.`,
  });

  // 2. UI RENDERING
  // We return JSX directly. The 'result' object contains a streamToResponse method,
  // but for Server Components, we often use the 'streamText' result directly in the UI.
  // However, to keep this example simple and fully server-rendered, we will stream the text
  // into a simple HTML structure.
  return (
    <main style={{ padding: '2rem', fontFamily: 'sans-serif' }}>
      <div style={{
        border: '1px solid #e2e8f0',
        borderRadius: '8px',
        padding: '1.5rem',
        maxWidth: '400px',
        boxShadow: '0 4px 6px -1px rgba(0, 0, 0, 0.1)'
      }}>
        <h1 style={{ fontSize: '1.5rem', fontWeight: 'bold', marginBottom: '1rem' }}>
          Welcome, {name}!
        </h1>

        {/*
          3. SUSPENSE BOUNDARY
          The Suspense component allows us to show a fallback (loading state)
          while the AI stream is being processed on the server.
        */}
        <Suspense fallback={<p style={{ color: '#64748b' }}>Generating your message...</p>}>
          <GreetingMessage result={result} />
        </Suspense>
      </div>
    </main>
  );
}

/**
 * A helper async component to handle the streaming text.
 * This runs on the server and awaits the stream.
 */
async function GreetingMessage({ result }: { result: any }) {
  // The 'result.text' property is a Promise that resolves to the full generated string.
  // By awaiting it here, we ensure the server completes the generation before sending HTML.
  const message = await result.text;

  return (
    <p style={{ lineHeight: '1.6', color: '#334155' }}>
      {message}
    </p>
  );
}

Line-by-Line Explanation

1. Imports and Setup:

   • import { streamText } from 'ai': Imports the core function from the Vercel AI SDK. This function handles the communication with the LLM (Large Language Model) and manages the streaming of tokens.
   • import { openai } from '@ai-sdk/openai': Imports the specific provider for OpenAI models. The Vercel AI SDK supports multiple providers (Anthropic, Google, etc.), but we use OpenAI here as the standard example.
   • import { Suspense } from 'react': Imports React's Suspense component. In the context of Server Components, Suspense is used to handle asynchronous rendering. It allows the server to stream the UI in chunks: first the static parts, and then the dynamic AI-generated content once it's ready.

2. Component Definition:

   • export default async function GreetingCard(...): This defines the component as an async function. This is the hallmark of React Server Components (RSCs). It allows us to use await directly within the component body to handle asynchronous operations like API calls or database queries without blocking the client.
   • ({ searchParams }: GreetingCardProps): Next.js automatically parses the URL query string into the searchParams prop. This allows the user to pass a name via the URL (e.g., /greeting-card?name=Alice).

3. AI Logic Execution:

   • const result = await streamText(...): We await the streamText function. This sends a request to the OpenAI API. Crucially, this happens entirely on the server. The client browser does not make a direct API call to OpenAI; it only requests the page from the Next.js server.
   • model: openai('gpt-3.5-turbo'): Specifies the model to use.
   • prompt: ...: Defines the instruction for the AI. We inject the user's name to personalize the output.

4. UI Rendering and Streaming:

   • return ( ... ): The component returns JSX. This is standard React syntax, but it is executed on the server.
   • <Suspense fallback={...}>: This component wraps the part of the UI that depends on the asynchronous data (the AI message).
   • Fallback: While the AI is generating the text, the server will send the HTML for the fallback UI (the "Generating your message..." text) immediately. This improves the user experience by avoiding a blank screen.
   • <GreetingMessage result={result} />: This is a child component that receives the result object.

5. The Child Component (GreetingMessage):

   • async function GreetingMessage(...): This is also an async Server Component.
   • const message = await result.text: The result.text property is a Promise. By awaiting it, we pause the rendering of this specific component until the AI stream has finished downloading all tokens from the OpenAI API. Once complete, the full HTML string is generated.
   • {message}: The final generated text is rendered into a paragraph tag.

Visualizing the Data Flow

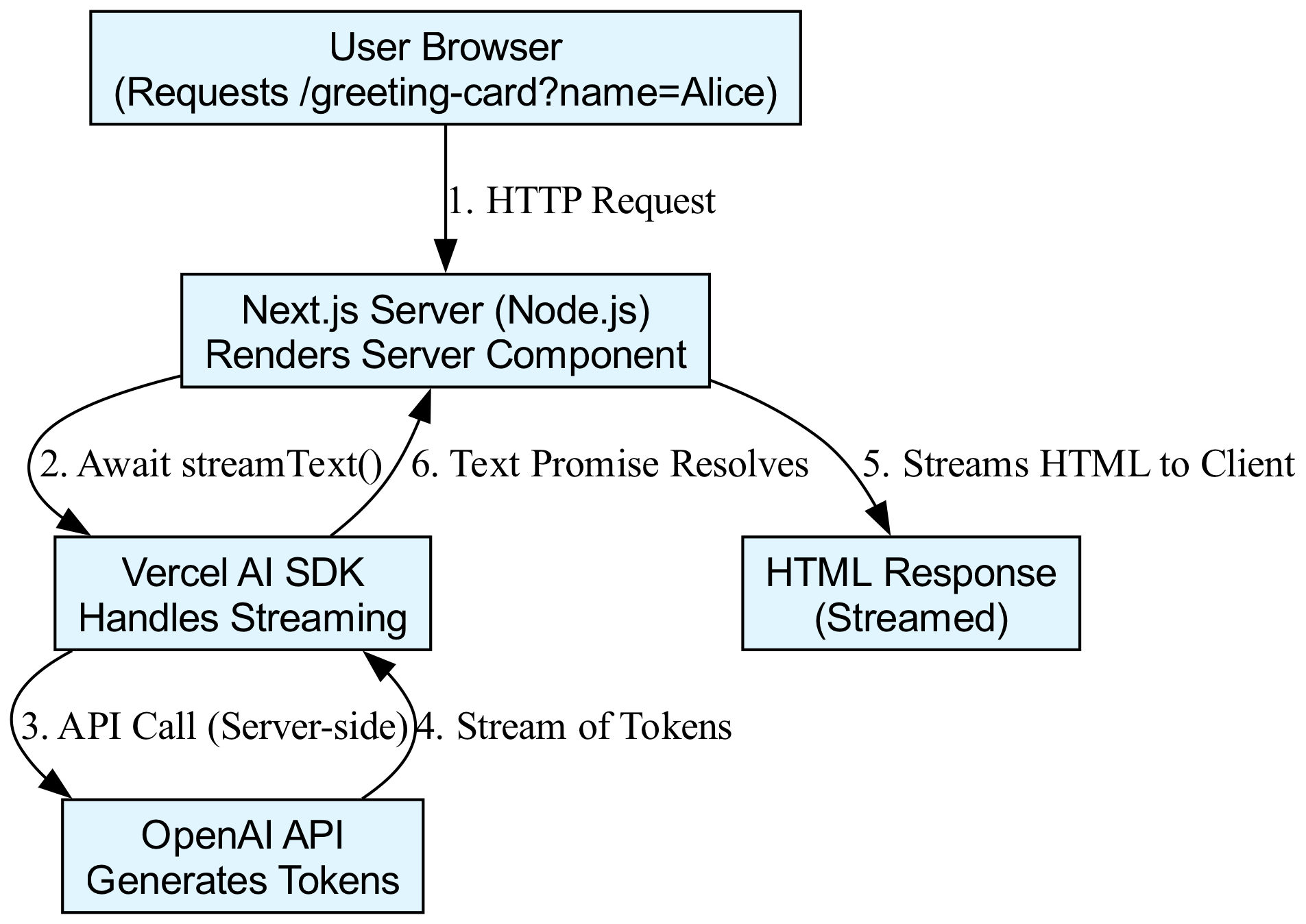

The following diagram illustrates the request lifecycle in this Server Component architecture.

Hold "Ctrl" to enable pan & zoom

The diagram visualizes the complete request lifecycle, starting with a client request, passing through the Server Component to fetch and process data, and ending with the final generated text rendered into a paragraph tag on the client.

Common Pitfalls

When working with Server Components and the AI SDK, specific issues can arise that differ from traditional client-side rendering.

1. Vercel/Serverless Timeouts:

   • Issue: LLMs can be slow to generate responses, especially on complex prompts or under load. Standard serverless functions (like those on Vercel) have a default timeout (often 10 seconds on hobby plans). If the AI generation exceeds this, the request fails with a 504 Gateway Timeout.
   • Solution: Use the streamText function (as shown in the example) rather than generateText. Streaming sends tokens to the client as they are generated, keeping the connection alive and preventing timeouts. Additionally, ensure your Vercel plan supports longer execution times if non-streaming generation is strictly required.

2. Hallucinated JSON / Structured Output:

   • Issue: When asking an LLM to return structured data (e.g., JSON for a UI component), models often "hallucinate" invalid syntax—missing commas, unquoted keys, or incomplete objects.
   • Solution: Do not rely on JSON.parse() directly on the raw stream. Use the Vercel AI SDK's generateObject or streamObject features with a schema validation library like Zod. This forces the model to adhere to a strict schema and provides type-safe parsing on the server.

3. Async/Await Loops in Server Components:

   • Issue: Developers might attempt to fetch data inside a loop (e.g., generating 5 different UI cards sequentially). Since Server Components run on the server, this blocks the Node.js event loop for that specific request, slowing down the response time significantly.
   • Solution: Use Promise.all() to run independent AI generations in parallel. Since the server has direct access to the network, parallelizing these calls reduces the total latency before the HTML is streamed to the client.

4. Leaking API Keys:

   • Issue: In a rush to test, developers might hardcode API keys or accidentally expose environment variables to the client bundle.
   • Solution: Ensure all AI SDK calls (streamText, generateText, etc.) are strictly inside Server Components or Server Actions. Never import the AI SDK or provider instances into Client Components (files using 'use client'). Next.js automatically opts files into the client bundle if they contain client-side directives.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
