Chapter 4: Streaming Text Responses - UX Best Practices

Theoretical Foundations

In traditional web development, when a client requests data from a server, the interaction is blocking. The client sends a request, the server processes the entire task (e.g., querying a database, performing heavy calculations), and only once the entire response is generated and serialized does it send the data back over the network. This is akin to ordering a custom-built piece of furniture; you wait in silence for the carpenter to finish the entire chair before you see a single slat.

In the context of Generative AI, this blocking behavior creates a significant user experience (UX) bottleneck. Large Language Models (LLMs) generate text token-by-token (roughly, word-by-word or sub-word-by-sub-word). If we wait for the model to generate a complete 500-word response before sending it to the client, the user stares at a loading spinner for seconds, perceiving the application as sluggish or unresponsive.

Model Streaming fundamentally changes this dynamic. Instead of treating the AI response as a single atomic unit, we treat it as a continuous flow of data. We establish a persistent connection between the client and the server, and as the LLM generates each token, the server immediately pushes that token to the client. The client renders these tokens incrementally, creating the illusion of real-time typing.

The "Why": Perceived Latency vs. Actual Latency

The primary driver for streaming is the psychological concept of Perceived Latency.

Actual Latency: The total time required for the model to generate the full response (e.g., 10 seconds).
Perceived Latency: The time it takes for the user to see the first meaningful interaction (e.g., 0.5 seconds).

By streaming, we shift the user's focus from the duration of the wait to the progress of the output. Seeing text appear instantly engages the user's reading brain immediately. This is the difference between watching a progress bar fill up slowly versus watching a video play instantly.

In Book 1, we discussed how Embeddings transform unstructured text into structured vector data for semantic search. Just as Embeddings convert static text into a mathematical structure that allows for dynamic querying, Streaming converts a static, monolithic response into a dynamic flow of data that allows for immediate interaction.

The Mechanics: The Pipeline of Tokens

To understand streaming, we must visualize the journey of a single token from the model's neural network to the user's screen. This pipeline involves three distinct stages, often operating in parallel.

Generation (The Source): The LLM (e.g., GPT-4) processes the context window and predicts the next token.
Transport (The Conduit): The server (Next.js API Route) receives this token. It cannot simply use a standard HTTP response, which closes the connection after sending data. Instead, it utilizes Server-Sent Events (SSE) or a Readable Stream.
Consumption (The Destination): The client (React Component) listens to this stream, parses the incoming data, and updates the UI state.

The Analogy: The Assembly Line vs. The Conveyor Belt

Imagine a factory (the Server) manufacturing cars (the AI Response).

The Block Method (Assembly Line): The factory builds the entire car chassis, engine, and wheels before moving the finished car onto a truck (the Network) to be delivered to the dealership (the Client). The dealership sees nothing until the truck arrives with the complete car.
The Stream Method (Conveyor Belt): The factory places parts onto a conveyor belt as they are finished. The chassis moves first, followed immediately by the engine, then the wheels. The dealership (Client) receives the chassis and can start inspecting it immediately, even while the wheels are still being bolted on miles away.

In the streaming model, the "conveyor belt" is the HTTP Stream. It remains open, allowing the server to send data chunks (tokens) as soon as they are available.

Transport Protocols: SSE vs. Readable Streams

In the modern web stack, specifically within Next.js and the Vercel AI SDK, we rely on two primary mechanisms to move tokens from the server to the client.

1. Server-Sent Events (SSE)

SSE is a standard that allows a server to push data to a client over a single HTTP connection. Unlike WebSockets, which are bidirectional (client and server can both send messages), SSE is unidirectional (server to client only). This makes it ideal for AI text generation, where the client primarily listens for the model's output.

How it works: The client opens a connection to the server. The server keeps this connection open and sends data in a specific format (text-based, separated by newlines).
Why it fits AI: AI generation is a one-way stream of information. The client doesn't need to send data back while the model is thinking; it just needs to receive the tokens.

2. Web Streams (ReadableStream)

Web Streams are a more low-level, browser-native API. The Vercel AI SDK often abstracts the raw SSE implementation into a Web Stream interface, which is easier to manipulate within JavaScript environments.

How it works: The server returns a ReadableStream object. The client reads from this stream using a Reader interface, pulling chunks of data as they become available.
Why it fits AI: It allows for efficient backpressure handling. If the client is on a slow network, it can pause the reading of the stream, preventing the server from overwhelming the client's memory.

The Edge Runtime Advantage

In Book 1, we established the concept of Embeddings as the bridge between natural language and vector databases. In this book, we introduce the Edge Runtime as the bridge between server-side processing and global low-latency delivery.

When streaming AI responses, the execution environment matters immensely. Traditional Node.js server environments have "cold starts"—a delay when a function hasn't been invoked recently. For a streaming response, a cold start is disastrous; the user waits for the server to boot up before the first token is even generated.

Edge Runtime (based on V8 Isolates) solves this by: 1. Global Distribution: Code runs on Vercel's edge network, physically closer to the user. 2. Zero Cold Starts: Isolates spin up in milliseconds. 3. Stream Optimization: Edge runtimes are optimized for handling HTTP requests and streams natively, without the overhead of a full Node.js server.

By running the streaming logic on the Edge, we ensure that the "conveyor belt" starts moving almost instantly, reducing the time between the user's prompt and the first visible token.

The Data Flow: A Visual Representation

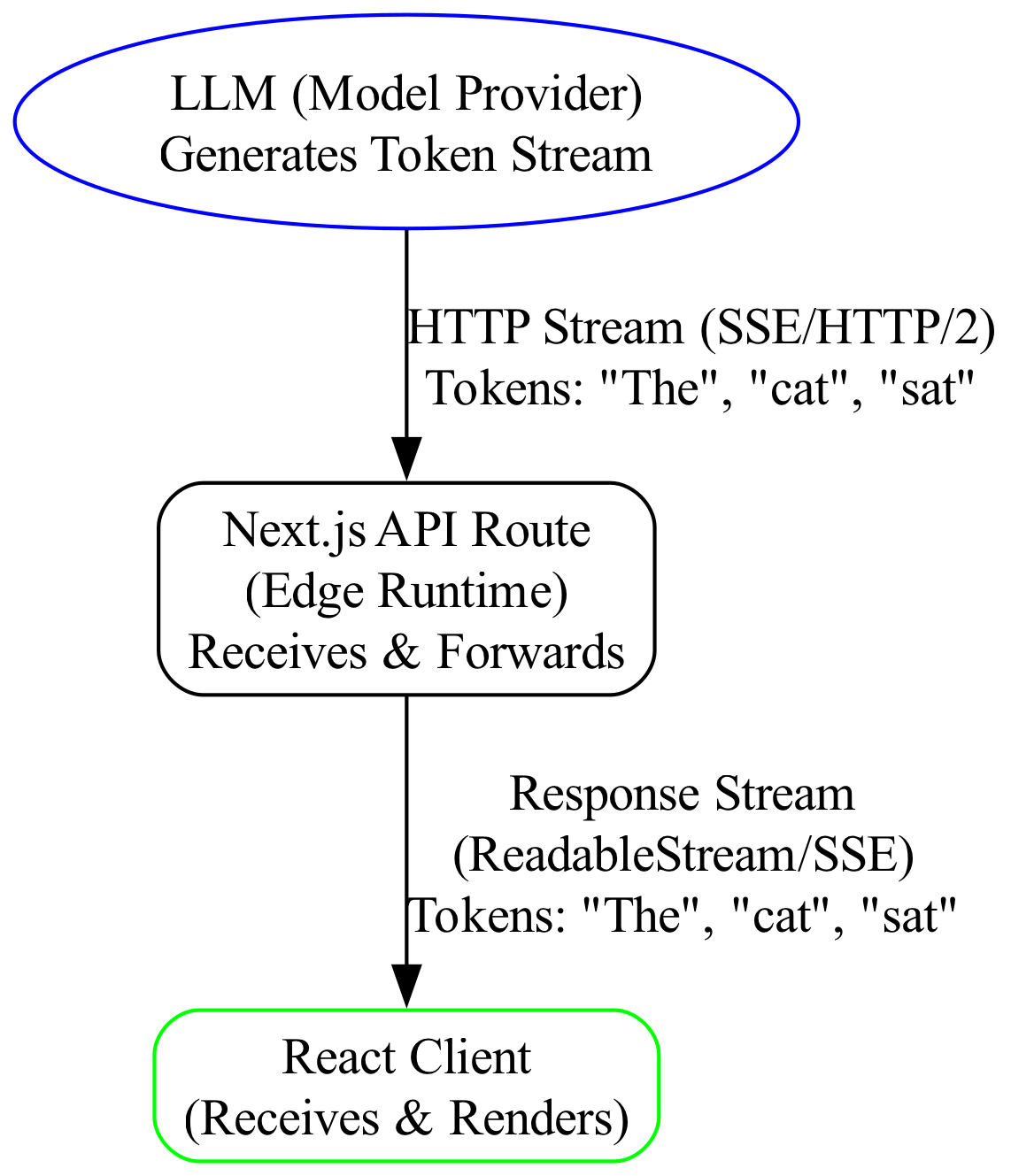

The following diagram illustrates the lifecycle of a streamed token. Note how the connection remains open until the generation is complete.

A diagram illustrating the lifecycle of a streamed token, showing how an open connection remains active from the start of generation until the final token is delivered.

### Handling Network Interruptions and Resilience

One of the theoretical challenges of streaming is **network instability**. In a standard request-response cycle, if the network fails, the request simply fails, and the user can retry. In a stream, the failure can happen halfway through the response.

The Vercel AI SDK and modern React Server Components (RSC) handle this through **Error Boundaries** and **Stream Hydration**.

1.  **Chunking:** Data is sent in discrete chunks. If the connection drops, the client retains the chunks received up to that point.
2.  **Reconnection Logic:** Advanced implementations can implement "resumable streams," where the client sends the ID of the last received token to the server, which then resumes generation from that point (though this is complex and often requires specific backend support).
3.  **UI Fallbacks:** While streaming, the UI must be robust enough to display partial content without breaking. React's concurrent features allow the UI to remain interactive even while the stream is populating data.

### Temperature's Role in Streaming

While **Temperature** (a hyperparameter controlling randomness) is a concept of the model itself, it significantly impacts the streaming UX.

*   **Low Temperature (e.g., 0.1):** The model outputs predictable, factual tokens. In a stream, this looks like a typewriter typing a pre-written document. The flow is steady and rhythmic.
*   **High Temperature (e.g., 0.9):** The model outputs creative, diverse tokens. In a stream, this might result in pauses as the model "thinks" of a more novel next token, or rapid bursts of creative phrasing.

Understanding this helps developers manage user expectations. A high-temperature stream might feel more "human" (with natural pauses) but can also feel less responsive if the model takes longer to compute complex creative paths.

### Theoretical Foundations

Streaming text responses transforms AI interactions from static data retrieval to dynamic conversations. By leveraging **SSE** or **Readable Streams** over an **Edge Runtime**, we minimize perceived latency. This approach mirrors the shift from monolithic software architectures to microservices—breaking down a large task into manageable, sequential events that provide immediate feedback to the user.


### Basic Code Example

This example demonstrates a minimal, self-contained Next.js 14+ application using the App Router. It showcases how to stream a text response from an AI model (simulated here to avoid external API keys) to the client using the `useChat` hook. The focus is on the immediate UX benefit: the user sees text appear character-by-character as it's generated, rather than waiting for the entire block of text.

We will build a simple SaaS-style chat interface where a user can click a button to trigger a "Hello World" AI response.

#### The Code

**File Structure:**

/app/ ├── page.tsx (Client Component - The UI) └── api/chat/route.ts (Server Route - The AI Logic)

**1. Server Route (`app/api/chat/route.ts`)**

This is the backend endpoint that the `useChat` hook communicates with. It simulates an AI model by streaming text chunks.

```typescript
// app/api/chat/route.ts
import { NextResponse } from 'next/server';

/**
 * Simulates an AI model by yielding chunks of text with a delay.
 * In a real application, this would be a call to an LLM like GPT-4.
 * @returns An AsyncGenerator that yields strings.
 */
async function* simulateAIModel(): AsyncGenerator<string, void, unknown> {
  const responseText = "Hello! This is a streamed response from the server. You should see these words appear one by one.";
  const words = responseText.split(' ');

  // Yield each word with a small delay to simulate network latency and token generation
  for (const word of words) {
    await new Promise(resolve => setTimeout(resolve, 50)); // 50ms delay
    yield word + ' ';
  }
}

/**
 * POST Handler: Handles the incoming chat request from the client.
 * It streams the response back using the Web Streams API.
 */
export async function POST(req: Request) {
  // 1. Create a ReadableStream to handle the async generator
  const stream = new ReadableStream({
    async start(controller) {
      try {
        // 2. Iterate over the simulated AI model chunks
        for await (const chunk of simulateAIModel()) {
          // 3. Encode the chunk into a Uint8Array and enqueue it to the stream
          const encodedChunk = new TextEncoder().encode(chunk);
          controller.enqueue(encodedChunk);
        }
        // 4. Close the stream when finished
        controller.close();
      } catch (error) {
        // Handle any errors during generation
        controller.error(error);
      }
    },
  });

  // 5. Return the stream with the correct content type for the Vercel AI SDK
  return new NextResponse(stream, {
    headers: {
      'Content-Type': 'text/plain; charset=utf-8',
      // 'Cache-Control': 'no-cache', // Optional: Prevents caching of the stream
    },
  });
}

2. Client Component (app/page.tsx)

This is the frontend UI. It uses the useChat hook to manage the conversation state and stream the response.

// app/page.tsx
'use client'; // This is a Client Component

import { useChat } from 'ai/react';

/**
 * The main page component for our chat interface.
 * It uses the `useChat` hook to manage message state and API communication.
 */
export default function ChatPage() {
  // Destructure properties from the useChat hook
  const { messages, input, handleInputChange, handleSubmit, isLoading, error } = useChat({
    api: '/api/chat', // Point to our custom API route
  });

  return (
    <div style={{ maxWidth: '600px', margin: '0 auto', padding: '20px', fontFamily: 'sans-serif' }}>
      <h1>Streaming Text Demo</h1>

      {/* Message Display Area */}
      <div style={{ border: '1px solid #ccc', minHeight: '300px', padding: '10px', marginBottom: '10px', borderRadius: '8px' }}>
        {messages.length > 0 ? (
          messages.map((message) => (
            <div key={message.id} style={{ marginBottom: '10px' }}>
              <strong>{message.role === 'user' ? 'You: ' : 'AI: '}</strong>
              <span>{message.content}</span>
            </div>
          ))
        ) : (
          <p style={{ color: '#888' }}>No messages yet. Click the button to start.</p>
        )}

        {/* Loading State Indicator */}
        {isLoading && (
          <div style={{ color: '#666', fontStyle: 'italic' }}>
            AI is thinking...
          </div>
        )}

        {/* Error State Display */}
        {error && (
          <div style={{ color: 'red', marginTop: '10px' }}>
            Error: {error.message}
          </div>
        )}
      </div>

      {/* Action Buttons */}
      <div style={{ display: 'flex', gap: '10px' }}>
        {/*
          We use a simple button instead of a form for this "Hello World" example
          to trigger a specific, pre-defined AI response.
        */}
        <button
          onClick={(e) => {
            e.preventDefault();
            // Manually trigger the API call with a user message
            handleSubmit({ preventDefault: () => {} } as any, {
              data: { message: "Tell me a simple fact." } // Mock data for the API
            });
          }}
          disabled={isLoading}
          style={{
            padding: '10px 20px',
            backgroundColor: isLoading ? '#ccc' : '#0070f3',
            color: 'white',
            border: 'none',
            borderRadius: '5px',
            cursor: isLoading ? 'not-allowed' : 'pointer'
          }}
        >
          {isLoading ? 'Streaming...' : 'Trigger AI Response'}
        </button>
      </div>
    </div>
  );
}

How It Works: A Step-by-Step Breakdown

The logic flows through three distinct stages: the Client Trigger, the Server Stream, and the Client Rendering.

This diagram visually maps the three-stage AI interaction flow—Client Trigger, Server Stream, and Client Rendering—demonstrating how a user action initiates a request that is processed and streamed back for real-time display.

Client Trigger (page.tsx):
- The user interacts with the UI. In our example, clicking the "Trigger AI Response" button calls the handleSubmit function provided by useChat.
- useChat automatically prevents the default form submission behavior and initiates a POST request to the specified API endpoint (/api/chat).
Server Processing (route.ts):
- The POST handler in route.ts receives the request.
- Instead of returning a standard JSON response, it creates a ReadableStream. This is a standard Web API for handling streaming data.
- Inside the stream's start method, we run our simulateAIModel generator. This async generator yields small pieces of text (words) with a delay, mimicking a real LLM's token-by-token generation.
- For each yield, the chunk is encoded into a Uint8Array (raw bytes) and controller.enqueue() adds it to the stream.
- Once the generator finishes, controller.close() signals the end of the stream.
Client Rendering (page.tsx):
- The useChat hook on the client side is listening to the incoming HTTP response stream.
- As chunks of data arrive from the server, useChat decodes them and updates its internal messages state array.
- Because React state updates are asynchronous and trigger re-renders, the messages.map() function in our JSX re-evaluates every time a new chunk is appended to the message content.
- This results in the visual effect of text "streaming" into the UI, providing immediate feedback to the user.

Common Pitfalls

When implementing streaming, especially with the Vercel AI SDK and Next.js, you may encounter several specific issues.

Missing 'use client' Directive
- Issue: The useChat hook is a client-side hook (it uses React state and browser APIs). If you forget to add 'use client'; at the very top of your page.tsx file, Next.js will treat it as a Server Component by default in the App Router.
- Symptom: A build error stating that a React hook cannot be called in a Server Component.
- Fix: Always add 'use client'; to any component file that uses hooks like useState, useEffect, or any ai/react hooks.
Server-Side Async/Await Mismanagement
- Issue: In the server route (route.ts), it's crucial to correctly handle asynchronous generators within the ReadableStream. A common mistake is not using for await...of or forgetting to await promises inside the generator.
- Symptom: The stream might close immediately, or the server might hang. The client receives an empty response or a timeout error.
- Fix: Ensure your generator function is async and that any delays or API calls inside it are properly awaited. The ReadableStream controller's enqueue and close methods must be called within the correct async scope.
Incorrect Content-Type Header
- Issue: The Vercel AI SDK's useChat hook expects a specific response format. While it can often auto-detect, it's best practice to be explicit. Returning a stream with an incorrect Content-Type (like application/json) can cause the client to fail to parse the stream.
- Symptom: The client receives a stream but useChat doesn't update the UI, or it throws a parsing error.
- Fix: In the NextResponse on the server, explicitly set the header: 'Content-Type': 'text/plain; charset=utf-8'. This tells the client to treat the incoming data as plain text chunks.
Vercel Serverless Function Timeouts
- Issue: Vercel's Serverless Functions have a default execution timeout (e.g., 10 seconds on the Hobby plan). If your AI model takes longer than this to generate a full response, the function will be terminated mid-stream.
- Symptom: The stream cuts off abruptly on the client side, and the UI might show an incomplete message or a network error.
- Fix: For long-running generations, consider using Vercel's "Edge Functions" which are designed for streaming and have different timeout characteristics, or optimize your model's generation speed. For this example, a short response avoids the issue.
State Management in Client Components
- Issue: While useChat manages its own state, developers sometimes try to manually manipulate the messages array while also using the hook's methods, leading to race conditions or stale UI.
- Symptom: Messages appearing out of order, duplicate entries, or the UI not updating correctly.
- Fix: Trust the useChat hook's state management. Use the messages array it provides for rendering. If you need to add custom logic, use the onFinish or onStreamUpdate callbacks provided by the hook's options, rather than directly mutating the state array.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
