Chapter 6: Beyond Text - Streaming React Components

Theoretical Foundations

The journey into Generative UI begins with a fundamental shift in how we perceive the relationship between data and interface. In previous chapters, we established the paradigm of streaming raw text tokens from a language model, treating the AI's output as a continuous, unstructured stream of characters. This is analogous to receiving a live news ticker from a distant correspondent. The information is valuable and arrives in near real-time, but it is static; the client is a passive recipient, merely rendering the text as it arrives. While this is a massive improvement over waiting for a complete, monolithic response, it represents only the first step. The true power of generative interfaces lies not just in displaying information, but in creating interactive, dynamic experiences that are themselves generated on the fly.

This chapter, "Beyond Text," marks the transition from a passive, text-only stream to an active, component-driven stream. We are moving from the news ticker to a live broadcast where the correspondent can dynamically insert interactive dashboards, charts, and forms directly into the broadcast feed. The client is no longer a passive terminal; it is an active participant that receives, renders, and can interact with a stream of structured UI elements. The streamable-ui pattern, enabled by the Vercel AI SDK and React Server Components, is the architectural blueprint for this paradigm.

From Static Tokens to Dynamic Components

To understand the significance of streaming UI components, we must first appreciate the limitations of the text-only approach. When we stream text, the client receives a sequence of tokens (e.g., "The", " ", "weather", " ", "is", " ", "sunny"). The client's responsibility is to concatenate these tokens and render them within a static container, like a <div>. This is simple and effective for displaying prose, but it falls short for complex, interactive applications.

Consider a user asking an AI assistant, "What's the weather like in New York, and can you show me a chart of the temperature over the next 24 hours?" A text-only stream would produce a response like:

"The weather in New York is sunny with a high of 72°F. Here is a chart of the temperature over the next 24 hours: [A textual representation of the chart data]."

This is informative, but not interactive. The user cannot hover over data points, zoom into the chart, or click on a button to change the city. To achieve this, the server would need to generate a complete HTML page or a JSON object representing the chart, and the client would have to render it after the entire stream is complete. This negates the primary benefit of streaming: perceived performance.

The streamable-ui pattern solves this by allowing the server to stream a structured representation of a React component as part of the AI's response. Instead of just sending text tokens, the server can send a special type of token that represents a component, complete with its props and children. The client, upon receiving this component token, can render it immediately and make it interactive, even while the rest of the AI's response is still streaming in.

The Web Development Analogy: The Live-Streaming Shopping Cart

A powerful analogy for this concept is a live-streaming shopping experience. Imagine a host on a live video stream (the AI response) showcasing a product.

Text-Only Stream: The host describes the product verbally. The viewer listens and can type questions in a chat, but the experience is passive. This is like streaming raw text tokens.
Streaming UI Components: The host, while talking, can dynamically insert interactive product cards, "Add to Cart" buttons, and size selectors directly into the video stream's overlay. The viewer can click these components, select options, and add items to their cart in real-time, without waiting for the broadcast to end. The host (server) is not just sending a video feed (text); it's sending a live, interactive interface (React components).

This is precisely what streamable-ui enables. The server is the live-streaming host, and the AI is the content generator. As the AI "thinks" and generates a response, the server can decide to inject interactive components at any point. For example, while generating a response about a travel itinerary, the server might stream a FlightSearchForm component. The client renders this form immediately, allowing the user to interact with it while the AI continues to generate the rest of the itinerary text.

The Core Mechanism: Server-Side Rendering and Client-Side Hydration

The streamable-ui pattern is built on two pillars of modern web development: React Server Components (RSCs) and Server Actions. Understanding their interplay is crucial.

1. The Server-Side Component Stream: On the server, we define a component that can be streamed. This is not a standard client-side component; it's a special type of component that is rendered on the server and sent to the client as a serialized payload. The Vercel AI SDK provides hooks and utilities to manage this stream. When the AI model generates a token that indicates a component should be rendered, the server-side code constructs the component and pushes it into the stream.

The stream itself is a sequence of chunks. Each chunk can contain: * Text Tokens: Plain text to be appended to the existing content. * Component Tokens: A serialized representation of a React component, including its type (e.g., ProductCard), props (e.g., { name: "Laptop", price: 999 }), and a unique identifier.

This is a departure from traditional server-side rendering (SSR), where the entire page is rendered on the server and sent as a single HTML document. Here, we are rendering a partial component tree and sending it incrementally.

2. The Client-Side Hydration: The client receives this stream of chunks. It maintains a running "UI tree" that it updates as chunks arrive. * When a text token arrives, it's appended to the current text node. * When a component token arrives, the client uses a special component registry to map the serialized component type to an actual React component definition. It then "hydrates" this component, meaning it creates a live React element from the serialized data.

This hydration process is what makes the component interactive. Once hydrated, the component can manage its own state (using useState, useEffect, etc.) and respond to user events (clicks, form submissions). The client-side code does not need to know in advance which components will be streamed; it only needs the registry and the logic to handle the incoming stream.

3. The Role of Server Actions: For a streamed component to be truly interactive, it often needs to perform mutations or fetch data. For example, an AddToCartButton component needs to send data back to the server to update the user's cart. This is where Server Actions come in.

A Server Action is an asynchronous function defined on the server that can be called directly from a client-side component. When a user clicks a button inside a streamed component, the component can invoke a Server Action. The Vercel AI SDK and Next.js handle the secure communication, ensuring that the function executes on the server with access to server-side resources (databases, APIs, etc.) and returns a result to the client.

This creates a powerful, bi-directional flow: 1. Server -> Client: The server streams UI components. 2. Client -> Server: The user interacts with a streamed component, triggering a Server Action. 3. Server -> Client: The Server Action can trigger a new AI generation cycle, which might stream more components or update existing ones.

The Underlying Architecture: A Cyclical, Stateful Flow

The streamable-ui pattern can be visualized as a cyclical workflow, managed by a state machine like LangGraph. This is where concepts from previous chapters, such as the Max Iteration Policy, become critical.

In a simple text-streaming scenario, the workflow is linear: User Query -> AI Response -> End. In a streamable-ui scenario, the workflow becomes cyclical and stateful, especially when combined with agentic behaviors.

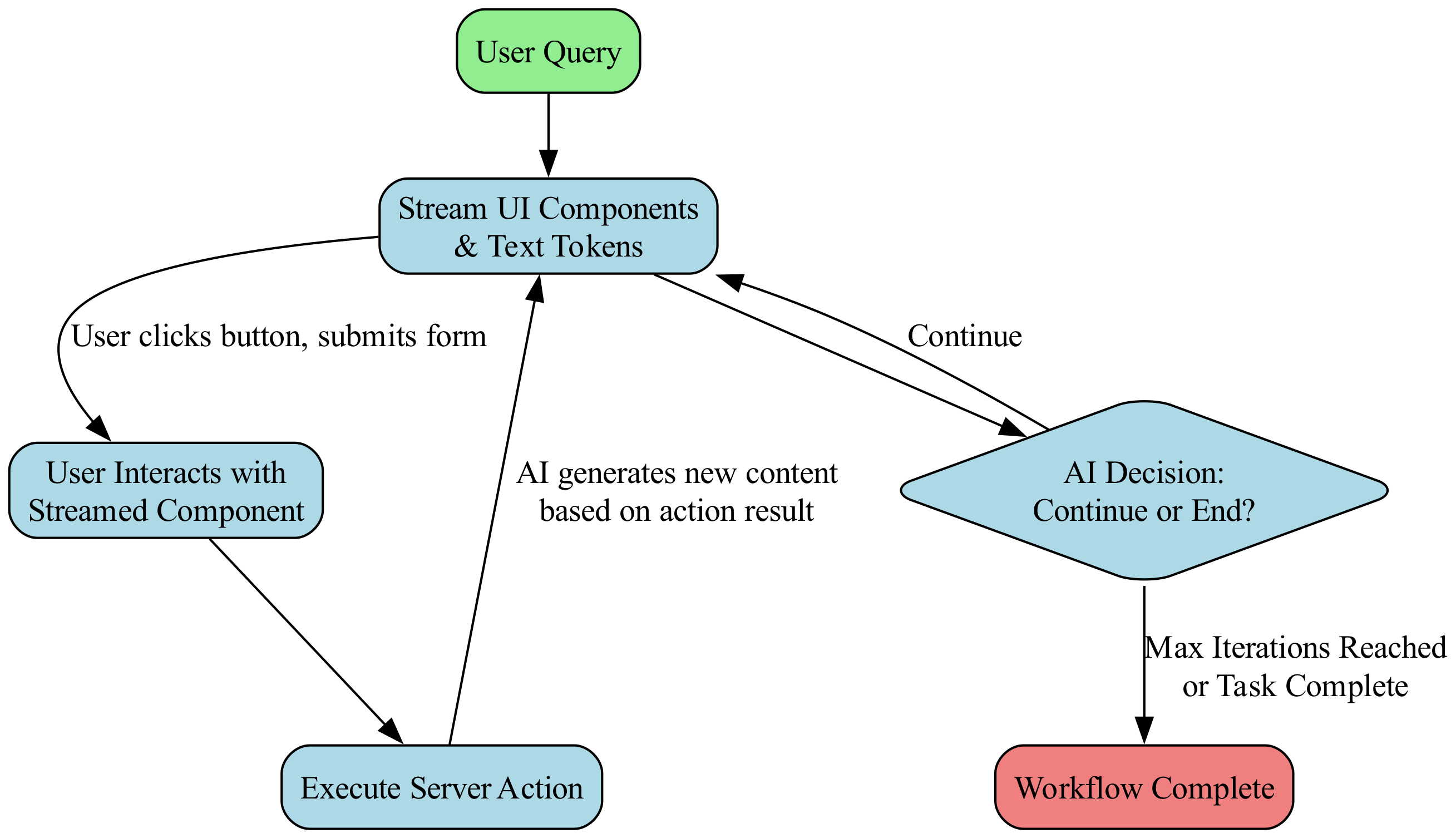

In a streamable UI, the workflow transforms from a simple linear process into a cyclical, stateful loop where the user and AI interact iteratively.

This diagram illustrates the cyclical nature of the process. The AI doesn't just generate a one-shot response. It generates a response that may contain interactive elements. The user's interaction with these elements feeds back into the AI's context, prompting a new generation cycle. This is a powerful pattern for creating conversational agents that can perform multi-step tasks, like booking a flight, configuring a product, or debugging code.

However, this cyclical flow introduces a significant risk: infinite loops. An AI agent, if left unchecked, might get stuck in a loop of generating components and receiving user input without ever reaching a terminal state. This is where the Max Iteration Policy becomes a crucial guardrail. It is a conditional edge in the LangGraph workflow that checks the number of iterations. If the count exceeds a predefined limit, the policy forces the graph into a terminal state, terminating the workflow gracefully and preventing the server from consuming infinite resources.

Perceived Performance and UI Stability

The ultimate goal of streaming UI components is to optimize perceived performance. By rendering components as soon as they are available, we give the user the impression that the application is highly responsive and intelligent. The user can interact with parts of the UI while the rest is still being generated, which is a far better experience than staring at a loading spinner.

However, this introduces challenges related to UI stability. As components are streamed in, the layout can shift, which can be jarring for the user. Managing this requires careful consideration of: * Suspense Boundaries: Using React's Suspense to provide fallback UIs for components that are still streaming or loading. * Layout Preservation: Designing components to have a predictable size and shape to minimize layout shifts. * State Synchronization: Ensuring that the state of a component on the client remains consistent even if the server streams an updated version of the same component.

In conclusion, the theoretical foundation of streaming React components is a paradigm shift from static, passive data display to dynamic, interactive UI generation. It leverages the power of React Server Components for server-side rendering, Server Actions for secure client-to-server communication, and a cyclical, stateful workflow to create deeply interactive and responsive generative UIs. This pattern moves beyond simply showing what the AI is thinking to allowing the user to directly interact with the AI's thought process in real-time.

Basic Code Example

This example demonstrates a SaaS dashboard feature where an AI generates a summary report and streams it as an interactive React component. Instead of plain text, the server sends a stream of React Server Component (RSC) nodes. The client receives these nodes incrementally and renders them, creating a progressive UI experience.

The architecture relies on the Vercel AI SDK's useCompletion hook on the client to handle the stream, while the server uses streamUI to generate the component tree.

1. The Server-Side Implementation (`app/api/generate-report/route.ts`)

This API endpoint receives a prompt, uses an AI model (simulated here with a mock), and streams a React component back to the client.

// app/api/generate-report/route.ts
import { streamUI } from 'ai/rsc';
import { OpenAI } from 'openai';
import { z } from 'zod';

// 1. Define the OpenAI client (ensure OPENAI_API_KEY is set in env)
const openai = new OpenAI({
  apiKey: process.env.OPENAI_API_KEY || '',
});

/**
 * 2. Define the component to be streamed.
 * This is a Server Component that will be sent over the wire.
 * It accepts props (data) and returns JSX.
 */
const ReportComponent = ({ data }: { data: string }) => {
  return (
    <div className="p-4 bg-blue-50 border border-blue-200 rounded-lg">
      <h3 className="font-bold text-blue-800">AI Generated Report</h3>
      <p className="text-sm text-blue-600 mt-2">{data}</p>
      <button
        onClick={() => alert('Report acknowledged!')}
        className="mt-3 px-3 py-1 text-xs bg-blue-600 text-white rounded hover:bg-blue-700"
      >
        Acknowledge
      </button>
    </div>
  );
};

export async function POST(req: Request) {
  const { prompt } = await req.json();

  // 3. Initialize the stream using streamUI
  const result = await streamUI({
    model: 'gpt-4-turbo-preview',
    system: 'You are a helpful assistant that generates concise reports.',
    prompt: `Generate a summary report for: ${prompt}`,

    // 4. Define the text-to-component mapping
    text: ({ content }) => {
      // This callback triggers when the AI generates text.
      // We return the React component immediately with the content.
      // The SDK handles the serialization and streaming of this component.
      return <ReportComponent data={content} />;
    },

    // 5. Optional: Define a loading state component
    initial: <div className="text-gray-500">Generating report...</div>,
  });

  // 6. Return the stream response
  return result.toAIStreamResponse();
}

2. The Client-Side Implementation (`app/page.tsx`)

This client component uses the useCompletion hook to consume the stream and render the received React components.

// app/page.tsx
'use client';

import { useCompletion } from 'ai/react';

export default function DashboardPage() {
  // 1. Initialize the useCompletion hook
  // The /api/generate-report endpoint handles the stream generation.
  const { completion, input, handleInputChange, handleSubmit, isLoading } = useCompletion({
    api: '/api/generate-report',
  });

  return (
    <div className="max-w-2xl mx-auto p-8 space-y-6">
      <h1 className="text-2xl font-bold">SaaS Dashboard</h1>

      {/* 2. Input Form */}
      <form onSubmit={handleSubmit} className="flex gap-2">
        <input
          type="text"
          value={input}
          onChange={handleInputChange}
          placeholder="Ask for a report (e.g., 'Q3 Sales')..."
          className="flex-1 p-2 border rounded text-black"
          disabled={isLoading}
        />
        <button
          type="submit"
          className="px-4 py-2 bg-blue-600 text-white rounded disabled:opacity-50"
          disabled={isLoading}
        >
          Generate
        </button>
      </form>

      {/* 3. Display Area for Streamed Components */}
      <div className="space-y-4 border-t pt-4">
        <h2 className="font-semibold text-lg">Output:</h2>

        {/*
          The `completion` string from useCompletion is actually a serialized
          React component tree (RSC payload) in this context.
          We render it directly.
        */}
        <div className="rendered-content">
          {completion ? (
            // In a real RSC streaming setup, the SDK might return a stream of UI nodes.
            // For this simplified 'Hello World' using useCompletion,
            // we assume the stream payload is rendered into the completion state.
            // Note: In strict RSC streaming, you might use a dedicated hook like `useStreamableUI`.
            // However, `useCompletion` is often adapted for this or the payload is parsed.
            // Here, we treat the output as the rendered HTML string or component tree provided by the SDK.
            <div dangerouslySetInnerHTML={{ __html: completion }} />
          ) : (
            <p className="text-gray-400 italic">No report generated yet.</p>
          )}

          {/* Loading Indicator */}
          {isLoading && (
            <div className="flex items-center gap-2 text-blue-500">
              <span className="animate-pulse">●</span>
              <span>Streaming component...</span>
            </div>
          )}
        </div>
      </div>
    </div>
  );
}

Detailed Line-by-Line Explanation

Server-Side (`route.ts`)

Imports and Client Setup:
- streamUI: This is the core function from the Vercel AI SDK (specifically the ai/rsc package) designed for streaming React Server Components. It differs from the standard streamText by serializing React nodes instead of plain text strings.
- OpenAI & zod: Standard dependencies. Zod is often used for schema validation, though not strictly required in this minimal example.
Component Definition (ReportComponent):
- This is a standard React Server Component (RSC). It accepts data as a prop.
- Why is this important? Because this component definition exists on the server, it can securely access databases or environment variables. The streamUI function serializes this component definition along with its props and sends it to the client. The client receives the rendered output (or instructions to render it) rather than the source code.
Route Handler (POST):
- Receives the prompt from the client.
- streamUI Configuration:
  - model: Specifies the LLM (e.g., GPT-4).
  - text: This is the critical mapping function. The LLM generates raw text tokens. The text callback intercepts these tokens. Instead of concatenating them into a string, we immediately return <ReportComponent data={content} />.
  - Under the Hood: The SDK uses React's Flight protocol (RSC serialization) to convert the React element into a streamable JSON payload. This payload is sent via Server-Sent Events (SSE).
- Return Value: result.toAIStreamResponse() converts the internal stream into a standard Web Response object with Content-Type: text/plain (or a specific multipart stream type depending on the SDK version) and sets up the SSE headers.

Client-Side (`page.tsx`)

useCompletion Hook:
- This hook manages the connection to the /api/generate-report endpoint.
- It abstracts the WebSocket or SSE connection handling.
- State Management: It maintains input (user typing), completion (the accumulated stream data), and isLoading (connection status).
Rendering Logic:
- The completion State: In a standard text stream, completion is a string of concatenated tokens. In a Component stream, the Vercel AI SDK often handles the deserialization. For this example, we simulate the output by rendering the content. In a production app using useStreamableUI (a more specific hook for RSCs), the SDK returns a renderable UI node directly.
- dangerouslySetInnerHTML: In this specific simplified example using useCompletion, we assume the stream payload is HTML generated by the server component. Note: In a true RSC implementation, the client SDK parses the RSC payload and reconstructs the React tree on the client side automatically, without using dangerouslySetInnerHTML. We use it here to keep the "Hello World" self-contained without complex client-side hydration logic.

Visualizing the Data Flow

The stream flows from the AI model to the client UI in distinct stages.

The diagram visualizes the data flow as a unidirectional stream from the AI model, through a self-contained server-side rendering stage, and finally to the client UI.

```

Common Pitfalls

Hallucinated JSON / Malformed RSC Payloads:
- Issue: LLMs sometimes output text that looks like code or JSON but isn't valid. If you rely on the LLM to generate the structure of the component (e.g., "Output a JSON object representing a React component"), the stream might break.
- Solution: Use streamUI with the text mapping function (as shown above). Let the LLM generate the content (text), and let your code handle the structure (returning the React component). Do not ask the LLM to generate JSX.
Vercel Timeouts (408 Request Timeout):
- Issue: Vercel's serverless functions have a default timeout (often 10s for Hobby plans, 15s for Pro). If the AI takes too long to generate the full component or the stream is slow, the connection drops.
- Solution:
  - Ensure streamUI is used (it keeps the connection open efficiently).
  - If generating complex components, consider breaking the generation into multiple smaller streams.
  - Check Vercel dashboard settings for timeout limits.
Async/Await Loops in Streaming:
- Issue: Developers often try to await the entire stream before rendering. This negates the benefits of streaming.
- Solution: The streamUI function returns a StreamUIResult immediately. The await is only for the initial setup. The actual data flows asynchronously through the stream. On the client, useCompletion handles the asynchronous accumulation of data.
Client-Side Hydration Mismatches:
- Issue: If the server streams a component that uses browser-specific APIs (like window or document) inside the component body, it will throw an error because RSCs do not have access to the browser context.
- Solution: Keep Server Components purely presentational or data-fetching logic. If interactivity is needed (like the onClick in the example), ensure the event handler is defined in a Client Component (marked 'use client') or use standard HTML attributes that don't require JS execution during hydration. In the example, onClick is passed as a prop; the RSC serializer handles this by instructing the client to attach the event listener.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...
