Chapter 8: Building Dynamic Dashboards with Natural Language

Theoretical Foundations

The core challenge in building dynamic dashboards with natural language is bridging the gap between unstructured human intent and structured data operations. A user might say, "Show me the sales trend for the last quarter," which is a conversational, ambiguous request. The system must translate this into a precise database query, execute it, and then render the result as a visualization. This process requires a sophisticated orchestration of language models, server-side execution, and reactive UI updates.

The Architecture of Intent: From Language to Logic

At the heart of this architecture lies the LLM as a reasoning engine. Unlike traditional user interfaces where buttons and dropdowns explicitly define the available actions, a natural language interface must infer the user's goal from free-form text. The LLM does not merely retrieve pre-written responses; it synthesizes a plan. It analyzes the user's query, identifies the required data, selects the appropriate visualization type, and formulates the necessary parameters for a database query.

This process is analogous to a microservice architecture. In a microservice system, a client request is routed to a specific service (e.g., UserService, OrderService) that handles a distinct domain. Similarly, in our generative UI system, the LLM acts as an orchestrator that routes the user's request to a specific "tool" or "action." For example, the request "Show sales by region" might be routed to a getSalesByRegion tool, which is essentially a server-side function responsible for querying the database. The LLM's role is not to execute the query itself but to determine which tool to invoke and what arguments to pass to it. This separation of concerns is critical: the LLM handles the fuzzy logic of intent recognition, while the server handles the deterministic execution of data fetching and security.

The Vercel AI SDK and the `useChat` Hook: The Conduit for Streaming

To implement this, we leverage the Vercel AI SDK, a library designed to simplify the integration of large language models into React applications. The SDK provides the useChat hook, which serves as the primary interface between the client and the AI model.

The useChat hook abstracts away the complexities of managing WebSocket connections or Server-Sent Events (SSE) for streaming responses. When a user submits a message, useChat sends the entire conversation history to an API route (typically /api/chat). This API route communicates with the LLM (e.g., GPT-4). The LLM's response is streamed back to the client in real-time. useChat captures this stream, updates the local message state, and triggers re-renders of the UI.

This streaming capability is the foundation of a Generative UI. The UI is not a static template filled with data; it is constructed dynamically as the AI generates it. The stream might contain plain text, but it can also contain structured data like JSON, which the client can then use to render components like charts or tables. This creates a fluid user experience where the dashboard appears to be "built" in response to the user's query, rather than simply displaying pre-loaded data.

JSON Schema Output: Enforcing Structure on Unstructured Generation

A fundamental problem with LLMs is their inherent non-determinism. If you ask an LLM to generate a database query, it might return a SQL string, a natural language explanation, or a JSON object with a different structure than your application expects. To build a reliable system, we need predictable output.

This is where JSON Schema Output becomes essential. When defining a "tool" for the AI to use, we can specify a strict JSON Schema that the model must adhere to for its arguments. For instance, if we have a tool named getSalesTrend, we can define its arguments as an object with startDate (string, format date), endDate (string, format date), and metric (string, enum: ['revenue', 'units']). The LLM is instructed to generate a JSON object that matches this schema.

Under the hood, the Vercel AI SDK uses libraries like Zod to define these schemas. When the LLM generates a response, the SDK validates it against the Zod schema. If the response is valid, it is parsed into a typed JavaScript object. If it is invalid, the SDK can handle the error gracefully, perhaps by asking the user to clarify their request. This validation step is a critical safety net. It prevents malformed data from reaching the database layer and ensures that the application logic receives data in the exact format it expects, enabling type-safe operations and reliable rendering.

React Server Components (RSC): Secure and Optimized Data Fetching

While useChat handles the client-side UI updates, the actual data fetching and complex reasoning should occur on the server. This is where React Server Components (RSC) come into play.

In a traditional client-side application, fetching data requires an API call from the client to a server, which then queries the database. This introduces latency and exposes database logic to the client. With RSC, we can write components that are rendered exclusively on the server. These components can directly access backend resources like databases, file systems, or internal APIs without exposing them to the client.

In our dashboard scenario, the flow is as follows: 1. The client sends the user's message to an API route. 2. The API route communicates with the LLM. The LLM decides to call a tool (e.g., getSalesByRegion). 3. The tool is executed on the server. It queries the database and retrieves the raw data. 4. Instead of sending the raw data back to the client for rendering, we can render a React Server Component (e.g., <SalesChart data={rawData} />) on the server. 5. The server sends the rendered UI (or a reference to it) back to the client as part of the streaming response.

This approach is incredibly powerful for dashboards because: * Security: Database credentials and complex query logic never leave the server. * Performance: Data fetching happens close to the data source, reducing network latency. The server can also perform data aggregation and transformation before sending the result. * Optimization: RSCs are automatically optimized. They do not cause client-side re-renders for data fetching. The client only receives the final UI fragment, which is lightweight and efficient to render.

The Complete Flow: A Visual Representation

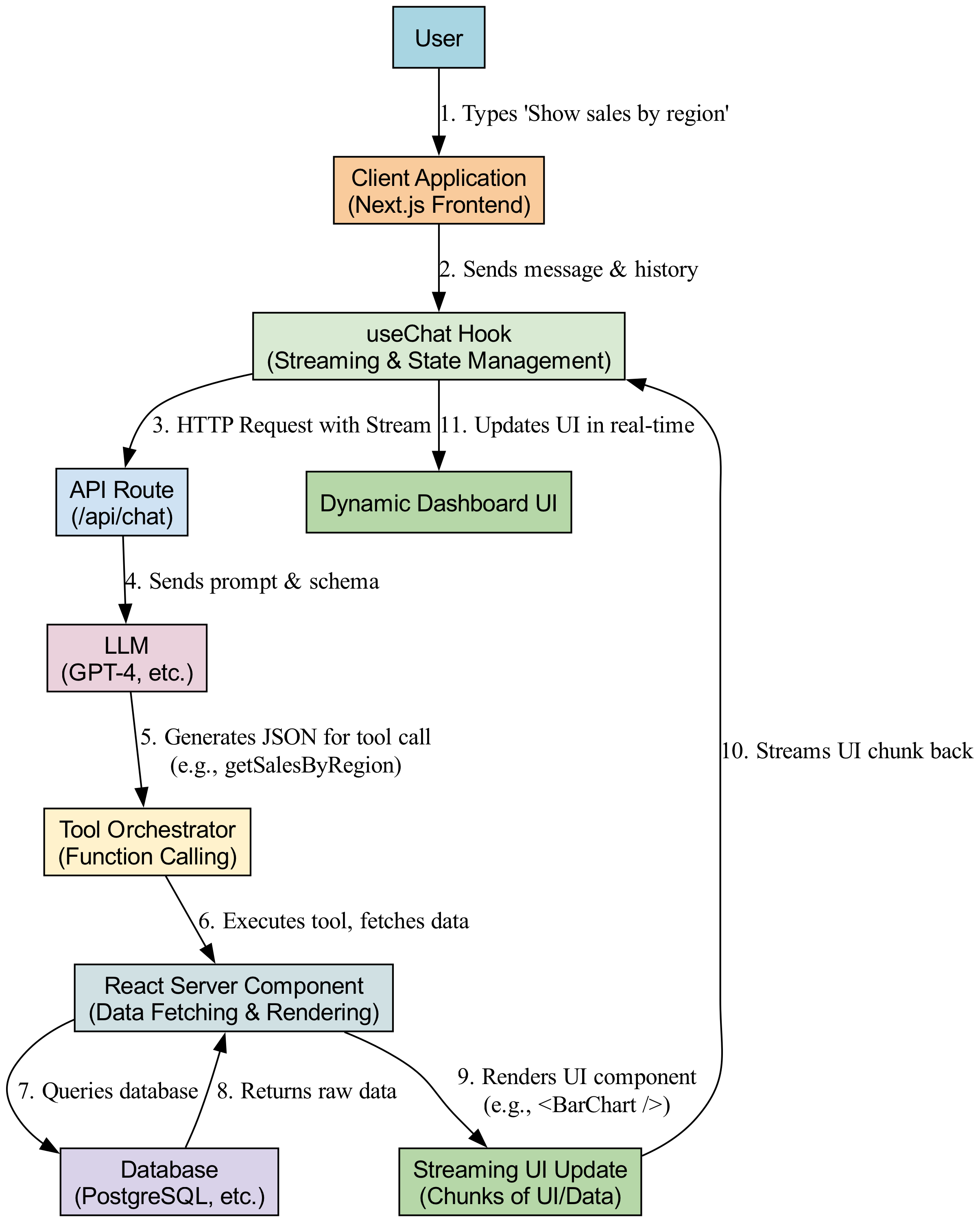

The entire process can be visualized as a pipeline where intent is transformed into a visual representation through a series of secure, server-side steps.

A diagram illustrating a secure pipeline where user intent is transformed into a final, lightweight UI fragment through a series of server-side steps, emphasizing efficiency and security.

The "Why": The Paradigm Shift from Static to Generative UI

The traditional dashboard paradigm is static: a developer pre-defines a set of charts and filters. The user interacts with these pre-built elements. This is limiting. It assumes the user knows exactly what data they need and how to visualize it.

The generative UI paradigm, powered by the concepts above, represents a fundamental shift. The dashboard is no longer a fixed artifact but a dynamic, conversational interface. The user describes their intent, and the system generates the appropriate visualization on the fly.

Why is this better? It democratizes data access. A non-technical user doesn't need to know how to write SQL or configure a chart. They can simply ask a question in plain language.
Why is this complex? It requires a robust system that can reliably interpret intent, execute secure operations, and render UI components dynamically. The integration of LLMs, server-side execution (RSC), and streaming (useChat) is necessary to make this work efficiently and securely.

By combining these technologies, we move beyond simple chatbots and into the realm of intelligent, interactive applications where the UI itself is a function of the user's conversation. This is the essence of building dynamic dashboards with natural language.

Basic Code Example

This example demonstrates a minimal, self-contained SaaS dashboard component. A user types a natural language query (e.g., "Show me sales for January"), which is sent to a Server Action. The Server Action uses the Vercel AI SDK to generate a structured data query, executes it, and streams the resulting UI (a chart) back to the client using React Server Components.

We will implement Exhaustive Asynchronous Resilience to ensure that database connections and AI generation do not crash the application, and we will use useTransition to keep the UI responsive during the data fetching process.

The Architecture

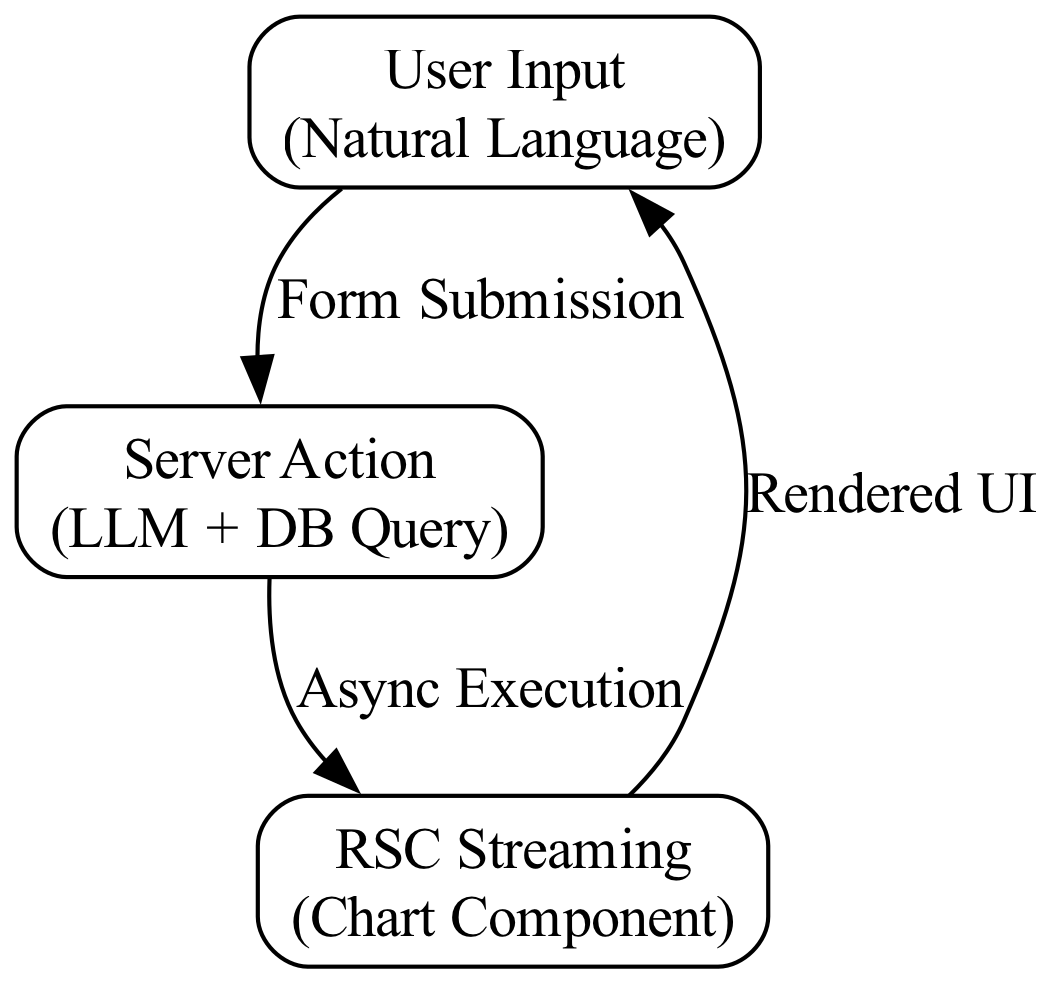

The flow involves three distinct stages: 1. Client Intent: The user inputs a request. 2. Server Processing: The Server Action parses the intent, generates a query, and fetches data. 3. UI Streaming: The server returns a React Component (RSC) which is rendered on the client.

The server streams a React Server Component (RSC) directly to the client, where it is progressively rendered into the user interface.

The Code

'use client';

import React, { useState, useTransition } from 'react';

// ==========================================
// 1. CLIENT COMPONENT (Dashboard.tsx)
// ==========================================
// This component handles user input and manages the pending state
// using React.useTransition to prevent UI blocking.

export default function Dashboard() {
  const [input, setInput] = useState('');
  // useTransition allows us to mark state updates as non-urgent.
  // This keeps the input field responsive while the server processes the request.
  const [isPending, startTransition] = useTransition();
  const [renderedComponent, setRenderedComponent] = useState<React.ReactNode>(null);

  /**
   * Handles the form submission.
   * Wraps the server action in a transition to handle async state.
   */
  const handleSubmit = (e: React.FormEvent) => {
    e.preventDefault();
    if (!input.trim()) return;

    // Start the transition
    startTransition(async () => {
      try {
        // Import the server action dynamically to ensure it runs on the server
        const { generateDashboard } = await import('./actions');

        // Execute the server action
        const result = await generateDashboard(input);

        // The result is a serialized RSC payload.
        // In a real app, you'd use a hydration method, but for this
        // example, we assume a component is returned or we simulate it.
        setRenderedComponent(result);
      } catch (error) {
        console.error('Client Error:', error);
        alert('An error occurred while processing your request.');
      }
    });
  };

  return (
    <div style={{ padding: '20px', fontFamily: 'sans-serif' }}>
      <h1>Natural Language Dashboard</h1>

      <form onSubmit={handleSubmit}>
        <input
          type="text"
          value={input}
          onChange={(e) => setInput(e.target.value)}
          placeholder="Ask for data (e.g., 'Sales by region')"
          disabled={isPending}
          style={{ width: '300px', padding: '8px', marginRight: '10px' }}
        />
        <button type="submit" disabled={isPending}>
          {isPending ? 'Thinking...' : 'Analyze'}
        </button>
      </form>

      <div style={{ marginTop: '20px', border: '1px solid #ddd', padding: '20px' }}>
        {isPending ? <div>Loading visualization...</div> : renderedComponent}
      </div>
    </div>
  );
}

// ==========================================
// 2. SERVER ACTION (actions.ts)
// ==========================================
// This file runs exclusively on the server. It handles the LLM call
// and database query with Exhaustive Asynchronous Resilience.

'use server';

import { generateObject } from 'ai'; // Vercel AI SDK
import { z } from 'zod';
import { openai } from '@ai-sdk/openai';

// Mock Database Connection
// In a real app, this would be Prisma, Drizzle, or a direct SQL client.
const mockDb = {
  query: async (sql: string): Promise<Array<{ category: string; value: number }>> => {
    // Simulate network latency
    await new Promise(resolve => setTimeout(resolve, 500));

    // Mock data response
    return [
      { category: 'Electronics', value: 1200 },
      { category: 'Clothing', value: 850 },
      { category: 'Home', value: 430 },
    ];
  }
};

/**
 * Schema for the structured output expected from the LLM.
 * This ensures the AI returns valid JSON matching our database query structure.
 */
const QuerySchema = z.object({
  metric: z.string().describe('The metric to analyze (e.g., sales, users, revenue)'),
  dimension: z.string().describe('The grouping dimension (e.g., region, category, date)'),
});

/**
 * Server Action: Generates a dashboard based on natural language input.
 *
 * 1. Parses intent using LLM.
 * 2. Generates SQL/Query.
 * 3. Fetches Data.
 * 4. Returns a React Component (RSC).
 */
export async function generateDashboard(userPrompt: string) {
  // ---------------------------------------------------------
  // RESILIENCE PATTERN: Try/Catch/Finally
  // ---------------------------------------------------------
  try {
    // 1. INTENT PARSING (LLM Call)
    // We use 'generateObject' to force the LLM into our schema.
    const { object } = await generateObject({
      model: openai('gpt-4o-mini'),
      schema: QuerySchema,
      prompt: `Analyze the user request and determine the metric and dimension for a chart.
      User Request: "${userPrompt}"

      Available Metrics: sales, revenue, users.
      Available Dimensions: region, category, date.`,
    });

    // 2. QUERY GENERATION & EXECUTION
    // Construct a safe query based on LLM output.
    // Note: In production, validate 'object.dimension' against a whitelist to prevent SQL injection.
    const sql = `SELECT ${object.dimension}, SUM(${object.metric}) as value FROM data GROUP BY ${object.dimension}`;

    // Execute query with resilience
    const data = await mockDb.query(sql);

    // 3. UI GENERATION (RSC)
    // Since we are in a 'use server' file, we can import React components
    // and return them directly to the client.
    const { DataChart } = await import('./DataChart');

    // Return the component instance (RSC payload)
    return <DataChart title={`${object.metric} by ${object.dimension}`} data={data} />;

  } catch (error) {
    // ---------------------------------------------------------
    // ERROR HANDLING
    // ---------------------------------------------------------
    console.error('Server Action Error:', error);

    // Return a fallback UI component or throw to trigger error boundary
    return (
      <div style={{ color: 'red' }}>
        <strong>System Error:</strong> Failed to generate dashboard. Please try rephrasing your request.
      </div>
    );
  } finally {
    // ---------------------------------------------------------
    // RESOURCE CLEANUP
    // ---------------------------------------------------------
    // Close database connections, flush logs, etc.
    // Even if the query fails, this block executes.
    console.log('Transaction completed for prompt:', userPrompt.substring(0, 20) + '...');
  }
}

// ==========================================
// 3. SERVER COMPONENT (DataChart.tsx)
// ==========================================
// This component renders entirely on the server.
// It receives data as props and returns pure HTML/JSX.

import React from 'react';

interface DataChartProps {
  title: string;
  data: Array<{ category: string; value: number }>;
}

/**
 * A server-side chart component that renders data as a simple bar chart.
 * No client-side interactivity is required for this visualization.
 */
export function DataChart({ title, data }: DataChartProps) {
  // Calculate max value for scaling
  const maxValue = Math.max(...data.map((d) => d.value));

  return (
    <div style={{ padding: '10px' }}>
      <h3 style={{ marginBottom: '15px', borderBottom: '1px solid #eee' }}>
        {title}
      </h3>
      <div style={{ display: 'flex', alignItems: 'flex-end', gap: '10px', height: '150px' }}>
        {data.map((item, index) => {
          const height = (item.value / maxValue) * 100;
          return (
            <div
              key={index}
              style={{
                display: 'flex',
                flexDirection: 'column',
                alignItems: 'center',
                flex: 1,
              }}
            >
              <div
                style={{
                  width: '100%',
                  height: `${height}%`,
                  backgroundColor: '#3b82f6',
                  borderRadius: '4px 4px 0 0',
                  transition: 'height 0.3s ease',
                }}
              />
              <span style={{ fontSize: '12px', marginTop: '5px' }}>
                {item.category}
              </span>
              <span style={{ fontSize: '10px', color: '#666' }}>
                {item.value}
              </span>
            </div>
          );
        })}
      </div>
    </div>
  );
}

Line-by-Line Explanation

1. Client Component (`Dashboard.tsx`)

'use client';: Directive for Next.js/React to mark this as a Client Component, allowing the use of hooks (useState, useTransition) and event listeners.
const [isPending, startTransition] = useTransition();: This is the key to React useTransition.
- isPending: A boolean that becomes true immediately when the transition starts and false when it finishes. We use this to disable the input and show a loading state.
- startTransition: A wrapper function. It tells React that the code inside the callback (the server action call) is low-priority and shouldn't block typing or clicking.
startTransition(async () => { ... }): We wrap the asynchronous logic here.
const { generateDashboard } = await import('./actions');: We dynamically import the server action. This is a best practice in Next.js App Router to ensure the server code is tree-shaken and only loaded when needed on the client.
setRenderedComponent(result);: The server action returns a React Node (an RSC payload). We store this in state. In a real Next.js app, the result is automatically hydrated by the framework, but here we simulate the state update.

2. Server Action (`actions.ts`)

'use server';: Directive that marks this file (or function) as executable only on the server. This keeps API keys (like OpenAI) and database credentials secure.
generateObject (Vercel AI SDK): This function takes a schema (Zod) and a prompt. It forces the LLM to output structured JSON that matches the schema, reducing the risk of hallucinations.
- Why Zod? It validates the AI's response at runtime. If the AI returns garbage data, Zod throws an error, which is caught by our resilience block.
try { ... } catch (error) { ... } finally { ... }: This implements Exhaustive Asynchronous Resilience.
- try: Contains the critical path (AI call, DB query). If any await fails here, execution jumps to catch.
- catch: Handles failures gracefully. Instead of crashing the Node.js process, we return a user-friendly error UI component.
- finally: Guaranteed to run. Used here for logging and would be used for closing database connection pools in a real app.
await mockDb.query(sql): Simulates an asynchronous database call. We await this to ensure we have data before generating the UI.
return <DataChart ... />: This is the magic of React Server Components. We are returning JSX directly from a server function. This JSX is serialized and streamed to the client without needing a client-side bundle for the chart logic.

3. Server Component (`DataChart.tsx`)

No 'use client': By default, this is a Server Component. It has zero client-side JavaScript bundle size.
const maxValue = ...: All logic here runs on the server. We calculate the max value to scale the bar heights before sending the HTML to the browser.
Rendering: It maps over the data array and returns standard HTML div elements with inline styles. The browser receives pure HTML, which is extremely fast to paint.

Common Pitfalls

Vercel/AI SDK Timeouts (Stream Closures)
- Issue: Server Actions have a strict execution timeout (often 10s on Vercel's Hobby plan). LLM calls can be slow.
- Symptom: The request fails with a generic timeout error, leaving the UI in a stuck isPending state.
- Fix: Use streamText instead of generateObject if the response is long, or ensure the LLM call is optimized with low latency. For long-running tasks, offload to a background job (e.g., Vercel Cron) and use polling on the client.
Async/Await Loops in Server Components
- Issue: Trying to use await directly inside the render body of a Server Component (without a Suspense boundary).
- Symptom: The entire page blocks rendering until the data is fetched, causing a "white screen" flash.
- Fix: Always wrap async Server Components or data fetching in <Suspense fallback={<Loading />}>. This streams the fallback UI immediately while the data loads in the background.
Hallucinated JSON / Schema Mismatch
- Issue: The LLM returns a JSON object that looks correct but has a typo in a key name (e.g., revenu instead of revenue).
- Symptom: Your database query fails or returns undefined.
- Fix: Strict Zod schemas (as shown in the code) are mandatory. If the schema validation fails, the generateObject function will throw an error, which our try/catch block catches. Never trust LLM output without validation.
Client-Side Hydration Errors
- Issue: Returning a Server Component that relies on browser-specific APIs (like window or localStorage) inside the server action.
- Symptom: "ReferenceError: window is not defined" in the console, or a hydration mismatch crash.
- Fix: Keep Server Components pure. If you need browser logic, return a Client Component from the server action or pass data via props to a Client Component that handles the browser API usage.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
