Chapter 10: Interactive Components within Chat Streams

Theoretical Foundations

In the foundational chapters of this book, we established the power of streaming responses from Large Language Models (LLMs) to create a perception of real-time responsiveness. We saw how text tokens are emitted, processed, and rendered incrementally, providing users with immediate feedback. However, these streams were fundamentally static—once a token was emitted, it was immutable text. The user could read it, but they could not interact with it. This limitation restricts the conversational experience to a monologue, where the AI speaks and the user listens.

Interactive Components within Chat Streams represent a paradigm shift from this static model. Instead of streaming plain text tokens, we stream serialized component definitions. This allows the AI to embed fully functional, stateful UI elements—such as forms, buttons, sliders, or data visualizations—directly into the conversation flow. The user is no longer a passive observer but an active participant who can manipulate the state of the UI embedded within the chat history.

To understand this shift, consider the difference between a printed report and a live dashboard. A printed report is static; once printed, the data is fixed. A live dashboard, however, allows the user to filter, sort, and interact with the data in real-time. Interactive chat streams transform the chat interface from a printed report into a live dashboard.

The Hydration Problem and the Role of `render`

The primary technical challenge in embedding UI components into a stream is hydration. In standard React applications, the server sends a static HTML structure to the client. The client then "hydrates" this structure by attaching event listeners and state management, turning the static markup into a living application.

When an LLM generates a response, it generates text. If that text represents a UI component (e.g., a string of JSX), the client receives a description of a component, not the component itself. It lacks the necessary context, state, and event handlers to function. This is the hydration problem in the context of streaming AI responses.

The Vercel AI SDK's render function solves this by treating the stream not as a sequence of text tokens, but as a sequence of component serializations. When the LLM decides to include an interactive component, it doesn't output raw HTML. Instead, it outputs a structured representation of that component, including its initial props and a unique identifier. The client-side SDK then takes this serialized data and "hydrates" it into a fully functional React component, complete with its own state and event handlers.

Analogy: The Restaurant Order Imagine ordering a meal. * Static Stream: The waiter reads out the menu items one by one. You hear the description, but you cannot change the ingredients or customize the dish. * Interactive Stream: The waiter brings a tablet with a dynamic menu. You can tap on a dish to see a 3D model, adjust the spice level with a slider, and select dietary options with checkboxes. The tablet is the interactive component embedded in the conversation.

React Server Components (RSC) and Secure Logic

The integration of Interactive Components is deeply intertwined with React Server Components (RSC). RSCs allow us to render components exclusively on the server, sending only the necessary UI output to the client. This is crucial for two reasons:

Security: Sensitive logic, such as database queries or API calls, never leaves the server. When an interactive component needs to fetch data (e.g., a user profile card), the RSC handles this securely.
Performance: The client receives a pre-rendered component, reducing the JavaScript bundle size and improving initial load times.

In the context of interactive streams, RSCs act as the server-side controller for the component. When a user interacts with a component (e.g., clicks a button), the event is sent back to the server. The server processes the event, updates the state, and re-renders the component using RSC. The updated component is then streamed back to the client, replacing the previous version.

Analogy: The Restaurant Kitchen Think of the server as the kitchen and the client as the dining table. * Traditional Client-Side Rendering (CSR): The kitchen sends raw ingredients (JavaScript code) to the table, and the diner (client) assembles the meal (UI). This is heavy and requires the diner to know how to cook. * React Server Components (RSC): The kitchen prepares the entire dish (UI) and sends it ready-to-eat. The diner only needs to add condiments (interactivity). * Interactive Streams: The kitchen sends a dish with a built-in interactive element, like a self-heating plate. The diner can adjust the temperature (interact), and the kitchen monitors and adjusts the heat remotely (server-side logic).

State Management and Consistency

Managing state across a streaming conversation is complex. When a user interacts with a component embedded in the middle of a chat history, how do we ensure that the state is consistent and that the component updates correctly without disrupting the rest of the conversation?

The solution lies in scoped state management. Each interactive component is treated as an isolated island of state. The chat stream maintains a global timeline of messages, but each component has its own local state tree. When a component updates, only that specific component re-renders and re-streams its updated UI fragment. The rest of the chat history remains untouched.

This is analogous to a version control system like Git. The chat history is the main branch, and each interactive component is a feature branch. When you make changes to a feature branch (interact with the component), you don't alter the main branch until you merge (stream the update back). This ensures that the conversation flow remains linear and consistent, even as individual components evolve dynamically.

Architectural Flow

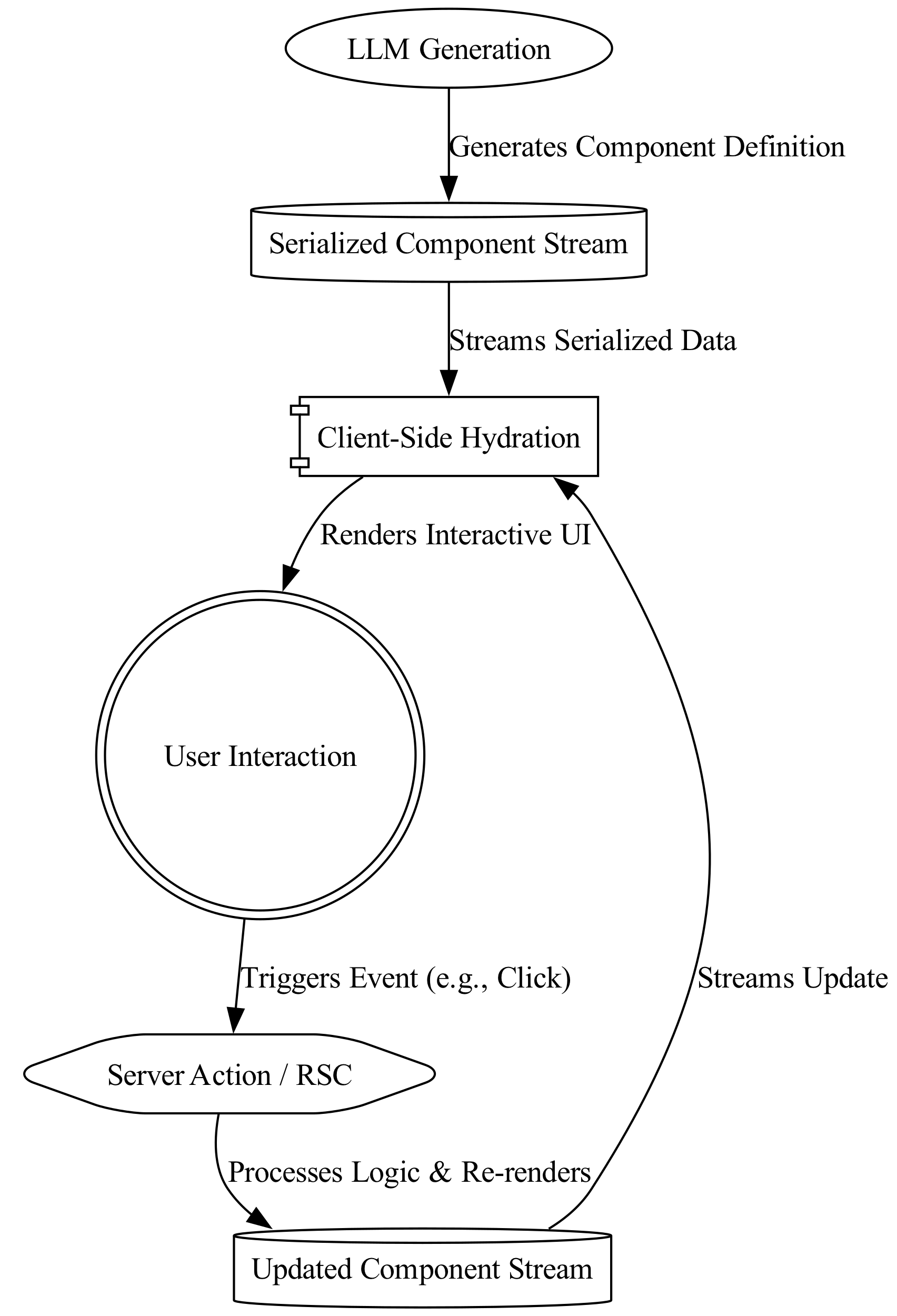

The following diagram illustrates the lifecycle of an interactive component within a chat stream:

A feature branch acts as a sandboxed environment where users can interact with and modify a component without affecting the main conversation thread, ensuring linear consistency until the changes are merged back into the stream.

Generation: The LLM decides to include an interactive component and outputs a serialized definition (e.g., a JSON object describing a form).
Streaming: This definition is streamed to the client as part of the larger chat response.
Hydration: The client-side SDK receives the stream, identifies the component definition, and hydrates it into a live React component using the render function.
Interaction: The user interacts with the component (e.g., submits a form). This triggers a client-side event.
Server Action: The event is sent to the server via a Server Action. This is a secure, type-safe function that executes on the server. It receives the current state of the component and the user's input.
Processing: The Server Action processes the input, performs necessary computations (e.g., database queries, API calls), and generates a new component state.
Re-rendering: The server re-renders the component with the new state using RSC and streams the updated component definition back to the client.
Update: The client receives the updated stream and replaces the old component with the new one, preserving the conversation context.

The Role of Server Actions

Server Actions are the glue that binds the interactive component to the server-side logic. They provide a robust mechanism for handling mutations without exposing sensitive code to the client. In the context of interactive streams, Server Actions are invoked when a user interacts with a component.

Analogy: The Bank Teller Imagine you are at a bank (the chat interface) and you want to transfer money (interact with a component). * Client-Side Logic: You fill out a form on your phone (client-side validation). * Server Action: You hit "Submit." The request is sent to the bank's secure server (Server Action). The server verifies your identity, checks your balance, and processes the transfer. * Response: The server sends back a confirmation message (updated component stream) to your phone.

This separation ensures that sensitive operations (money transfer) are handled securely on the server, while the user experience remains smooth and interactive on the client.

Conclusion

Interactive Components within Chat Streams represent the next evolution in conversational AI interfaces. By leveraging the Vercel AI SDK's render function, React Server Components, and Server Actions, we can create rich, dynamic experiences where users can manipulate stateful UI elements directly within the conversation flow. This transforms the chat interface from a passive text-based medium into an active, interactive dashboard, enabling more complex and useful applications of generative AI.

In the following sections, we will dive into the implementation details, exploring how to structure these components, handle state management, and ensure a seamless user experience. We will build upon the concepts introduced here, moving from theory to practice.

Basic Code Example

This example demonstrates a SaaS-style feature where a user can request a "summary dashboard" from an AI. The AI stream will include a fully interactive counter component that allows the user to adjust a numeric value (e.g., "Estimated Users") directly within the chat interface. We will use the Vercel AI SDK's render function to stream this component as a first-class React element, maintaining state and event handling on the client side while the parent stream remains active.

The Architecture

The solution relies on the separation of concerns: 1. Server Component (The Stream Producer): Fetches initial data and defines the stream structure. 2. Server Action (The Mutation): Handles the logic when the user interacts with the component (e.g., incrementing the counter). 3. Client Component (The Interactive UI): The actual UI element that renders inside the stream and manages local state.

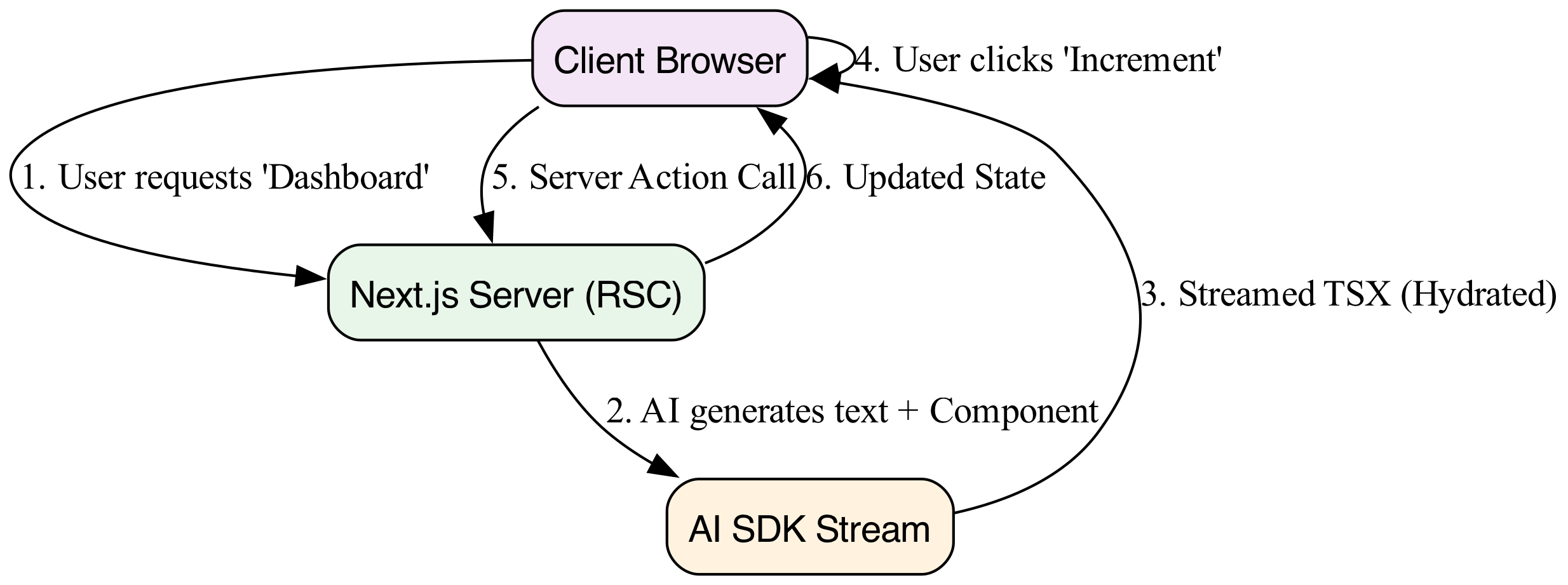

This caption describes a client component as the interactive UI element that renders within a stream and manages local state.

Implementation

This code is a self-contained Next.js App Router file (app/page.tsx). It assumes the Vercel AI SDK (@ai-sdk/react, @ai-sdk/ui-utils) and zod are installed.

'use client';

import { useChat } from '@ai-sdk/react';
import { StreamableValue, readStreamableValue } from 'ai';
import { useState } from 'react';

// -----------------------------------------------------------------------------
// 1. Client-Side Interactive Component (The "Interactive" Part)
// -----------------------------------------------------------------------------
/**
 * @description A simple counter component that runs on the client.
 * It receives a `value` and an `onIncrement` callback to communicate
 * with the server.
 * @param {Object} props
 * @param {number} props.initialValue - The starting number.
 * @param {function} props.onIncrement - Callback to trigger server action.
 */
function InteractiveCounter({
  initialValue,
  onIncrement,
}: {
  initialValue: number;
  onIncrement: () => void;
}) {
  // We maintain local state for immediate UI feedback (Optimistic UI)
  const [count, setCount] = useState(initialValue);

  const handleClick = () => {
    // Update local state immediately for responsiveness
    setCount((prev) => prev + 1);
    // Trigger the server action to persist the change
    onIncrement();
  };

  return (
    <div style={{
      border: '1px solid #e2e8f0',
      padding: '12px',
      borderRadius: '8px',
      margin: '10px 0',
      backgroundColor: '#f8fafc'
    }}>
      <strong>Estimated Users:</strong>
      <div style={{ fontSize: '24px', margin: '8px 0' }}>{count}</div>
      <button
        onClick={handleClick}
        style={{
          padding: '6px 12px',
          backgroundColor: '#3b82f6',
          color: 'white',
          border: 'none',
          borderRadius: '4px',
          cursor: 'pointer'
        }}
      >
        + Increment
      </button>
    </div>
  );
}

// -----------------------------------------------------------------------------
// 2. Main Chat Interface
// -----------------------------------------------------------------------------
/**
 * @description The primary component handling the chat stream.
 * It intercepts the stream, identifies the embedded component instruction,
 * and renders the `InteractiveCounter` in place of the stream token.
 */
export default function InteractiveStreamPage() {
  const { messages, input, handleSubmit, isLoading, error } = useChat({
    // The API endpoint that generates the stream
    api: '/api/chat',
  });

  return (
    <div style={{ maxWidth: '600px', margin: '0 auto', padding: '20px' }}>
      <h1>SaaS Dashboard Generator</h1>

      {/* Message List */}
      <div>
        {messages.map((message) => (
          <div key={message.id} style={{ marginBottom: '12px' }}>
            <strong>{message.role === 'user' ? 'You: ' : 'AI: '}</strong>

            {/*
              The Vercel AI SDK `useChat` hook returns a structured message object.
              The `content` property contains the streamed text and component placeholders.
            */}
            <div>
              {message.content}
            </div>
          </div>
        ))}
      </div>

      {/* Input Form */}
      <form onSubmit={handleSubmit} style={{ marginTop: '20px' }}>
        <input
          type="text"
          value={input}
          onChange={(e) => input.onChange(e.target.value)}
          placeholder="Ask for a dashboard..."
          style={{ width: '80%', padding: '8px' }}
        />
        <button type="submit" disabled={isLoading} style={{ padding: '8px' }}>
          {isLoading ? 'Generating...' : 'Send'}
        </button>
      </form>

      {error && <div style={{ color: 'red' }}>Error: {error.message}</div>}
    </div>
  );
}

The Server-Side Logic (API Route)

To make the client code above work, we need the server endpoint that generates the stream. This is where the render function from @ai-sdk/ui-utils is used to inject the React component into the stream.

// app/api/chat/route.ts
import { streamText } from 'ai'; // Assuming a provider like OpenAI
import { createStreamableValue, render } from 'ai/rsc';
import { z } from 'zod';

// Mock Server Action (Imported or defined here for the example)
// In a real app, this would be in a separate 'actions.ts' file.
async function incrementCounterAction() {
  'use server';
  // Simulate database update
  console.log('Counter incremented on server');
  return { success: true, newTotal: Math.floor(Math.random() * 100) };
}

export async function POST(req: Request) {
  const { messages } = await req.json();

  // Create a streamable value to hold the UI component
  const stream = createStreamableValue();

  (async () => {
    // 1. Generate text using the LLM
    const result = await streamText({
      model: openai('gpt-4'),
      system: 'You are a helpful assistant that generates dashboards.',
      messages,
    });

    // 2. Stream the text part
    for await (const textPart of result.textStream) {
      stream.update(textPart);
    }

    // 3. Inject the Interactive Component
    // We use `render` to convert a React element into a streamable token.
    // This token will be hydrated on the client by the SDK.
    stream.append(
      render(
        <InteractiveCounter
          initialValue={50}
          onIncrement={incrementCounterAction} // Pass the server action
        />
      )
    );

    stream.done();
  })();

  return { body: stream.value };
}

Detailed Explanation

Here is the step-by-step breakdown of how the interactive component is embedded, hydrated, and managed within the stream.

1. The Server Action Definition

async function incrementCounterAction() {
  'use server';
  // ... logic
}

* Why: The 'use server' directive marks this function as a Server Action. It allows the client-side InteractiveCounter to call this function directly from the browser without manually setting up API routes or handling fetch requests. * How: When the button in the client component is clicked, the onIncrement prop triggers this function. The function executes securely on the server, allowing access to databases or private environment variables.

2. The Server-Side Stream Generation (`render`)

stream.append(render(<InteractiveCounter initialValue={50} ... />));

* Why: Standard text streams cannot carry React components. The render function serializes the React element into a special JSON format that the Vercel AI SDK can transmit. * Under the Hood: 1. The render function takes a React element and returns a StreamableUI object. 2. This object is appended to the main text stream. 3. The stream now contains a mix of plain text strings and serialized UI instructions (JSON). 4. The onIncrement prop (which references the Server Action) is serialized as a reference ID, ensuring the client knows which server function to call when the button is pressed.

3. Client-Side Hydration (The `useChat` Hook)

const { messages } = useChat({ api: '/api/chat' });

* Why: The useChat hook handles the raw stream consumption. It listens for chunks of data coming from the /api/chat endpoint. * How: When the stream encounters the serialized component from render: 1. The SDK parses the JSON payload. 2. It identifies that this chunk is a React component, not text. 3. It "hydrates" the component, injecting it into the messages array's content property. 4. Crucially, it re-attaches the event handlers (like onIncrement) so they point back to the underlying Server Action mechanism.

4. Client-Side State Management (`useState`)

const [count, setCount] = useState(initialValue);

* Why: Even though the component is streamed from the server, it must feel responsive. Waiting for a server round-trip before the UI updates (e.g., the number changing) creates a sluggish experience. * Logic: 1. Optimistic Update: When the user clicks the button, setCount updates the local state immediately. The number on the screen increments instantly. 2. Server Sync: Simultaneously, onIncrement is called. This sends a request to the server to persist the data. 3. Consistency: In a production app, the server would return the actual new value (e.g., 51), which you would then use to sync the local state, ensuring the client and server eventually agree.

Common Pitfalls

When implementing interactive components within streams, developers often encounter specific issues related to the asynchronous nature of the stream and the React lifecycle.

Async/Await Loops in Streaming
- The Issue: Attempting to await a promise inside the stream generation logic can block the entire stream. If you wait for a database query to finish before sending any data, the user sees a loading spinner for too long.
- The Fix: Use concurrent execution. In the server example, we wrapped the logic in an (async () => { ... })() IIFE (Immediately Invoked Function Expression). This allows the POST request to return the stream immediately while the generation happens in the background.
Vercel Timeouts (4099ms)
- The Issue: Vercel serverless functions have a default timeout (often 10s for Hobby plans). If the AI generation is slow and you are also performing heavy computation before streaming, the request might time out before the stream finishes.
- The Fix: Start streaming immediately. Do not wait for the full AI response. Use streamText's textStream to yield tokens as they are generated. The render function should be called only after the text stream is complete, or appended dynamically if the UI is conditional.
Hallucinated JSON / Malformed Stream
- The Issue: If you try to prompt the LLM to generate the interactive component directly (e.g., "Output a React component"), the model might output invalid JSX or hallucinate JSON structures that the client cannot parse.
- The Fix: Never rely on the LLM to generate the code for the component. The render function is a deterministic serialization tool. The LLM should only generate the text context (e.g., "Here is the dashboard"), and your code should deterministically inject the InteractiveCounter component into the stream based on that context.
State Desynchronization
- The Issue: The local useState in the client component is ephemeral. If the user refreshes the page, the counter resets to initialValue, losing the increments made during the session.
- The Fix: The onIncrement Server Action must update a persistent store (Database, Redis, etc.). When the component hydrates (on page load or reconnection), it should fetch the actual current value from the server to use as the initialValue prop, rather than a hardcoded number.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
