Chapter 18: Voice AI - Speech-to-Text (Whisper) Integration

Theoretical Foundations

Imagine you are building a modern web application, a sophisticated digital assistant. You've mastered the art of generating text, of crafting elegant prose and functional code in response to user prompts. Your application, powered by the Vercel AI SDK, is a master of the written word. But it is mute. It lives in a world of silent pixels, constrained by the keyboard. To truly unlock a natural, human-centric interaction, we must bridge the final gap: the gap between the spoken word and the computational mind. This is the domain of Voice AI, and the first, most critical step in this journey is Speech-to-Text (STT).

At its heart, STT is the process of transcribing an analog audio signal—a waveform of pressure changes in the air—into a sequence of discrete digital characters. While this sounds simple, the underlying challenge is immense. Human speech is a messy, continuous, and highly contextual signal, filled with nuance, accent, cadence, and background noise. Converting this fluid stream of sound into the rigid structure of text is a task that, until recently, required specialized, heavyweight software.

In this chapter, we will focus on integrating OpenAI's Whisper model, a state-of-the-art neural network, directly into our Next.js application. This integration transforms our application from a passive text-responder into an active, conversational partner. We will explore not just how to capture audio, but why this process is fundamental to building truly generative user interfaces that respond to the most natural human input: our voice.

The Analog-to-Digital Bridge: Capturing the User's Voice

Before any model can transcribe audio, the application must first capture it. In the browser, this is the responsibility of the MediaStream API. Think of this API as a digital microphone and a high-fidelity recording studio, all contained within the browser's security sandbox.

When a user grants permission, the navigator.mediaDevices.getUserMedia() method opens a "pipe" to the user's physical microphone. This pipe doesn't deliver a neat, packaged file. Instead, it delivers a continuous, real-time stream of raw audio data. This stream is composed of small chunks of audio, each a Blob or ArrayBuffer representing a tiny slice of time (e.g., a few milliseconds of sound).

Analogy: The Assembly Line

Imagine a factory assembly line (the audio stream). Raw materials (the user's voice) enter at one end. The line is composed of many small workstations (the audio chunks). Our job is to collect these materials as they flow past us. We can't just grab them randomly; we must process them in the order they arrive. We can either:

1. Buffer the entire line: Collect all the raw materials into one giant bin before sending it for final processing. This is like recording the entire audio clip first, then uploading it as a single file. It's simple but memory-intensive and introduces latency—the user must finish speaking before the transcription can even begin.
2. Process in real-time: Send each small batch of materials to the processing station as soon as it arrives. This is streaming. It's more complex to manage but allows for immediate feedback and a more fluid user experience.

Our goal is to prepare this stream of audio data for the Whisper model. Whisper, like most large models, typically expects a complete audio file (like a .wav or .mp3) as input. Therefore, we must perform a crucial transformation: we must buffer the incoming audio chunks and assemble them into a single, coherent audio file. This involves understanding audio formats, sample rates, and codecs, which are the fundamental properties of a digital audio signal.

The Whisper Model: A Neural Network for Sound

Once we have a complete audio file, we pass it to the Whisper model. But what is Whisper, conceptually? It is not a simple dictionary of sounds. It is a large-scale neural network, specifically a transformer-based model, trained on an enormous dataset of audio and corresponding text from the internet.

Analogy: The Universal Polyglot Linguist

Imagine a hyper-linguist who has spent a lifetime listening to every radio station, podcast, and audiobook in existence, in every language. This linguist doesn't just memorize words; they have learned the deep statistical patterns of how sounds form phonemes, how phonemes form words, how words form sentences, and how sentences convey meaning, all across thousands of hours of audio.

When you give this linguist a new audio clip, they don't just "listen" to it. They process it through their internal, multi-layered understanding:

1. Acoustic Encoding: The first layers of the network act like the human auditory cortex, identifying fundamental patterns in the waveform—pitch, timbre, cadence. It converts the continuous audio signal into a sequence of abstract acoustic features.
2. Language Understanding: Subsequent layers, built on the transformer architecture we've discussed in previous chapters, analyze these features in context. Just as an LLM processes tokens in relation to one another, the Whisper model processes acoustic features to understand the sequence of phonemes and words being spoken. It uses its attention mechanism to resolve ambiguity (e.g., distinguishing "there," "their," and "they're" based on the surrounding context).
3. Decoding: Finally, the model's decoder generates the output text, token by token, predicting the most likely sequence of characters that corresponds to the input audio.

This process is why Whisper is so powerful and robust. It can handle different languages, accents, and even some background noise because it has learned the underlying patterns of human speech, not just a rigid set of rules.

The Generative Loop: From Transcription to UI

The output of Whisper is a string of text. For a simple application, this might be the end of the road. But in the context of the modern stack, this transcribed text is the new user prompt. It is the starting point for the next stage of our generative UI workflow.

This is where the Vercel AI SDK becomes the central orchestrator. The SDK, as introduced in earlier chapters, provides a unified interface for interacting with Large Language Models (LLMs). The text from Whisper is streamed directly into the SDK's useChat or useCompletion hooks.

Analogy: The Relay Race

Think of the user interaction as a relay race:

1. Runner 1 (User's Voice): The user speaks their query.
2. Handoff 1 (MediaStream API): The voice is captured and passed as an audio stream.
3. Runner 2 (Whisper Model): Whisper takes the audio "baton" and runs the race of transcription, returning the text baton.
4. Handoff 2 (Vercel AI SDK): The text baton is passed to the AI SDK, which now takes its turn.
5. Runner 3 (LLM): The LLM receives the transcribed text, processes it, and generates a response (e.g., a text answer, a function call, or a structured data object).
6. Final Handoff (Generative UI): The LLM's response is used to render the user interface in real-time.

This seamless handoff is what creates the illusion of a real-time conversation. The latency of the entire chain—audio capture, transcription, LLM inference, and UI rendering—determines the quality of the user experience. Our goal is to make this chain as short and efficient as possible.

Theoretical Foundations

To fully grasp the implications of this architecture, we must revisit a core concept from our study of LLMs: Tokens.

When Whisper transcribes audio, it is fundamentally producing a sequence of tokens. As defined previously, a token is the fundamental unit of text processing. This is critically important because the transcribed text is not just a string; it is a sequence of tokens that will be fed into our LLM.

• Cost and Context Window: Every token Whisper generates becomes part of the input prompt for the subsequent LLM call. If a user speaks for 30 seconds, the resulting transcription could be 100-200 tokens. This entire sequence must fit within the LLM's context window (e.g., 4096 or 8192 tokens for models like GPT-3.5 Turbo). If the user speaks for too long, the context window can be exceeded, leading to errors or truncated context.
• The "Streaming" Illusion: To manage latency, we don't wait for the entire user speech to be transcribed before sending it to the LLM. We can implement a "chunking" strategy. We buffer a small amount of audio (e.g., 2-3 seconds of speech), transcribe it, and immediately send that partial transcription to the LLM. This creates a streaming effect where the AI begins "thinking" and generating a response before the user has even finished speaking. This is a complex orchestration, as we are essentially streaming tokens from the audio stream directly into the LLM's token stream.

Visualizing the Data Flow

The entire process can be visualized as a directed graph of data transformations. Each node represents a distinct processing stage, and the edges represent the flow of data (audio, text, tokens).

Hold "Ctrl" to enable pan & zoom

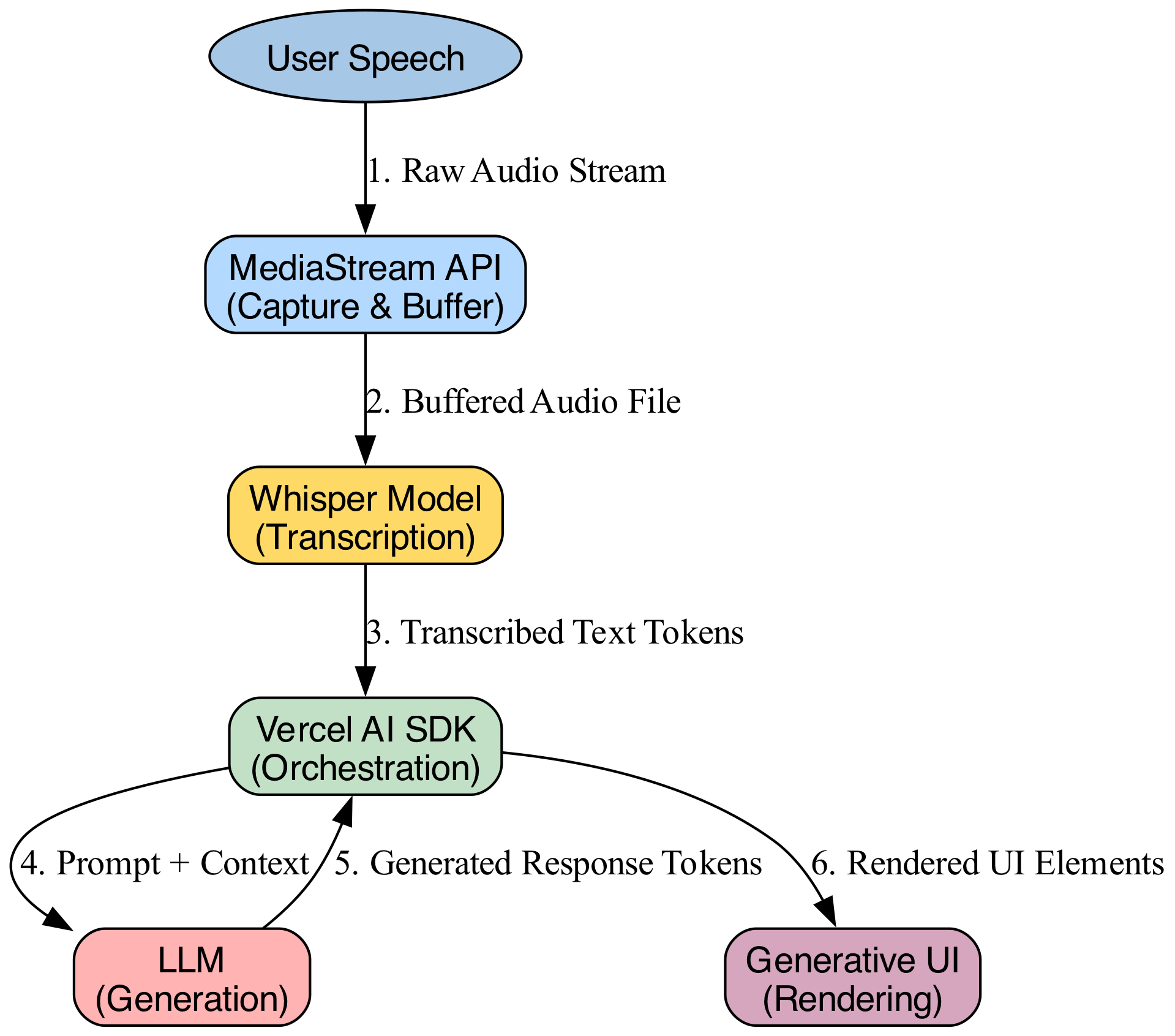

This diagram visualizes the AI system as a directed graph where each node represents a distinct processing stage and the edges represent the flow of data—such as audio, text, and tokens—through the pipeline.

This diagram illustrates the linear yet deeply interconnected nature of the Voice AI pipeline. Each stage is a potential bottleneck, and optimizing the flow is key to building a responsive application.

Conclusion

Integrating Speech-to-Text is not merely about adding a new input method. It is about fundamentally rethinking the user interaction model of a generative application. By leveraging the MediaStream API to capture audio, the Whisper model to transcribe it into tokens, and the Vercel AI SDK to orchestrate the subsequent generation, we transform a silent, text-based interface into a dynamic, conversational partner. This theoretical foundation sets the stage for the practical implementation, where we will write the TypeScript code to build this powerful pipeline within our Next.js application.

Basic Code Example

In a modern SaaS application, enabling Voice AI requires a two-step pipeline. First, the client (browser) must capture raw audio data from the user's microphone. Second, that raw audio must be sent to a secure backend API endpoint where it is processed by OpenAI's Whisper model.

The following example demonstrates a "Hello World" approach using a Next.js API Route (Server) and a React Client Component. We will use the native MediaRecorder API on the client to capture audio and the openai Node.js SDK on the server to transcribe it.

The Data Flow Visualization

This diagram illustrates the flow of data from the user's microphone to the generative UI response.

Hold "Ctrl" to enable pan & zoom

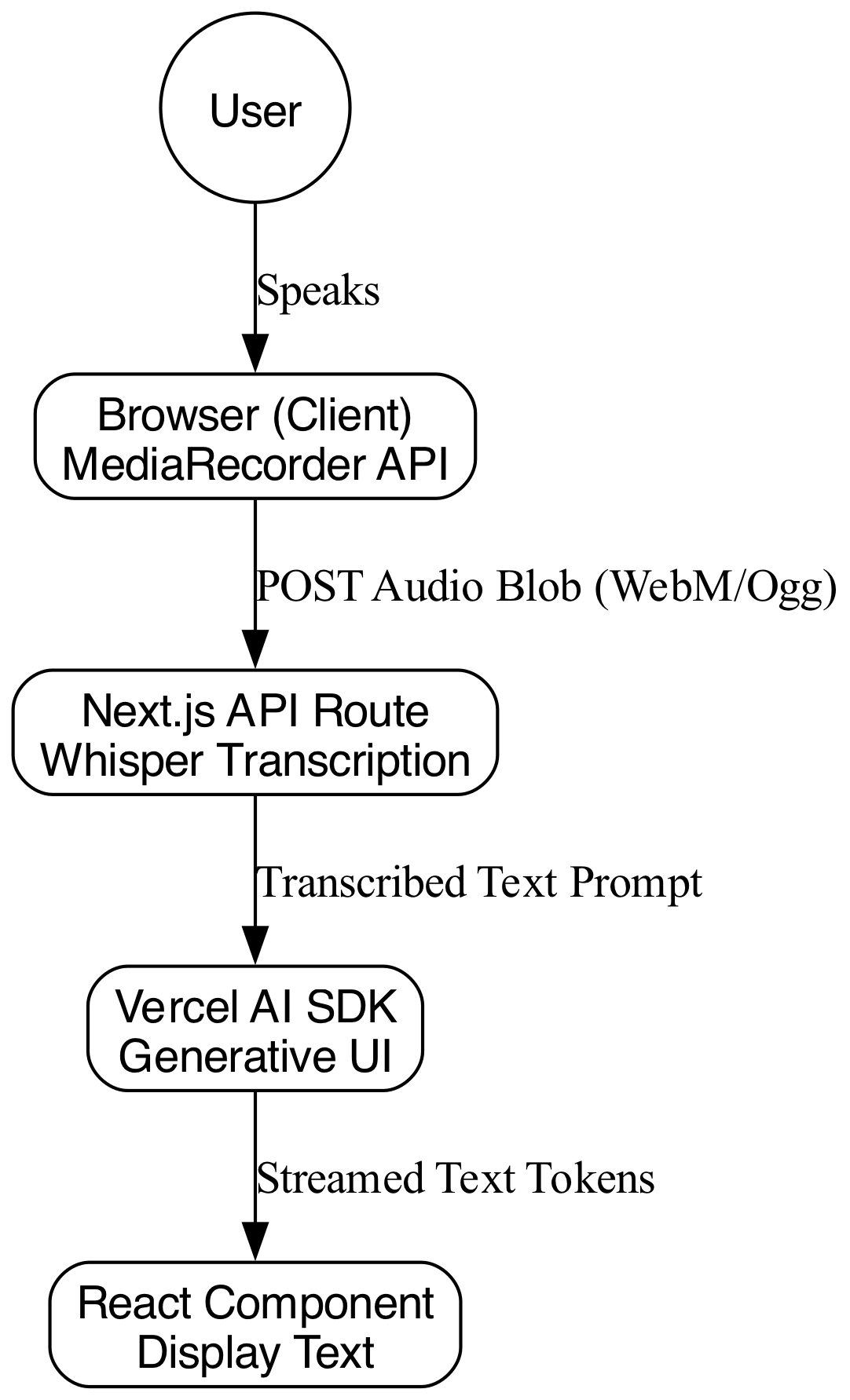

This diagram visualizes the complete data flow, beginning with audio capture from the user's microphone, processing it via a server-side SDK to generate a transcript, and ultimately rendering the generative UI response.

The Code Implementation

This code is split into two parts: the Client Component (UI) and the Server API Route (Backend).

1. The Server API Route (app/api/transcribe/route.ts)

This endpoint receives the audio file, sends it to OpenAI, and returns the text.

// app/api/transcribe/route.ts
import { NextResponse } from 'next/server';
import OpenAI from 'openai';

/**
 * Initialize the OpenAI client.
 * CRITICAL: Ensure OPENAI_API_KEY is set in your environment variables (.env.local).
 */
const openai = new OpenAI({
  apiKey: process.env.OPENAI_API_KEY,
});

/**
 * Handles the POST request containing audio data.
 * @param req - The incoming HTTP request containing the FormData.
 */
export async function POST(req: Request) {
  try {
    // 1. Parse the incoming FormData from the client
    const formData = await req.formData();

    // 2. Extract the audio file (blob) sent from the client
    const audioFile = formData.get('audio') as File | null;

    if (!audioFile) {
      return NextResponse.json({ error: 'No audio file provided' }, { status: 400 });
    }

    // 3. Send the audio file to OpenAI's Whisper API
    // We use 'whisper-1' which is the standard model for speech-to-text.
    const transcription = await openai.audio.transcriptions.create({
      file: audioFile,
      model: 'whisper-1',
      // Optional: Language hint can improve accuracy if known
      // language: 'en',
    });

    // 4. Return the transcribed text to the client
    return NextResponse.json({ text: transcription.text });

  } catch (error) {
    console.error('Transcription error:', error);
    return NextResponse.json(
      { error: 'Failed to transcribe audio' },
      { status: 500 }
    );
  }
}

2. The Client Component (app/page.tsx)

This component handles the UI state and microphone recording logic.

// app/page.tsx
'use client';

import React, { useState, useRef } from 'react';

// Define the structure of the MediaRecorder API (standard browser API)
interface MediaRecorderEvent extends Event {
  data: Blob;
}

export default function VoiceInput() {
  // State to manage recording status
  const [isRecording, setIsRecording] = useState<boolean>(false);
  // State to hold the transcribed text from the server
  const [transcription, setTranscription] = useState<string>('');
  // State to display loading indicators
  const [isLoading, setIsLoading] = useState<boolean>(false);

  // Ref to hold the MediaRecorder instance
  const mediaRecorderRef = useRef<MediaRecorder | null>(null);
  // Ref to hold audio chunks
  const chunksRef = useRef<Blob[]>([]);

  /**
   * Starts the microphone recording process.
   */
  const startRecording = async () => {
    try {
      // 1. Request permission to use the microphone
      const stream = await navigator.mediaDevices.getUserMedia({ audio: true });

      // 2. Initialize MediaRecorder with the audio stream
      // We use 'audio/webm' or 'audio/ogg' as these are widely supported and accepted by Whisper
      mediaRecorderRef.current = new MediaRecorder(stream, {
        mimeType: 'audio/webm;codecs=opus',
      });

      // 3. Clear previous chunks and reset state
      chunksRef.current = [];
      setIsRecording(true);
      setTranscription('');

      // 4. Listen for data availability events
      mediaRecorderRef.current.ondataavailable = (event: any) => {
        if (event.data.size > 0) {
          chunksRef.current.push(event.data);
        }
      };

      // 5. Listen for the 'stop' event to process the audio
      mediaRecorderRef.current.onstop = async () => {
        await processAudio();
      };

      // 6. Start recording
      mediaRecorderRef.current.start();

    } catch (err) {
      console.error('Error accessing microphone:', err);
      alert('Could not access microphone. Please check permissions.');
    }
  };

  /**
   * Stops the recording and triggers the processing logic.
   */
  const stopRecording = () => {
    if (mediaRecorderRef.current && isRecording) {
      mediaRecorderRef.current.stop();
      setIsRecording(false);

      // Stop all tracks to release the microphone
      mediaRecorderRef.current.stream.getTracks().forEach(track => track.stop());
    }
  };

  /**
   * Aggregates chunks, creates a Blob, and sends to API.
   */
  const processAudio = async () => {
    if (chunksRef.current.length === 0) return;

    setIsLoading(true);

    // 1. Create a Blob from the audio chunks
    const audioBlob = new Blob(chunksRef.current, { type: 'audio/webm' });

    // 2. Create a FormData object to send the file
    const formData = new FormData();
    // The key 'audio' must match what the server expects
    formData.append('audio', audioBlob, 'recording.webm');

    try {
      // 3. Send the POST request to our API Route
      const response = await fetch('/api/transcribe', {
        method: 'POST',
        body: formData,
      });

      if (!response.ok) throw new Error('API Request failed');

      // 4. Parse the JSON response
      const data = await response.json();

      // 5. Update the UI with the transcription
      setTranscription(data.text);
    } catch (error) {
      console.error('Error processing audio:', error);
      setTranscription('Error processing audio. Please try again.');
    } finally {
      setIsLoading(false);
      // Clean up refs if necessary
      chunksRef.current = [];
    }
  };

  return (
    <div style={{ padding: '2rem', fontFamily: 'sans-serif' }}>
      <h1>Voice AI Transcriber</h1>

      <div style={{ margin: '1rem 0' }}>
        {!isRecording ? (
          <button
            onClick={startRecording}
            disabled={isLoading}
            style={{ padding: '10px 20px', backgroundColor: 'green', color: 'white', border: 'none', borderRadius: '5px', cursor: 'pointer' }}
          >
            {isLoading ? 'Processing...' : 'Start Recording'}
          </button>
        ) : (
          <button
            onClick={stopRecording}
            style={{ padding: '10px 20px', backgroundColor: 'red', color: 'white', border: 'none', borderRadius: '5px', cursor: 'pointer' }}
          >
            Stop Recording
          </button>
        )}
      </div>

      {isRecording && (
        <p style={{ color: 'red', fontWeight: 'bold' }}>🔴 Recording...</p>
      )}

      {transcription && (
        <div style={{ marginTop: '1rem', padding: '1rem', backgroundColor: '#f0f0f0', borderRadius: '5px' }}>
          <h3>Transcription:</h3>
          <p>{transcription}</p>
        </div>
      )}
    </div>
  );
}

Detailed Line-by-Line Explanation

Client Component (page.tsx)

1. 'use client';: This directive is specific to Next.js App Router. It marks this component as a Client Component, allowing the use of browser-specific APIs like navigator.mediaDevices and React Hooks (useState, useRef).
2. State Management:
   • isRecording: Tracks if the microphone is currently capturing audio. Used to toggle the UI button.
   • transcription: Stores the text returned from the server to display to the user.
   • isLoading: Indicates that the network request is in progress, preventing the user from sending multiple requests simultaneously.
3. useRef Hooks:
   • mediaRecorderRef: We use a ref instead of state for the MediaRecorder instance because we do not want the component to re-render every time the recorder emits an event. It holds the active recorder object.
   • chunksRef: Audio is recorded in small "chunks" (buffers). We store these in an array until the user stops recording.
4. startRecording:
   • navigator.mediaDevices.getUserMedia: This is the browser's security gate. It prompts the user to allow microphone access. If denied, it throws an error.
   • new MediaRecorder: This creates the recorder instance. We specify mimeType: 'audio/webm' because it is a standard container format that OpenAI Whisper accepts.
   • Event Listeners:
     • ondataavailable: Fires repeatedly as audio data becomes available. We push these blobs into our chunksRef array.
     • onstop: Fires exactly once when .stop() is called. This triggers our processAudio function.
5. processAudio:
   • new Blob(...): Takes the array of chunks and combines them into a single file object.
   • FormData: This mimics a standard HTML form submission. We append the Blob with the key 'audio'. The server will look for this specific key.
   • fetch: Sends the data to our Next.js API route. Note that we do not set the Content-Type header manually; the browser automatically sets it to multipart/form-data when using FormData.
6. UI Rendering: Standard conditional rendering based on state (isRecording, isLoading) to provide visual feedback.

Server API Route (route.ts)

1. NextResponse: The standard way to handle responses in Next.js App Router API routes.
2. req.formData(): Parses the incoming multipart/form-data request. This is asynchronous.
3. formData.get('audio'): Retrieves the file associated with the key 'audio' sent from the client. We cast it to File (which is available in the Node.js environment via Next.js polyfills).
4. openai.audio.transcriptions.create: This is the core OpenAI SDK method.
   • file: The file object we just extracted.
   • model: 'whisper-1' is the current standard model.
5. Error Handling: The try/catch block ensures that if the API key is missing or OpenAI's service is down, the server returns a JSON error object with a 500 status code rather than crashing.

Common Pitfalls

1. Vercel Serverless Timeouts (400ms - 10s limit):

   • The Issue: Whisper is a large model. Transcribing a 60-second audio clip might take 5-10 seconds. If you are on the Vercel Hobby plan, Serverless Functions have a default timeout of 10 seconds. If the transcription takes 11 seconds, the request fails with a 504 Gateway Timeout.
   • The Fix: For production, you must either:
     • Increase the timeout limit in vercel.json (up to 300s on Pro/Enterprise).
     • Offload the transcription to a background job (e.g., Vercel Background Functions or a separate worker like AWS SQS/Redis).
     • Use Edge Functions (though Whisper is often too heavy for Edge runtimes due to binary size limits).

2. Audio Format Mismatch:

   • The Issue: The browser's MediaRecorder might default to a format that OpenAI doesn't explicitly support (though it handles most). Specifically, Safari on iOS sometimes records in .mov containers or specific AAC profiles that can cause parsing errors.
   • The Fix: Always explicitly set the mimeType in the client MediaRecorder constructor: mimeType: 'audio/webm;codecs=opus'. If that fails, try audio/ogg.

3. Missing use client Directive:

   • The Issue: In Next.js App Router, if you try to use navigator.mediaDevices in a default Server Component, the build will fail or the runtime will throw navigator is not defined.
   • The Fix: Ensure the top line of your file contains 'use client';.

4. Async/Await Loops in ondataavailable:

   • The Issue: Developers sometimes try to send audio chunks to the server as they arrive (streaming) inside the ondataavailable callback. This is complex because you need to handle network latency and ordering, and Whisper requires a complete file to transcribe accurately (it doesn't do real-time streaming transcription out of the box).
   • The Fix: Stick to the pattern in the example: record chunks locally, wait for the stop event, aggregate chunks into a single Blob, and send it once.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
