Chapter 4: Document Loaders - Parsing PDF, Notion, and HTML

Theoretical Foundations

In the architecture of a Retrieval-Augmented Generation (RAG) system, the Document Loader is the gateway. It is the mechanism by which raw, unstructured information enters the cognitive flow of the application. Before we can vectorize, embed, or retrieve data, we must first acquire it in a machine-readable format. This process is not merely file reading; it is a transformation of static artifacts into dynamic, queryable knowledge.

To understand the gravity of this step, we must look back at the foundational architecture of the RAG pipeline introduced in Book 2, Chapter 3. We established that a RAG system functions by retrieving relevant context from a corpus of data to augment a Large Language Model's (LLM) generation. That corpus, however, does not exist in a vacuum. It is derived from source documents—PDFs, web pages, proprietary databases, or collaborative workspaces like Notion.

If the ingestion phase is flawed—if the text is garbled, metadata is lost, or structure is ignored—the "Garbage In, Garbage Out" principle applies with brutal efficiency. The embeddings generated will represent noise rather than signal, and the retrieval mechanism will fail to surface the correct context, regardless of how sophisticated the vector search algorithm is.

The Analogy: The Library vs. The Warehouse

Imagine a massive library (your Vector Database). To function, this library needs books (Documents). However, books arrive at the loading dock in various states: sealed crates of loose papers (PDFs), digital blueprints (HTML), or complex, nested filing cabinets (Notion databases).

The PDF Loader is like a specialized archivist handling sealed crates. It must carefully unpack the layers—extracting text streams, identifying embedded images, and interpreting layout structures (like columns or headers) that might not be immediately obvious in the raw binary data. It has to decide whether to treat a visual chart as an image to be described or text to be extracted.
The Notion Loader is a courier navigating a dynamic, interconnected network. It doesn't just read a static file; it queries an API, traverses relational links between pages, and flattens rich, hierarchical block structures into a linear sequence of text segments.
The HTML Loader is a demolition expert stripping a house down to its skeleton. It must navigate the DOM (Document Object Model), stripping away the "scaffolding" (navigation bars, ads, scripts) to reveal the "habitable rooms" (the core content).

In all cases, the goal is the same: Normalization. We are taking disparate, complex data structures and flattening them into a standardized format—usually a string of text accompanied by metadata—that the subsequent stages of the pipeline can digest.

The Mechanics of Parsing: Under the Hood

Parsing is the act of analyzing a string of symbols (the raw file data) against a formal grammar. In the context of JavaScript-based document loaders, we are rarely writing parsers from scratch for standard formats; instead, we leverage established libraries. However, understanding what happens under the hood is critical for debugging and optimization.

1. PDF Parsing: Binary Blobs to Text Streams

PDFs are notoriously difficult to parse because they are designed for presentation, not data interchange. A PDF is essentially a description of how to place graphical elements on a page. Text may not appear in reading order in the binary structure; it might be defined by absolute coordinates.

When a JavaScript loader processes a PDF (using a library like pdf-parse or pdfjs-dist), it performs the following: 1. Decompression: PDF streams are often compressed (Flate, LZW). The loader decompresses these streams. 2. Object Extraction: It identifies text objects, font dictionaries, and layout operators. 3. Reconstruction: It attempts to reconstruct the reading order based on coordinates. This is the most error-prone step. A two-column academic paper might be read left-to-right, top-to-bottom, or the parser might read the entire top row then the bottom row, resulting in nonsensical text concatenation.

Why this matters for RAG: If the text order is scrambled during extraction, the semantic meaning is destroyed. A sentence split across a page break or read out of order creates a "context fracture" that embeddings cannot effectively represent.

2. HTML Parsing: The DOM and the Noise

HTML is structured, but it is designed for rendering, not pure content. A loader must traverse the Document Object Model (DOM) tree.

Node Traversal: The loader walks the tree, visiting <div>, <p>, <span>, and other tags.
Noise Filtering: It must aggressively filter out non-content nodes. This includes <script>, <style>, <nav>, <footer>, and hidden elements.
Tag Stripping: Once the content nodes are identified, the HTML tags are stripped, leaving the inner text.

The Web Development Analogy: Consider an HTML page as a React component. The DOM is the Virtual DOM tree. The HTML loader acts as a "scraper" component that renders the tree but ignores the layout logic (CSS) and interactivity (JavaScript), extracting only the "prop" values (text content) from the structural elements.

3. Notion Parsing: Hierarchical Flattening

Notion data is unique because it is hierarchical and relational. A Notion page is a tree of "blocks" (paragraphs, headings, to-do items, toggles, databases).

Parsing Notion requires: 1. API Interaction: Using the official Notion SDK (@notionhq/client) to fetch block children recursively. 2. Tree Traversal: Walking the block tree. A toggle block, for instance, contains nested children that are only visible when opened. The loader must decide whether to traverse into these nested blocks or treat them as separate entities. 3. Flattening: Converting this tree into a linear text stream suitable for chunking. This often involves injecting newlines or separators to maintain semantic boundaries between blocks.

Metadata and the "Server Action" Context

In a modern web application (specifically within a Next.js environment using Server Components), document loading often happens via Server Actions. A Server Action is an asynchronous function that executes on the server, triggered by a client-side event (like a file upload).

The Analogy: Think of a Server Action as a secure backstage pass. Instead of sending the file data to the client browser for processing (which is slow and insecure), the client sends the file reference to the server. The server performs the heavy lifting of parsing and returns a confirmation.

When a Server Action parses a document, it extracts not just the text, but Metadata. Metadata is the "DNA" of the document chunk. It includes: * Source: Where did this come from? (URL, File Path, Notion Page ID) * Timestamp: When was it created or last modified? * Structure: Is this a header? A list item? * Namespace: (Referencing Pinecone) Which logical partition does this belong to?

The Bridge to Vectorization: Chunking Strategy

Document loading is inextricably linked to the concept of Chunking Strategy (defined in previous chapters). Once a document is loaded and parsed into a raw string, it is often too large to embed as a single unit. LLMs have context window limits, and embedding models have token limits.

The loader must prepare the text for this next step. While the actual chunking might happen in a separate preprocessing step, the loader's output dictates the chunking strategy.

Recursive Character Text Splitting: The loader might output a massive string, which is then split by characters (like \n\n, \n, ).
Semantic Boundaries: A smarter loader might preserve HTML tags or Notion block types, allowing the chunker to split strictly at boundaries (e.g., never split a heading from its paragraph).

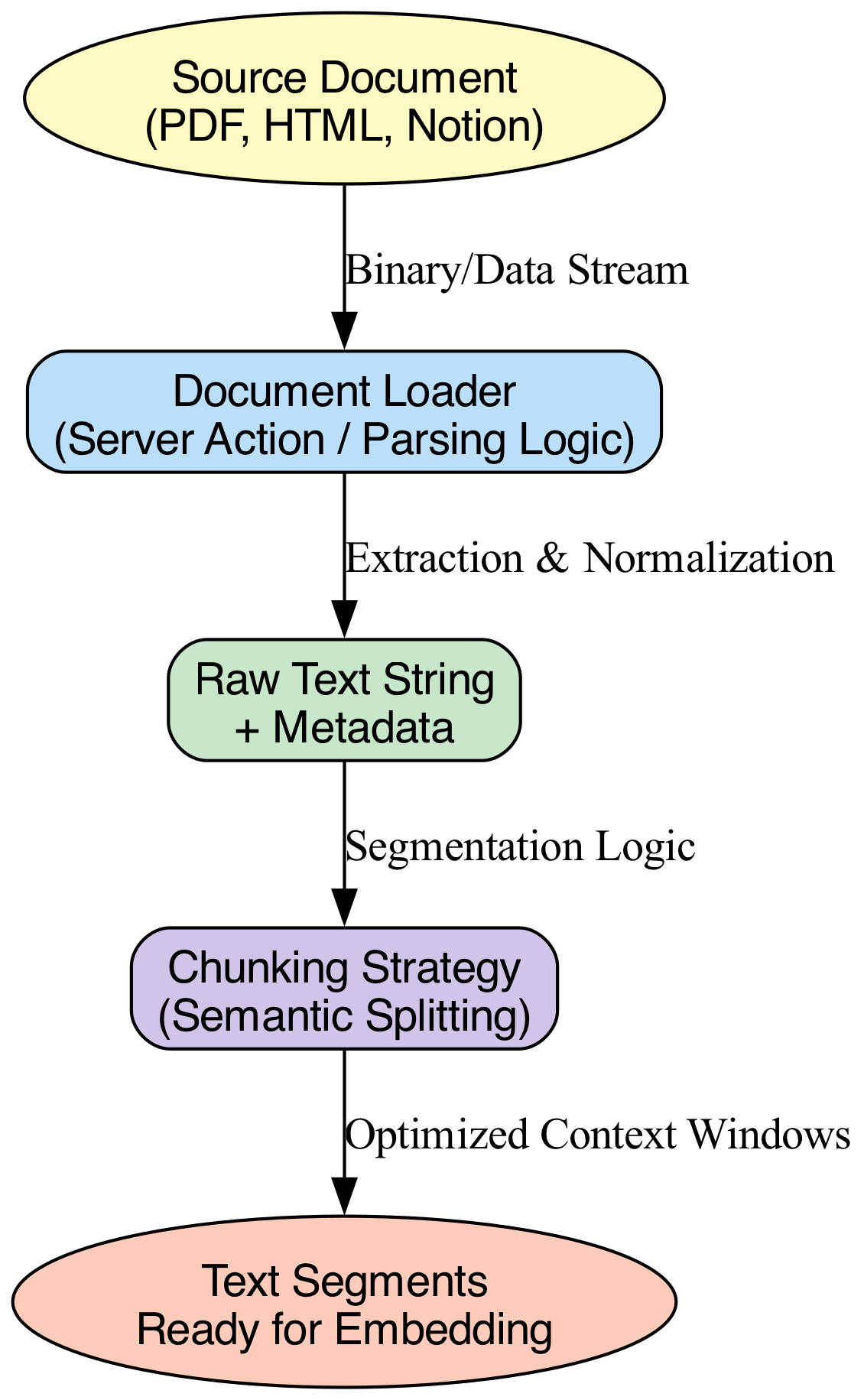

Visualizing the Data Flow:

The diagram illustrates a sequential flow of data moving from an input source, through a processing stage, and finally to an output destination, emphasizing the importance of keeping related elements (like headings and paragraphs) intact throughout the transformation.

Summary of the "Why"

Why do we dedicate an entire chapter to loading and parsing?

Data Fidelity: Raw data is messy. Parsing ensures that the semantic intent of the author is preserved when converted to text.
System Performance: Efficient parsing (streaming text rather than loading entire files into memory) is crucial for handling large-scale document corpora.
Retrieval Accuracy: The structure preserved during loading (e.g., headers, block types) allows for advanced retrieval techniques, such as hierarchical search or metadata filtering (e.g., "search only in PDFs" or "search only in Notion pages created yesterday").

By mastering document loaders, you ensure that the foundation of your RAG application is built on solid ground, capable of ingesting the complex, varied data that constitutes real-world enterprise knowledge.

Basic Code Example

In the context of a SaaS application, document ingestion is often the first step in building a knowledge base. Whether you are building an internal enterprise search tool or a customer-facing AI assistant, you need to parse raw files into text. In this "Hello World" example, we will simulate a backend API endpoint that accepts a PDF buffer and extracts the raw text using the pdf-parse library. This is a foundational step before chunking and vectorization.

We will use Node.js with TypeScript. The example assumes a server-side environment (like an API route in Next.js or a standalone Express server) where file system access is available.

The Code

/**
 * @fileoverview A basic PDF parsing example for a SaaS backend.
 * This script reads a PDF file from disk, extracts its text content,
 * and logs it to the console.
 *
 * Dependencies:
 * - npm install pdf-parse
 * - npm install @types/node --save-dev
 */

import * as fs from 'fs';
import * as path from 'path';
import pdfParse from 'pdf-parse';

/**
 * Represents the metadata and text content extracted from a PDF.
 * @typedef {Object} ParsedDocument
 * @property {string} text - The full extracted text content.
 * @property {number} pageCount - The number of pages in the PDF.
 * @property {number} totalPages - Total pages (alias for pageCount).
 * @property {number} info - PDF metadata (author, title, etc.).
 */
interface ParsedDocument {
  text: string;
  pageCount: number;
  totalPages: number;
  info: any;
}

/**
 * Parses a PDF buffer and returns structured text data.
 * This function wraps the pdf-parse library to provide type safety.
 *
 * @param {Buffer} buffer - The binary buffer of the PDF file.
 * @returns {Promise<ParsedDocument>} - A promise resolving to the parsed data.
 */
async function parsePdfBuffer(buffer: Buffer): Promise<ParsedDocument> {
  try {
    // pdf-parse returns a promise that resolves with detailed data.
    const data = await pdfParse(buffer);

    return {
      text: data.text,          // The raw text string extracted from the PDF
      pageCount: data.numpages, // Number of pages detected
      totalPages: data.numpages, // Alias often used in metadata
      info: data.info           // PDF metadata (Title, Author, CreationDate)
    };
  } catch (error) {
    console.error("Error parsing PDF buffer:", error);
    throw new Error("Failed to parse PDF document.");
  }
}

/**
 * Main execution function.
 * Simulates reading a file from a storage system (e.g., AWS S3 or local disk).
 * In a real SaaS app, this 'buffer' would come from an HTTP request (multer/next-connect).
 */
async function main() {
  // 1. Define the path to a sample PDF.
  // NOTE: Ensure you have a 'sample.pdf' in the same directory,
  // or update this path to a valid file.
  const filePath = path.join(__dirname, 'sample.pdf');

  // 2. Check if file exists to prevent runtime crashes.
  if (!fs.existsSync(filePath)) {
    console.error(`File not found: ${filePath}`);
    console.error("Please create a 'sample.pdf' in the current directory to run this example.");
    return;
  }

  console.log(`Reading file: ${filePath}...`);

  try {
    // 3. Read the file as a binary Buffer.
    // In a web context (Next.js API route), this buffer would be provided
    // by 'req.body' or a multipart form parser.
    const fileBuffer: Buffer = fs.readFileSync(filePath);

    console.log(`File loaded. Buffer size: ${fileBuffer.length} bytes`);

    // 4. Parse the PDF content.
    const parsedData = await parsePdfBuffer(fileBuffer);

    // 5. Output the results.
    console.log("\n--- Parsing Successful ---");
    console.log(`Pages Extracted: ${parsedData.pageCount}`);
    console.log(`Text Length: ${parsedData.text.length} characters`);
    console.log(`Metadata:`, parsedData.info);

    // Log a snippet of the text (first 200 chars)
    console.log(`\nText Snippet:\n"${parsedData.text.substring(0, 200).trim()}..."`);

  } catch (error) {
    console.error("Execution failed:", error);
  }
}

// Execute the main function.
// Using top-level await is not standard in pure Node scripts without .mjs flags,
// so we wrap it in an async IIFE or call .then().
main();

Detailed Line-by-Line Explanation

Here is a breakdown of the logic, step-by-step, explaining the "Why" and "How" of the implementation.

1. Setup and Imports

import * as fs from 'fs';
import * as path from 'path';
import pdfParse from 'pdf-parse';

* Why: We need fs (File System) to read files from the disk. path helps construct cross-platform file paths (handling Windows \ vs. Linux /). pdf-parse is a lightweight wrapper around Mozilla's PDF.js, specifically designed to extract text strings from PDF binaries in Node.js. * Under the Hood: PDFs are not plain text; they are complex binary formats containing vector graphics, font definitions, and layout instructions. pdf-parse handles the decoding of these instructions to reconstruct the text stream.

2. Defining the Data Structure

interface ParsedDocument {
  text: string;
  pageCount: number;
  totalPages: number;
  info: any;
}

* Why: In TypeScript, defining interfaces ensures type safety. When we pass this object around our application (e.g., to a chunking function or a database), we know exactly what properties exist. * Under the Hood: totalPages is often an alias for pageCount in PDF metadata standards. The info object typically contains standard PDF metadata like Title, Author, Producer, and CreationDate.

3. The Parsing Function

async function parsePdfBuffer(buffer: Buffer): Promise<ParsedDocument> {
  try {
    const data = await pdfParse(buffer);
    // ...
  } catch (error) {
    // ...
  }
}

* Why: Parsing is an I/O-bound operation that takes time. We mark this function as async so it doesn't block the Node.js event loop while processing large documents. * Under the Hood: The buffer argument represents the raw binary data of the file loaded into memory. pdfParse processes this buffer page by page. The try...catch block is critical because malformed PDFs (e.g., encrypted or corrupted files) will throw runtime errors that must be handled gracefully to prevent crashing the entire server process.

4. The Main Execution Logic

async function main() {
  const filePath = path.join(__dirname, 'sample.pdf');
  // ...
  const fileBuffer: Buffer = fs.readFileSync(filePath);
  const parsedData = await parsePdfBuffer(fileBuffer);
  // ...
}

* Why: We separate the execution logic into a main function to keep the scope clean. * Under the Hood: * fs.readFileSync: In this "Hello World" example, we use a synchronous read for simplicity. However, in a production SaaS environment handling concurrent requests, you must use fs.promises.readFile (or fs.readFile with a callback) to avoid blocking the main thread. * fileBuffer: This loads the entire file into RAM. For very large PDFs (hundreds of MBs), this can cause memory issues. In production, you might stream the file directly to the parser or process it in chunks.

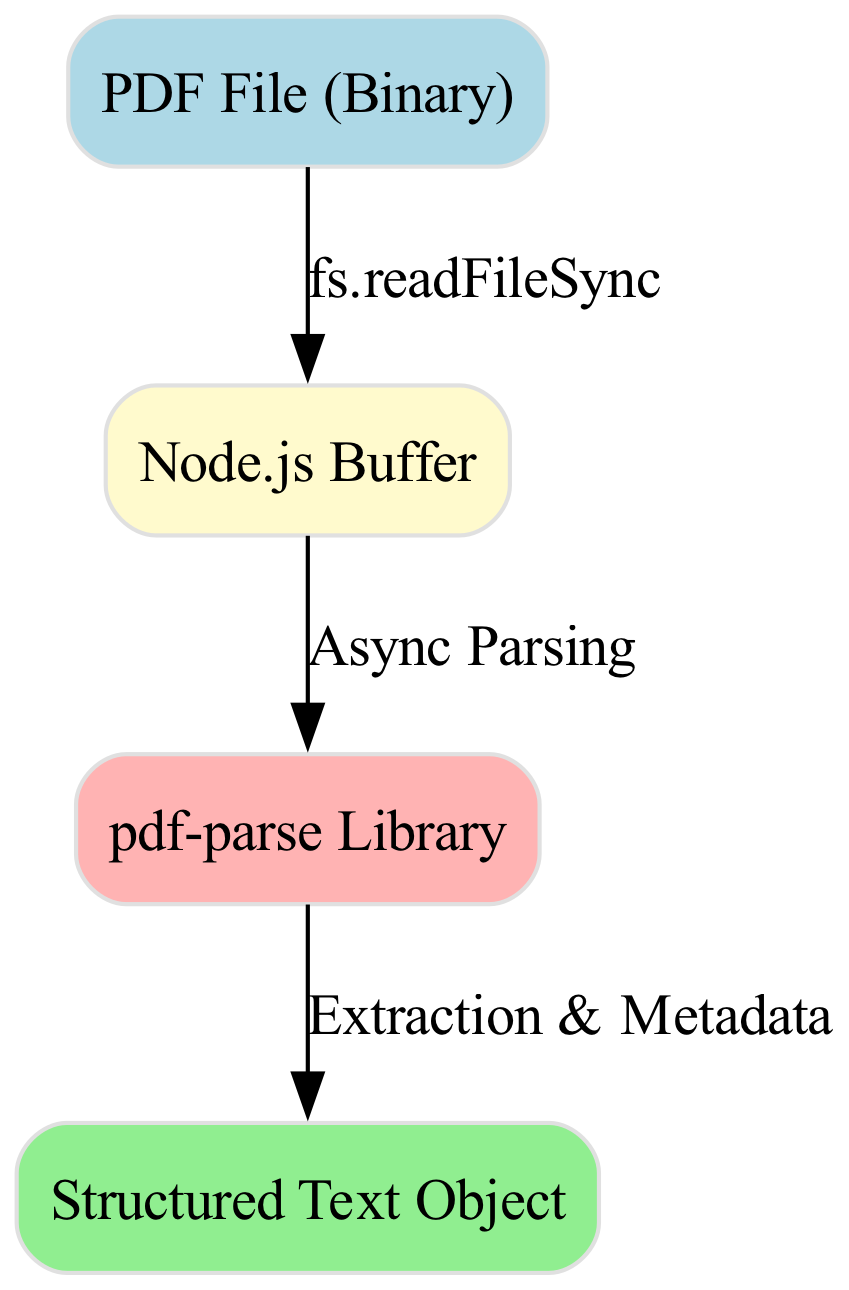

Visualization of the Data Flow

The following diagram illustrates how the raw PDF binary flows through our parser to become structured text data suitable for a RAG pipeline.

The diagram illustrates the end-to-end data flow, starting with the raw PDF binary being streamed or chunked, processed by the parser to extract structured text, and finally outputting clean data ready for the RAG pipeline.

Common Pitfalls

When implementing PDF parsing in a Node.js/TypeScript environment, especially for SaaS applications, watch out for these specific issues:

1. Memory Leaks with Large Files * The Issue: Loading a 500MB PDF into a Buffer using fs.readFileSync consumes 500MB of RAM immediately. If you have 10 concurrent users doing this, you will crash the Node.js process (Heap Out of Memory). * The Fix: Use streams. Instead of reading the whole file, pipe the request stream directly into the parser if the library supports it. Alternatively, use fs.promises.readFile only for smaller files and implement a file size limit check before reading.

2. Encoding and "Mojibake" * The Issue: PDFs often embed custom fonts. pdf-parse extracts text, but sometimes the character mapping is incorrect, resulting in garbled text (e.g., "ƒƒ" instead of "ff"). * The Fix: Post-process the extracted text. Normalize unicode characters using string.normalize('NFKD'). For complex PDFs (like scanned documents), text extraction libraries will fail entirely—you will need OCR (Optical Character Recognition) tools like Tesseract.js, which is a different workflow.

3. Async/Await in Non-Async Contexts * The Issue: A common mistake is trying to use await at the top level of a file without a wrapper function or setting the Node.js environment to support top-level await (ES Modules). * The Fix: Always wrap your asynchronous logic in an async function (like main() above) or use an Immediately Invoked Function Expression (IIFE): (async () => { await logic(); })();.

4. Vercel/Serverless Timeouts * The Issue: If you deploy this to a serverless environment (like Vercel or AWS Lambda), the parsing might exceed the execution timeout (usually 10-30 seconds for hobby tiers). * The Fix: PDF parsing is CPU-intensive. Serverless functions are not ideal for heavy CPU tasks. Move the parsing logic to a dedicated background worker (e.g., a Docker container running BullMQ or a separate Node.js service) and have your API simply upload the file to storage (S3) and trigger the job.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
