Chapter 8: Re-ranking - The Secret to Better Results

Theoretical Foundations

In the previous chapters, we established the foundational mechanics of Retrieval-Augmented Generation (RAG). We learned how to transform textual data into high-dimensional vectors—mathematical representations of meaning—and store them in a Vector Store like pgvector within a Supabase environment. We then discussed how to perform a similarity search, typically using a method like cosine similarity, to retrieve the top-k most relevant documents based on a user's query. This initial retrieval step is analogous to a web application performing a basic keyword search on a database index. It’s fast, efficient, and gets us into the right ballpark. However, it often lacks the nuance required for truly high-quality, context-aware generation.

The "Initial Retrieval" phase is fundamentally a measure of semantic closeness, not necessarily relevance. Two documents might be semantically similar (i.e., they discuss the same general topic) but one might be a far more direct and precise answer to a specific query than the other. This is where Re-ranking enters the pipeline as a critical post-processing step. Re-ranking takes the initial set of retrieved documents (the "candidate pool") and reorders them based on a more sophisticated, computationally intensive measure of relevance, ensuring that the most pertinent information is positioned at the top of the context window for the Large Language Model (LLM).

The Analogy: The Library and the Librarian

Imagine you are researching a highly specific question: "What were the primary economic impacts of the 2008 financial crisis on the real estate market in the United States?"

Initial Retrieval (Vector Similarity): You walk into a massive library and ask the librarian for books on the "2008 financial crisis." The librarian, using a simple index, points you to a section with 100 books. All these books are semantically related to your query—they all mention the 2008 crisis. However, this list is a blunt instrument. It includes: 1. A broad textbook on macroeconomic history. 2. A biography of a key politician involved. 3. A book focusing on the stock market. 4. A detailed analysis of the US housing market's collapse.

While all are relevant, only the fourth book directly addresses the core of your question. The initial retrieval gave you a "bag of relevant documents," but it didn't prioritize them based on the specific intent and nuance of your query.

Re-ranking (Cross-Encoder Scoring): Now, imagine a specialist librarian who is an expert in economic history. You hand them your specific question and the list of 100 books. This specialist doesn't just look at the titles; they scan the table of contents, the index, and key chapters of each book. They perform a deep, comparative analysis. After this intensive review, they reorder the list, placing the book on the US housing market collapse at the very top, followed by others in descending order of direct relevance.

This specialist is the re-ranker. The initial retrieval was a fast, broad filter. The re-ranking is a slower, precise, and context-aware refinement. It's the difference between a search engine's initial results and the "featured snippet" that directly answers your question at the top of the page.

Why Initial Retrieval is Insufficient: The Semantic Proximity vs. Relevance Problem

The core limitation of relying solely on vector similarity (e.g., cosine similarity) for retrieval is that it measures proximity in a shared vector space, not direct question-answer compatibility. An embedding model is trained to place semantically similar concepts close together. A query like "causes of engine failure" and a document about "automotive maintenance schedules" will have a high cosine similarity because they both exist in the "car" semantic space. However, the document might not explicitly list the causes of engine failure; it might only mention them in passing.

This leads to several problems in a RAG pipeline: 1. Keyword Mismatch: A document might contain the perfect answer but use different terminology than the query, resulting in a lower similarity score. 2. Topic Drift: The initial retrieval might pull in documents that are topically related but tangential to the user's specific need. This "noise" can confuse the LLM, leading to hallucinations or irrelevant, rambling answers. 3. Lack of Nuance: For complex queries with multiple constraints (e.g., "find me a Python library for image processing that is lightweight and has an MIT license"), vector similarity struggles to balance these competing factors simultaneously. It might prioritize a popular library that is not lightweight over a less-known one that perfectly fits all criteria.

Re-ranking directly addresses these issues by moving from a one-dimensional similarity score to a multi-dimensional relevance assessment.

The Engine of Re-ranking: Cross-Encoders and Bi-Encoders

To understand re-ranking, we must contrast the models used for initial retrieval with those used for re-ranking.

Bi-Encoders (For Initial Retrieval): The embedding models we've discussed (like those from OpenAI, Cohere, or open-source models like all-MiniLM-L6-v2) are Bi-Encoders. They work by independently encoding the query and the document into separate vectors.

Process: Query Vector = Encoder(Query), Document Vector = Encoder(Document)
Comparison: Similarity = cosine_similarity(Query Vector, Document Vector)
Key Characteristic: This process is highly efficient because the document vectors can be pre-computed and indexed (e.g., in pgvector). The query is only encoded once, and the search is a fast vector lookup. This is perfect for sifting through millions of documents.

Cross-Encoders (For Re-ranking): Re-ranking models are typically Cross-Encoders. Unlike Bi-Encoders, a Cross-Encoder processes the query and the document simultaneously within a single model.

Process: The query and the document are concatenated into a single input sequence (e.g., [CLS] query [SEP] document [SEP]). This combined sequence is fed into a transformer model (like BERT or a distilled variant).
Comparison: The model outputs a single relevance score (e.g., between 0 and 1) that represents how well the document answers the query, considering the interaction between every token in the query and every token in the document.
Key Characteristic: This joint processing allows the Cross-Encoder to capture deep, fine-grained interactions and dependencies between the query and the document that a Bi-Encoder, which looks at them in isolation, would miss. This leads to significantly higher accuracy in scoring relevance. The trade-off is computational cost: you cannot pre-compute document scores, and each query-document pair must be passed through the model from scratch.

Visualizing the Difference

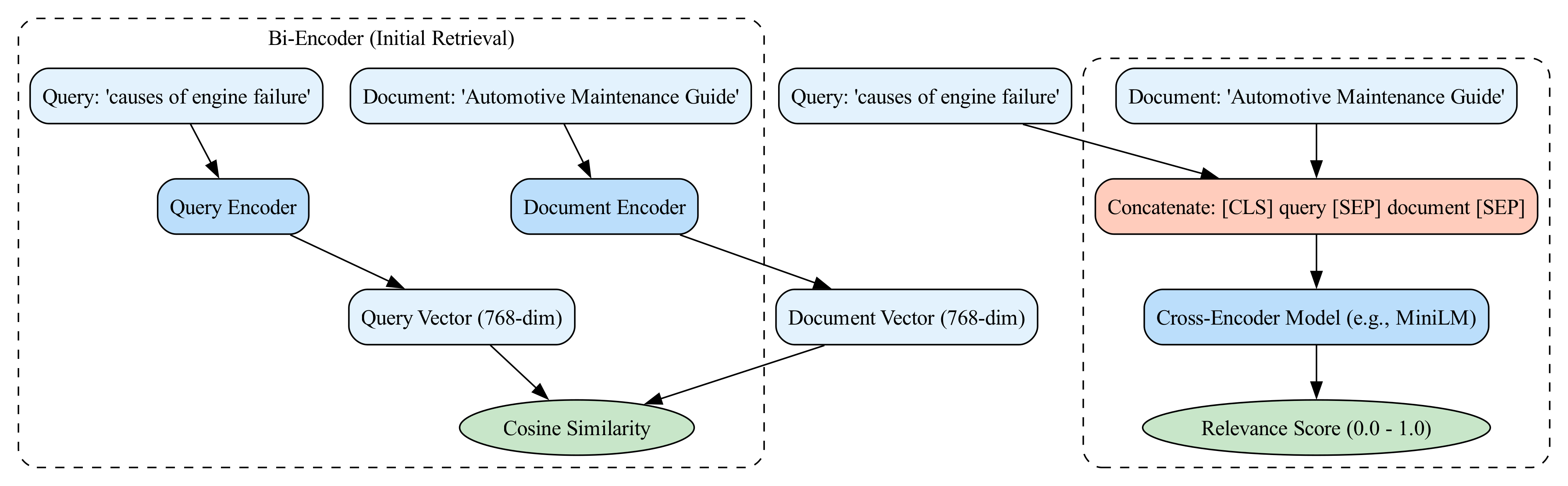

The following diagram illustrates the architectural difference between the two models.

This diagram visually contrasts the two architectures, showing the traditional model's pre-computed document scores versus the neural model's need to process each query-document pair from scratch, highlighting the computational trade-off.

As the diagram shows, the Bi-Encoder has two separate, parallel paths for the query and document, converging only at the final similarity calculation. The Cross-Encoder has a single, unified path where the query and document are intertwined from the very beginning, allowing for a much deeper, contextual understanding.

The Re-ranking Pipeline in Practice

A typical production RAG pipeline incorporating re-ranking follows these steps:

Query Embedding: The user's query is converted into a vector using a fast Bi-Encoder (e.g., a model from the sentence-transformers library).
Initial Retrieval: The query vector is used to perform an approximate nearest neighbor (ANN) search in a Vector Store like pgvector. This quickly fetches a larger-than-needed set of documents (e.g., the top 50 candidates) to ensure a good candidate pool.
Re-ranking: The original query and each of the 50 retrieved documents are fed into a Cross-Encoder model. The model assigns a relevance score to each query-document pair.
Reordering: The documents are sorted in descending order based on their Cross-Encoder scores.
Context Selection: The top-N (e.g., top-3 or top-5) documents from this re-ranked list are selected.
Final Prompt Generation: These top-N, high-quality documents are formatted and inserted into the context window of the LLM, along with the original query, to generate the final, precise answer.

This process ensures that the LLM is not distracted by semantically similar but contextually irrelevant information. It receives the most potent, directly applicable context possible.

Enterprise Considerations: The Latency vs. Accuracy Trade-off

In a production environment, especially one serving real users, you must balance the desire for accuracy with the need for speed. This is a fundamental engineering trade-off.

Accuracy: Cross-Encoders are demonstrably more accurate than Bi-Encoders for relevance scoring. Using them significantly improves the quality of the final LLM response.
Latency: Running a Cross-Encoder for every document in the initial retrieval set adds computational overhead. If you retrieve 50 documents and each takes 10ms to score, that's an additional 500ms of latency before the LLM can even start generating.

This is where architectural philosophies like Edge-First Deployment Strategy become relevant. For a highly interactive application, you might deploy the lighter-weight components (like the initial embedding and vector search) closer to the user at the edge. The more computationally intensive re-ranking step could be handled by a centralized, powerful GPU instance. Alternatively, you might optimize the Cross-Encoder itself by using a smaller, distilled model (e.g., MiniLM-L6-v2 instead of a full-size BERT-large) or by using a specialized, optimized endpoint like the one provided by Cohere.

The key is to profile your application's performance and user expectations. For a low-latency chatbot, you might re-rank only the top 20 candidates. For a research tool where accuracy is paramount and users expect to wait a few seconds, you could re-rank 100 candidates. The strategy is not to re-rank everything, but to re-rank a sufficiently large candidate pool to guarantee that the best documents are elevated to the top, providing the LLM with the highest quality context possible.

Basic Code Example

This example demonstrates a simplified re-ranking pipeline within a Node.js/TypeScript web application context. We will simulate a scenario where a user queries for "best budget laptops," and we have retrieved an initial set of documents using vector similarity. We will then use a Cross-Encoder model (simulated via a local function for this "Hello World" example, but typically an API call to Cohere or HuggingFace) to re-order these documents based on semantic relevance to the query.

This process illustrates the Asynchronous Tool Handling principle, where the re-ranking step is an async operation that must be awaited before passing the refined context to the final generation step.

The Workflow

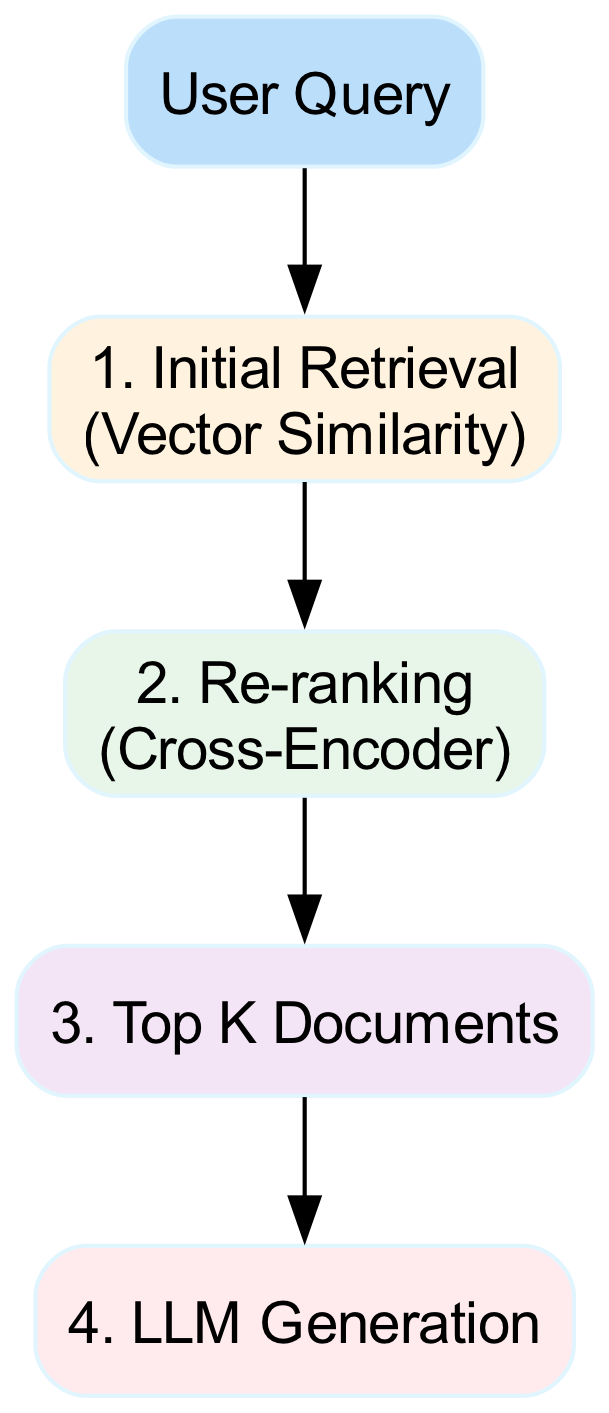

The logic flows through three distinct stages: 1. Retrieval: Fetch initial documents (mocked data). 2. Re-ranking: Score each document against the query using a Cross-Encoder. 3. Generation: Construct the final prompt using the top-ranked documents.

After retrieving and ranking relevant documents, the system constructs the final prompt by selecting the top-ranked documents to provide context for the AI.

TypeScript Implementation

/**
 * @fileoverview Basic Re-ranking Example for a SaaS Web App
 *
 * This script simulates a backend API endpoint that processes a user query.
 * It demonstrates the re-ranking pattern: retrieving documents via vector similarity
 * and refining the order using a Cross-Encoder relevance score.
 */

// --- 1. Mock Data & Types ---

// Simulating a document stored in a vector database (e.g., Pinecone, Qdrant).
interface Document {
    id: string;
    content: string;
    metadata: {
        source: string;
        date: string;
    };
    // In a real scenario, 'score' comes from the vector search (e.g., cosine similarity)
    score: number;
}

// --- 2. The Re-ranking Service ---

/**
 * Simulates a Cross-Encoder model (e.g., BAAI/bge-reranker-base).
 * In production, this would be an API call to Cohere ReRank or a local ONNX model.
 *
 * @param query - The user's search query.
 * @param documents - The list of documents to rank.
 * @returns A promise resolving to documents sorted by relevance score (0 to 1).
 */
async function reRankDocuments(
    query: string,
    documents: Document[]
): Promise<Document[]> {
    console.log(`[Re-ranker] Processing query: "${query}"`);

    // SIMULATION: We calculate a mock relevance score.
    // A real Cross-Encoder analyzes the semantic interaction between query and document.
    const ranked = documents.map(doc => {
        let relevanceScore = 0;

        // Heuristic simulation for demonstration purposes only:
        if (doc.content.toLowerCase().includes(query.split(' ')[0])) {
            relevanceScore += 0.5;
        }
        if (doc.content.length > 50) relevanceScore += 0.1; // Prefer detailed docs

        // Add some randomness to simulate model variance
        relevanceScore += Math.random() * 0.4;

        return { ...doc, relevanceScore };
    });

    // Sort descending by the new relevance score
    ranked.sort((a, b) => b.relevanceScore - a.relevanceScore);

    // Simulate network latency (Async Tool Handling)
    await new Promise(resolve => setTimeout(resolve, 200));

    return ranked;
}

// --- 3. The Main Pipeline (Supervisor/Worker Pattern) ---

/**
 * Main entry point simulating an API route handler (e.g., Next.js App Router).
 * This acts as the 'Supervisor' orchestrating the flow.
 *
 * @param userQuery - The input string from the frontend.
 */
async function runRagPipeline(userQuery: string): Promise<void> {
    console.log(`\n--- Starting Pipeline for: "${userQuery}" ---`);

    try {
        // Step 1: Initial Retrieval (Mocking Vector DB Search)
        // In a real app, this is `vectorStore.similaritySearch(query, 10)`
        const initialDocs: Document[] = [
            { id: "1", content: "Top 10 Budget Laptops of 2024", metadata: { source: "tech-blog", date: "2024-01-15" }, score: 0.85 },
            { id: "2", content: "Gaming Laptops vs. Ultrabooks", metadata: { source: "comparison-guide", date: "2023-11-20" }, score: 0.82 },
            { id: "3", content: "How to save money on electronics", metadata: { source: "finance-blog", date: "2024-02-01" }, score: 0.78 },
            { id: "4", content: "Best affordable Chromebooks for students", metadata: { source: "education-tech", date: "2024-03-10" }, score: 0.75 },
        ];

        console.log(`[Retrieval] Found ${initialDocs.length} initial candidates.`);

        // Step 2: Re-ranking (The Critical Step)
        // We pass the query and the initial candidates to the re-ranker.
        // This is an asynchronous tool call.
        const rerankedDocs = await reRankDocuments(userQuery, initialDocs);

        // Step 3: Selection (Top K)
        // We select the top 2 documents based on the re-ranked scores.
        const topK = 2;
        const finalContext = rerankedDocs.slice(0, topK);

        console.log(`[Re-ranking] Top ${topK} selected:`);
        finalContext.forEach(doc => {
            console.log(`  - ID: ${doc.id} | Relevance: ${doc.relevanceScore?.toFixed(2)} | Content: "${doc.content}"`);
        });

        // Step 4: Generation (Simulated LLM Call)
        const contextString = finalContext.map(d => d.content).join('\n');
        const finalPrompt = `
            Based on the following context, answer the user's question:
            Question: ${userQuery}
            Context:
            ${contextString}
        `;

        console.log("\n[Generation] Final Prompt Constructed:");
        console.log(finalPrompt);
        console.log("\n--- Pipeline Complete ---\n");

    } catch (error) {
        console.error("[Error] Pipeline failed:", error);
    }
}

// --- Execution ---

// Simulate a web request
runRagPipeline("best budget laptops");

Detailed Line-by-Line Explanation

1. Data Structures (Lines 10-20)

We define a Document interface. In a production RAG system, these objects are returned from your vector database (Pinecone, Weaviate, etc.). The score property represents the initial vector similarity (cosine distance). While useful, this score is often a poor indicator of semantic relevance for complex queries, which is why we need re-ranking.

2. The `reRankDocuments` Function (Lines 24-52)

This is the core of the "Hello World" example. * Async Definition: The function is marked async because, in a real-world scenario, this involves an HTTP request to an external API (like Cohere) or a heavy computation on a GPU. We must handle this asynchronously to avoid blocking the Node.js event loop. * Simulation Logic: Since we cannot embed a 100MB model in this text snippet, we simulate the Cross-Encoder behavior. A real Cross-Encoder (like BERT) processes the [Query, Document] pair simultaneously to capture deep semantic interactions. * Latency Simulation: await new Promise(...) mimics network latency. This is crucial for understanding Asynchronous Tool Handling. The pipeline pauses here but allows other requests on the server to proceed. * Sorting: We sort by relevanceScore (descending). This transforms the list from "semantically similar" (vector search) to "semantically relevant" (re-ranking).

3. The Pipeline Orchestrator (Lines 56-90)

Mock Retrieval: We simulate retrieving 4 documents. Notice that "Gaming Laptops" has a high initial vector score (0.82) but is actually irrelevant to the query "budget laptops." A simple vector search might keep this in the top results.
The Re-ranking Call: await reRankDocuments(...) is the delegation. The main function waits for the worker (the re-ranker) to finish.
Top-K Selection: After re-ranking, we slice the array. The "Gaming Laptop" document should theoretically drop in rank, allowing "Chromebooks" or "Budget Laptops" to move up.
Prompt Construction: We inject the refined context into the LLM prompt. This ensures the LLM only sees the most relevant information, reducing hallucinations and improving answer quality.

Common Pitfalls

When implementing re-ranking in a production JavaScript/TypeScript environment (e.g., Vercel, AWS Lambda), watch out for these specific issues:

Vercel/AWS Lambda Timeouts (The 10s Wall):
- Issue: Serverless functions often have strict timeouts (e.g., 10 seconds on Vercel Hobby plans). Re-ranking adds latency (200ms-1s per batch). If you retrieve too many documents (e.g., 50) and send them all to a re-ranker, the API call might time out.
- Fix: Limit the initial retrieval count (Top K) to a manageable number (e.g., 10-20) before re-ranking. Do not re-rank 100 documents in a serverless function.
Async/Await Loops (The forEach Trap):
- Issue: Developers often try to re-rank inside a forEach loop. Array.forEach does not wait for promises to resolve.
- Bad Code:
```
// BAD: This runs in parallel and doesn't wait!
docs.forEach(async (doc) => {
    const score = await getScore(doc);
    // Logic here won't execute in order
});
```
- Fix: Use Promise.all or a standard for...of loop if you need sequential processing, though Promise.all is usually preferred for performance if the re-ranker supports batching.
Hallucinated JSON / Schema Drift:
- Issue: If you use an LLM-as-a-Judge for re-ranking (a common advanced pattern), the LLM might return malformed JSON or refuse to answer, breaking your pipeline.
- Fix: Always use strict JSON schemas (via Zod or similar) and validation libraries. Do not trust the output of an external tool call without parsing and validating it.
Memory Leaks in Streaming:
- Issue: If you stream the re-ranking results directly to the client without buffering, you might encounter backpressure issues or memory leaks in Node.js streams.
- Fix: Buffer the re-ranked results fully in the backend before passing them to the generation step. Re-ranking requires a complete dataset to sort effectively; it cannot be done in a streaming fashion easily.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
