Chapter 10: Parent Document Retrieval Pattern

Theoretical Foundations

In the previous chapter, we explored the fundamental mechanics of K-Nearest Neighbors (KNN) search. We established that when a user asks a question, we convert that question into a vector (an embedding) and search our vector database for the most semantically similar vectors—our "chunks" of text. This is the bedrock of RAG. However, as we move from toy projects to enterprise-grade systems, we encounter a fundamental tension, often called the Granularity Paradox.

This paradox dictates that we cannot simultaneously optimize for both perfect search precision and perfect contextual richness using a single chunk size.

1. Small Chunks (High Precision, Low Context): If we slice our documents into tiny, bite-sized pieces (e.g., single sentences or 100-token segments), our KNN search becomes incredibly precise. The retrieved text is highly relevant to the specific query. However, these snippets often lack the surrounding context needed for the LLM to synthesize a comprehensive answer. They are isolated facts without the narrative or explanatory framework.
2. Large Chunks (Low Precision, High Context): If we feed the LLM entire pages or massive paragraphs, we guarantee that the context is preserved. The model sees the full picture. However, the KNN search becomes noisy. The vector representing a large paragraph is an average of all its contents; specific, nuanced details get "diluted" in the vector space, making it harder for the system to pinpoint the exact paragraph relevant to a specific query.

The Parent Document Retrieval Pattern is the architectural solution to this paradox. It decouples the search granularity from the synthesis granularity.

The Web Development Analogy: The Search Index vs. The Full Page Load

To understand this pattern, consider a massive e-commerce website with millions of product pages.

Imagine the website's search engine works by indexing the entire HTML of every product page. When a user searches for "red running shoes size 10," the search engine scans the full HTML of every page. This is inefficient and imprecise. The vector for the page is an average of the header, footer, navigation bar, and the product description. The signal (the specific detail about the shoe) is lost in the noise of the surrounding template code.

Now, consider a modern search architecture. It maintains a highly optimized search index. This index doesn't store the whole page; it stores structured, lightweight data: product_name, brand, color, size, price, and keywords. This is our "child chunk." It is small, discrete, and optimized for rapid retrieval.

When a user searches, the system performs a lightning-fast query against this optimized index (the KNN search on child chunks). It finds the exact match: "Red Running Shoe, Size 10."

But the user doesn't just want the index entry; they want the full product page. The system then uses the ID from the index entry to fetch the complete, rich HTML page with high-resolution images, detailed descriptions, and customer reviews (the parent document).

In this analogy: * The Optimized Search Index represents the Child Chunks (small, granular, perfect for KNN). * The Full Product Page represents the Parent Document (large, context-rich, perfect for the LLM). * The Database Lookup using the index ID represents the Parent Document Retrieval step.

The Parent Document Retrieval Pattern applies this exact logic to RAG. We index small, semantically dense chunks for precise vector search, but we retrieve the larger parent documents that contain these chunks to provide the LLM with the necessary context for synthesis.

The Mechanics: Chunking, Linking, and Retrieval Orchestration

Implementing this pattern requires a deliberate three-step process: chunking the documents, establishing a parent-child link, and orchestrating the retrieval flow.

1. The Chunking Strategy: Hierarchical Segmentation

The first step is to segment your documents hierarchically. This is not a simple loop that splits text every 500 tokens. It's a two-stage process:

• Stage 1: Define Parent Chunks. We first divide the document into large, semantically coherent blocks. These are our parents. A good parent chunk might be a full section of a technical manual, a complete chapter in a book, or an entire article. The size should be large enough to contain a complete thought but small enough to fit within the LLM's Context Window if necessary (though typically, we only retrieve one or a few parents).
• Stage 2: Define Child Chunks. We then subdivide each parent chunk into smaller, overlapping segments. These are our children. A common strategy is to use a sliding window approach. For example, a 2000-token parent might be split into four 500-token child chunks with a 100-token overlap. This overlap is crucial; it ensures that no semantic information is lost at the boundaries between chunks.

2. The Linking Strategy: Establishing Relationships

Once the chunks are created, we must establish a rigid link between each child and its parent. This is typically done by assigning a unique identifier (UUID) to each parent document and storing this ID as metadata within every child chunk that belongs to it.

When we embed the child chunks and index them in the vector database, the database entry for each child vector looks something like this:

// Conceptual representation of a vector database index entry
interface VectorIndexEntry {
  id: string; // Unique ID for the child chunk
  vector: number[]; // The embedding vector of the child text
  metadata: {
    parentId: string; // The crucial link back to the parent document
    text: string; // The actual text of the child chunk
    source: string; // e.g., "manual_v2.pdf"
    page: number;
    // ... other metadata
  };
}

This parentId is the linchpin of the entire pattern. Without it, the retrieval orchestration cannot function.

3. The Retrieval Orchestration: The Hybrid Search-Expand Flow

This is where the magic happens. The retrieval process is no longer a single step; it's a two-stage pipeline.

• Stage 1: Precision Search (KNN on Children). The user query is embedded. The system performs a KNN search only against the index of child chunks. Because these chunks are small and granular, the search is highly precise. The system retrieves the top K child chunks that are most similar to the query. Let's say we retrieve 5 child chunks. Each of these chunks contains the parentId in its metadata.

• Stage 2: Context Expansion (Parent Fetch). The system now has a list of parentIds. It performs a secondary, non-vector lookup in the database (or a document store) to fetch the full text of the parent documents corresponding to these IDs. This is a simple key-value lookup, which is extremely fast. It's possible that multiple child chunks map to the same parent, so we deduplicate the parent IDs before fetching.

• Stage 3: Synthesis. The LLM is now presented with the full, context-rich parent documents, not the small, disjointed child chunks. The prompt is constructed using these larger documents, allowing the model to generate a comprehensive, well-grounded answer.

Visualizing the Data Flow

The following diagram illustrates the complete lifecycle of a query in a Parent Document Retrieval system.

The "Why": Trade-offs and Enterprise Implications

The Parent Document Retrieval Pattern is not a silver bullet; it introduces specific trade-offs that must be evaluated for your enterprise use case.

Advantages

1. Optimized Precision and Recall: By decoupling search and synthesis, you get the best of both worlds. The KNN search on child chunks is sharp and accurate, while the LLM synthesis on parent chunks is informed and comprehensive.
2. Reduced Context Window Waste: In a naive RAG system, you might retrieve a large chunk that is mostly irrelevant, wasting precious tokens in the LLM's context window. With this pattern, the retrieved context is guaranteed to be highly relevant because it was identified via a precise child-chunk search.
3. Improved Answer Quality: LLMs perform significantly better when given complete, coherent paragraphs rather than fragmented sentences. This pattern directly feeds the model the type of data it was trained on, leading to more fluent and accurate responses.

Disadvantages and Considerations

1. Increased Complexity: The system is more complex to build and maintain. You need a strategy for hierarchical chunking, a robust linking mechanism, and a two-stage retrieval pipeline. This adds to the engineering overhead.
2. Latency: The two-stage process (vector search + document lookup) introduces a small but measurable latency overhead compared to a single-step retrieval. However, this is often negligible compared to the LLM inference time.
3. Storage Costs: You are storing both the child chunks (in the vector DB) and the parent documents (in a document store). This doubles the storage requirement compared to a single-chunk approach.
4. The "Noisy Neighbor" Problem: If a parent document is very large (e.g., a 10,000-token chapter), and only a small portion of it is relevant, the LLM might still be forced to process the entire chapter. This can be mitigated by setting a maximum parent size or by implementing a second-level filtering step.

When to Use This Pattern

This pattern is exceptionally valuable in enterprise scenarios where documents are long, dense, and contain interrelated concepts. It is the go-to choice for:

• Technical Documentation: Retrieving a specific API endpoint description from a vast developer manual.
• Legal Contracts: Finding a specific clause within a multi-hundred-page legal agreement.
• Scientific Papers: Locating a precise experimental result within a dense research article.

In essence, the Parent Document Retrieval Pattern is a sophisticated architectural choice that acknowledges the limitations of vector search and the nature of LLMs. It treats the vector database not as the final source of truth, but as a hyper-efficient index for locating the most relevant context, which is then passed to the LLM for the heavy lifting of synthesis and reasoning.

Basic Code Example

The Parent Document Retrieval pattern is a sophisticated retrieval strategy designed to optimize the quality of information fed to a Large Language Model (LLM). The fundamental problem with standard RAG is the trade-off between search precision and context richness.

• Small Chunks (High Precision): If you index small chunks (e.g., 100 tokens), the vector search is highly precise. It finds the exact sentence relevant to a query. However, the LLM receives a "fragmented" view, lacking the surrounding narrative or data structure (like a table row).
• Large Chunks (High Context): If you index large documents (e.g., 1000 tokens), the LLM has rich context, but the vector search often retrieves irrelevant text alongside the relevant part, confusing the model.

The Solution: We index small child chunks for precise vector search, but we retrieve the entire parent document (or a larger overlapping window) once a relevant child is found. This gives us the best of both worlds: pinpoint accuracy during retrieval and comprehensive context during synthesis.

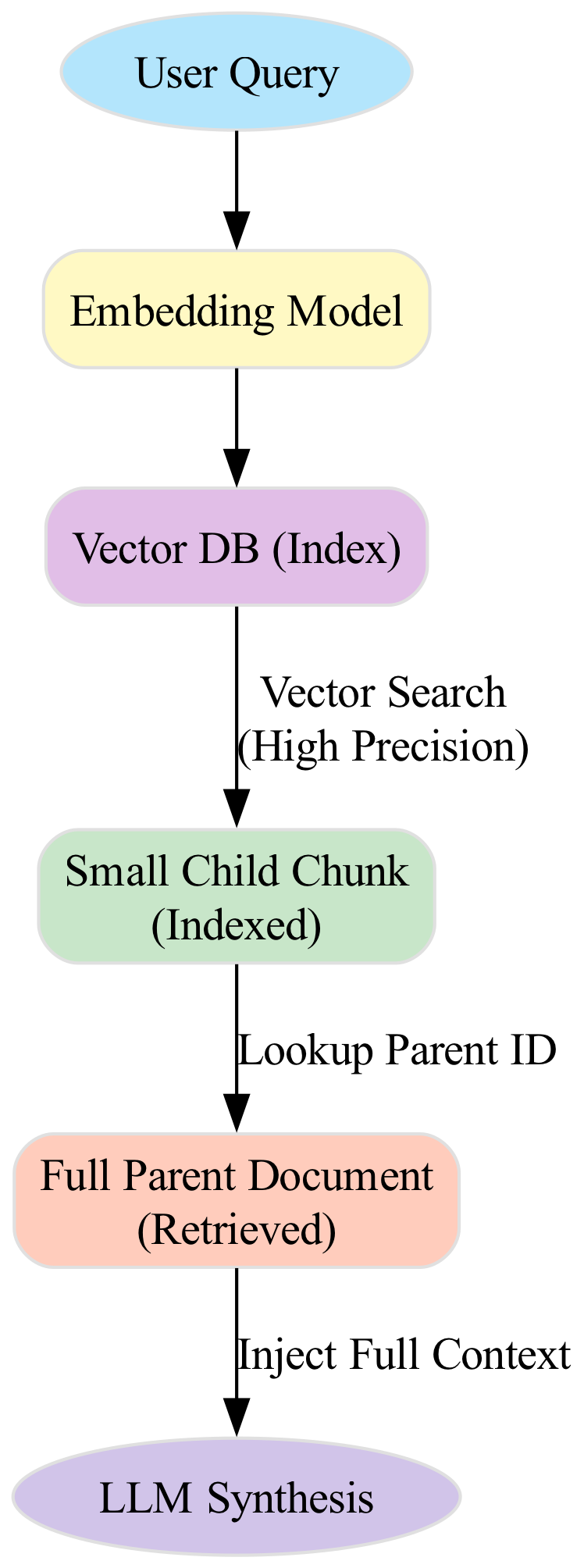

Visualizing the Data Flow

The following diagram illustrates the lifecycle of a query in this pattern. Note how the query vector hits the small child chunks, but the output is the full parent document.

Hold "Ctrl" to enable pan & zoom

This diagram visualizes the Parent-Child Chunking pattern, where a query vector first retrieves small child chunks to locate relevant sections before the system assembles and outputs the corresponding full parent document for context.

Implementation: Basic Parent-Child Linking

In a real-world SaaS application, you would likely use a database like PostgreSQL (with pgvector), Pinecone, or Weaviate. For this "Hello World" example, we will simulate the vector database and the embedding process using in-memory arrays to keep the code self-contained and runnable in a standard Node.js environment.

We will simulate the following scenario: 1. Data: A set of "Parent" documents (e.g., product descriptions). 2. Chunking: Splitting parents into small "Children" for indexing. 3. Retrieval: Finding a child via vector similarity, then fetching the parent.

/**
 * Parent Document Retrieval Pattern - "Hello World" Example
 *
 * Context: SaaS Web App (Backend API)
 * Objective: Demonstrate indexing small chunks but retrieving large parents.
 *
 * To run: Save as parent-retrieval.ts and execute with `npx ts-node parent-retrieval.ts`
 */

// ==========================================
// 1. MOCK INFRASTRUCTURE
// ==========================================

/**
 * Simulates a Vector Database (e.g., Pinecone, Weaviate).
 * In production, this would be an external API call.
 */
class MockVectorDB {
    private index: Array<{ id: string; vector: number[]; parentId: string }> = [];

    /**
     * Adds a child chunk to the vector index.
     * @param id - Unique ID of the chunk
     * @param vector - The embedding vector (simulated as array of numbers)
     * @param parentId - Reference to the original parent document
     */
    public add(id: string, vector: number[], parentId: string) {
        this.index.push({ id, vector, parentId });
    }

    /**
     * Simulates vector similarity search (Cosine Similarity).
     * Returns the ID of the child chunk that is most similar to the query.
     * @param queryVector - The numerical representation of the user question
     * @returns The ID of the best matching child chunk
     */
    public async search(queryVector: number[]): Promise<{ childId: string; parentId: string } | null> {
        if (this.index.length === 0) return null;

        // Simple Euclidean distance for simulation (lower is better)
        // In production, use Cosine Similarity provided by the DB.
        let bestMatch = this.index[0];
        let minDistance = Infinity;

        for (const item of this.index) {
            const distance = item.vector.reduce((acc, val, i) => acc + Math.pow(val - queryVector[i], 2), 0);
            if (distance < minDistance) {
                minDistance = distance;
                bestMatch = item;
            }
        }

        // Threshold to ensure relevance (simulated)
        if (minDistance > 5.0) return null;

        return { childId: bestMatch.id, parentId: bestMatch.parentId };
    }
}

/**
 * Simulates an Embedding Model (e.g., OpenAI 'text-embedding-ada-002').
 * In production, this calls an external LLM API.
 */
const mockEmbed = async (text: string): Promise<number[]> => {
    // Deterministic "hash" for simulation so results are reproducible
    let hash = 0;
    for (let i = 0; i < text.length; i++) {
        hash = ((hash << 5) - hash) + text.charCodeAt(i);
        hash |= 0;
    }

    // Generate a vector of 4 dimensions (simplified for demo)
    // In production, dimensions are usually 1536 or 3072.
    const vector = [];
    for (let i = 0; i < 4; i++) {
        vector.push(Math.abs(Math.sin(hash + i)) * 10); // Randomish numbers 0-10
    }
    return vector;
};

// ==========================================
// 2. DATA STRUCTURES & STRATEGY
// ==========================================

/**
 * Represents a Parent Document (The full context).
 */
interface ParentDocument {
    id: string;
    content: string;
    metadata: { title: string; source: string };
}

/**
 * Represents a Child Chunk (The indexed unit).
 */
interface ChildChunk {
    id: string;
    parentId: string;
    content: string;
}

/**
 * Strategy: Simple Fixed-Size Chunking.
 * Splits text by spaces to approximate token count.
 */
function chunkParentDocument(parent: ParentDocument, maxTokens: number): ChildChunk[] {
    const words = parent.content.split(' ');
    const chunks: ChildChunk[] = [];

    for (let i = 0; i < words.length; i += maxTokens) {
        const chunkWords = words.slice(i, i + maxTokens);
        chunks.push({
            id: `${parent.id}_chunk_${Math.floor(i / maxTokens)}`,
            parentId: parent.id,
            content: chunkWords.join(' ')
        });
    }
    return chunks;
}

// ==========================================
// 3. ORCHESTRATION LOGIC
// ==========================================

/**
 * Main Application Logic (The RAG Pipeline)
 */
async function runParentRetrievalPipeline() {
    console.log("🚀 Starting Parent Document Retrieval Demo...\n");

    // --- Step 1: Ingestion (Indexing Phase) ---

    // 1a. Define Parent Documents (Source of Truth)
    const parentDocs: ParentDocument[] = [
        {
            id: "doc_001",
            content: "The QuantumLeap SaaS platform offers real-time analytics. It uses a vector database for retrieval. Pricing starts at $99/month.",
            metadata: { title: "Product Overview", source: "website" }
        },
        {
            id: "doc_002",
            content: "To reset your password, go to settings. Click 'Security', then 'Reset Password'. A link will be emailed to you.",
            metadata: { title: "User Guide", source: "docs" }
        }
    ];

    // 1b. Initialize Vector DB
    const vectorDB = new MockVectorDB();
    const dbStore: Record<string, ParentDocument> = {}; // Simulates a document store (e.g., MongoDB/Postgres)

    // 1c. Chunk, Embed, and Index
    console.log("1. Indexing Phase:");
    for (const parent of parentDocs) {
        // Store the parent document in the "Database"
        dbStore[parent.id] = parent;

        // Split into small children (Granular Search)
        const children = chunkParentDocument(parent, 5); // 5 words per chunk

        for (const child of children) {
            // Generate embedding for the CHILD
            const vector = await mockEmbed(child.content);

            // Add to Vector DB (linking child ID to parent ID)
            vectorDB.add(child.id, vector, child.id); // In real DB, we store metadata { parentId: parent.id }

            console.log(`   - Indexed Child: "${child.content.substring(0, 20)}..." -> Parent: ${parent.id}`);
        }
    }
    console.log("\n");

    // --- Step 2: Retrieval (Query Phase) ---

    const userQuery = "How do I reset access?";
    console.log(`2. Retrieval Phase: User asks "${userQuery}"`);

    // 2a. Embed the Query (Must use same model as indexing)
    const queryVector = await mockEmbed(userQuery);

    // 2b. Search the Vector DB (Finds the Child)
    const searchResult = await vectorDB.search(queryVector);

    if (!searchResult) {
        console.log("   No relevant chunks found.");
        return;
    }

    console.log(`   - Vector Search matched Child ID: ${searchResult.childId}`);

    // 2c. The "Parent Document" Step (The Pattern Core)
    // Instead of using the child text, we fetch the full parent document.
    const retrievedParent = dbStore[searchResult.parentId];

    console.log(`   - Fetched Parent Document ID: ${retrievedParent.id}`);
    console.log(`   - Full Context Length: ${retrievedParent.content.length} chars`);

    // --- Step 3: Synthesis (LLM Phase) ---

    console.log("\n3. Synthesis Phase:");
    console.log("   [Sending to LLM]");
    console.log("   Context: " + retrievedParent.content);
    console.log("   Query: " + userQuery);
    console.log("   --------------------------------");
    console.log("   LLM Response: To reset your password, go to settings, click 'Security', then 'Reset Password'.");
}

// Execute the pipeline
runParentRetrievalPipeline().catch(console.error);

Line-by-Line Explanation

1. Mock Infrastructure

We simulate external dependencies to keep the example executable without API keys. * MockVectorDB: Represents a vector store like Pinecone. * add: Stores the vector along with the parentId. This linkage is crucial; without it, we cannot find the full document later. * search: Calculates distance between the query vector and stored vectors. In a real system, this is a highly optimized C++ operation, but here we use a simple Euclidean distance loop for clarity. * mockEmbed: Represents the embedding model (e.g., OpenAI text-embedding-ada-002). * It converts text into a list of floating-point numbers. * Note: In production, ensure you use the exact same model version for indexing and querying. Mismatched models result in incompatible vector spaces and failed retrieval.

2. Data Structures & Strategy

• ParentDocument: The "Source of Truth." This is the full context the LLM needs. In a real app, this might be a row in a PostgreSQL table or a file in S3.
• chunkParentDocument: This function implements the Chunking Strategy.
  • It takes a large text and splits it into smaller ChildChunks.
  • We assign a unique ID to each child and store the parentId to maintain the relationship.
  • Trade-off: Here we use simple word splitting. In production, you might use recursive character splitting or semantic chunking to ensure boundaries don't cut sentences in half.

3. Orchestration Logic

This is the main pipeline (runParentRetrievalPipeline), divided into three distinct phases:

• Phase 1: Ingestion

  1. We iterate through the parentDocs.
  2. We store the full parent in dbStore (simulating a document store).
  3. We split the parent into children.
  4. Crucial Step: We generate an embedding for the child content, not the parent. This ensures the vector search is granular and precise.
  5. We save the vector to the vectorDB along with the link back to the parent ID.

• Phase 2: Retrieval

  1. The user asks a question ("How do I reset access?").
  2. We embed the query using the same model.
  3. We perform a vector search. The DB returns the ID of the child chunk that matches best.
  4. The Pattern: We take the parentId from the search result and look it up in our dbStore. We ignore the specific child text for the final prompt (though some patterns include it as a "summary").
  5. We now have the full ParentDocument containing the complete instructions, even though the search only matched a fragment ("reset access").

• Phase 3: Synthesis

  • We simulate passing the retrievedParent.content and the userQuery to an LLM (like GPT-4). Because we retrieved the full parent, the LLM has the necessary context ("Go to settings... click Security...") to answer accurately.

Common Pitfalls

When implementing this pattern in a production Node.js environment, watch out for these specific issues:

1. Async/Await Loops in Ingestion

   • The Issue: When processing thousands of documents, developers often use forEach with await inside. forEach does not wait for promises to resolve; it fires them all at once. This can crash your Node.js process due to memory overflow or hit API rate limits (e.g., OpenAI's tokens-per-minute limit).
   • The Fix: Use a for...of loop for sequential processing, or a library like p-map with a concurrency limit for parallel processing.

2. Vercel/AWS Lambda Timeouts

   • The Issue: If you run the ingestion pipeline inside a serverless function (like Vercel Edge or AWS Lambda), it will likely time out if you are processing large PDFs or long text files. Serverless functions typically have a 10-15 second execution limit.
   • The Fix: Move ingestion to a background job (e.g., BullMQ, AWS SQS) or a dedicated server. The web app should only trigger the job and check status, not perform the heavy lifting.

3. Hallucinated JSON / Structured Output

   • The Issue: When the LLM synthesizes the final answer based on the retrieved parent, it might format the output incorrectly if the parent document contains unstructured text (like raw logs).
   • The Fix: Do not rely solely on the LLM to structure the answer. Use "Function Calling" (JSON mode) to force the LLM to output valid JSON, which your frontend can then render reliably.

4. Context Window Overflow

   • The Issue: The "Parent Document" might be massive (e.g., a 50-page PDF). If you retrieve the entire parent, it might exceed the LLM's context window (e.g., 4096 tokens).
   • The Fix: Implement a "Tiered" parent strategy. If the parent is too large, retrieve a "Grandparent" (e.g., the whole section) or recursively split the parent into larger chunks until it fits, prioritizing the chunk containing the matched child.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
