Chapter 11: Ingest Pipelines - Queues & Background Jobs

Theoretical Foundations

In the previous chapter, we established the fundamental architecture of an ingestion pipeline: a linear sequence of operations transforming raw data into vector embeddings suitable for a Vector Database. We defined a Pipeline class that executed these steps—parsing, chunking, embedding, and indexing—in a strict, synchronous order. While this model is excellent for understanding the logical flow and for processing small, manageable datasets, it collapses under the weight of real-world, enterprise-scale data. The synchronous model is a blocking architecture. If the pipeline ingests a 10,000-page document, the main application thread is held hostage for the entire duration of the process. Any incoming user request must wait until the ingestion completes, leading to unresponsive APIs, timeout errors, and a poor user experience. This is the architectural equivalent of a single-lane bridge where every car must wait for the one in front to complete its entire journey before even starting its own.

To solve this, we transition to an asynchronous, decoupled architecture. The core idea is to separate the request to perform work from the execution of that work. Instead of executing the ingestion pipeline immediately within the HTTP request-response cycle, we place a "job" onto a queue. This job is a serializable object containing all the necessary information to perform the work (e.g., the document ID, the raw text, configuration parameters). The main application, having placed the job on the queue, can immediately return a response to the user, such as "Your document is being processed." A separate, independent process, known as a worker, listens to this queue, picks up jobs one by one, and executes the heavy lifting of the ingestion pipeline in the background.

This architectural shift is not merely about performance; it is about resilience, scalability, and reliability. By decoupling the components, we introduce a buffer that can absorb spikes in traffic. If a burst of 1,000 document uploads arrives simultaneously, the main application can accept all of them and place 1,000 jobs onto the queue. The workers can then process these jobs at a sustainable, configurable rate, preventing the system from being overwhelmed. This model also naturally lends itself to distributed systems, where multiple worker processes (potentially running on different machines) can consume from the same queue, parallelizing the workload and dramatically increasing throughput.

The Anatomy of a Job Queue System

A robust job queue system is composed of three primary actors: the Producer (the main application that creates and enqueues jobs), the Queue itself (a persistent, ordered data structure), and the Consumer/Worker (the background process that dequeues and executes jobs). In our context, we will use BullMQ, a modern, robust queue system for Node.js that is built on top of Redis. Redis acts as the message broker and persistence layer, providing the durability and speed required for an enterprise-grade system.

Let's use a web development analogy to solidify this concept. Consider an e-commerce website with a "Place Order" button. A naive, synchronous implementation might look like this:

User clicks "Place Order".
The server processes the payment (which might take 2-3 seconds).
The server updates the inventory database.
The server generates a shipping label.
The server sends a confirmation email.
Finally, the server returns a "Success" page to the user.

During steps 2-6, the user's browser is stuck with a loading spinner. If any step fails or is slow, the entire experience is degraded.

Now, consider the asynchronous, queue-based approach, which mirrors our ingestion pipeline architecture:

User clicks "Place Order".
The server performs a quick validation and creates a ProcessOrder job, containing the order details (items, user ID, shipping address).
This job is placed onto a Redis-backed queue.
The server immediately returns a "Thank You! Your order is being processed" page to the user.
A separate OrderWorker process, running independently, picks up the ProcessOrder job from the queue.
The worker sequentially performs the heavy tasks: calling the payment gateway, updating inventory, generating the shipping label, and sending the email.

In this analogy: * The Producer is the web server handling the "Place Order" request. * The Queue is the BullMQ queue, stored in Redis. * The Worker is the OrderWorker process. * The Job is the ProcessOrder object.

This decouples the user-facing part of the application (the producer) from the long-running, background tasks (the consumers). The same principle applies directly to our data ingestion pipeline. The API endpoint that receives a document upload acts as the producer, and the worker process handles the computationally expensive steps of chunking and embedding.

The Ingest Pipeline as a State Machine

When we move to a background job system, the ingestion process is no longer a simple function call; it becomes a stateful, long-running process. A job can be in various states: waiting, active (currently being processed), completed, failed, or delayed. This statefulness is critical for monitoring and fault tolerance. We can query the queue to see how many documents are pending, which ones failed, and why.

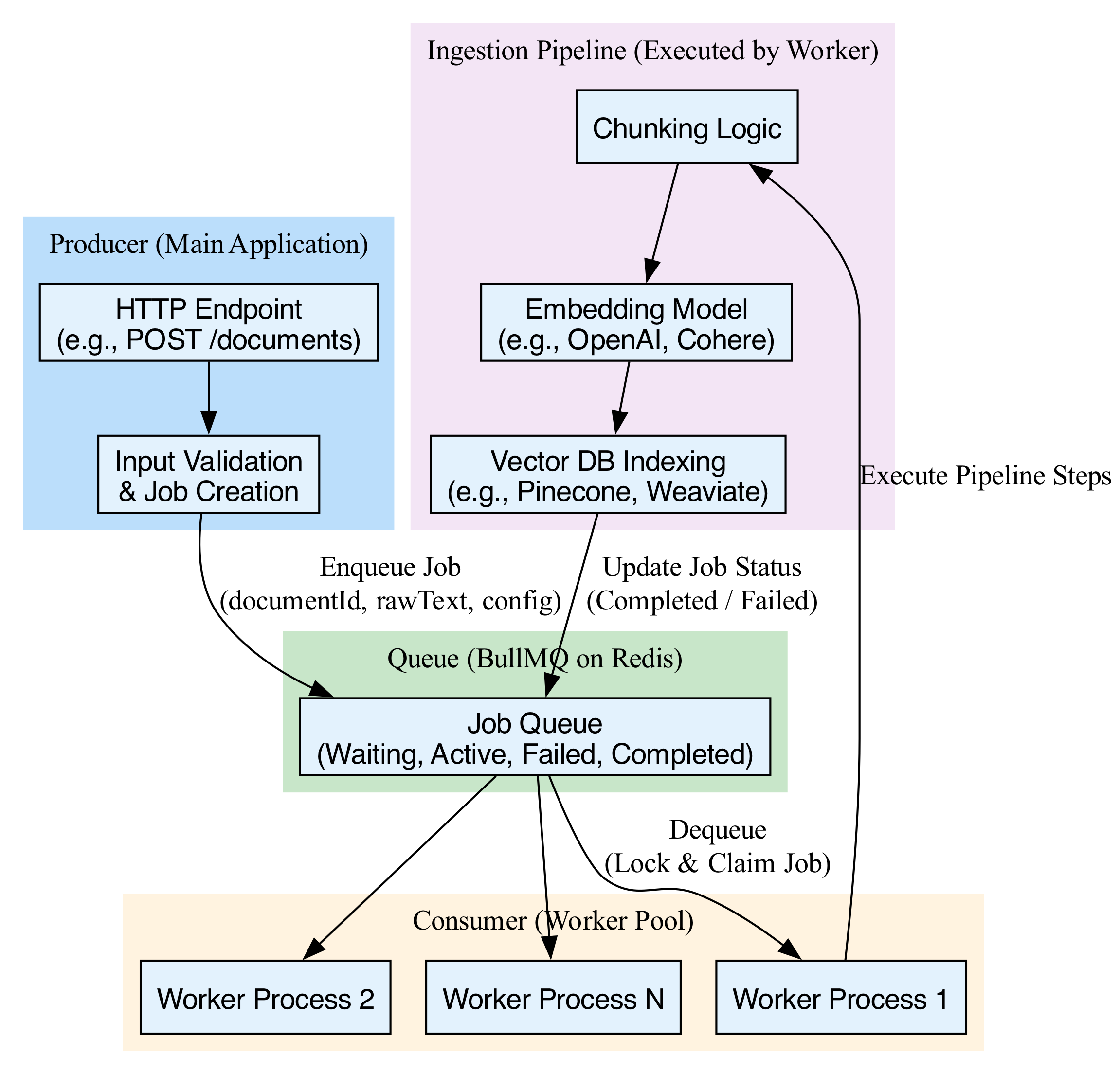

To visualize the flow of data and control through this decoupled system, consider the following diagram. It illustrates the separation between the producer (the main application) and the consumer (the worker pool), with Redis/BullMQ acting as the intermediary.

This diagram illustrates how the main application (producer) decouples from the worker pool (consumer) by offloading tasks to an intermediary like Redis/BullMQ, which manages the queue to ensure asynchronous processing and scalability.

The flow is as follows: 1. A client sends a request to the API endpoint. 2. The API validates the input and constructs a job object. This object must be serializable (i.e., it can be converted to a string and back without losing information). 3. The job is enqueued in BullMQ. The API immediately responds to the client. 4. An idle worker in the worker pool sees a new job in the queue and claims it. BullMQ ensures that only one worker can claim a specific job at a time, preventing race conditions. 5. The worker executes the pipeline logic: it chunks the text, calls an embedding service, and indexes the resulting vectors. 6. Upon success, the worker updates the job's status to completed. If an error occurs at any stage, the worker catches it, updates the job's status to failed, and attaches the error message for later inspection.

The Role of SRP and Strict Type Discipline in a Decoupled System

This decoupled architecture makes the principles of Single Responsibility Principle (SRP) and Strict Type Discipline even more critical. In a synchronous monolith, a single function might be responsible for validating, chunking, embedding, and indexing. In our asynchronous system, these responsibilities are naturally separated across different modules and even different processes.

SRP for Modules: The producer's responsibility is solely to accept and validate incoming data and create a job. It should not contain any logic for chunking or embedding. The worker's responsibility is to execute the pipeline steps defined in the job. The queue's responsibility is to manage the state and distribution of jobs. This separation allows for independent scaling and maintenance. We can scale up the number of workers without touching the API code, and we can modify the chunking logic in the worker without affecting the API's contract.
Strict Type Discipline: Because the job object travels from the producer to the queue and then to the worker, its structure must be impeccably defined. A mismatch between what the producer sends and what the worker expects is a catastrophic failure. This is where TypeScript's strict mode (strict: true, strictNullChecks, noImplicitAny) becomes a non-negotiable safety net. We define a rigid interface for our job payload. This ensures that the producer constructs a valid job and the worker consumes a well-typed object, eliminating an entire class of runtime errors where data is undefined or has an unexpected shape.

// This is a conceptual type definition, not executable code for this section.
// It illustrates the contract between producer and worker.

/**
 * Represents the data payload for a document ingestion job.
 * This interface is the single source of truth for the data structure
 * that travels across the queue boundary.
 */
interface IngestJobPayload {
  /**
   * A unique identifier for the document being processed.
   * This ID is used to track the document's state throughout the pipeline.
   */
  documentId: string;

  /**
   * The raw text content of the document.
   * For very large documents, this might be a reference to a storage location
   * (e.g., an S3 URI) rather than the full text itself, to keep the job payload small.
   */
  content: string;

  /**
   * Configuration parameters for the ingestion process.
   * This allows for different processing strategies for different document types.
   */
  config: {
    chunkSize: number;
    chunkOverlap: number;
    embeddingModel: string; // e.g., 'text-embedding-ada-002'
    vectorDimension: number;
  };

  /**
   * Metadata about the job's origin.
   */
  metadata: {
    uploadedBy: string;
    uploadTimestamp: Date;
    originalFilename: string;
  };
}

Fault Tolerance: Retries, Exponential Backoff, and Dead-Letter Queues

In a distributed, asynchronous system, failures are not just possible; they are expected. Network connections to the embedding service can time out. The vector database might be temporarily unavailable. A worker process might crash mid-execution. A robust ingest pipeline must be designed to handle these failures gracefully.

The primary mechanism for this is automatic retries with exponential backoff. If a job fails (e.g., the embedding API call returns a 503 error), the worker should not immediately mark it as failed. Instead, it should schedule a retry. Exponential backoff means that each subsequent retry attempt is delayed by a progressively longer interval (e.g., first retry after 1 second, second after 2 seconds, third after 4 seconds, and so on). This prevents a "thundering herd" problem where a recovering service is immediately overwhelmed by a flood of retrying jobs.

However, not all failures are transient. A job might fail due to malformed data that will never be processable (e.g., a document containing only images with no OCR text). Retrying this job indefinitely is wasteful. To handle this, we implement a dead-letter queue (DLQ). A DLQ is a separate queue where jobs are sent after they have exhausted their maximum number of retries. By moving failed jobs to a DLQ, we isolate them from the main processing queue, ensuring that they don't block the processing of other valid jobs. This allows for post-mortem analysis: engineers can inspect the jobs in the DLQ, analyze the error messages, fix the underlying issue (e.g., by improving data validation), and then re-queue the failed jobs for reprocessing.

This concept of reconciliation also appears in the user interface. When a user uploads a document, the UI might show an "optimistic" state, like a progress bar or a "processing" status. The reconciliation process is the UI's mechanism for updating this state once the background job completes. The UI might poll an endpoint for the document's status or use a WebSocket to receive a real-time update when the worker finishes the job and updates its status in the database. The UI then reconciles its optimistic state with the confirmed state from the server (e.g., changing "processing" to "ready"). This ensures the user always sees the most accurate representation of the system's state, even in an asynchronous workflow.

Basic Code Example

In a production SaaS application, you cannot afford to block the user's browser or API request while your server performs heavy data processing—like chunking a large document, generating vector embeddings via an AI model, or writing thousands of records to a vector database.

To solve this, we use a Producer-Consumer pattern. 1. The Producer (API Route): Accepts the data, validates it, and pushes a "job" onto a queue. It immediately returns a response to the user ("Your upload is processing"). 2. The Consumer (Background Worker): A separate process that listens to the queue. When a job appears, it executes the heavy logic asynchronously.

Below is a self-contained TypeScript example simulating this architecture using BullMQ (a robust queue system backed by Redis).

// =========================================================
// 1. SETUP & IMPORTS
// =========================================================
// We simulate the BullMQ library for this standalone example.
// In a real environment, you would: npm install bullmq ioredis

// --- MOCKING LIBRARY BEHAVIOR (For Demonstration Only) ---
// This allows the code to run without an actual Redis instance.
type JobStatus = 'waiting' | 'completed' | 'failed';
interface JobData { documentId: string; content: string; }
interface JobResult { embedding: number[]; tokenCount: number; }

class MockRedisClient {
  private queue: JobData[] = [];
  async rpush(key: string, item: JobData) { this.queue.push(item); }
  async blpop(key: string): Promise<JobData> {
    // Simulate waiting for a job
    return new Promise(resolve => {
      const check = () => {
        if (this.queue.length > 0) resolve(this.queue.shift()!);
        else setTimeout(check, 100);
      };
      check();
    });
  }
}

class MockQueue {
  constructor(private name: string, private redis: MockRedisClient) {}

  /** Adds a job to the queue (Producer side) */
  async add(name: string, data: JobData) {
    await this.redis.rpush(this.name, data);
    console.log(`[Producer] Job queued: ${data.documentId}`);
  }

  /** Waits for a job (Consumer side) */
  async getNextJob(): Promise<JobData> {
    return await this.redis.blpop(this.name);
  }
}

// --- REAL APPLICATION LOGIC ---

/**
 * Simulates AI Inference (Embedding Generation).
 * In production, this would call OpenAI or a local model.
 * SRP: This module ONLY handles vector generation.
 */
async function generateEmbedding(text: string): Promise<number[]> {
  // Simulate network latency
  await new Promise(r => setTimeout(r, 500));
  // Return a fake 3-dimensional vector
  return [text.length * 0.1, text.length * 0.2, text.length * 0.3];
}

/**
 * Simulates writing to a Vector Database (e.g., Pinecone, Qdrant).
 * SRP: This module ONLY handles persistence.
 */
async function writeToVectorDB(docId: string, vector: number[]) {
  console.log(`   [DB] Writing vector for ${docId}...`);
  // Simulate DB write latency
  await new Promise(r => setTimeout(r, 200));
  return true;
}

// =========================================================
// 2. THE BACKGROUND WORKER (The "Background Job")
// =========================================================

/**
 * The Worker process.
 * In a real app, this runs in a separate Node.js process (e.g. `ts-node worker.ts`).
 * It polls the queue and executes the heavy lifting.
 */
async function startWorker(queue: MockQueue) {
  console.log("🚀 Worker started. Waiting for jobs...\n");

  while (true) {
    // 1. Wait (Block) until a job is available in Redis
    const jobData = await queue.getNextJob();

    try {
      console.log(`[Worker] Processing: ${jobData.documentId}`);

      // 2. Heavy Lifting: Generate Embeddings (CPU intensive)
      const vector = await generateEmbedding(jobData.content);

      // 3. Heavy Lifting: Database Write (I/O intensive)
      await writeToVectorDB(jobData.documentId, vector);

      console.log(`[Worker] ✅ Success: ${jobData.documentId}\n`);

    } catch (error) {
      // 4. Fault Tolerance: Catch errors to prevent worker crash
      console.error(`[Worker] ❌ Failed: ${jobData.documentId}`, error);
      // In BullMQ: job.moveToFailed(error)
    }
  }
}

// =========================================================
// 3. THE API PRODUCER (The "Web App")
// =========================================================

/**
 * Simulates an API Endpoint (e.g., POST /api/documents).
 * SRP: This module ONLY handles validation and queueing.
 */
async function handleDocumentUpload(queue: MockQueue, content: string) {
  // Strict Type Discipline: Validate inputs
  if (!content || typeof content !== 'string') {
    throw new Error("Invalid content type");
  }

  const docId = `doc_${Date.now()}`;

  // Optimistic UI Pattern (Server-side):
  // We return immediately, acknowledging receipt.
  // The UI can show a "Processing..." state.
  const response = {
    status: "accepted",
    documentId: docId,
    message: "Document received. Background processing started."
  };

  // Push to Queue (Non-blocking)
  await queue.add('process-document', {
    documentId: docId,
    content: content
  });

  return response;
}

// =========================================================
// 4. EXECUTION SIMULATION
// =========================================================

async function main() {
  // Initialize Infrastructure
  const redis = new MockRedisClient();
  const ingestQueue = new MockQueue('ingest-pipeline', redis);

  // Start the Background Worker (Simulating a separate thread/process)
  // We wrap this in a timeout to allow the main thread to log clearly first
  setTimeout(() => startWorker(ingestQueue), 100);

  // Simulate Web App Requests
  console.log("--- APP STARTED ---\n");

  // User uploads a document
  const result1 = await handleDocumentUpload(ingestQueue, "Hello World data for RAG.");
  console.log("[API] Response to Client:", result1);

  // User uploads another document immediately
  const result2 = await handleDocumentUpload(ingestQueue, "Mastering JavaScript data pipelines.");
  console.log("[API] Response to Client:", result2);
}

// Run the simulation
main();

Line-by-Line Explanation

1. Setup & Mocking (Lines 1–45)

Why: Since this is a standalone example, we cannot connect to a real Redis server. We create MockRedisClient and MockQueue to simulate the behavior of BullMQ.
MockRedisClient: Implements a basic list (rpush) and a blocking pop (blpop). The blpop is crucial—it simulates the worker "sleeping" until a job arrives, which is efficient for CPU usage.
MockQueue: Wraps the Redis client to provide a cleaner API (add, getNextJob).

2. Domain Logic (Lines 47–73)

generateEmbedding: Represents the AI inference step. We separate this because it has Single Responsibility (SRP). If we switch from OpenAI to a local model, we only change this function.
writeToVectorDB: Represents the database interaction.
Strict Type Discipline: Note that generateEmbedding explicitly returns Promise<number[]>. We avoid any here to ensure that the database function receives exactly what it expects.

3. The Background Worker (Lines 75–105)

startWorker: This is the "Background Job" engine.
The while (true) Loop: This keeps the process alive. It polls the queue continuously.
await queue.getNextJob(): This is the Blocking part. The code execution stops here (pauses) until a job is pushed to the queue. This is better than setInterval because it doesn't hammer the CPU.
try/catch Block: This is vital for Fault Tolerance. If one document fails (e.g., malformed text), we catch the error and log it. Without this, the entire worker process would crash, potentially dropping other valid jobs.

4. The API Producer (Lines 107–130)

handleDocumentUpload: This simulates your Next.js API route or Express controller.
Immediate Return: Notice it returns response before the processing is done. This is the definition of an asynchronous architecture. The user gets a 200 OK immediately.
Queueing: The heavy lifting (generateEmbedding, writeToVectorDB) is not called here. It is simply pushed to the queue via queue.add.

5. Execution (Lines 132–148)

We start the worker and then simulate two API calls.
You will see the API logs happen instantly, followed by the Worker logs appearing 500ms+ later, proving the non-blocking nature of the system.

Visualizing the Data Flow

This diagram illustrates the separation between the Web API (Producer) and the Background Worker (Consumer).

Common Pitfalls

When moving from "Hello World" to production, watch out for these specific issues:

Vercel/AWS Lambda Timeouts:
- The Issue: Serverless functions (like Vercel) have strict timeouts (e.g., 10 seconds). If you try to perform the chunking and embedding inside the API route, the request will fail.
- The Fix: Always offload to a queue immediately. The API route should only validate and enqueue.
Async/Await Loops (The "Waterfall"):
- The Issue: Processing a queue sequentially is slow.
```
// BAD: Processes one by one
while(true) {
   const job = await getNextJob();
   await process(job); // Waits for this to finish before fetching next
}
```
- The Fix: In production, use Worker concurrency settings in BullMQ or Promise.all batches to process multiple jobs in parallel.
Hallucinated JSON / Data Drift:
- The Issue: If your worker crashes halfway through processing, the job might be marked as "completed" in the UI (Optimistic UI), but the data never made it to the Vector DB.
- The Fix: Implement Idempotency. Ensure that if a job runs twice, it doesn't duplicate data. Also, use database transactions where possible.
Missing Error Handling in Workers:
- The Issue: If generateEmbedding throws an error and you don't catch it in the worker, the job might be lost forever or the worker process might exit.
- The Fix: Always wrap worker logic in try/catch. BullMQ allows you to configure retry strategies (e.g., "retry 3 times with exponential backoff").
