Chapter 17: Hallucination Guardrails

Theoretical Foundations

In the previous chapters, we established the architecture of a Retrieval-Augmented Generation (RAG) system. We discussed how to chunk documents, generate embeddings, store them in a vector database, and retrieve relevant context to feed into a Large Language Model (LLM). However, we must now confront the elephant in the room: LLMs are probabilistic engines, not deterministic databases. They hallucinate. They confabulate. They confidently state falsehoods if the statistical likelihood of the next token suggests it fits the pattern, regardless of factual accuracy.

In a production JavaScript environment, deploying a RAG system without guardrails is akin to shipping a web application without input validation or error handling. It is not a matter of if the system will produce an error (hallucination), but when.

Hallucination Guardrails are defensive programming layers that sit between the LLM's raw output and the end-user. They are deterministic or semi-deterministic algorithms designed to intercept, analyze, and potentially reject or modify the LLM's response. The goal is to ensure that every output is grounded in the retrieved context and adheres to strict structural constraints.

The Web Development Analogy: The API Gateway and Middleware

To understand the architecture of a guardrail system, imagine a modern Node.js backend built with Express.js or Fastify.

The Raw Request (The LLM Raw Output): When a user sends a request to your API, the raw HTTP body arrives. It might be malformed JSON, contain malicious SQL injection attempts, or lack required fields. You never expose this raw request directly to your database logic.
The Middleware Chain (The Guardrail Pipeline): In Express, we use middleware functions (app.use(...)) to process requests sequentially.
- Input Validation: We validate the request body against a schema (e.g., using Zod or Joi).
- Sanitization: We strip out dangerous characters.
- Authentication: We verify the user's token.
- Rate Limiting: We ensure the user isn't spamming the endpoint.

The RAG Guardrail system is exactly this: It is a middleware chain for the LLM's output. * Context Relevance Check: This is the "Authentication" step. Did the LLM actually use the context we provided, or is it generating a response based on its internal parametric memory (which might be outdated or incorrect)? * Deterministic Validation: This is the "Input Validation" step. Does the output match the expected JSON schema? Does it contain the correct regex pattern for a date or an ID? * Fallback Logic: This is the "Error Handling" step. If the context is irrelevant or the confidence score is low, we catch the error and return a polite "I don't know" message rather than a hallucinated answer.

In a microservices architecture, you might have a dedicated "Validation Service" that sits in front of your core business logic. In a RAG application, the guardrail pipeline acts as that service, ensuring that only clean, verified data passes through to the user interface.

To build a robust guardrail system, we must understand the mathematical and logical underpinnings of each validation step.

1. Context Relevance and Faithfulness Scoring

The most common form of hallucination in RAG is Context Relevance Hallucination, where the LLM generates an answer that is syntactically fluent but factually disconnected from the retrieved documents.

How it works: We treat the LLM's generated answer as a "query" and the retrieved context chunks as the "documents." We need to measure how well the answer aligns with the context.

Semantic Similarity (Cosine Similarity): In Chapter 14, we discussed how embeddings represent text as vectors in a high-dimensional space. We can generate an embedding for the generated answer and compare it against the embeddings of the retrieved context chunks using Cosine Similarity.
- High Similarity: The answer's semantic vector points in the same direction as the context vectors, implying strong grounding.
- Low Similarity: The answer is semantically distant from the context, suggesting it was generated from the model's internal knowledge (hallucination).
Cross-Encoder Models (The Precision Layer): While cosine similarity is fast, it only measures vector alignment. It doesn't explicitly check if the claims in the answer are supported by the context. For this, we use Cross-Encoders.
- Unlike Bi-Encoders (which encode text separately, like our embedding models), a Cross-Encoder processes two sentences (Context + Generated Answer) simultaneously in a transformer network. It outputs a score (0 to 1) representing the probability that the answer is entailed by the context. This is computationally expensive but highly accurate for detecting hallucinations.

2. Deterministic Output Validation

While semantic checks handle factual grounding, deterministic checks handle structural integrity. LLMs are notorious for being inconsistent with output formats, especially when asked to return JSON.

The "JSON Schema" Analogy: Think of a TypeScript Interface. When we define an interface, we enforce a strict contract.

interface UserResponse {
    userId: string;
    email: string; // Must be a string
    age?: number;  // Optional
}

If the API returns a number for email, the application crashes. Similarly, if an LLM returns a string "25" instead of a number 25 for a specific field, or hallucinates a field that doesn't exist, the consuming application (e.g., a React frontend) will break.

Implementation Strategy: We use libraries like zod (which we likely introduced in earlier chapters for input validation) to parse the LLM's string output. 1. Regex Pattern Matching: We validate specific formats (e.g., ISO dates, UUIDs, email addresses) using strict regular expressions. If the LLM outputs "next Tuesday" instead of "2023-10-24", the regex fails, and the guardrail triggers. 2. Schema Parsing: We attempt to parse the LLM output into a typed object. If parsing fails (e.g., due to malformed JSON or missing keys), the guardrail catches the exception and initiates a fallback or retry mechanism.

3. Refusal and Fallback Mechanisms (The "I Don't Know" Problem)

A common failure mode in RAG is the "False Positive" retrieval. Imagine a user asks: "What is the financial performance of Company X in 2023?" * Retrieval: The system retrieves a document about Company X's history in 2020. * LLM Generation: The LLM, trying to be helpful, synthesizes a plausible answer based on the 2020 data, implying it applies to 2023.

The Guardrail Logic: We implement a threshold-based logic gate. 1. Calculate the Context Relevance Score (using the methods above). 2. Define a MINIMUM_CONFIDENCE_THRESHOLD (e.g., 0.75). 3. Logic Flow: * IF score >= threshold: Return the generated answer. * ELSE: Discard the generated answer and return a predefined refusal message: "I cannot answer that question based on the provided documents."

This prevents the system from "making things up" when the retrieved data is insufficient.

4. Self-Consistency Checks (Multi-Query Generation)

This is a more advanced technique to verify factual consistency. If a statement is factually true, it should remain true regardless of how you phrase the question.

The Process: 1. Multi-Query Generation: Given a user query, the LLM generates 3–5 variations of that query (e.g., "What causes rust?" -> "Why does metal oxidize?", "What is the chemical process of rusting?"). 2. Parallel Retrieval & Generation: Run the RAG pipeline for each variation independently. 3. Consensus Check: Compare the answers. * If Answer 1 says "Oxygen and water cause rust" and Answer 2 says "Rust is caused by exposure to air," they are consistent. * If Answer 3 says "Rust is caused by heat," it is an outlier (potential hallucination).

This acts as a voting mechanism. While computationally expensive (running the LLM multiple times), it significantly reduces hallucinations in critical applications.

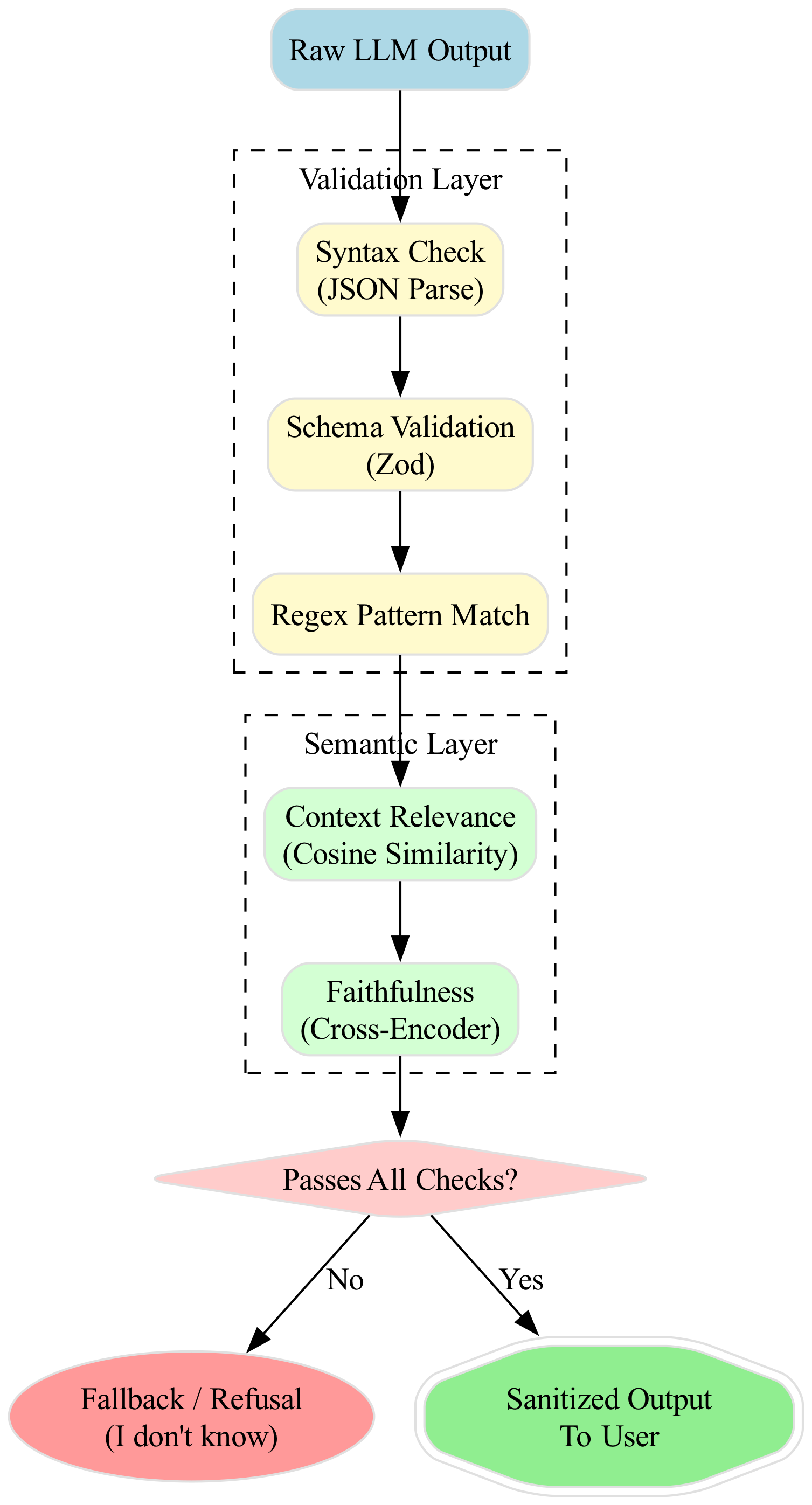

Visualizing the Guardrail Pipeline

The following diagram illustrates the flow of data through the guardrail system. Notice how it resembles a funnel, filtering out noise at every stage.

This diagram depicts a funnel-shaped pipeline where raw data is progressively refined and filtered through sequential guardrail stages to eliminate noise.

Under the Hood: The JavaScript Execution Context

When implementing this in a Node.js environment, we must consider the asynchronous nature of these operations.

The Async/Await Chain: Unlike a synchronous linear script, guardrails often involve I/O operations (e.g., sending data to a separate embedding service or a cross-encoder model hosted via an API). Therefore, the guardrail pipeline is typically implemented as a chain of Promises.

Error Handling Strategy: In JavaScript, we rely heavily on try/catch blocks. In a guardrail pipeline: 1. The Try Block: Contains the LLM generation and the sequential validation steps. 2. The Catch Block: Catches parsing errors (e.g., SyntaxError from JSON.parse) or validation errors (e.g., ZodError). 3. The Finally Block: Ensures that no matter what happens, we return a structured response object to the frontend, even if that response is an error state.

State Management: We often use a state object to track the "provenance" of the answer.

type GuardrailState = {
    rawOutput: string;
    validationStatus: 'pending' | 'passed' | 'failed';
    contextScore: number;
    validationErrors: string[];
    sanitizedOutput: string | null;
};

This object is passed through the middleware chain, accumulating metadata. This is crucial for debugging and logging. If a user reports a hallucination, we can look at the logs to see exactly which guardrail failed to catch it, allowing us to tune our thresholds (e.g., lowering the cosine similarity threshold or tightening the JSON schema).

Summary

The "Theoretical Foundations" of Hallucination Guardrails rest on the intersection of probabilistic linguistics (LLM generation) and deterministic logic (validation). By treating the LLM output as an untrusted input stream—much like an HTTP request in a web server—we can apply rigorous software engineering principles to ensure reliability. We move from hoping the LLM is correct to verifying that it is correct, using a multi-layered defense of semantic scoring, schema validation, and logical consistency checks.

Basic Code Example

In a SaaS or Web App context, a common failure mode for RAG systems is the LLM generating unstructured or malformed text. For example, if a user asks for a list of product IDs, the LLM might respond with a sentence like "Here are the IDs: 123, 456, and 789." While human-readable, this is difficult for a frontend application to parse and render reliably.

To mitigate hallucinations and ensure data integrity, we implement Deterministic Output Validation. This involves constraining the LLM to produce a specific JSON structure and then validating that output against a strict schema (like Zod) before it reaches the user. If the LLM "hallucinates" a malformed JSON or violates the expected structure, the guardrail catches it and triggers a fallback mechanism, preventing the app from crashing or displaying garbage data.

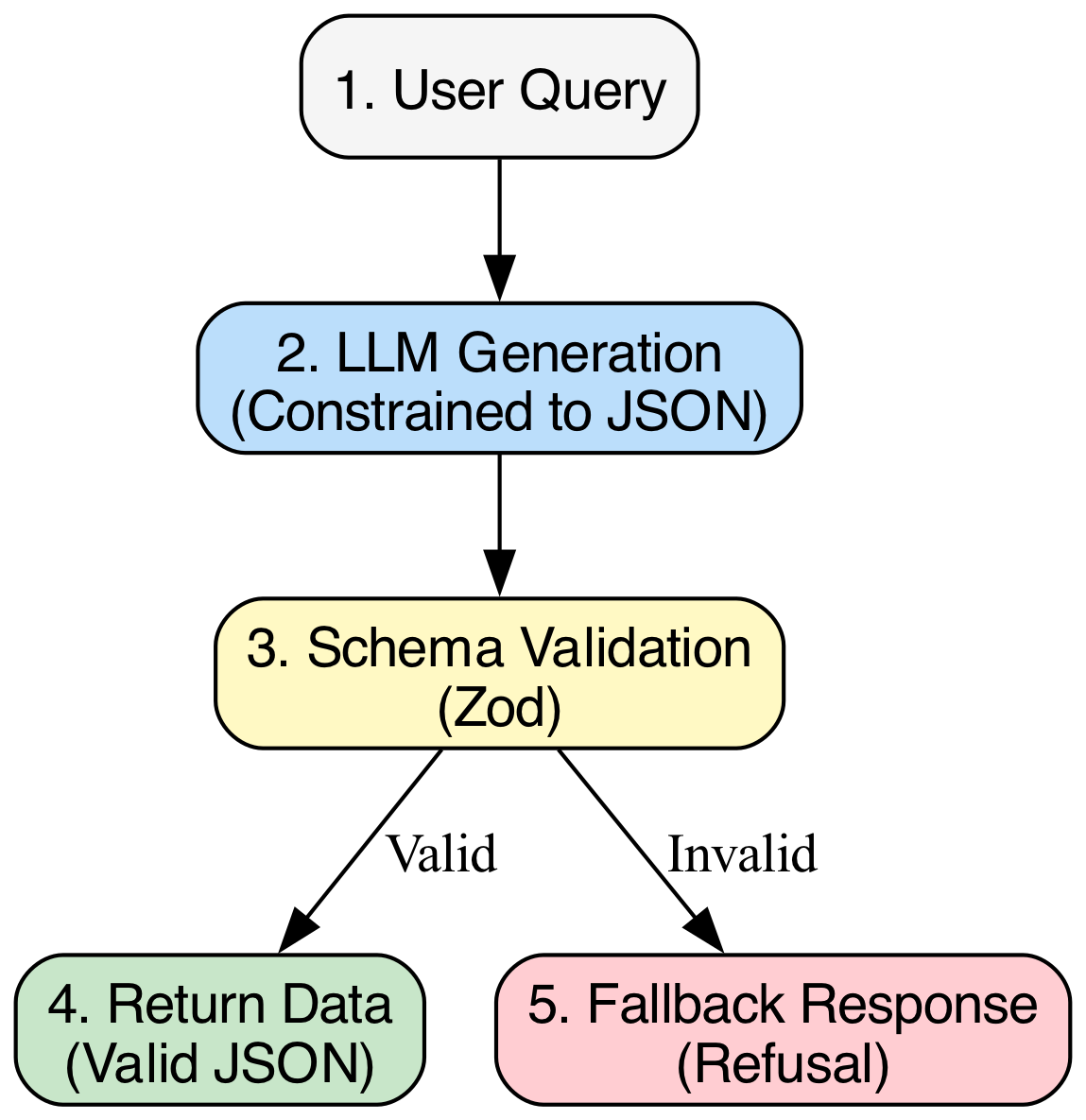

Visualizing the Guardrail Flow

The following diagram illustrates the linear flow of this validation guardrail. The LLM generates a response, which is immediately intercepted by a validation node. If validation fails, the flow is rerouted to a fallback handler.

A validation node intercepts the LLM's response, rerouting the flow to a fallback handler if the output fails to meet the required criteria.

TypeScript Implementation

Below is a self-contained TypeScript example simulating a SaaS dashboard API endpoint that retrieves user analytics. It uses zod for strict schema validation to ensure the LLM does not hallucinate data structures.

// npm install zod
import { z } from 'zod';

/**
 * ==========================================
 * 1. DEFINE THE SCHEMA
 * ==========================================
 * We use Zod to define the exact shape of data we expect from the LLM.
 * This acts as our "contract". If the LLM deviates, the guardrail triggers.
 */
const AnalyticsResponseSchema = z.object({
    summary: z.string().min(10, "Summary is too short"), // Ensure meaningful text
    metrics: z.object({
        active_users: z.number().int().positive(), // Must be a positive integer
        revenue: z.number().min(0), // Must be non-negative
        conversion_rate: z.number().min(0).max(1), // Must be between 0 and 1
    }),
    // The LLM should not hallucinate extra fields not defined here
    additional_notes: z.string().optional(),
});

// Infer the TypeScript type for type safety
type AnalyticsResponse = z.infer<typeof AnalyticsResponseSchema>;

/**
 * ==========================================
 * 2. SIMULATED LLM CALL
 * ==========================================
 * In a real app, this would be an API call to OpenAI/Anthropic.
 * Here, we simulate an LLM that generates a JSON string.
 *
 * @param context - The retrieved documents (simulated)
 * @returns A string containing JSON data
 */
async function callLLM(context: string): Promise<string> {
    console.log(`[System] Retrieving context: "${context}"`);

    // Simulating a successful LLM response
    // In reality, you would prompt the LLM with:
    // "Return ONLY valid JSON matching this schema: { ... }"
    const llmOutput = JSON.stringify({
        summary: "User engagement has increased by 20% this week.",
        metrics: {
            active_users: 1540,
            revenue: 1250.50,
            conversion_rate: 0.15,
        }
    });

    // Simulate a potential hallucination/malformation for demonstration
    // Uncomment the line below to see the guardrail in action:
    // const llmOutput = "{ invalid_json: missing quotes }";

    return llmOutput;
}

/**
 * ==========================================
 * 3. THE GUARDRAIL FUNCTION
 * ==========================================
 * This function parses the LLM output against the Zod schema.
 * It acts as the "Validator" node in our diagram.
 *
 * @param jsonString - The raw string output from the LLM
 * @returns The validated and typed data object
 */
function validateLLMOutput(jsonString: string): AnalyticsResponse {
    try {
        // Step A: Parse the string into a JavaScript object
        const parsedObject = JSON.parse(jsonString);

        // Step B: Validate the object against the Zod schema
        // If valid, it returns the typed data.
        // If invalid, it throws a ZodError with detailed issues.
        const validatedData = AnalyticsResponseSchema.parse(parsedObject);

        console.log("[Guardrail] ✅ Schema validation passed.");
        return validatedData;

    } catch (error) {
        // Step C: Handle validation or parsing errors
        if (error instanceof SyntaxError) {
            console.error("[Guardrail] ❌ JSON Parsing Error:", error.message);
            throw new Error("The model generated invalid JSON syntax.");
        } else if (error instanceof z.ZodError) {
            console.error("[Guardrail] ❌ Schema Validation Error:", error.errors);
            throw new Error("The model violated the expected data structure.");
        }
        throw error;
    }
}

/**
 * ==========================================
 * 4. FALLBACK MECHANISM
 * ==========================================
 * If the guardrail fails, we must provide a safe response to the user
 * rather than exposing the internal error or crashing.
 */
function getFallbackResponse(): AnalyticsResponse {
    return {
        summary: "I encountered an error processing your request. Please try again.",
        metrics: {
            active_users: 0,
            revenue: 0,
            conversion_rate: 0,
        }
    };
}

/**
 * ==========================================
 * 5. MAIN EXECUTION FLOW
 * ==========================================
 * This simulates the API endpoint handler (e.g., Next.js Route Handler).
 */
async function main() {
    const userQuery = "Get me the analytics for last week.";

    try {
        // 1. Retrieve Context (Simulated)
        const retrievedContext = "User logs show 1540 active sessions. Revenue $1250.50.";

        // 2. Generate Response
        const rawLlmResponse = await callLLM(retrievedContext);

        // 3. Apply Guardrails (Validation)
        const validData = validateLLMOutput(rawLlmResponse);

        // 4. Return to Client
        console.log("\n[API Response] 200 OK:", validData);

    } catch (error) {
        // 5. Trigger Fallback on Guardrail Failure
        console.error("\n[API Response] Guardrail triggered. Returning fallback.");
        const fallbackData = getFallbackResponse();
        console.log("[API Response] 200 OK (Fallback):", fallbackData);
    }
}

// Execute the example
main();

Detailed Line-by-Line Explanation

Schema Definition (AnalyticsResponseSchema):
- We use z.object({...}) to define the root structure.
- z.string().min(10): Ensures the summary isn't an empty string or too short (a common hallucination where the model gives vague answers).
- z.number().int().positive(): Specifically for IDs or counts. If the LLM hallucinates a negative number or a float where an integer is required, this fails.
- Why this matters: In a SaaS app, rendering NaN or undefined on a dashboard breaks the UI. Zod prevents this at the gate.
Simulated LLM (callLLM):
- In production, this would be an await openai.chat.completions.create(...) call.
- We simulate the LLM returning a JSON string. Note that we do not trust the LLM to be "correct" just because it returned text. We treat it as untrusted input.
The Guardrail (validateLLMOutput):
- JSON.parse: The first line of defense. If the LLM returns "Here is the data: { ... }" (text wrapper), this throws a SyntaxError. This catches formatting hallucinations.
- AnalyticsResponseSchema.parse: This is the strict check. It recursively checks every property against the defined types.
- Error Handling: We catch specific error types. ZodError provides a .errors array detailing exactly which field failed (e.g., "metrics.conversion_rate": expected number, got string"). This is invaluable for logging and debugging model performance.
Fallback Logic (getFallbackResponse):
- If the guardrail fails, we do not bubble up the error to the frontend. Instead, we return a sanitized object that matches the expected type but contains safe default values or a user-friendly message. This ensures the frontend application never receives data it cannot parse.

Common Pitfalls in JavaScript/TypeScript

When implementing guardrails in Node.js environments (like Vercel serverless functions), watch out for these specific issues:

Async/Await Loops in Guardrails:
- Issue: If you implement a "retry" mechanism (e.g., asking the LLM to regenerate if validation fails), you must ensure you don't enter an infinite loop.
- Fix: Implement a hard counter (e.g., maxRetries = 3). If validation fails on the last attempt, immediately trigger the fallback.
Vercel/AWS Lambda Timeouts:
- Issue: Validation logic is synchronous. However, if you add "self-consistency checks" (asking the LLM 3 times and comparing answers), the total time might exceed serverless limits (usually 10s on Vercel Hobby).
- Fix: Keep validation logic synchronous (like Zod). If performing multi-query consistency checks, ensure they run in parallel (Promise.all) rather than sequentially.
Hallucinated JSON Keys:
- Issue: An LLM might return { "active_users": "1540" } (string) instead of { "active_users": 1540 } (number). While JSON.parse succeeds, your application logic might fail later (e.g., trying to do math on a string).
- Fix: This is why Zod is critical. z.number() strictly enforces types, catching type coercion issues that JSON.parse ignores.
Streaming Responses:
- Issue: If you stream tokens from the LLM, you cannot validate the full JSON until the stream finishes. Attempting to parse partial JSON will throw errors.
- Fix: Buffer the stream into a complete string first, then run the validation guardrail before sending the final response to the client. Do not pipe raw LLM stream directly to the user if strict data integrity is required.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
