Chapter 18: Caching Embeddings for Performance
Theoretical Foundations
In the context of building production-grade Retrieval-Augmented Generation (RAG) systems with JavaScript, caching embeddings is not merely an optimization; it is a fundamental architectural pattern for managing the economics and latency of AI-driven applications. To understand this, we must first recall the role of embeddings from our foundational work. As established in Book 3: Master Your Data, an embedding is a dense vector representation of a piece of text (or other data) that captures its semantic meaning. These vectors are the fuel for vector databases like Pinecone, enabling semantic search and context retrieval for Large Language Models (LLMs).
The generation of these embeddings, however, is computationally expensive. Whether you are using a cloud-based API (like OpenAI's text-embedding-ada-002) or a local model (like all-MiniLM-L6-v2 running via ONNX or WebAssembly), the process involves significant processing time and cost. In a high-traffic RAG application, you might generate millions of embeddings for documents, user queries, and session contexts. Calculating these from scratch every single time is inefficient and unsustainable.
Caching embeddings is the strategy of storing the computed vector representations after their initial generation and reusing them for subsequent requests. This transforms the computational model from a "calculate-on-every-request" paradigm to a "calculate-once, read-many" paradigm. The cache acts as a high-speed, low-latency layer that sits between your application logic and your vector database or embedding model, intercepting requests for embeddings and serving them directly if they exist in the cache.
The Economic and Latency Imperative: Why Caching is Non-Negotiable
The "why" of caching embeddings is rooted in two primary constraints of production systems: latency and cost.
-
Latency Reduction: In a real-time RAG pipeline, a user query must be embedded, searched against a vector database, and then the retrieved context must be passed to an LLM for generation. The embedding step alone can add anywhere from 50ms to several seconds, depending on the model and infrastructure. By caching the embedding for a query, you eliminate this step entirely, shaving critical milliseconds off the total response time. This is crucial for user experience in applications like chatbots, search engines, or real-time document analysis.
-
Cost Optimization: For cloud-based embedding APIs, you pay per token or per request. If your application processes the same document (e.g., a frequently accessed FAQ page) thousands of times, generating a new embedding for each request is a direct financial loss. Caching ensures you pay the API cost only once per unique document or query, dramatically reducing operational expenses.
-
Throughput and Scalability: When scaling a system to handle concurrent requests, the computational load of generating embeddings can become a bottleneck. A cache, especially a distributed one, can absorb a significant portion of this load, allowing your embedding service to handle more requests per second and scale more gracefully under peak traffic.
Analogy: The Web Developer's Style Guide
To ground this concept, let's use a web development analogy. Imagine you are building a large-scale web application with a complex design system. Your design system is defined in a central repository (like a Figma file or a style guide document). Every time a developer needs to render a component, they could theoretically open the design system, look up the exact hex code for the primary button color, the specific border-radius value, and the font family.
This is analogous to generating an embedding from scratch every time: it's accurate but incredibly slow and repetitive.
Now, consider a more efficient workflow. The team creates a shared CSS file (e.g., design-tokens.css) that defines these values as variables or utility classes. When a developer needs to render a button, they simply apply the .btn-primary class. The browser reads the pre-defined styles from the CSS file, which is cached in memory, and renders the component instantly.
In this analogy:
* The Design System Document is your Vector Database or the Embedding Model. It's the source of truth but is slow to query.
* The .btn-primary Class is the Cached Embedding. It's a pre-computed, optimized representation of the style.
* The Browser's CSS Cache is your In-Memory Cache (e.g., Node.js Map). It's fast, local, and serves the pre-computed styles without re-reading the source document.
* A CSS-in-JS Library that generates unique class names on the fly is like a Cache with a Hash Key. It ensures that even if the underlying style changes (model version drift), the cache is invalidated and a new style (embedding) is generated.
Just as you wouldn't re-compile your entire SASS bundle for every page load, you shouldn't re-compute embeddings for every identical request.
The Mechanics of Cache Key Generation: The "Fingerprint" of Data
The heart of any caching system is the key. A cache key must be a deterministic, unique identifier for the data being cached. For embeddings, the key is typically a hash of the input data. This is where the concept of checksums becomes critical, as mentioned in the chapter outline.
When we cache an embedding, we are not caching it for the string "hello world" in a vacuum. We are caching it for a specific version of that string, generated by a specific model, with specific parameters (e.g., dimensionality, normalization). A robust cache key must encapsulate all these variables to prevent collisions and ensure correctness.
A common pattern is to create a composite key:
hash(model_name + model_version + normalization_flag + input_text)
This ensures that:
1. Uniqueness: Different inputs map to different keys.
2. Immutability: The same input always produces the same key.
3. Version Safety: If you update your embedding model (e.g., from text-embedding-ada-002 to text-embedding-ada-003), the model version in the key changes, automatically invalidating the old cache entries and forcing a re-computation. This prevents "model drift" where your RAG system uses embeddings from an outdated model.
This is analogous to how modern web build tools (like Webpack or Vite) use content hashes in filenames (app.a1b2c3d4.js). If the code changes, the hash changes, and the browser fetches the new file.
Cache Storage Strategies: From Local to Distributed
The choice of caching storage depends on the scale, persistence, and distribution requirements of your application.
1. In-Memory Caches (e.g., Node.js Map)
This is the simplest form of caching. A Map or a plain JavaScript object lives in the RAM of your Node.js process. It's incredibly fast (sub-millisecond access) and requires no external dependencies.
- Use Case: Single-instance applications, development environments, or caching embeddings for a small, non-critical dataset that fits in memory.
- Limitations:
- Volatility: Data is lost on process restart.
- Memory Limits: Can cause memory leaks or Out-Of-Memory (OOM) errors if not managed with eviction policies (e.g., LRU - Least Recently Used).
- No Sharing: Each Node.js process has its own cache. In a multi-instance deployment (e.g., behind a load balancer), a cache hit in one instance doesn't benefit another.
2. Persistent Caches (e.g., Redis)
Redis is an in-memory data structure store that persists data to disk, offering a hybrid of speed and durability. It's a key-value store that can be accessed over a network.
- Use Case: Production applications, multi-instance deployments, and when you need to share cache state across different services or server instances.
- Advantages:
- Persistence: Survives server restarts.
- Shared State: All instances of your application connect to the same Redis cluster, so a cache hit on one instance benefits all others.
- Advanced Data Structures: Redis supports more than just strings; you can use Hashes, Sets, etc., for complex caching patterns.
- TTL (Time-To-Live): You can set an expiration time on keys, which is crucial for managing cache size and ensuring data freshness.
3. File-Based Caches
This involves storing embeddings as files on the local filesystem (e.g., JSON files, binary formats like Parquet). It's often used for static datasets that are pre-computed and don't change frequently.
- Use Case: Offline batch processing, embedding large static corpora (e.g., a company's entire knowledge base), or as a fallback cache layer.
- Advantages:
- Cost-Effective Storage: Cheaper than in-memory storage for large datasets.
- Durability: Files persist on disk.
- Limitations:
- I/O Bottleneck: Reading from disk is orders of magnitude slower than reading from RAM or Redis.
- Concurrency: File locking can be an issue in multi-process environments.
The Cache Layer in a JavaScript RAG Pipeline
Integrating a cache into a RAG pipeline requires careful orchestration. The cache should be a transparent layer that the rest of the application doesn't need to be aware of.

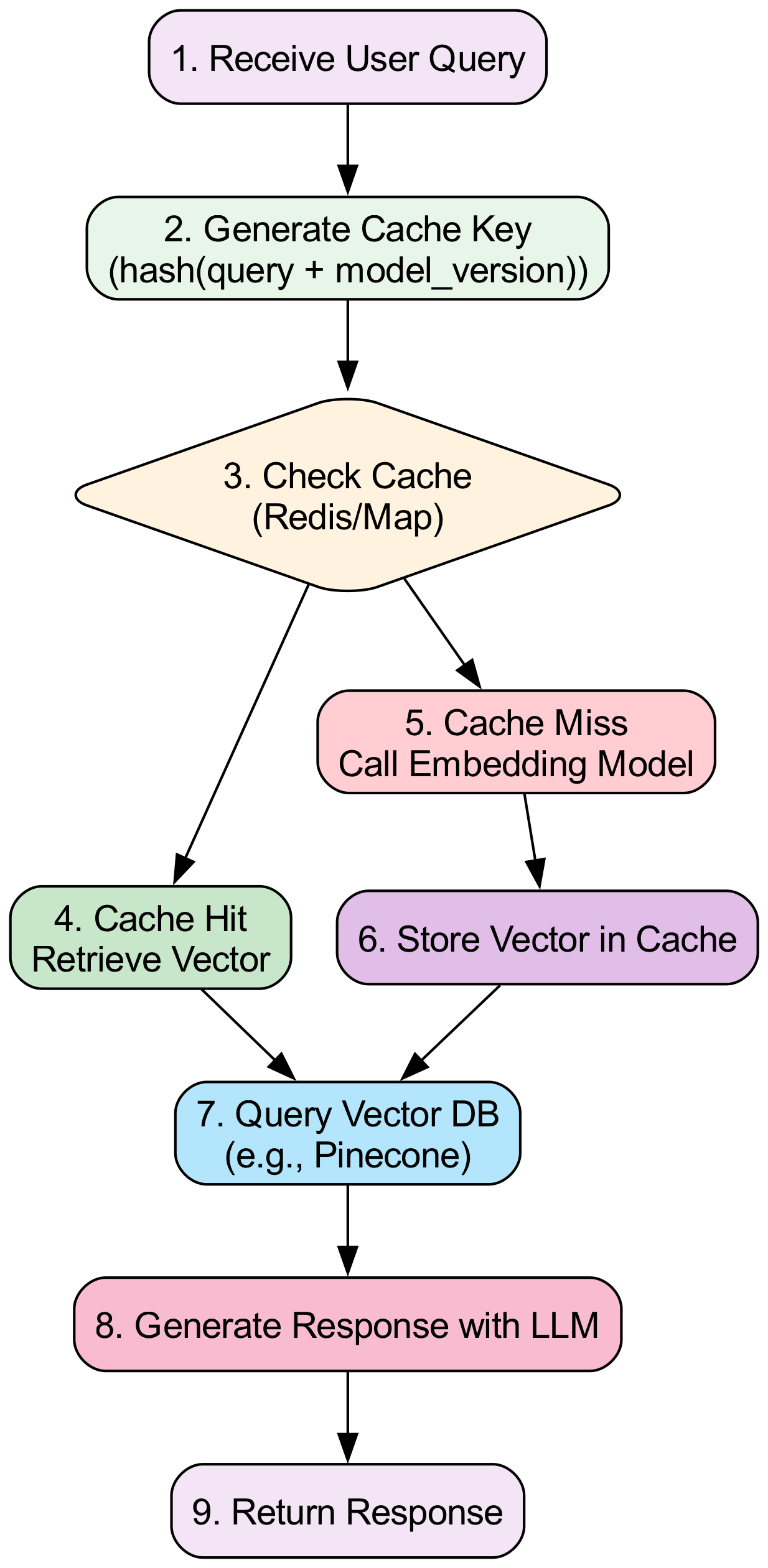

The typical flow for a query is: 1. Receive a user query string. 2. Generate a deterministic cache key from the query string and model metadata. 3. Check the Cache: Look up the key in the cache (Redis, Map, etc.). 4. Cache Hit: If found, return the cached embedding vector immediately. 5. Cache Miss: If not found: a. Call the embedding model (cloud API or local) to generate the vector. b. Store the generated vector in the cache with the key (and optionally a TTL). c. Return the vector. 6. Use the vector to query the vector database (e.g., Pinecone). 7. Pass the retrieved context and the original query to the LLM for generation.
This pattern can be visualized as a decision tree:
Advanced Concepts: Multi-Tenancy, Distributed Coherence, and Trade-offs
As systems grow, caching introduces new complexities.
Multi-Tenancy and Cache Coherence
In a multi-tenant SaaS application, you might have embeddings for different customers (tenants). You must ensure that Tenant A's embeddings are not served to Tenant B. This is achieved by namespacing cache keys, for example: tenant:123:hash(query).
In a distributed system, cache coherence becomes a challenge. If you update a document in the source of truth (e.g., a database), how do you invalidate the cached embedding for that document? Common strategies include: * TTL (Time-To-Live): Accept a small window of staleness. Set a TTL on cache keys (e.g., 1 hour). After the TTL expires, the next request will be a cache miss, forcing a re-computation with the updated data. * Write-Through/Write-Behind: When a document is updated, immediately update or invalidate the cache entry. This requires tight coupling between your database and cache. * Event-Driven Invalidation: Use a message queue (e.g., RabbitMQ, Kafka) to publish an event when a document changes. A cache service listens for these events and proactively invalidates the relevant cache keys.
Vector DB vs. Cache Index Trade-offs
It's crucial to distinguish between a cache and a vector database index.
* Cache: A simple key-value store for hash -> vector. It's for exact-match retrieval. It's fast and cheap but cannot perform similarity search.
* Vector DB Index: A specialized data structure (e.g., HNSW, IVF) optimized for Approximate Nearest Neighbor (ANN) search. It can find vectors that are semantically similar to a query vector.
The Trade-off: You don't cache the results of a vector search in a cache; you cache the input (the query embedding) to avoid re-computing it. The vector DB is still needed for the actual similarity search. However, for some use cases, you might cache the results of common queries. For example, if you know that the query "What is our return policy?" will always return the same top-5 documents, you could cache the document IDs directly. This is a higher-level cache that sits after the vector search.
Observability and Testing
A cache without observability is a black box. To manage a cache effectively, you must track: * Hit Rate: The percentage of requests served from the cache. A low hit rate indicates an ineffective cache or a high rate of unique queries. * Miss Rate: The percentage of requests that required a new computation. * Latency: The time saved by cache hits versus the overhead of cache misses. * Cache Size and Eviction Rate: How full is the cache, and how often are old entries being removed?
Testing a caching layer involves: 1. Correctness: Ensuring that the cache key generation is deterministic and that the correct embedding is returned for a given key. 2. Performance: Benchmarking the cache hit path versus the cache miss path to quantify the performance gain. 3. Invalidation Logic: Testing that cache entries are correctly invalidated when data or models change.
By implementing a robust caching strategy, you transform your RAG pipeline from a fragile, expensive, and slow system into a resilient, cost-effective, and high-performance engine capable of handling real-world production workloads. This is not just an optimization; it is a core architectural principle for any serious AI application.
Basic Code Example
This example demonstrates a fundamental in-memory caching mechanism for text embeddings within a Node.js backend. We simulate a SaaS application where an AI service (like a document Q&A or chatbot) receives user queries. To avoid the high latency and cost of calling an external embedding model for every identical request, we store the computed embeddings in a simple JavaScript Map.

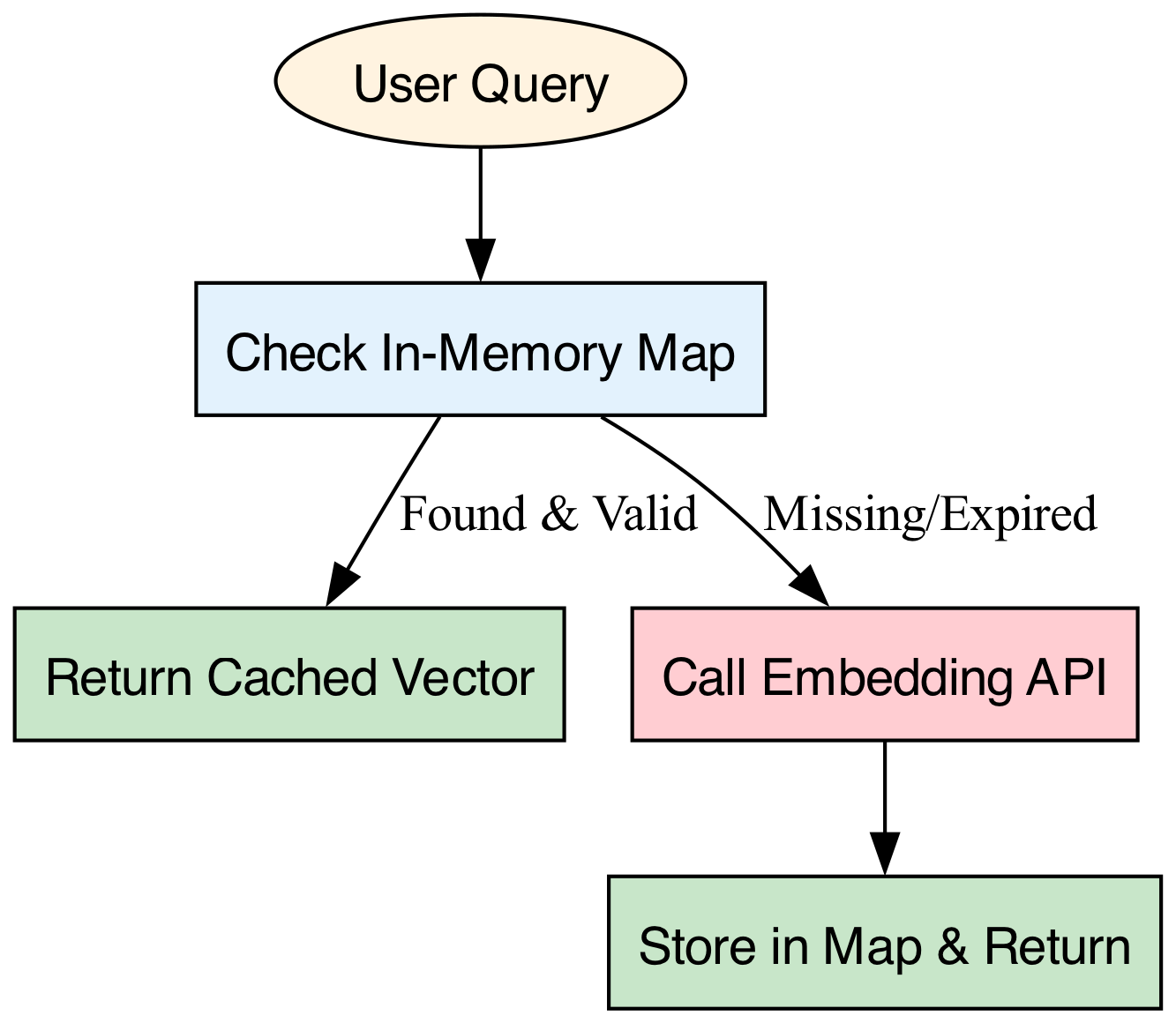

The flow is linear: 1. Input: A user sends a text string. 2. Check: The system checks if this text has been processed before. 3. Cache Hit: If yes, return the cached embedding immediately (fast). 4. Cache Miss: If no, generate the embedding (simulated), store it in the cache, and return it.
/**
* EMBEDDING CACHE DEMO (SaaS Context)
*
* Objective: Demonstrate a basic in-memory cache for text embeddings
* to reduce latency and API costs in a Node.js backend.
*
* Architecture:
* - Input: User Query String
* - Processing: Check Map -> Generate Embedding (Simulated) -> Store in Map
* - Output: Float32Array (Vector)
*/
// ============================================================================
// 1. TYPE DEFINITIONS
// ============================================================================
/**
* Represents a text embedding vector.
* In a real scenario, this would be an array of 1536 dimensions (OpenAI) or 768 (BGE).
*/
type EmbeddingVector = Float32Array;
/**
* Cache configuration interface.
*/
interface CacheConfig {
maxSize: number; // Maximum number of items to store
ttl: number; // Time to live in milliseconds (e.g., 1 hour)
}
/**
* Cache entry structure to store the vector and metadata for eviction.
*/
interface CacheEntry {
vector: EmbeddingVector;
timestamp: number;
}
// ============================================================================
// 2. THE EMBEDDING CACHE CLASS
// ============================================================================
class EmbeddingCache {
private cache: Map<string, CacheEntry>;
private config: CacheConfig;
constructor(config: CacheConfig) {
this.cache = new Map();
this.config = config;
}
/**
* Generates a unique key for the cache based on the input text.
* In production, this should be a hash (e.g., SHA-256) of the normalized text.
* For this demo, we use the text itself as the key.
*
* @param text - The input string to hash/key.
* @returns A string key.
*/
private generateKey(text: string): string {
// Normalize text to ensure "Hello" and "hello " hit the same cache entry
return text.trim().toLowerCase();
}
/**
* Checks if a valid entry exists in the cache.
* Handles TTL (Time To Live) expiration.
*
* @param key - The cache key.
* @returns The vector if valid, otherwise null.
*/
public get(key: string): EmbeddingVector | null {
const entry = this.cache.get(key);
if (!entry) {
console.log(`[Cache] MISS for key: "${key}"`);
return null;
}
// Check TTL
const now = Date.now();
if (now - entry.timestamp > this.config.ttl) {
console.log(`[Cache] EXPIRED for key: "${key}"`);
this.cache.delete(key); // Clean up expired entry
return null;
}
console.log(`[Cache] HIT for key: "${key}"`);
return entry.vector;
}
/**
* Stores a new vector in the cache.
* Implements a simple LRU eviction if the cache exceeds maxSize.
*
* @param key - The cache key.
* @param vector - The embedding vector.
*/
public set(key: string, vector: EmbeddingVector): void {
// Check capacity and evict oldest if necessary (Simplified LRU)
if (this.cache.size >= this.config.maxSize) {
const firstKey = this.cache.keys().next().value;
this.cache.delete(firstKey);
console.log(`[Cache] EVICTED oldest entry to make space.`);
}
this.cache.set(key, {
vector: vector,
timestamp: Date.now()
});
console.log(`[Cache] STORED key: "${key}"`);
}
/**
* Returns cache statistics.
*/
public getStats() {
return {
size: this.cache.size,
capacity: this.config.maxSize
};
}
}
// ============================================================================
// 3. SIMULATED EMBEDDING SERVICE
// ============================================================================
/**
* Mocks an external API call (e.g., OpenAI, Pinecone Inference).
* Simulates network latency and vector generation.
*/
class MockEmbeddingModel {
async generate(text: string): Promise<EmbeddingVector> {
// Simulate network delay (100ms - 300ms)
const delay = Math.random() * 200 + 100;
await new Promise(resolve => setTimeout(resolve, delay));
// Generate a dummy vector (e.g., 3 dimensions for brevity)
// In reality: 1536 dims for text-embedding-ada-002
const vector = new Float32Array([Math.random(), Math.random(), Math.random()]);
return vector;
}
}
// ============================================================================
// 4. MAIN PIPELINE (The "Hello World" Logic)
// ============================================================================
/**
* Orchestrates the retrieval of embeddings with caching logic.
*
* @param text - User input.
* @param cache - Instance of EmbeddingCache.
* @param model - Instance of MockEmbeddingModel.
* @returns The embedding vector.
*/
async function getEmbeddingWithCache(
text: string,
cache: EmbeddingCache,
model: MockEmbeddingModel
): Promise<EmbeddingVector> {
// 1. Normalize and generate key
const key = text.trim().toLowerCase();
// 2. Check Cache
const cachedVector = cache.get(key);
if (cachedVector) {
return cachedVector;
}
// 3. Cache Miss: Call External Model
console.log(`[System] Generating new embedding for: "${text}"...`);
const newVector = await model.generate(text);
// 4. Store in Cache
cache.set(key, newVector);
return newVector;
}
// ============================================================================
// 5. EXECUTION SIMULATION
// ============================================================================
async function runDemo() {
console.log("--- SaaS RAG Pipeline: Embedding Cache Demo ---\n");
// Initialize dependencies
const cache = new EmbeddingCache({ maxSize: 3, ttl: 60000 }); // 1 minute TTL
const model = new MockEmbeddingModel();
// Scenario 1: First request (Cache Miss)
console.log("1. User sends query: 'What is RAG?'");
const vec1 = await getEmbeddingWithCache("What is RAG?", cache, model);
console.log(` Result: [${vec1[0].toFixed(2)}, ${vec1[1].toFixed(2)}, ...]\n`);
// Scenario 2: Identical request (Cache Hit)
console.log("2. User sends same query: 'What is RAG?'");
const vec2 = await getEmbeddingWithCache("What is RAG?", cache, model);
console.log(` Result: [${vec2[0].toFixed(2)}, ${vec2[1].toFixed(2)}, ...]\n`);
// Scenario 3: Different request (Cache Miss)
console.log("3. User sends query: 'How does caching work?'");
const vec3 = await getEmbeddingWithCache("How does caching work?", cache, model);
console.log(` Result: [${vec3[0].toFixed(2)}, ${vec3[1].toFixed(2)}, ...]\n`);
// Scenario 4: Check Stats
console.log("4. Cache Statistics:", cache.getStats());
}
// Run the simulation
runDemo().catch(console.error);
Line-by-Line Explanation
1. Type Definitions
EmbeddingVector: Defines the shape of our data. We useFloat32Arraybecause vector databases and ML models typically store embeddings as 32-bit floating-point numbers to save memory and increase calculation speed.CacheConfig: Defines the constraints of our cache.maxSizeprevents memory leaks (RAM exhaustion), andttl(Time To Live) ensures we don't serve stale data if the underlying embedding model is updated.
2. The EmbeddingCache Class
This is the core logic of the caching layer.
constructor: Initializes a standard JavaScriptMap. AMapis used instead of a plain object ({}) because it is generally more performant for frequent additions and deletions, and it allows keys to be any data type (though we stick to strings here).generateKey:- Why: Raw text is unreliable as a cache key. "Hello " (with a space) and "hello" (lowercase) represent the same semantic meaning but are different strings.
- Implementation: We
.trim()whitespace and.toLowerCase()to normalize inputs. - Production Note: In a real system, you would hash this normalized string (e.g., using
crypto.createHash('sha256')) to create a fixed-length, URL-safe key.
get:- Logic: It retrieves the entry from the Map.
- TTL Check: It calculates
now - entry.timestamp. If this duration exceeds the configuredttl, the entry is deleted andnullis returned. This prevents stale data from being used.
set:- Capacity Management: Before adding a new item, it checks
this.cache.size >= this.config.maxSize. - Eviction: If full, it deletes the oldest entry. In a
Map,keys().next().valuereliably returns the first inserted key (FIFO behavior). In production, you would likely use an LRU (Least Recently Used) algorithm, which is more complex but more efficient.
- Capacity Management: Before adding a new item, it checks
3. MockEmbeddingModel
- Simulation: Real embedding generation involves network I/O (HTTP requests) to an API like OpenAI or a local model.
- Delay:
setTimeoutsimulates network latency (usually 100ms–500ms). This is the bottleneck we are trying to avoid with caching. - Vector: We return a
Float32Arraywith random numbers. In a real app, this would be a dense array of 1536 numbers.
4. getEmbeddingWithCache (The Pipeline)
This function represents the logic inside a typical API route (e.g., /api/chat).
1. Normalization: Calls generateKey.
2. Lookup: Calls cache.get(). This is a synchronous, in-memory operation (O(1) time complexity).
3. Branching:
* Hit: If data exists and isn't expired, it returns immediately. No external API call is made.
* Miss: If data is missing, it awaits the model.generate() (slow), then immediately writes the result to the cache using cache.set().
5. Execution Simulation
- Run 1 ("What is RAG?"): Cache is empty. The code waits for the mock delay (e.g., 250ms). The result is stored.
- Run 2 (Same Query): The cache finds the key. It returns the vector instantly (0ms delay).
- Run 3 (Different Query): Cache miss. New delay. New storage.
- Capacity Limit: If we ran 4 different queries, the cache size is 3. The 4th query would trigger the eviction logic in
set, removing the first query to make room.
Common Pitfalls in JavaScript/TypeScript Caching
When implementing this in a production SaaS environment (e.g., Vercel, AWS Lambda, Node.js server), watch out for these specific issues:
1. Hallucinated JSON / Serialization Errors
* The Issue: When caching complex objects or vectors, developers often try to store them in Redis or a file system using JSON.stringify().
* The Pitfall: Float32Array is not a standard JSON type. JSON.stringify(new Float32Array([1.0, 2.0])) results in {} (empty object) or a string representation depending on the environment, losing the data.
* The Fix: Always serialize binary data to a Buffer or a comma-separated string before persisting, and deserialize back to Float32Array upon retrieval.
2. Vercel/Serverless Timeouts & Cold Starts * The Issue: Serverless functions (like Vercel Edge or AWS Lambda) have strict execution time limits (e.g., 10s on Vercel Hobby). * The Pitfall: If you rely solely on a remote vector database (like Pinecone) for every request without local caching, network latency can cause timeouts, especially during "cold starts" where the container initializes. * The Fix: Use an in-memory cache (like the example above) inside the serverless function. While it doesn't persist between invocations, it helps if the same function instance handles multiple requests in a short burst.
3. Async/Await Loops in High Throughput
* The Issue: Processing a batch of 1000 documents to generate embeddings.
* The Pitfall: Using await inside a forEach or for...of loop sequentially. This processes one document, waits for the embedding, then starts the next. This is extremely slow.
// BAD: Sequential processing
for (const doc of docs) {
const vector = await generateEmbedding(doc); // Waits here
await saveToDb(vector);
}
Promise.all() for parallel processing (if the API allows it) or process in controlled batches to avoid rate limits.
// GOOD: Parallel processing
const vectors = await Promise.all(docs.map(d => generateEmbedding(d)));
4. Memory Leaks in Long-Running Processes
* The Issue: Using a simple Map cache in a Node.js server that runs for days.
* The Pitfall: Without a maxSize limit or a TTL eviction policy, the Map will grow indefinitely until the Node.js process runs out of RAM and crashes.
* The Fix: Always implement eviction logic (LRU or TTL) as shown in the EmbeddingCache class.
5. Stale Embeddings (Model Drift)
* The Issue: You update your embedding model (e.g., from OpenAI text-embedding-ada-002 to text-embedding-3-small).
* The Pitfall: Your cache still contains vectors generated by the old model. These vectors have different mathematical properties, leading to poor retrieval accuracy (semantic search fails).
* The Fix: Include a modelVersion string in your cache key (e.g., hash(text) + '_v3'). When you switch models, the keys change, effectively invalidating the entire cache instantly.
Visualization of Data Flow
The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
Loading knowledge check...
Code License: All code examples are released under the MIT License. Github repo.
Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.
All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
