Chapter 19: User Feedback Loops - Thumbs Up/Down

Theoretical Foundations

In the architecture of a production Retrieval-Augmented Generation (RAG) system, the initial deployment is merely the beginning of the lifecycle. A static RAG system, while functional, is blind to the nuances of user intent and the evolving quality of its own outputs. It retrieves documents based on a fixed embedding model and a static vector index, ranking results using a similarity metric that doesn't account for real-world user satisfaction. This is where User Feedback Loops become the critical nervous system of the application, transforming a static pipeline into a dynamic, self-improving organism.

The core concept is simple but profound: we must capture explicit user signals—like a thumbs up or thumbs down—and use these signals not just as vanity metrics, but as first-class data points that directly influence the system's behavior. This is the "what." The "why" is rooted in the fundamental challenge of information retrieval: bridging the gap between a user's intent and the system's interpretation of that intent. A user clicks "thumbs down" not because they dislike the interface, but because the retrieved context was irrelevant, the generated answer was factually incorrect, or the tone was inappropriate. This signal is a direct measure of the RAG pipeline's failure at a specific point in time, for a specific query.

To understand the gravity of this, consider the analogy of a Librarian and a Patron. Imagine a library with a fixed cataloging system (your embedding model) and a vast collection of books (your vector database). When a patron asks for "books on quantum computing," the librarian (your RAG system) fetches the top 5 books based on the catalog's classification. If the patron is a beginner and receives five advanced physics textbooks, they might be frustrated. A simple thumbs-down signal is the patron shaking their head and saying, "This isn't what I needed." A static system ignores this and will make the same mistake for the next beginner. A system with a feedback loop, however, learns: it notes that for this query, the "beginner" books were preferred, and it adjusts its future retrievals accordingly.

This process directly relates to a concept we explored in Chapter 14: Advanced Query Understanding, where we discussed Semantic Search and Embeddings. In that chapter, we learned that embeddings are numerical representations of text that capture semantic meaning, allowing us to find documents that are conceptually similar, not just keyword-matching. The feedback loop mechanism we are building now is the mechanism to refine those embeddings and the retrieval strategies that depend on them. It's the feedback that tells the system, "Your current definition of 'similarity' for this query was wrong; here is a better example."

The Anatomy of a Feedback Signal

A "thumbs up/down" is not just a boolean flag. To be truly useful, it must be a rich data object. When a user interacts with a feedback widget, we are capturing a snapshot of the entire interaction context. This includes:

The Query: The user's original question.
The Retrieved Context: The specific chunks of text from the vector database that were used to generate the answer.
The Generated Answer: The final output from the LLM.
The Signal: The explicit rating (e.g., score: 1 for up, score: 0 for down).
Metadata: Timestamp, user ID (if authenticated), session ID, and any other relevant contextual information.

This rich object is the raw material for all subsequent refinement. Storing it in a simple database table is insufficient; we need to store it in a way that is queryable and can be correlated with our vector data. This is why we often store feedback directly in our vector database's metadata or in a dedicated metadata store that is linked to our vector index.

Web Development Analogy: Feedback as a Redux Store for Your RAG System

Think of your RAG system's state as a complex application state managed by a library like Redux or Zustand. In a standard web app, user interactions (clicks, form inputs) dispatch actions that update the global state, which in turn triggers re-renders and side effects. The RAG pipeline is no different.

The Vector Index is like the initial, static state of your application. It's populated with data from your knowledge base.
The Query Understanding and Retrieval Logic is your application's business logic, determining how to map user actions (queries) to state updates (retrieved documents).
The Feedback Signal (Thumbs Up/Down) is the action dispatched by the user. It's an explicit declaration that the current state (the retrieved context and generated answer) was either correct or incorrect.

Just as a Redux store can be enhanced with middleware to log actions, persist state, or even perform time-travel debugging, our RAG system uses feedback to: 1. Log the action: Store the feedback event for analysis. 2. Update the state: Adjust the ranking of documents in the index for future queries (a technique called Re-ranking). 3. Refine the logic: Use the collected feedback data to fine-tune the models that generate the initial state (the embeddings).

This analogy highlights the shift from a request-response model to a stateful, event-driven model. The system isn't just answering a query; it's reacting to an event and updating its internal state to be more aligned with user expectations.

The "Why": From Static Retrieval to Dynamic Adaptation

The primary driver for implementing feedback loops is to combat the Semantic Drift of user intent and the Staleness of Knowledge.

Semantic Drift: The meaning of terms can change or become more specific over time. For example, in a corporate knowledge base, "Q4 targets" might initially refer to sales goals. But after a new initiative is launched, users searching for "Q4 targets" might be referring to marketing campaign metrics. Without feedback, the system will continue to retrieve sales documents, leading to repeated user frustration. A feedback loop captures this drift: when users consistently give thumbs down to sales-related answers and thumbs up to marketing-related answers, the system learns to associate "Q4 targets" with the new context.
Staleness of Knowledge: Your knowledge base is a living entity. Documents are added, updated, and deprecated. A user might ask a question that is perfectly answered by a newly added document, but if the embedding model hasn't been retrained or the index hasn't been re-synced, the old, less relevant documents might still rank higher. Feedback provides a signal to prioritize newer, more relevant documents that might not yet have strong semantic similarity in the embedding space.

Under the Hood: The Feedback Data Flow

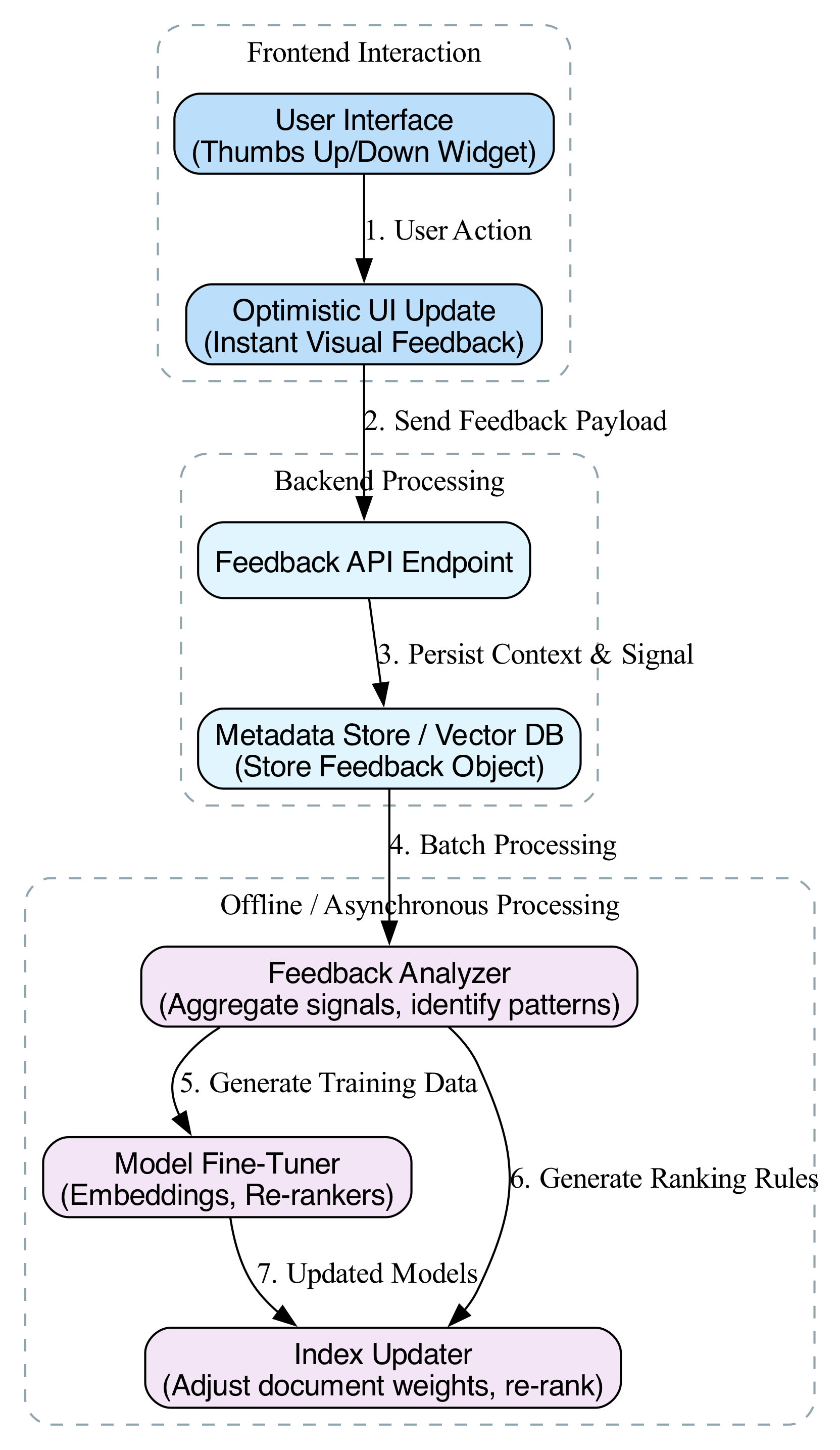

Let's visualize the lifecycle of a feedback signal from capture to application.

This diagram illustrates the feedback data flow, tracing how user signals are captured and processed to dynamically re-rank newer, semantically distant documents for improved relevance.

Step 1: Capture & Optimistic UI Update When a user clicks "thumbs up," the frontend immediately reflects this choice (e.g., the icon turns green). This is the Optimistic UI Update. It's crucial for user experience, as it provides instant feedback without waiting for server confirmation. Simultaneously, the client prepares a payload containing the query, the retrieved document IDs, the generated answer, and the rating.

Step 2: Transmission & Storage The payload is sent to a dedicated API endpoint (e.g., /api/feedback). This endpoint's job is not to perform heavy computation but to be a reliable sink. It validates the payload and stores it. The storage location is strategic: * In a Vector Database's Metadata: Storing feedback directly on the vector document's metadata (e.g., upvotes: 5, downvotes: 2) allows for real-time re-ranking during retrieval. This is fast but can be computationally expensive if the index is massive. * In a Separate Metadata Store (e.g., PostgreSQL, MongoDB): This is often more scalable. We store feedback events in a relational table, which can be easily joined with user data and queried for analytics. The results (e.g., "Document X has a 95% positive rating for query type Y") can then be periodically synced to the vector index.

Step 3: Analysis & Aggregation (The Asynchronous Brain) This is where the raw signal becomes wisdom. An asynchronous process (e.g., a nightly job) aggregates the feedback data. It answers questions like: * Which documents have the highest positive feedback for a given query cluster? * Are there specific queries that consistently receive negative feedback? (Indicating a gap in the knowledge base). * What is the correlation between document position in the retrieval list and user satisfaction?

Step 4: Application & Refinement The analysis results are applied in several ways:

Real-time Re-ranking: During retrieval, the system can boost the score of documents with high positive feedback. The final ranking score becomes a function of both semantic similarity and user satisfaction.

// Conceptual Re-ranking Logic
interface Document {
    id: string;
    content: string;
    semanticScore: number; // From vector similarity
    feedbackScore: number; // e.g., (upvotes - downvotes) / total
}

function rerank(documents: Document[]): Document[] {
    const ALPHA = 0.7; // Weight for semantic score
    const BETA = 0.3;  // Weight for feedback score

    return documents
        .map(doc => ({
            ...doc,
            finalScore: (ALPHA * doc.semanticScore) + (BETA * doc.feedbackScore)
        }))
        .sort((a, b) => b.finalScore - a.finalScore);
}

Fine-tuning Embedding Models: The aggregated feedback data creates a powerful training set. We can generate positive pairs (query, highly-rated document) and negative pairs (query, low-rated document). This data is used to fine-tune the embedding model (e.g., using a contrastive loss function), making it better at distinguishing relevant from irrelevant documents for your specific domain.
Fine-tuning Re-rankers: A cross-encoder re-ranker is a model that takes a query and a document and outputs a relevance score. It's more accurate but slower than vector similarity. We can use our feedback data to fine-tune this re-ranker, teaching it to predict user satisfaction directly.

The Role of Dependency Resolution and Client-side Inference

While the feedback loop is primarily a backend data pipeline, frontend considerations are vital for its success.

Dependency Resolution: When building the UI for feedback, we rely on package managers like npm or yarn to handle our dependencies. A component for a thumbs-up icon might come from react-icons, and the state management for handling the optimistic update might come from zustand. Proper Dependency Resolution ensures that our UI is lightweight and doesn't bloat the user's browser. A complex feedback UI with heavy dependencies could slow down the very application we're trying to improve, defeating the purpose of a seamless experience.
Client-side Inference: A cutting-edge evolution of this pattern is performing Client-side Inference. Instead of sending the entire query and context to the server for re-ranking, we could send a lightweight re-ranker model (e.g., a distilled version of a cross-encoder) to the user's browser. The browser could then perform the re-ranking locally using the feedback signals it has cached. This has two major benefits:
1. Ultra-low Latency: The re-ranking happens instantly without a network round-trip.
2. Privacy: The user's query and the retrieved documents never leave their device. This is an advanced technique that turns the user's device into an active participant in the feedback loop, not just a signal generator. It requires careful management of model versions and dependencies, but it represents the future of personalized, private, and responsive search experiences.

By implementing these theoretical foundations, you are not just adding a feature; you are engineering a system that learns, adapts, and evolves with its users, ensuring its long-term relevance and value in a production environment.

Basic Code Example

In a production SaaS application, user feedback is a critical signal for improving RAG systems. This example demonstrates a minimal, self-contained TypeScript function that simulates capturing a thumbs up/down rating for a specific RAG response and storing it in a simulated vector database metadata store.

We will focus on the feedback capture mechanism and the metadata update logic, which are the foundational steps before applying this data to fine-tune models or re-rankers.

/**
 * @fileoverview A basic 'Hello World' example of capturing user feedback in a RAG SaaS app.
 * This simulates a server-side API endpoint or a backend service function.
 */

// --- Type Definitions ---

/**
 * Represents the explicit feedback signal from a user.
 * 1 = Thumbs Up, 0 = Thumbs Down.
 */
type FeedbackSignal = 0 | 1;

/**
 * Represents a single RAG response session, linking a query, retrieved context, and the final answer.
 * In a real system, this would be an entry in a database (e.g., MongoDB, PostgreSQL).
 */
interface RagResponseSession {
  responseId: string;
  userId: string;
  query: string;
  retrievedContext: string; // The text chunks retrieved from the vector DB
  llmAnswer: string;
  feedback: FeedbackSignal | null; // Initially null until user interacts
  timestamp: Date;
}

// --- Simulated Database & Vector Store ---

/**
 * A simple in-memory store to simulate a persistent database or vector metadata store.
 * In production, this would be a connection to a vector DB (e.g., Pinecone, Weaviate) or a relational DB.
 */
const mockDatabase: Map<string, RagResponseSession> = new Map();

/**
 * Simulates the initial creation of a RAG response session before feedback is given.
 * This is what happens when a user first asks a question.
 */
function simulateRagQuery(
  userId: string,
  query: string,
  context: string,
  answer: string
): string {
  const responseId = `resp_${Date.now()}_${Math.random().toString(36).substr(2, 9)}`;
  const session: RagResponseSession = {
    responseId,
    userId,
    query,
    retrievedContext: context,
    llmAnswer: answer,
    feedback: null, // No feedback yet
    timestamp: new Date(),
  };
  mockDatabase.set(responseId, session);
  console.log(`[System] Created RAG Session: ${responseId}`);
  return responseId;
}

// --- Core Feedback Logic ---

/**
 * Captures user feedback and updates the metadata store.
 *
 * @param responseId - The unique identifier for the RAG response session.
 * @param feedback - The user's signal (1 for thumbs up, 0 for thumbs down).
 * @returns A promise that resolves to the updated session object.
 * @throws Error if the response session is not found.
 */
async function captureUserFeedback(
  responseId: string,
  feedback: FeedbackSignal
): Promise<RagResponseSession> {
  // 1. Retrieve the existing session from the database.
  const session = mockDatabase.get(responseId);

  if (!session) {
    throw new Error(`Session not found for ID: ${responseId}`);
  }

  // 2. Update the session with the new feedback signal.
  // In a real system, this update operation would be atomic and transactional.
  const updatedSession: RagResponseSession = {
    ...session,
    feedback: feedback,
    // Note: We might also update a 'lastModified' timestamp here.
  };

  // 3. Persist the update back to the store.
  mockDatabase.set(responseId, updatedSession);

  // 4. Log the action for observability (e.g., sending to a logging service like Datadog or Sentry).
  console.log(
    `[Feedback Captured] Response ID: ${responseId}, Feedback: ${
      feedback === 1 ? 'Thumbs Up' : 'Thumbs Down'
    }`
  );

  // 5. (Optional) Trigger downstream processes.
  // This is where you would queue a job to update vector store metadata or
  // send the (query, context, feedback) tuple to a training pipeline.
  await triggerDownstreamProcessing(updatedSession);

  return updatedSession;
}

/**
 * A placeholder function representing the next step in the feedback loop.
 * In production, this might:
 * - Update the vector store's metadata for the specific document chunk (e.g., increment a 'relevance_score').
 * - Send the data to a model fine-tuning queue.
 * - Update a user profile for personalization.
 */
async function triggerDownstreamProcessing(session: RagResponseSession) {
  // Simulate an async operation (e.g., API call to a vector DB or queue).
  await new Promise((resolve) => setTimeout(resolve, 100));
  console.log(`[System] Downstream processing triggered for ${session.responseId}`);
}

// --- Execution Example ---

/**
 * Main function to demonstrate the workflow.
 */
async function main() {
  console.log("--- 1. Simulating Initial RAG Query ---");
  const responseId = simulateRagQuery(
    "user_123",
    "What is the capital of France?",
    "Paris is the capital and most populous city of France.",
    "The capital of France is Paris."
  );

  console.log("\n--- 2. Simulating User Interaction (Thumbs Up) ---");
  try {
    const updatedSession = await captureUserFeedback(responseId, 1); // 1 = Thumbs Up
    console.log("\n--- Final State of Session ---");
    console.log(JSON.stringify(updatedSession, null, 2));
  } catch (error) {
    console.error("An error occurred:", error);
  }
}

// Run the example
if (require.main === module) {
  main();
}

Line-by-Line Explanation

This code is structured to mimic a real-world backend service. Let's break down the logic step-by-step.

1. Type Definitions

type FeedbackSignal = 0 | 1;
- We use a TypeScript union type to strictly enforce that feedback can only be 0 (Thumbs Down) or 1 (Thumbs Up). This prevents invalid values (like 2 or "yes") from being passed, ensuring data integrity at the type level.
interface RagResponseSession
- This interface defines the shape of our data. It's crucial for maintaining consistency. In a real application, this would map directly to a database schema or a Prisma/Mongoose model.
- feedback: FeedbackSignal | null: We explicitly allow null to represent the state before the user has interacted.

2. Simulated Database (`mockDatabase`)

const mockDatabase: Map<string, RagResponseSession> = new Map();
- We use a JavaScript Map to simulate a key-value store. In production, this would be replaced by a call to a database client (e.g., mongoose.connect, prisma.response.findUnique).
- This abstraction allows us to focus on the logic of the feedback loop without getting bogged down in database configuration.

3. The `captureUserFeedback` Function

This is the core of the "Hello World" example.

Step 1: Retrieval
- const session = mockDatabase.get(responseId);
- We attempt to fetch the existing session. This is a read operation. If the ID doesn't exist, we throw an error. This is critical for security and data validation—you should never update a record that doesn't exist.
Step 2: State Update
- const updatedSession: RagResponseSession = { ...session, feedback: feedback };
- We use the JavaScript spread operator (...) to create a shallow copy of the existing session object. This is a best practice in functional programming and state management (like Redux) to avoid mutating the original object directly.
- We then overwrite the feedback property with the new value.
Step 3: Persistence
- mockDatabase.set(responseId, updatedSession);
- We write the updated object back to the store. In a real database, this would be an UPDATE query. This step ensures the feedback is not lost if the server restarts.
Step 4: Observability
- console.log(...)
- Logging is essential for debugging and monitoring. In a production app, this would be sent to a structured logging service (e.g., Winston, Pino) or an analytics platform.
Step 5: Downstream Processing (The "Why")
- await triggerDownstreamProcessing(updatedSession);
- This is the most important conceptual step. Capturing the feedback is just the beginning. The value is in using it.
- Vector Database Metadata: You might update the metadata of the document chunk (Paris is the capital...) that was retrieved. If a user gives a thumbs up, you could increment a relevance_score for that chunk. If it's a thumbs down, you might decrement it. This helps in future retrieval: when another user asks a similar query, chunks with higher relevance scores can be ranked higher.
- Fine-Tuning: The tuple (query, context, feedback) becomes a training example. You can collect thousands of these to fine-tune your embedding model (to better match queries to relevant context) or your re-ranker (to better score the retrieved chunks).

Common Pitfalls in JavaScript/TypeScript

State Mutation & Race Conditions:
- Issue: Directly mutating an object (e.g., session.feedback = feedback) without creating a copy can lead to bugs in complex applications, especially with concurrent requests or when using state management libraries.
- Solution: Always create a new object when updating state (e.g., using the spread operator ... or Object.assign). For databases, use atomic operations (e.g., MongoDB's $set) to prevent race conditions where two updates happen simultaneously.
Async/Await Loops in Production:
- Issue: In a high-traffic SaaS, you might process feedback for thousands of users. If you use await inside a loop (e.g., for (const feedback of feedbacks) { await captureUserFeedback(...) }), the loop will process one at a time, which is very slow.
- Solution: Use Promise.all() to process feedback updates in parallel. However, be mindful of database connection limits and rate limits on external APIs.
```
// Example of parallel processing
const updatePromises = feedbackEntries.map(entry =>
  captureUserFeedback(entry.id, entry.feedback)
);
await Promise.all(updatePromises);
```
Vercel/Serverless Timeouts:
- Issue: If your triggerDownstreamProcessing function involves slow operations (e.g., updating a remote vector database, calling a separate ML model API), it might exceed the timeout limit of a serverless function (e.g., Vercel's 10-second limit on hobby plans). The function could be killed mid-execution, leaving your feedback data captured but the downstream process incomplete.
- Solution: Decouple the feedback capture from the downstream processing. Use a message queue (like AWS SQS, Vercel KV, or Upstash QStash). The captureUserFeedback function should:
  1. Save the feedback to the primary database (fast).
  2. Push a message containing the responseId to a queue (fast).
  3. Return a success response to the client immediately. A separate background worker (e.g., a Vercel Background Function or a dedicated server) then consumes messages from the queue and performs the slow downstream tasks.
Hallucinated JSON in LLM Outputs:
- Issue: While not present in this simple example, in a full RAG system, the LLM might be asked to return a structured JSON response (e.g., {"answer": "...", "confidence": 0.9}). LLMs can hallucinate keys or produce invalid JSON, causing your JSON.parse() to fail.
- Solution: Always validate LLM outputs with a schema validation library like Zod or Yup before processing them. Never trust the LLM's output directly.

Visualization of the Feedback Flow

The following diagram illustrates the flow of data and control in this feedback loop.

This diagram illustrates the iterative feedback loop where an LLM's raw output is validated and refined through an external system before being used as the final response.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
