Chapter 3: Nodes, Edges, and State - The Graph Architecture

Theoretical Foundations

At the heart of any LangGraph application lies the State. To understand this, we must first look back at the foundational concepts introduced in Book 1, specifically regarding Stateful AI Systems. In previous chapters, we established that an autonomous agent cannot operate on isolated inputs; it requires context—a memory of what has transpired. In LangGraph, the State is not merely a variable; it is the single source of truth for the entire workflow, passed from node to node like a baton in a relay race.

Imagine the State as a ledger or a bank statement. Every transaction (node execution) updates this ledger. However, unlike a traditional database where data is mutated in place, the State in LangGraph is designed to be immutable. When a node processes the State, it does not alter the original object. Instead, it produces a new version of the State with the updates applied. This immutability is critical for predictability. If you trace the history of the State, you can reproduce the exact execution path, which is essential for debugging complex, cyclical workflows.

In the context of the Vercel AI SDK, which often powers the underlying inference, we encounter the concept of AIState. This is a specialized, server-side representation of the model's understanding of the conversation. It captures the raw output, tool calls, and structured data. When we build a LangGraph agent, we are essentially orchestrating transformations of this AIState. The graph ensures that every transformation is valid and that the flow of data between these transformations is strictly controlled.

Nodes: The Computational Engines

If the State is the ledger, Nodes are the accountants, auditors, and analysts who read and write to it. A Node is any function that accepts the current State and returns a partial update to that State.

In a web development analogy, think of Nodes as Microservices or API Endpoints. In a monolithic application, logic is often tangled together. In a microservices architecture, each service has a single responsibility: one service handles user authentication, another processes payments, and a third manages inventory. Similarly, a LangGraph Node should have a single, well-defined purpose.

Tool Nodes: These are like API wrappers. They take a query (e.g., "Get the weather in Tokyo") and return structured data (the weather report).
LLM Nodes: These are like intelligent processors. They take the current conversation history (part of the State) and generate a response or a plan.
Conditional Nodes: These are logic gates. They evaluate the State and decide which path to take next.

Under the Hood: When a Node executes, it receives the current State object. It performs its computation—whether that's calling an external API, running a local inference model, or performing a mathematical calculation. The Node then returns a StateUpdate object. This update is not the entire State, but a patch. LangGraph merges this patch into the existing State to create the next version.

Consider this TypeScript interface representing a generic Node function:

// A Node function takes the current state and returns a partial update.
// It does not mutate the original state.
type Node<TState, TUpdate> = (state: TState) => Promise<TUpdate> | TUpdate;

// Example: A simple tool node that fetches data.
const fetchWeatherNode: Node<AppState, Partial<AppState>> = async (state) => {
  const location = state.userQuery; // Reading from state
  const weatherData = await externalApi.getWeather(location); // Computation

  // Returning only the relevant update
  return {
    weatherReport: weatherData,
    lastChecked: new Date().toISOString()
  };
};

Edges: The Control Flow and Decision Logic

If Nodes are the engines, Edges are the transmission system and the steering wheel. They determine the flow of execution, deciding which Node runs next based on the current State.

Edges in LangGraph are not just static connections; they are conditional functions. An Edge takes the current State and returns a string (the name of the next Node) or a boolean (whether to traverse a specific path).

Analogy: The Traffic Intersection Imagine a city grid. The Nodes are the intersections (destinations), and the Edges are the traffic lights and road signs. * Static Edges are like one-way streets: "Node A always leads to Node B." * Conditional Edges are like smart traffic lights: "If the light is green (State contains tool_calls), go to Node B (Tool Execution). If the light is red (State is finished), go to Node C (Final Output)."

The Critical Distinction: Control Flow vs. Data Flow It is vital to distinguish how data moves versus how execution moves. 1. Data Flow: Governed by the State. Every Node has access to the entire State. 2. Control Flow: Governed by Edges. Only the specific Nodes defined by the active Edges are executed.

This separation allows for complex logic. For example, in a ReAct (Reasoning and Acting) agent pattern, the LLM Node generates a thought. The Edge inspects the output. If the LLM calls a tool, the Edge routes to the Tool Node. If the LLM gives a final answer, the Edge routes to the "End" node. This cycle repeats until the termination condition is met.

The Graph Architecture: Assembling the System

The Graph is the container that binds States, Nodes, and Edges into a cohesive system. It defines the topology of the agent's decision-making process.

Analogy: The Flowchart A LangGraph is a programmable flowchart. * Nodes are the boxes containing actions. * Edges are the arrows connecting them. * State is the data written on the paper that moves through the chart.

However, unlike a static flowchart, a LangGraph is dynamic. The arrows can change direction based on what is written on the paper (State).

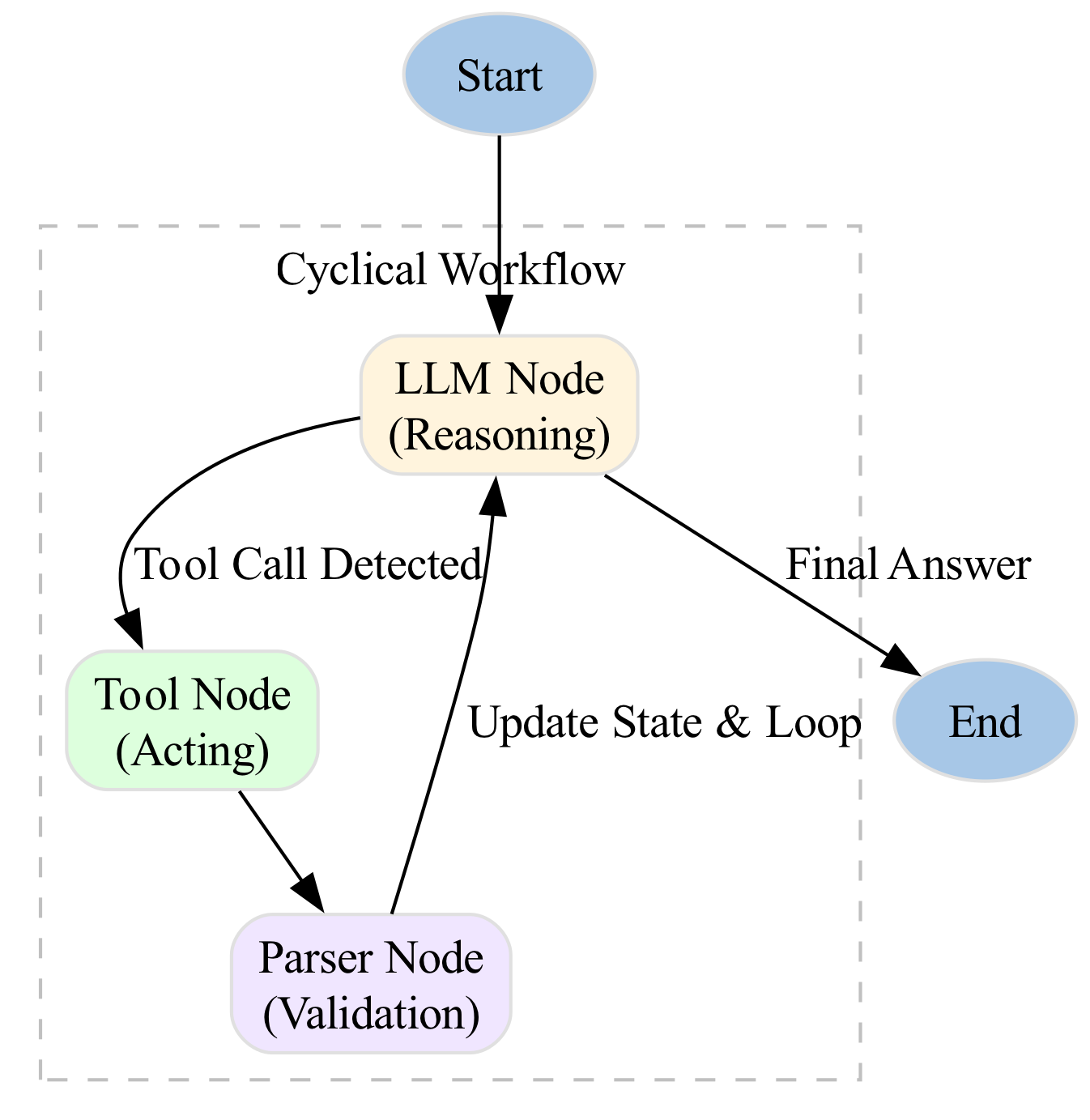

Visualizing the Architecture Below is a visual representation of a standard autonomous agent graph. Note how the State flows through the cycle until a condition is met.

The diagram illustrates the cyclic flow of the State through the agent's core components—perception, planning, and action—until a termination condition is met.

Reconciliation and Optimistic UI

When building interactive agent interfaces (like a chatbot), we often use Optimistic UI to improve perceived performance. The user sees a message bubble appear immediately after they hit "send," even before the AI has finished generating a response.

This introduces a challenge: Reconciliation.

Analogy: The Draft vs. The Final Edit Imagine writing an email. You type a draft (Optimistic State) and hit send. The email client shows the message in your "Sent" folder immediately. Meanwhile, in the background, the server is processing the email (encryption, spam checks, delivery). Once the server confirms receipt (Actual State), the client reconciles the view. If the server rejected the email (e.g., invalid address), the client must update the UI to show an error, removing the optimistic message.

In LangGraph with the Vercel AI SDK: 1. Optimistic State: The UI renders the user's input and a "loading" state for the agent's response immediately. 2. Headless Inference: The LangGraph execution happens on the server (or in a Web Worker). The graph processes the State, calls Nodes, and traverses Edges. 3. Reconciliation: As the server streams back tokens (partial responses from the LLM Node), the client updates the temporary optimistic UI. It replaces the loading spinner with the actual text. If the agent decides to use a tool, the UI might show a "Thinking..." indicator that gets replaced by the tool's result.

This process ensures that the UI remains responsive even while heavy computation (Headless Inference) occurs. The State acts as the bridge between the temporary client-side representation and the confirmed server-side reality.

Why This Architecture Matters

The combination of State, Nodes, and Edges provides a deterministic yet flexible framework for autonomous agents.

Debuggability: Because the State is immutable and the graph is explicit, you can "replay" a session step-by-step. You can inspect the State at any Node to see exactly what data was present when a decision was made.
Modularity: Nodes are decoupled. You can swap out an LLM Node for a different model or replace a Tool Node with a more efficient implementation without rewriting the entire workflow.
Cyclical Logic: Unlike traditional linear pipelines, the graph allows for loops. This is essential for agents that need to iterate on a problem, self-correct, or use tools multiple times before reaching a conclusion.

By mastering these theoretical foundations, you are not just learning a library; you are learning how to architect complex, stateful AI systems that can reason, act, and adapt.

Basic Code Example

This example demonstrates a simple "Supervisor" agent pattern, a foundational concept in building multi-agent systems. In a SaaS context, this could represent a customer support dashboard where a central router decides whether a user query should be handled by a "Billing Agent" or a "Technical Support Agent." The system maintains a shared State to track the conversation history and the final resolution.

The workflow consists of: 1. State Definition: A shared memory object. 2. Nodes: Individual agent functions (Supervisor, Billing, Tech Support). 3. Edges: The logic that connects nodes and determines the execution path.

The Code

/**
 * LangGraph.js Basic Multi-Agent Example
 *
 * A simple SaaS context: A customer support router that directs queries
 * to the appropriate specialized agent based on the user's initial message.
 *
 * Dependencies: @langchain/langgraph
 */

import { StateGraph, Annotation, END, START } from "@langchain/langgraph";

// 1. STATE DEFINITION
// =================================================================
/**
 * Defines the shared state for the graph.
 * Think of this as the "database record" for a single conversation.
 * It's passed from node to node, and each node can read or write to it.
 */
const GraphState = Annotation.Root({
  // The user's original query
  input: Annotation<string>({
    reducer: (curr, update) => update, // Simple replacement
    default: () => "",
  }),
  // The agent that ultimately handled the query (e.g., "Billing", "Tech Support")
  route: Annotation<string>({
    reducer: (curr, update) => update,
    default: () => "",
  }),
  // A log of decisions made by the supervisor
  decision_log: Annotation<string[]>({
    reducer: (curr, update) => [...curr, update], // Appends new decisions
    default: () => [],
  }),
});

// 2. NODES (Computational Units)
// =================================================================

/**
 * Supervisor Node: The initial router.
 * In a real app, this would be an LLM call. Here, we simulate the logic.
 * It inspects the state and decides which agent to route to.
 * @param state - The current state of the graph
 * @returns A partial object to update the state
 */
async function supervisorRouter(state: typeof GraphState.State) {
  console.log("--- [Node] Supervisor: Analyzing Query ---");
  const query = state.input.toLowerCase();

  if (query.includes("bill") || query.includes("invoice") || query.includes("charge")) {
    console.log("Decision: Route to Billing Agent");
    return {
      route: "Billing",
      decision_log: "Supervisor routed to Billing Agent based on keywords."
    };
  } else if (query.includes("error") || query.includes("bug") || query.includes("technical")) {
    console.log("Decision: Route to Tech Support");
    return {
      route: "Tech Support",
      decision_log: "Supervisor routed to Tech Support based on keywords."
    };
  } else {
    console.log("Decision: Route to General Support (Default)");
    return {
      route: "General Support",
      decision_log: "Supervisor could not determine a specific route. Defaulting to General Support."
    };
  }
}

/**
 * Billing Agent Node: Handles specific billing-related tasks.
 * @param state - The current state
 */
async function billingAgent(state: typeof GraphState.State) {
  console.log("--- [Node] Billing Agent: Processing ---");
  // In a real app, this would fetch invoices, process refunds, etc.
  return {
    decision_log: `Billing Agent processed the request for: "${state.input}"`
  };
}

/**
 * Tech Support Agent Node: Handles specific technical issues.
 * @param state - The current state
 */
async function techSupportAgent(state: typeof GraphState.State) {
  console.log("--- [Node] Tech Support Agent: Processing ---");
  // In a real app, this would look up logs, run diagnostics, etc.
  return {
    decision_log: `Tech Support Agent investigated the issue for: "${state.input}"`
  };
}

/**
 * General Support Agent Node: A catch-all for unhandled queries.
 * @param state - The current state
 */
async function generalSupportAgent(state: typeof GraphState.State) {
  console.log("--- [Node] General Support Agent: Processing ---");
  return {
    decision_log: `General Support handled the query for: "${state.input}"`
  };
}

// 3. EDGES (Control Flow)
// =================================================================

/**
 * Conditional Edge: The "Traffic Cop" of the graph.
 * It looks at the state and decides which node to go to next.
 * @param state - The current state
 * @returns The name of the next node to call, or END
 */
function routeFromSupervisor(state: typeof GraphState.State) {
  // This function is called after the supervisorRouter node finishes.
  // It inspects the 'route' field that the supervisor just set.
  const route = state.route;

  if (route === "Billing") {
    return "billing_node"; // Go to the billing agent
  }
  if (route === "Tech Support") {
    return "tech_support_node"; // Go to the tech support agent
  }
  if (route === "General Support") {
    return "general_support_node"; // Go to the general agent
  }

  // If something goes wrong, end the graph execution.
  return END;
}

// 4. GRAPH ASSEMBLY
// =================================================================

// Initialize the graph with our defined state
const workflow = new StateGraph(GraphState);

// Add the nodes to the graph
workflow.addNode("supervisor", supervisorRouter);
workflow.addNode("billing_node", billingAgent);
workflow.addNode("tech_support_node", techSupportAgent);
workflow.addNode("general_support_node", generalSupportAgent);

// Define the edges (the connections)
// Start -> Supervisor
workflow.addEdge(START, "supervisor");

// Supervisor -> Conditional Routing
// This is the key: the supervisor's output determines the next step.
workflow.addConditionalEdges(
  "supervisor",
  routeFromSupervisor, // The function that makes the decision
  {
    "billing_node": "billing_node", // If routeFromSupervisor returns "billing_node", go to billing_node
    "tech_support_node": "tech_support_node",
    "general_support_node": "general_support_node",
    [END]: END // Map the END symbol
  }
);

// Agent Nodes -> End
// Once an agent is done, the workflow is complete.
workflow.addEdge("billing_node", END);
workflow.addEdge("tech_support_node", END);
workflow.addEdge("general_support_node", END);

// Compile the graph into an executable app
const app = workflow.compile();

// 5. EXECUTION
// =================================================================

/**
 * Main function to run the graph with a user query.
 * @param query The user's message
 */
async function runAgentWorkflow(query: string) {
  console.log(`\n\n=================================================`);
  console.log(`🚀 NEW USER QUERY: "${query}"`);
  console.log(`=================================================`);

  // The initial state input for the graph
  const initialInputs = {
    input: query,
    decision_log: [], // Initialize log
  };

  // Stream the execution. This allows us to see the state evolve in real-time.
  // For a simple "Hello World", we'll just run it and print the final output.
  const finalState = await app.invoke(initialInputs);

  console.log("\n--- ✅ FINAL RESULT ---");
  console.log("Final State:", JSON.stringify(finalState, null, 2));
}

// --- DEMO RUNS ---
(async () => {
  await runAgentWorkflow("My invoice is wrong.");
  await runAgentWorkflow("I am seeing a 404 error on the dashboard.");
  await runAgentWorkflow("How do I change my profile picture?");
})();

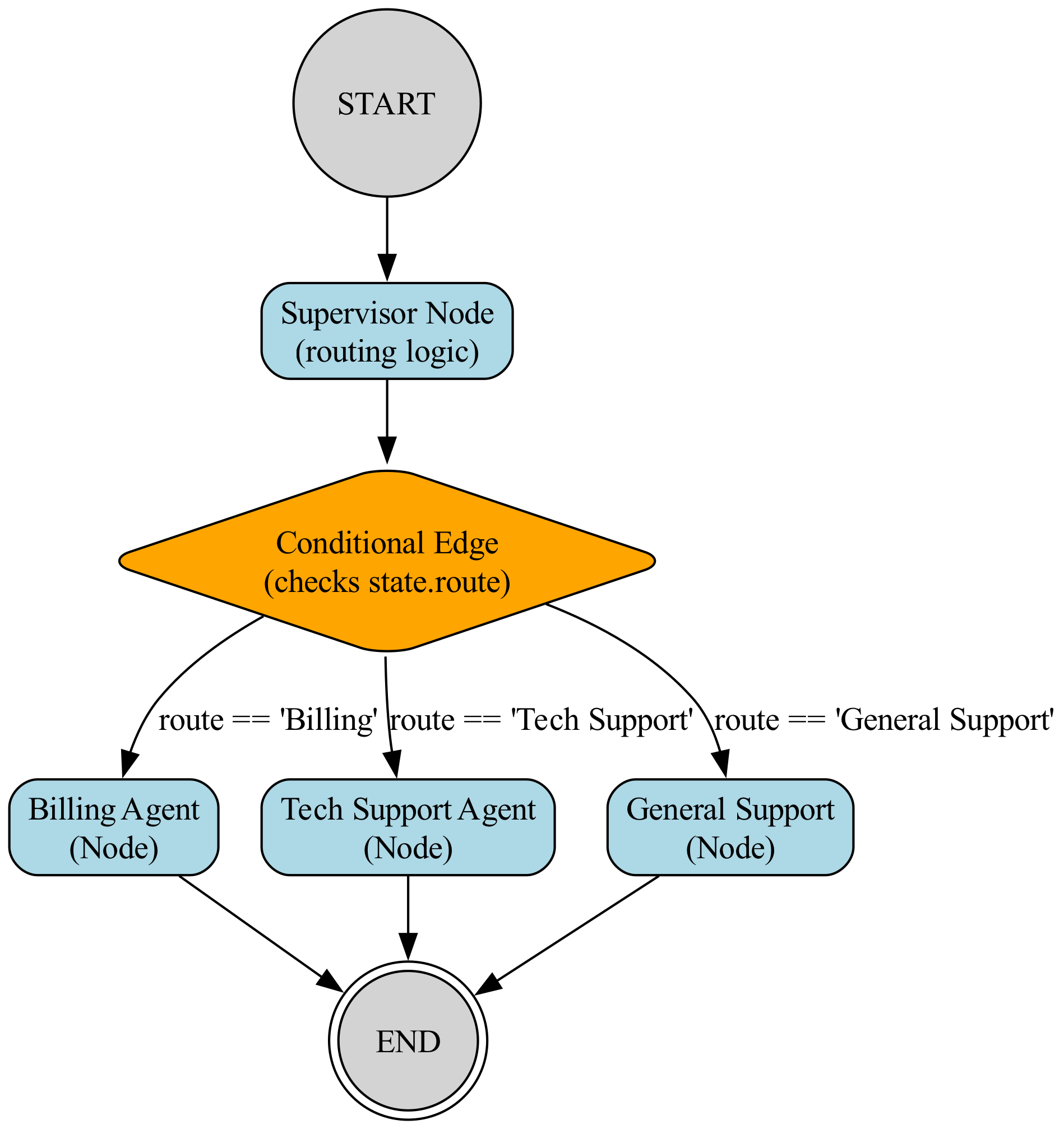

Visualizing the Graph

Here is the logical flow of the graph we just built.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the sequential execution of an asynchronous agent workflow, where each user query triggers a dedicated node to handle specific tasks like error reporting and profile updates.

Detailed Line-by-Line Explanation

This breakdown follows the numbered list structure requested.

State Definition (GraphState):
- const GraphState = Annotation.Root({...}): This is the blueprint for all data that will be passed around your graph. In LangGraph, Annotation is used to define the state schema.
- input: Annotation<string>(...): Defines a simple string property for the user's query. The reducer function tells LangGraph how to combine updates from different nodes. Here, update simply replaces the current value.
- route: Annotation<string>(...): This property will be set by the supervisor to hold the name of the chosen agent (e.g., "Billing").
- decision_log: Annotation<string[]>(...): This is an array. The reducer for this property is (curr, update) => [...curr, update]. This is crucial: it means if multiple nodes add to this log, their entries will be appended to the array, creating a history of actions.
Node Functions:
- async function supervisorRouter(state: typeof GraphState.State): This is the first computational step. It receives the entire current state as an argument.
- const query = state.input.toLowerCase(): It accesses the input field from the state to perform its logic.
- if (query.includes("bill") ...): The core routing logic. In a real-world application, this if/else block would be replaced by a call to a Large Language Model (LLM) like GPT-4, which would analyze the text and return a structured decision.
- return { route: "Billing", decision_log: "..." }: The function returns a partial state object. LangGraph intelligently merges this returned object with the existing state. It updates route and appends a new entry to decision_log.
- The other agent functions (billingAgent, techSupportAgent, generalSupportAgent) follow the same pattern. They receive the state, perform their specific tasks (simulated here with console.log), and return an update to the decision_log.
Edge Functions & Conditional Routing:
- function routeFromSupervisor(state: typeof GraphState.State): This function is not a node; it's a decision-maker used by an edge.
- const route = state.route: It inspects the state after the supervisorRouter node has finished and updated the route field.
- return "billing_node": It returns a string that matches the name of a node defined later in the graph assembly. This tells LangGraph where to go next.
Graph Assembly:
- const workflow = new StateGraph(GraphState): We instantiate a new graph, telling it which state schema to use.
- workflow.addNode("supervisor", supervisorRouter): We register our functions as named nodes. The string name ("supervisor") is the identifier used for connections.
- workflow.addEdge(START, "supervisor"): This defines the entry point. When the graph starts, it immediately transitions to the "supervisor" node.
- workflow.addConditionalEdges("supervisor", routeFromSupervisor, {...}): This is the most powerful part. It attaches our decision function to the "supervisor" node. After the supervisor runs, the graph will execute routeFromSupervisor. The resulting string is then looked up in the provided map ({ "billing_node": "billing_node", ... }) to find the next node.
- workflow.addEdge("billing_node", END): This defines the exit paths. Once an agent node (like billing_node) has completed its work, the graph should stop.
Execution:
- const app = workflow.compile(): This turns the abstract graph definition into a runnable object.
- await app.invoke(initialInputs): We start the graph. We provide the initial state, which must contain the input field. The graph runs from START, follows the edges, executes the nodes, and returns the final, complete state after all paths have reached END.

Common Pitfalls

When building LangGraph applications in a TypeScript/Node.js environment, especially for web apps, watch out for these specific issues:

State Mutation and Async/Await Loops:
- The Pitfall: JavaScript's mutable nature can be dangerous. A common mistake is to modify the state object directly inside a node (e.g., state.route = "Billing"). LangGraph relies on immutable updates to correctly manage state history, especially for features like time travel debugging. Direct mutation can lead to unpredictable behavior and race conditions in complex graphs.
- The Fix: Always return a new object or a partial object from your nodes. Let LangGraph handle the state merging. Use functional patterns like reducers.
Vercel/AWS Lambda Timeouts:
- The Pitfall: LangGraph workflows can be long-running, especially if they involve multiple LLM calls or external API lookups. If you deploy this on serverless platforms like Vercel or AWS Lambda, you will hit the function execution timeout (e.g., 10 seconds on Vercel's Hobby plan). The graph will be abruptly terminated, leaving your users with an error.
- The Fix: For production-grade agents, you must use a backend that supports long-running processes or a dedicated orchestration platform like LangGraph Cloud or a self-hosted server (e.g., on ECS, Kubernetes). For web apps, you would typically trigger the graph execution on the backend and use a job queue system (like Inngest or Trigger.dev) to manage the state and progress, returning a job ID to the client immediately.
Hallucinated JSON in LLM Responses:
- The Pitfall: If you build your nodes using an LLM (e.g., via model.bindTools or prompt engineering), the model might return a malformed JSON object, a string instead of an object, or miss a required field. When LangGraph tries to merge this into the state, it will throw a validation or parsing error.
- The Fix: Always implement robust output parsing and validation. Use a library like zod to define your expected state schema and validate the LLM's response before returning it from the node. If validation fails, you can implement a retry logic or route to a fallback node.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
