Chapter 5: Conditional Edges - Making Logic Decisions

Theoretical Foundations

In the previous chapter, we explored the foundational StateGraph and established the concept of linear workflows—sequences of nodes connected by deterministic edges. Think of this as a simple assembly line: a product moves from Station A to Station B to Station C, with no deviation. This is powerful for predictable tasks, but real-world problem-solving is rarely so linear.

Imagine a web development architecture where every incoming HTTP request was forced to follow the exact same path through your server, regardless of whether it was a GET request for a static image, a POST request for user registration, or a PUT request to update a profile. This would be inefficient and fragile. Modern web applications rely on routing—middleware that inspects the request (URL, method, headers) and dynamically directs it to the appropriate controller or service.

This is precisely the leap we are making in this chapter. We are moving from a rigid assembly line to an intelligent routing system. Conditional Edges are the mechanism that allows our LangGraph to inspect the state of the workflow and make a decision: "Based on the current data, which node should execute next?" This transforms a static sequence into a dynamic, decision-making tree.

The Limitation of Linear Flows

To understand the necessity of conditional edges, we must first internalize the limitation of the linear chains we built in the previous chapter.

In a linear chain, the graph is defined by a fixed sequence of transitions. If we have nodes A, B, and C, the flow is strictly A -> B -> C. The graph has no awareness of the content passing through it. It cannot react to the output of node A. If node A produces an error, or a specific piece of data that requires a different processing path, the linear graph is oblivious; it blindly pushes the state forward to B.

This is analogous to a monolithic function in programming:

// A monolithic, linear function (The Assembly Line)
async function processUserRequest(state: GraphState) {
  // Step 1: Always happens
  const validatedInput = await validateInput(state);

  // Step 2: Always happens, even if validation failed
  const databaseResult = await queryDatabase(validatedInput);

  // Step 3: Always happens
  const response = await formatResponse(databaseResult);

  return response;
}

If validateInput fails, the subsequent steps are still executed, leading to potential errors or wasted computation. There is no "off-ramp." Conditional edges provide the off-ramps.

The Routing Function: The Traffic Controller

The core mechanism for enabling this logic is the Routing Function. In LangGraph, when we define a StateGraph, we can attach conditional edges to any node. This edge is not a static link to a single destination; instead, it points to a function. When the workflow execution reaches this conditional edge, it invokes the routing function, passing it the current graph state.

The routing function's job is simple but profound: inspect the state and return the name of the next node to visit.

Analogy: The Web Server Router

Consider a web server using Express.js. When a request hits the server, a router function inspects the request object (req.method, req.url) and decides which controller function to execute.

// Web Development Analogy: Express Router
app.use((req, res, next) => {
  // The routing function inspects the request (State)
  if (req.method === 'GET' && req.url === '/users') {
    return getUserController(req, res); // Route to Node A
  }
  if (req.method === 'POST' && req.url === '/users') {
    return createUserController(req, res); // Route to Node B
  }
  // Default route
  return next();
});

In LangGraph, the conditional edge acts as this router. It doesn't look at HTTP requests, but rather at the GraphState. For example, if our state contains a field needs_factual_verification, the routing function checks this boolean. If true, it returns the node name 'fact_checker'. If false, it returns 'direct_response'.

This decouples the logic of processing (the nodes) from the logic of flow control (the edges). Nodes become reusable, specialized tools, while the conditional edges form the intelligent nervous system that connects them.

Decision Trees and Stateful Logic

By chaining conditional edges, we construct a Decision Tree. Unlike a linear chain, which is a path, a decision tree is a graph where a single node can have multiple outgoing edges, and the path taken depends entirely on the data flowing through the system.

Let's visualize this using a Graphviz diagram. We start at a central node (perhaps an LLM call that analyzes a user prompt). Based on the LLM's classification, the graph branches.

Hold "Ctrl" to enable pan & zoom

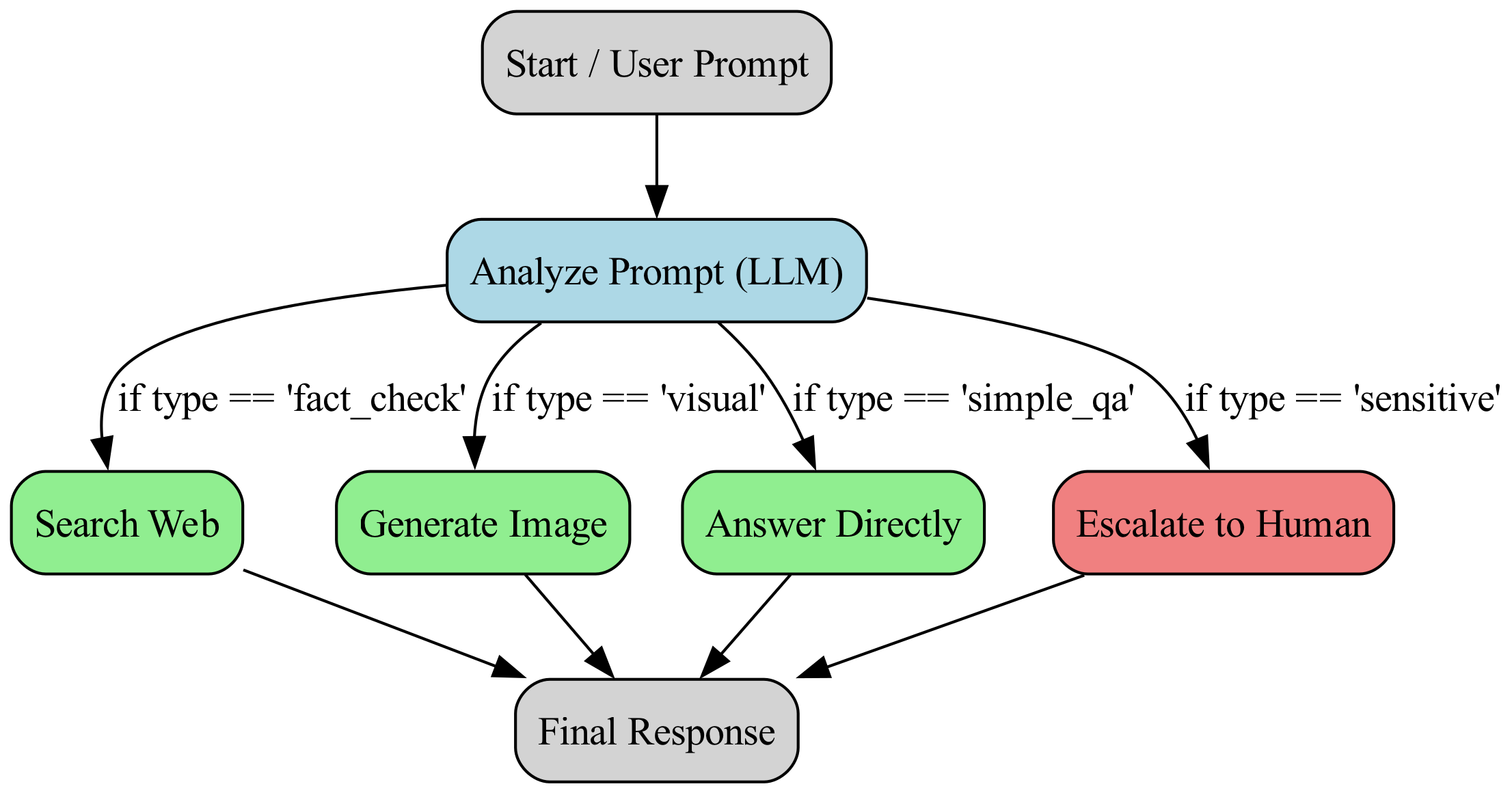

This diagram illustrates a graph-based workflow where a central LLM call classifies a user prompt, causing the process to branch into distinct subsequent paths based on the classification outcome.

In this diagram, Analyze is the decision point. It is not merely a processing step; it is a gateway. The edges leaving Analyze are conditional. The graph does not know at compile time which path will be taken; it only knows the rules. This makes the system incredibly flexible. We can add a new node GenerateCode without breaking the existing flow—we simply add a new condition to the router: if type == 'coding'.

Under the Hood: The addConditionalEdges Mechanism

In LangGraph.js, this is implemented via the addConditionalEdges method. While we are avoiding code in this theoretical section, it is crucial to understand the underlying logic.

When you call addConditionalEdges, you are registering a mapping logic within the graph's configuration. The graph runtime maintains a reference to the source node (where the condition is evaluated) and the routingFunction.

1. Execution Flow: When the graph reaches the source node, it executes the node's logic.
2. State Update: The node's output is merged into the shared GraphState.
3. Edge Evaluation: The runtime looks for outgoing edges from that node. If it finds a conditional edge, it pauses the linear flow and invokes the registered routingFunction.
4. Path Selection: The routingFunction receives the updated state. It runs its logic (e.g., checking a string value, a boolean flag, or the length of an array) and returns a string identifying the next node.
5. Transition: The graph runtime resolves the string to a specific node and pushes it onto the execution stack.

This mechanism allows for non-deterministic workflows. Two identical inputs entering the graph might take entirely different paths depending on subtle variations in the intermediate state. This is essential for building agents that can handle ambiguity.

The "Why": Intelligent Task Delegation

Why is this architectural pattern so vital for Autonomous Agents?

In a multi-agent system, you rarely want every agent to attempt every task. You want a Supervisor or Router agent to delegate tasks to specialized sub-agents.

• Specialization: One agent might be an expert in retrieving financial data, another in writing creative copy, and another in executing code.
• Efficiency: Routing a request to the wrong agent wastes tokens, time, and money.
• Safety: Sensitive requests can be routed to a "safety" node or a human review loop before proceeding.

Conditional edges provide the plumbing for this delegation. The Supervisor node (often an LLM call) analyzes the User Prompt (the initial state). Its output is a classification. The conditional edges read this classification and route the state to the appropriate Specialist node.

Analogy: The Microservices Orchestrator

In a microservices architecture, an API Gateway or an Orchestrator (like Kubernetes or an event bus) receives a request. It doesn't process the request itself. It looks at metadata—headers, payload, service tags—and routes the request to the appropriate microservice (the Node).

• If the request is for payment processing -> Route to PaymentService.
• If the request is for user authentication -> Route to AuthService.
• If the request is for analytics -> Route to AnalyticsService.

LangGraph's conditional edges function exactly like this orchestrator. The GraphState is the event payload, and the nodes are the microservices. By using conditional edges, we ensure that the PaymentService never accidentally receives an authentication request, keeping the system clean, robust, and scalable.

Conditional edges are the bridge between static data structures and dynamic intelligence. They allow the graph to "think" about its next move. By inspecting the shared state, the graph can adapt its behavior in real-time, creating workflows that resemble decision trees rather than rigid assembly lines. This capability is the bedrock of complex agent behaviors, enabling task delegation, error handling, and context-aware processing.

Basic Code Example

This example demonstrates a simple SaaS web application scenario: a user submits a support ticket. The system automatically routes the ticket to the correct department (Sales, Technical Support, or Billing) based on the content of the ticket description. This uses StateGraph and addConditionalEdges to create a dynamic workflow.

The Code

import { StateGraph, Annotation, END, START } from "@langchain/langgraph";

/**
 * Represents the shared state of our support ticket workflow.
 * In a real SaaS app, this might be a database row or a Redux/Context store object.
 */
type SupportState = {
  ticketDescription: string;
  assignedDepartment: string | null;
  resolution: string | null;
};

/**
 * Defines the structure of the state using LangGraph's Annotation.
 * This ensures type safety throughout the graph execution.
 */
const StateAnnotation = Annotation.Root({
  ticketDescription: Annotation<string>({
    reducer: (current, update) => update, // Simply overwrite the description
    default: () => "",
  }),
  assignedDepartment: Annotation<string | null>({
    reducer: (current, update) => update, // Overwrite the department
    default: () => null,
  }),
  resolution: Annotation<string | null>({
    reducer: (current, update) => update,
    default: () => null,
  }),
});

/**
 * Node 1: Analyze the ticket content.
 * This simulates an LLM call or a simple keyword search to categorize the ticket.
 * @param state - The current workflow state
 * @returns The updated state with the assigned department
 */
const analyzeTicket = async (state: typeof StateAnnotation.State) => {
  console.log("--- Analyzing Ticket ---");
  const { ticketDescription } = state;
  let department = "General";

  // Simple keyword logic (in a real app, use an LLM)
  const lowerDesc = ticketDescription.toLowerCase();
  if (lowerDesc.includes("invoice") || lowerDesc.includes("payment")) {
    department = "Billing";
  } else if (lowerDesc.includes("api") || lowerDesc.includes("bug")) {
    department = "Technical Support";
  } else if (lowerDesc.includes("pricing") || lowerDesc.includes("plan")) {
    department = "Sales";
  }

  console.log(`Identified Department: ${department}`);
  return { assignedDepartment: department };
};

/**
 * Node 2: Handle Billing Department Logic.
 * @param state - The current workflow state
 * @returns The updated state with a resolution
 */
const handleBilling = async (state: typeof StateAnnotation.State) => {
  console.log("--- Processing in Billing Department ---");
  return { resolution: "Billing issue resolved. Invoice sent." };
};

/**
 * Node 3: Handle Technical Support Logic.
 * @param state - The current workflow state
 * @returns The updated state with a resolution
 */
const handleTechnical = async (state: typeof StateAnnotation.State) => {
  console.log("--- Processing in Technical Support ---");
  return { resolution: "Technical bug fixed. API key regenerated." };
};

/**
 * Node 4: Handle General/Sales Logic (Fallback).
 * @param state - The current workflow state
 * @returns The updated state with a resolution
 */
const handleGeneral = async (state: typeof StateAnnotation.State) => {
  console.log("--- Processing in General/Sales Queue ---");
  return { resolution: "General inquiry answered. Sales follow-up scheduled." };
};

/**
 * Routing Function: Determines the next step based on the assigned department.
 * This is the core logic of conditional edges.
 * @param state - The current workflow state
 * @returns The string key of the next node to execute
 */
const routeTicket = (state: typeof StateAnnotation.State) => {
  // Ensure we have a department assigned
  if (!state.assignedDepartment) {
    throw new Error("Department not assigned. Run 'analyzeTicket' first.");
  }

  console.log(`--- Routing to: ${state.assignedDepartment} ---`);

  switch (state.assignedDepartment) {
    case "Billing":
      return "billingNode";
    case "Technical Support":
      return "technicalNode";
    case "Sales":
    case "General":
      return "generalNode";
    default:
      // Safety fallback
      return "generalNode";
  }
};

// 1. Initialize the Graph with the defined State
const workflow = new StateGraph(StateAnnotation);

// 2. Add Nodes (Computational Steps)
workflow.addNode("analyzeNode", analyzeTicket);
workflow.addNode("billingNode", handleBilling);
workflow.addNode("technicalNode", handleTechnical);
workflow.addNode("generalNode", handleGeneral);

// 3. Define the Flow
// Start at 'analyzeNode'
workflow.addEdge(START, "analyzeNode");

// Add Conditional Edges
// Instead of a fixed destination, we use the 'routeTicket' function
workflow.addConditionalEdges(
  "analyzeNode",      // The node where the decision is made
  routeTicket,        // The function that evaluates the state and returns the next node
  {                   // Map of possible return values to node names (optional but recommended)
    "billingNode": "billingNode",
    "technicalNode": "technicalNode",
    "generalNode": "generalNode"
  }
);

// Add edges from the department nodes to the end of the graph
workflow.addEdge("billingNode", END);
workflow.addEdge("technicalNode", END);
workflow.addEdge("generalNode", END);

// 4. Compile the graph
const app = workflow.compile();

/**
 * Main execution function simulating a user submitting a ticket via a web form.
 */
async function runTicketSystem() {
  // Scenario 1: A technical bug report
  const ticketInput1 = {
    ticketDescription: "I am getting a 500 error on the API endpoint /users.",
  };

  console.log("\n🧪 Running Scenario 1: Technical Ticket");
  const result1 = await app.invoke(ticketInput1);
  console.log("Final Result:", result1);
  // Expected Output: Resolution = "Technical bug fixed..."

  // Scenario 2: A billing inquiry
  const ticketInput2 = {
    ticketDescription: "Where can I find my invoice for last month?",
  };

  console.log("\n🧪 Running Scenario 2: Billing Ticket");
  const result2 = await app.invoke(ticketInput2);
  console.log("Final Result:", result2);
  // Expected Output: Resolution = "Billing issue resolved..."
}

// Execute the system
runTicketSystem().catch(console.error);

Line-by-Line Explanation

1. Imports and State Definition:

   • We import StateGraph and Annotation from @langchain/langgraph.
   • We define a TypeScript interface SupportState. This is crucial for type safety. In a SaaS app, this object structure mirrors the data shape you'd store in a database or pass between frontend components.
   • StateAnnotation uses LangGraph's Annotation.Root. This creates a schema for the graph's shared memory. The reducer function determines how updates are merged; here we simply overwrite values.

2. Node Functions:

   • analyzeTicket: This is the first step. It takes the raw description and categorizes it. In a production environment, this would likely call a Large Language Model (LLM) to extract entities or intent. Here, we simulate it with simple string matching.
   • handleBilling, handleTechnical, handleGeneral: These represent the "action" nodes. In a real app, these might trigger email notifications, update database records, or call external APIs. They return the updated state (specifically the resolution field).

3. The Routing Function (routeTicket):

   • This is the heart of Conditional Edges.
   • Unlike a standard .addEdge(source, target) which creates a static pipe, this function acts as a traffic controller.
   • It receives the current state (which includes the assignedDepartment set by the previous node).
   • It evaluates the state and returns a string key ("billingNode", "technicalNode", etc.).
   • LangGraph uses this return value to determine which node to execute next.

4. Graph Construction:

   • new StateGraph(StateAnnotation): Instantiates the graph.
   • workflow.addNode(name, function): Registers the nodes.
   • workflow.addEdge(START, "analyzeNode"): Sets the entry point.
   • workflow.addConditionalEdges("analyzeNode", routeTicket): This is the critical line. It tells the graph: "When analyzeNode finishes, do not go to a fixed node. Instead, run routeTicket to decide where to go."
   • workflow.addEdge("...Node", END): Connects the leaf nodes (the final steps) to the END symbol, terminating the graph execution.

5. Execution:

   • workflow.compile(): Prepares the graph for execution.
   • app.invoke(input): Starts the process. The graph runs analyzeNode, updates the state, pauses at the conditional edge, runs routeTicket, jumps to the appropriate department node, and finally hits END.

Visualizing the Flow

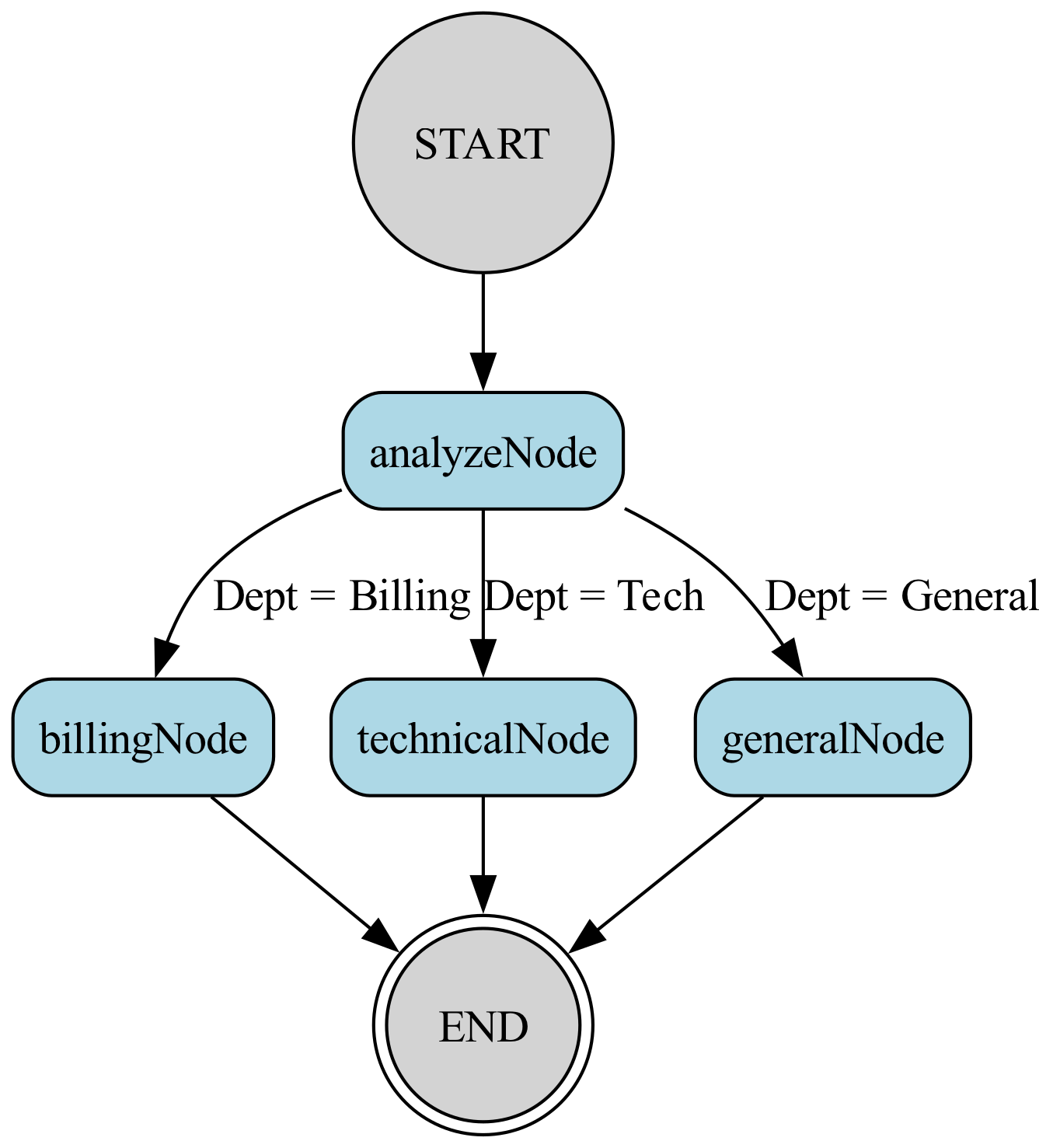

The graph looks like a "Y" shape. The trunk is START -> analyzeNode. From analyzeNode, the path splits into three branches based on the logic defined in routeTicket.

Hold "Ctrl" to enable pan & zoom

The trunk of the flowchart begins at `START` and flows into `analyzeNode`, where the path then branches into three distinct paths based on the logic defined in `routeTicket`.

Common Pitfalls

1. State Mutation Issues:

   • The Issue: JavaScript objects are mutable by reference. If you modify state directly inside a node (e.g., state.ticketDescription = "new"), it can cause unpredictable behavior in concurrent executions or complex graphs.
   • The Fix: Always treat the state as immutable. Return a new object or partial object from your node functions (as done in the example: return { assignedDepartment: department }). LangGraph handles the merging internally.

2. TypeScript Generics in StateGraph:

   • The Issue: When defining new StateGraph(StateAnnotation), TypeScript infers the types. However, if you use complex nested objects in your state without proper Generics, you might get type errors when accessing properties in your conditional routing function.
   • The Fix: Explicitly define the StateAnnotation using Annotation.Root<T>. This ensures that state in routeTicket is strictly typed, preventing runtime errors like "Cannot read property 'x' of undefined".

3. Async/Await Loops in Conditional Edges:

   • The Issue: The routing function (routeTicket) must be synchronous. It cannot be an async function. LangGraph expects a synchronous return value (the string key) to determine the graph topology immediately.
   • The Fix: If your routing logic requires an API call (e.g., checking a user's subscription tier to decide a path), you must perform that logic inside a node before the conditional edge, store the result in the state, and then read it synchronously in the routing function.

4. Hallucinated JSON in LLM Outputs:

   • The Issue: If analyzeTicket were an LLM call, it might return a messy string like "I think this is a Billing issue." instead of a clean JSON object.
   • The Fix: Use "Structured Output" (JSON mode) with your LLM provider. Ensure the LLM is prompted to return only the JSON key corresponding to your routing logic, or validate/parse the string strictly before returning it from the node.

5. Vercel/AWS Lambda Timeouts:

   • The Issue: SaaS workflows involving multiple agents or LLM calls can easily exceed serverless timeout limits (e.g., 10 seconds on Vercel Hobby plans).
   • The Fix: For long-running workflows, do not use app.invoke() directly in an API route. Instead, use a background job queue (like Inngest, Vercel Background Functions, or BullMQ). The API route should simply enqueue the job and return a 202 Accepted response immediately.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
