Chapter 6: The ToolNode - Connecting Graphs to the World

Theoretical Foundations

In the previous chapter, we established the foundational architecture of LangGraph's state management, focusing on how the graph's state (State) is the single source of truth, updated by nodes and evaluated by edges. We explored how nodes are essentially functions that receive the current state and return a new state update. This pattern is powerful for internal logic, but real-world agents must interact with external systems—APIs, databases, or other services. This is where the ToolNode enters the picture.

The ToolNode is not merely another node; it is a specialized execution engine designed to bridge the gap between the internal, deterministic logic of your graph and the external, often unpredictable world of APIs and services. Conceptually, it acts as a universal adapter or a microservice orchestrator within your agent's brain.

To understand this, let's use a web development analogy. Imagine your LangGraph agent is a microservices architecture. Each node in the graph is a microservice responsible for a specific task (e.g., "User Authentication," "Data Processing," "Response Formatting"). However, these microservices often need to call external APIs (like Stripe for payments, Twilio for SMS, or a weather API). Instead of hardcoding the API client logic directly into every microservice, you create a dedicated API Gateway. This gateway handles authentication, rate limiting, request formatting, and response parsing. The microservice simply tells the gateway, "Fetch the weather for London," and the gateway handles the rest, returning a standardized response.

In LangGraph, the ToolNode is this API Gateway. It is a pre-built, highly optimized node that: 1. Receives a state containing a request to execute a specific tool (e.g., "search_vector_store"). 2. Validates and formats the request according to the tool's schema. 3. Executes the tool (the actual function that calls an external API or service). 4. Handles errors gracefully (e.g., network failures, invalid parameters). 5. Formats the output back into a state update that the graph can understand and use for subsequent decisions.

This abstraction is critical for building robust, maintainable multi-agent systems. Without it, every node that needs an external tool would have to implement its own error handling, logging, and state update logic, leading to code duplication and fragility. The ToolNode centralizes this cross-cutting concern, allowing you to focus on the business logic of your tools and the high-level orchestration of your graph.

The "Why": Determinism, Statefulness, and Error Recovery

The primary motivation for a specialized ToolNode is to manage the inherent non-determinism and asynchronous nature of external interactions within a deterministic graph execution model.

1. Managing Non-Determinism and Statefulness

In a pure function, the output is determined solely by the input. However, an external tool call is inherently non-deterministic: * Network Latency: The tool might take 50ms or 5 seconds to respond. * External State: The result of a database query depends on the current state of the database, which can change between calls. * Rate Limits: An API might reject a request if called too frequently.

The ToolNode encapsulates this non-determinism. It ensures that the graph's execution flow can pause, wait for the tool to complete, and then resume with a predictable state update. This is analogous to a JavaScript Promise in a Node.js application. When you make an API call, you don't block the entire event loop; you create a Promise that resolves later. The ToolNode acts as the executor of these Promises within the graph's state machine.

Analogy: The Restaurant Kitchen Think of a LangGraph agent as a restaurant kitchen. The State is the order ticket. A regular node might be a chef chopping vegetables (a deterministic, internal task). The ToolNode is the sous chef who runs to the pantry (an external API). The sous chef might be delayed if the pantry is busy (rate limiting) or if an ingredient is missing (an error). The head chef (the graph's orchestrator) doesn't want to stop everything and wait; they want to assign the task to the sous chef and be notified when the ingredient is ready or when a problem occurs. The ToolNode manages this "waiting" and "notification" process, updating the order ticket (state) with the ingredient or a note about the problem.

2. Robust Error Handling and Recovery

External tools fail. Networks drop. APIs return 500 errors. A naive implementation would crash the entire agent. The ToolNode is designed with error handling as a first-class citizen. It catches exceptions from tool execution and converts them into structured state updates. This allows the graph's edges (the control flow logic) to make intelligent decisions based on failures.

For example, if a vector store search fails, the ToolNode can update the state with an error message. A conditional edge can then route the graph to a "fallback" node that might try a different search strategy or ask the user for clarification. This creates a self-healing system.

Analogy: The Circuit Breaker Pattern In microservices architecture, the Circuit Breaker pattern prevents cascading failures. If a service is failing, the circuit "opens," and subsequent calls fail immediately without waiting for a timeout, allowing the system to recover. The ToolNode can implement a similar pattern. If a specific tool fails repeatedly, the ToolNode can update the state to flag the tool as "unhealthy," and the graph can route around it until a recovery node resets the state.

Under the Hood: The ToolNode's Execution Lifecycle

Let's dissect the internal mechanics of the ToolNode. When a graph reaches a ToolNode, it performs a sequence of operations. This lifecycle is designed to be synchronous from the graph's perspective (the node completes before the next node runs) but is fully asynchronous under the hood, leveraging Node.js's event loop.

Step 1: Tool Selection and Argument Parsing The ToolNode expects the incoming state to contain a specific key, typically messages or tool_calls. This key holds a list of tool call requests from a preceding LLM node. The ToolNode iterates through these calls, identifies the corresponding tool by its name, and parses the arguments (which are usually provided as a JSON string by the LLM).

Step 2: Asynchronous Execution The ToolNode invokes the tool's underlying function. This function is an async function that performs the actual work (e.g., fetch, database query). The ToolNode uses Promise.all or similar patterns to execute multiple tool calls concurrently if the state contains them. This is where Asynchronous Processing is critical. The Node.js event loop can handle other tasks while waiting for the external API response, ensuring the application remains responsive.

Step 3: State Update and Error Formatting Once the tool promise resolves, the ToolNode wraps the result in a standardized message format. This is crucial because the graph's state is often a list of messages (for conversational agents). The tool's output is converted into a ToolMessage or similar structure, which includes: * The original tool call ID (to correlate the response with the request). * The content (the actual data returned by the tool). * A status (success or error).

If the tool throws an error, the ToolNode catches it and creates an error message instead. This ensures the graph never crashes; it simply receives a new piece of state indicating a problem.

Step 4: Returning to the Graph The ToolNode returns the updated state. The graph's execution engine then evaluates the outgoing edges from the ToolNode. This is where the power of LangGraph's conditional routing shines. The graph can decide, based on the content of the new state, whether to: * Send the tool's output back to the LLM for interpretation. * Route to another tool node for a follow-up action. * Proceed to a final answer node.

Visualization: The ToolNode's Role in the Graph

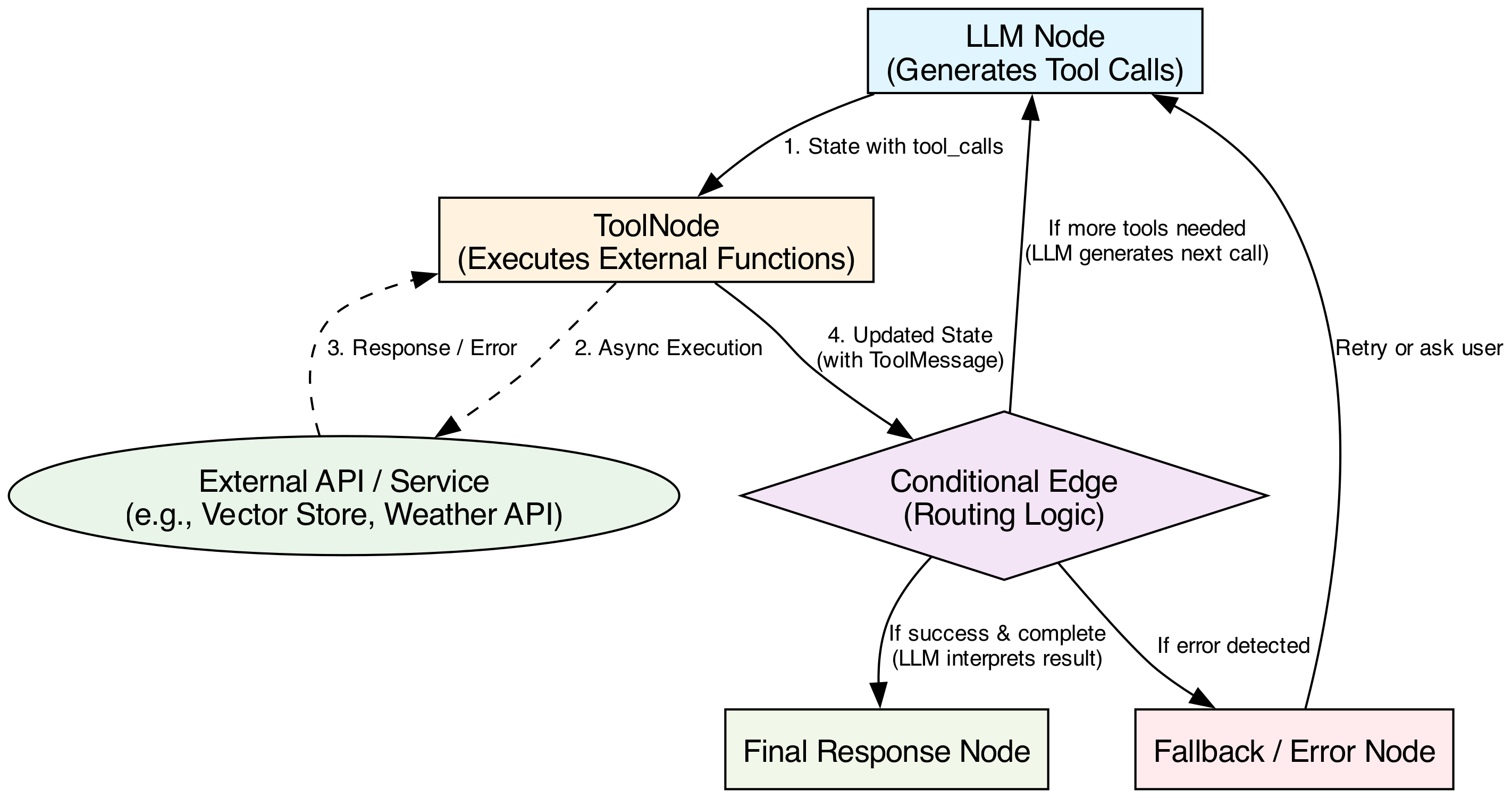

The following diagram illustrates the flow of data and control through a ToolNode within a typical agent graph. Notice how the ToolNode sits between the LLM's decision-making and the external world.

The ToolNode acts as a critical intermediary in the agent graph, bridging the LLM's decision-making process with the external world by routing data and control to and from external tools.

The Tool as a First-Class Citizen: Schema and Reusability

A key theoretical aspect of the ToolNode is that it treats tools as first-class citizens with well-defined schemas. This is where the web development analogy of TypeScript interfaces is apt. A tool is not just a function; it's an object with a strict contract:

Name: A unique identifier (e.g., search_vector_store).
Description: A natural language description used by the LLM to understand when and how to use the tool.
Schema (Parameters): A JSON Schema definition of the expected input arguments. This is what allows the LLM to generate valid calls and the ToolNode to validate them.

This schema-driven approach enables powerful features: * Automatic Validation: The ToolNode can validate arguments against the schema before execution, preventing a class of errors. * LLM Integration: The LLM uses the tool's description and schema to decide which tool to call and what arguments to provide. This is the core of function calling in models like GPT-4. * Reusability: A tool defined for one graph can be reused in another, as long as the state schema is compatible. This is like sharing a microservice across different frontend applications.

The Vector Store Example: A Concrete Use Case

Let's ground this theory with the specific context of a vector store and pgvector. Imagine you are building a Retrieval-Augmented Generation (RAG) agent. The agent's goal is to answer user questions by retrieving relevant information from a large document corpus stored in a PostgreSQL database using pgvector.

The Tool: You define a tool named vector_search. Its schema requires a query string and optionally a top_k integer.
The LLM Node: The user asks, "What are the benefits of HNSW indexing?" The LLM, aware of the vector_search tool, decides it needs to retrieve information. It generates a tool call: { "name": "vector_search", "arguments": { "query": "benefits of HNSW indexing", "top_k": 3 } }.
The ToolNode: The ToolNode receives this state. It parses the arguments, constructs a SQL query using the pgvector extension (e.g., SELECT content FROM documents ORDER BY embedding <=> $1 LIMIT $2), and executes it asynchronously.
The Result: The database returns three document chunks. The ToolNode formats these into a ToolMessage with the content.
The Next Step: The graph routes this ToolMessage back to the LLM. The LLM now has the context (the retrieved chunks) and can generate a final, accurate answer citing the sources.

Without the ToolNode, the LLM node would have to contain the database connection logic, query building, and error handling. This would tightly couple the LLM's reasoning to the specific database implementation. With the ToolNode, the LLM node only needs to know that a search tool exists, not how it works. This separation of concerns is the hallmark of a well-designed, scalable system.

In summary, the ToolNode is the linchpin that connects the abstract, reasoning world of the LangGraph agent to the concrete, operational world of external services. It provides the necessary structure for reliable, asynchronous, and error-resistant tool execution, enabling the creation of truly autonomous agents that can perceive and act upon their environment.

Basic Code Example

Here is a detailed, self-contained code example demonstrating the ToolNode concept within a SaaS context.

The Core Concept: The ToolNode

In LangGraph, a ToolNode is a pre-built node designed to execute tools (external functions) based on the state of the graph. It typically expects a messages array in its state, looks for tool calls within those messages, executes the corresponding tool functions, and appends the tool results back to the state.

In this example, we will simulate a SaaS Customer Support Dashboard. The agent will have access to a tool that fetches a user's subscription status from a database.

import { StateGraph, Annotation, START, END, ToolNode } from "@langchain/langgraph";
import { BaseMessage, AIMessage, ToolMessage } from "@langchain/core/messages";
import { z } from "zod";

/**
 * ============================================================================
 * 1. STATE DEFINITION & TOOLS
 * ============================================================================
 * We define the state of our graph and the tools available to the agent.
 */

/**
 * The state annotation defines the structure of data flowing through the graph.
 * In a SaaS context, we often track conversation history (messages) and
 * specific business data (like user ID).
 */
const GraphState = Annotation.Root({
  messages: Annotation<BaseMessage[]>({
    reducer: (curr, update) => curr.concat(update),
    default: () => [],
  }),
  // Simulated context passed from the web app (e.g., from auth middleware)
  userId: Annotation<string>({
    reducer: (curr, update) => update ?? curr,
    default: () => "user_12345",
  }),
});

/**
 * TOOL DEFINITION: Fetch Subscription Status
 *
 * 1. Zod Schema: Defines the strict input structure for the tool.
 *    - This prevents hallucinated parameters from the LLM.
 * 2. Tool Function: The actual logic that executes the API call or DB query.
 */

// Zod schema for the tool input
const subscriptionSchema = z.object({
  userId: z.string().describe("The unique identifier of the SaaS user"),
});

// Type inference from Zod for TypeScript safety
type SubscriptionInput = z.infer<typeof subscriptionSchema>;

/**
 * Simulates a database call to fetch subscription data.
 * In a real app, this would be `await db.query('SELECT * FROM subscriptions...')`
 *
 * @param input - The validated parameters from the LLM.
 * @returns A string containing the subscription status.
 */
async function getSubscriptionStatus(input: SubscriptionInput): Promise<string> {
  console.log(`[Tool Execution] Fetching status for user: ${input.userId}`);

  // Simulate network latency
  await new Promise(resolve => setTimeout(resolve, 100));

  // Mock database response
  const mockDb = {
    "user_12345": { plan: "Pro", status: "Active", expires: "2024-12-31" },
    "user_99999": { plan: "Free", status: "Canceled", expires: "2023-01-01" },
  };

  const user = mockDb[input.userId as keyof typeof mockDb];

  if (!user) {
    throw new Error(`User ${input.userId} not found in database.`);
  }

  return JSON.stringify(user);
}

// Register the tool in a format compatible with LangChain/LangGraph
const tools = [
  {
    name: "get_subscription_status",
    description: "Retrieves the current subscription plan and status for a given user ID.",
    schema: subscriptionSchema,
    func: getSubscriptionStatus,
  },
];

/**
 * ============================================================================
 * 2. GRAPH CONSTRUCTION
 * ============================================================================
 * We build the state graph using the ToolNode.
 */

// Initialize the ToolNode with our defined tools
const toolNode = new ToolNode<typeof GraphState.State>(tools);

// Create the graph
const workflow = new StateGraph(GraphState);

// Add the tool node
workflow.addNode("tools", toolNode);

// In a real agent, we would add an LLM node here.
// For this "Hello World" example, we will simulate the LLM output
// directly to focus purely on the ToolNode mechanics.
workflow.addNode("simulated_llm", async (state) => {
  // Simulate an LLM deciding to call a tool
  const toolCall = {
    name: "get_subscription_status",
    args: { userId: state.userId }, // The LLM extracts the userId from context
    id: "call_123",
    type: "tool_call",
  };

  return {
    messages: [
      new AIMessage({
        content: "",
        tool_calls: [toolCall],
      }),
    ],
  };
});

// Define edges: Start -> LLM -> Tools -> End
workflow.addEdge(START, "simulated_llm");
workflow.addEdge("tools", END);
workflow.addEdge("simulated_llm", "tools");

// Conditional edge: In a real app, we check if the LLM called tools.
// Here, we know the simulated LLM always calls a tool.
const shouldContinue = (state: typeof GraphState.State) => {
  const lastMessage = state.messages[state.messages.length - 1];
  // If the last message has tool calls, go to tools, otherwise end
  if (lastMessage.additional_kwargs?.tool_calls?.length > 0) {
    return "tools";
  }
  return END;
};

// Re-configure edges with conditional logic (Best Practice)
workflow.addConditionalEdges("simulated_llm", shouldContinue);

// Compile the graph
const app = workflow.compile();

/**
 * ============================================================================
 * 3. EXECUTION
 * ============================================================================
 * Running the graph and observing the flow.
 */

async function runSaaSDashboard() {
  console.log("--- Starting SaaS Support Agent ---");

  // Initial state input (simulating a request from a React/Next.js component)
  const initialInput = {
    userId: "user_12345",
    messages: []
  };

  try {
    // Stream the execution
    const stream = await app.stream(initialInput);

    for await (const chunk of stream) {
      // Log the state updates from each node
      const node = Object.keys(chunk)[0];
      const state = chunk[node];

      console.log(`\n[Node: ${node}]`);

      if (state.messages && state.messages.length > 0) {
        const lastMsg = state.messages[state.messages.length - 1];

        if (lastMsg instanceof AIMessage) {
          console.log(`> LLM Output: Tool Call Requested -> ${lastMsg.tool_calls?.[0].name}`);
        } else if (lastMsg instanceof ToolMessage) {
          console.log(`> Tool Output: ${lastMsg.content}`);
        }
      }
    }
  } catch (error) {
    console.error("Error in workflow execution:", error);
  }
}

// Execute the example
runSaaSDashboard();

Visualizing the Flow

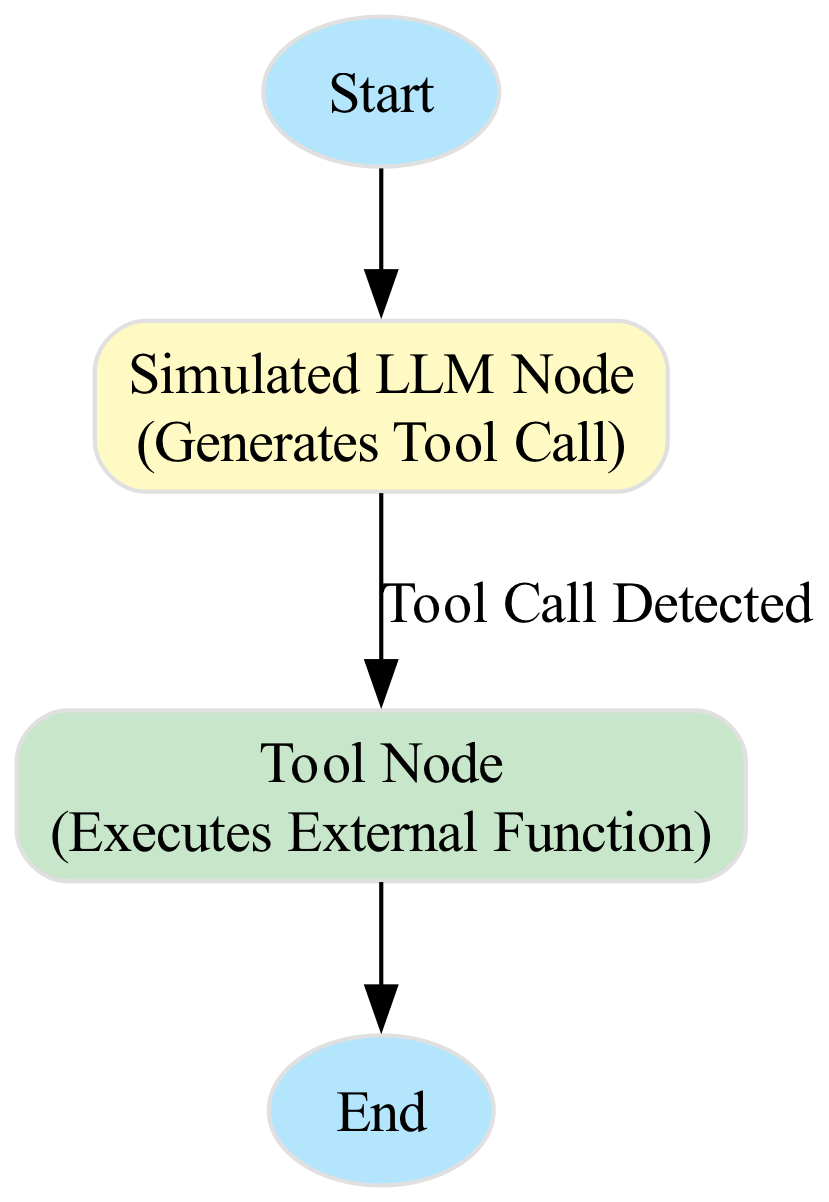

The graph below illustrates the execution path. The ToolNode acts as the bridge between the reasoning agent (LLM) and the external world (Database/API).

This diagram illustrates the ToolNode acting as the critical bridge that connects the reasoning agent (LLM) to external resources like databases and APIs to execute the workflow. — This diagram illustrates the `ToolNode` acting as the critical bridge that connects the reasoning agent (LLM) to external resources like databases and APIs to execute the workflow.

Detailed Line-by-Line Explanation

1. State Definition & Tools

GraphState Annotation: We define the shape of our application's memory. In a SaaS app, we often need to maintain the conversation history (messages) alongside user context (userId). The reducer function ensures that when new messages are added, they are concatenated to the existing array rather than overwriting it.
Zod Schema (subscriptionSchema): This is critical for safety. We define that the get_subscription_status tool expects an object with a userId string. If the LLM hallucinates a parameter like user_id (snake_case) or token, Zod will catch this during validation, preventing runtime errors in your database query.
Tool Function (getSubscriptionStatus): This is the actual implementation. It accepts the validated input. Note the async/await pattern—real-world tools almost always involve network I/O. We return a string (JSON formatted) which LangGraph will wrap in a ToolMessage.

2. Graph Construction

ToolNode Initialization: We pass our array of tool definitions to the ToolNode. LangGraph automatically maps the function names to the node's execution logic.
Simulated LLM Node: In a full implementation, this would be an LLM call (e.g., GPT-4). For this "Hello World" example, we simulate the LLM's output to strictly isolate and demonstrate how the ToolNode processes input. We manually construct an AIMessage with a tool_calls property, mimicking what an LLM returns.
shouldContinue Logic: This is the router. In a real agent, after the LLM runs, we inspect the state. If the LLM generated a tool call, we route to the ToolNode. If the LLM simply replied with text, we route to END. This conditional edge makes the agent dynamic.
Compilation: workflow.compile() transforms the declarative graph definition into an executable runtime.

3. Execution

Streaming: We use .stream() instead of .invoke() because it provides better UX in web apps (showing "typing" indicators or partial results) and allows us to observe the intermediate steps (LLM -> Tool -> Final Result).
Node Inspection: Inside the loop, we identify which node emitted the chunk. We specifically look for ToolMessage instances, which are generated by the ToolNode wrapping the return value of our getSubscriptionStatus function.

Common Pitfalls

Zod Validation Errors (LLM Hallucination):
- Issue: The LLM might generate a tool call with incorrect arguments (e.g., passing a number instead of a string, or missing a required field).
- Result: The ToolNode will throw a validation error before executing your function, crashing the graph.
- Fix: Always use strict Zod schemas. Consider adding a fallback node or an error handler node in your graph to catch ToolValidationError and ask the LLM to correct itself.
Async/Await Loops in Node.js:
- Issue: Tools often involve database calls or API fetches. If you forget the await keyword or use Promise.all incorrectly within the tool execution, you might return a Promise object instead of the resolved data.
- Result: The LLM receives "[object Promise]" as context, leading to nonsensical responses.
- Fix: Ensure tool handlers are strictly typed with Promise<T> and use await or .then() correctly. Use TypeScript to enforce return types.
Vercel/AWS Lambda Timeouts:
- Issue: Serverless functions (like Vercel Serverless Actions) have strict timeouts (e.g., 10 seconds). If your ToolNode executes a heavy database query or a slow external API, the function will time out.
- Result: The user sees a 504 Gateway Timeout error.
- Fix:
  - Move heavy tool execution to background jobs (e.g., via Redis/Queue).
  - Use stream mode to keep the connection alive while processing.
  - Implement timeouts in your tool functions (e.g., using Promise.race).
State Mutation:
- Issue: Directly mutating the state object (e.g., state.messages.push(newMessage)) instead of returning a new state object.
- Result: LangGraph relies on immutability for history management and time-travel debugging. Mutation breaks the reducer logic and can lead to unpredictable graph behavior.
- Fix: Always return a new object or array from your node functions (as done in the reducer definition).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
