Chapter 8: Human-in-the-Loop - Approval Workflows

Theoretical Foundations

In the realm of autonomous agents, the concept of Human-in-the-Loop (HITL) represents a fundamental shift from fully autonomous execution to a collaborative partnership between machine intelligence and human judgment. While the goal of agentic systems is to automate complex tasks, there are scenarios where full autonomy is either risky, ethically questionable, or simply inefficient due to ambiguity. HITL introduces intentional pauses—interruptions—in the agent's execution flow, allowing a human operator to inspect the current state, validate decisions, provide additional context, or override actions before the workflow proceeds.

To understand this deeply, we must look at the ReAct Loop (Reasoning and Acting), a foundational pattern introduced in previous chapters. In a standard ReAct loop, an agent cycles through internal reasoning (Thought) and external tool execution (Action) until a final answer is reached. This loop is designed for speed and efficiency. However, imagine this loop as a high-speed assembly line. If a defect passes through unchecked, it could cause significant downstream issues. HITL acts as a quality control checkpoint on this assembly line. It doesn't stop the line entirely but allows a specialist to inspect a specific component before it moves to the next station.

The "Why": Mitigating Risk and Enhancing Accuracy

The primary driver for HITL is the mitigation of risk associated with automated decision-making. In high-stakes environments—such as financial transactions, medical data processing, or legal document review—a hallucination or an incorrect tool call can have severe consequences. By integrating a human approval node, we transform the agent from an isolated actor into a tool that augments human capability.

Consider the analogy of a web application's backend API. In a standard request-response cycle, the server processes data and returns a result immediately. However, for sensitive operations (like deleting a user account or transferring funds), developers often implement a "confirmation" step—a middleware that pauses the request and requires a secondary verification (e.g., a password re-entry or a 2FA code). This is HITL in traditional web development. In LangGraph, we achieve this by interrupting the graph's execution at a specific node, persisting the state, and waiting for external input.

Another critical "why" is handling ambiguity. LLMs are probabilistic; they generate likely sequences of text based on patterns. When an agent encounters a scenario with low confidence or requires domain-specific knowledge not present in its training data, it may guess. A human expert can resolve this ambiguity instantly. This is analogous to a microservices architecture where a specific service (the human) is called via an API (the interruption) to handle a complex, non-deterministic task that the autonomous services (the agent nodes) cannot resolve reliably.

The Mechanics of Interruption and State Persistence

The implementation of HITL in LangGraph.js relies on the concept of state persistence and non-blocking I/O. When an agent reaches a node designated for human intervention, the graph does not simply crash or hang; it gracefully suspends execution.

State Persistence: The Snapshot

In a standard Node.js application, if you need to wait for user input, you might use a blocking call like readlineSync. However, in a distributed or asynchronous system, we cannot block the main thread. LangGraph handles this by serializing the current State—the accumulated data, message history, and intermediate results—into a persistent store (often a database or a file system).

This is similar to how a web session works. When a user logs into an e-commerce site, the server creates a session object containing the user's cart and preferences. If the user navigates away and returns later, the server retrieves this session state, and the user picks up exactly where they left off. In LangGraph, the interruption node saves the state, terminates the current execution run, and waits. When the human operator provides input (e.g., "Approve" or "Reject"), the system loads the saved state and resumes the graph from the exact node following the interruption.

Non-Blocking I/O and the Event Loop

In Node.js, the Event Loop is the mechanism that allows for non-blocking I/O operations. When we design a HITL workflow, we are essentially leveraging this paradigm. Instead of the agent thread sleeping while waiting for a human, the agent's execution flow is suspended, and control returns to the event loop to handle other tasks.

Imagine a chat application. When you send a message, the UI doesn't freeze while waiting for the recipient to type a reply. The UI remains responsive (non-blocking). Similarly, an agent running in a HITL workflow can be part of a larger system handling multiple agents. While Agent A is waiting for human approval, Agent B can continue processing its own tasks.

Visualizing the HITL Workflow

To visualize this, we can look at a graph structure where the agent cycles through reasoning and action, but hits a specific "Human Approval" node that acts as a gatekeeper.

The diagram illustrates a graph where Agent A's workflow pauses at a Human Approval gatekeeper node, while Agent B continues processing its own parallel tasks uninterrupted.

The "Max Iteration Policy" as a Safety Net

While HITL introduces human control, we must also consider the reliability of the autonomous loop itself. In previous chapters, we discussed the Max Iteration Policy. This concept is crucial in the context of HITL.

Without a Max Iteration Policy, an agent could enter an infinite loop of reasoning and acting without ever reaching the human approval node. For example, if a tool consistently fails or returns ambiguous results, the agent might retry indefinitely. The Max Iteration Policy acts as a circuit breaker. It is a conditional edge in the graph that checks the number of cycles (ReAct loops) executed.

If the count exceeds a threshold (e.g., 10 iterations), the graph forces a transition to an error handling node or the final output node, bypassing the human approval node to prevent system resource exhaustion. This ensures that the human is only interrupted for valid, productive cycles, not for infinite error loops.

Analogy: The Software Development Pipeline

To synthesize these concepts, let's use the analogy of a CI/CD (Continuous Integration/Continuous Deployment) pipeline in software engineering.

The Autonomous Agent (The CI Pipeline): The pipeline automatically builds code, runs unit tests, and performs static analysis. This is the ReAct Loop. It is fast, repetitive, and handles well-defined tasks.
The Human-in-the-Loop (The Code Review): Before deploying to production, the pipeline pauses at a "Manual Approval" stage. The code changes are presented to a senior developer. This is the Human Intervention Node. The pipeline state (the specific commit hash and build artifacts) is persisted.
State Persistence (The PR Thread): The context of the code change is preserved in a Pull Request thread. The developer reviews the logic (Reasoning) and approves or requests changes (Human Input).
Resumption: Once approved, the pipeline resumes (loads the state) and proceeds to the deployment stage.

In this analogy, the Max Iteration Policy is akin to a timeout on the code review. If a PR sits unreviewed for too long, the system might automatically flag it or merge it based on strict criteria, preventing the development workflow from stalling indefinitely.

Under the Hood: The Event Loop and Asynchronous State Management

Technically, implementing this in Node.js requires careful handling of the event loop. When an agent graph is executed, it runs on the main thread. If we were to use a synchronous blocking wait for human input, the entire Node.js application would freeze, unable to handle any other incoming requests (e.g., other agents or API calls).

Therefore, the implementation relies on asynchronous state management. The graph execution is wrapped in an asynchronous function. When the interruption condition is met:

The graph saves the current state to a database (e.g., Redis or MongoDB) using a unique session ID.
The execution promise is not resolved yet; it remains pending.
The system exposes an endpoint (e.g., a webhook or a GraphQL mutation) that accepts the human input.
When the endpoint receives input, it retrieves the state using the session ID, updates the state with the human input (e.g., state.approval = true), and then resolves the pending promise, effectively "resuming" the graph execution from where it left off.

This architecture allows the agent system to scale horizontally. Multiple agents can be running, waiting for human input, without blocking the server's ability to process new events.

Theoretical Foundations

In summary, Human-in-the-Loop workflows in LangGraph.js are not merely about adding a pause button. They are about: 1. Strategic Interruption: Identifying critical nodes where probabilistic autonomy is insufficient. 2. State Resilience: Ensuring that the agent's context is preserved perfectly across the interruption, leveraging persistent storage. 3. Asynchronous Design: Utilizing Node.js non-blocking I/O to maintain system responsiveness while waiting for human judgment. 4. Guardrails: Combining HITL with policies like Max Iterations to prevent system hangs and ensure efficient resource usage.

By mastering these theoretical foundations, you move from building simple, linear agents to designing robust, enterprise-grade multi-agent systems that leverage the best of both machine speed and human wisdom.

Basic Code Example

In a standard autonomous agent, the ReAct Loop (Reasoning and Acting) executes continuously: the agent thinks, calls a tool, observes the result, and repeats. This is efficient for simple tasks but risky for high-stakes operations like financial transactions, content publishing, or deleting user data.

To introduce a Human-in-the-Loop (HITL) approval workflow, we must interrupt this cycle. We will modify the standard ReAct graph to include a Human Approval Node. This node pauses the graph's execution, persists the current state (including the agent's reasoning and proposed action), and waits for an external signal (a user clicking "Approve" or "Reject" in a web interface) before resuming.

Below is a minimal, self-contained TypeScript example simulating this workflow. It uses @langchain/langgraph to define the state and graph, and @langchain/core for the LLM and tools.

The Code Example: SaaS Content Moderation Agent

This example simulates a SaaS platform where an AI agent moderates user-generated content. Before publishing a post, the agent must propose an action (e.g., "Publish", "Flag", or "Delete"), and a human moderator must approve it.

// Import necessary modules from LangGraph and LangChain
import { StateGraph, Annotation, END, START } from "@langchain/langgraph";
import { ChatOpenAI } from "@langchain/openai";
import { ToolNode } from "@langchain/langgraph/prebuilt";
import { z } from "zod";

// --- 1. DEFINE STATE & TOOLS ---

/**
 * Defines the state structure for the moderation agent.
 * @property {string} input - The user-generated content to moderate.
 * @property {string} [decision] - The agent's proposed action (e.g., "APPROVE", "FLAG").
 * @property {string} [reasoning] - The agent's internal thought process.
 * @property {string} [finalStatus] - The outcome after human approval/rejection.
 */
const StateAnnotation = Annotation.Root({
  input: Annotation<string>(),
  decision: Annotation<string>(),
  reasoning: Annotation<string>(),
  finalStatus: Annotation<string>(),
});

// Define a tool for the agent to use (simulating an external API check)
const contentAnalysisTool = z.object({
  sentiment: z.enum(["positive", "neutral", "negative"]).describe("The sentiment of the content"),
  toxicity: z.number().min(0).max(1).describe("Toxicity score from 0.0 to 1.0"),
});
const analyzeContent = async (input: { content: string }) => {
  // Simulating an async API call to a moderation service
  console.log(`[Tool] Analyzing content: "${input.content}"`);
  const isNegative = input.content.toLowerCase().includes("hate");
  return {
    sentiment: isNegative ? "negative" : "positive",
    toxicity: isNegative ? 0.95 : 0.1,
  };
};

// --- 2. DEFINE AGENT NODES ---

/**
 * Node 1: The Reasoning Node (LLM).
 * Uses an LLM to decide what action to take based on the input and tool results.
 * Note: In a real app, we would pass tool results back to the LLM.
 * For this "Hello World" example, we simplify the logic to just deciding based on input.
 */
const reasonNode = async (state: typeof StateAnnotation.State) => {
  console.log("--- [Node] Reasoning ---");
  const llm = new ChatOpenAI({ model: "gpt-3.5-turbo" }); // Ensure OPENAI_API_KEY is set

  // Simple prompt to decide on moderation
  const prompt = `The user content is: "${state.input}".
  Based on standard moderation guidelines, should we PUBLISH or FLAG this content?
  Provide a brief reasoning.`;

  const response = await llm.invoke(prompt);

  // Parse the LLM response (simplified for demo)
  const content = response.content.toString();
  const decision = content.includes("FLAG") ? "FLAG" : "PUBLISH";

  return {
    decision: decision,
    reasoning: content,
  };
};

/**
 * Node 2: The Human Approval Node (Interrupt).
 * This node pauses the graph. In a real web app, this corresponds to
 * saving the state to a database and waiting for a webhook from the frontend.
 */
const humanApprovalNode = async (state: typeof StateAnnotation.State) => {
  console.log("--- [Node] Human Approval Required ---");
  console.log(`Decision Proposed: ${state.decision}`);
  console.log(`Reasoning: ${state.reasoning}`);

  // In LangGraph, we use `interrupt` to pause execution.
  // When this graph is run via `graph.stream({ ... }, { ... })`, it will stop here
  // and yield an interrupt event.
  // The application logic (the Event Loop) then waits for user input.
  // For this code snippet, we simulate the pause logic by throwing a specific error
  // that a wrapper function would catch, or simply logging instructions.

  // NOTE: In a real LangGraph implementation with a frontend:
  // 1. We call `await graph.invoke(initialState, { ... })`.
  // 2. The graph hits this node.
  // 3. We save the state to a DB (e.g., `await saveStateToDb(state)`).
  // 4. We return the state to the frontend.
  // 5. The frontend shows a "Approve/Reject" button.
  // 6. On click, we call `await graph.invoke(null, { ... })` to resume.

  console.log("⏸️  GRAPH PAUSED. Waiting for Human Input...");
  console.log("In a real app, this would return the state to the client and wait.");

  // Simulating the pause by returning the state as is.
  // The `interrupt` mechanism in LangGraph handles the actual halting.
  return state;
};

/**
 * Node 3: The Execution Node.
 * Performs the final action (e.g., publishes the post) if approved.
 */
const executeNode = async (state: typeof StateAnnotation.State) => {
  console.log("--- [Node] Executing Final Action ---");
  const action = state.decision === "PUBLISH" ? "PUBLISHED" : "FLAGGED";
  console.log(`✅ Content successfully ${action}.`);
  return {
    finalStatus: `Completed: ${action}`,
  };
};

/**
 * Node 4: Fallback Node.
 * Handles rejection or errors.
 */
const fallbackNode = async (state: typeof StateAnnotation.State) => {
  console.log("--- [Node] Fallback / Rejection ---");
  console.log("❌ Action rejected by human or failed validation.");
  return {
    finalStatus: "Rejected by Moderator",
  };
};

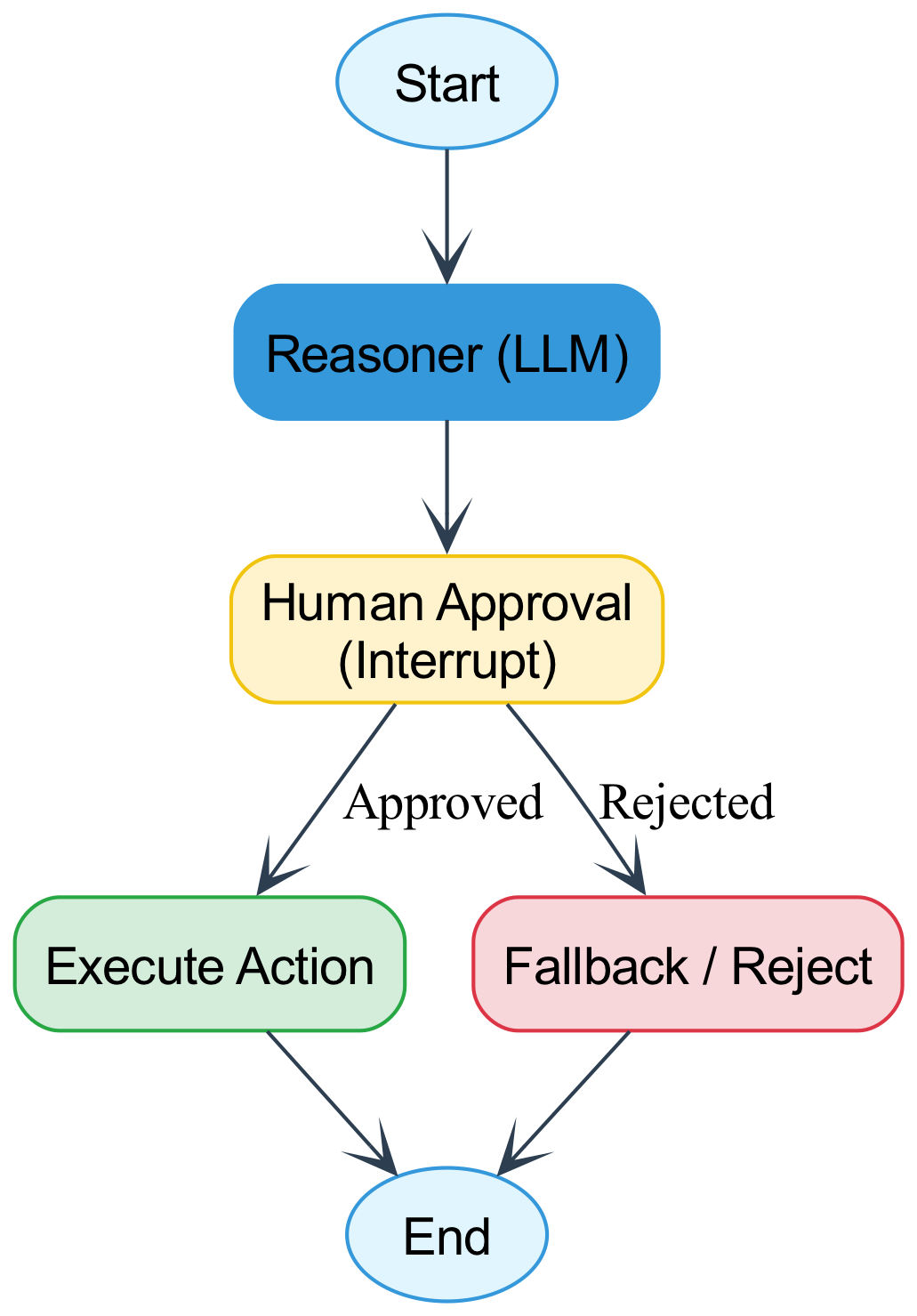

// --- 3. BUILD THE GRAPH ---

/**
 * Initialize the State Graph.
 */
const workflow = new StateGraph(StateAnnotation);

// Add nodes to the graph
workflow.addNode("reasoner", reasonNode);
workflow.addNode("human_approval", humanApprovalNode);
workflow.addNode("executor", executeNode);
workflow.addNode("rejector", fallbackNode);

// Define edges (Control Flow)
// 1. Start -> Reasoner
workflow.addEdge(START, "reasoner");

// 2. Reasoner -> Human Approval
workflow.addEdge("reasoner", "human_approval");

// 3. Human Approval -> Conditional Edge (Approve or Reject)
// We define a conditional function to check the state.
// Since we are simulating, we will manually set the decision in the state
// before resuming the graph in the "Main Execution" section below.
const decideNextStep = (state: typeof StateAnnotation.State) => {
  if (state.decision === "PUBLISH") {
    return "executor";
  }
  return "rejector";
};

workflow.addConditionalEdges("human_approval", decideNextStep, {
  executor: "executor",
  rejector: "rejector",
});

// 4. End nodes -> END
workflow.addEdge("executor", END);
workflow.addEdge("rejector", END);

// Compile the graph
const app = workflow.compile();

// --- 4. MAIN EXECUTION (SIMULATION) ---

/**
 * This function simulates the SaaS Web App Event Loop.
 * It handles the async nature of waiting for user input.
 */
async function runModerationWorkflow() {
  console.log("🚀 Starting Moderation Workflow...\n");

  // Initial State: User submits a post
  const initialState = {
    input: "I absolutely hate this new feature!",
    // decision: undefined, // Initially unknown
    // reasoning: undefined,
  };

  // --- PHASE 1: Autonomous Reasoning ---
  // The graph runs until it hits the interrupt (human_approval node)
  console.log("Phase 1: Agent is reasoning...");

  // Note: In a real app using `interrupt`, we would use `app.stream` or `app.invoke`.
  // For this demo, we will manually step through the nodes to simulate the flow
  // because we don't have a live UI to provide input during the script execution.

  // 1. Run Reasoner
  const reasonerResult = await app.invoke({ ...initialState }, {
    configurable: {
      // We target specific nodes to simulate the flow
      // In a real scenario, we just invoke the whole graph
    }
  });

  // Note: The code above assumes a linear flow for simplicity.
  // To truly demonstrate the interrupt in a script without a UI,
  // we simulate the steps:

  // Step A: Run up to the interrupt
  // (LangGraph's `interrupt` feature is best visualized in a web server context.
  // Here, we simulate the logic flow manually for clarity).

  // Let's manually invoke the Reasoner Node
  const stateAfterReasoning = await reasonNode(initialState);
  const combinedState = { ...initialState, ...stateAfterReasoning };

  console.log("\nState after Reasoning:", combinedState);

  // --- PHASE 2: The Interrupt (Human Decision) ---
  // In a SaaS app, the server sends `combinedState` to the frontend.
  // The user clicks "Approve".
  // The frontend sends a request back to the server: "Resume graph with decision: PUBLISH".

  console.log("\n--- 🛑 SIMULATING USER INPUT 🛑 ---");
  console.log("User clicked 'Approve' in the Web Dashboard.");

  // We update the state with the human decision
  const stateAfterApproval = {
    ...combinedState,
    decision: "PUBLISH", // User overrides or confirms agent's suggestion
  };

  // --- PHASE 3: Resuming Execution ---
  console.log("\n--- ▶️  RESUMING WORKFLOW ---");

  // We now check the conditional edge logic
  const nextNode = decideNextStep(stateAfterApproval);

  if (nextNode === "executor") {
    const finalState = await executeNode(stateAfterApproval);
    console.log("\nFinal State:", finalState);
  } else {
    const finalState = await fallbackNode(stateAfterApproval);
    console.log("\nFinal State:", finalState);
  }
}

// Run the simulation
runModerationWorkflow().catch(console.error);

Detailed Line-by-Line Explanation

1. Imports and State Definition

Lines 1-5: We import StateGraph and Annotation from @langchain/langgraph. StateGraph is the core class used to define the flow of our agent, while Annotation helps us define the shape of the data (state) that flows through the graph.
Lines 13-20: StateAnnotation defines the data structure.
- input: The raw text submitted by the user.
- decision: The agent's proposed action (e.g., "FLAG").
- reasoning: The LLM's thought process (crucial for transparency in SaaS apps).
- finalStatus: The result after the human approves or rejects.

2. Tools and Nodes

Lines 22-37: We define a mock tool analyzeContent. In a real SaaS app, this might call an external API like Perspective API or a custom moderation model. We use Zod for schema validation.
Lines 40-58 (reasonNode):
- This is the "Reasoning" part of the ReAct loop.
- We instantiate a ChatOpenAI model (requires an API key).
- We construct a prompt asking the LLM to decide on the content.
- Crucially, we parse the LLM's text response into a structured decision variable. This prepares the state for the human approval step.
Lines 61-80 (humanApprovalNode):
- This is the Interrupt Node.
- In a standard graph, this node simply logs the state.
- In a production SaaS app, this node would trigger a database write (saving the current state to a moderation_queue table) and return that state to the frontend.
- The "pause" happens because the frontend holds the execution context. The backend waits for a callback (Webhook) containing the user's decision before invoking the graph again.
Lines 83-92 (executeNode): The "Acting" part. If the human approves, this node performs the final business logic (e.g., publishing the post to the database).
Lines 95-102 (fallbackNode): Handles the negative path (rejection).

3. Graph Construction

Lines 105-138:
- We instantiate the StateGraph with our defined state annotation.
- We add our functions as nodes using .addNode().
- We define edges using .addEdge() (for linear flow) and .addConditionalEdges() (for branching logic).
- decideNextStep: This function acts as the router. It inspects the state. If state.decision is "PUBLISH", it routes to the executor; otherwise, it routes to the rejector.
- workflow.compile(): This converts the abstract graph definition into an executable runtime.

4. Execution Simulation

Lines 141-180:
- Since we are running a script (not a web server), we cannot easily "pause" and wait for a user to click a button in the console.
- We simulate the Event Loop logic:
  1. Phase 1: We manually invoke reasonNode to simulate the autonomous thinking phase.
  2. Phase 2: We simulate the "Human Intervention" by manually modifying the state object (simulating the user clicking "Approve" in the UI).
  3. Phase 3: We check the conditional edge logic (decideNextStep) and invoke the appropriate final node (executeNode or fallbackNode).

Visualizing the Workflow

Here is the graph structure created by the code above.

The diagram illustrates Phase 3 of the workflow, where the decideNextStep logic evaluates a conditional edge to route execution to either the executeNode or the fallbackNode based on specific criteria. — The diagram illustrates Phase 3 of the workflow, where the `decideNextStep` logic evaluates a conditional edge to route execution to either the `executeNode` or the `fallbackNode` based on specific criteria.

Common Pitfalls

When implementing Human-in-the-Loop workflows in a Node.js/TypeScript environment, specifically with LangGraph, be aware of these critical issues:

Vercel/AWS Lambda Timeouts (The "Zombie" Graph):
- Issue: Serverless functions have strict timeouts (e.g., 10s on Vercel Free). If you attempt to await graph.invoke() and wait for a human to click a button, the serverless function will timeout and crash before the human responds.
- Solution: Never await the human input inside the serverless function. Instead, invoke the graph until the interrupt node, save the state to a database (Redis/Postgres), and return a 200 OK to the client. Use a separate API endpoint (or webhook) to resume the graph when the user submits their decision.
State Persistence & Async/Await Loops:
- Issue: JavaScript's event loop handles asynchronous operations well, but if you have complex state objects (e.g., containing non-serializable data like class instances or functions), saving them to a database (JSON.stringify) will fail or lose methods.
- Solution: Keep the graph state strictly serializable (plain objects, strings, numbers). Use JSON.parse(JSON.stringify(state)) if necessary, or ensure your database adapter handles complex types. Always use async/await correctly in node functions; forgetting await on a tool call can return a Promise object to the LLM context, causing hallucinations.
LLM Hallucination of JSON/Decisions:
- Issue: The reasonNode relies on the LLM to output text like "PUBLISH" or "FLAG". LLMs can be inconsistent, outputting "I think we should publish" or "APPROVE".
- Solution: Do not rely on regex parsing alone. Use a structured output library (like Zod or OpenAI's function_calling / json_mode) to force the LLM to output a valid JSON object. This ensures the decision field in your state is always defined and valid.
Infinite Loops in Conditional Edges:
- Issue: If the conditional edge logic (decideNextStep) is flawed, the graph might route back to the reasoner or human_approval node indefinitely.
- Solution: Implement a Max Iteration Policy. Add a counter to the state (e.g., iterationCount). In your conditional edge, check if state.iterationCount > 5. If true, force the flow to the fallbackNode to terminate the loop.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
