Chapter 9: Time Travel - Rewinding and Editing State

Theoretical Foundations

In the realm of autonomous agents, the execution path is rarely linear. Agents make decisions, call tools, and react to the results, creating a branching tree of possible states rather than a simple straight line. When debugging or optimizing these complex workflows, a linear "step-by-step" debugger is often insufficient. We need the ability to move backward and forward in the execution history, inspecting the state at any given moment, and even altering the past to see how it affects the future. This capability is known as Time Travel.

In the context of LangGraph.js, Time Travel is not science fiction; it is a practical architectural pattern built upon the concept of persistent checkpoints. It allows developers to rewind the graph to a previous state, inspect the internal data (the State object), and replay the graph from that point onward. This is analogous to the "Undo/Redo" functionality in a rich text editor or the "Save States" in a video game emulator, but applied to the logical flow of an AI agent.

The Analogy: The Video Game Save State

Imagine playing a complex role-playing game (RPG). In a traditional game without save states, if you make a mistake—say, you choose the wrong dialogue option and anger a non-player character (NPC)—you must restart the entire level or rely on a distant auto-save. You lose all progress made after that mistake.

However, modern emulators allow you to create a "Save State" at any exact frame. If you make a mistake, you can instantly reload that state. You are back at that exact moment with the exact same inventory, health, and position. You can then try a different dialogue option.

In LangGraph: 1. The Game State: This is the State object in your graph (e.g., { messages: [...], context: {...} }). 2. The Save State: This is the Checkpoint. A checkpoint captures the graph's state at a specific superstep (a specific node execution). 3. The Emulator: This is the Checkpointers (like SqliteSaver or MemorySaver) combined with the LangGraph runtime.

By persisting these checkpoints, we decouple the execution from the history. We can pause, look back, and inject new logic into the timeline without restarting the entire computation.

To understand Time Travel, we must first understand the anatomy of a stateful graph execution.

In Book 3, we established that an Agent is essentially a graph of nodes (functions or LLM calls) connected by edges (conditional or static). We also introduced the concept of State—the single source of truth that is passed between these nodes. In a standard execution, the state is ephemeral; once the graph finishes, the intermediate states are lost from memory.

Time Travel introduces the concept of Persistence. To travel in time, you must have a record of the past. In LangGraph, this is achieved via the Checkpoint interface.

A Checkpoint is a snapshot of the graph's state at a specific moment in time. It contains: 1. The State Payload: The actual data (e.g., the accumulated chat history, tool outputs). 2. The Graph Configuration: Which nodes and edges were active. 3. The Timestamp: When the checkpoint was created. 4. The Checkpoint ID: A unique identifier for that moment in time.

Why is this critical for autonomous agents? Autonomous agents are probabilistic. Unlike standard software where Input A always yields Output B, an LLM-based agent might hallucinate, get stuck in a loop, or choose a suboptimal tool. Without Time Travel, debugging these issues requires running the agent from scratch, which is computationally expensive (costing tokens and time) and often non-deterministic (the agent might behave differently on the second run).

Time Travel allows us to: 1. Inspect: Look at the exact state of the agent's memory before it made a bad decision. 2. Edit: Modify the state (e.g., remove a confusing message from the chat history) to simulate a different context. 3. Branch: Replay the graph from that edited state, allowing us to explore "what-if" scenarios without re-running the initial steps.

The Web Development Analogy: The Redux Store and DevTools

In modern web development, particularly with React and state management libraries like Redux, we deal with a global state tree. As a user interacts with the app, actions are dispatched, and the state evolves.

The State Tree: This is the State object in LangGraph.
The Reducer: This is the Reducer logic in LangGraph (the update function that merges new state into the existing state).
Redux DevTools: This is the LangGraph Checkpointers.

In Redux DevTools, you see a timeline of actions. You can click on a previous action, inspect the state at that point, and even "time travel" by dispatching a new action while the app is in that historical state. The UI updates as if the user had taken that path originally.

LangGraph's Time Travel mechanism is the programmatic equivalent of Redux DevTools. Instead of a visual interface (initially), we use API calls to: * list checkpoints: Retrieve the history. * get checkpoint: Retrieve the specific state data. * put checkpoint: Save a new state (manual editing). * update checkpoint: Overwrite an existing state (modifying history).

The Mechanics of Rewinding and Branching

The power of Time Travel lies in the separation of the Graph Definition from the Graph Execution.

1. The Linear Path (Without Time Travel): In a standard execution, the graph moves forward through nodes. The state is passed from Node A to Node B.

Start -> Node A (State V1) -> Node B (State V2) -> End

Once Node B finishes, State V1 is gone.

2. The Rewind (With Checkpointing): When a Checkpointer is attached, every time a node finishes, the state is saved to a database (even in-memory).

Start -> Node A (State V1) -> [Save Checkpoint 1]
       -> Node B (State V2) -> [Save Checkpoint 2]

If we want to "rewind," we simply stop the graph, retrieve Checkpoint 1, and tell the graph to start a new execution from there. The graph runtime sees the existing checkpoint ID and knows it is resuming, not starting fresh.

3. Branching (The "What-If" Scenario): This is where it gets interesting. Suppose State V2 (at Checkpoint 2) is invalid. We can retrieve Checkpoint 1, manually modify State V1 (e.g., adding a specific piece of context or correcting a hallucination), and then tell the graph to run from Checkpoint 1 with the modified state. The graph will execute Node B again, but this time with the modified input. This creates a new branch in the execution tree:

                  -> Node B (State V2) -> [Checkpoint 2] (Original Branch)
Start -> Node A
                  -> Node B (State V2') -> [Checkpoint 2'] (New Branch)

This is essential for agent debugging. If an agent fails to call a tool correctly, you can rewind to the step before the tool call, inject the correct tool result manually, and see if the agent recovers.

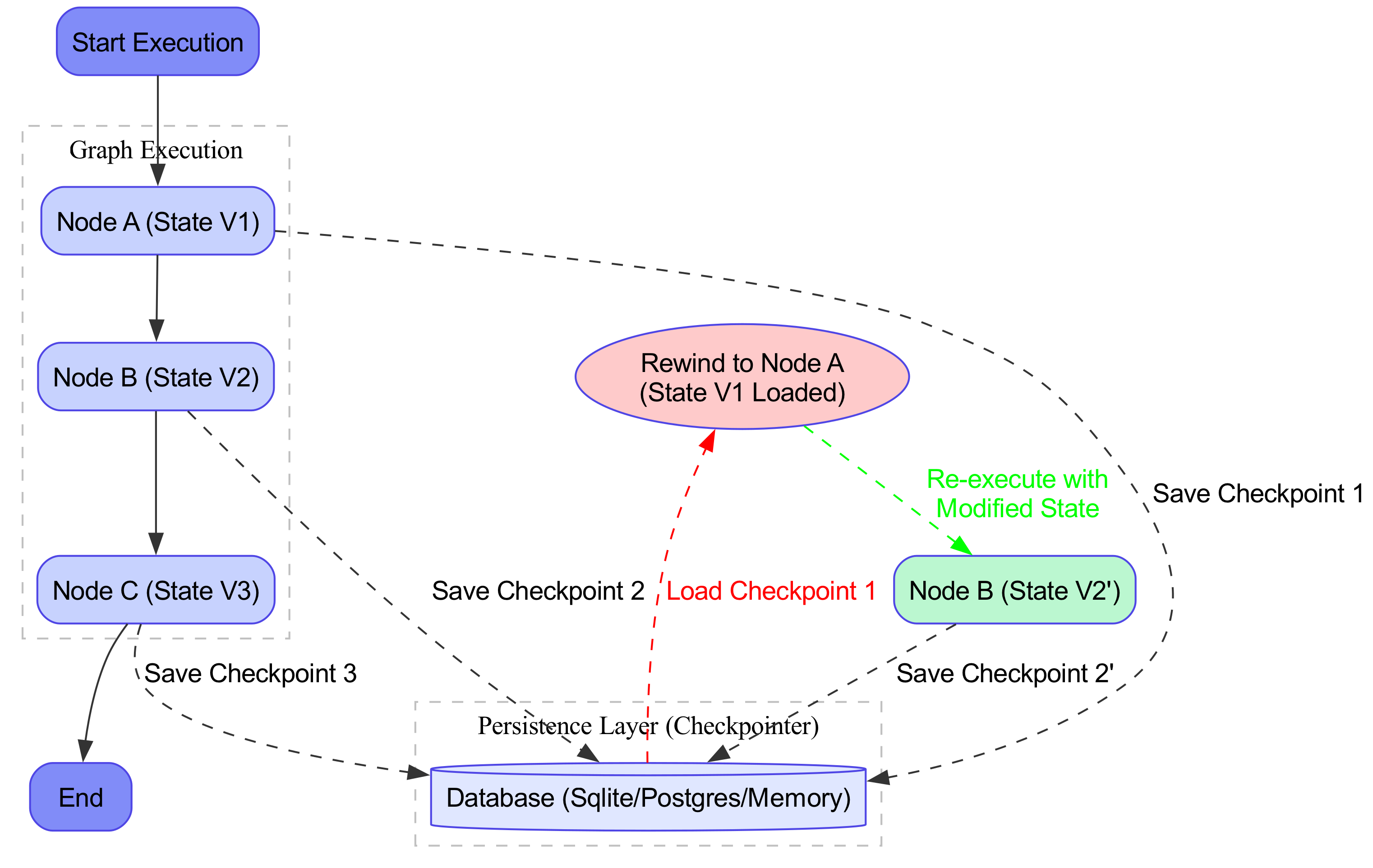

Visualization of the Time Travel Concept

The following diagram illustrates the flow of state through time, highlighting the persistence layer.

The diagram visualizes the concept of time travel in an AI agent by showing a flow of state through a persistence layer, where a step can be rewound and a correct tool result manually injected to test the agent's recovery.

Under the Hood: The Checkpointer Interface

In LangGraph.js, the Time Travel capability is abstracted behind the BaseCheckpointSaver class. When you compile a graph, you can attach a checkpointer.

When the graph runs, it doesn't just execute nodes; it interacts with the checkpointer in a specific lifecycle:

Pre-Execution: The graph asks the checkpointer, "Do you have a state for this thread ID?"
- If yes, it loads the state and the checkpoint_id (the position in time).
- If no, it initializes a fresh state.
Post-Node Execution: After a node returns a new state payload, the graph calculates the difference (diff) or merges the state (depending on the State definition).
Checkpoint Save: The graph calls checkpointer.put().
- It passes the config (containing thread_id), the new checkpoint (state + metadata), and the checkpoint_id.
- The checkpointer persists this to the underlying store (e.g., a SQL table).

The "Time Travel" API: To actually travel in time, we use the get and list methods of the checkpointer. * list(config, { before: checkpoint_id }): Returns a list of checkpoints prior to a specific moment. This allows us to "rewind" step by step. * get(config, { checkpoint_id }): Retrieves the exact state at that moment.

Practical Application: Rapid Iteration in Autonomous Agents

Why go through this complexity? In the context of an autonomous agent (like a customer support bot or a coding assistant), the value is immense.

Scenario: An agent is tasked with booking a flight. It has tools to search flights and tools to book. 1. Execution: The agent searches for flights (State V1), selects a flight (State V2), and attempts to book. 2. Error: The booking tool fails because the user's payment method is expired. 3. Without Time Travel: The agent might apologize and restart the entire booking process. The user has to re-enter dates and preferences. The LLM tokens used for the search are wasted. 4. With Time Travel: * The agent detects the booking failure. * It triggers a "rewind" to State V2 (the selection step). * It prompts the user: "Your payment method is expired. Please update it." * The user updates the payment info. The agent updates State V2 with the new info. * The agent re-executes the booking node from State V2.

This creates a human-in-the-loop workflow that is efficient and preserves context. It mimics how humans work: we don't restart a conversation from scratch when we hit a snag; we backtrack to the point of confusion and correct the premise.

Time Travel in LangGraph.js transforms the agent from a "fire-and-forget" script into a manipulatable simulation. By leveraging Checkpointers, we treat the agent's state not as a transient variable, but as a persistent database of history. This allows for: * Debugging: Inspecting exact states at failure points. * Optimization: Pruning bad branches of the execution tree. * Interaction: Enabling human correction of agent state without restarting.

This capability is the bedrock of building reliable, production-ready autonomous agents that can recover from errors and adapt to new information dynamically.

Basic Code Example

In a SaaS or web application context, "time travel" debugging is invaluable for complex workflows like multi-agent systems. Imagine a customer support chatbot where an agent attempts to resolve a ticket. If the agent makes a mistake (e.g., retrieves the wrong order data), you don't want to restart the entire conversation from scratch. Instead, you want to inspect the exact state where the error occurred, edit the state (e.g., correct the data), and resume execution from that point.

To achieve this, we rely on LangGraph's Checkpointers. These are interfaces that persist the graph's state (the Checkpoint) to a database. In a web environment, this is often a serverless database like Vercel KV (Redis) or PostgreSQL. For this "Hello World" example, we will use an in-memory MemorySaver to demonstrate the concept without external dependencies, but the logic is identical to a production database-backed checkpoint.

The following example simulates a simple agent workflow. It has two steps: "planning" and "execution". We will run the graph, inspect the state, rewind to the "planning" step, modify the state (inject a correction), and then resume execution to see the corrected output.

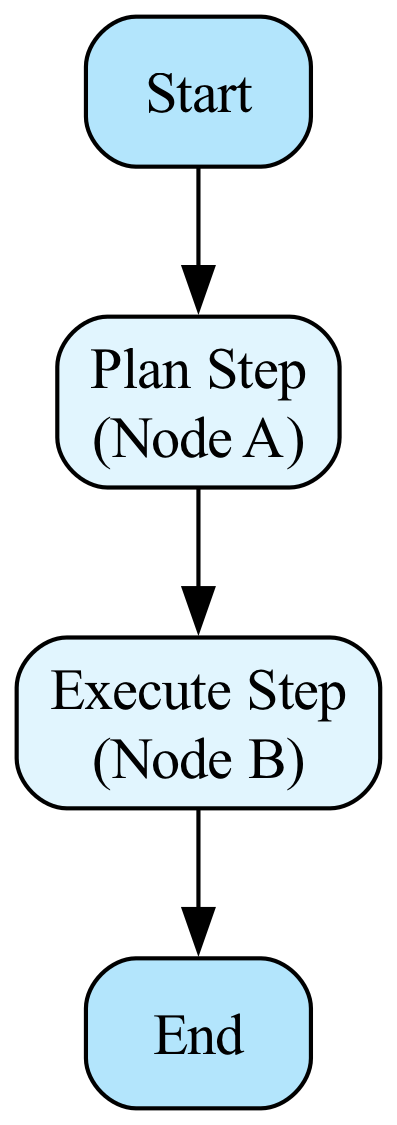

The Workflow Visualization

The graph consists of a simple linear path. We will persist the state after each node.

The diagram illustrates a simple linear workflow where state is persisted and passed sequentially from one node to the next.

TypeScript Implementation

This code is fully self-contained. It uses @langchain/langgraph and standard Node.js APIs. In a real web app, the MemorySaver would be replaced by a database-backed checkpointer (e.g., RedisCheckpoint).

// Import necessary types and classes from LangGraph
import {
  StateGraph,
  Annotation,
  MemorySaver,
  BaseCheckpointSaver,
} from "@langchain/langgraph";

// Define the state interface for strict type discipline
interface AgentState {
  input: string;
  plan?: string;
  executionResult?: string;
  messages: string[];
}

// 1. Define the State Annotation
// We use `Annotation.Root` to define the structure of our state.
// This ensures that every node receives a typed object.
const StateAnnotation = Annotation.Root({
  input: Annotation<string>({
    reducer: (state, update) => update, // Simply overwrite
    default: () => "",
  }),
  plan: Annotation<string | undefined>({
    reducer: (state, update) => update,
    default: () => undefined,
  }),
  executionResult: Annotation<string | undefined>({
    reducer: (state, update) => update,
    default: () => undefined,
  }),
  messages: Annotation<string[]>({
    reducer: (state, update) => [...state, ...update], // Append messages
    default: () => [],
  }),
});

// 2. Define the Nodes (Agent Logic)
// In a real app, these would call LLMs or APIs. Here, we simulate logic.

/**
 * Simulates a planning step. It takes the input and generates a plan.
 * @param state The current state of the graph.
 * @returns Partial updates to the state.
 */
const planNode = async (state: typeof StateAnnotation.State) => {
  console.log("--- Executing Plan Node ---");
  const plan = `Plan: Analyze input "${state.input}" and prepare a response.`;
  return {
    plan,
    messages: [`[System] Plan generated: ${plan}`],
  };
};

/**
 * Simulates an execution step. It uses the plan to generate a result.
 * @param state The current state of the graph.
 * @returns Partial updates to the state.
 */
const executeNode = async (state: typeof StateAnnotation.State) => {
  console.log("--- Executing Execution Node ---");
  // Simulate a potential error or hallucination here
  const result = `Result: Based on plan "${state.plan}", here is the output.`;
  return {
    executionResult: result,
    messages: [`[System] Execution finished: ${result}`],
  };
};

// 3. Build the Graph
// We instantiate the graph, add nodes, and define the edges.
const workflow = new StateGraph(StateAnnotation)
  .addNode("plan_node", planNode)
  .addNode("execute_node", executeNode)
  .addEdge("__start__", "plan_node") // Connect start to the first node
  .addEdge("plan_node", "execute_node") // Connect plan to execute
  .addEdge("execute_node", "__end__"); // Connect execute to end

// 4. Compile with a Checkpointer
// CRITICAL: We use MemorySaver for this example. In production (Vercel/Edge),
// this would be a database connection (e.g., Redis, Postgres).
const checkpointer: BaseCheckpointSaver = new MemorySaver();
const app = workflow.compile({ checkpointer });

// 5. The "Time Travel" Logic
async function runTimeTravelDemo() {
  // CONFIG: We need a thread_id to identify the session (like a conversation ID)
  const config = { configurable: { thread_id: "demo-thread-1" } };

  console.log("=== STEP 1: INITIAL RUN ===");
  // Run the graph from the beginning
  const initialResult = await app.invoke(
    { input: "Hello World" },
    config
  );
  console.log("Initial Result:", initialResult);
  // Output: { input: "Hello World", plan: "...", executionResult: "...", messages: [...] }

  console.log("\n=== STEP 2: REWIND (Time Travel) ===");
  // We want to go back to the state *after* the plan_node but *before* the execute_node.
  // `getPreviousState` retrieves the checkpoint immediately preceding the current one.
  const previousState = await app.getPreviousState(config);

  if (previousState) {
    console.log("Rewound to previous state:", previousState);
    // Note: previousState will have the 'plan' but NOT the 'executionResult'
  }

  console.log("\n=== STEP 3: EDIT STATE ===");
  // Let's modify the state to correct a hypothetical error.
  // We create a new state object based on the previous one.
  const editedState = {
    ...previousState,
    plan: "Plan: [EDITED] Analyze input 'Hello World' and provide a CORRECTED response.",
    messages: [
      ...previousState.messages,
      "[User] I corrected the plan manually via Time Travel.",
    ],
  };

  // We update the graph's state with our edited version.
  // `update` allows us to patch the state at the current checkpoint.
  await app.update(editedState, config);
  console.log("State updated with corrected plan.");

  console.log("\n=== STEP 4: RESUME (Replay) ===");
  // We resume the graph. Because we updated the state at the previous checkpoint,
  // the graph will now execute the 'execute_node' using the *edited* plan.
  // We pass `null` as the input because we are resuming from existing state.
  const finalResult = await app.invoke(null, config);

  console.log("Final Result (Corrected):", finalResult);
  console.log("Check the executionResult - it should reference the corrected plan.");
}

// Execute the demo
runTimeTravelDemo().catch(console.error);

Line-by-Line Explanation

Imports & Interface:
- We import StateGraph, Annotation, and MemorySaver from @langchain/langgraph.
- We define a strict TypeScript interface AgentState. This enforces Strict Type Discipline, ensuring that we don't accidentally access undefined properties or pass malformed data between nodes.
State Annotation:
- StateAnnotation defines the "schema" of our graph state.
- We use reducer functions. For messages, we use an array append strategy ([...state, ...update]). For input or plan, we simply overwrite the value (update). This is crucial for managing how state updates merge over time.
Node Functions:
- planNode and executeNode are asynchronous functions. In a real web app, these would likely use fetch to call an AI API (like OpenAI or a local Transformer.js model).
- They return a partial object of the state. LangGraph automatically merges these partial updates into the full state object.
Graph Compilation:
- We build the graph linearly: Start -> Plan -> Execute -> End.
- Crucial Step: We pass checkpointer: new MemorySaver() to workflow.compile(). Without this, "Time Travel" is impossible because the graph has no memory of previous runs. In a Vercel Edge Runtime environment, you would pass a Redis or PostgreSQL checkpointer here.
The Time Travel Loop:
- Initial Run: We call app.invoke with an input and a config. The config must contain a thread_id to uniquely identify this conversation or workflow session.
- Rewind: We call app.getPreviousState(config). This queries the checkpointer for the snapshot before the most recent one. It effectively steps back one node in the execution history.
- Edit: We manually construct a new state object based on the retrieved previous state. We modify the plan string to fix a hypothetical error.
- Update: We call app.update(editedState, config). This overwrites the historical checkpoint with our new, corrected data.
- Resume: We call app.invoke(null, config). Passing null as the input tells LangGraph to resume execution from the current checkpoint (which is now our edited state). The graph sees that the plan_node has already been executed (according to the checkpoint), so it proceeds to run execute_node using the new plan data.

Common Pitfalls in Web Environments

State Merging Errors (Reducers):
- Issue: When using app.update(), if your reducer logic is incorrect, you might accidentally overwrite data you meant to keep or duplicate data.
- Fix: Always test your reducers. If you are using Annotation, ensure the reducer function (e.g., reducer: (state, update) => ...) handles undefined states correctly, especially when dealing with optional fields like plan?: string.
Async/Await Loops in Edge Runtimes:
- Issue: Time travel often involves multiple database calls (get, update, invoke). In Vercel Edge or Serverless Functions, if you don't await these properly, the context (like the database connection) might close before the operation finishes, leading to silent failures.
- Fix: Ensure the entire time travel logic is wrapped in an async function and every I/O operation (including app.invoke and app.update) is awaited.
Checkpoint Serialization:
- Issue: When using database-backed checkpointers (like Redis or Postgres) in a web app, complex objects in the state (like Class instances or Dates) might not serialize/deserialize correctly.
- Fix: Keep your state JSON-serializable. Stick to primitive types, arrays, and plain objects in your AgentState interface. Do not store class instances in the state.
Vercel Timeout Limits:
- Issue: If your "Time Travel" logic involves heavy computation (e.g., re-running an expensive LLM call after editing), you might hit the 10-second timeout limit of a standard Vercel Serverless Function.
- Fix: For heavy re-computations, move the logic to a background job or a dedicated server. Use the web app only to update the state in the database, and let a separate worker process pick up the updated state and resume execution.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
