Chapter 10: Streaming Graph Events to the Frontend

Theoretical Foundations

In previous chapters, we explored the mechanics of LangGraph, focusing on defining nodes, edges, and state management to build robust agentic workflows. We conceptualized these graphs as deterministic or semi-deterministic execution paths. However, in a traditional execution model—whether running locally or on a server—the graph operates as a "black box." The user initiates a request, the system processes the entire graph (potentially involving multiple ReAct cycles, tool calls, and LLM generations), and only upon completion does the final output return. This is akin to submitting a complex batch job to a mainframe: you submit the punch cards, wait in silence, and eventually receive a printed result. There is no intermediate feedback, no sense of progress, and no ability to intervene or observe the internal decision-making process.

Streaming Graph Events fundamentally transforms this paradigm. It moves the agent from a batch processing model to a real-time, event-driven architecture. Instead of waiting for the graph to reach a terminal state, we tap into the internal execution flow of LangGraph, capturing discrete events as they occur—node execution starting, a tool being invoked, an LLM generating tokens, or a conditional edge being evaluated. These events are serialized and transmitted immediately to the frontend, creating a live, dynamic window into the agent's "thought process."

The Analogy: The Restaurant Kitchen vs. The Food Truck

To understand the necessity of streaming, consider the difference between a high-end restaurant kitchen and a food truck.

The Restaurant Kitchen (Traditional Execution): You place an order (invoke the agent). The chefs (nodes) work in the back, out of sight. You wait at your table. The kitchen might be incredibly efficient, or it might be chaotic, but you have no visibility. Finally, the waiter brings the entire dish (the final response). If the dish is wrong or the wait is too long, you only find out at the very end. There is no feedback loop.
The Food Truck with Live Updates (Streaming Events): You place an order. The food truck has an open kitchen window. You see the chef start chopping (node start), hear the sizzle of the grill (tool invocation), and watch the assembly line (state updates). You might even see the chef taste the sauce (LLM token generation). This transparency builds trust, manages expectations, and provides immediate feedback. If you see something wrong, you can speak up (though in our agent context, we usually just observe). The "dish" is served incrementally, but the experience is continuous.

Streaming events turns the agent from a black box into a glass box. It is the difference between a synchronous HTTP request that blocks until completion and a WebSocket connection that pushes data as it becomes available.

The Mechanics of Event Propagation

Under the hood, LangGraph.js is built on top of an event-driven architecture. When you compile a graph (graph.compile()), the resulting Runnable instance is not just a function; it is a state machine equipped with an internal event emitter. As the graph traverses nodes and edges, it emits a stream of structured events.

The primary event types we are concerned with are: 1. metadata: Information about the graph run, such as the run ID. 2. logs: Detailed logs for each node execution. This is where we capture tool invocations and LLM generations. 3. custom: User-defined events emitted from within nodes (e.g., stream.emit('custom', { type: 'progress', data: 0.5 })). 4. error: Emitted when a node throws an exception.

The Web Development Analogy: Agents as Microservices with Webhooks

Think of a LangGraph agent not as a monolithic script, but as a distributed system of microservices. Each node in the graph is a distinct microservice with a specific responsibility (e.g., search_service, code_execution_service, llm_reasoning_service).

In a microservices architecture, synchronous communication (service A calls service B and waits) creates tight coupling and latency bottlenecks. Instead, modern architectures rely on asynchronous communication via message queues or webhooks.

The Graph Execution is the orchestration layer (like Kubernetes or an API Gateway).
Streaming Events are the equivalent of Webhooks or Server-Sent Events (SSE).
- When the search_service (node) finishes, it doesn't just return data to the orchestrator; it broadcasts an event: "I have completed my task."
- When the llm_reasoning_service generates text, it doesn't wait until the sentence is finished; it broadcasts a stream of tokens: "Here is the next word... and the next..."

The frontend client acts as the dashboard for this distributed system. Just as you might use a tool like Datadog or Grafana to monitor microservice health, the frontend uses the event stream to visualize the health and activity of the agent.

Visualizing the Event Flow

The following diagram illustrates how events flow from the graph execution engine to the frontend UI, bypassing the traditional request-response cycle.

Why Streaming is Essential for Multi-Agent Systems

In a single-agent system, streaming tokens from an LLM is a nice-to-have feature for user experience. However, in Multi-Agent Systems (Book 4's focus), streaming events becomes a critical architectural requirement for three reasons:

1. Orchestration Visibility and Debugging

When you have a Supervisor Agent delegating tasks to specialized Worker Agents (e.g., a "Coder" and a "Reviewer"), the execution path is non-linear. The Supervisor might loop, retry, or branch based on worker outputs. * Without Streaming: You see only the final output of the Supervisor. If the Supervisor hallucinates or gets stuck in a loop, you have no insight into why. * With Streaming: You see the Supervisor emit a tool_call event for the Coder. You see the Coder node start. You see the Coder's output. You see the Supervisor evaluate the Max Iteration Policy (a concept from previous chapters, acting as a conditional edge). This visibility is crucial for debugging complex multi-turn interactions.

2. Latency Masking

Multi-agent systems often involve sequential chains of LLM calls (Supervisor -> Worker A -> Supervisor -> Worker B). If each call waits for the full context window to fill, latency compounds multiplicatively. * Streaming Solution: By streaming tokens from the LLM nodes as they are generated, the user perceives the system as "thinking" in real-time. The perceived latency is reduced to the speed of the first token, not the sum of all generation times.

3. Handling Backpressure and Cancellation

In a monolithic execution, once a graph run starts, it is difficult to stop without killing the process. * Streaming Solution: An event stream is a two-way street (conceptually). While the backend pushes events, the frontend can send control signals (e.g., "abort" or "pause"). This allows for backpressure management. If the frontend is rendering a heavy visualization, it can signal the backend to slow down event emission. More importantly, it enables cancellation. The user can click a "Stop" button, which sends a signal to the server to terminate the graph execution immediately, preventing wasted compute on unwanted paths.

Theoretical Foundations

At a theoretical level, streaming LangGraph events is an implementation of the Observer Pattern (or Publish-Subscribe) applied to a distributed system.

The Subject (LangGraph Runtime): The graph execution engine maintains a list of subscribers (listeners).
The Observers (Frontend Clients): These clients subscribe to specific event channels (e.g., on:token, on:node_finish).
The Event Payload: When a state transition occurs (e.g., a node completes), the engine constructs a payload. This payload is not just the raw data; it is a structured object containing metadata, timestamps, and the data itself.

Serialization and Transport: To transmit these events over the network, we must serialize them. While WebSockets provide full duplex communication, Server-Sent Events (SSE) are often preferred for agent streaming because: * They are lightweight (HTTP-based). * They are unidirectional (server-to-client), which fits the "observation" model perfectly. * They automatically handle reconnection.

The frontend client (using the useChat hook from the Vercel AI SDK, for example) abstracts this transport layer. It exposes a simple interface where the developer can append messages to the UI as they arrive, without manually managing the WebSocket connection or parsing the raw event stream.

The Role of `useChat` and State Synchronization

The useChat hook is a critical piece of the frontend architecture. While it is designed primarily for chat interfaces, it serves as a robust state manager for streaming events.

Message History: It maintains an array of messages (messages). When a graph event arrives (e.g., a tool output), useChat allows us to append a new message object to this array.
Streaming Updates: The hook provides a stream property (or similar mechanism) that allows us to update the UI incrementally. As tokens arrive from the LLM node, we don't wait for the sentence to finish; we append them to the existing message content in real-time.
Input Handling: It manages the user input state, ensuring that new inputs are queued or disabled while the graph is actively executing, preventing race conditions in multi-turn sessions.

Conceptual TypeScript Interface for Event Handling

While we won't write the full implementation here, understanding the shape of the data flowing through the system is vital. The frontend typically subscribes to an event source that emits objects conforming to a specific interface.

// Theoretical interface for a LangGraph event payload
interface GraphEvent {
  event: 'metadata' | 'logs' | 'custom' | 'error';
  data: any; // The actual payload (varies by event type)
  runId?: string;
  timestamp: number;
}

// Example of a specific log event for an LLM node
interface LLMNodeEvent extends GraphEvent {
  event: 'logs';
  data: {
    name: string; // Node name, e.g., "agent_node"
    state: 'start' | 'end' | 'error';
    // For streaming LLM tokens, this might be a chunk
    chunk?: string;
    // For tool invocations, this contains the function call details
    toolInvocation?: {
      name: string;
      args: Record<string, any>;
      output?: any;
    };
  };
}

Summary: The "Why" and the "How"

The "Why": Streaming events bridges the gap between the computational complexity of multi-agent systems and the human need for responsiveness and transparency. It transforms the agent from a silent processor into a communicative partner. It enables real-time debugging, reduces perceived latency, and allows for interactive control (cancellation/pause) over long-running workflows.

The "How": We leverage the internal event emitter of the compiled LangGraph Runnable. We subscribe to specific event channels (logs, custom). We serialize these events (often as JSON objects over SSE). On the frontend, we consume this stream, mapping incoming events to UI updates—appending tokens to a chat bubble, updating a progress bar, or logging tool invocations to a debug console. This architecture decouples the backend execution from the frontend rendering, allowing both to operate asynchronously and efficiently.

Basic Code Example

In a SaaS or web application, you often need to provide real-time feedback to the user as an agent performs tasks. Instead of waiting for the entire process to finish, we stream events from the LangGraph execution to the frontend. This example demonstrates a self-contained Node.js server using Express and Server-Sent Events (SSE) to stream agent state updates to a web client.

We will build a simple workflow where an agent "thinks" (simulated delay) and then "responds" to a user query. The server will stream events like node_start, node_end, and custom token events to the browser.

The LangGraph Workflow

First, we define the agent's logic using LangGraph.js. We will create a graph with a single node that simulates a tool call (e.g., fetching data) and then returns a result.

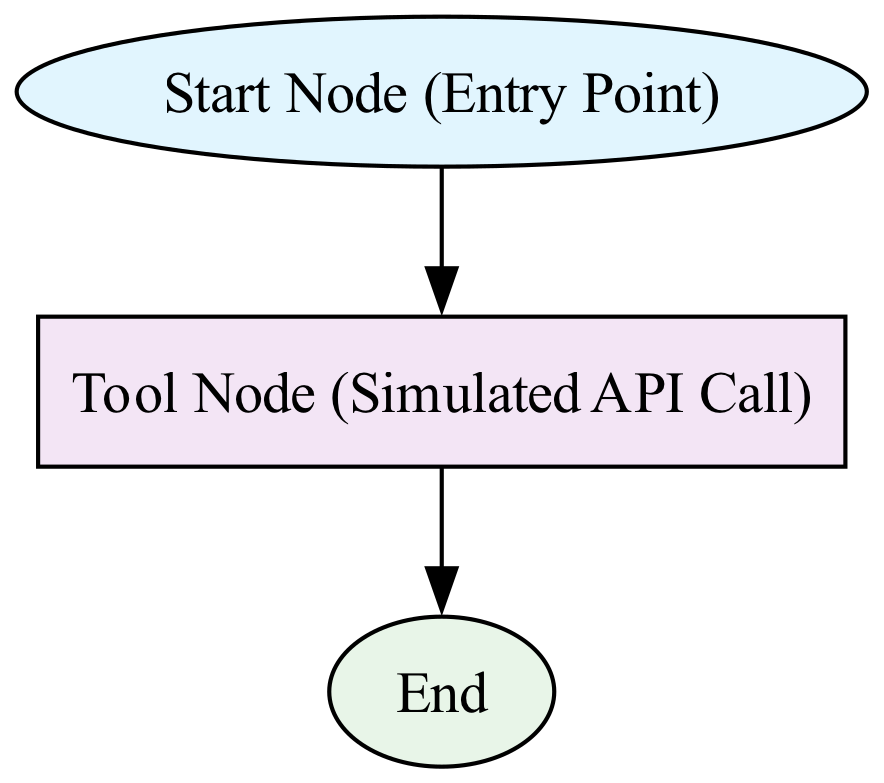

The diagram illustrates an asynchronous function that initiates a process, such as fetching data, and eventually returns a result once that process is complete.

Server-Side Implementation (TypeScript)

This code sets up an Express server that defines a LangGraph workflow and streams its execution events to connected clients.

import express, { Request, Response } from 'express';
import { StateGraph, END, START } from '@langchain/langgraph';
import { BaseMessage, HumanMessage } from '@langchain/core/messages';

// Define the state interface for our graph
interface AgentState {
  messages: BaseMessage[];
  currentTool?: string;
  toolResult?: string;
}

// Define a custom tool handler with the correct signature
// This function simulates an external API call (e.g., fetching user data)
/**
 * @param {string} query - The input parameter derived from the LLM or user.
 * @returns {Promise<string>} - The result of the tool call.
 */
const fetchUserData = async (query: string): Promise<string> => {
  // Simulate network latency
  await new Promise(resolve => setTimeout(resolve, 1000));
  return `User data for '${query}': ID=123, Status=Active`;
};

// Initialize the Express app
const app = express();
app.use(express.json());

/**
 * Stream endpoint: Handles SSE connection and streams graph events.
 * This is the entry point for the frontend client.
 */
app.get('/stream', (req: Request, res: Response) => {
  // Set headers for Server-Sent Events (SSE)
  res.setHeader('Content-Type', 'text/event-stream');
  res.setHeader('Cache-Control', 'no-cache');
  res.setHeader('Connection', 'keep-alive');

  // Helper function to send data to the client
  const sendEvent = (event: string, data: object) => {
    res.write(`event: ${event}\n`);
    res.write(`data: ${JSON.stringify(data)}\n\n`);
  };

  // 1. Define the StateGraph
  // We use `AgentState` as the generic type for state management
  const graph = new StateGraph<AgentState>({
    channels: {
      messages: {
        value: (x: BaseMessage[], y: BaseMessage[]) => (y ? x.concat(y) : x),
        default: () => [],
      },
      currentTool: {
        value: (x?: string, y?: string) => y ?? x,
        default: () => undefined,
      },
      toolResult: {
        value: (x?: string, y?: string) => y ?? x,
        default: () => undefined,
      },
    },
  });

  // 2. Define Nodes
  // Node A: The "Tool" node that performs an action
  const toolNode = async (state: AgentState) => {
    // Stream event: Node Start
    sendEvent('node_start', { node: 'ToolNode', timestamp: Date.now() });

    // Simulate streaming tokens (e.g., "Thinking...")
    sendEvent('token', { content: 'Thinking...' });
    await new Promise(resolve => setTimeout(resolve, 500)); // Simulate thinking time

    // Execute the actual tool (asynchronous handling)
    const query = state.messages[state.messages.length - 1].content as string;
    const result = await fetchUserData(query);

    // Stream event: Node End
    sendEvent('node_end', { node: 'ToolNode', result, timestamp: Date.now() });

    return {
      currentTool: 'fetchUserData',
      toolResult: result,
    };
  };

  // Node B: The "Finalizer" node
  const finalizerNode = async (state: AgentState) => {
    sendEvent('node_start', { node: 'FinalizerNode', timestamp: Date.now() });

    const finalResponse = `Agent finished. Tool used: ${state.currentTool}. Result: ${state.toolResult}`;

    // Stream final tokens
    sendEvent('token', { content: finalResponse });

    sendEvent('node_end', { node: 'FinalizerNode', timestamp: Date.now() });

    return {
      messages: [new HumanMessage(finalResponse)],
    };
  };

  // 3. Add Nodes and Edges
  graph.addNode('tool_node', toolNode);
  graph.addNode('finalizer_node', finalizerNode);

  // Define the control flow
  graph.addEdge(START, 'tool_node');
  graph.addEdge('tool_node', 'finalizer_node');
  graph.addEdge('finalizer_node', END);

  // 4. Compile the Graph
  const runnable = graph.compile();

  // 5. Execute the Graph
  // We wrap execution in an async IIFE to handle promises cleanly
  (async () => {
    try {
      // Initial input state
      const initialInput = {
        messages: [new HumanMessage('Find user profile for "Alice"')],
      };

      // Execute the graph.
      // Note: We are NOT awaiting the final result here.
      // We rely on the internal `sendEvent` calls inside the nodes to stream data.
      await runnable.invoke(initialInput);

      // Signal end of stream
      res.write('event: end\ndata: {}\n\n');
      res.end();
    } catch (error) {
      console.error('Graph execution error:', error);
      sendEvent('error', { message: 'Internal Server Error' });
      res.end();
    }
  })();

  // Handle client disconnect
  req.on('close', () => {
    res.end();
  });
});

// Start server
const PORT = 3000;
app.listen(PORT, () => {
  console.log(`Server running on http://localhost:${PORT}`);
  console.log(`Open http://localhost:${PORT}/public/index.html to view the client.`);
});

Frontend Implementation (HTML/JS)

Create a file named index.html in a public folder. This simple client connects to the SSE endpoint and updates the UI in real-time.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>LangGraph Streaming Demo</title>
    <style>
        body { font-family: sans-serif; padding: 20px; background: #f4f4f9; }
        #log { border: 1px solid #ccc; padding: 10px; height: 300px; overflow-y: scroll; background: white; }
        .event { margin: 5px 0; padding: 5px; border-left: 3px solid #007bff; }
        .event.node { border-color: #28a745; background: #e8f5e8; }
        .event.token { border-color: #ffc107; background: #fff8e1; }
        .event.error { border-color: #dc3545; background: #f8d7da; }
        button { padding: 10px 20px; cursor: pointer; background: #007bff; color: white; border: none; }
    </style>
</head>
<body>
    <h1>LangGraph Event Stream</h1>
    <button onclick="startStream()">Start Agent Workflow</button>
    <div id="log"></div>

    <script>
        const logDiv = document.getElementById('log');

        function startStream() {
            logDiv.innerHTML = ''; // Clear previous logs
            const eventSource = new EventSource('/stream');

            // Listen for standard messages
            eventSource.onmessage = (event) => {
                const data = JSON.parse(event.data);
                appendLog('message', `Message: ${JSON.stringify(data)}`);
            };

            // Listen for specific event types defined in the server
            eventSource.addEventListener('node_start', (event) => {
                const data = JSON.parse(event.data);
                appendLog('node', `🚀 Node Started: ${data.node} at ${new Date(data.timestamp).toLocaleTimeString()}`);
            });

            eventSource.addEventListener('node_end', (event) => {
                const data = JSON.parse(event.data);
                appendLog('node', `✅ Node Finished: ${data.node}`);
                if (data.result) {
                    appendLog('token', `Result: ${data.result}`);
                }
            });

            eventSource.addEventListener('token', (event) => {
                const data = JSON.parse(event.data);
                appendLog('token', `💬 Token: ${data.content}`);
            });

            eventSource.addEventListener('error', (event) => {
                const data = JSON.parse(event.data);
                appendLog('error', `❌ Error: ${data.message}`);
                eventSource.close();
            });

            eventSource.addEventListener('end', () => {
                appendLog('message', '--- Stream Closed ---');
                eventSource.close();
            });

            eventSource.onerror = (err) => {
                console.error("EventSource failed:", err);
                eventSource.close();
            };
        }

        function appendLog(type, text) {
            const div = document.createElement('div');
            div.className = `event ${type}`;
            div.textContent = text;
            logDiv.appendChild(div);
            logDiv.scrollTop = logDiv.scrollHeight;
        }
    </script>
</body>
</html>

Detailed Line-by-Line Explanation

1. Server Setup and Type Definitions

interface AgentState: Defines the shape of data flowing through the graph. In LangGraph.js, state is immutable; updates are merged into this structure.
fetchUserData: This is a standard Asynchronous Tool Handling example. It returns a Promise<string>, mimicking a database lookup or external API call. It is async/await compatible.
SSE Headers: In the /stream route, Content-Type: text/event-stream tells the browser to keep the connection open for streaming. Cache-Control: no-cache ensures fresh data.

2. Graph Construction

new StateGraph<AgentState>: Initializes the graph with typed state channels. We define three channels: messages (appends new messages), currentTool (overwrites), and toolResult (overwrites).
graph.addNode: We register two nodes:
1. tool_node: Performs the heavy lifting.
2. finalizer_node: Formats the output.
graph.addEdge: We define the linear flow: START -> tool_node -> finalizer_node -> END.

3. The Streaming Logic (Inside Nodes)

This is the critical part of Streaming Graph Events. * sendEvent: A closure function defined inside the route handler. It captures the res (Response) object and formats data into the SSE protocol: event: name\n data: json\n\n. * Inside tool_node: * We call sendEvent('node_start', ...) immediately to notify the frontend that work has begun. * We simulate a "thinking" delay and send a token event. In a real LLM scenario, this is where you would stream raw text chunks as they are generated by the model. * We await fetchUserData(...). While the server is waiting for the external API, the HTTP connection remains open, allowing other events (if any) to pass through, but in this linear graph, the frontend waits for the result. * We call sendEvent('node_end', ...) upon completion.

4. Execution and Error Handling

runnable.invoke(initialInput): This starts the graph execution. Because we are not awaiting the final return value to send the HTTP response (which would block until the graph finishes), we rely on the side effects of sendEvent to push data to the client.
req.on('close'): Crucial for resource management. If the user closes the browser tab, the server detects the disconnect and stops trying to write to the response stream, preventing memory leaks.

5. Frontend Consumption

new EventSource('/stream'): The browser API for SSE. It automatically handles reconnection.
eventSource.addEventListener('node_start', ...): We listen for the custom event names defined in the server. This decouples the UI logic from the data structure; we simply react to lifecycle events.

Common Pitfalls

When implementing streaming with LangGraph.js in a Node.js environment, watch out for these specific issues:

Vercel/AWS Lambda Timeouts (The "Silent Kill")
- Issue: Serverless platforms have strict timeouts (e.g., 10 seconds on Vercel Hobby plans). If your fetchUserData tool takes longer than this, the serverless function will terminate the execution abruptly, leaving the frontend hanging.
- Fix: For long-running agents, use a persistent server (like the Express example above) or a dedicated background job queue (BullMQ, Inngest). Do not use serverless functions for long-duration streaming unless you have configured long timeouts.
Async/Await Loop Blocking
- Issue: If you perform CPU-intensive work inside a node (e.g., parsing large JSON strings synchronously) or forget to await a Promise, you block the Node.js event loop. While the event loop is blocked, no SSE chunks can be sent to the client, defeating the purpose of streaming.
- Fix: Always use non-blocking I/O. Offload heavy computation to worker threads if necessary. Ensure every external call is awaited.
Missing res.write Flush
- Issue: Node.js buffers response data. In SSE, data is often buffered until a certain size is reached, causing noticeable latency on the frontend.
- Fix: While res.write is usually sufficient, ensure you aren't wrapping the stream in heavy middleware that buffers the response. Avoid res.json() or res.send() inside the stream loop; use res.write() exclusively.
State Mutation in Graph Nodes
- Issue: LangGraph expects state updates to be immutable. A common mistake is mutating the existing state object directly (e.g., state.messages.push(newMessage)).
- Fix: Always return a new object or a partial update object. In the example, we return { currentTool: '...', toolResult: '...' } which LangGraph merges into the existing state safely.
Frontend Reconnection Logic
- Issue: The EventSource API attempts to reconnect automatically on network failure, but it might try to reconnect to a dead session or a server that has already completed the workflow.
- Fix: Implement a unique sessionID for the graph run. If the backend detects a reconnect request for a finished session, it should immediately send an end event or the cached final state rather than restarting the entire graph execution.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.

Chapter 10: Streaming Graph Events to the Frontend

Theoretical Foundations

The Analogy: The Restaurant Kitchen vs. The Food Truck

The Mechanics of Event Propagation

The Web Development Analogy: Agents as Microservices with Webhooks

Visualizing the Event Flow

Why Streaming is Essential for Multi-Agent Systems

1. Orchestration Visibility and Debugging

2. Latency Masking

3. Handling Backpressure and Cancellation

Theoretical Foundations

The Role of useChat and State Synchronization

Conceptual TypeScript Interface for Event Handling

Summary: The "Why" and the "How"

Basic Code Example

The LangGraph Workflow

Server-Side Implementation (TypeScript)

Frontend Implementation (HTML/JS)

Detailed Line-by-Line Explanation

1. Server Setup and Type Definitions

2. Graph Construction

3. The Streaming Logic (Inside Nodes)

4. Execution and Error Handling

5. Frontend Consumption

Common Pitfalls

The Role of `useChat` and State Synchronization
