Chapter 12: Supervisor Pattern - Managing Sub-Agents

Theoretical Foundations

In the previous chapter, we explored the fundamental building blocks of LangGraph: Nodes and Edges. We established that a graph is a state machine where Nodes represent computational steps (like an LLM call or a tool execution) and Edges define the transitions between these steps based on the current state. We also introduced Cyclical Graph Structures, acknowledging that while many workflows are linear, complex problem-solving often requires iteration—loops where the system refines its output until a condition is met.

The Supervisor Pattern is the natural evolution of this concept for multi-agent systems. It moves beyond a single agent performing a sequence of tasks and introduces a specialized, high-level agent whose sole purpose is orchestration. Imagine a software architecture where you have a single entry point (an API Gateway) that routes incoming requests to various microservices based on the request's path and payload. The Supervisor Node is the API Gateway of your multi-agent system.

The "Why": Complexity Management and Specialization

Why introduce a central manager? Why not have agents communicate directly in a mesh topology?

Cognitive Load Reduction: A single agent attempting to be a "jack-of-all-trades" often suffers from performance degradation. Its system prompt becomes bloated with instructions for every possible task (e.g., "If the user asks about weather, call this tool; if they ask about math, use the calculator; if they want code, write Python..."). By delegating tasks to specialized Worker Agents (e.g., a "Math Expert," a "Code Writer," a "Researcher"), each agent can have a highly focused, optimized system prompt. The Supervisor's only job is to understand the user's intent and route it correctly.
State Isolation and Context Management: In a mesh, state can become chaotic. If Agent A talks to Agent B, and Agent B talks to Agent C, how does Agent A know what Agent C concluded? The Supervisor Pattern centralizes the Graph State. The Supervisor holds the "master conversation history" and the "master context." When it delegates to a Worker, it passes a subset of the state relevant to that task. The Worker processes it and returns the result to the Supervisor, which then updates the central state. This prevents context fragmentation.
Scalability and Maintainability: Adding a new capability doesn't require retraining or re-prompting the entire system. You simply deploy a new specialized Worker Agent and update the Supervisor's routing logic (often just by updating its system prompt) to be aware of the new agent's existence. This is analogous to adding a new microservice to a cluster; the API Gateway just needs a new route definition.

The Web Development Analogy: Microservices and the API Gateway

Let's solidify this with a web development analogy.

The Supervisor Node is the API Gateway (like NGINX, Kong, or an Express.js router). It receives all incoming HTTP requests (user queries). It doesn't process the business logic itself; it inspects the request path, headers, and body to decide which backend service should handle it.
Worker Agents are Microservices. You have a UserService, a BillingService, and a NotificationService. Each is highly specialized. The BillingService doesn't know how to update a user's profile, and the UserService doesn't know how to generate an invoice.
The Graph State is the Shared Request Context. In a microservices architecture, you often pass a context object (like a CorrelationID or a JWT token) through the chain of services. In the Supervisor Pattern, the state is the conversation history, the user's original query, and any data gathered so far.
Conditional Edges are the Routing Rules. The API Gateway uses rules like if request.path.startsWith('/api/billing') to route to the Billing Service. The Supervisor uses conditional edges to check the state. For example: if state.next_agent === "Researcher" then go to Researcher Node.

When a user asks, "What is the current stock price of Apple and should I buy it based on my risk profile?", the API Gateway (Supervisor) sees this is a composite request. It first routes to the StockData microservice (Worker Agent). Once that data is returned, it updates the shared context and then routes the enriched context to the FinancialAdvisor microservice (Worker Agent) to make the recommendation.

The Supervisor's Internal Logic: Routing as a Reasoning Task

The Supervisor is not a simple switch statement. It is an LLM-powered agent. Its "brain" is a carefully crafted prompt that instructs it to analyze the current state and make a decision.

The Supervisor's decision-making process looks like this:

Ingest State: It receives the current Graph State, which typically includes messages (the conversation history) and potentially other keys like user_profile or intermediate_results.
Analyze Intent: It uses its LLM to understand the latest user request in the context of the entire conversation.
Consult Available Workers: The prompt includes a list of available Worker Agents and their descriptions (e.g., "Coder: specializes in writing and debugging code," "Researcher: specializes in web search and information synthesis").
Generate Routing Decision: Based on the analysis, the LLM generates a structured output (often JSON) that specifies the next node to invoke. For example: { "next": "Researcher", "reason": "The user is asking for current information that requires a web search." }
Conditional Edge Execution: The graph's conditional edge reads this output from the state and routes the execution flow to the designated Worker Agent node.

This approach is powerful because it's dynamic. The routing isn't hardcoded; it's reasoned. If a user's request is ambiguous, the Supervisor can even decide to ask a clarifying question itself, acting as a first-line responder.

Visualizing the Supervisor Workflow

The Supervisor Pattern creates a hub-and-spoke topology. The Supervisor is the central hub, and the Worker Agents are the spokes. Execution flows from the user to the Supervisor, out to a Worker, and back to the Supervisor. This cycle can repeat multiple times within a single user interaction.

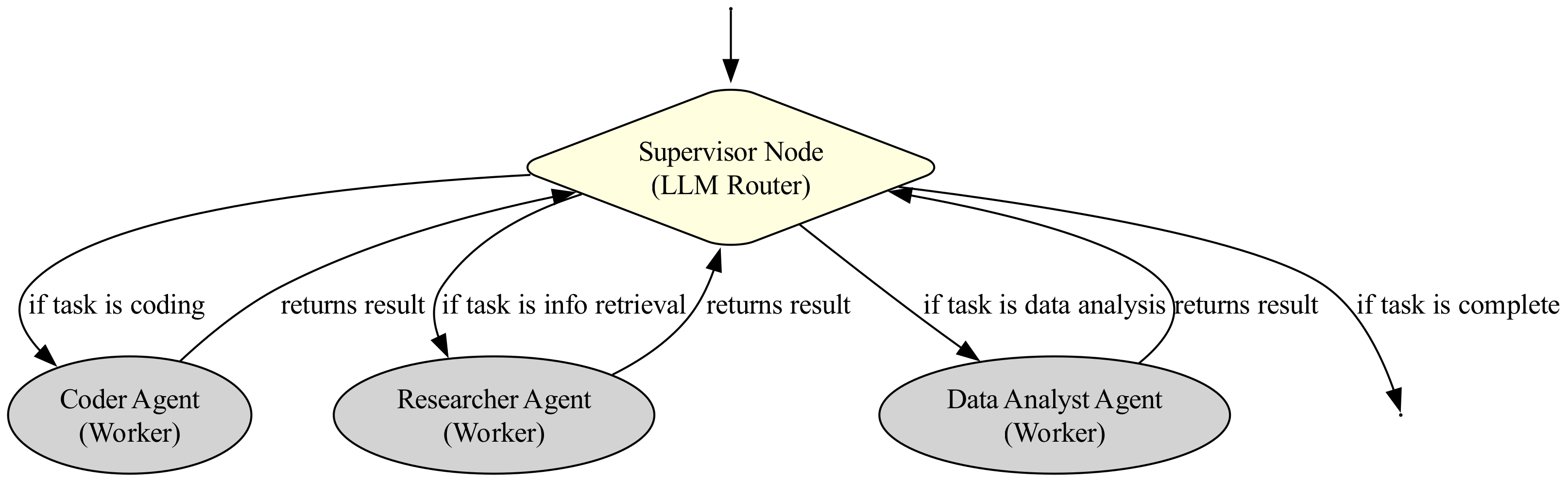

Here is a visualization of the Supervisor Graph structure:

A Supervisor Graph diagram illustrates the cyclical flow of execution, where user requests are processed by a Supervisor node that delegates tasks to Worker nodes and receives results back, enabling iterative refinement within a single interaction.

Under the Hood: Asynchronous Processing and State Management

Because the Supervisor and Worker Agents often involve LLM calls or external tool usage (like web search or database queries), the entire system must be built on Asynchronous Processing (Node.js). In a Node.js environment, blocking the main thread while waiting for an API response from an LLM would cripple the application's ability to handle other requests or even update its own internal state.

When the Supervisor decides to invoke a Worker, the graph execution doesn't block. Instead, it yields control, allowing the event loop to continue. The LLM call is initiated as a non-blocking promise. Once the LLM responds with the routing decision, the graph's execution flow resumes, now directed along the correct conditional edge.

Similarly, when a Worker Agent is invoked, it might need to perform an embedding generation for a vector search or call another external API. These are also asynchronous operations. The Worker Node in the graph is an async function that awaits these responses, processes the data, and then updates the shared state before returning control to the Supervisor.

The state itself is the single source of truth. It is passed from node to node. In LangGraph, this is typically a plain JavaScript object. The Supervisor node might modify the state by adding a routing_decision property. The Worker node might modify the state by adding a result property. This stateful, cyclical flow is what allows the Supervisor to build up a complex answer over multiple turns, leveraging different specialists as needed, all while maintaining a coherent view of the conversation.

Summary of the Supervisor's Role

In essence, the Supervisor Pattern transforms a multi-agent system from a collection of independent entities into a cohesive, intelligent team. The Supervisor acts as the project manager, the Worker Agents as the specialized engineers, and the Graph State as the shared project documentation. This structure enables the system to tackle complex, multi-faceted problems that would be intractable for a single, monolithic agent.

Basic Code Example

The Supervisor Pattern is the architectural backbone for scaling AI agents in production. In a SaaS context, imagine a customer support dashboard where a single user request (e.g., "I need to refund my order and check my subscription status") must be intelligently routed to specific tools or agents. A monolithic agent often struggles with complex, multi-step tasks. The Supervisor Pattern solves this by delegating tasks to specialized "Worker Agents," ensuring high accuracy and modularity.

Below is a self-contained TypeScript example using @langchain/langgraph. We will simulate a SaaS backend where a Supervisor Agent decides whether to route a request to a Billing Agent or a Technical Support Agent.

The Workflow Visualization

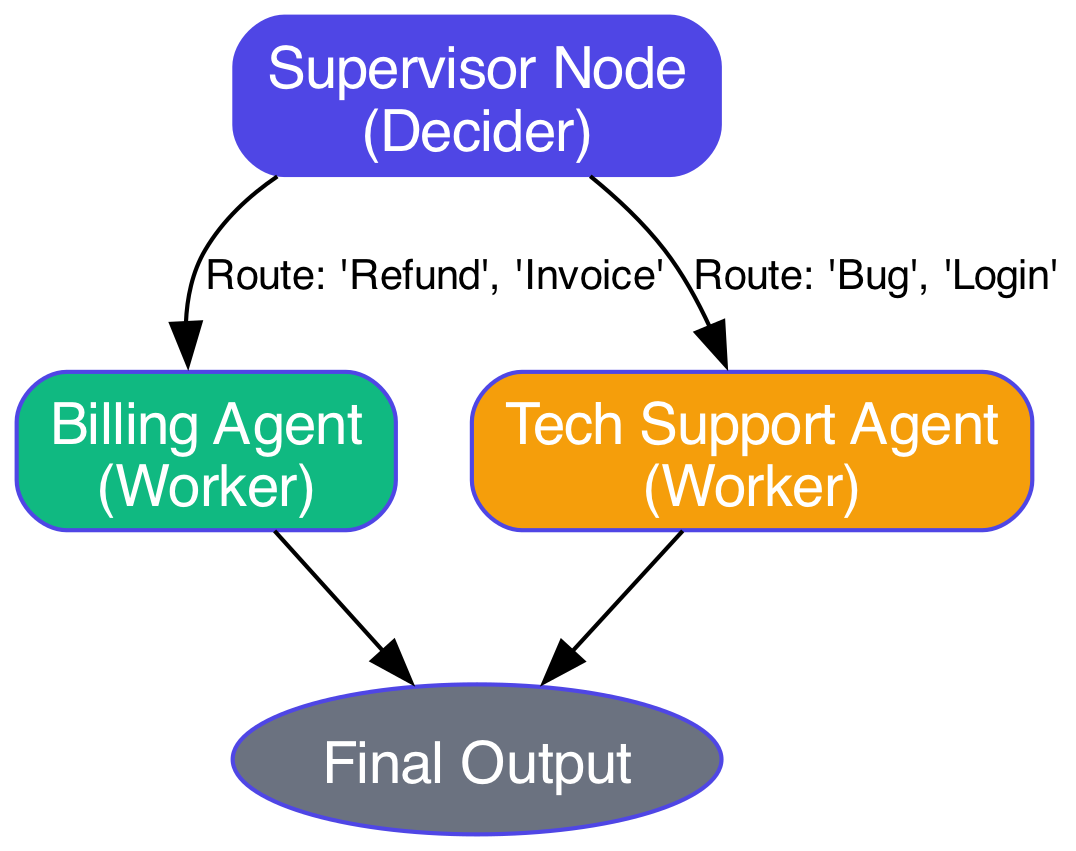

Before diving into the code, visualize the graph structure. The Supervisor acts as a router, while Workers act as endpoints. The graph is cyclical only if the Supervisor decides the task requires further iteration, but for this "Hello World" example, we will implement a linear delegation flow.

In this linear delegation flow, the Supervisor routes the Hello World task directly to a single Worker endpoint, avoiding cyclical iteration.

The Core Code Example

This code sets up a LangGraph state machine. We define a shared state interface, the supervisor logic (using an LLM call to decide the next step), and the worker nodes (which simply return a formatted string).

// Import necessary modules from LangGraph and LangChain
import { StateGraph, Annotation, END, START } from "@langchain/langgraph";
import { ChatOpenAI } from "@langchain/openai";

// ==========================================
// 1. Define the Shared State Interface
// ==========================================

/**
 * Represents the shared state flowing through the graph.
 * @property {string} userRequest - The raw input from the SaaS dashboard.
 * @property {string} nextAgent - The decision made by the supervisor (e.g., 'billing', 'tech_support', 'FINISH').
 * @property {string} finalResponse - The aggregated result from the worker agents.
 */
const StateAnnotation = Annotation.Root({
  userRequest: Annotation<string>({
    reducer: (curr, update) => update, // Simply replace with the new request
    default: () => "",
  }),
  nextAgent: Annotation<string>({
    reducer: (curr, update) => update,
    default: () => "",
  }),
  finalResponse: Annotation<string>({
    reducer: (curr, update) => curr + "\n" + update, // Accumulate responses if needed
    default: () => "",
  }),
});

// Initialize the LLM (Ensure OPENAI_API_KEY is in your environment)
const llm = new ChatOpenAI({ model: "gpt-3.5-turbo", temperature: 0 });

// ==========================================
// 2. Define the Supervisor Node (The Router)
// ==========================================

/**
 * Supervisor Node: Analyzes the request and decides which worker to invoke.
 * It uses function calling (or structured output) to enforce a valid JSON decision.
 */
const supervisorNode = async (state: typeof StateAnnotation.State) => {
  // System prompt defining the supervisor's role and available tools
  const systemPrompt = `
    You are a supervisor managing a SaaS customer support team.
    You are responsible for routing the user's request to the correct agent.

    Available Agents:
    1. billing: Handles refunds, invoice generation, and payment issues.
    2. tech_support: Handles login errors, bugs, and feature requests.
    3. FINISH: Use this if the request is a general greeting or doesn't fit the above categories.

    The user request is: "${state.userRequest}"

    Respond strictly with JSON containing the key "nextAgent" with the value being the name of the agent or "FINISH".
    Example: { "nextAgent": "billing" }
  `;

  const response = await llm.invoke(systemPrompt);

  // Parse the LLM response to extract the decision
  // NOTE: In production, use .bindTools() or structured output parsing for reliability.
  // For this "Hello World", we parse the string content.
  let content = response.content as string;

  try {
    // Clean up potential markdown code blocks from LLM response
    const jsonMatch = content.match(/\{.*\}/s);
    if (jsonMatch) {
      const decision = JSON.parse(jsonMatch[0]);
      return { nextAgent: decision.nextAgent };
    }
    // Fallback if JSON parsing fails
    return { nextAgent: "FINISH" };
  } catch (e) {
    console.error("Supervisor failed to parse JSON:", e);
    return { nextAgent: "FINISH" };
  }
};

// ==========================================
// 3. Define Worker Nodes
// ==========================================

/**
 * Billing Agent: Simulates processing a billing request.
 */
const billingNode = async (state: typeof StateAnnotation.State) => {
  // Simulate an API call or database lookup
  const response = `[Billing System]: Processed refund for request: "${state.userRequest}". Transaction ID: TX-9921.`;
  return { finalResponse: response };
};

/**
 * Technical Support Agent: Simulates processing a technical issue.
 */
const techSupportNode = async (state: typeof StateAnnotation.State) => {
  // Simulate a diagnostic tool call
  const response = `[Tech Support]: Diagnosed issue for request: "${state.userRequest}". Solution: Clear cache and retry login.`;
  return { finalResponse: response };
};

// ==========================================
// 4. Define Conditional Edges (Routing Logic)
// ==========================================

/**
 * Determines the next node based on the supervisor's decision.
 * This is the logic that connects the Supervisor to the correct Worker.
 */
const routeSupervisorDecision = (state: typeof StateAnnotation.State) => {
  const decision = state.nextAgent;

  if (decision === "billing") {
    return "billing_agent";
  } else if (decision === "tech_support") {
    return "tech_support_agent";
  }

  // If decision is 'FINISH' or unrecognized, go to END
  return END;
};

// ==========================================
// 5. Construct the Graph
// ==========================================

// Initialize the graph with the shared state
const workflow = new StateGraph(StateAnnotation);

// Add nodes
workflow.addNode("supervisor", supervisorNode);
workflow.addNode("billing_agent", billingNode);
workflow.addNode("tech_support_agent", techSupportNode);

// Define the entry point
workflow.addEdge(START, "supervisor");

// Add conditional edges from the supervisor
// The supervisor node does not have a direct edge to END or other nodes.
// Instead, we use a conditional edge function to route dynamically.
workflow.addConditionalEdges(
  "supervisor",
  routeSupervisorDecision,
  {
    "billing_agent": "billing_agent",
    "tech_support_agent": "tech_support_agent",
    [END]: END
  }
);

// Add edges from workers back to END (Terminal nodes)
workflow.addEdge("billing_agent", END);
workflow.addEdge("tech_support_agent", END);

// Compile the graph
const app = workflow.compile();

// ==========================================
// 6. Execution (SaaS API Handler Simulation)
// ==========================================

/**
 * Main function simulating an API endpoint (e.g., POST /api/chat).
 */
async function runSaaSWorkflow(userInput: string) {
  console.log(`\n--- Processing Request: "${userInput}" ---`);

  // Initial state setup
  const initialState = {
    userRequest: userInput,
    nextAgent: "",
    finalResponse: "",
  };

  // Stream execution for real-time updates (common in Vercel/AI SDK apps)
  const stream = await app.streamEvents(initialState, { version: "v2" });

  for await (const event of stream) {
    const eventType = event.event;
    const nodeName = event.metadata?.langgraph_node;

    // Log supervisor decisions
    if (nodeName === "supervisor" && eventType === "on_chain_end") {
      console.log(`[Supervisor]: Decided to route to -> ${event.data.output.nextAgent}`);
    }

    // Log worker responses
    if ((nodeName === "billing_agent" || nodeName === "tech_support_agent") && eventType === "on_chain_end") {
      console.log(`[Worker ${nodeName}]: ${event.data.output.finalResponse}`);
    }
  }
}

// --- Run Examples ---

// Example 1: Billing Request
runSaaSWorkflow("I want a refund for my order #12345");

// Example 2: Technical Request
// (Uncomment to run)
// runSaaSWorkflow("My login button is not working.");

Line-by-Line Explanation

Here is the detailed breakdown of the logic, numbered for clarity.

1. State Definition (`StateAnnotation`)

Lines 14-30: We define the "Shape" of our data using Annotation.Root.
Why: LangGraph requires a strict schema to manage state across different nodes (agents).
userRequest: The input string. We use a reducer that simply replaces the value.
nextAgent: The supervisor's decision string (e.g., "billing"). This acts as the "switch" for our conditional edges.
finalResponse: The output from the worker agents. We use a reducer that concatenates strings (curr + "\n" + update), allowing us to accumulate results if we had multiple steps.

2. The Supervisor Node (`supervisorNode`)

Lines 36-67: This is the "Brain" of the system.
System Prompt: We explicitly instruct the LLM about available agents (billing, tech_support) and the required output format (JSON).
LLM Invocation: llm.invoke(systemPrompt) sends the text to OpenAI.
Parsing Logic:
- LLMs often return Markdown (e.g., json { ... }). We use a Regex (/\{.*\}/s) to extract the raw JSON object.
- Safety: If parsing fails, we default to FINISH. In a production SaaS app, you would use .bindTools() or Zod validation to ensure the LLM returns structured data, preventing hallucinations.

3. Worker Nodes (`billingNode`, `techSupportNode`)

Lines 71-85: These are specialized tools.
Simulation: In a real SaaS app, these nodes would call external APIs (Stripe for billing, Jira for bugs). Here, they return a formatted string.
State Update: They return an object { finalResponse: "..." }. LangGraph automatically merges this into the global state based on the reducer logic defined in Step 1.

4. Conditional Routing (`routeSupervisorDecision`)

Lines 89-100: This function acts as the "Traffic Cop."
Input: It receives the current state (which now contains the nextAgent value set by the Supervisor node).
Logic: It checks the string value of state.nextAgent and returns the string name of the next node to execute.
Terminal Condition: If the decision is FINISH (or anything else), it returns the special END constant, terminating the graph execution.

5. Graph Construction

Lines 104-126: We assemble the nodes and edges.
workflow.addNode: Registers the functions we defined earlier.
workflow.addConditionalEdges: This is the key to the Supervisor Pattern. Instead of a static A -> B connection, we tell the graph: "After 'supervisor' finishes, look at the state and run routeSupervisorDecision to decide where to go next."
workflow.compile(): Turns the definition into an executable application.

6. Execution (`runSaaSWorkflow`)

Lines 130-155: Simulates a serverless function (like a Vercel API route).
app.streamEvents: This is crucial for modern web apps. It allows the application to stream tokens or intermediate states back to the frontend in real-time, rather than waiting for the entire chain to finish.
Event Loop: We iterate over the stream to log when the Supervisor decides and when Workers respond.

Common Pitfalls

When implementing the Supervisor Pattern in a TypeScript/Node.js environment (especially with Vercel/AI SDKs), watch out for these specific issues:

LLM Hallucinated JSON (The "Markdown Trap")
- Issue: LLMs love to wrap JSON in Markdown backticks (```json ... ```). JSON.parse() will throw a syntax error if you pass it raw Markdown.
- Fix: Always use a Regex (like /\{.*\}/s) to extract the JSON object from the string before parsing. Better yet, use zod and LLM tool calling to force strict JSON output.
Vercel/AI SDK Timeouts
- Issue: Serverless functions (Vercel) have strict execution timeouts (usually 10-30 seconds). If your Supervisor calls an LLM, which calls a Worker, which calls another LLM, the total latency can exceed the timeout.
- Fix: Use streamEvents or streamText instead of await calls where possible. This keeps the connection alive and streams tokens, preventing the serverless function from "idling" and timing out.
Async/Await Loop Deadlocks
- Issue: In cyclical graphs (where an agent routes back to itself or the supervisor), improper handling of promises can cause the Node.js event loop to lock up.
- Fix: Ensure all graph nodes return a plain object, not a Promise that resolves to a complex class instance. LangGraph handles the async flow, but your node functions must be async and await external calls properly.
State Mutation in TypeScript
- Issue: TypeScript interfaces are structural. If you accidentally mutate the state object directly (e.g., state.userRequest = "new"), LangGraph's history tracking might break or behave unexpectedly.
- Fix: Always return a new object from your node functions (e.g., { nextAgent: "billing" }). Rely on LangGraph's reducers to merge state, rather than mutating it in place.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
