Chapter 15: Shared State vs Isolated State

Theoretical Foundations

In the world of multi-agent systems, the "State" is not merely a data container; it is the collective memory, the shared reality, and the communication backbone of the entire system. It represents the Graph State object that evolves with every step an agent takes. The fundamental architectural decision you face when designing these systems is how to manage this evolving reality. Do you give every agent its own private, isolated notebook, or do you force them all to write on a single, shared whiteboard? This is the dichotomy of Isolated State versus Shared State.

To truly grasp this, we must first look back at a concept we established in the previous chapter: the Entry Point Node. Recall that the Entry Point is the ignition switch of our LangGraph workflow. When we invoke a run, we provide an initial state, and the Entry Point node is the first to process it. Now, imagine that the state we pass into this Entry Point is not just a simple object, but a complex, deeply nested structure that will be read, written to, and passed between dozens of different nodes. The way this state is structured and accessed by each subsequent node—whether it's a Supervisor, a Worker Agent, or a Tool—defines the entire character of the system.

The "Why": Scalability, Consistency, and Fault Tolerance

Why does this distinction matter so profoundly? The choice between shared and isolated state directly impacts three critical pillars of system design:

Scalability: Can the system handle growth? If adding more agents makes the system slower or more complex, it's not scaling well. State management is often the bottleneck.
Data Consistency: Does every agent have an accurate, up-to-the-minute view of reality? Or is one agent acting on stale information while another operates on new data, leading to chaos and contradictory actions?
Fault Tolerance: If one agent fails or enters a loop, does it bring the entire system down with it, or can the system isolate the failure and continue operating?

Let's dissect how each pattern addresses these pillars.

Pattern 1: Isolated State (The Microservice Analogy)

The Isolated State pattern treats each agent as a self-contained unit with its own private memory. Agents do not directly access or modify the state of other agents. Communication is explicit and structured, typically via messages passed through a central router (like a Supervisor).

The Analogy: Microservices in Web Development

Think of a modern e-commerce platform built with microservices. You have a UserService, a ProductCatalogService, and an OrderService. Each service is an independent application. It has its own database, its own business logic, and its own API. The UserService doesn't directly reach into the ProductCatalogService's database to check a product's stock. Instead, it makes a formal API call: "Hey, Product Service, give me the stock for product ID 123."

This is exactly how Isolated State works in a multi-agent system.

Agent as a Microservice: Each agent is a distinct, modular component. A ResearcherAgent might have its own internal state (its "database") containing notes, sources, and draft summaries.
State is Private: The ResearcherAgent's internal state is not visible to the WriterAgent.
Communication via Messages (APIs): The ResearcherAgent completes its task and sends a structured message (e.g., a JSON object with {"status": "complete", "summary": "..."}) to the Supervisor. The Supervisor then routes this message to the WriterAgent. The WriterAgent receives this as an input and uses it to inform its own actions, but it never directly modifies the ResearcherAgent's internal notes.

Under the Hood and "Why" it Works:

Modularity & Encapsulation: Just like microservices, this pattern promotes clean separation of concerns. You can update, test, and even completely replace one agent without breaking the others, as long as the "API contract" (the message format) remains the same. This is a huge win for maintainability.
Fault Tolerance: If the ResearcherAgent crashes, the WriterAgent is completely unaffected. It might receive an error message from the Supervisor, but its own state and logic remain intact. The failure is isolated. The system can even be designed to re-route the task to a backup researcher agent.
Scalability: You can run multiple instances of the ResearcherAgent in parallel, each with its own isolated state, to handle a high volume of research tasks. They don't compete for a shared memory lock.

The primary drawback is latency and overhead. Just like API calls between microservices, passing messages between agents takes time. It also requires careful design of the message formats to ensure data isn't lost or misinterpreted.

Pattern 2: Shared State (The Centralized Cache Analogy)

The Shared State pattern, by contrast, provides a single, central object that all agents can read from and write to. This state acts as a "single source of truth" for the entire workflow. When one agent makes a change, all other agents can see that change immediately (on their next read).

The Analogy: A Centralized Cache (like Redis) or a Real-time Collaborative Document (like Google Docs)

Imagine a team of writers collaborating on a single Google Doc. There is only one document. When Alice types a sentence, Bob sees it appear in real-time. If Bob highlights a sentence and deletes it, Alice sees it vanish instantly. They are all operating on the exact same shared state. There is no need for Alice to "email Bob an update."

Alternatively, think of a large web application using a centralized Redis cache. The web server, the user authentication service, and the analytics service all read and write to the same Redis instance. If the auth service updates a user's session data, the web server knows about it immediately for the next page load.

This is the Shared State pattern.

A Single Source of Truth: There is one master GraphState object, often managed by a StateStore (like the checkpointer we will discuss).
Direct Access: The ResearcherAgent doesn't send its findings to the WriterAgent. It directly appends its findings to a research_notes array within the shared state.
Implicit Communication: The WriterAgent simply reads the research_notes array from the shared state. It doesn't need to be explicitly "told" that the research is ready; it can see the data is there for itself.

Under the Hood and "Why" it Works:

Simplicity & Speed: For simple, linear, or tightly-coupled workflows, this is incredibly simple to reason about. There's no complex message-passing logic. Agents just read and write to a common place. This can be much faster than the overhead of API calls.
Strong Consistency: All agents are guaranteed to be looking at the same data. This is critical for workflows where the order of operations and the freshness of data are paramount. For example, in a stock trading bot, every agent must see the exact same price at the exact same moment.
Facilitates Complex Coordination: It's easier for a Supervisor to monitor the overall progress of a complex task if all intermediate results are written to a shared, structured state. The Supervisor can just inspect the state object to decide the next step.

The primary drawback is complexity and contention. In a web development analogy, this is like having every service write to the same main database table without any locks. It can lead to race conditions, data corruption, and performance bottlenecks. If two agents try to write to the same field at the same time, which one wins? This pattern requires careful management of state updates and can become a single point of failure. If the shared state store goes down, the entire system grinds to a halt.

Visualizing the Architectural Difference

To make this concrete, let's visualize the data flow for a simple task: "Research Topic X, then write a summary."

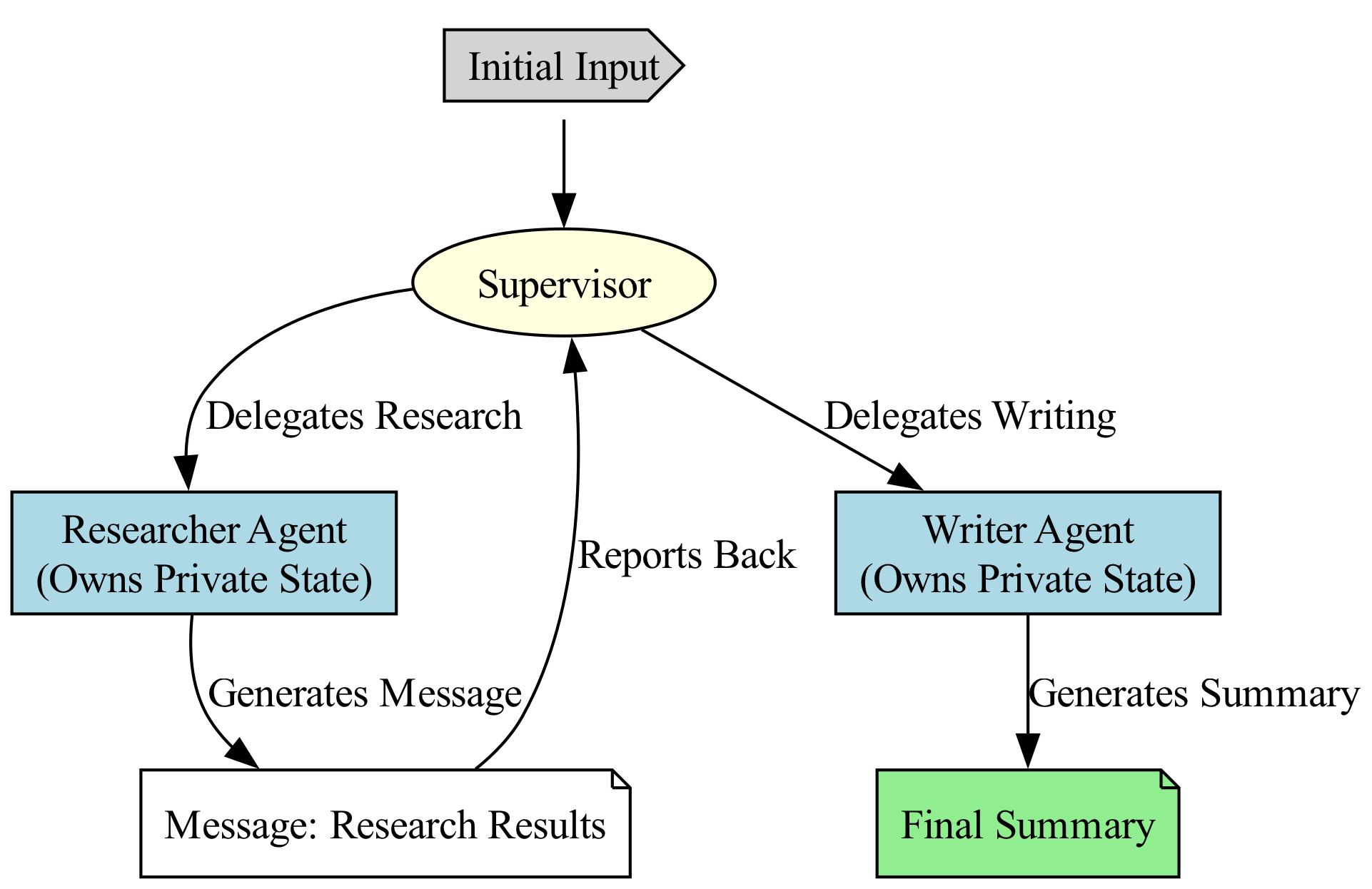

Isolated State Flow

In this pattern, the Supervisor acts as a central message broker, ensuring that state is passed explicitly from one agent to the next.

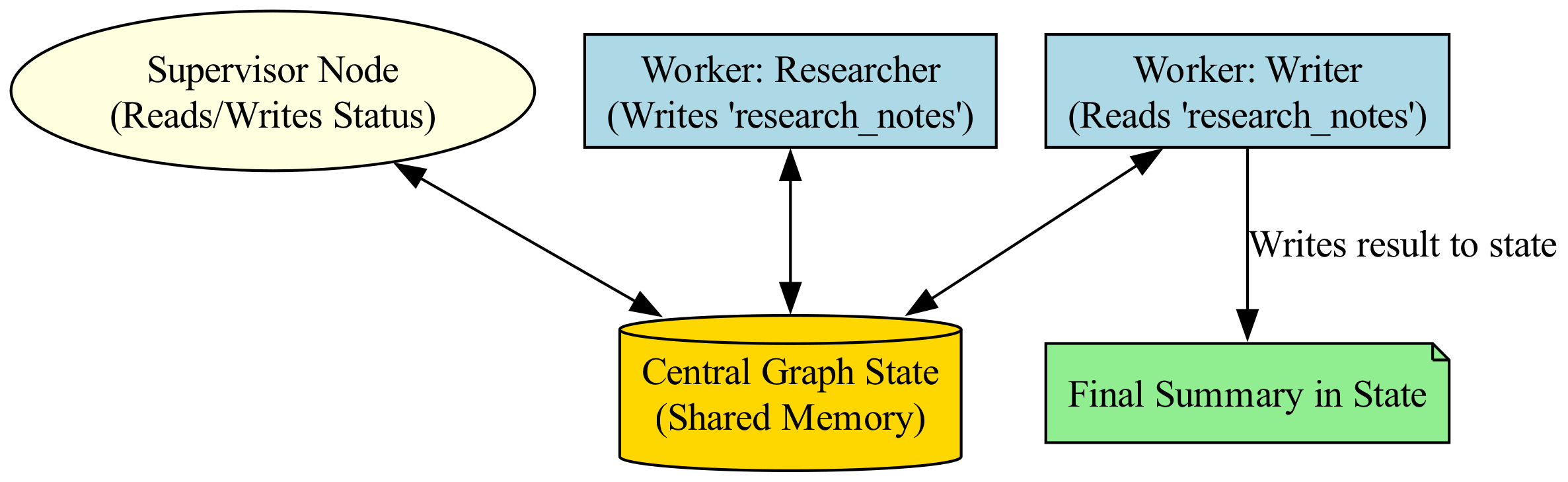

Shared State Flow

Here, the Supervisor and Workers all operate on a single, evolving state object. The Supervisor's job is to update a status flag in the shared state, which triggers the next agent.

The Hybrid Strategy: Centralized Memory with Distributed Processing

Neither extreme is perfect for all scenarios. The real power in advanced LangGraph.js systems comes from a hybrid approach, which directly relates to the definition of Persistent Graph State Hydration.

A hybrid strategy acknowledges that while agents need their own private processing space (isolated state for modularity), they also need a reliable, persistent, and shared way to communicate and store their collective progress.

This is where the concept of Persistent Graph State Hydration becomes the cornerstone of robust multi-agent workflows. Let's break this down:

The State is Centralized and Persistent: The GraphState is not just a temporary JavaScript object in memory. It's stored in a Checkpointer (like SQLite, Postgres, or an in-memory store). This state object contains fields for all agents to use. For example, it might have research_notes, draft_text, user_feedback, and current_workflow_status.
Agents are Stateful Workers: When the Supervisor decides to invoke the ResearcherAgent, it doesn't just pass a simple message. The LangGraph runtime automatically hydrates the agent's execution context. This means the ResearcherAgent is given a copy or a live reference to the central state. It operates on this data.
Atomic Updates and Checkpointing: The ResearcherAgent performs its work and writes its results back to the central state. The Checkpointer then saves a new version of the state. This is an atomic operation. The system has a durable record of the state after the researcher finished.
Resuming Execution (The "Why" of Hydration): Now, imagine the system needs to pause. Maybe the WriterAgent is waiting for a human to review the draft. The server process might be shut down. When it restarts, we use Persistent Graph State Hydration. We retrieve the last saved state from the Checkpointer and use it to start a new LangGraph run. Because the state contains the draft_text and the user_feedback, the workflow can pick up exactly where it left off. The Supervisor node will read the hydrated state, see that the draft is ready for review, and route the task accordingly.

This hybrid model gives you the best of both worlds:

From Isolated State: You get modularity. The WriterAgent doesn't need to know how the ResearcherAgent works internally. It just needs to know which field in the shared state to read from.
From Shared State: You get a single source of truth, consistency, and persistence. The state is the "contract" between agents.
The Superpower of Hydration: You get fault tolerance and the ability to build long-running, human-in-the-loop workflows. The system isn't a fragile, ephemeral process; it's a durable state machine that can survive restarts and interruptions.

In essence, the shared state becomes the durable record of the what (the data, the results), while the isolated agents are responsible for the how (the processing logic). The Supervisor, guided by the state, orchestrates the flow. This hybrid approach, powered by persistent state hydration, is the foundation for building truly complex, scalable, and reliable autonomous agent systems.

Basic Code Example

In a multi-agent SaaS application, managing state is critical for performance and data integrity. Shared State allows agents to communicate via a central memory store, ideal for collaborative workflows. Isolated State gives each agent its own private memory, improving modularity and fault tolerance. We will build a simple web app scenario: a "Project Manager" agent that coordinates with two "Developer" agents.

The Code

This example uses LangGraph.js (v0.0.20+) with TypeScript. It simulates a server-side API route handling agent logic. We will demonstrate two distinct graph configurations: one with shared state and one with isolated state.

// lib/langgraph-shared-state.ts
// ==========================================
// SHARED STATE ARCHITECTURE
// ==========================================

import { StateGraph, Annotation, MemorySaver } from "@langchain/langgraph";

/**
 * Shared State Annotation.
 * Defines the structure of the state object accessible by ALL nodes in the graph.
 * In a SaaS context, this represents a centralized database record or a global cache.
 */
const SharedStateAnnotation = Annotation.Root({
  project_id: Annotation<string>,
  task_description: Annotation<string>,
  developer_feedback: Annotation<string[]>({
    reducer: (curr, update) => [...curr, ...update], // Appends feedback from multiple agents
    default: () => [],
  }),
  status: Annotation<"pending" | "completed">({
    default: () => "pending",
  }),
});

/**
 * Node 1: Project Manager (Orchestrator)
 * Updates the shared state with a task description.
 */
const projectManagerNode = async (state: typeof SharedStateAnnotation.State) => {
  console.log("[Shared] Manager processing task:", state.task_description);
  // Logic: Manager decides the task.
  return {
    status: "completed",
    developer_feedback: ["Manager: Task defined and delegated."],
  };
};

/**
 * Node 2: Developer Agent
 * Reads the shared state and appends feedback.
 */
const developerNode = async (state: typeof SharedStateAnnotation.State) => {
  console.log("[Shared] Developer reading project:", state.project_id);
  // Logic: Developer acts based on the shared context.
  return {
    developer_feedback: [`Developer: Implemented feature for ${state.project_id}.`],
  };
};

// Define the Shared State Graph
const sharedGraph = new StateGraph(SharedStateAnnotation)
  .addNode("manager", projectManagerNode)
  .addNode("developer", developerNode)
  // Edges define the flow. In a real app, this might be conditional.
  .addEdge("__start__", "manager")
  .addEdge("manager", "developer")
  .compile();

// ==========================================
// ISOLATED STATE ARCHITECTURE
// ==========================================

/**
 * Isolated State Annotation (Manager).
 * Only the Manager node can access/modify this specific state slice.
 */
const ManagerStateAnnotation = Annotation.Root({
  project_id: Annotation<string>,
  task_description: Annotation<string>,
  manager_status: Annotation<"active" | "done">,
});

/**
 * Isolated State Annotation (Developer).
 * Only the Developer node can access/modify this specific state slice.
 * This prevents the developer from accidentally overwriting manager metadata.
 */
const DeveloperStateAnnotation = Annotation.Root({
  developer_id: Annotation<string>,
  code_snippet: Annotation<string>,
  bugs_found: Annotation<number>,
});

/**
 * Node 1: Manager (Isolated Context)
 * Returns a state object that is MERGED into the Manager's specific state store.
 */
const isolatedManagerNode = async (state: typeof ManagerStateAnnotation.State) => {
  console.log("[Isolated] Manager working alone:", state.project_id);
  return {
    manager_status: "done",
  };
};

/**
 * Node 2: Developer (Isolated Context)
 * Returns a state object that is MERGED into the Developer's specific state store.
 */
const isolatedDeveloperNode = async (state: typeof DeveloperStateAnnotation.State) => {
  console.log("[Isolated] Developer working alone:", state.developer_id);
  return {
    bugs_found: 2,
    code_snippet: "console.log('Hello World');",
  };
};

// Define the Isolated State Graph
// Note: LangGraph typically handles a single state schema per graph.
// To simulate true isolation in a single graph, we often use "Private" state keys
// or separate graph instances. For this example, we simulate isolation by
// having distinct state schemas that do not overlap.
const isolatedGraph = new StateGraph(ManagerStateAnnotation)
  .addNode("manager", isolatedManagerNode)
  // In a real multi-agent system, isolated graphs often run in parallel
  // and communicate via a message queue (e.g., RabbitMQ or Redis).
  .addEdge("__start__", "manager")
  .compile();

/**
 * Main Execution Function (Simulating a Next.js API Route)
 * This function demonstrates how to switch between patterns.
 */
export async function runAgentWorkflow(type: "shared" | "isolated") {
  const memory = new MemorySaver(); // Checkpointing for state persistence

  if (type === "shared") {
    // Initial state injection
    const initialState = {
      project_id: "proj-123",
      task_description: "Build the login page",
    };

    // Execute the graph
    const result = await sharedGraph.invoke(initialState, {
      configurable: { thread_id: "session-1" },
      checkpointers: [memory],
    });

    return result;
  } else {
    // Initial state injection for isolated manager
    const initialManagerState = {
      project_id: "proj-456",
      task_description: "Refactor database",
      manager_status: "active" as const,
    };

    const result = await isolatedGraph.invoke(initialManagerState, {
      configurable: { thread_id: "session-2" },
      checkpointers: [memory],
    });

    return result;
  }
}

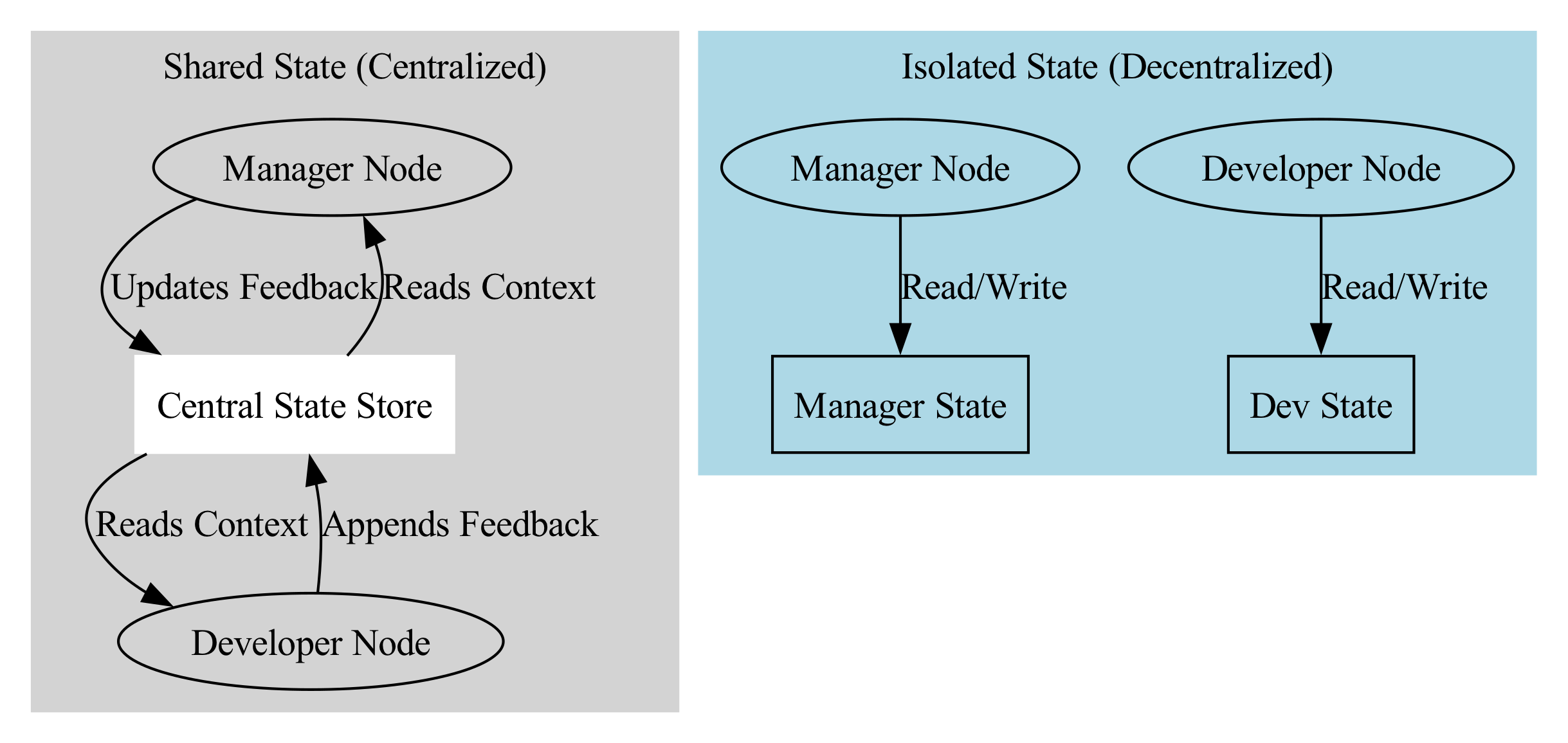

Visualizing the Data Flow

This diagram illustrates a TypeScript agent workflow that routes tasks to either a shared or isolated execution graph based on the input type, using a MemorySaver for state persistence via configurable thread sessions. — This diagram illustrates a TypeScript agent workflow that routes tasks to either a shared or isolated execution graph based on the input type, using a `MemorySaver` for state persistence via configurable thread sessions.

```

Line-by-Line Explanation

1. Shared State Setup

Imports: We import StateGraph (the core graph builder), Annotation (schema definition), and MemorySaver (for saving conversation history/checkpoints).
SharedStateAnnotation:
- project_id and task_description: Simple strings defining the context.
- developer_feedback: This is crucial. We use a reducer function (curr, update) => [...curr, ...update]. In a shared state, multiple nodes (Manager and Developer) might write to the same field. The reducer ensures that instead of overwriting data, we accumulate it into an array.
- default: Provides an initial value if the field is undefined.

2. Shared State Nodes

projectManagerNode:
- Receives the current state.
- Logs the task.
- Returns an object updating status and adding an initial string to developer_feedback. LangGraph uses the reducer defined in the annotation to merge this return value into the central state.
developerNode:
- Reads the project_id from the shared state (which the manager just set).
- Appends its own feedback string to the developer_feedback array.

3. Isolated State Setup

ManagerStateAnnotation & DeveloperStateAnnotation:
- Unlike the shared example, we define two separate schemas.
- ManagerStateAnnotation contains manager_status.
- DeveloperStateAnnotation contains bugs_found and code_snippet.
- Why? This enforces modularity. The developer node cannot access manager_status, preventing tight coupling.

4. Isolated State Nodes

isolatedManagerNode:
- Operates strictly on ManagerStateAnnotation.
- Updates manager_status to "done".
isolatedDeveloperNode:
- Operates strictly on DeveloperStateAnnotation.
- Updates bugs_found and code_snippet.
- Note: In a real distributed system, these nodes would likely be separate LangGraph instances running on different servers, communicating via an API or message queue, rather than a single graph instance.

5. Execution Logic (`runAgentWorkflow`)

MemorySaver: This acts as a persistent store (like a Redis cache or database) for agent checkpoints. It allows the agent to resume exactly where it left off if the server restarts.
sharedGraph.invoke:
- We pass initialState.
- We configure a thread_id. This is the key to persistence; the MemorySaver uses this ID to retrieve previous state.
isolatedGraph.invoke:
- We pass a different initial state shape.
- The graph executes the manager node, updates the state, and finishes.

Common Pitfalls

State Mutation vs. Return Values:
- Issue: In JavaScript, objects are passed by reference. Directly mutating the state object inside a node (e.g., state.status = 'done') is dangerous and unpredictable in LangGraph.
- Fix: Always return a new object containing the updates. LangGraph handles the immutability and merging logic.
Async/Await Loops in Reducers:
- Issue: Reducer functions in Annotation must be synchronous. If you try to await a database call inside a reducer to merge state, it will fail or cause race conditions.
- Fix: Perform all async operations (DB calls, API fetches) inside the Nodes, then return the resolved data to the reducer.
Vercel/AWS Lambda Timeouts:
- Issue: Multi-agent graphs can take time to execute. Serverless functions (like Vercel Edge or AWS Lambda) have strict timeouts (e.g., 10s or 30s).
- Fix: For complex workflows, do not await graph.invoke() directly in the API route. Instead, trigger the graph asynchronously (e.g., via a background job queue like Inngest or Upstash QStash) and update the client via WebSockets or polling.
Hallucinated JSON in LLM Outputs:
- Issue: If your nodes use LLMs to generate state updates, the LLM might return natural language text instead of valid JSON, causing the graph to crash when parsing the state.
- Fix: Use .withStructuredOutput() (Zod schemas) in your LLM nodes to enforce strict JSON formatting before the data reaches the state reducer.
ESM vs. CommonJS:
- Issue: LangGraph.js is built on ESM. If your package.json lacks "type": "module" or you use require() instead of import, you may encounter ERR_REQUIRE_ESM errors.
- Fix: Ensure your project is configured for ESM. Use import { StateGraph } from "@langchain/langgraph" and ensure your file extensions are .ts or .mts.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
