Chapter 18: Deploying LangGraph to LangGraph Cloud/Self-Hosted

Theoretical Foundations

When we transition from building a single, locally-run autonomous agent to deploying a robust, multi-agent system, we are fundamentally shifting our perspective from a prototype to a service. In previous chapters, we conceptualized agents as nodes within a StateGraph, where edges dictate the flow of control based on the state. We utilized Cyclical Graph Structures—loops where an edge points back to a previously executed node—to implement reasoning patterns like ReAct (Reasoning and Acting), allowing the agent to iterate on a problem until a solution is found.

However, running this graph locally using graph.stream() is akin to a chef cooking a single meal in a home kitchen. The ingredients (state) are fresh, the tools are within arm's reach, and once the meal is served (the graph finishes), the kitchen is cleaned and the process ends. To serve a restaurant of hungry customers (multiple users interacting with the agent simultaneously), we need a professional kitchen: a scalable, persistent, and observable infrastructure. This is the essence of deploying LangGraph.

The State Persistence Dilemma: Hydration vs. Ephemeral Execution

In a local environment, the graph state exists only in the memory of the Node.js process. If the script crashes or the user refreshes a browser, the "thought process" of the agent is lost forever. This is ephemeral execution. In a production environment, agents often need to pause, wait for human approval, or simply survive a server restart.

This introduces the concept of Persistent Graph State Hydration.

The Analogy: Imagine a video game. In the early days, if you turned off the console, you lost your progress. Modern games use "save points." When you load a save file, the game doesn't restart from the beginning; it hydrates the game world with your exact position, inventory, and health.
The Technical Reality: In LangGraph, the Checkpointer is the mechanism that saves the state after every node execution. When a deployment environment restarts (due to scaling or crashes), it doesn't re-run the initial prompt. Instead, it queries the storage (PostgreSQL, Redis, etc.), retrieves the last known state, and injects it into a new graph instance. This allows the agent to resume exactly where it left off, maintaining the continuity of the "thought" chain.

The Web Development Analogy: Agents as Microservices

To understand the architecture of a deployed LangGraph application, we can draw a powerful analogy to modern web development, specifically Microservices.

The Monolith (Local Script): A local LangGraph script is like a monolithic web application. Everything—routing, business logic, state management—happens in one process. It’s simple to write but hard to scale. If one part fails, the whole thing crashes.
The Microservice (Deployed Agent Node): In a deployed multi-agent system, each distinct agent or tool is akin to a microservice.
- StateGraph as the API Gateway: The StateGraph acts as the orchestrator or API Gateway. It doesn't do the heavy lifting itself; it routes requests (state updates) to the appropriate service (node).
- Tool Invocation Signature as the REST API: Just as microservices communicate via strict HTTP contracts (endpoints, headers, payloads), LangGraph nodes communicate via the Tool Invocation Signature. This is a strict TypeScript interface:
```
// The contract every tool must satisfy to be a "service" in our system
type ToolInvocation = (input: {
    [key: string]: any; // The parameters provided by the LLM
}) => Promise<any> | any; // The result returned to the state
```
- Scalability: Just as you can spin up 10 instances of a "User Authentication" microservice to handle high traffic, you can deploy a LangGraph application to spin up multiple instances of a "Research Agent" to handle concurrent user queries.

The Deployment Artifacts: `langgraph.json` and Docker

The bridge between the local "monolith" and the cloud "microservices" is defined by two critical components: the deployment configuration file and the containerization strategy.

1. The langgraph.json Configuration This file is the blueprint for the deployment. It tells the LangGraph Cloud or self-hosted runner how to interpret your code. It explicitly defines: * Entrypoints: Which file contains the graph definition. * Dependencies: Which npm packages are required (e.g., @langchain/langgraph, @langchain/openai). * Environment Variables: Secrets (API keys) and configuration (model names) that must be injected at runtime.

2. Docker and Containerization In self-hosted environments, LangGraph applications are typically packaged as Docker containers. This encapsulates the Node.js runtime, the dependencies, and the graph logic into a portable unit. * The Analogy: Think of the Docker container as a standardized shipping container. Whether you are deploying to a local server (Self-Hosted) or a cloud cluster (LangGraph Cloud), the container ensures the environment is identical. The "kitchen" inside the container is fully stocked and configured the same way every time.

Visualizing the Deployment Architecture

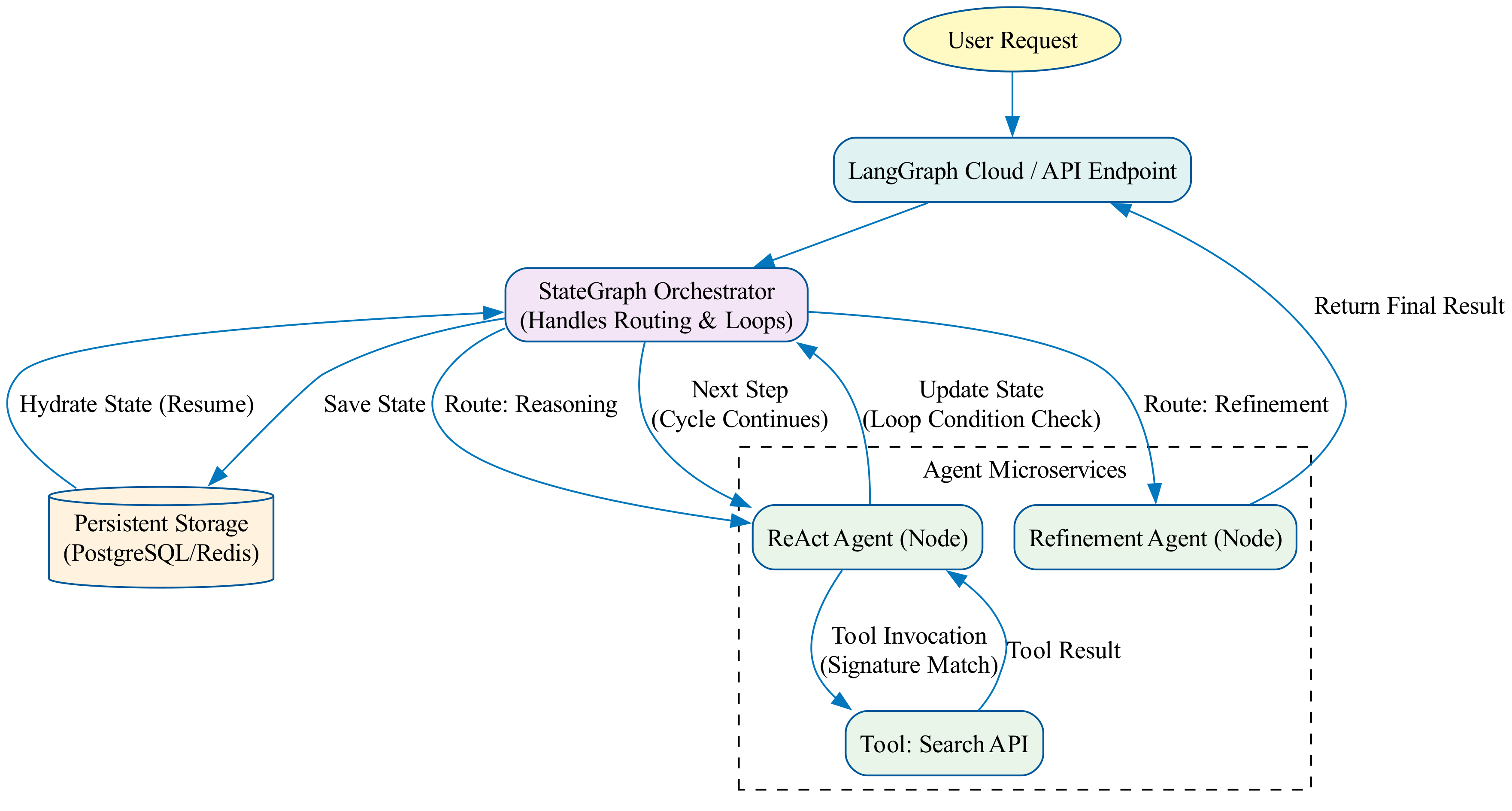

The following diagram illustrates the flow of a single user interaction within a deployed, persistent LangGraph system. Note the cyclical nature of the graph, which is maintained across network boundaries via the Checkpointer.

This diagram visualizes the cyclical flow of a single user interaction within a deployed LangGraph system, highlighting how the state is persisted and maintained across network boundaries via the Checkpointer.

Under the Hood: The Lifecycle of a Deployed Run

When a request hits a deployed LangGraph endpoint, the following sequence occurs, highlighting the theoretical underpinnings of the system:

Request Reception: The API receives a request, potentially containing a thread_id (a session identifier).
State Hydration: The system queries the Checkpointer storage using the thread_id. If a previous state exists, it is retrieved and parsed. If not, a fresh initial state is created.
Graph Instantiation: A new instance of the StateGraph is created in memory. This is a lightweight operation, as the graph structure is static.
State Injection: The retrieved state is injected into the graph instance. This is the Hydration phase.
Execution Loop: The graph begins execution.
- Node Execution: When a node (agent or tool) is triggered, the framework ensures the Tool Invocation Signature is respected. If the node is an LLM call, the prompt is constructed using the hydrated state.
- Cyclical Flow: If the node's output triggers a conditional edge that points back to a previous node (e.g., "Is the answer good enough? No -> Loop back"), the graph does not exit. It continues processing within the same run instance.
Persistence: After every node finishes, the Checkpointer saves the new state snapshot. This ensures that if the connection drops or the server scales down, the progress is not lost.
Completion or Interruption: The run ends when a END node is reached, or it pauses if an interrupt (e.g., human-in-the-loop) is defined.

Why This Architecture Matters

Reliability: By decoupling the graph logic from the execution environment (via Docker), the system becomes resilient. If a specific agent node crashes, it can be restarted without killing the entire workflow, provided the state is persisted.
Observability: In a local script, logging is often just console.log. In a deployed system, the Checkpointer acts as a black box recorder. You can inspect the exact state of the agent at any point in time, replaying the execution path for debugging.
Scalability: The stateless nature of the graph logic (it's just code) combined with stateful storage allows horizontal scaling. You can spin up multiple worker processes to handle different user threads simultaneously, all reading from and writing to the same persistent storage.

In summary, deploying LangGraph transforms the agent from a transient script into a durable, stateful service. It leverages Persistent Graph State Hydration to maintain memory across sessions and enforces strict Tool Invocation Signatures to ensure modularity, much like a well-architected microservice ecosystem.

Basic Code Example

This example demonstrates a minimal, self-contained LangGraph application in TypeScript. It models a basic SaaS workflow where a user submits a "feature request." The system first validates the request (Entry Point Node), then routes it to either the "Development" team or the "Feedback" loop based on a simple rule.

This code is designed to be deployed to LangGraph Cloud or a self-hosted environment. It defines the StateGraph, the shared Graph State, and the Entry Point Node logic.

The Code

/**
 * @fileoverview A basic LangGraph example for a SaaS feature request workflow.
 * This file defines the graph state, nodes, and the graph structure.
 * It is designed to be deployed via langgraph.json.
 */

// 1. IMPORTS
// ---------------------------------------------------------------------------
// We import the necessary classes from the LangGraph library.
import { StateGraph, Annotation } from "@langchain/langgraph";

// 2. DEFINE THE GRAPH STATE
// ---------------------------------------------------------------------------
// The Graph State is the single source of truth for the workflow.
// It holds data that persists between nodes.
// We use TypeScript's type inference for safety.

const GraphState = Annotation.Root({
  // The raw input from the user (e.g., "Add dark mode to the dashboard").
  userInput: Annotation<string>({
    reducer: (curr, update) => update, // Simple replacement logic
    default: () => "",
  }),

  // The result of the validation step.
  isValid: Annotation<boolean>({
    reducer: (curr, update) => update,
    default: () => false,
  }),

  // The final routing decision (e.g., "development" or "feedback").
  route: Annotation<string>({
    reducer: (curr, update) => update,
    default: () => "",
  }),
});

// 3. DEFINE NODES
// ---------------------------------------------------------------------------
// Nodes are the computational units of the graph.
// Each node is an async function that accepts the current state and returns a partial state update.

/**
 * Entry Point Node: Validates the user's feature request.
 * This is the first step executed in the workflow.
 * @param state - The current Graph State containing the user input.
 * @returns - An object containing the validation result.
 */
async function validateRequest(
  state: typeof GraphState.State
): Promise<Partial<typeof GraphState.State>> {
  console.log("--- Node: Validating Request ---");

  // Simulate validation logic (e.g., checking length or keywords).
  const input = state.userInput;
  const isValid = input.length > 5 && input.includes("feature");

  // Return the update to the state.
  return {
    isValid: isValid,
  };
}

/**
 * Decision Node: Determines where the request should go.
 * This node acts as a router based on the validation result.
 * @param state - The current Graph State containing validation status.
 * @returns - The routing decision.
 */
async function decideRoute(
  state: typeof GraphState.State
): Promise<Partial<typeof GraphState.State>> {
  console.log("--- Node: Deciding Route ---");

  if (state.isValid) {
    console.log("Request is valid. Routing to Development.");
    return { route: "development" };
  } else {
    console.log("Request is invalid. Routing to Feedback.");
    return { route: "feedback" };
  }
}

// 4. BUILD THE GRAPH
// ---------------------------------------------------------------------------
// We instantiate the StateGraph, add nodes, and define edges (transitions).

// Initialize the graph with the defined state schema.
const workflow = new StateGraph(GraphState);

// Add the nodes to the graph.
// The string key is the unique identifier for the node.
workflow.addNode("validate_node", validateRequest);
workflow.addNode("route_node", decideRoute);

// Define the edges (control flow).
// 1. Set the Entry Point: The execution always starts here.
workflow.setEntryPoint("validate_node");

// 2. Define the transition from Entry Point to the next node.
// After 'validate_node' completes, move to 'route_node'.
workflow.addEdge("validate_node", "route_node");

// 3. Define the Exit Point (End).
// Once 'route_node' finishes, the graph execution stops.
workflow.setFinishPoint("route_node");

// 5. COMPILE THE GRAPH
// ---------------------------------------------------------------------------
// Compiling the graph creates the executable runtime object.
// This compiled object is what LangGraph Cloud or LangServe exposes as an API.
const app = workflow.compile();

// Export the compiled app for deployment.
export { app as graph };

Visualizing the Workflow

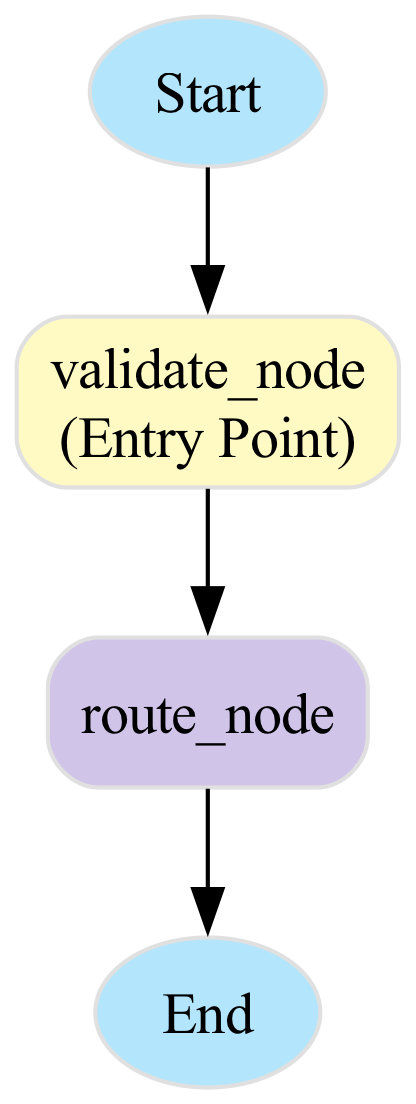

The graph structure is linear in this example but demonstrates the core logic of nodes and edges.

This diagram illustrates a linear graph structure composed of interconnected nodes and edges, visually representing the compiled application's workflow before deployment.

Detailed Line-by-Line Explanation

Here is a comprehensive breakdown of the logic, structured to explain the "Why," "How," and "Under the Hood" details.

1. Imports and State Definition

import { StateGraph, Annotation }: We import the core classes. StateGraph is the builder pattern for defining the workflow. Annotation is the modern, type-safe way to define the Graph State in LangGraph.js (v0.2+).
Annotation.Root({...}): This creates the schema for our shared state.
- userInput: A string representing the raw data. We define a reducer (update logic). In this case, reducer: (curr, update) => update means if multiple nodes try to update this field, the new value simply overwrites the old one.
- isValid: A boolean flag set by the first node. It defaults to false.
- route: A string storing the final decision. It defaults to an empty string.

2. Node Implementation (The Logic)

LangGraph nodes are asynchronous functions. They receive the current state and return a partial state update.

validateRequest (Entry Point Node):
- Context: This is the designated starting point.
- Logic: It checks if the userInput contains the word "feature" and has a length greater than 5 characters.
- Return: It returns { isValid: true } or { isValid: false }. LangGraph automatically merges this object into the global state.
- Under the Hood: When this node runs, LangGraph takes the current state, passes it to the function, awaits the result, and then merges the returned object into the state history.
decideRoute:
- Context: This node depends on the isValid field populated by the previous node.
- Logic: It reads state.isValid. If true, it sets the route to "development"; otherwise, it sets it to "feedback".
- Console Logging: While not strictly necessary for the graph logic, logging is crucial for debugging deployed applications in LangGraph Cloud.

3. Graph Construction (The Structure)

new StateGraph(GraphState): Instantiates the builder. We pass the GraphState schema so the graph knows what data structure it is managing.
workflow.addNode(id, node): Registers the function logic with a string ID. This ID is used for referencing in edges.
workflow.setEntryPoint("validate_node"): Critical Concept. This marks "validate_node" as the first node to execute whenever the graph is invoked.
workflow.addEdge(...): Defines the directed edge. "validate_node" -> "route_node" means execution flow is sequential and deterministic.
workflow.setFinishPoint(...): Tells the runtime that when "route_node" completes, the graph execution is considered finished. No further nodes are processed.

4. Compilation and Export

workflow.compile(): This transforms the declarative graph definition into an executable runtime. It performs validation checks (e.g., ensuring no cycles are missing entry points) and optimizes the execution plan.
export { app as graph }: Crucial for Deployment. LangGraph Cloud and LangServe look for a named export named graph (or default). By exporting the compiled app as graph, we ensure the deployment platform can automatically discover and serve this workflow as an API endpoint.

Common Pitfalls

When deploying this simple example to LangGraph Cloud or a self-hosted environment (like Vercel or AWS), watch out for these specific JavaScript/TypeScript issues:

Missing or Incorrect Named Export (graph):
- Issue: LangGraph Cloud expects the entry point file (usually src/index.ts or src/agent.ts) to export the compiled graph instance.
- Symptom: Deployment fails with "Graph not found" or "No entry point defined."
- Fix: Ensure export const graph = app; or export { app as graph }; is present. Do not rely solely on a default export unless explicitly configured in langgraph.json.
Async/Await Loops in Node Logic:
- Issue: While the graph runtime handles promises, if you accidentally use Promise.all or fire-and-forget callbacks inside a node without awaiting them, the node might return before the logic completes.
- Symptom: State updates appear missing or undefined in the next node.
- Fix: Always use await for internal API calls or database operations within nodes. Ensure the node function signature is async (state) => { ... }.
State Mutation vs. Immutability:
- Issue: JavaScript allows direct mutation of objects (e.g., state.isValid = true). LangGraph relies on returning new objects or using the reducer pattern.
- Symptom: Unpredictable state history, especially when using time-travel debugging or branching logic. Direct mutation bypasses the reducer logic.
- Fix: Never mutate the state argument directly. Always return a new object containing the updates: return { isValid: true }.
Environment Variables in Node Logic:
- Issue: Hardcoding API keys or configuration inside the node functions.
- Symptom: Security vulnerabilities and deployment failures when moving from local to cloud.
- Fix: Access environment variables via process.env.MY_API_KEY. Ensure these are defined in the LangGraph Cloud dashboard or your .env file for local testing.
TypeScript Strictness and langgraph.json:
- Issue: The langgraph.json file specifies the entry point. If your compiled JavaScript output structure (e.g., dist/index.js) doesn't match the path specified in the JSON, the runtime cannot find the graph.
- Symptom: "Module not found" errors during cloud startup.
- Fix: Verify your tsconfig.json output directory matches the path in langgraph.json. For example, if langgraph.json points to dist/index.js, ensure your build process generates files there.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
