Chapter 19: Agent UX - Optimistic UI updates

Theoretical Foundations

In the realm of modern web applications, particularly those driven by asynchronous AI agents, a fundamental challenge arises: latency. When a user interacts with a LangGraph.js agent—perhaps asking a complex question that requires multiple steps of reasoning, tool calls, and state transitions—the backend process might take several seconds, or even minutes, to complete. From the user's perspective, a silent, unresponsive interface feels broken. This is the "latency gap"—the dissonance between the user's action and the system's visible reaction.

Optimistic UI updates are the architectural antidote to this problem. The core principle is simple yet powerful: assume success. Instead of waiting for the server (or the agent graph execution) to confirm an action, the user interface immediately reflects the expected outcome of that action. The UI update is "optimistic" because it bets on the eventual success of the operation.

This concept is not unique to AI agents; it's a cornerstone of responsive web design. Consider a "Like" button on a social media feed. When you click it, the heart icon turns red instantly. This happens on the client side, without waiting for a network request to confirm the "like" was saved. If the network request eventually fails (e.g., due to a lost connection), the UI then performs a rollback, reverting the heart icon to its unliked state and displaying an error message. This provides a fluid, fast-feeling experience even over unreliable networks.

For LangGraph.js agents, the stakes are higher and the states more complex. An agent's journey isn't a single binary state change (liked/unliked); it's a multi-step process involving thinking, retrieving data, executing tools, and synthesizing answers. The optimistic UI must therefore manage a sequence of intermediate states, giving the user a sense of progress and understanding of what the agent is doing "under the hood."

The "Why": User Psychology and System Perceived Performance

The human brain abhors uncertainty. When a user submits a prompt to an agent and is met with a static, unchanging screen, their cognitive load increases. They might wonder: * Did my click register? * Is the system frozen? * Should I click again?

This uncertainty leads to frustration and a perception of a slow, unresponsive system. Optimistic UI updates directly address these psychological pain points.

Immediate Feedback: The UI provides instant acknowledgment of the user's action. This confirms that the system has received the input and is working on it, reducing anxiety.
Perceived Performance: Even if the backend operation takes the same amount of time, the application feels faster. The user is engaged with a dynamic interface that is constantly updating, rather than staring at a blank screen or a static loading bar. This is the difference between watching a progress bar that moves erratically versus one that is immediately filled to 90% and then slowly completes the final 10%.
Managing Expectations: By showing intermediate states (e.g., "Agent is searching for information...", "Tool 'search_web' is executing..."), the UI educates the user about the agent's complexity. This transparency builds trust. The user understands that the delay is due to active, intelligent work, not system inactivity.

Let's use a web development analogy: Imagine a React Server Component. When a user triggers a Server Action, React's useTransition hook allows you to wrap the state update. The UI doesn't wait for the server response to update. Instead, it immediately transitions to a "pending" state (e.g., showing a skeleton loader) while the server work happens in the background. The UI remains interactive, and the user can even navigate away. This is a form of optimistic UI. For our LangGraph agent, the "server action" is the entire graph execution, and the "pending state" is a rich, multi-stage visualization of the agent's internal workflow.

The Mechanics: Visualizing the Optimistic Path

To understand how this works in the context of a multi-agent system, let's visualize the flow. We'll contrast the traditional, pessimistic approach with the optimistic one.

Traditional (Pessimistic) Flow: The UI waits for the entire agent graph to complete before rendering any meaningful output.

graph TD
    A[User Input] --> B{UI: Show Loading Spinner};
    B --> C[Agent Graph Execution];
    C --> D{Agent Graph Completes};
    D --> E[UI: Render Final Result];

Hold "Ctrl" to enable pan & zoom

Optimistic Flow: The UI immediately renders an initial state and then progressively updates as the agent's internal state changes.

graph TD
    A[User Input] --> B{UI: Render 'Thinking' State};
    B --> C[Agent Graph Execution Starts];
    C --> D{Agent Enters 'Tool Execution' State};
    D --> E{UI: Update to 'Searching...' State};
    E --> F[Tool Call Returns];
    F --> G{Agent Enters 'Synthesis' State};
    G --> H{UI: Update to 'Synthesizing...' State};
    H --> I[Agent Graph Completes];
    I --> J[UI: Render Final Result];

Hold "Ctrl" to enable pan & zoom

This progressive update is key. The UI is not just one optimistic update; it's a series of them, each tied to a specific milestone in the agent's execution.

Managing Intermediate States and Skeletons

In a complex agentic workflow, the agent's state is not monolithic. It's a collection of variables, message histories, and tool outputs. The UI must be designed to reflect this granularity.

Consider a Hierarchical Agentic Workflow. As defined in our previous chapters, this involves a Supervisor agent that delegates tasks to specialized Executor agents. An optimistic UI for such a system would need to visualize this delegation.

When a user submits a query, the UI can immediately display a "Supervisor is analyzing the request..." message. Once the Supervisor decides to delegate, the UI can transition to "Executor 'Data Analyst' is now processing..." This gives the user insight into the internal structure of the system.

Skeletons and Loaders are the visual components that represent these intermediate states. A skeleton is a greyed-out, wireframe version of the final UI component. It signals to the user that content is on its way and what the layout will look like. For an agent, skeletons can be more dynamic:

Text Skeleton: A series of grey bars representing the paragraphs of the final answer.
Card Skeleton: If the agent is expected to return a list of items (e.g., product recommendations), the UI can render placeholder cards.
Code Block Skeleton: If the agent is a coding assistant, a skeleton can mimic the structure of a code block with syntax highlighting.

The key is that these skeletons are not static. They can be animated (e.g., a shimmering effect) to indicate ongoing activity, reinforcing the perception of a live system.

Rollback Mechanisms: The Safety Net

Optimism is a strategy, not a guarantee. Agents can fail. Tools can return errors. LLMs can produce malformed output. A robust optimistic UI must be prepared to handle these failures gracefully, which is where rollback mechanisms come into play.

A rollback is the process of reverting the UI to a previous, known-good state when an optimistic update fails. This is analogous to a database transaction that is rolled back if one of its operations fails, ensuring data integrity.

How it works: 1. State Snapshotting: Before making an optimistic update, the UI takes a snapshot of the current state. For a React application, this could be the previous value of a state variable. 2. Optimistic Update: The UI updates to reflect the expected outcome (e.g., a new message in a chat interface). 3. Asynchronous Verification: The agent graph executes in the background. 4. Outcome Handling: * Success: The backend confirms the operation was successful. The UI state is now consistent with the backend, and the snapshot can be discarded. * Failure: The backend returns an error. The UI then: a. Reverts the state to the previously saved snapshot. b. Displays a user-friendly error message (e.g., "Sorry, the search tool failed. Please try again."). c. Optionally, logs the error for debugging.

This mechanism is crucial for maintaining user trust. An interface that silently fails or gets stuck in an incorrect state is far more damaging than one that briefly shows an optimistic state and then gracefully recovers from an error.

Under the Hood: Integrating with LangGraph.js

While this chapter focuses on theory, it's helpful to understand how LangGraph.js's architecture facilitates this pattern. The key is the graph's state management.

LangGraph.js agents operate on a defined State object. This state is immutable and is updated at each node (e.g., a tool call, an LLM call). The graph's execution is a sequence of state transitions.

An optimistic UI can subscribe to these state transitions. In a real-world application, this might be achieved through a WebSocket connection or Server-Sent Events (SSE), where the backend pushes state updates to the client as they occur.

For example, a ToolNode in LangGraph.js might update the state with a status: 'running' before executing a tool and status: 'complete' afterward. The UI can listen for these specific state changes and update the visual representation accordingly.

Conceptual TypeScript Interface for State Subscription:

// This is a conceptual interface for how a UI might subscribe to agent state changes.
// It is NOT a direct implementation of LangGraph.js but illustrates the pattern.

interface AgentState {
  messages: Array<{ role: string; content: string }>;
  status: 'idle' | 'thinking' | 'executing_tool' | 'synthesizing' | 'finished' | 'error';
  currentTool?: string;
  error?: string;
}

// A mock subscription function. In a real app, this would be a WebSocket listener.
function subscribeToAgentState(
  agentId: string,
  onUpdate: (state: AgentState) => void
): () => void {
  // ... implementation to connect to backend and listen for state pushes
  // When a new state is received, call onUpdate(state)
  return () => {
    // ... cleanup function to close the connection
  };
}

// Example usage in a React component (conceptual)
function AgentChat() {
  const [uiState, setUiState] = useState<AgentState>({ messages: [], status: 'idle' });

  useEffect(() => {
    const unsubscribe = subscribeToAgentState('my-agent-123', (newState) => {
      // This is where the optimistic UI gets its updates.
      // The backend pushes each state transition.
      setUiState(newState);
    });
    return unsubscribe;
  }, []);

  // The UI renders based on uiState.status
  // e.g., if status is 'executing_tool', show a specific loader for that tool.
}

This theoretical model shows how the UI can be tightly coupled with the agent's internal state machine, allowing for precise and informative optimistic updates.

The Role of Parallel Tool Execution

The concept of Parallel Tool Execution adds another layer of complexity and opportunity for optimistic UIs. When an LLM is prompted to call multiple independent tools simultaneously, the agent framework handles the concurrent execution.

An optimistic UI for a parallel execution scenario must be able to represent multiple concurrent activities. For example, if an agent is tasked with "Find the current weather in Tokyo and the latest stock price for Apple," the UI could optimistically display two separate loader components: one for "Weather API" and one for "Stock API." As each tool completes, its corresponding loader is replaced with the result, while the other continues to run. This provides a highly granular and responsive view into the agent's parallel workload.

Summary: The UX Philosophy of Optimism

Ultimately, optimistic UI updates for LangGraph.js agents are about empathy for the user. They acknowledge that waiting is a poor user experience and that even a complex, multi-step AI process can be presented in a way that feels immediate and engaging. By combining immediate feedback, progressive disclosure of information through intermediate states, and a robust safety net of rollback mechanisms, we can build agent interfaces that are not only powerful but also a pleasure to use. This transforms the agent from a black box into a transparent, collaborative partner.

Basic Code Example

Optimistic UI updates are a critical pattern for creating responsive, high-feel user interfaces, especially in systems with potentially long-running operations like agentic workflows. In a LangGraph.js context, this means the frontend immediately reflects the user's intent (e.g., a message being sent, an action being initiated) while the backend graph is still executing. This prevents the user from feeling "stuck" waiting for a response.

The core principle is to manage a local state on the client that mirrors the expected outcome of the agent's execution, while simultaneously handling the actual, asynchronous response from the server. This involves: 1. Instant State Mutation: Updating the UI immediately upon user interaction. 2. Skeleton/Loading States: Providing visual feedback that work is in progress. 3. Rollback on Failure: If the backend execution fails, reverting the optimistic state to maintain consistency.

Below is a self-contained TypeScript example demonstrating this pattern within a simulated SaaS chat application. We will simulate a Supervisor Node that delegates tasks to a Worker Agent (e.g., a "Researcher" or "Writer").

The Agent Graph Structure

Before diving into the UI logic, let's visualize the LangGraph flow we are simulating. The Supervisor receives a query, determines the appropriate Worker node, and routes the execution.

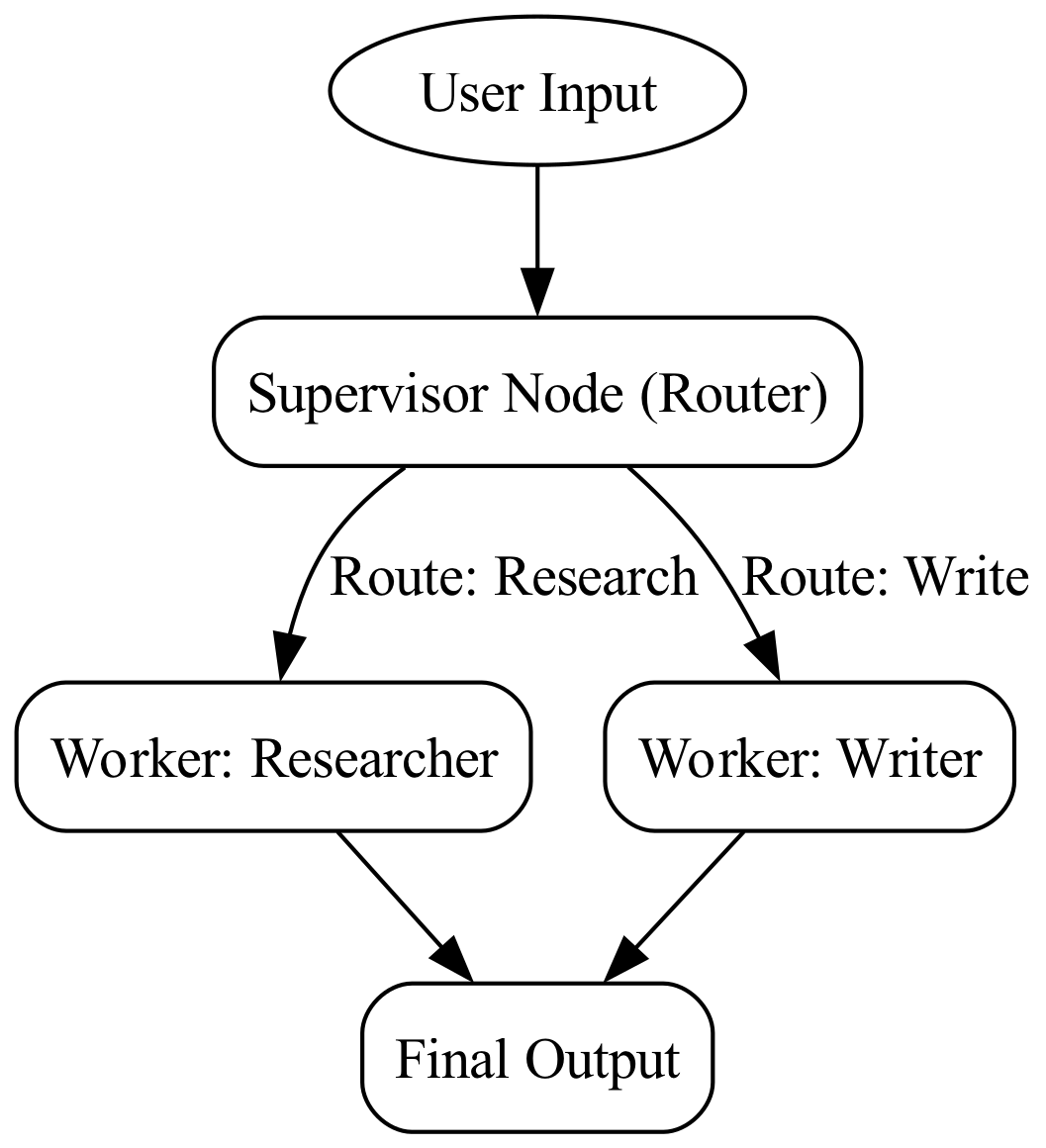

The diagram illustrates a LangGraph flow where a Supervisor node receives an incoming query, analyzes it to select the appropriate specialized Worker node, and routes the execution accordingly.

The Code Example

This example uses vanilla TypeScript to simulate a frontend framework (like React or Vue) state manager. In a real application, you would replace the state object with a framework-specific hook (e.g., useState).

/**
 * Simulated LangGraph Execution Result
 * Represents the structured response from the backend agent system.
 */
type AgentResponse = {
    nodeId: string; // The specific worker node that executed (e.g., "writer")
    content: string; // The actual generated text
    status: 'success' | 'error';
    timestamp: number;
};

/**
 * Simulated Frontend State for the Chat UI
 * Tracks messages, loading status, and potential errors.
 */
interface ChatState {
    messages: Array<{ role: 'user' | 'agent'; content: string }>;
    isStreaming: boolean; // True while the optimistic update is active
    error: string | null; // Populated if the backend execution fails
}

/**
 * Mock Backend API Call
 * Simulates a network request to a LangGraph.js server endpoint.
 * Introduces a delay to mimic LLM processing time.
 * @param query The user's input text.
 * @returns Promise<AgentResponse>
 */
async function callLangGraphAgent(query: string): Promise<AgentResponse> {
    // Simulate network latency (1.5 seconds)
    await new Promise(resolve => setTimeout(resolve, 1500));

    // Simulate a random failure (10% chance) to demonstrate rollback
    if (Math.random() < 0.1) {
        throw new Error("Tool execution timeout: Research API unavailable.");
    }

    // Simulate a successful response from the Supervisor/Worker
    return {
        nodeId: "writer",
        content: `Processed query: "${query}". I have synthesized the information.`,
        status: 'success',
        timestamp: Date.now()
    };
}

/**
 * Main Application Logic
 * Handles optimistic updates and state management.
 */
class ChatApp {
    private state: ChatState;

    constructor() {
        this.state = {
            messages: [],
            isStreaming: false,
            error: null
        };
        this.render(); // Initial render
    }

    /**
     * Handles the user submitting a message.
     * 1. Updates UI immediately (Optimistic).
     * 2. Calls the backend agent.
     * 3. Handles success or failure (Rollback).
     */
    async sendMessage(userInput: string) {
        if (!userInput.trim()) return;

        // --- STEP 1: OPTIMISTIC UPDATE ---
        // We immediately add the user message and a "pending" agent message.
        // This makes the UI feel instant.
        this.state.messages.push({ role: 'user', content: userInput });

        // Add a placeholder for the agent response
        this.state.messages.push({ role: 'agent', content: 'Thinking...' });

        this.state.isStreaming = true;
        this.state.error = null; // Clear previous errors
        this.render();

        try {
            // --- STEP 2: AWAIT BACKEND EXECUTION ---
            const result = await callLangGraphAgent(userInput);

            // --- STEP 3: COMMIT STATE ---
            // Replace the "Thinking..." placeholder with the actual result.
            // Note: In a real app, we might stream tokens here,
            // updating the content incrementally.
            const lastMessageIndex = this.state.messages.length - 1;
            if (this.state.messages[lastMessageIndex].role === 'agent') {
                this.state.messages[lastMessageIndex].content = result.content;
            }
        } catch (error: any) {
            // --- STEP 4: ROLLBACK ON FAILURE ---
            // If the agent fails, we must remove the optimistic "Thinking..." message
            // to keep the UI consistent with the actual execution state.
            this.state.messages.pop();

            // Set the error state to show the user what happened
            this.state.error = error.message;
        } finally {
            // Reset loading state regardless of outcome
            this.state.isStreaming = false;
            this.render();
        }
    }

    /**
     * A simple render function to simulate updating the DOM.
     * In a real React app, this would be replaced by state setters triggering JSX re-renders.
     */
    private render() {
        const container = document.getElementById('chat-container') || { innerHTML: '' };

        // Generate HTML based on current state
        let html = `<div class="chat-window">`;

        // Render Messages
        this.state.messages.forEach(msg => {
            const alignment = msg.role === 'user' ? 'flex-end' : 'flex-start';
            const bg = msg.role === 'user' ? '#007bff' : '#e9ecef';
            const color = msg.role === 'user' ? 'white' : 'black';

            html += `
                <div style="display: flex; justify-content: ${alignment}; margin: 5px;">
                    <div style="background: ${bg}; color: ${color}; padding: 10px; border-radius: 10px; max-width: 80%;">
                        ${msg.content}
                        ${msg.content === 'Thinking...' ? ' <span class="loader"></span>' : ''}
                    </div>
                </div>
            `;
        });

        // Render Error State
        if (this.state.error) {
            html += `
                <div style="color: red; background: #ffeeba; padding: 10px; margin-top: 10px;">
                    <strong>Error:</strong> ${this.state.error}
                    <br><small>UI has rolled back to last known good state.</small>
                </div>
            `;
        }

        html += `</div>`;

        // Update DOM (Simulated)
        console.log("--- UI Render ---");
        console.log(JSON.stringify(this.state, null, 2));
        // In a real browser environment:
        // container.innerHTML = html;
    }
}

// --- USAGE EXAMPLE ---

// Initialize the app
const app = new ChatApp();

// Simulate user interactions
(async () => {
    console.log("1. User sends 'Hello'");
    await app.sendMessage("Hello");

    console.log("\n2. User sends 'Research AI trends'");
    await app.sendMessage("Research AI trends");

    console.log("\n3. User sends 'Fail me' (Triggers random failure)");
    await app.sendMessage("Fail me");
})();

Line-by-Line Explanation

Type Definitions (AgentResponse, ChatState):
- We define strict interfaces for our data. ChatState is the heart of the frontend logic, tracking the messages array, the isStreaming flag (to show loading indicators), and any error messages.
callLangGraphAgent (Mock Backend):
- This function simulates the network request to your LangGraph.js server.
- Latency: setTimeout mimics the time an LLM takes to generate tokens.
- Random Failure: The Math.random() check simulates a tool error (e.g., a search API failing). This is crucial for testing the rollback logic.
ChatApp Class:
- Constructor: Initializes the state and performs the first render.
- sendMessage(userInput): This is the core method.
  - Step 1 (Optimistic Update): Before the await, we push the user's message and a "Thinking..." placeholder to the messages array. We set isStreaming = true. We call render(). The user sees their message and the agent's "thinking" state immediately.
  - Step 2 (Await): We pause execution to wait for the simulated backend.
  - Step 3 (Commit): If successful, we locate the "Thinking..." placeholder in the array and replace its content with the actual result.content. The UI updates to show the final answer.
  - Step 4 (Rollback): If the try block throws an error (caught in catch), we execute the rollback. We pop() the last message (the "Thinking..." placeholder) from the array. This ensures we don't leave a "ghost" message in the UI that never actually completed on the backend. We display the error message to the user.
- render(): This simulates a DOM update. In a React app, this logic would be handled by the useState hook re-rendering the component tree.

Common Pitfalls

When implementing optimistic updates with LangGraph.js agents, watch out for these specific TypeScript/JavaScript issues:

State Desynchronization (The "Ghost Message" Bug):
- Issue: If the backend fails but you forget to remove the optimistic placeholder, the UI shows a message that never actually existed in the backend history.
- Fix: Always implement a robust catch block that reverts the UI state exactly as shown in the sendMessage method.
Vercel/AWS Lambda Timeouts:
- Issue: LangGraph executions can be long. Serverless functions often have strict timeouts (e.g., 10s on Vercel Hobby plans). If your agent takes 15s, the frontend receives a generic 504 error.
- Fix: For long-running agents, do not rely on a single HTTP request. Instead, use an asynchronous pattern:
  1. Frontend sends request.
  2. Backend returns 202 Accepted immediately with a jobId.
  3. Frontend polls a status endpoint or uses WebSockets to receive updates.
  4. Optimistic updates remain active until the "complete" status is received.
Async/Await Loop Blocking:
- Issue: In the ChatApp class, if render() performs heavy DOM manipulation, it might block the main thread, making the UI feel sluggish even during optimistic updates.
- Fix: Ensure render() is lightweight. If processing complex data, use requestAnimationFrame or setTimeout(() => render(), 0) to yield control back to the browser before updating the DOM.
Hallucinated JSON / Schema Mismatch:
- Issue: If your LangGraph agent is supposed to return structured JSON (e.g., AgentResponse) but the LLM hallucinates text instead, the TypeScript type assertion will fail at runtime.
- Fix: Use a Zod schema or similar validation library on the frontend before committing the optimistic state. If validation fails, trigger the rollback immediately and log the schema mismatch error.
Race Conditions in Rapid Inputs:
- Issue: If a user spams the "Send" button, multiple await callLangGraphAgent promises might resolve out of order, causing messages to appear in the wrong sequence.
- Fix: Use a queue system or disable the send button while isStreaming is true. Alternatively, attach a unique UUID to every optimistic message and match it with the backend response to ensure correct placement.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
