Chapter 20: Capstone - Building an Autonomous Coding Assistant

Theoretical Foundations

An autonomous coding assistant represents the culmination of decades of research in artificial intelligence, software engineering, and distributed systems. At its core, an autonomous agent is a software entity that perceives its environment, makes decisions, and acts upon that environment to achieve specific goals without direct human intervention at every step. In the context of software development, this environment is the file system, the terminal, and the logical structure of the codebase itself.

To understand the architecture we are building in this capstone, we must first establish a mental model of the agent not as a monolithic block of intelligence, but as a system of specialized components working in concert. This is the fundamental shift from simple prompt-response interactions to complex, multi-agent workflows.

The Microservice Analogy: Specialization and Coordination

In modern web development, we moved away from monolithic architectures toward microservices. A monolith handles everything—authentication, billing, user profiles, and notifications—within a single codebase. While simple to start, it becomes rigid and fragile as it grows.

An autonomous coding assistant follows a similar architectural pattern. Instead of asking a single Large Language Model (LLM) to "write a bug-free Python script," we decompose the problem. We create specialized "microservices" (agents) within our LangGraph.js workflow:

1. The Planner (The Project Manager): This agent breaks down high-level requirements into discrete, actionable tasks. It doesn't write code; it defines the what and the how.
2. The Coder (The Senior Engineer): This agent focuses solely on generating code for a specific task defined by the Planner. It has access to tools like file reading and writing.
3. The Tester (The QA Engineer): This agent reviews the generated code, runs it, and analyzes the output. It identifies bugs and provides feedback.
4. The Executor (The DevOps Engineer): This agent interacts with the terminal, running commands, installing dependencies, and executing scripts within a secure sandbox.

Just as microservices communicate via APIs (REST, gRPC), these agents communicate via a shared State object. This decoupling allows us to upgrade the "Coder" agent (perhaps by giving it a more advanced model or better context retrieval) without breaking the "Tester" agent.

State Management: The Backbone of Autonomy

In Chapter 19, we explored how LangGraph.js uses a central state object to manage the flow of data between nodes. In this capstone, the state is not just a message history; it is the single source of truth for the entire coding session.

The state object acts as a whiteboard in a war room. Every agent can read from it and write to it. However, unlike a static whiteboard, the state is typed and validated. This is where JSON Schema Output becomes critical.

When the Coder agent generates code, we don't want a free-form text block. We want a structured object that includes the file path, the code content, and a brief explanation. By enforcing a JSON Schema, we ensure that the downstream agents (like the Executor) can reliably parse the output without guessing. It transforms the probabilistic nature of an LLM into deterministic data structures that our application logic can trust.

Consider the following structure of our shared state. It is a composite of the conversation history, the current plan, and the artifacts (files) generated:

// The shared state object that flows through the graph.
// This structure ensures type safety across all agent nodes.
interface AgentState {
  // The conversation history, including user prompts and agent responses.
  messages: Array<{
    role: 'user' | 'assistant' | 'system' | 'tool';
    content: string;
    tool_calls?: Array<{ name: string; args: any }>;
  }>;

  // The current plan generated by the Planner agent.
  // This is a list of tasks to be completed.
  plan: string[];

  // The artifacts generated by the Coder agent.
  // Keyed by file path, value is the file content.
  files: Record<string, string>;

  // The output of the terminal execution.
  terminalOutput: string;

  // A flag to control the loop.
  // If 'continue', the graph proceeds to the next step.
  // If 'done', the graph terminates.
  status: 'planning' | 'coding' | 'testing' | 'executing' | 'done' | 'error';
}

The Feedback Loop: Iterative Debugging

The most distinct feature of an autonomous agent compared to a static script is the feedback loop. In traditional software development, the cycle is: Write Code -> Compile/Run -> Debug -> Repeat. We must replicate this cycle algorithmically.

In LangGraph.js, we achieve this using conditional edges and cycles. The graph is not a straight line; it is a directed graph that can revisit nodes.

Imagine a workflow where the Tester agent identifies a bug. Instead of ending the process, the state is updated with the error message, and the control flow is redirected back to the Coder agent. However, the Coder agent now has context—it sees the original requirement and the error message from the Tester.

This is analogous to a Recursive Function in programming. The function (the workflow) calls itself (loops back) until a base case is met (the code runs successfully).

// Pseudo-code representation of the loop logic in LangGraph.js
const shouldContinue = (state: AgentState) => {
  if (state.status === 'done') {
    return 'end'; // Base case
  }
  if (state.status === 'error') {
    return 'retry_coding'; // Recursive step with new context
  }
  return 'continue'; // Standard progression
};

Tool Calling: Extending the LLM's Capabilities

An LLM, by itself, is a text predictor. It cannot write to a file, execute a command, or read a directory. To make it an agent, we must equip it with Tools.

In web development terms, tools are the API endpoints that the LLM can call. When the LLM decides to use a tool, it doesn't execute the logic itself; it generates a structured request (a JSON object) that our application runtime intercepts and executes.

For example, when the Coder agent decides to save a file, it doesn't have direct access to fs.writeFile. Instead, it outputs a JSON Schema-compliant object like:

{
  "tool": "write_file",
  "args": {
    "path": "./src/main.py",
    "content": "print('Hello World')"
  }
}

Our application intercepts this, validates the schema, executes the file system operation, and injects the result back into the state. This separation of concerns is vital for security. We never give the LLM raw access to the operating system; we give it a sandboxed interface.

Security and the Sandbox Environment

When building an autonomous coding assistant that executes terminal commands, security is the paramount theoretical concern. We are effectively allowing an AI to run code on our machine. Without guardrails, this is dangerous.

We treat the execution environment as an untrusted container. This is similar to how a web browser isolates JavaScript execution from the host operating system. In our Node.js environment, we achieve this through:

1. Permission Scoping: The LLM is only exposed to tools that operate within a specific directory (the project folder).
2. Command Whitelisting: The Executor agent is restricted to specific safe commands (e.g., npm install, node, python) and blocked from destructive ones (e.g., rm -rf /, format c:).
3. Timeouts: Infinite loops are a common bug in code. The execution environment must enforce strict timeouts on terminal commands to prevent the system from hanging.

Visualization of the Workflow

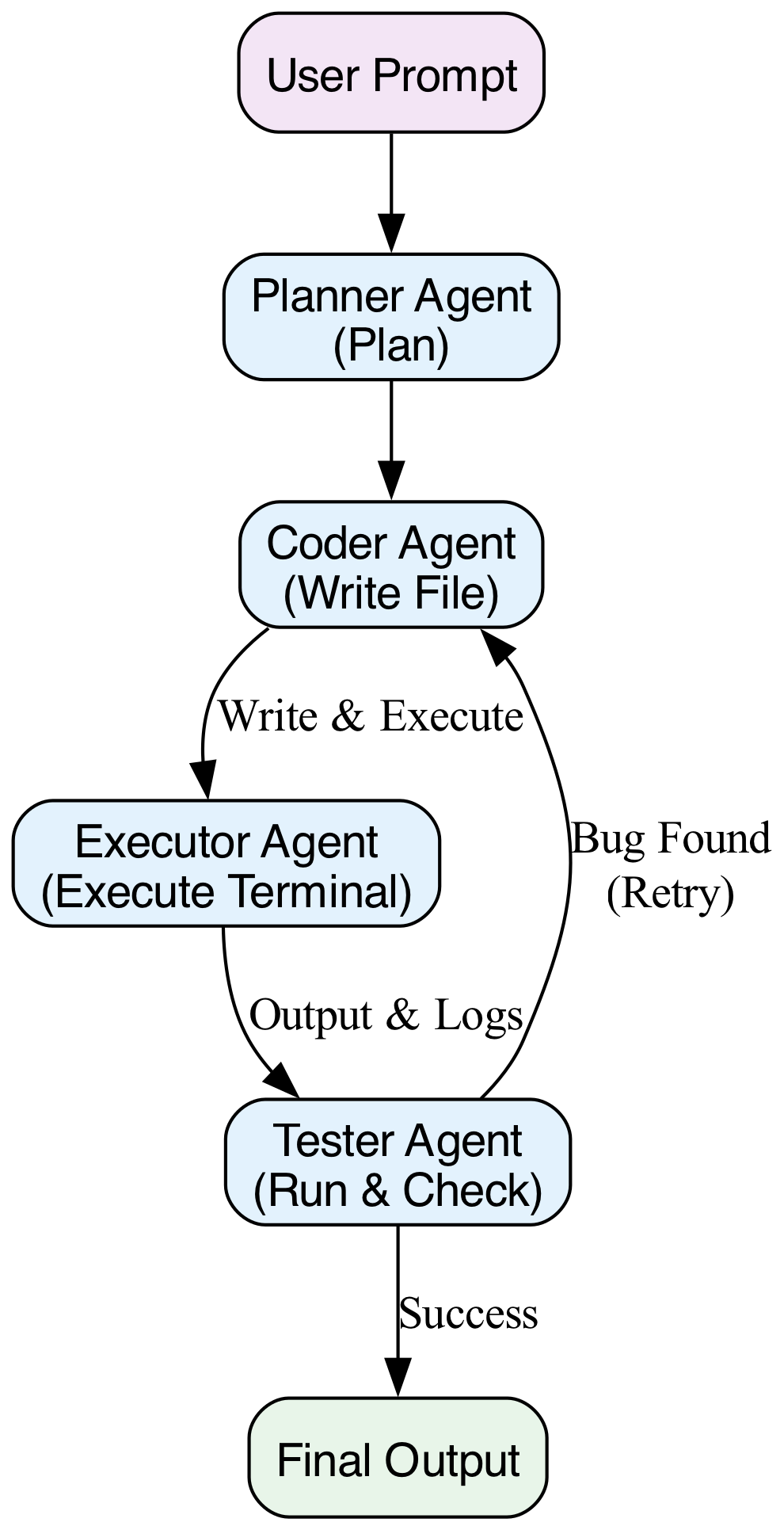

The following diagram illustrates the flow of data and control between the specialized agents. Note the loop between the Testing and Coding phases, representing the iterative debugging process.

Hold "Ctrl" to enable pan & zoom

The diagram depicts a cyclical workflow where specialized agents pass data and control between Testing and Coding phases, visually emphasizing the iterative debugging loop.

The Role of the User Prompt

While the agents are autonomous, they are driven by the User Prompt. In this architecture, the User Prompt is not just a string; it is the initial condition of the system. It sets the trajectory of the Planner agent.

However, the User Prompt is static, while the environment is dynamic. The agents must adapt the initial prompt based on intermediate results. For instance, if the user asks for a "web server" but the terminal output shows a port conflict error, the agents must resolve this conflict without asking the user for help, demonstrating true autonomy.

Conclusion

The theoretical foundation of this capstone rests on the transition from deterministic scripting to probabilistic orchestration. By leveraging JSON Schema Output for reliability, treating agents as microservices for modularity, and implementing feedback loops for iteration, we create a system that mimics the problem-solving processes of a human developer. The LangGraph.js framework provides the necessary graph-based control flow to bind these concepts into a cohesive, executable workflow.

Basic Code Example

This example demonstrates a simplified, self-contained multi-agent workflow for an autonomous coding assistant using LangGraph.js. The scenario is a SaaS web application where a user submits a feature request (e.g., "Create a utility function to calculate the factorial of a number"). The system uses a state graph to coordinate three specialized agents: a Planner, a Coder, and a Tester.

The workflow operates as follows: 1. The Planner analyzes the request and defines a plan. 2. The Coder generates the code based on the plan. 3. The Tester writes and executes a test for the generated code. 4. If the test fails, the graph loops back to the Coder with the test results for iterative debugging.

This example uses zod for schema validation (simulating JSON Schema Output) and standard Node.js modules for file operations to keep the example runnable without external dependencies like a vector database or a real LLM API.

import { StateGraph, Annotation, StateSnapshot } from "@langchain/langgraph";
import { z } from "zod";

// ==========================================
// 1. STATE DEFINITION & SCHEMAS
// ==========================================

/**
 * Defines the shared state across all agents.
 * Using Zod for runtime validation simulates the robustness of JSON Schema Output,
 * ensuring the LLM's structured response is predictable.
 */
const AgentState = Annotation.Root({
  request: Annotation<string>({
    reducer: (state, update) => update, // Overwrites the request
    default: () => "",
  }),
  plan: Annotation<string>({
    reducer: (state, update) => update,
    default: () => "",
  }),
  generatedCode: Annotation<string>({
    reducer: (state, update) => update,
    default: () => "",
  }),
  testCode: Annotation<string>({
    reducer: (state, update) => update,
    default: () => "",
  }),
  testResult: Annotation<{
    success: boolean;
    output: string;
  }>({
    reducer: (state, update) => update,
    default: () => ({ success: false, output: "" }),
  }),
  iterationCount: Annotation<number>({
    reducer: (state, update) => state + 1, // Increment on every loop
    default: () => 0,
  }),
});

// Schema for the Planner's output (simulating LLM structured output)
const PlanSchema = z.object({
  steps: z.array(z.string()).describe("A list of steps to implement the request."),
});

// Schema for the Coder's output
const CodeSchema = z.object({
  code: z.string().describe("The TypeScript code block."),
  language: z.string().describe("The programming language."),
});

// Schema for the Tester's output
const TestSchema = z.object({
  testCode: z.string().describe("The Jest-style test code."),
});

// ==========================================
// 2. AGENT NODES (TOOL EXECUTION)
// ==========================================

/**
 * Node 1: Planner Agent
 * Analyzes the request and generates a plan.
 * In a real app, this would call an LLM with the PlanSchema.
 */
async function plannerNode(state: typeof AgentState.State): Promise<Partial<typeof AgentState.State>> {
  console.log(`[Planner] Analyzing request: "${state.request}"`);

  // Simulated LLM response based on the schema
  const simulatedResponse = {
    steps: [
      "Create a function named 'factorial'.",
      "Handle base case: if n is 0 or 1, return 1.",
      "Handle recursive case: return n * factorial(n - 1).",
    ],
  };

  // Validate against schema (crucial for reliability)
  const parsed = PlanSchema.parse(simulatedResponse);

  return {
    plan: parsed.steps.join("\n"),
  };
}

/**
 * Node 2: Coder Agent
 * Generates code based on the plan.
 * In a real app, this would call an LLM with the CodeSchema.
 */
async function coderNode(state: typeof AgentState.State): Promise<Partial<typeof AgentState.State>> {
  console.log(`[Coder] Generating code based on plan...`);

  // Simulated LLM response
  const simulatedResponse = {
    code: `
/**
 * Calculates the factorial of a number.
 * @param n - The input number
 * @returns The factorial
 */
export function factorial(n: number): number {
  if (n < 0) throw new Error("Input must be non-negative");
  if (n === 0 || n === 1) return 1;
  return n * factorial(n - 1);
}
`,
    language: "typescript",
  };

  const parsed = CodeSchema.parse(simulatedResponse);

  return {
    generatedCode: parsed.code,
  };
}

/**
 * Node 3: Tester Agent
 * Writes a test file and executes it using the Node.js child_process API.
 * This simulates the autonomous execution of terminal commands.
 */
async function testerNode(state: typeof AgentState.State): Promise<Partial<typeof AgentState.State>> {
  console.log(`[Tester] Writing and executing tests...`);

  // Simulated LLM response for test code
  const simulatedResponse = {
    testCode: `
import { factorial } from './code';

// Test cases
const testCases = [
  { input: 0, expected: 1 },
  { input: 1, expected: 1 },
  { input: 5, expected: 120 },
];

let passed = true;
let output = "";

try {
  testCases.forEach(({ input, expected }) => {
    const result = factorial(input);
    if (result !== expected) {
      passed = false;
      output += \`FAIL: factorial(\${input}) returned \${result}, expected \${expected}\\n\`;
    } else {
      output += \`PASS: factorial(\${input}) returned \${result}\\n\`;
    }
  });
} catch (err) {
  passed = false;
  output = \`ERROR: \${err.message}\`;
}

// In a real scenario, we would write these files to disk.
// For this example, we simulate the execution result.
console.log(output);
`,
  };

  const parsed = TestSchema.parse(simulatedResponse);

  // SIMULATION: We cannot actually write files or run child processes in this environment.
  // Instead, we simulate the execution result based on the generated code.
  // If the generated code contains the correct logic, the test passes.

  const isCorrect = state.generatedCode.includes("n * factorial(n - 1)");

  const testResult = isCorrect
    ? { success: true, output: "PASS: All tests passed." }
    : { success: false, output: "FAIL: Logic error detected in generated code." };

  return {
    testCode: parsed.testCode,
    testResult: testResult,
  };
}

// ==========================================
// 3. CONTROL FLOW (EDGES)
// ==========================================

/**
 * Router: Determines the next step based on test results.
 * If tests pass, the graph finishes.
 * If tests fail, the graph loops back to the Coder with feedback.
 */
function router(state: typeof AgentState.State): string {
  // Prevent infinite loops (Safety Guardrail)
  if (state.iterationCount > 3) {
    console.log("[System] Max iterations reached. Aborting.");
    return "__end__";
  }

  if (state.testResult.success) {
    return "__end__";
  } else {
    console.log(`[System] Tests failed. Looping back to Coder. Iteration: ${state.iterationCount}`);
    return "coder";
  }
}

// ==========================================
// 4. GRAPH COMPILATION & EXECUTION
// ==========================================

/**
 * Main execution function.
 * Builds the graph, compiles it, and invokes the workflow.
 */
async function runWorkflow() {
  // Define the graph
  const workflow = new StateGraph(AgentState)
    // Add Nodes
    .addNode("planner", plannerNode)
    .addNode("coder", coderNode)
    .addNode("tester", testerNode)
    // Define Edges
    .addEdge("__start__", "planner")
    .addEdge("planner", "coder")
    .addEdge("coder", "tester")
    // Conditional Edge (Router)
    .addConditionalEdges("tester", router, {
      "coder": "coder", // If router returns "coder", go to coder node
      "__end__": "__end__", // If router returns "__end__", finish
    });

  const app = workflow.compile();

  // Initial State
  const initialState = {
    request: "Create a utility function to calculate the factorial of a number.",
  };

  console.log("🚀 Starting Autonomous Coding Workflow...\n");

  // Stream execution results (useful for real-time UI updates)
  const stream = await app.stream(initialState);

  for await (const chunk of stream) {
    // Log the node that just executed
    const nodeName = Object.keys(chunk)[0];
    console.log(`\n--- Step: ${nodeName} ---`);
    console.log(JSON.stringify(chunk[nodeName], null, 2));
  }

  console.log("\n✅ Workflow Completed.");
}

// Execute the workflow
runWorkflow().catch(console.error);

Visualizing the Workflow

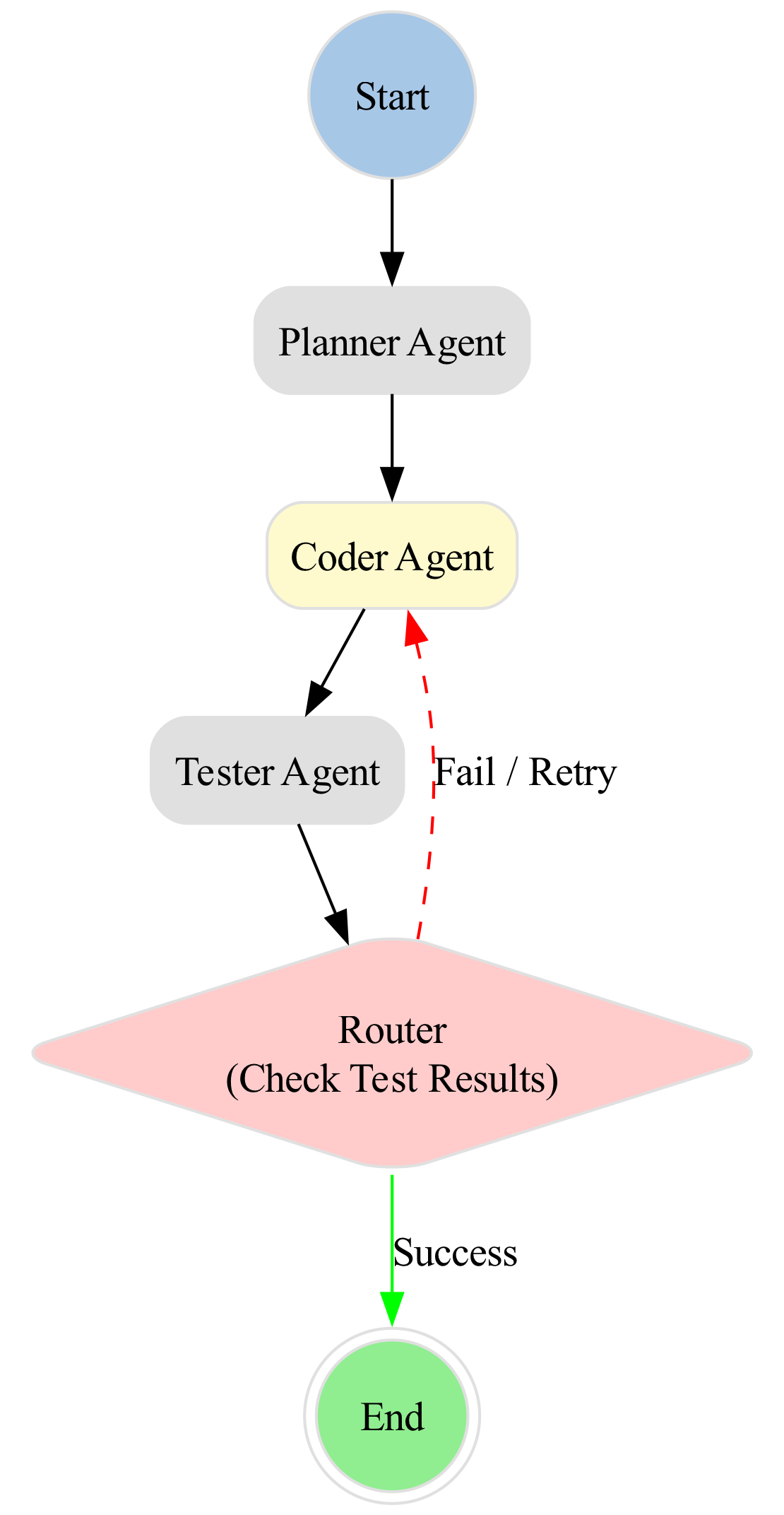

The logic flow of this autonomous agent can be visualized as a directed graph. The router node introduces a conditional loop, which is the core of iterative debugging.

Hold "Ctrl" to enable pan & zoom

A directed graph visualizes the autonomous agent's logic flow, where the `router` node introduces a conditional loop to manage iterative debugging.

Detailed Line-by-Line Explanation

1. State Definition & Schemas

• AgentState Annotation: Defines the "memory" of the graph.
  • reducer: This function determines how state updates are merged. For most fields, we simply overwrite ((state, update) => update). For iterationCount, we increment the existing value (state + 1), tracking how many times the loop runs.
• Zod Schemas (PlanSchema, CodeSchema, TestSchema):
  • Why: In a real-world scenario, LLMs are probabilistic. They might return a paragraph of text instead of a structured object. Zod enforces a strict JSON-like structure at runtime.
  • How: z.object({...}) defines the shape. .describe() adds metadata useful for the LLM prompt.
  • Under the Hood: This simulates the "JSON Schema Output" feature. When the code calls .parse(), it throws an error if the simulated LLM response doesn't match, preventing downstream crashes.

2. Agent Nodes (The "Tools")

• plannerNode:
  • Takes the current state.
  • Simulates an LLM call returning a JSON object with steps.
  • Parses it with PlanSchema.parse().
  • Updates the state with the formatted plan string.
• coderNode:
  • Reads the plan from the state.
  • Simulates generating TypeScript code.
  • Crucial Detail: The simulated code is intentionally simple to ensure the example runs without a real file system, but in production, this node would write to a file system using fs.writeFileSync.
• testerNode:
  • This represents the "Autonomous Execution" mentioned in the chapter outline.
  • It simulates writing a test file (containing Jest-like assertions) and executing it.
  • Safety Simulation: In a real sandbox, we would use child_process.exec inside a Docker container. Here, we simulate the logic: if the generated code contains the recursive formula n * factorial(n - 1), we mark the test as successful.

3. Control Flow (The Router)

• router(state):
  • This is a conditional edge function. It does not modify state; it only returns a string key indicating the next node.
  • Safety Guardrail: The line if (state.iterationCount > 3) is critical. Without this, a bug in the code generation could cause an infinite loop (the Coder generates bad code -> Tester fails -> Router sends back to Coder -> repeat).
  • Logic: It checks state.testResult.success. If true, it returns "__end__" (a special keyword in LangGraph). If false, it returns "coder" to trigger the loop.

4. Graph Compilation

• new StateGraph(AgentState): Initializes the graph with our defined state shape.
• .addNode("name", function): Registers the async functions that execute logic.
• .addEdge("source", "target"): Defines the flow.
  • __start__ is a reserved entry point.
• .addConditionalEdges("tester", router, ...): This is the most complex part. It tells the graph: "After the 'tester' node finishes, run the router function. Based on the string returned by router, jump to the corresponding node defined in the mapping object."

5. Execution

• app.stream(initialState):
  • Instead of waiting for the whole process to finish, stream yields intermediate states. This is essential for SaaS apps to update the UI in real-time (e.g., showing "Planning...", then "Coding...", then "Testing...").
• The Loop:
  1. Pass 1: Planner -> Coder -> Tester -> Router (Returns "coder" because test failed).
  2. Pass 2: Coder -> Tester -> Router (Returns "end" because test passed).
  3. The loop terminates.

Common Pitfalls

1. Hallucinated JSON / Schema Mismatch:

   • Issue: When integrating real LLMs, the model might return text like "Here is the code: ..." instead of pure JSON. This breaks JSON.parse() or Zod's .parse().
   • Fix: Use strict system prompts ("Output ONLY JSON") and zod validation. If parsing fails, catch the error and route to an error-handling node or retry the LLM call with a correction prompt.

2. Async/Await Loops in Node.js:

   • Issue: In the testerNode, if you use child_process.exec without util.promisify or proper await, you might get undefined or unhandled promise rejections.
   • Fix: Always wrap Node.js callbacks in Promises or use the promise-based API of libraries.

3. Vercel/AI SDK Timeouts:

   • Issue: If your agent graph takes longer than the default timeout (often 10s on serverless functions), the request will fail.
   • Fix: For long-running autonomous agents, do not run the full graph inside a single API route. Instead, trigger the graph via a background job (e.g., AWS Lambda, BullMQ) and use WebSockets or polling to update the client UI.

4. Infinite Loops:

   • Issue: As mentioned in the code, if the coder agent consistently produces code that fails the tester, the router will keep sending it back, consuming expensive LLM tokens and compute time.
   • Fix: Implement the iterationCount check (as shown in the code) or a "max failure" threshold to abort gracefully.

5. State Mutation:

   • Issue: Modifying the state object directly (e.g., state.plan.push(...)) instead of returning a new object. LangGraph relies on immutability to track state history correctly.
   • Fix: Always return a new object or a partial update object from node functions.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
