Chapter 7: Integrating Ollama with LangChain.js

Theoretical Foundations

At its heart, the integration of Ollama with LangChain.js represents a paradigm shift in how we architect intelligent applications. It moves us away from monolithic, cloud-dependent API calls and toward a modular, locally-hosted ecosystem where the Large Language Model (LLM) acts as a central processing unit within a larger orchestration framework. To understand this deeply, we must first distinguish between a raw model and a structured model.

In the previous chapter, we explored Direct API Integration, where we communicated with Ollama using raw HTTP requests. This is akin to communicating with a server using low-level sockets. You send a raw string payload and receive a raw string response. While functional, it lacks structure, type safety, and the ability to chain operations seamlessly. LangChain.js provides the necessary abstraction layer—think of it as the "Express.js" or "Next.js" framework for LLMs. It wraps the raw model calls in standardized interfaces (LLM, Embeddings, Runnable), allowing us to build deterministic pipelines rather than imperative scripts.

The specific integration we are focusing on—OllamaLLM and OllamaEmbeddings—serves two distinct but complementary roles:

1. OllamaLLM (The Reasoner): This is the interface for text generation. It takes a prompt and returns a completion. In LangChain, this isn't just a simple function call; it is a "Runnable" that accepts a string input and outputs a string, but crucially, it can be composed into larger chains where its output becomes the input of another step.
2. OllamaEmbeddings (The Vectorizer): This interface transforms text into numerical vectors (embeddings). These vectors capture the semantic meaning of the text, allowing for mathematical comparison of similarity.

The Web Development Analogy: The Full-Stack Application

To visualize this integration, let’s compare a LangChain.js application to a modern full-stack web application.

1. The Database vs. The Embedding Model (OllamaEmbeddings) In a traditional web app, the database stores data. However, raw data is often unstructured. To make it searchable efficiently, we often index it using a search engine like Elasticsearch or a specialized vector database like Pinecone. * Analogy: OllamaEmbeddings is the build process that generates the static assets or search indexes. It takes your raw content (text) and processes it into a format optimized for retrieval (vectors). Just as you wouldn't query a raw SQL database for "semantic similarity" without heavy computation, you don't query raw text directly; you query the embeddings derived from it. The OllamaEmbeddings class is the worker that runs this build step locally, ensuring your data never leaves your machine.

2. The API Route vs. The LLM (OllamaLLM) In a web app, the API route (e.g., app/api/chat/route.ts) receives a request, processes logic, and returns a response. * Analogy: OllamaLLM is the serverless function or the API endpoint. It accepts a prompt (the request) and generates a response. However, in LangChain, this isn't isolated. It is a microservice that can be orchestrated. It doesn't just return a string; it can be instructed to return a JSON object, a structured output, or trigger other functions.

3. The Orchestrator vs. The Chain In complex web apps, we use tools like Redux, Zustand, or server-side middleware to manage the flow of data between the frontend and backend. * Analogy: A LangChain Chain is the middleware pipeline. It connects the "Database" (Retrieval) to the "API Route" (Generation). It ensures that data flows in a specific direction: Retrieve -> Format Prompt -> Generate -> Parse Output.

The "Why": Performance, Privacy, and Determinism

Why go through the trouble of wrapping Ollama in LangChain.js instead of using raw API calls?

1. Latency and the "Network Round-Trip" Penalty When using cloud LLMs, every interaction involves a network request. In a complex workflow (e.g., RAG - Retrieval Augmented Generation), you might have multiple steps: * Step A: Embed user query (Network Call). * Step B: Search Vector DB (Network Call). * Step C: Construct context and generate answer (Network Call). This "chatty" architecture creates massive latency. By using OllamaLLM locally, the inference happens on the same machine (or local network) as the application logic. The network overhead is reduced to zero for the generation step, drastically improving response times for real-time applications.

2. Data Sovereignty and Privacy In the previous chapter, we discussed running models locally. Integrating this with LangChain ensures that sensitive data never touches the public internet. In a RAG application, the user's query is embedded locally (OllamaEmbeddings), compared against a local vector store (or a secure Pinecone index), and the context is injected into the local OllamaLLM. This creates a secure "air gap" for enterprise applications handling PII (Personally Identifiable Information).

3. Structured Output and Type Safety Raw Ollama responses are strings. If you ask a model for a JSON object, it might return a string that looks like JSON but requires parsing. If the model hallucinates or formats it incorrectly, your application crashes. LangChain's integration allows us to use Output Parsers. We can define a TypeScript interface for the expected output, and LangChain will attempt to coerce the LLM's response into that structure, providing a layer of safety that raw API calls lack.

Under the Hood: The Mechanics of Integration

Let's dissect how these components interact without writing code.

1. The OllamaEmbeddings Workflow

When you instantiate new OllamaEmbeddings({ model: 'nomic-embed-text' }), LangChain creates a client that communicates with the Ollama server's /api/embeddings endpoint.

• Batching: Unlike a simple fetch request, the embedding class handles batching automatically. If you have 1,000 documents to embed, it won't send 1,000 requests. It will chunk them into batches (e.g., 50 documents per request) to maximize throughput and respect memory limits.
• Caching: LangChain often implements caching mechanisms (in-memory or Redis) for embeddings. If you request the embedding of the same text twice, the second request hits the cache, saving compute resources. This is critical when iterating on prompts or debugging chains.

2. The OllamaLLM Workflow

When OllamaLLM.invoke() is called, the following sequence occurs:

1. Prompt Templating: The input is passed through a PromptTemplate. This converts raw input variables into a formatted string.
2. Serialization: The formatted prompt is serialized into the JSON payload expected by Ollama.
3. Streaming Handling: Ollama supports streaming. The LangChain integration wraps the Node.js fetch stream. It reads the stream chunk by chunk, aggregates them, and yields the final result. This allows for "token-by-token" UI updates in frontend applications.
4. LLM Output Parsing: The raw string output is passed to an LLMOutputParser (if defined), which attempts to extract structured data.

The Role of Pinecone and Vector Databases

While Ollama handles the processing, Pinecone handles the storage of semantic memory. In the context of this chapter, we treat Pinecone as the external memory bank.

• The Analogy: If OllamaEmbeddings is the librarian who reads a book and summarizes its meaning, Pinecone is the library catalog system. It doesn't store the books (the raw text) but stores the "coordinates" (vectors) of where the meaning lives.
• Integration: When a user asks a question, we don't send the question directly to Ollama. We first use OllamaEmbeddings to convert the question into a vector. We then query Pinecone with this vector. Pinecone returns the top-K most relevant text chunks. These chunks are then injected into the prompt sent to OllamaLLM.

Visualizing the Data Flow

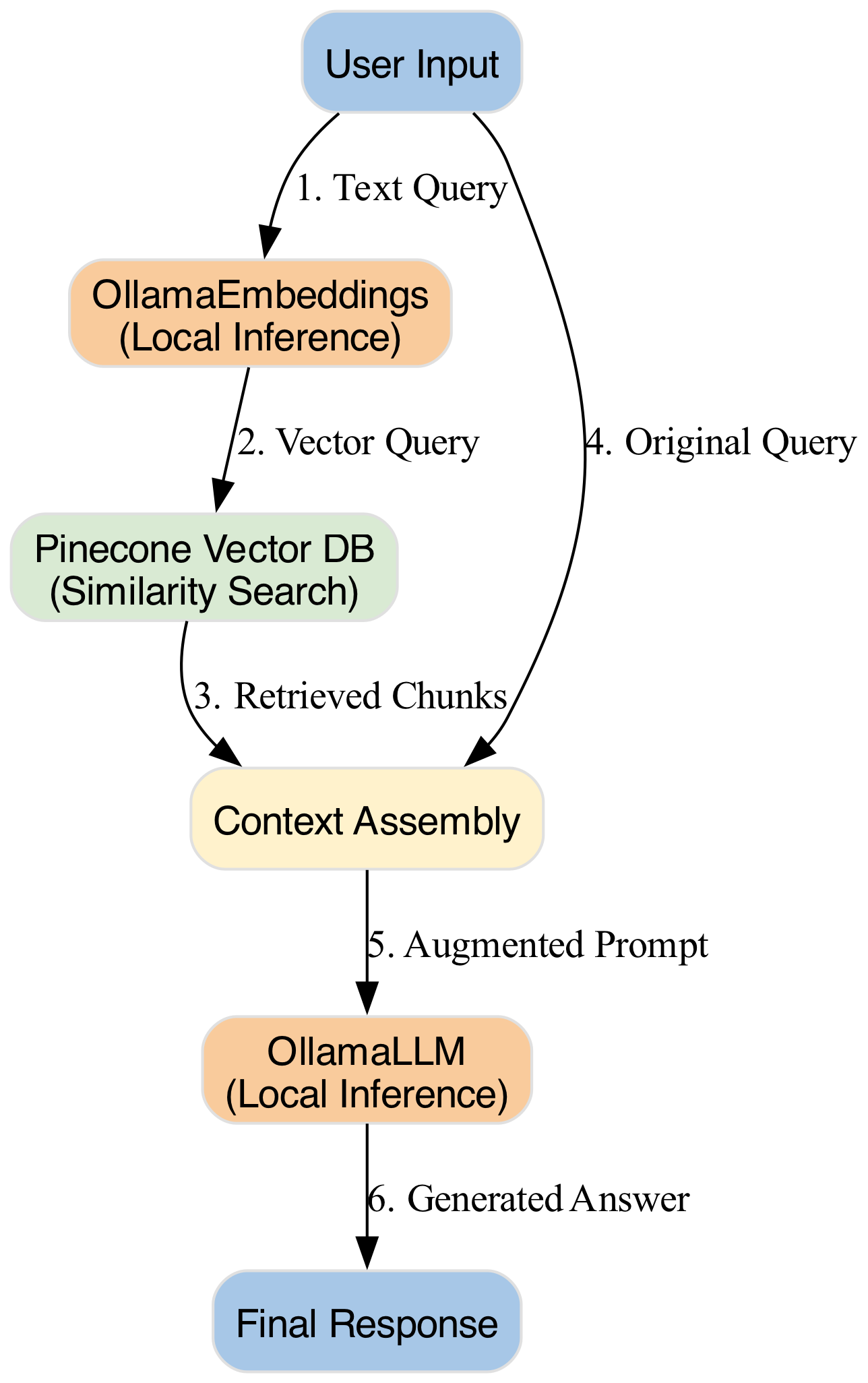

The following diagram illustrates the flow of data in a typical RAG (Retrieval Augmented Generation) pipeline using Ollama and Pinecone.

Hold "Ctrl" to enable pan & zoom

This diagram visualizes the RAG pipeline flow, where document chunks retrieved from Pinecone are injected into the prompt sent to OllamaLLM to generate a context-aware response.

Performance Optimization: The "Local" Constraint

Integrating Ollama with LangChain introduces specific performance considerations that differ from cloud APIs.

1. Memory Management (VRAM vs. RAM) Ollama loads models into memory. When using LangChain, you might inadvertently keep large models loaded. LangChain's OllamaLLM instance is a lightweight wrapper, but the underlying Ollama server manages the model lifecycle. * Optimization: We must be mindful of the keep_alive parameter in Ollama. In a server environment, we want to unload the model from VRAM after a period of inactivity to free up resources for other tasks (like the embedding model). LangChain allows passing configuration options to control this behavior.

2. Concurrency and the Event Loop Node.js is single-threaded. While Ollama runs inference in a separate process (or utilizing GPU cores), the orchestration logic in LangChain runs on the Node.js main thread. * The Bottleneck: If you have a chain that requires heavy JSON parsing or string manipulation (e.g., processing large retrieved documents before feeding them to the LLM), this can block the event loop, delaying the response even if the LLM inference is fast. * Solution: We use LangChain's RunnableLambda or RunnablePassthrough to offload heavy processing, or we ensure that document processing happens asynchronously before the LLM step.

3. Token Limits and Context Windows Local models often have smaller context windows (e.g., 4k or 8k tokens) compared to large cloud models (128k+). * The Challenge: In a RAG pipeline, if Pinecone returns 10 chunks of text, and the user query is long, the combined prompt might exceed the model's context window. * The Solution: LangChain provides "Splitters" and "Document Transformers." Before upserting data into Pinecone, we split documents into smaller chunks. During retrieval, we use techniques like "Parent Document Retrieval" or simply limit the number of retrieved chunks (k) to ensure the final prompt fits within the local model's limits.

Theoretical Foundations

By integrating Ollama with LangChain.js, we are essentially building a local, distributed system. We decouple the reasoning (OllamaLLM) from the memory (Pinecone/OllamaEmbeddings) and orchestrate them using LangChain's reactive programming model. This approach offers the privacy and cost benefits of local inference while leveraging the structural robustness of a dedicated LLM framework, enabling us to build complex, production-ready AI applications that run entirely on our own infrastructure.

Basic Code Example

This example demonstrates a foundational SaaS-style workflow: a semantic search engine for a product catalog. We will use Ollama (running locally) to generate text embeddings and LangChain.js to orchestrate the retrieval process. This setup mimics a backend API endpoint that accepts a user query, converts it into a vector representation, and finds the most relevant product from a local dataset.

Prerequisites: 1. Ollama installed and running locally. 2. A model pulled for embeddings (e.g., nomic-embed-text): ollama pull nomic-embed-text. 3. Node.js environment with langchain and @langchain/community installed.

// src/ollama-langchain-basic.ts

import { OllamaEmbeddings } from "@langchain/community/embeddings/ollama";
import { Ollama } from "@langchain/community/llms/ollama";
import { MemoryVectorStore } from "langchain/vectorstores/memory";
import { Document } from "langchain/document";

/**
 * 1. CONFIGURATION & INITIALIZATION
 * --------------------------------------------------
 * We configure the Ollama client to connect to the local instance.
 * 'nomic-embed-text' is a lightweight model suitable for semantic search.
 * 'llama3.1' is used here for text generation (optional for this specific retrieval example,
 * but included to show the full LLM integration).
 */
const embeddings = new OllamaEmbeddings({
  model: "nomic-embed-text",
  baseUrl: "http://localhost:11434", // Default Ollama port
});

const llm = new Ollama({
  model: "llama3.1",
  baseUrl: "http://localhost:11434",
});

/**
 * 2. DATA PREPARATION (SIMULATED DATABASE)
 * --------------------------------------------------
 * In a real SaaS app, this data would come from a database (PostgreSQL, MongoDB).
 * We create an array of Documents. Each document contains page content (text)
 * and metadata (useful for filtering).
 */
const documents: Document[] = [
  new Document({
    pageContent: "The QuickStart Pro running shoes feature advanced cushioning technology for long-distance runners.",
    metadata: { category: "Footwear", price: 120, id: "prod_001" },
  }),
  new Document({
    pageContent: "Ergonomic wireless mouse designed for productivity, with customizable buttons and long battery life.",
    metadata: { category: "Electronics", price: 45, id: "prod_002" },
  }),
  new Document({
    pageContent: "Organic cotton t-shirt, breathable and sustainable, available in multiple colors.",
    metadata: { category: "Apparel", price: 25, id: "prod_003" },
  }),
  new Document({
    pageContent: "Noise-cancelling over-ear headphones with immersive sound quality and 20-hour battery life.",
    metadata: { category: "Electronics", price: 299, id: "prod_004" },
  }),
];

/**
 * 3. CORE LOGIC: SEMANTIC SEARCH
 * --------------------------------------------------
 * This function simulates an API route handler (e.g., Next.js API Route).
 * It performs the following steps:
 * a. Loads documents into a vector store.
 * b. Embeds the user query.
 * c. Performs similarity search.
 * d. Returns the results.
 *
 * @param query - The user's natural language search string.
 * @returns Promise<Document[]> - The top matching documents.
 */
async function searchProducts(query: string): Promise<Document[]> {
  console.log(`\n[1] Processing Query: "${query}"`);

  // Step A: Initialize Vector Store with in-memory storage
  // In production, use Pinecone, Weaviate, or pgvector.
  const vectorStore = await MemoryVectorStore.fromDocuments(
    documents,
    embeddings
  );

  // Step B: Perform Similarity Search (k=2 returns top 2 results)
  // This internally calls the Ollama embedding API to vectorize the query,
  // then calculates cosine similarity against stored vectors.
  const searchResults = await vectorStore.similaritySearch(query, 2);

  console.log(`[2] Found ${searchResults.length} relevant documents.`);

  return searchResults;
}

/**
 * 4. GENERATION: AUGMENTING RETRIEVAL
 * --------------------------------------------------
 * This function demonstrates how to pass the retrieved context to an LLM
 * to generate a natural language response (RAG - Retrieval Augmented Generation).
 *
 * @param query - The original user question.
 * @param context - The documents retrieved from the vector store.
 */
async function generateResponse(query: string, context: Document[]) {
  // Format context into a single string for the LLM
  const contextText = context
    .map((doc) => `Product: ${doc.pageContent} (Price: $${doc.metadata.price})`)
    .join("\n");

  const prompt = `
    User Question: ${query}

    Context Products:
    ${contextText}

    Based on the context above, recommend the best product for the user.
    Be concise and friendly.
  `;

  console.log(`\n[3] Generating response with LLM...`);

  // Call the local LLM
  const response = await llm.invoke(prompt);

  return response;
}

/**
 * 5. EXECUTION (SIMULATED REQUEST)
 * --------------------------------------------------
 * Main entry point to run the example.
 */
async function main() {
  try {
    const userQuery = "I need shoes for running marathons";

    // Step 1: Retrieve
    const relevantDocs = await searchProducts(userQuery);

    // Step 2: Generate
    const aiResponse = await generateResponse(userQuery, relevantDocs);

    console.log("\n=== FINAL RESULT ===");
    console.log("Recommended Product:", aiResponse);
    console.log("====================\n");

  } catch (error) {
    console.error("Error during execution:", error);
  }
}

// Execute the main function
main();

Line-by-Line Explanation

1. Configuration & Initialization

• Imports: We import OllamaEmbeddings and Ollama from @langchain/community. These are the specific adapters that translate LangChain's standard interface into Ollama's API calls.
• Embeddings Instance: new OllamaEmbeddings(...) creates a client specifically for converting text into vector arrays. We target nomic-embed-text because it is optimized for semantic similarity tasks.
• LLM Instance: new Ollama(...) creates a client for text generation. While this specific "Basic Code Example" focuses on retrieval, we include the LLM to show how easily LangChain swaps between embedding models and generative models.

2. Data Preparation

• Documents: We create an array of Document objects. In LangChain, a Document is the standard unit of data.
  • pageContent: The actual text string to be indexed.
  • metadata: Key-value pairs attached to the text. This is crucial for SaaS apps to filter results (e.g., WHERE category = 'Electronics') after vector search or to display specific data (like price) without asking the LLM.

3. Core Logic: searchProducts Function

• MemoryVectorStore: We initialize a vector store in memory. This is a temporary database that holds the vectorized versions of our documents. In a production SaaS environment, you would replace this with PineconeVectorStore or WeaviateVectorStore for persistence.
• fromDocuments: This static method performs two distinct operations under the hood:
  1. It iterates through the documents array.
  2. It calls the Ollama Embedding API for each document to generate a vector (array of floating-point numbers).
  3. It stores these vectors in memory.
• similaritySearch: When we pass the userQuery, LangChain:
  1. Embeds the query string using the same Ollama model.
  2. Calculates the cosine similarity between the query vector and the stored document vectors.
  3. Returns the top k documents with the highest similarity scores.

4. Generation: generateResponse Function

• Context Formatting: We manually construct a prompt string. This is the "Augmentation" step in RAG. We inject the retrieved data (context) into the prompt so the LLM has factual grounding.
• llm.invoke: This sends the formatted prompt to the local Ollama Llama3.1 instance. The LLM processes the input and returns a text string.

5. Execution

• Async/Await: The entire flow is asynchronous because network requests to Ollama (running on localhost:11434) are non-blocking.
• Error Handling: Wrapped in a try/catch block to handle potential network errors or Ollama downtime.

Visualizing the Data Flow

The following diagram illustrates the request lifecycle within the LangChain.js graph structure.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the sequential flow of data within a LangChain.js graph, tracing a request from the initial input through the processing of nodes and edges until the final output is produced.

Common Pitfalls

When integrating Ollama with LangChain.js in a Node.js environment, developers frequently encounter specific issues related to local inference and asynchronous handling.

1. Ollama Timeout & Network Errors * Issue: LangChain defaults to short timeouts. Ollama inference on CPU-heavy models (like Llama 3 70B) can take 10-30 seconds, causing FetchError or AbortError. * Solution: Explicitly set a longer timeout in the configuration:

const llm = new Ollama({
  model: "llama3.1",
  baseUrl: "http://localhost:11434",
  // Increase timeout for local CPU inference
  timeout: 60000,
});

2. Hallucinated JSON in Tool Calls * Issue: If you use Ollama models for function calling (Tool Handling), smaller models (e.g., 7B parameters) often return natural language text instead of strict JSON, causing JSON.parse to fail in LangChain's output parsers. * Solution: Use stricter prompting or use models specifically fine-tuned for tool use (like function-calling variants). Always wrap parsing in try/catch:

try {
  const output = await chain.invoke({ input: query });
} catch (e) {
  console.error("Model failed to return valid JSON structure.");
}

3. Async/Await Loops in Vector Stores * Issue: When loading large datasets into a MemoryVectorStore using fromDocuments, the function awaits the embedding of every document sequentially. This blocks the Node.js event loop. * Solution: For large datasets, use batch processing or streaming. Do not attempt to embed 10,000 documents in a single fromDocuments call on a local machine; it will crash the process due to memory exhaustion.

4. Type Inference Failures with Dynamic Inputs * Issue: When passing dynamic metadata from a database to LangChain Document objects, TypeScript might infer types as any, losing type safety. * Solution: Define a strict interface for your metadata and cast the objects:

interface ProductMeta {
  category: string;
  price: number;
  id: string;
}

const doc = new Document({
  metadata: { category: "Electronics", price: 45 } as ProductMeta
});

5. SharedArrayBuffer (SAB) & WebGPU Limitations * Context: While this example uses Node.js/Ollama, if you port this logic to a browser using Transformers.js and WebGPU, you may hit SharedArrayBuffer errors. * Issue: SAB requires specific HTTP headers (Cross-Origin-Opener-Policy and Cross-Origin-Embedder-Policy) to be set on the server. Without them, the browser disables SAB for security, preventing parallel processing in Web Workers. * Solution: Ensure your web server (Vercel, Next.js, etc.) is configured to send these headers. In local dev, use --experimental-headers or specific Next.js next.config.js settings.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
