Chapter 7: Drizzle ORM - Type-Safe SQL

Theoretical Foundations

Imagine you are an architect designing a skyscraper. Before a single steel beam is welded or a window is installed, you need a precise, unchanging blueprint. This blueprint doesn't just describe the building's appearance; it dictates the exact dimensions, material specifications, load-bearing capacities, and electrical wiring paths. Every contractor, from the electrician to the plumber, references this same master blueprint. If the blueprint changes, every team is notified and must adjust their work accordingly. This ensures structural integrity and prevents costly, dangerous errors.

Drizzle ORM operates on this exact "schema-first" principle. It is not a framework that generates its own internal, opaque representation of your database. Instead, it provides a way to define a TypeScript-native, declarative blueprint for your database schema. This blueprint serves as the single source of truth, not just for the database itself, but for your entire application stack. When you define a table in Drizzle, you are simultaneously defining the database structure, the TypeScript types for your application code, and the validation rules for your data.

This is a fundamental departure from older ORMs that often rely on a "code-first" or "migration-first" approach, where the schema is inferred from application code or written in a separate, often non-TypeScript, language. In those systems, the blueprint is an afterthought, a consequence of the code. Drizzle inverts this: the blueprint is the foundation, and the application code is built directly upon it. This approach is critical for an AI-Ready SaaS boilerplate, where data integrity, type safety, and performance are non-negotiable. A single type mismatch between your API and your database can corrupt vector embeddings or break payment logic, leading to catastrophic failures.

The "Why": Beyond Type Safety to Systemic Cohesion

The primary driver for adopting a tool like Drizzle is type safety, but its true value lies in achieving systemic cohesion. Let's break down the "why" into three layers.

1. Compile-Time vs. Runtime Guarantees

In a previous chapter, we discussed Runtime Validation with Zod. We established that TypeScript's type system is a compile-time construct; it is erased when the code is transpiled to JavaScript and offers no protection against malformed data arriving from the outside world (e.g., an API response or a user form submission). Zod acts as the runtime gatekeeper, validating that incoming data conforms to a predefined schema.

Drizzle ORM bridges the gap between the database and this runtime validation layer. It provides compile-time guarantees for your database queries. When you write a query to fetch a user, Drizzle's TypeScript types will immediately tell you what properties are available on the returned object. If you try to access a property that doesn't exist, your IDE will flag it as an error before you even run the code.

Consider this analogy: Zod is the security guard at the front door of your application, checking the ID of every piece of data that enters. Drizzle is the architect's blueprint for the building's internal layout. The security guard (Zod) ensures only authorized data enters, but the blueprint (Drizzle) ensures that once inside, the data is stored and retrieved from the correct rooms, on the correct floors, with the correct wiring. Without the blueprint, the guard might let someone in, but they could end up in a room that doesn't exist, causing a system crash.

2. Eliminating the "Impedance Mismatch"

The "impedance mismatch" is a classic problem in software engineering where the object-oriented or functional models in an application don't align perfectly with the relational model of a SQL database. This mismatch leads to verbose, error-prone "glue code" to translate between the two worlds.

Drizzle minimizes this mismatch by making the TypeScript interface the direct representation of the database table. There is no translation layer. The users table you define in Drizzle is, for all intents and purposes, the User type in your application. This creates a seamless flow of data:

1. Database Schema: Defined in a single TypeScript file.
2. TypeScript Types: Automatically inferred from the schema.
3. API Endpoints: Use these types for request/response bodies.
4. Frontend Components: Consume these types via API clients (like tRPC or React Query).

This cohesion is especially vital for our SaaS boilerplate's Payment Stack. A payment record is a complex entity with many fields (amount, currency, status, customerId, invoiceId). If the TypeScript type for a payment record in the backend drifts from the actual database schema, you could attempt to write a status of "paid" to a column that expects an integer, or read a customerId that is null when your application logic assumes it's always present. Drizzle prevents this by making the schema the definitive contract.

3. The Vector Support Imperative

Our boilerplate is "AI-Ready," which means it must handle vector embeddings for semantic search and AI-driven features. Vectors are not a native SQL data type. They are typically stored as arrays of floating-point numbers. Drizzle's schema-first approach is perfect for this. You can explicitly define a column with a vector-compatible type, which Drizzle will then translate into the correct PostgreSQL syntax (e.g., vector(1536) for an OpenAI embedding).

This explicit definition serves as documentation and a compile-time check. If a developer tries to insert a string into a vector column, TypeScript will immediately flag the error. This is far safer than discovering the data corruption at query time.

The "How": A Deeper Dive into the Mechanics

Drizzle's magic lies in its composition of two core concepts: the Schema Definition and the Query Builder.

The Schema Definition: Your Single Source of Truth

The schema is defined using simple, composable functions. Each table is an object, and each column is a property of that object, defined with a type and optional constraints (like primaryKey, notNull, unique).

This is where you lay the foundation. For our SaaS, we might have a users table and a documents table. The documents table needs a vector column to store embeddings.

// This is a conceptual example of a Drizzle schema definition.
// It is declarative, readable, and serves as the blueprint for everything.

import { pgTable, serial, varchar, timestamp, vector } from 'drizzle-orm/pg-core';

// 1. Define the 'users' table.
// This is the blueprint for user data in our application.
export const users = pgTable('users', {
  id: serial('id').primaryKey(), // A unique, auto-incrementing identifier.
  email: varchar('email', { length: 256 }).notNull().unique(), // User's email, required and unique.
  passwordHash: varchar('password_hash', { length: 256 }).notNull(), // Hashed password, never plain text.
  createdAt: timestamp('created_at').defaultNow(), // Timestamp of account creation.
});

// 2. Define the 'documents' table for our AI features.
// This blueprint includes a vector column, which is crucial for our "AI-Ready" boilerplate.
export const documents = pgTable('documents', {
  id: serial('id').primaryKey(),
  userId: integer('user_id').references(() => users.id), // Foreign key relationship.
  content: text('content').notNull(), // The raw text of the document.
  embedding: vector('embedding', { dimensions: 1536 }), // A 1536-dimensional vector (e.g., for OpenAI embeddings).
  createdAt: timestamp('created_at').defaultNow(),
});

In this example, users and documents are not just database tables; they are TypeScript objects that Drizzle uses to generate types and build queries. The embedding column is explicitly typed as a vector, making our intent clear and type-safe.

The Query Builder: Type-Safe Interactions

Once the schema is defined, Drizzle's query builder allows you to construct SQL queries using a fluent, chainable API. The key here is that every operation is checked against the schema blueprint.

Let's visualize the flow of a query using Drizzle.

Hold "Ctrl" to enable pan & zoom

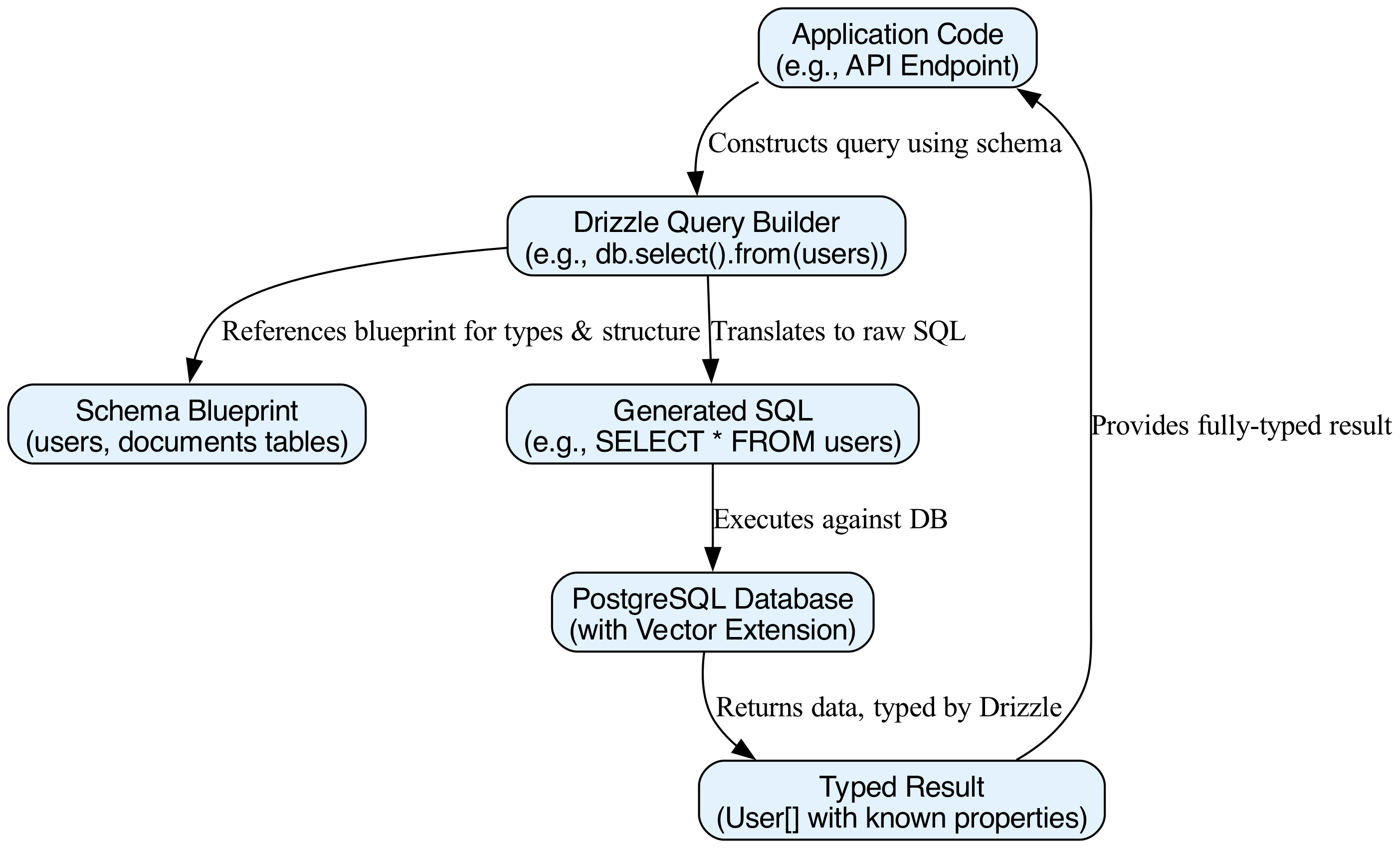

A Drizzle query flows from TypeScript code to the database, where every operation is validated against the schema blueprint to ensure type safety.

As the diagram illustrates, the Schema Blueprint is central. The Query Builder constantly refers to it. This ensures that the Generated SQL is valid and the Typed Result matches what the application code expects.

For example, when you write db.select().from(users), Drizzle knows the exact columns of the users table. The result of this query is not any or a generic Object. It is a User object, where User is an interface automatically generated from your schema definition. You can access user.email with full confidence that the property exists and is a string.

Analogy: The Restaurant Kitchen

To solidify this, let's use a web development analogy: a professional restaurant kitchen.

• The Schema Blueprint (schema.ts) is the Master Recipe Book. It contains every dish's exact recipe: ingredients, quantities, cooking times, and plating instructions. It is the single source of truth for the entire kitchen staff. If the recipe for "Sous-Vide Steak" changes, every chef, sous-chef, and line cook must follow the new version. There is no ambiguity.
• The Query Builder is the Head Chef. The Head Chef doesn't invent recipes on the fly. They take orders (API requests) and use the Master Recipe Book (Schema) to instruct the line cooks (Database) on how to prepare the dish. The Head Chef ensures the order is correct and that the final dish matches the recipe's specifications.
• The Application Code (API Endpoints) is the Front-of-House Staff. They take customer orders (HTTP requests) and pass them to the Head Chef. They don't need to know how to cook, but they rely on the Head Chef and the Recipe Book to deliver the correct, high-quality dish (Data Response) to the customer.
• Runtime Validation (Zod) is the Food Safety Inspector. This inspector checks every ingredient that comes in the back door (e.g., produce, meat). They ensure the ingredients are fresh and meet quality standards before they ever reach the Recipe Book or the Head Chef. They prevent contaminated ingredients from ever entering the kitchen.

In a traditional, disorganized kitchen (without a tool like Drizzle), each chef might have their own handwritten version of the recipe. The Front-of-House might describe a dish differently than the kitchen makes it. This leads to inconsistency, errors, and unhappy customers. Drizzle enforces the discipline of the Master Recipe Book, ensuring every dish is perfect, every time.

Under the Hood: How Drizzle Achieves Type Inference

Drizzle's type safety isn't magic; it's a clever use of TypeScript's advanced type system. When you define a table, the pgTable function returns an object. Drizzle's internal types inspect this object and generate a corresponding TypeScript interface on the fly.

For our users table:

// When you define this...
export const users = pgTable('users', {
  id: serial('id').primaryKey(),
  email: varchar('email', { length: 256 }).notNull().unique(),
  // ...
});

// ...Drizzle's types effectively generate an interface like this:
interface User {
  id: number;
  email: string;
  passwordHash: string;
  createdAt: Date | null; // null because of .defaultNow()
}

This inference happens entirely at the type level. It's zero-cost at runtime, meaning it doesn't add any overhead to your compiled JavaScript. The query builder then uses these inferred types to ensure that operations like eq(users.email, 'test@example.com') are valid. It checks that 'test@example.com' is a string and that users.email is a column that can be compared to a string. If you tried eq(users.id, 'test@example.com'), TypeScript would immediately error because id is a number, not a string.

This deep integration between the schema definition and the query builder is what makes Drizzle a powerful tool for building robust, type-safe applications. It transforms your database from a passive data store into an active, type-checked participant in your application's architecture.

Basic Code Example

In a SaaS application, data integrity is non-negotiable. We need to define database schemas that map directly to our application's TypeScript types. Drizzle ORM excels here by being schema-first. We will build a simple "User" model for a SaaS dashboard. We will use Zod to validate incoming API data (e.g., a user registration form), Generics to create a reusable data-fetching utility, and Utility Types to derive specific TypeScript interfaces from our core Zod schema.

This example demonstrates how these three concepts weave together to provide end-to-end type safety from the database layer to the frontend API calls.

The Code

/**

 * @fileoverview A self-contained example demonstrating Drizzle ORM schemas,
 * Zod validation, Generics, and Utility Types in a SaaS context.
 *
 * Dependencies:
 * - drizzle-orm (for schema definitions)
 * - zod (for runtime validation)
 *
 * Note: This code is conceptual and assumes a standard Node.js environment.
 */

import { pgTable, serial, varchar, timestamp, boolean } from 'drizzle-orm/pg-core';
import { z } from 'zod';

// ==========================================
// 1. Database Schema Definition (Drizzle)
// ==========================================

/**

 * Defines the 'users' table in the PostgreSQL database.
 * We use Drizzle's schema-first approach to define the shape of our data.
 */
export const users = pgTable('users', {
  id: serial('id').primaryKey(), // Auto-incrementing primary key
  email: varchar('email', { length: 256 }).notNull().unique(), // User email
  name: varchar('name', { length: 256 }).notNull(), // User display name
  role: varchar('role', { length: 50 }).$type<'admin' | 'user'>().notNull(), // User role
  isVerified: boolean('is_verified').default(false), // Email verification status
  createdAt: timestamp('created_at').defaultNow(), // Timestamp of creation
});

// ==========================================
// 2. Zod Schema for Validation
// ==========================================

/**

 * Zod schema for validating incoming user data (e.g., from a registration form).
 * This ensures runtime safety and acts as the source of truth for our types.
 */
export const UserRegistrationSchema = z.object({
  email: z.string().email("Invalid email address"),
  name: z.string().min(1, "Name is required"),
  role: z.enum(['admin', 'user']).default('user'),
  isVerified: z.boolean().optional().default(false),
});

// Infer the TypeScript type from the Zod schema
export type UserRegistration = z.infer<typeof UserRegistrationSchema>;

// ==========================================
// 3. Utility Types in Action
// ==========================================

/**

 * We create a 'PublicUser' type by using the TypeScript 'Pick' utility.
 * We take only specific fields from our inferred type to expose publicly.
 * This prevents leaking sensitive or internal data (like internal IDs or flags).
 */
export type PublicUser = Pick<UserRegistration, 'email' | 'name' | 'role'>;

// ==========================================
// 4. Generic Data Fetcher
// ==========================================

/**

 * A generic function to fetch a user by ID from the database.
 *
 * Why Generics?
 * We want this function to work with any Drizzle table schema, but we also want
 * strict type safety for the return value based on the table passed in.
 *
 * @param table - The Drizzle table schema (e.g., users table).
 * @param id - The ID of the record to fetch.
 * @returns A promise resolving to the user object or null if not found.
 */
async function fetchUserById<T extends { id: any }>(
  table: T,
  id: number
): Promise<T | null> {
  // In a real app, this would be a Drizzle query like:
  // const result = await db.select().from(table).where(eq(table.id, id));

  // Mocking the database response for this example:
  console.log(`Fetching from table: ${table.name} with ID: ${id}`);

  // Simulating a database hit
  if (id === 1) {
    return {
      id: 1,
      email: 'sarah@example.com',
      name: 'Sarah Connor',
      role: 'admin',
      isVerified: true,
      createdAt: new Date(),
    } as unknown as T; // Casting for the sake of the mock
  }

  return null;
}

// ==========================================
// 5. Usage Example
// ==========================================

/**

 * Demonstrates the flow: Validate Input -> Generate Type -> Fetch Data.
 */
async function main() {
  // A. Validate incoming data (e.g., from an API POST request)
  const rawData = {
    email: 'john.doe@example.com',
    name: 'John Doe',
    role: 'user',
  };

  try {
    // Zod validates at runtime and throws if invalid
    const validatedData = UserRegistrationSchema.parse(rawData);

    // B. Use the inferred type for type-safe operations
    const newUser: UserRegistration = validatedData;

    console.log('Validated User:', newUser);

    // C. Fetch data using our Generic function
    // We pass the 'users' table schema. TypeScript infers the return type automatically.
    const fetchedUser = await fetchUserById(users, 1);

    if (fetchedUser) {
      // TypeScript knows the shape of 'fetchedUser' based on the 'users' table
      console.log('Fetched User Email:', fetchedUser.email);
    }

    // D. Using Utility Types for Public Exposure
    const publicProfile: PublicUser = {
      email: newUser.email,
      name: newUser.name,
      role: newUser.role,
    };

    console.log('Public Profile:', publicProfile);

  } catch (error) {
    console.error('Validation or Fetch Error:', error);
  }
}

// Execute the example
// main(); // Uncomment to run in a Node environment

Line-by-Line Explanation

1. Database Schema Definition (Drizzle)

• pgTable('users', { ... }): This initializes a new table named users using the Drizzle ORM for PostgreSQL. It defines the structure of the table in a declarative way.
• serial('id').primaryKey(): Creates an auto-incrementing integer column named id. It serves as the primary key for the table.
• varchar('email', { length: 256 }).notNull().unique(): Defines a string column for the email. .notNull() enforces a database constraint that the field cannot be empty, and .unique() ensures no two users can have the same email.
• $type<'admin' | 'user'>(): This is a Drizzle-specific helper that allows us to narrow the TypeScript type of a column. While the database stores it as a string, TypeScript will now only allow 'admin' or 'user' when accessing this property in code.

2. Zod Schema for Validation

• z.object({ ... }): Creates a schema object that defines the shape of data we expect.
• z.string().email(): Validates that the email field is a string and matches a valid email format. If validation fails, Zod throws a descriptive error.
• z.enum(['admin', 'user']): Restricts the role field to only accept one of the two specified string literals. This prevents invalid roles from being processed.
• z.infer<typeof UserRegistrationSchema>: This is the magic of Zod. It reads the schema definition and generates a precise TypeScript type (UserRegistration) automatically. This eliminates the need to manually write interfaces, ensuring the runtime validation and compile-time types are always in sync.

3. Utility Types in Action

• Pick<UserRegistration, 'email' | 'name' | 'role'>: TypeScript's Pick utility constructs a type by selecting the specified properties (email, name, role) from the existing UserRegistration type. This is crucial for security in SaaS apps; we create a PublicUser type that excludes internal fields like isVerified or id before sending data to the frontend.

4. Generic Data Fetcher

• <T extends { id: any }>: This defines a generic type variable T. The constraint extends { id: any } ensures that whatever type is passed in must have an id property. This is useful because Drizzle tables always have an id field.
• (table: T, id: number): The function accepts two arguments: the table schema (which is typed as T) and the ID to search for.
• Promise<T | null>: The return type is a Promise that resolves to either the full type T (the row found) or null (if no row matches the ID). This forces the caller to handle the "not found" case explicitly.

5. Usage Example

• UserRegistrationSchema.parse(rawData): This is where runtime validation happens. Zod checks rawData against the schema. If it passes, it returns the validated data; otherwise, it throws an error.
• fetchUserById(users, 1): We call our generic function, passing the users table schema. TypeScript infers that the return type will be the structure of the users table (matching the Drizzle definition).
• const publicProfile: PublicUser = ...: We construct an object adhering to the PublicUser type. TypeScript will error if we try to assign a value to a property not included in the Pick selection (e.g., trying to set isVerified here).

Visualizing the Data Flow

The following diagram illustrates how these concepts interact within the application architecture:

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the data flow from an external API response, through a TypeScript interface that enforces strict type safety (e.g., validating `isVerified`), to the final state management within the application architecture.

Common Pitfalls

When integrating Drizzle, Zod, and Generics in a SaaS environment, watch out for these specific issues:

1. The "Zod-to-Drizzle" Drift

   • The Issue: Manually defining a Zod schema and a Drizzle schema separately often leads to drift. You might update a column in Drizzle (e.g., make name optional) but forget to update the Zod schema.
   • The Fix: Use a single source of truth. Since Drizzle schemas are plain objects, you can write a script to generate Zod schemas from Drizzle schemas, or vice versa. Alternatively, keep them side-by-side and use strict naming conventions to ensure they are reviewed together during code reviews.

2. Generic Type Inference Failure

   • The Issue: When using generics like fetchUserById, TypeScript might fail to infer the correct return type if the table schema is passed dynamically or if the schema definition is complex (e.g., using relations). This results in the return type falling back to any or unknown, losing type safety.
   • The Fix: Ensure your generic constraints are tight. Instead of T extends any, use T extends Table. If using complex relations, you may need to explicitly type the return value using Drizzle's InferSelectModel helper: Promise<InferSelectModel<T> | null>.

3. Async/Await Loops in Data Seeding

   • The Issue: When seeding a SaaS database, developers often use forEach with an async callback. forEach does not wait for the async operations to complete; it fires them all off simultaneously and moves on. This can cause race conditions where subsequent logic executes before the database is ready.
   • The Fix: Always use for...of loops for sequential async operations or Promise.all for parallel operations where order doesn't matter.

     // BAD
     usersData.forEach(async (user) => {
       await db.insert(users).values(user);
     });
     console.log("Done"); // This runs before inserts finish

     // GOOD (Sequential)
     for (const user of usersData) {
       await db.insert(users).values(user);
     }
     console.log("Done"); // This runs after all inserts finish


4. Vercel/Serverless Timeouts with Drizzle Migrations

   • The Issue: In serverless environments (like Vercel), database connections are ephemeral. Running Drizzle migrations directly inside a serverless function (e.g., an API route) during a "cold start" can exceed the execution timeout limit if the migration involves complex schema changes or large data volumes.
   • The Fix: Never run migrations on every request. Run migrations programmatically only during deployment hooks (e.g., vercel-build script) or via a separate CLI command executed in a persistent environment (like a local machine or a dedicated CI/CD pipeline job). Use connection pooling (like pg-pool) and ensure you close connections properly to avoid exhausting database limits.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
