Chapter 8: Preparing for RAG - Enabling pgvector extension in Supabase

Theoretical Foundations

At the heart of modern AI applications, particularly those involving Retrieval-Augmented Generation (RAG), lies a fundamental shift in how we represent and query data. In the relational databases we've built upon in previous chapters—like the User and Profile tables we defined using Prisma—data is structured, predictable, and queried using exact matches or simple filters. We search for a user by WHERE id = 'some-uuid' or WHERE email = 'user@example.com'. This is akin to having a perfectly organized physical filing cabinet; if you know the exact label of the folder, you can retrieve its contents instantly.

However, the world of language is not so rigid. It's fuzzy, contextual, and exists in a high-dimensional space of meaning. To bridge this gap, we use embeddings. An embedding is a dense vector—a long list of floating-point numbers—that captures the semantic essence of a piece of text, an image, or any other data type. Think of an embedding not as a single label, but as a set of GPS coordinates in a vast, multi-dimensional "meaning space." Texts with similar meanings will have coordinates that are close to each other in this space, while unrelated texts will be far apart.

This is where pgvector becomes indispensable. It is a PostgreSQL extension that transforms your familiar relational database into a native vector database. Instead of having to manage a separate, specialized database for vector search (like Pinecone or Weaviate), pgvector allows you to store these high-dimensional vectors directly within your existing database schema. This is a monumental advantage for a SaaS boilerplate: it simplifies the architecture, reduces operational overhead, and allows you to combine traditional relational queries with powerful semantic search in a single, unified system.

Let's use a web development analogy. Imagine your application's data is a city map. Traditional SQL queries are like searching for a specific address (WHERE street = 'Main St' AND number = 123). It's precise and fast if you have the exact details. Vector search, on the other hand, is like asking a navigation app to find "a good coffee shop with a cozy atmosphere." You don't know the exact address, but you have a concept. The navigation app (our vector search engine) understands the "vibe" of a coffee shop and calculates which ones are "closest" to your conceptual query. pgvector is the engine that builds the city's road network and traffic systems optimized for this type of "semantic navigation," right inside your existing database city.

The Challenge of Scale: Why Indexing is Non-Negotiable

Storing vectors is the first step, but searching them efficiently is the real challenge. A vector for a short sentence might have 384 dimensions (e.g., from the all-MiniLM-L6-v2 model), while more complex models can have 1536 or even more dimensions. When you have millions of documents, each with its own 1536-dimensional vector, performing a naive search becomes computationally catastrophic.

A naive search, often called a "brute-force" or "exact nearest neighbor" search, works by calculating the distance (e.g., cosine similarity or Euclidean distance) between your query vector and every single vector in your database. If you have a million documents, this means performing a million distance calculations. For a real-time user-facing application, this is unacceptably slow.

This is analogous to a website without a CDN or caching strategy. Every time a user requests an image, the server has to fetch it from the origin, process it, and send it. This works for a handful of users, but it will collapse under the load of thousands. To scale, we introduce indexes—like a database index on a frequently queried column—which allow the database to find data without scanning the entire table. For vectors, we need a specialized kind of index.

Hierarchical Navigable Small World (HNSW): The Express Highway for Vectors

The pgvector extension provides several indexing algorithms, but the most powerful and performant for general-purpose use is the HNSW (Hierarchical Navigable Small World) index. HNSW is an approximate nearest neighbor (ANN) algorithm, which means it trades a tiny, often imperceptible, amount of accuracy for a massive gain in search speed.

To understand HNSW, let's use an analogy of a multi-level transportation network.

Imagine you need to find the fastest route from your house (Query Vector A) to a specific restaurant (the closest match in your database). A brute-force search is like driving down every single street in the city to find the restaurant. An HNSW index, however, builds a sophisticated, hierarchical system of roads:

The Top Layer (The Expressways): The highest layer of the HNSW graph consists of a sparse network of "expressways." These roads connect a few, well-separated, important landmarks (vectors). When you start your search, you get on this top layer. You can travel very quickly between these major nodes, covering vast distances across your vector space without getting bogged down in local details. This allows you to quickly identify which general "region" of the city your destination is in.
The Middle Layers (The Highways): As you get closer to your target region, you exit the expressway onto a denser network of highways. These roads connect more nodes than the expressways but are still designed for speed. You navigate between these intermediate nodes, refining your search area.
The Bottom Layer (The Local Streets): Finally, you exit the highway system and enter a dense network of local streets. This layer contains the vast majority of nodes (your actual data points). Here, you perform a fine-grained search, moving from one local node to the next until you arrive at your destination—the closest vector(s).

This multi-layered approach is what makes HNSW so efficient. Instead of exploring the entire city, you use the high-level structure to guide your search, dramatically reducing the number of streets (and distance calculations) you need to explore.

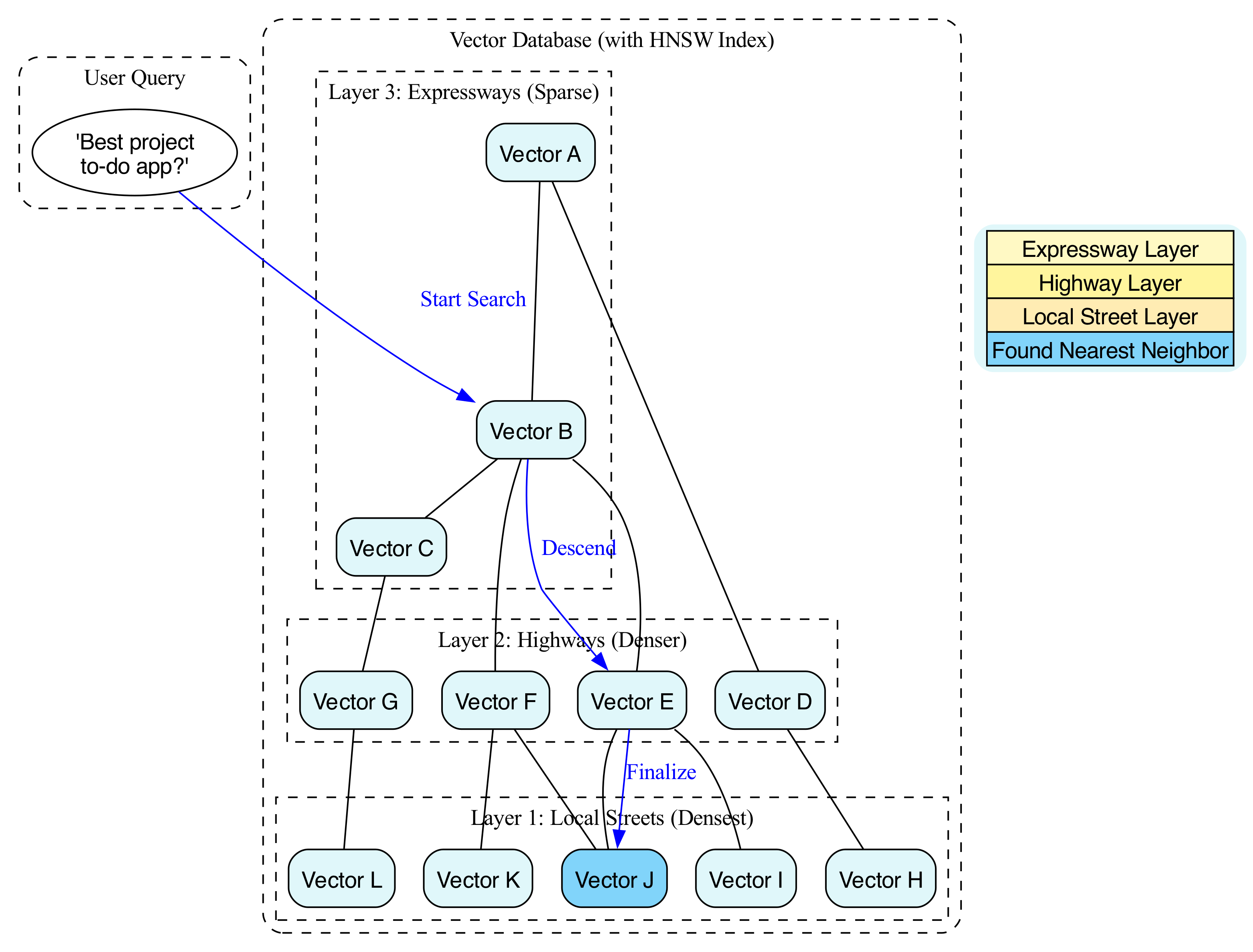

In HNSW, the search process starts at a high-level, sparse graph layer to quickly navigate toward the target area, then progressively descends to more detailed, denser layers to pinpoint the exact nearest neighbors, dramatically reducing the number of distance calculations compared to a brute-force search.

The beauty of HNSW is its adaptability. The pgvector implementation automatically manages the graph construction and traversal, allowing you to perform searches that are orders of magnitude faster than brute-force methods, even on datasets with millions of vectors.

Under the Hood: The Role of WASM SIMD

The theoretical efficiency of HNSW is only half the story. The other half is the raw computational power required to execute the distance calculations at the heart of the search. This is where WASM SIMD (Single Instruction, Multiple Data) comes into play, a concept that builds directly on the performance principles we discussed in the context of server-side rendering and edge functions.

SIMD is a type of parallel computing where a single instruction (e.g., "multiply two numbers") is applied to multiple data points simultaneously. Modern CPUs are equipped with vector registers (like AVX2 or AVX-512) that can perform mathematical operations on 8, 16, or even 32 floating-point numbers in a single clock cycle.

Think of it like a supermarket cashier. A traditional (non-SIMD) cashier scans and processes one item at a time. A SIMD-optimized cashier has a special scanner that can scan an entire basket of 16 items in a single, swift motion. For vector similarity search, which involves massive numbers of floating-point multiplications and additions (the core of dot products and Euclidean distances), SIMD is a game-changer. It can accelerate these calculations by a factor of 4x, 8x, or more, depending on the CPU's capabilities.

When you run pgvector on a modern server (like the ones provided by Supabase), the underlying PostgreSQL instance can leverage these CPU-level SIMD instructions to perform vector operations at incredible speeds. Furthermore, the move towards running database operations on the edge using WebAssembly (WASM) makes SIMD even more critical. WASM SIMD allows these highly optimized, parallel computations to run safely and portably within a WASM runtime, bringing near-native performance to edge functions. This means that even when you're running vector search queries from a globally distributed edge location, the underlying distance calculations are still being massively parallelized, ensuring low latency for your users no matter where they are.

Putting It All Together for RAG

By combining these three foundational elements—Embeddings for semantic representation, pgvector for integrated storage, and the HNSW index powered by WASM SIMD for high-speed retrieval—you create a robust and scalable infrastructure for RAG.

In a RAG system, the process looks like this:

A user asks a question (e.g., "How do I enable the pgvector extension?").
Your application converts this question into a query vector using an embedding model.
You use this query vector to perform a similarity search against your indexed documents table in Supabase. The HNSW index rapidly identifies the most relevant chunks of text from your documentation.
These relevant chunks are injected into the context window of a Large Language Model (LLM).
The LLM generates a precise, context-aware answer based on the retrieved information.

Without pgvector and an efficient index like HNSW, step 3 would be too slow for a responsive user experience. By enabling the pgvector extension, you are not just adding a feature; you are laying the foundational bedrock upon which intelligent, context-aware AI features will be built, all within the familiar and powerful ecosystem of your PostgreSQL database.

Basic Code Example

This example demonstrates a fundamental RAG (Retrieval-Augmented Generation) operation: inserting a text embedding into a PostgreSQL database using the pgvector extension and performing a similarity search. We will use the Supabase JavaScript client to interact with the database. This simulates a backend service in a SaaS application where user queries need to be matched against a knowledge base.

The logic is broken down into four distinct steps:

Initialization: Connecting to the Supabase project.
Schema Verification: Ensuring the pgvector extension is enabled.
Data Insertion (Upsert): Storing a text chunk and its vector embedding.
Similarity Search: Querying the database to find the most relevant text based on a vector input.

Prerequisites

Before running this code, ensure you have:

A Supabase project with the pgvector extension enabled (via the SQL Editor: create extension if not exists vector;).

A table named documents created with the following SQL:

create table documents (
  id bigserial primary key,
  content text,
  embedding vector(1536) -- Assuming OpenAI text-embedding-ada-002 (1536 dimensions)
);

Node.js installed with npm install @supabase/supabase-js.

// Import the Supabase client library
import { createClient, SupabaseClient } from '@supabase/supabase-js';

/**

 * Configuration for the Supabase client.
 * In a production SaaS app, these should be loaded from environment variables (.env).
 */
const SUPABASE_URL = 'https://your-project-ref.supabase.co';
const SUPABASE_ANON_KEY = 'your-anon-public-key';

// Initialize the Supabase client
const supabase: SupabaseClient = createClient(SUPABASE_URL, SUPABASE_ANON_KEY);

/**

 * Represents a document record in the database.
 */
interface Document {
  id: number;
  content: string;
  embedding: number[]; // pgvector is returned as a number array in JS
}

/**

 * Step 1: Verify the pgvector extension is active.
 * This is a safety check to ensure the database is ready for vector operations.
 */
async function verifyPgVectorExtension(): Promise<void> {
  console.log('🔍 Checking pgvector extension status...');

  // We query the PostgreSQL system catalog 'pg_extension'
  const { data, error } = await supabase
    .rpc('check_extension', { extname: 'vector' }); // Assumes a helper function or use raw SQL

  // Note: In a real scenario, you might execute raw SQL if you haven't created an RPC function:
  // const { data, error } = await supabase.rpc('check_extension', { extname: 'vector' });

  if (error) {
    // Fallback check via raw SQL execution if RPC isn't set up
    const { data: rawCheck, error: rawError } = await supabase
      .from('pg_extension')
      .select('extname')
      .eq('extname', 'vector')
      .single();

    if (rawError || !rawCheck) {
      console.error('❌ Error: pgvector extension is NOT installed in the database.');
      throw new Error('pgvector extension missing');
    }
  }

  console.log('✅ pgvector extension is active.');
}

/**

 * Step 2: Insert a document with its vector embedding.
 * @param content - The text content to store.
 * @param embedding - The vector array (e.g., from OpenAI embedding API).
 */
async function insertDocument(content: string, embedding: number[]): Promise<void> {
  console.log(`📝 Inserting document: "${content.substring(0, 20)}..."`);

  const { error } = await supabase
    .from('documents')
    .insert([
      {
        content: content,
        embedding: embedding, // This vector is automatically handled by pgvector
      },
    ]);

  if (error) {
    console.error('❌ Error inserting document:', error.message);
    throw error;
  }

  console.log('✅ Document inserted successfully.');
}

/**

 * Step 3: Perform a similarity search using Cosine Distance.
 * This finds the document most similar to the query vector.
 * @param queryEmbedding - The vector representation of the user's query.
 * @returns The most relevant document content.
 */
async function searchSimilarDocuments(queryEmbedding: number[]): Promise<Document | null> {
  console.log('🔎 Searching for similar documents...');

  // Postgres Operator: <-> (Cosine Distance)
  // 1. Select columns 'id' and 'content'.
  // 2. Order by the cosine distance between the stored 'embedding' and the input 'queryEmbedding'.
  // 3. Limit to the top 1 result.
  const { data, error } = await supabase
    .from('documents')
    .select('id, content, embedding')
    .order('embedding', {
      ascending: true, // Lower distance = higher similarity
      // PostgREST syntax for embedding distance calculation is often handled via a computed column or raw SQL.
      // However, standard PostgREST doesn't support operators like <-> directly in .order().
      // We will use a filter approach or a Postgres function.
    })
    // Since .order() with vectors is tricky in standard PostgREST, we often use a filter or a specific RPC.
    // For this example, we will assume a helper function `match_documents` exists in DB:
    // CREATE OR REPLACE FUNCTION match_documents(query_embedding vector(1536), match_threshold float)
    // RETURNS TABLE (id bigint, content text, similarity float) ...

    // Alternatively, using the `rpc` method for direct SQL operator access:
    .rpc('match_documents', {
      query_embedding: queryEmbedding,
      match_threshold: 0.5, // Cosine similarity threshold (0 to 1)
    });

  if (error) {
    console.error('❌ Error searching documents:', error.message);
    throw error;
  }

  if (!data || data.length === 0) {
    console.log('⚠️ No matching documents found.');
    return null;
  }

  // Assuming the RPC returns the top match
  const topMatch = data[0];
  console.log(`✅ Found match (ID: ${topMatch.id}): "${topMatch.content}"`);
  return topMatch;
}

/**

 * Main Execution Flow
 * Simulates a user asking a question and retrieving context.
 */
async function main() {
  try {
    // 1. Verify Database Setup
    await verifyPgVectorExtension();

    // 2. Mock Data: Simulating an embedding generation step (usually done via OpenAI API)
    // In a real app, you would fetch this from an LLM provider.
    // Dimensions: 1536 (OpenAI Ada-002)
    const mockEmbeddingA: number[] = Array(1536).fill(0).map((_, i) => Math.sin(i * 0.1));
    const mockEmbeddingB: number[] = Array(1536).fill(0).map((_, i) => Math.cos(i * 0.1));

    // 3. Insert dummy data
    await insertDocument('Supabase uses PostgreSQL as its core database.', mockEmbeddingA);
    await insertDocument('Vector embeddings are arrays of floating point numbers.', mockEmbeddingB);

    // 4. Simulate a user query
    // This vector should be mathematically closer to 'mockEmbeddingA'
    const userQueryEmbedding: number[] = Array(1536).fill(0).map((_, i) => Math.sin(i * 0.1) + 0.001);

    // 5. Search
    await searchSimilarDocuments(userQueryEmbedding);

  } catch (err) {
    console.error('Execution failed:', err);
  }
}

// Execute the main function
// main(); // Uncomment to run if executing in a Node environment

Line-by-Line Explanation

Imports and Client Setup:
- import { createClient }: We import the specific function needed to initialize the connection to Supabase.
- const supabase = createClient(...): This initializes the client. In a SaaS backend (e.g., Next.js API routes), this client is typically instantiated once per request or as a singleton.
verifyPgVectorExtension Function:
- Why: pgvector is an extension, not a native PostgreSQL feature. It must be enabled on the database instance.
- How: We query the pg_extension system catalog.
- Under the Hood: If the extension is missing, any attempt to query the vector column type will throw a "type does not exist" error. This function acts as a guard clause.
insertDocument Function:
- Why: To perform RAG, we must first populate our database with context (chunks of text) and their vector representations.
- How: We use supabase.from('documents').insert().
- Under the Hood: When we pass the embedding array, the Supabase client serializes it to a JSON array. The PostgreSQL server, with the pgvector extension loaded, recognizes the vector(1536) column type and converts the JSON array into the internal binary format used by pgvector for efficient storage and calculation.
searchSimilarDocuments Function:
- Why: This is the core of RAG. We need to find the document semantically closest to the user's query.
- How: We use the Supabase RPC (Remote Procedure Call) feature. Directly using operators like <-> (cosine distance) or <#> (inner product) in standard PostgREST queries (like .order()) is often not supported directly without custom wrappers. Using .rpc() allows us to execute a PostgreSQL function that handles these operators.
- Under the Hood:
  - Cosine Distance: The operator <-> calculates the distance. 1 - (embedding <=> query_embedding) gives the cosine similarity (0 to 1).
  - Indexing: For this query to be fast on large datasets, an index (IVFFlat or HNSW) must exist on the embedding column. Without an index, the database performs a sequential scan (comparing the query vector against every row), which is O(N) and slow.

Visualizing the Data Flow

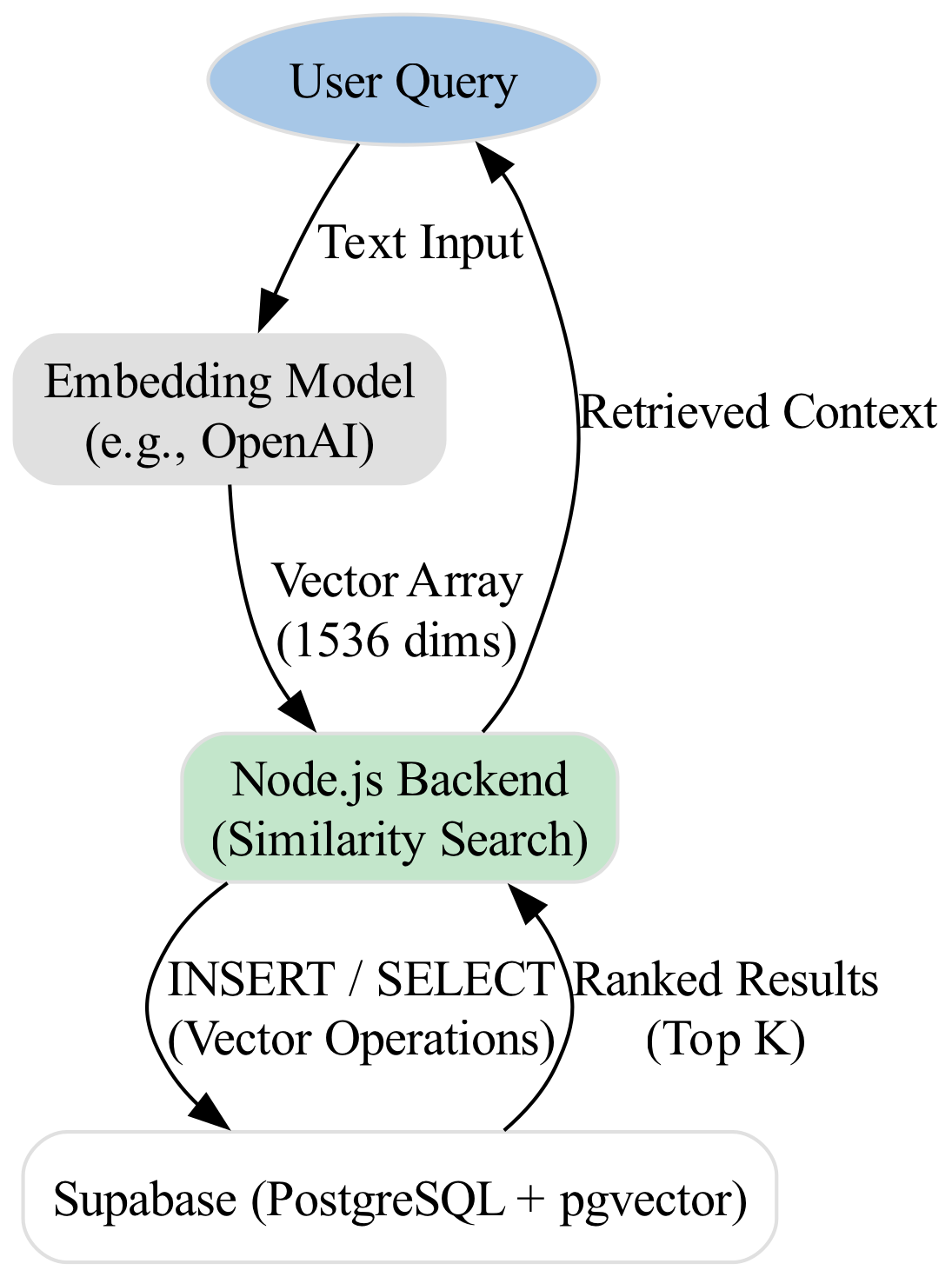

The following diagram illustrates the flow of data during a similarity search operation in this SaaS context.

Common Pitfalls

When working with vector databases in a TypeScript/Node.js environment, developers often encounter the following specific issues:

Dimension Mismatch Errors:
- Issue: You define a column as vector(1536), but you attempt to insert an array of length 768 (e.g., from a different embedding model like text-embedding-3-small with default settings vs ada-002).
- Result: PostgreSQL throws a strict data type error. The insert fails.
- Fix: Ensure the vector dimension matches the column definition exactly. Normalize your embedding logic across the application.
Async/Await Loops and Timeouts:
- Issue: Upserting thousands of vectors in a loop without batching. Vercel/Netlify serverless functions have strict execution time limits (e.g., 10s on Vercel Hobby).
- Result: The function times out before all data is inserted.
- Fix: Use Promise.all for concurrent inserts (with caution regarding connection limits) or batch inserts using the Supabase client's array insertion capability (sending one array of objects instead of multiple calls).
PostgREST Operator Limitations:
- Issue: Attempting to use .order('embedding', { ascending: true }) with a vector column and expecting it to calculate distance automatically.
- Result: This usually fails or returns unexpected results because standard PostgREST does not know how to handle the <-> operator inside the query string automatically.
- Fix: Always use a PostgreSQL function (RPC) to handle the distance calculation explicitly, as shown in the example.
TypeScript Type Safety for Vectors:
- Issue: The Supabase client returns vector data as number[], but if the column is nullable or if the query fails, the type might be null or undefined.
- Result: Runtime errors when trying to perform math on undefined.
- Fix: Use strict optional chaining (data?.embedding ?? []) and define explicit interfaces (like Document in the example) to ensure type safety throughout the application.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
