Chapter 11: Stripe Checkout Integration Basics

Theoretical Foundations

In the realm of modern SaaS architecture, integrating a payment gateway is not merely about collecting credit card numbers; it is about orchestrating a reliable, secure, and asynchronous state machine that bridges the gap between a user's intent (a purchase) and the system's reaction (provisioning access). This chapter focuses on Stripe Checkout, a hosted payment page that abstracts away the complexity of PCI compliance and UI rendering. However, the true challenge lies in the post-payment lifecycle: ensuring that when a user successfully pays, the backend reliably updates the database and grants the user their entitlements, even if the user closes their browser immediately after the transaction.

To understand this, we must look back at the foundational architecture established in Chapter 4: The AI-Ready Database with Vector Support. There, we configured a PostgreSQL database with the pgvector extension to store and query high-dimensional embeddings. In the context of payments, this database acts as the Single Source of Truth. When a payment succeeds, we do not simply trust a user's claim; we update the users table or a subscriptions table in that same database. The integrity of our SaaS depends on the atomicity of this database update.

The Analogy: The Restaurant Order vs. The Kitchen Ticket

Imagine a bustling restaurant. The Customer (the User) sits at a table and orders a complex dish. The Waiter (the Frontend/Client-side application) takes the order and writes it on a ticket. However, instead of running to the kitchen immediately, the Waiter hands the ticket to a Dispatcher (Stripe Checkout).

  1. The Handoff: The Dispatcher takes the ticket, validates the order (checks for allergies, validates payment method), and processes the transaction. The Waiter is now free to serve other tables.
  2. The Hosted Environment: The Customer is physically escorted to a separate, secure room (the Stripe Hosted Checkout Page) to handle the payment details. This isolates the sensitive task (entering a credit card) from the main dining area (your application UI), ensuring security and reducing liability.
  3. The Asynchronous Notification: Once the payment clears, the Dispatcher (Stripe) does not wait for the Waiter to return. Instead, it sends a Webhook—a dedicated, automated messenger—directly to the Kitchen (your Backend API). This messenger carries a ticket confirming the order details.
  4. The Fulfillment: The Kitchen (Backend) receives the webhook, checks the ticket against its internal ledger (the Database), and begins cooking (provisioning user access).

If the Waiter (Frontend) were to run the food to the table themselves, they might trip, or the Customer might leave before the food is ready. By relying on the Webhook (the dedicated messenger), the restaurant ensures the kitchen always knows what to cook, regardless of what happens in the dining room.

The Technical Architecture: A Directed Acyclic Graph of Events

In the context of our AI-Ready SaaS Boilerplate, we are moving away from simple synchronous request-response cycles (like a standard API call) and adopting a graph-based flow of money and data. While our AI agents (Chapter 8) might use LangGraph to determine the next step in a conversation, our payment system uses a linear but asynchronous graph of events.

The flow is defined by three distinct nodes:

  1. The Session Creation Node: The entry point where the user requests to pay.
  2. The Redirect Edge: The transition from the application to the external Stripe environment.
  3. The Webhook Listener Node: The terminal node where the external world notifies the internal system.

This structure ensures that the payment flow is resilient. If the user's internet connection drops during the redirect, the payment link remains valid, and the webhook will eventually fire when the payment succeeds.

Visualizing the Flow

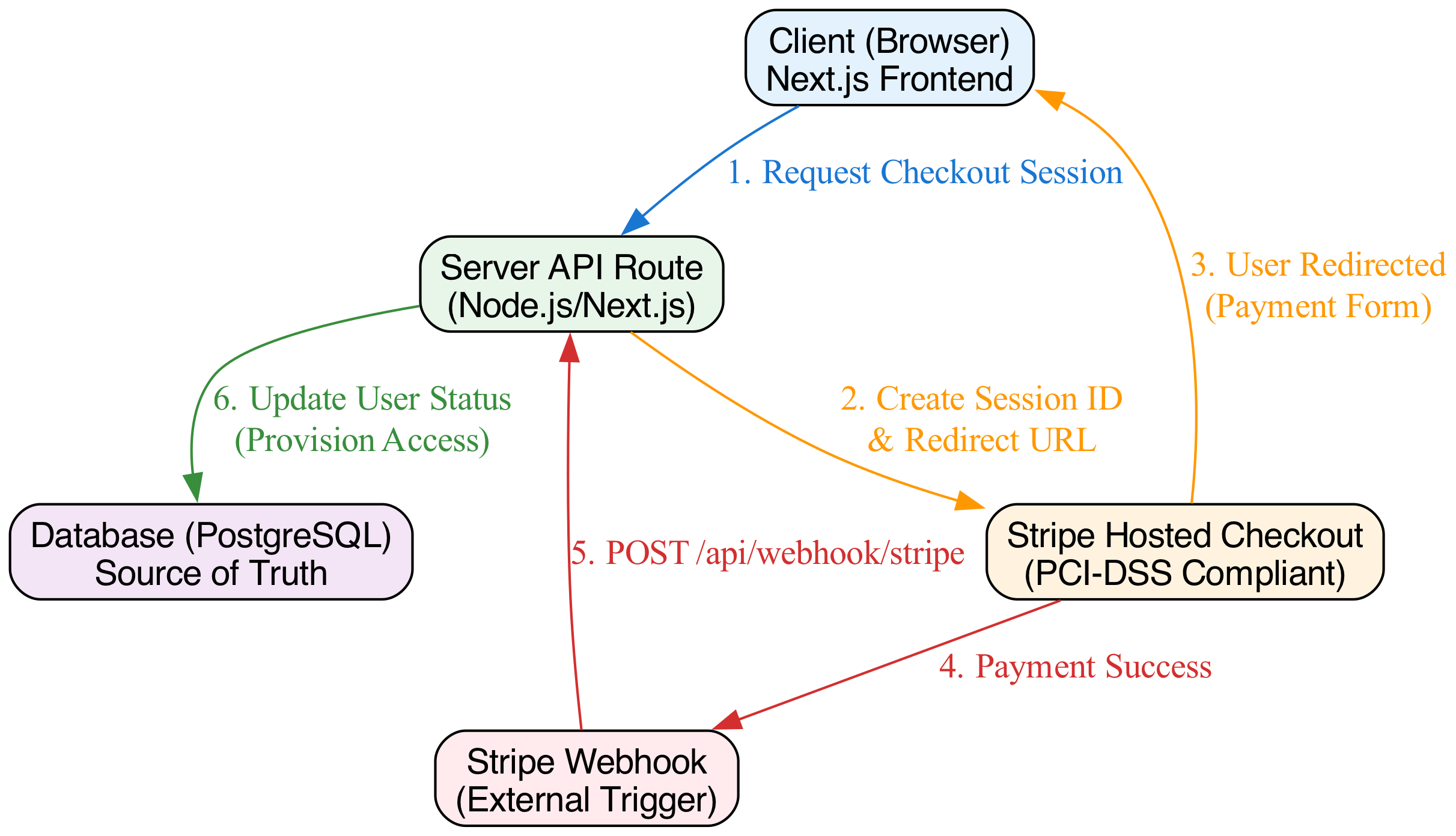

The following diagram illustrates the separation of concerns between the Client (Browser), the Payment Provider (Stripe), and the Server (Our API/Database).

Diagram: PaymentFlow
Hold "Ctrl" to enable pan & zoom

Diagram: PaymentFlow

The Three Pillars of Stripe Checkout Integration

To implement this robustly, we must understand the specific roles of the three components visualized above.

1. The Session Creation (The Entry Point)

When a user clicks "Upgrade to Pro," the frontend does not attempt to collect credit card details directly. Instead, it calls an API endpoint on our server. This server-side logic is the Entry Point Node of our payment graph.

Why server-side? Because the session creation requires the Secret API Key. If we generated the session on the client, we would expose our secret keys to the browser, allowing malicious actors to create arbitrary charges.

The server constructs a "Session" object. Think of this as a temporary, encrypted token representing a specific transaction. It contains:

  • Line Items: The product being purchased (e.g., "Pro Plan - $20/month").
  • Success URL: Where Stripe will redirect the user after they pay (though this is not the source of truth for fulfillment).
  • Metadata: Custom data (e.g., user_id: '12345') that will be echoed back to us in the webhook. This is crucial for linking the anonymous payment session to a specific user in our database.

2. The Hosted Checkout (The Isolation Layer)

Once the session is created, Stripe returns a url. The frontend performs a window redirect to this URL.

The "Why" of the Hosted Page: While we could use "Stripe Elements" to embed the payment form directly into our React components, using the Hosted Checkout simplifies the compliance burden. By sending the user to checkout.stripe.com, we are effectively offloading the handling of sensitive PII (Personally Identifiable Information) to Stripe. This reduces our PCI-DSS scope to SAQ A (the lowest level of compliance), which is significantly easier to maintain than building a custom payment form.

3. The Webhook Listener (The Fulfillment Engine)

This is the most critical component of the integration. A common mistake is relying on the client-side success_url redirect to trigger database updates (e.g., GET /api/upgrade?session_id=xyz).

Why is client-side reliance dangerous?

  1. Race Conditions: The user might open multiple tabs, triggering duplicate updates.
  2. Network Failures: The user might close the browser before the redirect completes.
  3. Malicious Intent: A savvy user could manipulate the URL to fake a payment status.

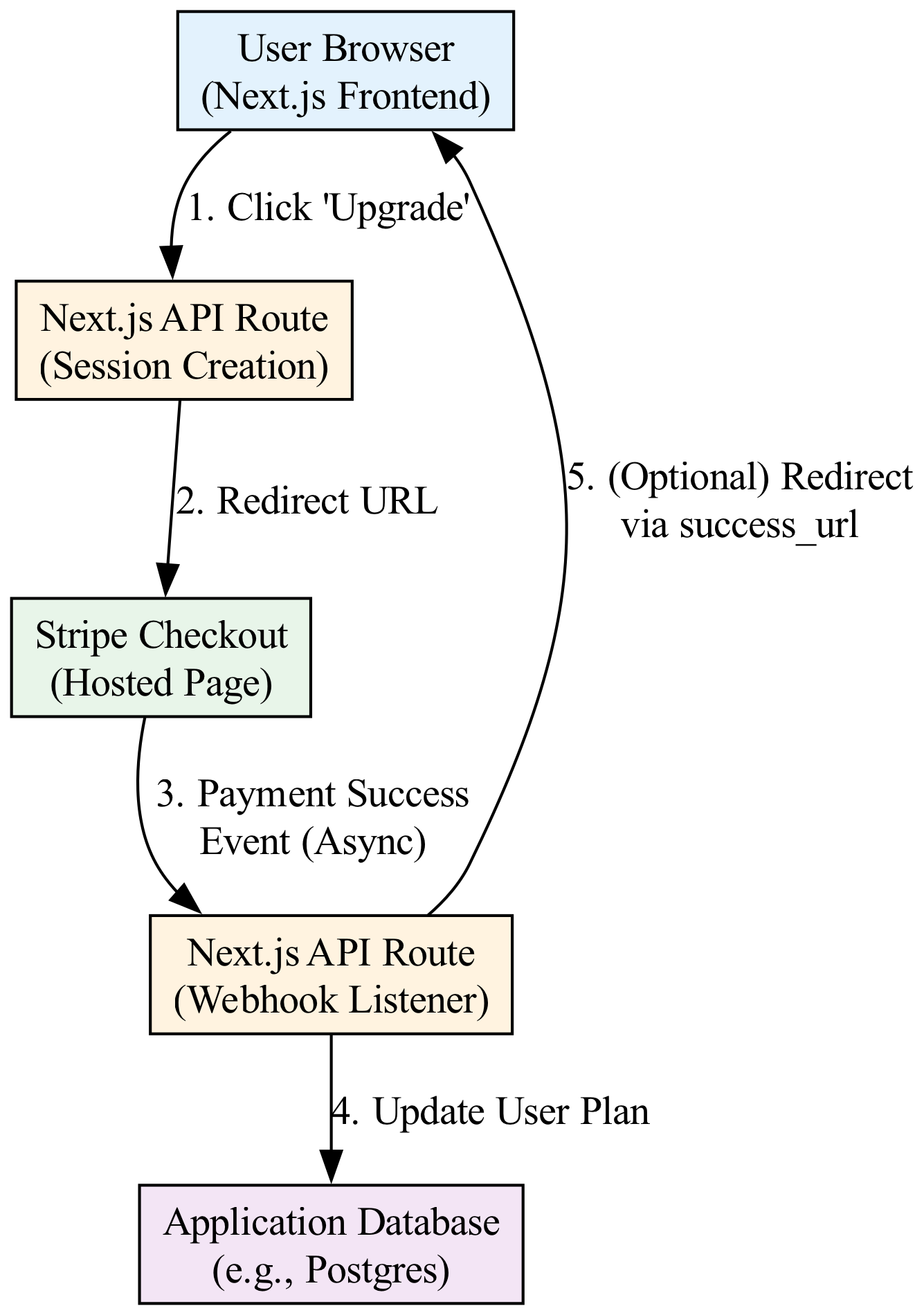

The Webhook is Stripe's way of pushing events to our server asynchronously. We must implement a listener that:

  1. Receives the event payload (e.g., checkout.session.completed).
  2. Verifies the signature. Stripe signs the payload with a secret. Our server must verify this signature using the stripe.webhooks.constructEvent method to ensure the request genuinely came from Stripe and not a hacker.
  3. Idempotency: We must handle the fact that webhooks can be retried. If Stripe fails to receive a 200 OK response from our server, it will send the same webhook again. Our logic must be idempotent—meaning processing the same event twice results in the same state (e.g., checking if the user is already a Pro member before granting access).

The "Under the Hood" Mechanism: Idempotency Keys and Database Transactions

When the webhook fires, the server executes a transaction against the database. In a previous chapter, we discussed Embedding Generation as an asynchronous process where text is converted into vectors. Similarly, payment fulfillment is an asynchronous process where a financial transaction is converted into a database state change.

To ensure reliability, we often use Idempotency Keys. In the context of Stripe, the id of the event (e.g., evt_123) serves as a natural idempotency key. We can store these IDs in our database (e.g., in a processed_events table) to ensure we never process the same event twice.

Theoretical Implementation of the Webhook Handler:

Below is a theoretical TypeScript representation of the webhook listener. Note the absence of database queries; we are focusing on the flow control and verification logic.

// File: /app/api/webhook/stripe/route.ts

import { NextRequest, NextResponse } from 'next/server';
import Stripe from 'stripe';

// Initialize Stripe with the secret key (Server-side only)
const stripe = new Stripe(process.env.STRIPE_SECRET_KEY!);

export async function POST(request: NextRequest) {
  const payload = await request.text();
  const signature = request.headers.get('stripe-signature')!;

  let event: Stripe.Event;

  try {
    // Step 1: Verification (The Security Check)
    // This ensures the payload hasn't been tampered with.
    event = stripe.webhooks.constructEvent(
      payload,
      signature,
      process.env.STRIPE_WEBHOOK_SECRET!
    );
  } catch (err) {
    // If verification fails, we reject the request immediately.
    return new NextResponse(`Webhook Error: ${err.message}`, { status: 400 });
  }

  // Step 2: Event Filtering (The Logic Branch)
  // We only care about the 'checkout.session.completed' event for fulfillment.
  if (event.type === 'checkout.session.completed') {
    const session = event.data.object as Stripe.Checkout.Session;

    // Step 3: Idempotency & Fulfillment
    // We extract the metadata passed during session creation.
    const userId = session.metadata?.userId;

    if (!userId) {
      return new NextResponse('Missing userId in metadata', { status: 400 });
    }

    // Step 4: State Update (The Database Transaction)
    // Here, we would update the database (from Chapter 4) to grant access.
    // This logic must be idempotent.
    await provisionUserAccess(userId, session.id);
  }

  // Step 5: Acknowledgement
  // Return 200 OK to tell Stripe the event was handled.
  return new NextResponse(JSON.stringify({ received: true }), { status: 200 });
}

// Theoretical helper function
async function provisionUserAccess(userId: string, stripeEventId: string) {
  // 1. Check if 'stripeEventId' has already been processed (Idempotency check)
  // 2. If not, update the 'users' table to set 'is_pro' = true
  // 3. Log the 'stripeEventId' to the processed_events table
  console.log(`Provisioning access for user ${userId}`);
}

Theoretical Foundations

By integrating Stripe Checkout via this three-step process (Session Creation, Hosted Redirect, Webhook Verification), we create a payment system that is:

  1. Secure: Sensitive data is handled by Stripe, not our servers.
  2. Reliable: Fulfillment is driven by server-to-server webhooks, not client-side promises.
  3. Scalable: The asynchronous nature of webhooks allows the backend to handle high volumes of transactions without blocking the user interface.

This architecture mirrors the robustness required for AI workflows: just as an AI Agent (Chapter 8) relies on a state graph to determine the next action, our payment system relies on a webhook-driven graph to determine the next state of the user's subscription.

Basic Code Example

Stripe Checkout is a pre-built, hosted payment page that handles the entire payment process, including card details, authentication, and confirmation. In a SaaS context, the typical flow involves:

  1. Server-Side Session Creation: Your backend generates a unique CheckoutSession object. This object defines the payment details (price, currency, success/cancel URLs) and attaches metadata to identify the user and subscription plan.
  2. Redirection: The client-side application receives the session ID and redirects the user to the Stripe-hosted URL.
  3. Webhook Fulfillment: After the payment is successful, Stripe sends an asynchronous event (checkout.session.completed) to your backend webhook listener. This is the "source of truth" where you must fulfill the order (e.g., activate the user's account in your database).

Below is a "Hello World" level example using Next.js (App Router) and TypeScript. It demonstrates the creation of a Basic Pro Plan checkout session and the webhook listener to handle the success event.

Code Example

1. Server-Side: Creating the Checkout Session

This API route creates a Stripe session for a one-time payment.

// File: app/api/checkout/basic/route.ts
import { NextResponse } from 'next/server';
import Stripe from 'stripe';

// Initialize Stripe with the secret key from environment variables
const stripe = new Stripe(process.env.STRIPE_SECRET_KEY as string, {
  apiVersion: '2023-10-16', // Use the latest API version
});

/**

 * POST /api/checkout/basic
 * Creates a Stripe Checkout Session for a basic SaaS plan.
 */
export async function POST() {
  try {
    // 1. Define the price ID from your Stripe Dashboard
    // In a real app, this might come from the request body or database lookup.
    const priceId = 'price_pro_plan_monthly';

    // 2. Create the Checkout Session
    const session = await stripe.checkout.sessions.create({
      payment_method_types: ['card'],
      line_items: [
        {
          price: priceId,
          quantity: 1,
        },
      ],
      mode: 'payment', // 'subscription' for recurring, 'payment' for one-time
      success_url: `${process.env.NEXT_PUBLIC_APP_URL}/dashboard?success=true`,
      cancel_url: `${process.env.NEXT_PUBLIC_APP_URL}/pricing?cancelled=true`,
      // Metadata is crucial for identifying the user during webhook fulfillment
      metadata: {
        userId: 'user_12345', // In a real app, get this from the authenticated session
        plan: 'basic',
      },
    });

    // 3. Return the session URL to the client
    if (!session.url) {
      return NextResponse.json(
        { error: 'Failed to create session' },
        { status: 500 }
      );
    }

    return NextResponse.json({ url: session.url });
  } catch (error) {
    console.error('Stripe Error:', error);
    return NextResponse.json(
      { error: 'Internal Server Error' },
      { status: 500 }
    );
  }
}

2. Webhook Listener: Handling Payment Events

This API route listens for Stripe events. It verifies the signature to ensure the request actually came from Stripe.

// File: app/api/webhooks/stripe/route.ts
import { NextResponse } from 'next/server';
import Stripe from 'stripe';

const stripe = new Stripe(process.env.STRIPE_SECRET_KEY as string, {
  apiVersion: '2023-10-16',
});

/**

 * POST /api/webhooks/stripe
 * Listens for Stripe events (e.g., payment success).
 * IMPORTANT: This endpoint must be raw-body parsable.
 * Next.js App Router handles this via the `request` object.
 */
export async function POST(request: Request) {
  const payload = await request.text(); // Get raw body as text
  const signature = request.headers.get('stripe-signature') as string;

  // 1. Verify the event came from Stripe
  let event: Stripe.Event;
  try {
    event = stripe.webhooks.constructEvent(
      payload,
      signature,
      process.env.STRIPE_WEBHOOK_SECRET as string
    );
  } catch (err) {
    const errorMessage = err instanceof Error ? err.message : 'Unknown error';
    console.error(`Webhook Signature Verification Failed:`, errorMessage);
    return NextResponse.json(
      { error: `Webhook Error: ${errorMessage}` },
      { status: 400 }
    );
  }

  // 2. Handle the specific event type
  switch (event.type) {
    case 'checkout.session.completed': {
      // Type guard to ensure we are working with the correct object structure
      const session = event.data.object as Stripe.Checkout.Session;

      // Extract metadata (user ID, plan)
      const userId = session.metadata?.userId;
      const plan = session.metadata?.plan;

      console.log(`Payment successful for user: ${userId}, plan: ${plan}`);

      // 3. FULFILLMENT LOGIC (The "Hello World" of SaaS activation)
      // This is where you update your database.
      // Example: await db.user.update({ where: { id: userId }, set: { plan: 'pro' } });

      break;
    }
    case 'invoice.payment_succeeded':
      // Handle recurring subscription payments here
      break;
    default:
      console.log(`Unhandled event type: ${event.type}`);
  }

  // 4. Return a 200 response to acknowledge receipt of the event
  return NextResponse.json({ received: true });
}

3. Client-Side: Triggering the Flow

This is a simple React Server Component or Client Component button that calls the API.

// File: app/components/UpgradeButton.tsx
'use client'; // Mark as Client Component if using Next.js App Router

import { useRouter } from 'next/navigation';

export function UpgradeButton() {
  const router = useRouter();

  const handleUpgrade = async () => {
    try {
      const response = await fetch('/api/checkout/basic', {
        method: 'POST',
      });

      const data = await response.json();

      if (data.url) {
        // Redirect user to Stripe Checkout
        router.push(data.url);
      } else {
        alert('Error creating checkout session');
      }
    } catch (error) {
      console.error('Error:', error);
    }
  };

  return (
    <button onClick={handleUpgrade} className="bg-blue-600 text-white px-4 py-2 rounded">
      Upgrade to Pro
    </button>
  );
}

Line-by-Line Explanation

1. Checkout Session Creation (route.ts)

  • import Stripe from 'stripe': Imports the official Stripe Node.js library.
  • const stripe = new Stripe(...): Initializes the Stripe client. It requires the Secret Key (found in the Stripe Dashboard). We use process.env to keep secrets out of the codebase.
  • stripe.checkout.sessions.create: This is the core API call.
    • line_items: An array of items the user is buying. We reference a price_id (created in the Stripe Dashboard) rather than hardcoding amounts to prevent tampering.
    • mode: 'payment': Sets the payment type. Use 'subscription' for SaaS recurring billing.
    • success_url / cancel_url: Where Stripe redirects the user after the flow. Note: You cannot trust these redirects for security (users can skip them). You must rely on the webhook for fulfillment.
    • metadata: A key-value store. This is critical for SaaS apps. We attach the internal userId here so that when the webhook fires later, we know exactly which user in our database to upgrade.

2. Webhook Listener (route.ts)

  • await request.text(): In the Next.js App Router, we must read the raw body text to verify the signature. Using request.json() modifies the body, which breaks Stripe's signature verification.
  • stripe.webhooks.constructEvent: This method cryptographically verifies that the request was sent by Stripe using your Webhook Secret. If this fails, the request is likely malicious or corrupted.
  • switch (event.type): Stripe sends many event types (e.g., invoice.payment_failed, customer.subscription.deleted). We specifically listen for checkout.session.completed.
  • Fulfillment Logic: Inside the case statement, we access event.data.object. We extract the metadata we set earlier. This is the moment to update your database. If you update the user's status to "Pro" here, the payment is guaranteed to be valid.

3. Client Component (UpgradeButton.tsx)

  • 'use client': Required in Next.js App Router for interactivity (click events).
  • fetch('/api/checkout/basic'): Calls our backend route to generate the session.
  • router.push(data.url): Redirects the browser window to the Stripe-hosted page (e.g., https://checkout.stripe.com/c/pay/...).

Logic Breakdown

  1. Initialization: The Stripe library is configured using environment variables. This separates configuration from code.
  2. Session Request: The client triggers the API. The server creates a session object in Stripe's database and returns a unique URL.
  3. User Interaction: The user enters card details on Stripe's secure domain.
  4. Stripe Event: Stripe processes the payment and sends an HTTP POST request to your webhook URL.
  5. Verification: Your server verifies the cryptographic signature.
  6. Fulfillment: Your server parses the event, extracts the metadata, and updates the user's subscription status in your own database.
  7. Response: Your server returns a 200 OK status code to Stripe to acknowledge the event.

Visualizing the Flow

In the webhook flow, the server first receives the event from Stripe, processes it, and then returns a 200 OK status code to acknowledge successful receipt.
Hold "Ctrl" to enable pan & zoom

In the webhook flow, the server first receives the event from Stripe, processes it, and then returns a `200 OK` status code to acknowledge successful receipt.

Common Pitfalls

  1. Trusting the success_url Redirect

    • The Issue: Users can manually navigate to the success URL without paying, or the redirect might fail due to network issues.
    • The Fix: Never activate a subscription based solely on the URL parameter ?success=true. Always wait for the checkout.session.completed webhook event to update the database.

  2. Webhook Signature Verification Failures

    • The Issue: constructEvent throws an error. This usually happens because the raw body was modified (e.g., parsed as JSON) before verification, or the Webhook Secret is incorrect.
    • The Fix: In Next.js App Router, always use await request.text() for the payload. Ensure you have copied the correct signing secret from the Stripe Dashboard (under Developers > Webhooks).

  3. Async/Await Loops in Fulfillment

    • The Issue: If your fulfillment logic involves multiple database calls or external API requests, failing to await them can lead to race conditions where the webhook response is sent before the database is updated.
    • The Fix: Use async/await consistently. If the fulfillment process is long-running (>10 seconds), consider queuing the job (e.g., using Upstash Redis or AWS SQS) and returning a 200 response immediately to Stripe.

  4. Hardcoded Price IDs

    • The Issue: Hardcoding price IDs in the frontend or code makes it difficult to switch between Test and Live modes or update prices without a code deploy.
    • The Fix: Store Price IDs in environment variables (e.g., STRIPE_PRICE_PRO_ID) or fetch them dynamically from your database based on the user's selection.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
