Chapter 14: User Dashboard with Natural Language Search

Theoretical Foundations

At the heart of the user dashboard is a fundamental shift in how we interpret user intent. Traditionally, a search bar on a web application operates like a librarian who can only match exact words. If you ask for "books about the history of Rome," the librarian checks the index for the literal string "history" and "Rome." If a book is titled "The Rise and Fall of the Roman Empire," the librarian might miss it entirely because it doesn't contain the word "history." This is lexical search. It is brittle, dependent on exact terminology, and fails to grasp the underlying meaning of a query.

The dashboard we are building moves beyond this limitation by implementing semantic search. This is a system that understands the meaning behind words, not just their literal occurrence. It recognizes that "history of Rome" and "the rise and fall of the Roman Empire" are conceptually related. To achieve this, we rely on a RAG Pipeline, a concept introduced in the previous chapter. In that chapter, we established the foundation for ingesting and preparing data. Now, we focus on the retrieval and synthesis phases, specifically how a user's natural language query interacts with the stored vector data to produce meaningful results.

The core mechanism enabling this is the use of vector embeddings. An embedding is a numerical representation of a piece of text, an image, or any other data, typically a long list of floating-point numbers. Imagine you have a vast, multi-dimensional space—a library with an infinite number of shelves. Each unique concept (like "royalty," "technology," "ancient history," or "quantum physics") has a specific location in this space. A document about "the Roman Empire" would be placed on a shelf near "ancient history" and "European geography," but far away from "modern software development." The process of converting text into this numerical format is done by a pre-trained model (like OpenAI's text-embedding-ada-002 or a local model). The resulting vector is the coordinate of that text in this conceptual space.

When a user types a query into the dashboard's search bar, the system does not search for keywords. Instead, it takes the user's query, passes it through the same embedding model to generate a query vector, and then searches for the data points (document vectors) that are closest to this query vector in the multi-dimensional space. This "closeness" is calculated using a distance metric, such as Cosine Similarity. Cosine Similarity measures the angle between two vectors. A smaller angle (closer to 0 degrees) means the vectors point in a similar direction, indicating a higher semantic similarity, regardless of their magnitude. This is the mathematical foundation that allows "history of Rome" to find "the rise and fall of the Roman Empire."

The Database Engine: Supabase and the `pgvector` Extension

To perform these complex vector operations efficiently, we need a database that understands them natively. This is where our choice of Supabase, as discussed in the context of our AI-Ready SaaS Boilerplate, becomes critical. Supabase is built on PostgreSQL, a powerful open-source relational database. Its extensibility is its superpower. We leverage the pgvector extension, which transforms PostgreSQL into a high-performance vector database.

pgvector introduces a new data type, vector, which allows us to store embeddings directly within our database tables. This is a monumental advantage over using a separate, specialized vector database. It keeps our data, our vectors, and our application logic co-located, simplifying the architecture and improving data consistency. We can perform vector similarity searches using standard SQL-like syntax, making it incredibly intuitive for developers already familiar with PostgreSQL.

Consider the analogy of a Spatial Index in a Mapping Application. When you zoom out on a map of a city, the application needs to quickly find all points of interest (restaurants, parks, landmarks) within the current viewport. It doesn't scan every single point on the planet. Instead, it uses a spatial index (like an R-tree) that organizes data based on its geographical coordinates. This allows it to rapidly discard vast areas that are irrelevant to the current view and focus only on what's visible.

pgvector works in a similar way for our conceptual space. It uses a specialized index, such as HNSW (Hierarchical Navigable Small World) or IVFFlat (Inverted File with Flat Compression), to organize our vector embeddings. When a query vector arrives, the database doesn't perform a brute-force calculation against every single document vector (which would be computationally prohibitive). Instead, it uses the index to navigate the high-dimensional space, quickly converging on the nearest neighbors to the query vector. This is how we achieve sub-second search results over millions of documents. The pgvector extension is the engine that makes our semantic search practical and performant.

The Search Operation: Combining Vector Similarity with Metadata Filtering

A pure vector search is powerful, but in a real-world SaaS application, it's often not enough. A user might want to search for "project proposals" but only within their own organization's documents, or find "meeting notes" from "last week." This requires combining the power of semantic understanding with the precision of traditional database filtering. This is where Metadata Filtering comes into play.

Metadata filtering allows us to apply scalar constraints to our search. Think of it as a two-stage filtering process. First, we use the vector index to find the semantically closest documents to the user's query. Second, we apply a traditional WHERE clause on the database table to filter these results based on non-vector columns, such as user_id, created_at, document_type, or author.

Let's use a web development analogy: Microservices with an API Gateway. Imagine you have a complex e-commerce platform. A user wants to find "running shoes." The search service (our vector search) is a specialized microservice that is excellent at understanding the concept of "running shoes" and returning a list of potential products. However, it doesn't know about the user's context. The API Gateway (our application logic with metadata filtering) receives the request. It first calls the search service to get a list of relevant products. Then, it applies additional business logic: "Is this product in stock?" "Is the user in a region where we ship?" "Does the user have a 'premium' subscription that unlocks certain brands?" This combination of a specialized service (semantic search) and contextual logic (metadata filtering) provides a rich, relevant, and personalized result.

In our dashboard, this translates to a powerful user experience. The user types a query like "financial report Q4." The system generates a vector for this query. It then executes a search that looks something like this (conceptually):

Vector Search: Find documents whose embeddings are most similar to the vector for "financial report Q4."
Metadata Filter: From those results, only return documents where user_id matches the currently logged-in user and document_type is 'report'.

This ensures that the user sees semantically relevant results that are also contextually appropriate, blending the fuzzy power of AI with the rigid precision of a relational database.

The User Dashboard: Orchestrating the Experience

The user dashboard is the final destination for this entire process. It's the interface where the complex backend operations are presented to the user in a clean, intuitive, and responsive layout. The dashboard's primary job is to orchestrate the interaction between the user, the frontend state, the API, and the database.

When the dashboard component mounts, it likely makes an initial call to fetch user account metrics and subscription status. This is standard data fetching. The search bar, however, is the dynamic centerpiece. As the user types, we can implement debouncing to prevent excessive API calls. On submission (or after a threshold of typing), the query is sent to our backend API endpoint.

The backend endpoint receives the query string. It then executes the RAG pipeline's retrieval phase:

It calls the embedding model to convert the query into a vector.
It constructs a query against Supabase using the pgvector operators (e.g., <=> for cosine distance).
It applies the necessary metadata filters (like eq('user_id', currentUser.id)).
It executes the query and receives a list of matching documents, along with their similarity scores.

The backend returns these results to the dashboard. The dashboard then updates its state, causing the UI to re-render and display the search results. These results are often presented as a list of cards, each showing a snippet of the document, its title, and perhaps its relevance score. The dashboard layout is designed to be responsive, meaning it adapts gracefully from a wide desktop monitor to a narrow mobile screen, ensuring the user can access their data from any device.

The entire flow is a seamless loop: User Intent (Query) -> Semantic Understanding (Vector Embedding) -> Intelligent Retrieval (Vector DB + Metadata) -> Visual Presentation (Dashboard UI). This transforms the dashboard from a simple data viewer into an intelligent assistant that helps users find the information they need, even if they don't know the exact words to describe it.

Visualization of the Data Flow

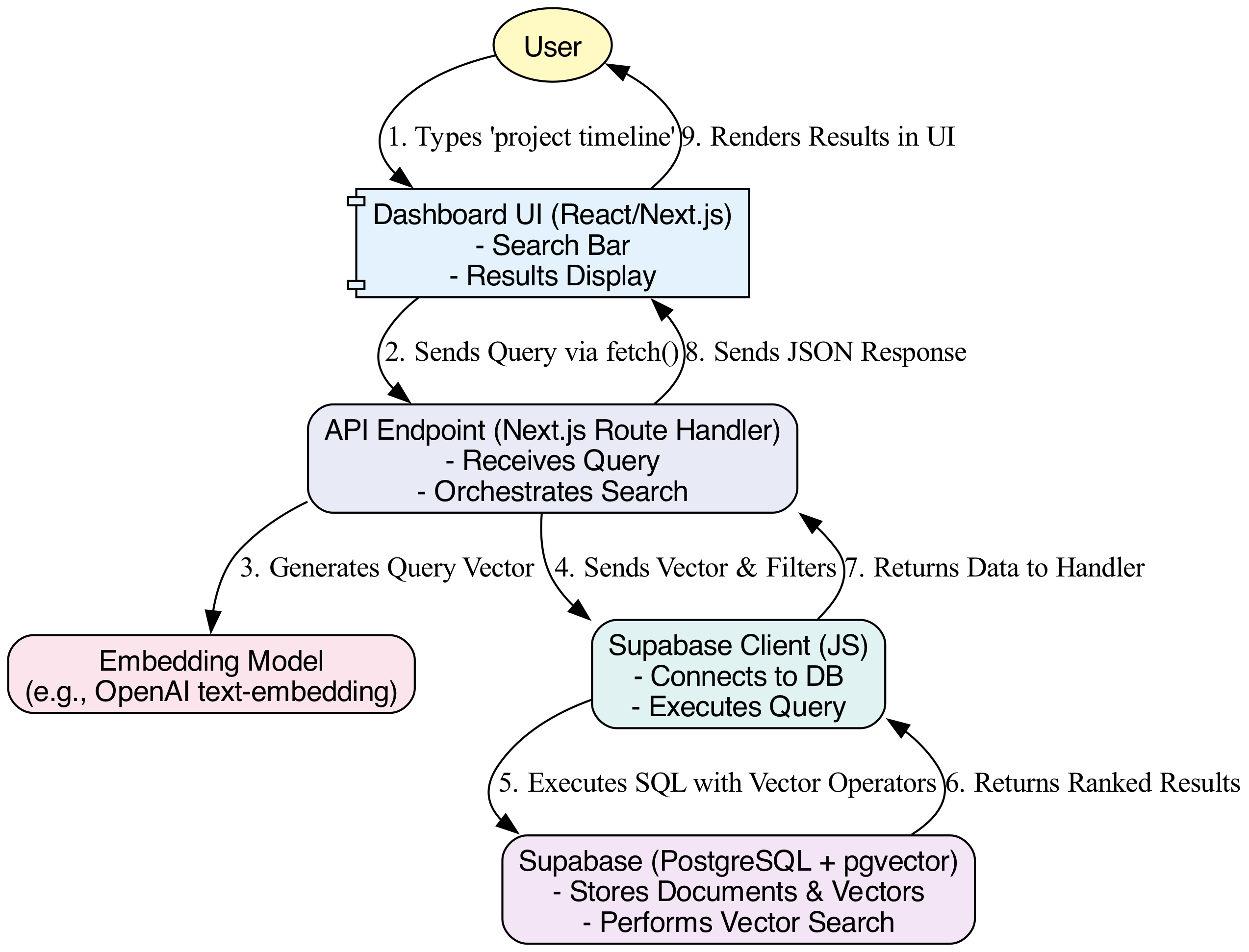

The following diagram illustrates the end-to-end process of a user query on the dashboard, from the UI to the database and back.

This diagram illustrates the end-to-end process of a user query, tracing the data flow from the initial UI input, through the AI-powered transformation, to the database retrieval, and finally back to the dashboard as an intelligent response.

Basic Code Example

Here is a comprehensive breakdown of the "Basic Code Example" for User Dashboard with Natural Language Search, focusing on the integration of a Server Action with Type Narrowing and JSON Schema Output for reliable LLM parsing.

The Core Concept: Intelligent Search via Server Actions

In a modern SaaS dashboard, users often struggle to formulate precise database queries. Instead of forcing them to learn a specific syntax or click through complex filters, we leverage an LLM to interpret natural language. However, LLMs are probabilistic; their output is a string, not structured data. To build a robust application, we must treat the LLM as a "dumb" text generator that produces a JSON string adhering to a strict JSON Schema. We then use Type Narrowing in TypeScript to ensure that, before we attempt to access specific properties of the result, the data is exactly what we expect.

The following example demonstrates a Next.js Server Action that accepts a user's search query, constructs a prompt for an LLM, and returns a structured search filter. We will simulate the LLM response to keep the example self-contained and runnable.

// app/actions/search.ts

'use server'; // Marks this function as a Server Action

import { z } from 'zod';

// --- 1. DEFINING THE SCHEMA ---
// We define the expected structure of the search parameters using Zod.
// This schema acts as our "JSON Schema" definition.
const SearchFilterSchema = z.object({
  query: z.string().min(1, "Search query cannot be empty"),
  dateRange: z.enum(["last_7_days", "last_30_days", "all_time"]).default("all_time"),
  priority: z.enum(["high", "medium", "low"]).optional(),
});

// Infer the TypeScript type from the Zod schema for type safety.
type SearchFilter = z.infer<typeof SearchFilterSchema>;

// --- 2. THE SERVER ACTION ---
/**

 * Processes a natural language query into a structured database filter.
 *
 * @param {string} naturalLanguageQuery - The raw text input from the user (e.g., "Show me high priority tasks from last week").
 * @returns {Promise<SearchFilter>} - A promise that resolves to the structured filter object.
 *
 * @throws {Error} - If the LLM output cannot be parsed or validation fails.
 */
export async function processSearchQuery(
  naturalLanguageQuery: string
): Promise<SearchFilter> {

  // --- 3. LLM INTERACTION (SIMULATED) ---
  // In a real app, this is where you would call an LLM (OpenAI, Anthropic, etc.)
  // with a prompt enforcing the JSON Schema.
  // For this "Hello World" example, we simulate the LLM's output string.

  const llmResponseString = simulateLLMResponse(naturalLanguageQuery);

  // --- 4. PARSING AND TYPE NARROWING ---
  // We attempt to parse the raw string from the LLM into a JavaScript object.
  // This is the critical step where we narrow the type from 'unknown' or 'any'
  // to a specific, validated structure.
  let parsedData: unknown;

  try {
    parsedData = JSON.parse(llmResponseString);
  } catch (error) {
    throw new Error("LLM produced invalid JSON syntax.");
  }

  // --- 5. VALIDATION (RUNTIME TYPE GUARD) ---
  // We use the Zod schema to validate the parsed object.
  // If validation succeeds, the returned data is typed as 'SearchFilter'.
  // If it fails, Zod throws an error, which we catch and handle.
  const validation = SearchFilterSchema.safeParse(parsedData);

  if (!validation.success) {
    console.error("Validation failed:", validation.error.errors);
    throw new Error("The search parameters extracted are invalid.");
  }

  // At this point, TypeScript knows 'validation.data' is of type 'SearchFilter'.
  // We have successfully narrowed the type from 'unknown' to a specific structure.
  return validation.data;
}

// --- 6. HELPER: SIMULATED LLM RESPONSE ---
// This function mocks an LLM call. It demonstrates how an LLM might interpret
// different user intents and format them according to our JSON Schema.
function simulateLLMResponse(input: string): string {
  const lowerInput = input.toLowerCase();

  if (lowerInput.includes("urgent") || lowerInput.includes("high priority")) {
    // Example: User asks for high priority items
    return JSON.stringify({
      query: "urgent tasks",
      dateRange: "all_time",
      priority: "high"
    });
  }

  if (lowerInput.includes("last week") || lowerInput.includes("recent")) {
    // Example: User asks for recent items
    return JSON.stringify({
      query: "recent updates",
      dateRange: "last_7_days",
      priority: undefined // Optional field
    });
  }

  // Default case
  return JSON.stringify({
    query: input,
    dateRange: "all_time",
    priority: undefined
  });
}

Line-by-Line Explanation

'use server';: This directive marks the function as a Server Action. It allows the function to be called directly from a client-side component (like a form or a button click) without manually creating an API endpoint. The code executes securely on the server.
import { z } from 'zod';: We import Zod, a TypeScript-first validation library. It is essential for defining our JSON Schema and performing runtime validation.
const SearchFilterSchema = z.object({ ... }): This defines the "shape" of the data we expect the LLM to return.
- query: A required string.
- dateRange: An enum with specific values, defaulting to "all_time".
- priority: An optional enum.
- Why: By defining this schema, we create a contract. If the LLM hallucinates a field like "time_frame" instead of "dateRange", Zod will catch it.
type SearchFilter = z.infer<typeof SearchFilterSchema>: This uses TypeScript's type inference to generate a static type based on our runtime schema. This ensures that throughout our application, we use the exact same definition for the data structure, eliminating drift between runtime and compile-time types.
export async function processSearchQuery(...): The Server Action definition. It accepts the raw string from the frontend.
- Progressive Enhancement Note: Even if JavaScript fails on the client, the form submitting this data can still hit the server endpoint (though in Next.js App Router, standard HTML forms work slightly differently with Server Actions, the principle remains: the logic is server-side and robust).
simulateLLMResponse(naturalLanguageQuery): In a production environment, this block would contain the API call to an LLM provider. The prompt sent to the LLM would explicitly instruct it to respond only with JSON matching the SearchFilterSchema. We mock this to make the code runnable.
JSON.parse(llmResponseString): This converts the string output from the LLM into a JavaScript object.
- Critical Safety Step: We assign the result to a variable typed as unknown. We do not trust the LLM. At this stage, the object could be a string, a number, or a malformed object. We must treat it as opaque until validated.
SearchFilterSchema.safeParse(parsedData): This is the Type Narrowing mechanism.
- How it works: Zod checks if parsedData matches the schema.
- The Narrowing: If validation.success is true, TypeScript's control flow analysis knows that validation.data is of type SearchFilter. It has narrowed the type from unknown to a specific object structure.
- Why: This prevents runtime errors like undefined access. If we tried to access validation.data.dateRange without this check, TypeScript would warn us that the property might not exist.
Error Handling: If validation fails, we throw an error. In a real app, this would be caught by a global error boundary or displayed as a toast notification to the user, informing them that the AI couldn't understand their request.

Visualization of Data Flow

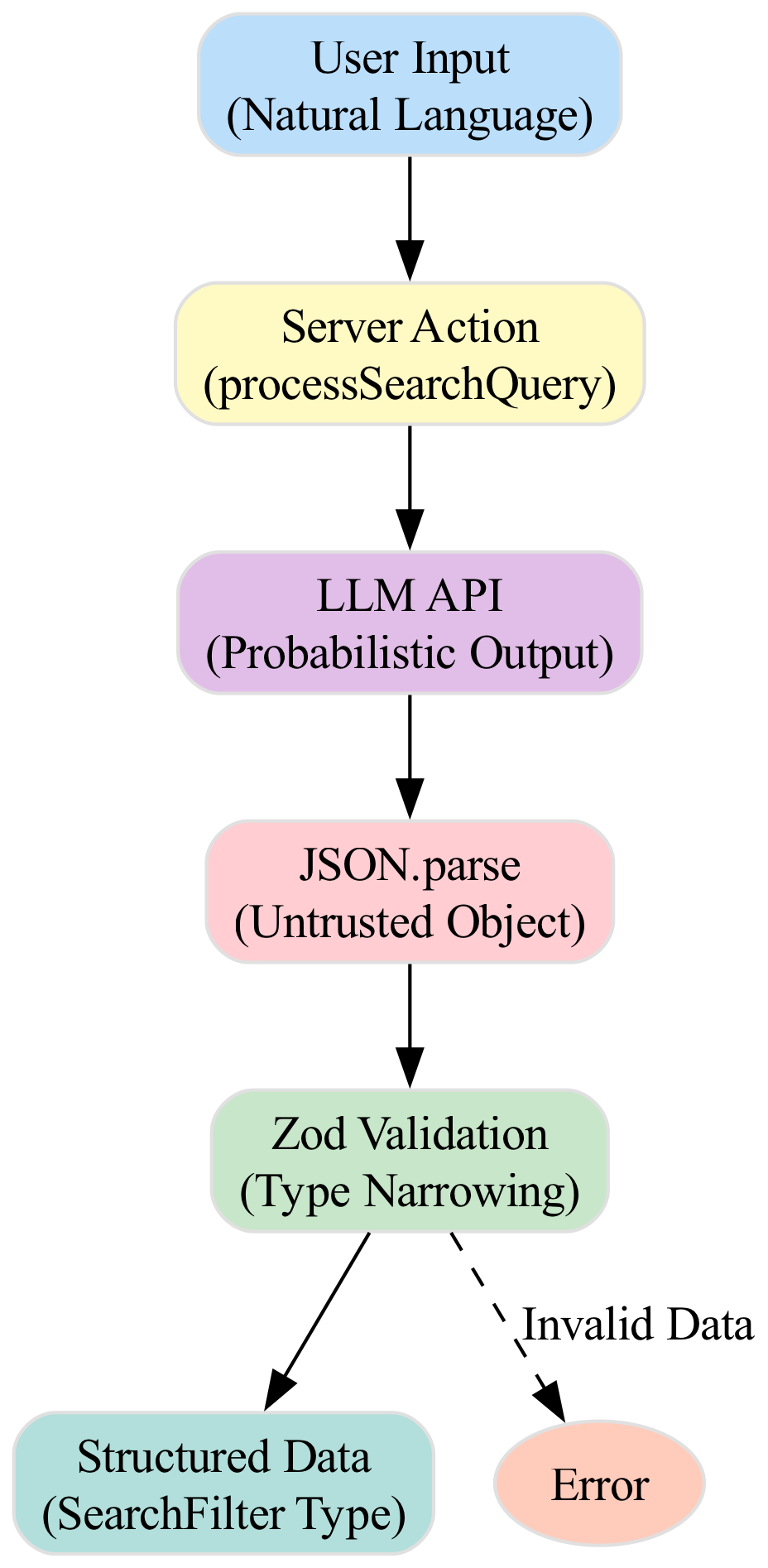

The following diagram illustrates the flow of data from the user input, through the LLM, and back to the validated result.

This diagram visualizes the data flow from user input through the LLM, showing how validated results are returned to the user while unhandled errors are caught by a global error boundary or displayed as a toast notification.

Common Pitfalls

When implementing natural language search with LLMs and TypeScript, be aware of these specific issues:

LLM Hallucination of JSON Keys:
- Issue: The LLM might return { "search_term": "..." } instead of { "query": "..." }.
- Solution: Strict JSON Schema enforcement in the system prompt and using Zod validation as a firewall. Never trust the LLM output directly.
Vercel/AWS Lambda Timeouts:
- Issue: LLM API calls can take several seconds. Server Actions running on serverless platforms often have strict timeouts (e.g., 10 seconds on Vercel's Hobby plan).
- Solution: For heavy LLM processing, consider using a background job (e.g., Vercel Background Functions or Inngest) or a dedicated API route with a longer timeout, rather than a standard Server Action.
Async/Await Loops in Client Components:
- Issue: Calling a Server Action from a client component without handling the promise correctly can lead to unhandled promise rejections or UI freezes.
- Solution: Use React's useTransition hook (for isPending states) or useActionState (in Next.js 14+) to manage the loading and error states of the Server Action gracefully.
Insecure Parsing (JSON Injection):
- Issue: If you use JSON.parse on data that includes user-generated content without sanitization, you risk prototype pollution or other injection attacks.
- Solution: While JSON.parse itself is generally safe on data returned from a trusted LLM provider, always validate the structure (via Zod) before using the data to query your database. Never use LLM output directly in SQL queries without parameterization.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
