Chapter 20: Capstone - Launching the MVP

Theoretical Foundations

The theoretical foundation of an AI-Ready SaaS boilerplate rests on the convergence of three distinct architectural paradigms: Stateful Agentic Orchestration, Hybrid Vector-Relational Data Persistence, and Event-Driven Payment Lifecycle Management. Unlike traditional monolithic SaaS architectures, which treat AI as a peripheral feature, this boilerplate positions the AI agent as the core operational unit of the application. To understand this, we must look at the system not as a collection of static pages, but as a dynamic graph of state transitions.

The Supervisor Node: The Central Nervous System

In the previous chapter, we discussed the concept of Serverless Functions as isolated execution units. In this architecture, we elevate that concept into a multi-agent system. The central orchestrator is the Supervisor Node.

Imagine a large, bustling restaurant kitchen. If every chef (Worker Agent) tried to cook every dish simultaneously without coordination, the result would be chaos. The Supervisor Node acts as the Head Chef. It does not chop onions or sear scallops; its sole job is to look at the ticket rail (the Graph State), analyze the current order (the user request), and assign the task to the appropriate station (the Worker Agent).

The Supervisor Node operates on a sophisticated prompt engineering strategy. It ingests the current state of the conversation or workflow and outputs a JSON object defining the next action. This is a routing mechanism, but it is probabilistic, not deterministic. It uses an LLM to interpret intent. For example, if the Graph State indicates a user has uploaded a document and asked, "Summarize this," the Supervisor identifies the intent as "Vector Ingestion" and routes the task to the DocumentProcessorAgent.

This creates a Directed Acyclic Graph (DAG) of execution. Unlike a linear script, the Supervisor can branch logic based on real-time data. If a Worker Agent fails, the Supervisor can catch the exception in the state and route to a ErrorHandlerAgent or retry the task.

Parallel Tool Execution: The Industrial Assembly Line

In a traditional agent flow, tools are executed sequentially: Tool A finishes, then Tool B starts. This is inefficient when Tool A and Tool B are independent. This is where Parallel Tool Execution comes into play.

Consider the analogy of an Automotive Assembly Line. If one station installs the engine and the next station installs the seats, they must wait for each other. However, if the engine installation is independent of the seat installation, you can run two parallel lines that merge only at the final quality check.

In our SaaS boilerplate, when a user asks a complex query like, "What is the status of my subscription and summarize the latest support ticket?", the Supervisor Node recognizes two independent intents:

1. Subscription Check: Requires the Payment Stack.
2. Ticket Summarization: Requires the Vector Database (retrieving context) and the LLM (generating text).

Instead of waiting for the subscription check to finish before starting the ticket summarization, the Supervisor dispatches both tools simultaneously. The agent framework (e.g., LangGraph) handles the asynchronous concurrency. This reduces the "Time to First Token" (TTFT) significantly, making the AI feel instantaneous. The state is updated only when all parallel tasks complete, ensuring data consistency before the final response is rendered to the user.

The Hybrid Vector-Relational Database: The Librarian and the Accountant

In Chapter 18, we introduced Vector Embeddings as mathematical representations of semantic meaning. In this capstone, we integrate that concept into the database layer.

Traditional SQL databases act as Accountants. They are rigid, precise, and excellent at transactional integrity (e.g., "User A has exactly $50"). Vector databases act as Librarians. They are excellent at semantic retrieval (e.g., "Find books that feel like a rainy afternoon").

An AI-Ready SaaS requires both. If a user asks, "Show me my invoices from last month," the system needs the Accountant (SQL) to retrieve exact financial records. If the user asks, "Find the contract where we discussed the API rate limits," the system needs the Librarian (Vector) to find the semantic match in unstructured text.

The theoretical innovation here is the Hybrid Query. We do not run two separate databases; we treat the Vector capability as a native column type within the relational structure. This allows us to perform operations like:

• Metadata Filtering + Semantic Search: "Find documents semantically similar to 'Q4 Report' where the author_id is the current user."

This ensures that the AI's "reasoning" is grounded in the factual data stored in the relational tables, preventing hallucinations by anchoring responses in verified user data.

The Payment Stack: The State Machine

The Payment Stack in an AI SaaS is not just a checkout form; it is a State Machine that dictates the capabilities of the AI Agent itself.

Think of the payment system as the Gatekeeper of Compute Resources. In a traditional SaaS, payment unlocks features (e.g., "Pro Plan unlocks Export to PDF"). In an AI SaaS, payment unlocks context windows and inference speed.

The theoretical model here is Entitlement-Based Access Control (EBAC). When a user authenticates, the system doesn't just check a boolean is_active. It queries the payment stack to determine the user's current "entitlements."

• Free Tier: Entitlement allows only 5MB of vector storage and gpt-3.5-turbo.
• Pro Tier: Entitlement allows 100MB of vector storage, gpt-4-turbo, and Parallel Tool Execution.

The payment webhooks (from providers like Stripe) are not just notifications; they are triggers that modify the Graph State. When a subscription succeeds, a webhook updates the user's entitlements in the database, which immediately propagates to the Supervisor Node, altering the available tools for that user in real-time.

Visualizing the Architecture

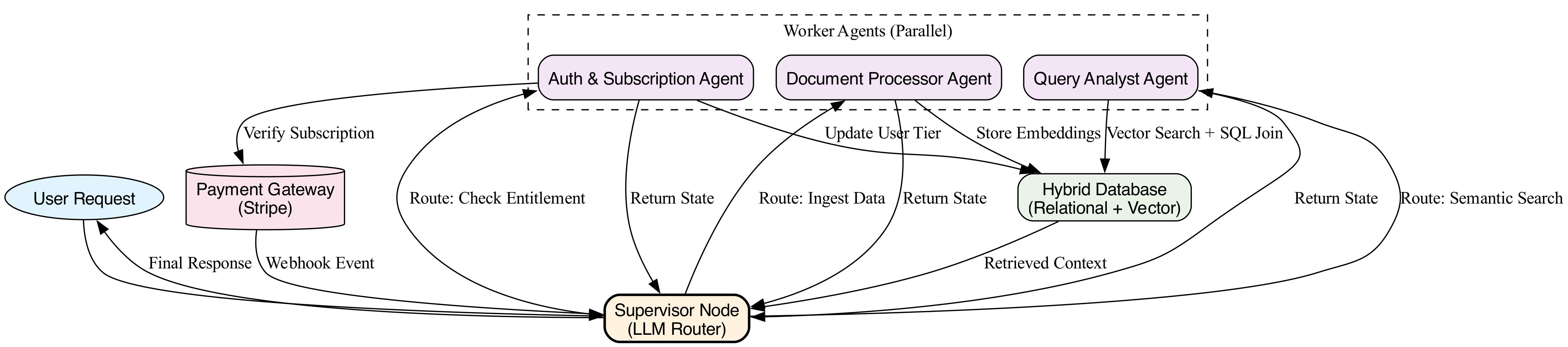

The following diagram illustrates how the Supervisor Node routes requests through the parallel execution paths, interacting with the Hybrid Database and Payment Stack.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates how a successful subscription payment triggers a webhook that updates the user's entitlements in the database, instantly propagating to the Supervisor Node to dynamically alter the available tools.

Under the Hood: The Graph State

The glue holding these concepts together is the Graph State. In the context of this boilerplate, the state is not just a set of variables; it is a shared memory object passed between the Supervisor and Worker Agents.

In TypeScript, we can conceptualize this state interface as follows. It encapsulates the user's data, the AI's context, and the execution status.

// The central state object passed through the execution graph
interface GraphState {
  // User Identity & Entitlements (from Auth & Payment)
  user: {
    id: string;
    email: string;
    tier: 'free' | 'pro' | 'enterprise';
    vectorStorageLimit: number;
  };

  // The Input
  input: {
    message: string;
    attachments?: Array<{ name: string; content: Buffer }>;
  };

  // The Context (Retrieved from Vector/Relational DB)
  context: {
    relevantDocuments: Array<{ id: string; content: string; score: number }>;
    subscriptionStatus: 'active' | 'canceled' | 'past_due';
  };

  // Execution Metadata
  metadata: {
    currentStep: string; // e.g., "supervisor_routing", "parallel_execution"
    errors: string[];
    tokensUsed: number;
  };

  // The Output
  output?: {
    response: string;
    citations: string[];
  };
}

Why is this theoretical model superior for an MVP?

1. Scalability: Adding a new feature (e.g., Image Generation) does not require rewriting the core logic. You simply add a new Worker Agent and update the Supervisor's prompt to recognize the new intent.
2. Debuggability: Because the entire workflow is a series of state transitions, you can log the GraphState at every step. If the AI hallucinates, you can trace exactly which documents were retrieved from the Vector DB and what the user's entitlements were at that moment.
3. Resilience: Parallel execution ensures that a slow database query does not block a fast payment verification, keeping the application responsive.

This architecture transforms the SaaS boilerplate from a static collection of pages into a living, thinking system capable of handling complex, multi-modal user requests while maintaining strict data integrity and security.

Basic Code Example

In a SaaS application, especially one leveraging AI, you often need to perform heavy computations on the client side to reduce server load and improve user experience. Web Workers allow you to run JavaScript in background threads, but passing large amounts of data between the main thread and workers typically involves copying it, which is slow and memory-intensive. SharedArrayBuffer (SAB) solves this by creating a shared memory space that can be accessed directly by multiple workers simultaneously.

This "Hello World" example demonstrates a simple parallel summation: splitting an array of numbers between two Web Workers, summing them in parallel using shared memory, and returning the result. This pattern is foundational for efficient data processing in browser-based dashboards or AI inference tasks.

/**

 * @fileoverview main.ts - The main thread entry point.
 * Demonstrates setting up SharedArrayBuffer for parallel computation.
 */

/**

 * Represents the structure of the data shared in the buffer.
 * We use Int32Array to store numbers, but for AI models, Float32Array is common.
 * Structure:
 * [0]: Total count of items to process (int)
 * [1]: Worker 1's partial sum (int)
 * [2]: Worker 2's partial sum (int)
 * [3]: Final Result (int)
 */
const SHARED_BUFFER_SIZE = 4; // 4 integers

/**

 * Initializes the parallel summation process.
 * NOTE: SharedArrayBuffer requires specific security headers (Cross-Origin-Opener-Policy)
 * to function in modern browsers. Without these, the browser will throw a SecurityError.
 */
async function runParallelSum() {
  console.log("Initializing parallel summation...");

  // 1. Create the SharedArrayBuffer
  // This allocates a block of memory shared between the main thread and workers.
  const sharedBuffer = new SharedArrayBuffer(SHARED_BUFFER_SIZE * Int32Array.BYTES_PER_ELEMENT);

  // 2. Create a view into the shared memory
  // Int32Array allows us to read/write 32-bit integers to the buffer.
  const sharedView = new Int32Array(sharedBuffer);

  // 3. Define the data to process
  // We will split [1, 2, 3, 4] between two workers.
  // Worker 1 gets [1, 2], Worker 2 gets [3, 4].
  // Expected Sum: 10
  const data = [1, 2, 3, 4];

  // Store the total count in the buffer (index 0)
  sharedView[0] = data.length;

  // 4. Initialize Workers
  // We use Blob URLs to create workers without needing separate files for this example.
  const worker1Code = `
    self.onmessage = function(e) {
      const { buffer, rangeStart, rangeEnd } = e.data;
      const view = new Int32Array(buffer);

      let partialSum = 0;
      // Simulate some processing time (common in AI tasks)
      for(let i = rangeStart; i < rangeEnd; i++) {
        partialSum += i; // In a real app, this would process complex data
      }

      // Write result to shared memory (index 1 for worker 1)
      Atomics.store(view, 1, partialSum);

      // Notify main thread (optional, but good for sync)
      self.postMessage("Done");
    };
  `;

  const worker2Code = `
    self.onmessage = function(e) {
      const { buffer, rangeStart, rangeEnd } = e.data;
      const view = new Int32Array(buffer);

      let partialSum = 0;
      for(let i = rangeStart; i < rangeEnd; i++) {
        partialSum += i;
      }

      // Write result to shared memory (index 2 for worker 2)
      Atomics.store(view, 2, partialSum);

      self.postMessage("Done");
    };
  `;

  const worker1 = new Worker(URL.createObjectURL(new Blob([worker1Code], { type: 'application/javascript' })));
  const worker2 = new Worker(URL.createObjectURL(new Blob([worker2Code], { type: 'application/javascript' })));

  // 5. Distribute Work
  // Worker 1 processes indices 0 to 2 (values 1, 2)
  worker1.postMessage({
    buffer: sharedBuffer,
    rangeStart: 1,
    rangeEnd: 3
  });

  // Worker 2 processes indices 2 to 4 (values 3, 4)
  worker2.postMessage({
    buffer: sharedBuffer,
    rangeStart: 3,
    rangeEnd: 5
  });

  // 6. Wait for completion and aggregate
  // In a real app, we might use Atomics.wait() or Promises.
  // Here we simply wait for messages for simplicity.
  let completedWorkers = 0;

  worker1.onmessage = () => {
    completedWorkers++;
    if (completedWorkers === 2) aggregateResults();
  };

  worker2.onmessage = () => {
    completedWorkers++;
    if (completedWorkers === 2) aggregateResults();
  };

  function aggregateResults() {
    // Read from shared memory
    const worker1Sum = Atomics.load(sharedView, 1);
    const worker2Sum = Atomics.load(sharedView, 2);

    const total = worker1Sum + worker2Sum;

    // Write final result to shared memory (index 3)
    Atomics.store(sharedView, 3, total);

    console.log(`Worker 1 Sum: ${worker1Sum}`);
    console.log(`Worker 2 Sum: ${worker2Sum}`);
    console.log(`Total Sum (Shared Memory): ${total}`);

    // Clean up
    worker1.terminate();
    worker2.terminate();
  }
}

// Execute
// Note: This will fail if headers are not set correctly in the server response.
runParallelSum().catch(console.error);

Line-by-Line Explanation

1. const SHARED_BUFFER_SIZE = 4;

   • What: Defines the size of our shared memory array.
   • Why: We need to allocate enough space for integers: index 0 for the total count, indices 1 and 2 for the partial sums from the two workers, and index 3 for the final aggregated result.

2. const sharedBuffer = new SharedArrayBuffer(...);

   • What: Allocates a raw binary buffer in memory that is not tied to a specific thread.
   • Why: Unlike standard arrays, this memory block can be accessed by the main thread and any Web Worker attached to it without copying data. This is crucial for high-performance SaaS dashboards processing large datasets.

3. const sharedView = new Int32Array(sharedBuffer);

   • What: Creates a "view" over the raw buffer, interpreting the bytes as 32-bit signed integers.
   • Why: Direct manipulation of raw binary data is difficult. TypedArrays (like Int32Array or Float32Array for AI tensors) provide a standard array interface for reading and writing to shared memory.

4. sharedView[0] = data.length;

   • What: Writes the total number of items to process into the first slot of the shared memory.
   • Why: This demonstrates how the main thread can initialize state in shared memory before workers start.

5. const worker1 = new Worker(...)

   • What: Instantiates a Web Worker.
   • Why: Web Workers run on a separate thread. We use URL.createObjectURL with a Blob to define the worker's code inline, making this example self-contained without external files.

6. Atomics.store(view, 1, partialSum);

   • What: Writes a value to the shared memory at a specific index.
   • Why: Atomics provides atomic operations. Atomicity ensures that if two threads try to write to the same memory location simultaneously, the operation is indivisible and prevents race conditions (data corruption). In this example, workers write to different indices, but Atomics is best practice for shared memory.

7. worker.postMessage({ buffer: sharedBuffer, ... })

   • What: Sends the shared buffer reference (not a copy) to the worker.
   • Why: The worker receives a handle to the exact same block of physical memory. Any changes the worker makes are immediately visible to the main thread (and other workers).

8. Atomics.load(sharedView, 1);

   • What: Reads a value from shared memory.
   • Why: This retrieves the partial sum computed by the worker. Because the memory is shared, the main thread sees the updated value immediately after the worker finishes its write operation.

Visualizing the Data Flow

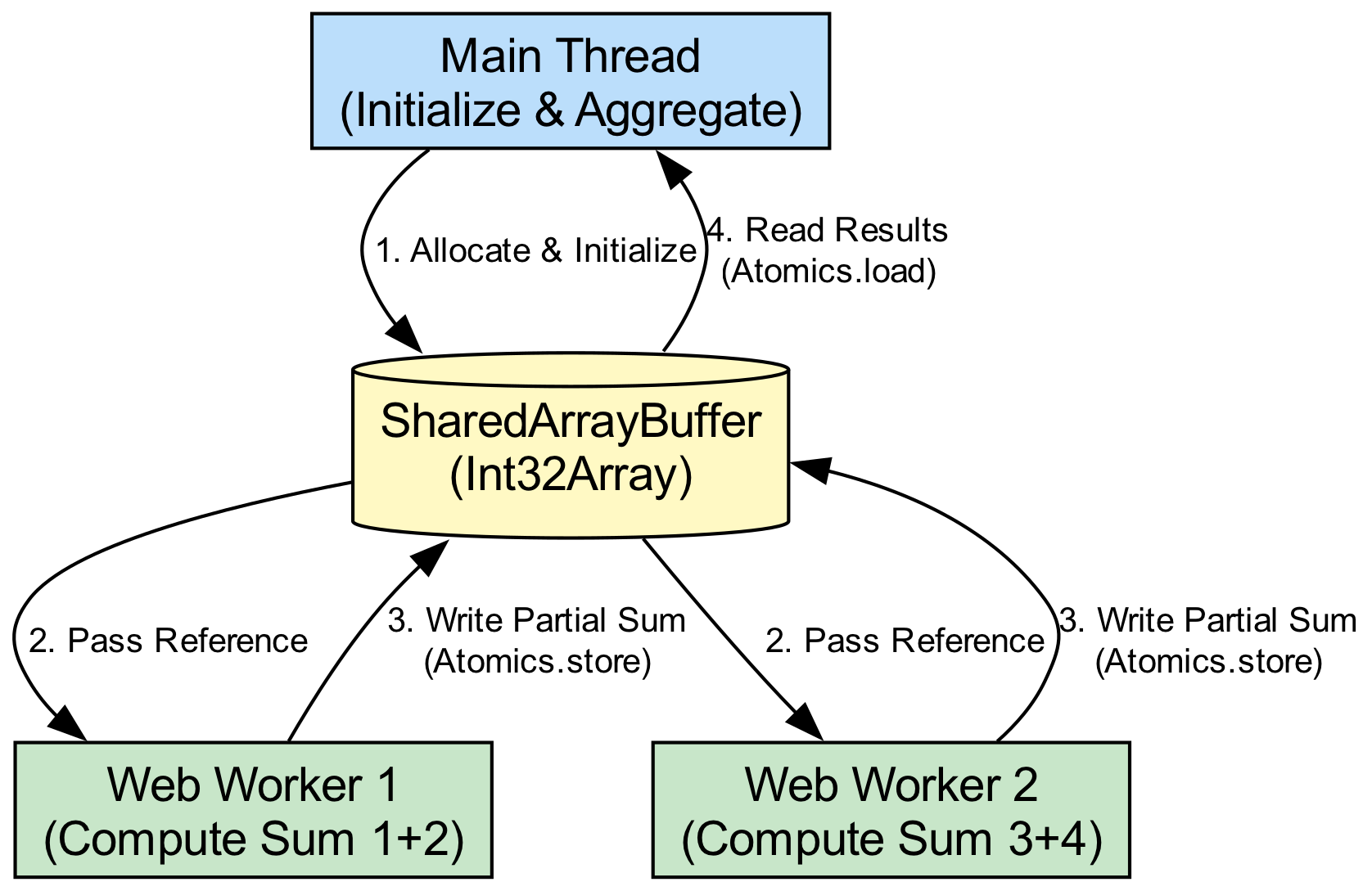

The following diagram illustrates how the SharedArrayBuffer acts as the central hub for communication between the main thread and the workers.

Hold "Ctrl" to enable pan & zoom

A `SharedArrayBuffer` is visualized as a central hub connecting the main thread and a worker, with arrows indicating the flow of data to and from the shared memory segment.

Common Pitfalls

1. Missing Security Headers (Cross-Origin-Opener-Policy)

   • Issue: SharedArrayBuffer is disabled by default in most browsers due to Spectre/Meltdown vulnerabilities. Attempting to create one will throw a SecurityError.

   • Fix: Your server must serve the page with the following HTTP headers:

     Cross-Origin-Opener-Policy: same-origin
     Cross-Origin-Embedder-Policy: require-corp


   • SaaS Context: When deploying to Vercel or AWS, ensure these headers are configured in vercel.json or your server configuration. Local development (e.g., Vite) usually handles this automatically, but production builds often fail if omitted.

2. Race Conditions with Atomics

   • Issue: Assuming that writing to shared memory is instantaneous or thread-safe without synchronization. If two workers write to the same index simultaneously, the result is undefined.
   • Fix: Always use Atomics operations (store, load, add, sub) for shared memory. For complex synchronization (e.g., waiting for a worker to finish), use Atomics.wait() and Atomics.notify().

3. Memory Leaks in Web Workers

   • Issue: Forgetting to terminate workers or creating new workers on every user action (e.g., button click) without cleaning up the old ones.
   • Fix: Always call worker.terminate() when the task is complete or the component unmounts. In React/Next.js, use the useEffect cleanup function.

4. Type Mismatches in TypedArrays

   • Issue: Writing a Float32Array view to a buffer allocated for Int32Array.
   • Fix: Ensure the SharedArrayBuffer size is calculated correctly (length * BYTES_PER_ELEMENT) and that the TypedArray view matches the data type you intend to process. AI models often require Float32Array for precision.

5. Async/Await Misuse in Workers

   • Issue: Trying to use await inside the worker's onmessage handler without wrapping it in an async function, or expecting the main thread to await the worker's execution directly (workers are event-driven, not promise-driven by default).
   • Fix: Use postMessage to signal completion. If you need a Promise-like interface, wrap the postMessage call in a Promise on the main thread and resolve it when the worker sends a "done" message back.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
