Chapter 10: Smart File Uploads (Analyzing Images on Upload)

Theoretical Foundations

The fundamental challenge with any file upload, especially images, is that the user's experience should not be blocked by the heavy lifting required to process that file. In a traditional monolithic server architecture, the request-response cycle is synchronous: the user uploads a file, the server receives it, processes it (e.g., resizing, virus scanning, metadata extraction), and only then does it send a response back to the user. This is like a chef in a small restaurant who stops everything to personally take an order, cook the meal, plate it, and serve it before even acknowledging the next customer. The queue grows, and the user is left staring at a loading spinner.

In the context of modern web applications, particularly those leveraging AI, this synchronous model is untenable. AI model inference—whether for content moderation or alt-text generation—can take seconds, not milliseconds. Holding a connection open for that long is inefficient and leads to timeouts and poor user experience.

Therefore, we introduce the concept of the Asynchronous, Decoupled Processing Pipeline. This architecture separates the act of receiving the file from the act of processing it. It's the difference between handing a package to a courier and waiting for them to personally deliver it and get a signature (synchronous) versus dropping it in a mailbox and trusting the postal system to handle it, receiving a tracking number immediately (asynchronous).

The "Why": Scalability, Resilience, and User Experience

This decoupling is not merely a convenience; it is a cornerstone of scalable, resilient systems.

1. Scalability and Resource Management: A web server's primary job is to handle HTTP requests and serve responses as quickly as possible. CPU cycles spent on heavy computations, like running a large language model (LLM) on an image, are cycles stolen from handling other incoming user requests. By offloading this work to a separate, specialized environment—such as an Edge Function or a background job queue—we free up the main web server to remain responsive. This is analogous to a general practitioner doctor (the web server) who, upon identifying a complex condition, refers the patient to a specialist (the Edge Function/AI processor). The GP can continue seeing other patients, and the specialist can take the time needed for a thorough diagnosis without creating a bottleneck.

2. Resilience and Fault Tolerance: In a synchronous system, if the AI processing service fails or becomes slow, the entire upload request fails or times out. In an asynchronous pipeline, the system is more robust. The initial upload endpoint simply needs to acknowledge receipt and place a "job" onto a reliable queue. If the processing service is temporarily down, the job remains in the queue and can be retried later. The user's upload is never lost. This is like a restaurant's order ticket system: if a specific station (e.g., the grill) is overwhelmed, the ticket doesn't disappear; it just waits in the queue until the station is ready.

3. Enhanced User Experience: From the user's perspective, the application feels instantaneous. They select a file, click "Upload," and receive immediate feedback that the file has been received and is being processed. They can continue interacting with the application while the heavy work happens in the background. This is the "fire-and-forget" model. You send a message and trust the system to deliver it, freeing you up to do other things.

The "How": A Multi-Stage Orchestration

Let's break down the pipeline for a "Smart File Upload" scenario, where an image is uploaded, analyzed for safety, and descriptive alt-text is generated.

Stage 1: Secure Ingestion (The Front Door) The process begins at the edge. The user's client sends the file, often directly to a storage service (like AWS S3) via a pre-signed URL, or to a dedicated Edge Function endpoint. The key here is to avoid sending the file through the main application server, which would create a bottleneck. The Edge Function acts as a highly available, globally distributed doorman. Its first job is validation: check file type, size, and perhaps a quick virus scan. If it passes, the file is accepted into a temporary holding area (a "staging" bucket in object storage). The function immediately returns a 202 Accepted response to the client, along with a unique job ID.

Stage 2: Job Queuing (The Dispatch System) The Edge Function, having accepted the file, now creates a "job" message. This message contains the location of the uploaded file (e.g., s3://bucket/staging/unique-file-id.jpg) and the job type (analyze_image). This message is pushed onto a reliable, persistent message queue (like RabbitMQ, AWS SQS, or a specialized service like Inngest). The queue is the system's nervous system, ensuring no job is ever lost. The Edge Function's responsibility is now complete; it has successfully ingested the file and dispatched the task.

Stage 3: The Worker (The Specialist) A separate pool of workers—this could be a fleet of Edge Functions or dedicated background servers—is constantly listening to the queue. When a worker picks up the analyze_image job, it performs the heavy lifting:

1. It downloads the image from the staging area.
2. It performs content moderation using a pre-loaded AI model. Is the image safe? Does it violate policies?
3. It generates descriptive alt-text using a vision-language model.
4. It extracts metadata (e.g., dominant colors, objects detected).

This is the "intelligent" part of the pipeline. The worker is a specialist that is optimized for this specific computational task.

Stage 4: State Management and Persistence (The Ledger) Once the worker completes its analysis, it needs to communicate the results back to the application's state. This is where tRPC (or a similar RPC framework) becomes crucial. The worker, now acting as a client to our main backend, makes a tRPC call to a dedicated mutation endpoint (e.g., finalizeUpload). This call is secure, type-safe, and sends the processed data (e.g., isSafe: true, altText: "A golden retriever catching a frisbee in a park", fileUrl: "s3://.../final/image.jpg").

The tRPC mutation handler on the main server is the final gatekeeper. It validates the incoming data (ensuring the worker didn't produce garbage), updates the database record for the file, and moves the file from the staging area to its permanent storage location. This final step is critical for data integrity. The database becomes the single source of truth, and tRPC provides the type-safe contract between the worker and the server.

Analogy: The Modern Restaurant Kitchen

To tie this together, let's use a restaurant analogy that contrasts the old and new methods.

• Old Way (Synchronous Monolith): You (the user) walk into a restaurant and place a complex order with the waiter (the web server). The waiter runs to the kitchen, cooks the entire meal themselves, plates it, and brings it back to you. The entire restaurant is blocked while your meal is being prepared. If the kitchen is busy, everyone waits.

• New Way (Asynchronous Pipeline):

  1. Ingestion (Edge Function): You place your order with the host at the front desk (the Edge Function). The host writes your order on a ticket (the job message), gives you a buzzer (the job ID), and immediately seats the next customer. You are free to have a drink and chat.
  2. Queueing (Message Queue): The host places your ticket in the order rail (the Message Queue). This rail is organized and ensures tickets are handled in order.
  3. Worker (Specialized Kitchen Station): The grill cook (the Worker) sees the ticket, cooks the steak (runs the AI model), and places the finished steak on the pass (a temporary result store).
  4. tRPC (Expediter & Database): The expediter (the tRPC endpoint) inspects the steak, confirms it's cooked correctly (validates the result), updates your order in the main system (the database), and plates the final dish for the waiter to bring to you.

This decoupled, asynchronous architecture is the foundation for building intelligent, scalable applications that can handle heavy workloads like AI inference without sacrificing the snappy, responsive feel that users expect.

Visualization of the Pipeline

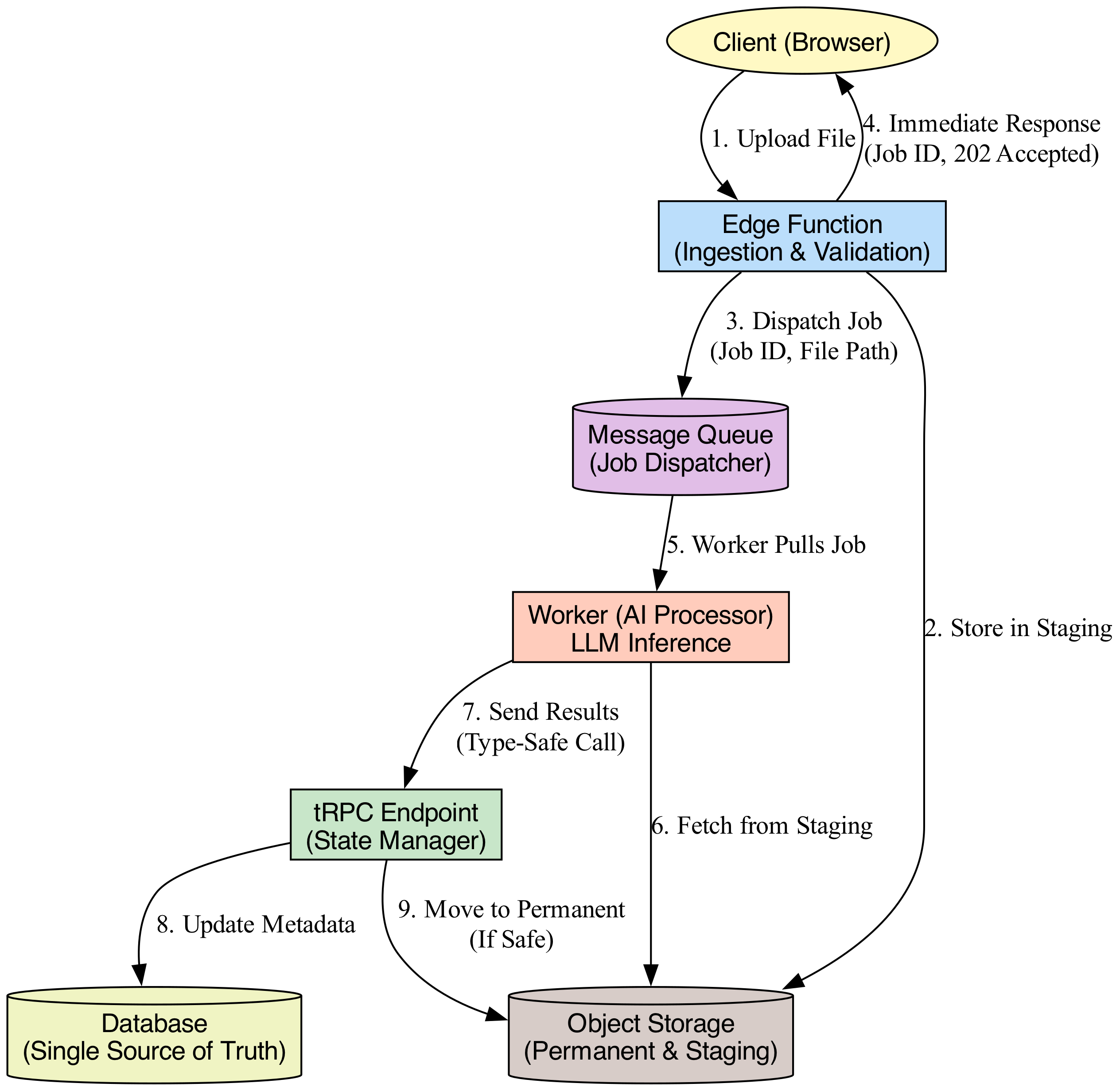

The following diagram illustrates the flow of data and control through the asynchronous pipeline.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the decoupled, asynchronous pipeline where a user request triggers a background task, allowing the application to maintain a responsive UI while the heavy AI inference is processed independently and the result is delivered asynchronously.

Explicit Reference to Previous Concepts

This entire pipeline is enabled by the foundational concepts of Edge Functions and tRPC that we established in previous chapters.

In Book 6, Chapter 5: "Introduction to Edge Functions", we learned that Edge Functions are stateless, globally distributed compute units that execute close to the user. This chapter directly applies that knowledge. The EdgeIngest function in the diagram is a perfect use case: it needs to be globally available to accept uploads quickly and perform initial, lightweight validation without spinning up a full server instance.

Furthermore, our reliance on tRPC for the final state update is a direct application of the principles from Book 7, Chapter 2: "Type-Safe Backend Communication". In that chapter, we established that tRPC provides end-to-end type safety between the client and server, eliminating the need for manual API schema definitions and reducing runtime errors. In our pipeline, the worker (which is conceptually a "client" to our main backend) uses tRPC to send the processed data. This ensures that the data contract between the AI processor and our application's core logic is rigidly defined. If the worker's output schema changes, the TypeScript compiler will immediately flag the mismatch, preventing corrupted or malformed data from ever reaching our database. This is a critical safeguard in a decoupled system where different services evolve independently.

Basic Code Example

This example demonstrates a simplified, self-contained Node.js/TypeScript function that simulates the "Smart File Upload" pipeline. It uses an asynchronous workflow to handle image analysis, mimicking the behavior of an Edge Function. The code will:

1. Accept a simulated file upload (buffer).
2. Use an asynchronous mock LLM (Large Language Model) call to analyze the image for content moderation and generate alt-text.
3. Simulate a non-blocking database write to store the processed metadata.
4. Return a structured JSON response.

This is a foundational building block for the tRPC router that would consume this logic.

// File: smart-upload-processor.ts

/**

 * Types for the API response and internal processing.
 */
type AnalysisResult = {
  isSafe: boolean;
  confidence: number;
  altText: string;
  tags: string[];
};

type UploadMetadata = {
  fileName: string;
  fileSize: number;
  analysis: AnalysisResult;
  processedAt: Date;
};

/**

 * Mock LLM Service: Simulates an external API call (e.g., OpenAI Vision).
 * In a real scenario, this would be an HTTP request to an LLM provider.
 * @param imageBuffer - The binary data of the image.
 * @returns Promise<AnalysisResult> - The analyzed data.
 */
const mockLLMAnalysis = async (imageBuffer: Buffer): Promise<AnalysisResult> => {
  // Simulate network latency (non-blocking I/O)
  await new Promise(resolve => setTimeout(resolve, 500));

  // Simulate LLM logic based on hypothetical image content
  // In production, this would be a complex model inference
  const isSafe = imageBuffer.length > 100; // Arbitrary logic for demo

  return {
    isSafe: isSafe,
    confidence: 0.98,
    altText: "A futuristic cityscape at sunset with flying vehicles.",
    tags: ["city", "futuristic", "sunset", "architecture"],
  };
};

/**

 * Database Service: Simulates writing to a database (e.g., PostgreSQL).
 * This mimics the non-blocking nature of Prisma or Drizzle ORM.
 * @param metadata - The processed data to store.
 * @returns Promise<void>
 */
const mockDatabaseWrite = async (metadata: UploadMetadata): Promise<void> => {
  // Simulate database connection and write latency
  await new Promise(resolve => setTimeout(resolve, 200));

  // In a real app, this would be: await db.upload.create({ data: metadata });
  console.log(`[DB] Successfully stored metadata for: ${metadata.fileName}`);
};

/**

 * Main Processor: Orchestrates the upload analysis pipeline.
 * This function represents the core logic of an Edge Function.
 *
 * @param fileName - The name of the uploaded file.
 * @param fileBuffer - The binary content of the file.
 * @returns Promise<UploadMetadata> - The final result with analysis.
 */
export const processSmartUpload = async (
  fileName: string,
  fileBuffer: Buffer
): Promise<UploadMetadata> => {
  try {
    // 1. Validation (Synchronous)
    if (!fileBuffer || fileBuffer.length === 0) {
      throw new Error("Invalid file: Empty buffer");
    }

    // 2. Asynchronous LLM Analysis (Non-blocking I/O)
    // We await the external tool call without blocking the main thread.
    const analysis = await mockLLMAnalysis(fileBuffer);

    // 3. Conditional Logic based on Analysis
    if (!analysis.isSafe) {
      // In a real app, we might delete the file or flag it for review
      console.warn(`[Security] Content flagged as unsafe: ${fileName}`);
      // Continue processing but flag metadata
    }

    // 4. Prepare Metadata
    const metadata: UploadMetadata = {
      fileName,
      fileSize: fileBuffer.length,
      analysis,
      processedAt: new Date(),
    };

    // 5. Asynchronous Database Write (Non-blocking I/O)
    // We await the database operation.
    await mockDatabaseWrite(metadata);

    return metadata;

  } catch (error) {
    // Error handling for the pipeline
    console.error("Upload processing failed:", error);
    throw new Error("Processing pipeline error");
  }
};

// --- Usage Example (Simulating a Request) ---

(async () => {
  // Simulate a file upload (e.g., from a React form via tRPC)
  const mockImageBuffer = Buffer.from("fake-image-data-that-is-long-enough");

  console.log("Starting upload processing...");

  const result = await processSmartUpload("city-sunset.png", mockImageBuffer);

  console.log("Processing Complete:", result);
})();

Line-by-Line Explanation

This section breaks down the code logic into a numbered list to ensure clarity on the execution flow and the "Why" behind each step.

1. Type Definitions (AnalysisResult, UploadMetadata):

   • Why: We define strict TypeScript interfaces for the data structure. This ensures type safety throughout the pipeline, preventing runtime errors where data might be undefined or incorrectly formatted. It acts as a contract between the LLM output and the database schema.

2. mockLLMAnalysis Function:

   • The async Keyword: This marks the function as asynchronous, allowing the use of await inside it. It returns a Promise that resolves to an AnalysisResult.
   • await new Promise(...): This simulates Non-Blocking I/O. In a real-world scenario, this line would be an await fetch('https://api.openai.com/v1/chat/completions', ...). By using await, we tell the Node.js Event Loop to pause the execution of this specific function but free up the main thread to handle other incoming requests (like other users uploading files) while waiting for the LLM response.
   • Logic: It returns a hardcoded object mimicking what a Vision LLM would return (safety flags, alt-text, tags).

3. mockDatabaseWrite Function:

   • The async Keyword: Similar to the LLM call, this represents a database operation (e.g., Prisma create).
   • Latency Simulation: We add a delay to simulate network latency to the database. This emphasizes that the total processing time is the sum of these waiting periods, but they don't block the server's ability to accept new connections.

4. processSmartUpload Function (The Pipeline):

   • Signature: Takes a fileName (string) and fileBuffer (Node.js Buffer). The Buffer represents the binary data of the image uploaded by the user.
   • Step 1: Validation: A synchronous check. If the file is empty, we throw immediately. This is fast and doesn't require waiting.
   • Step 2: LLM Analysis (await mockLLMAnalysis): This is the heavy lifting. We pass the fileBuffer to the mock service. The await keyword ensures we don't move to the next line until the analysis is complete.
   • Step 3: Conditional Logic: We check the isSafe flag returned by the LLM. In a real app, this might trigger a specific workflow (e.g., rejecting the upload or moving it to a quarantine bucket).
   • Step 4: Metadata Construction: We create a clean object combining the input data and the analysis results. This is the "Data Transformation" aspect mentioned in the book context.
   • Step 5: Database Write (await mockDatabaseWrite): We persist the data. This is another non-blocking I/O operation. The await ensures the data is safely stored before we consider the request complete.
   • Return: The function returns the final metadata object. In a tRPC context, this would be the return value of the mutation.

5. Usage Example (IIFE):

   • (async () => { ... })(): This is an Immediately Invoked Function Expression (IIFE) written as an async function. It allows us to use await at the top level of our script to simulate a request handler calling the processor.
   • Buffer.from(...): Creates a dummy binary buffer to simulate an uploaded image file.
   • console.log: Outputs the start and end states to demonstrate the flow.

Common Pitfalls in Node.js/TypeScript Async Processing

When implementing this pattern in production (especially on serverless platforms like Vercel or AWS Lambda), watch out for these specific issues:

1. Vercel/AWS Timeouts (The "10s Wall"):

   • The Issue: Serverless functions often have strict execution time limits (e.g., 10 seconds on Vercel Hobby plans). If your LLM analysis or database write takes too long (common with large images or slow APIs), the function will time out, returning a 504 error.
   • The Fix:
     • Decoupling: Do not run the LLM analysis inside the main request-response cycle. Instead, upload the file to storage (S3), return an immediate "Processing..." response to the client, and trigger the analysis via a Webhook or a Queue (e.g., AWS SQS, Vercel Background Functions).
     • Optimization: Use streaming uploads and process chunks if possible, though LLMs usually require the full image.

2. Unhandled Promise Rejections:

   • The Issue: If mockLLMAnalysis throws an error and you don't have a try/catch block around the await call, the Promise rejection bubbles up. In Node.js, an unhandled rejection can crash the entire process (or the serverless container), causing downtime for subsequent requests.
   • The Fix: Always wrap await calls in try/catch blocks. In the example, processSmartUpload handles errors gracefully, logging them and throwing a standardized error that the tRPC router can translate into a user-friendly message.

3. Blocking the Event Loop:

   • The Issue: While await handles I/O well, CPU-intensive tasks (like image resizing or heavy JSON parsing) block the main thread. If you perform a heavy calculation synchronously, the server cannot accept any new requests until that calculation finishes, defeating the purpose of non-blocking I/O.
   • The Fix: Offload CPU-bound tasks to Worker Threads or external services. For image analysis, the LLM API handles the heavy lifting remotely, but if you do local processing, ensure it is asynchronous or worker-based.

4. TypeScript Buffer vs. Blob Confusion:

   • The Issue: In Node.js, files are typically handled as Buffer objects. However, if you are using Edge Runtimes (like Vercel Edge Functions), they often expect Blob or ArrayBuffer.
   • The Fix: Be explicit about the environment. If writing universal code, convert types carefully (e.g., Buffer.from(await blob.arrayBuffer())). The example uses Buffer assuming a Node.js backend environment, which is standard for tRPC servers.

5. Hallucinated JSON from LLMs:

   • The Issue: When asking an LLM to return structured data (like JSON for AnalysisResult), it may occasionally return malformed JSON or add conversational text before/after the JSON block. This breaks the JSON.parse() step.
   • The Fix: Never trust raw LLM output for strict data types. Use "Structured Output" features (like OpenAI's response_format: { type: "json_object" }) or a parsing library like zod to validate the LLM response before attempting to store it in the database.

Visualizing the Data Flow

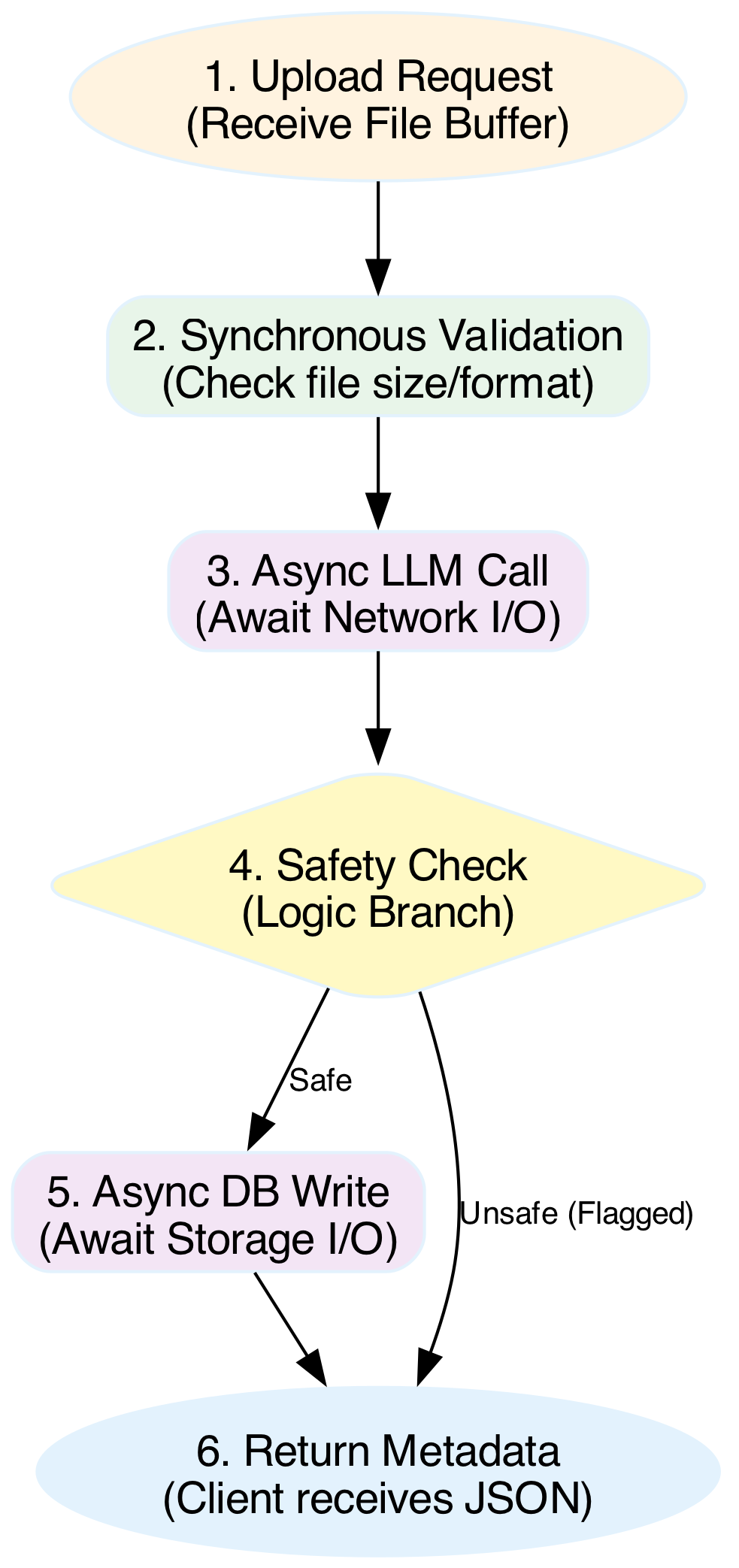

The following diagram illustrates the asynchronous, non-blocking flow of the processSmartUpload function.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the asynchronous, non-blocking data flow of the `processSmartUpload` function, where an LLM response is parsed and validated using tools like Zod or OpenAI's structured output features before being safely stored in the database.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
