Chapter 11: Edge Functions - Low Latency AI Inference

Theoretical Foundations

To understand Edge Functions in the context of AI Inference, we must first draw a parallel to a concept established in earlier chapters: The Backend for Frontend (BFF). In the BFF pattern, we introduced a dedicated server layer that acts as an adapter between the client (mobile or web) and downstream microservices. Its primary goal is to reduce client complexity and aggregate data efficiently.

Edge Functions represent the evolution of the BFF into a globally distributed, zero-latency layer.

Imagine a standard server (like a Node.js instance running on AWS EC2) as a single, centralized kitchen in a large city. When a user in Tokyo orders an AI-generated summary of a document, the request travels across the ocean to this kitchen (likely in the US), the chef (CPU/GPU) prepares the meal (inference), and it travels back. The round-trip time (RTT) is high. This is Inference Latency—the time from the moment the user sends the prompt to the moment the first token of the response is received.

Now, imagine Edge Functions as a network of micro-kitchens located in every neighborhood of that city. Instead of one central kitchen, there are hundreds. When the user in Tokyo places an order, it is routed to the nearest micro-kitchen. The cooking happens locally, close to the user.

In technical terms, Edge Functions are serverless functions that run on Edge Runtimes (like V8 Isolates or WebAssembly environments) deployed on a global network (e.g., Cloudflare Workers, Vercel Edge Functions, or AWS Lambda@Edge). They are designed to be lightweight, stateless, and incredibly fast to start.

Why Edge Functions for AI Inference?

The "Why" is driven by two fundamental physical and architectural constraints:

The Speed of Light (Physics): Data travels through fiber optic cables at approximately 200,000 km/s. The physical distance between a user and a centralized data center creates unavoidable latency. By placing the inference logic at the "edge" (ISPs or local data centers), we minimize the round-trip distance.
The Cold Start Problem (Architecture): Traditional serverless functions (like AWS Lambda) spin up containers on demand. Starting a container with a heavy AI model (often gigabytes in size) can take seconds. Edge runtimes are designed to start in milliseconds because they use lightweight isolates, not full containers.

Analogy: The Librarian vs. The Encyclopedia.

Centralized Inference (The Librarian): You ask a question. The librarian (the server) must walk to a distant shelf, find the giant encyclopedia (the model), read the relevant page, and walk back to you.
Edge Inference (The Pocket Notebook): You have a summarized, lightweight notebook (a quantized model) in your pocket. You ask the question, and the answer is immediate because the "computation" is right next to you.

The Architecture of Edge-Compatible LLMs

Deploying AI models at the edge is not merely about moving code; it is about transforming the model itself. Standard Large Language Models (LLMs) like GPT-4 require massive GPU clusters and memory. Edge functions have strict memory and CPU limits (e.g., 128MB RAM, 10-30 seconds execution time).

To bridge this gap, we utilize Edge-Compatible Models. These are smaller, distilled, or quantized versions of massive models.

1. Quantization (The "Zip File" for Math)

Quantization is the process of reducing the precision of the numbers used in the model's weights. A standard model might use 32-bit floating-point numbers (FP32). Quantization converts these to 8-bit integers (INT8) or even 4-bit integers (INT4).

Analogy: Imagine a high-resolution photograph (FP32) vs. a compressed JPEG (INT8). The JPEG is significantly smaller and loads faster, yet to the human eye, the visual quality remains largely intact. Similarly, a quantized model is smaller (fitting within Edge memory limits) and faster to compute (using integer math rather than complex floating-point operations), with a negligible drop in accuracy for most tasks.

2. Small Language Models (SLMs)

We move away from monolithic models to specialized SLMs (e.g., Phi-2, Mistral 7B, or distilled versions of larger models). These models are trained to perform specific tasks efficiently.

3. Model Formats: ONNX and WebAssembly

Python is the language of AI training, but it is heavy for Edge runtimes. We convert models to ONNX (Open Neural Network Exchange) or compile them to WebAssembly (WASM).

Why? Edge runtimes are built on V8 (JavaScript engine). WASM allows us to run near-native performance code (C++/Rust compiled) inside the JavaScript environment. This allows us to run inference logic that is orders of magnitude faster than pure JavaScript.

Managing Cold Starts and State

In a traditional server environment, a process stays alive indefinitely. On the Edge, functions are ephemeral. They spin up to handle a request and may be destroyed immediately after.

The Challenge: Loading a model from disk into memory is slow. The Edge Solution: Caching and Streaming.

Persistent Caching: Edge providers often keep recently used models in memory across requests. If a model is hot (frequently requested), the "cold start" is eliminated because the isolate is already warm.
Streaming Inference: Unlike a traditional API that waits for the entire generation to finish (high Time-to-First-Token), Edge functions excel at streaming. As the model generates a token, it is immediately flushed to the client via HTTP streaming.

Visualizing the Edge Inference Flow

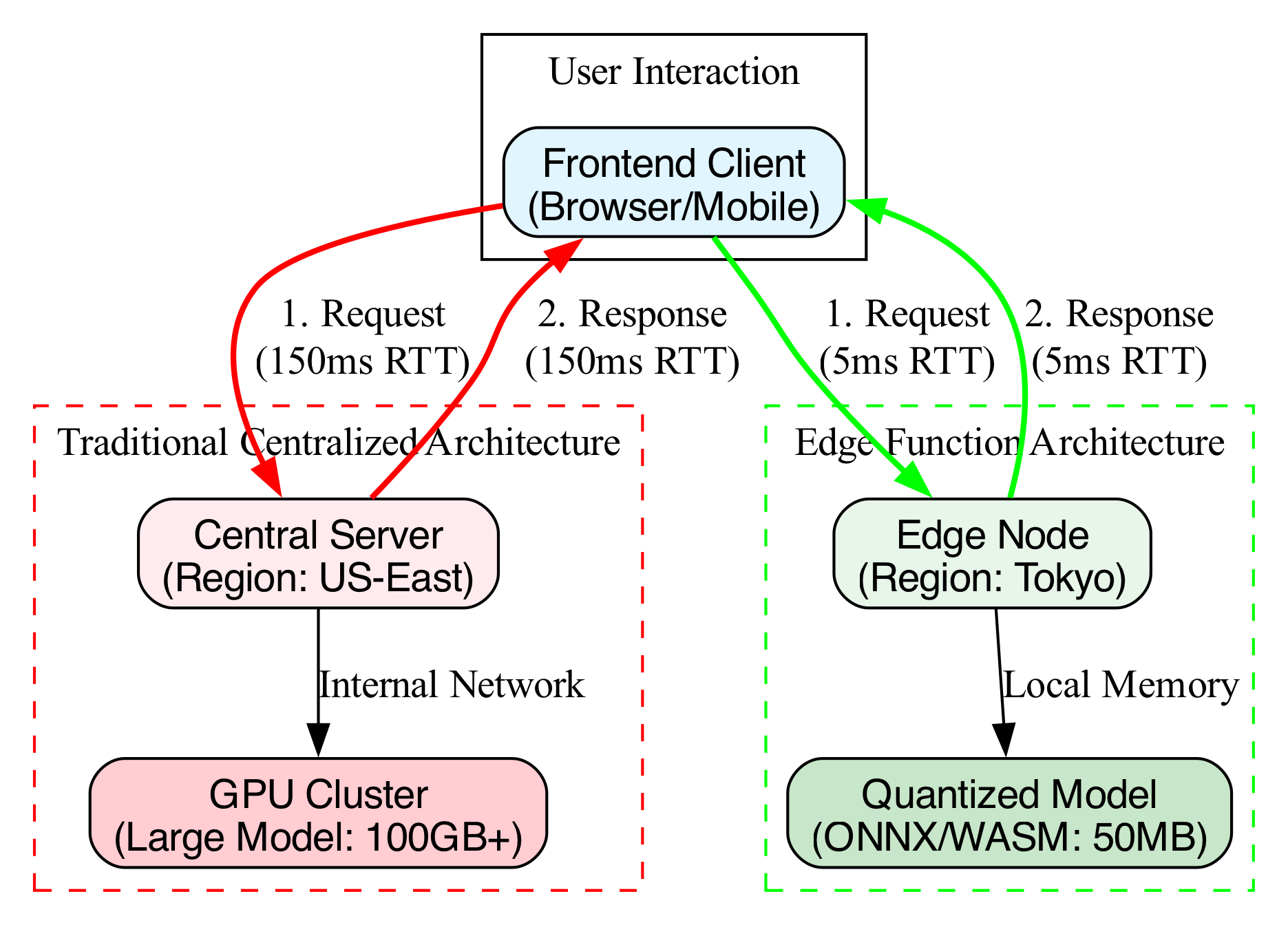

The following diagram illustrates the difference between a centralized architecture and an Edge-based architecture for AI inference.

A diagram comparing centralized AI inference, where all processing occurs on a distant server, versus edge inference, which distributes processing to nearby devices for lower latency and real-time token streaming.

Integration with tRPC and LangGraph

In the context of our application, we are using tRPC for type-safe API calls. When we move to the Edge, the architecture shifts slightly.

Previously, we discussed LangGraph (using the StateGraph class) as a way to orchestrate complex agentic workflows. On the server, this graph might traverse multiple nodes, calling external tools or databases.

On the Edge, we must optimize this graph. The StateGraph remains the same, but the nodes within the graph change.

Node (Server): A node might query a vector database or call a third-party API.
Node (Edge): A node might perform lightweight inference or transformation.

Analogy: The Assembly Line Imagine an assembly line (the LangGraph).

Server Assembly Line: The line is long, with heavy machinery (large models) and distant warehouses (databases).
Edge Assembly Line: The line is shorter, with lighter tools. The raw materials (input data) are already close by.

When we implement a streaming text generation API using Edge Functions and tRPC, we are essentially creating a specialized node in our LangGraph that runs at the edge. This node takes the user's prompt, runs it through the quantized model, and streams the result back through the tRPC response.

Theoretical Foundations

Request Interception: The tRPC router (configured for Edge runtime) receives a request.
State Initialization: The LangGraph State is initialized. In an Edge context, this state must be minimal to fit within memory constraints.
Inference Node Execution: The graph transitions to the inference node. Instead of loading a heavy model, the Edge function accesses a pre-loaded, cached, or lightweight model (WASM/ONNX).
Streaming Response: As the model decodes tokens, the Edge function writes them to the HTTP response stream immediately.
Cleanup: Once the stream closes, the isolate is frozen or terminated, freeing resources instantly.

TypeScript Representation of the Concept

While we are not writing code in this section, it is helpful to visualize the type definitions that bridge these concepts. This illustrates how the Edge Runtime is abstracted in a type-safe manner (a core tenet of tRPC).

// Conceptual Type Definitions for Edge AI Inference

// 1. The Edge Runtime Context
// Unlike a Node.js context, this is lightweight and stateless.
type EdgeRuntimeContext = {
  waitUntil: (promise: Promise<any>) => void; // For background tasks
  env: Record<string, string>; // Environment variables
};

// 2. The Quantized Model Interface
// A model that fits within Edge constraints (small memory footprint).
interface EdgeCompatibleModel {
  // Load the model into the isolate's memory
  load(): Promise<void>;

  // Generate a stream of tokens
  generateStream(prompt: string): AsyncIterableIterator<string>;
}

// 3. The LangGraph Node for Edge
// A specialized node that uses the Edge Model instead of a Server Model.
type EdgeGraphNode<TState> = (
  state: TState,
  context: EdgeRuntimeContext
) => Promise<TState>;

// 4. The tRPC Procedure Configuration for Edge
// We specify the runtime explicitly.
const edgeProcedure = t.procedure.meta({
  runtime: 'edge', // Signals the provider to use Edge Functions
  // This ensures the function is deployed to the global edge network
});

// 5. The Streaming Response Wrapper
// Handling the stream efficiently in the Edge environment.
async function* streamInference(model: EdgeCompatibleModel, input: string) {
  const stream = await model.generateStream(input);
  for await (const chunk of stream) {
    // Yield immediately to minimize latency (Time-to-First-Token)
    yield chunk;
  }
}

Summary

The shift to Edge Functions for AI Inference is not just a deployment change; it is a fundamental architectural shift. By treating inference as a lightweight, globally distributed compute task rather than a centralized heavy process, we drastically reduce Inference Latency. This is achieved through model quantization, WebAssembly compilation, and the ephemeral nature of Edge Runtimes. In the subsequent sections, we will implement this architecture, transforming our theoretical understanding of StateGraph and tRPC into a high-performance, low-latency AI application.

Basic Code Example

This example demonstrates a "Hello World" implementation of an Edge Function that performs AI inference (text generation) using a lightweight, edge-compatible Large Language Model (LLM). The goal is to minimize latency by running the inference logic as close to the user as possible (at the network edge), rather than in a centralized data center.

We will use Vercel's Edge Runtime (a standard for serverless edge computing) and integrate a mock inference engine to simulate the behavior of a real LLM. The client-side will use vanilla TypeScript to fetch the stream, simulating a SaaS application's chat interface.

The Code

This code is fully self-contained. It includes the Edge Function logic and a client-side consumer.

/**

 * ============================================================================
 * PART 1: EDGE FUNCTION (Server Side)
 * ============================================================================
 * File: app/api/generate/route.ts
 * Runtime: Vercel Edge Runtime (or standard Web Standard API compatible env)
 */

// Import necessary types and utilities for the Edge Runtime.
// Note: In a real app, you would import 'ai' or 'langchain' here.
import { NextResponse } from 'next/server';

/**

 * Configuration for the Edge Function.
 * Edge functions have strict memory and execution time limits (usually 10-30s).
 */
export const runtime = 'edge';

/**

 * A mock inference engine to simulate a lightweight LLM.
 * In production, this would be replaced by a library like `onnxruntime-web`
 * or a fetch call to a specialized inference provider.
 *
 * @param prompt - The user input string.
 * @returns An AsyncGenerator yielding strings (tokens).
 */
async function* mockInferenceEngine(prompt: string): AsyncGenerator<string, void, unknown> {
  // Simulate a "cold start" delay (common in serverless environments).
  await new Promise(resolve => setTimeout(resolve, 100));

  const responseText = `Hello! You said: "${prompt}". This is a simulated response from the edge.`;

  // Yield text token-by-token to simulate a streaming LLM.
  const words = responseText.split(' ');
  for (const word of words) {
    await new Promise(resolve => setTimeout(resolve, 50)); // Simulate inference time per token
    yield word + ' ';
  }
}

/**

 * POST Request Handler.
 * Receives JSON, processes inference, and returns a streaming response.
 */
export async function POST(req: Request) {
  try {
    // 1. Parse the incoming JSON body.
    const { prompt } = await req.json();

    if (!prompt || typeof prompt !== 'string') {
      return new NextResponse(JSON.stringify({ error: 'Prompt is required and must be a string.' }), {
        status: 400,
        headers: { 'Content-Type': 'application/json' }
      });
    }

    // 2. Create a ReadableStream to handle the async generator.
    // This allows us to stream data as it's generated, rather than waiting for the whole response.
    const stream = new ReadableStream({
      async start(controller) {
        try {
          // 3. Invoke the inference engine.
          const inferenceGenerator = mockInferenceEngine(prompt);

          // 4. Iterate over the generator and enqueue chunks to the stream.
          for await (const token of inferenceGenerator) {
            controller.enqueue(new TextEncoder().encode(token));
          }

          // 5. Close the stream when finished.
          controller.close();
        } catch (error) {
          // Handle errors during inference.
          console.error('Inference Error:', error);
          controller.error(error);
        }
      },
    });

    // 6. Return the stream as a response.
    // We set headers to indicate a stream and prevent caching.
    return new NextResponse(stream, {
      headers: {
        'Content-Type': 'text/plain; charset=utf-8', // Or 'text/event-stream' for SSE
        'Cache-Control': 'no-cache',
        'Connection': 'keep-alive',
      },
    });

  } catch (error) {
    // Handle JSON parsing errors or unexpected issues.
    return new NextResponse(JSON.stringify({ error: 'Internal Server Error' }), {
      status: 500,
      headers: { 'Content-Type': 'application/json' }
    });
  }
}

/**

 * ============================================================================
 * PART 2: CLIENT SIDE (Frontend)
 * ============================================================================
 * File: app/page.tsx (or a generic client component)
 * Context: A SaaS Chat Interface
 */

/**

 * Fetches the stream from the Edge Function and updates the UI.
 * Uses the Fetch API with streaming support.
 *
 * @param prompt - The user's message.
 * @param onToken - Callback function to handle each received token.
 */
export async function fetchInferenceStream(
  prompt: string,
  onToken: (token: string) => void
): Promise<void> {
  const response = await fetch('/api/generate', {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
    },
    body: JSON.stringify({ prompt }),
  });

  if (!response.ok) {
    throw new Error(`API Error: ${response.status}`);
  }

  // Ensure we have a body to read.
  const body = response.body;
  if (!body) {
    throw new Error('No response body received.');
  }

  // Get a reader from the stream.
  const reader = body.getReader();
  const decoder = new TextDecoder();

  // Read the stream in a loop.
  while (true) {
    const { done, value } = await reader.read();

    if (done) {
      break; // Stream finished.
    }

    // Decode the Uint8Array chunk into a string.
    const chunk = decoder.decode(value, { stream: true });

    // Pass the chunk to the UI update callback.
    onToken(chunk);
  }
}

/**

 * Example Usage in a React Component (Conceptual).
 *
 * const ChatComponent = () => {
 *   const [input, setInput] = useState('');
 *   const [response, setResponse] = useState('');
 *
 *   const handleSubmit = async (e: React.FormEvent) => {
 *     e.preventDefault();
 *     setResponse(''); // Clear previous response
 *
 *     // Optimistic UI update could happen here (e.g., showing the user's message immediately)
 *
 *     try {
 *       await fetchInferenceStream(input, (token) => {
 *         // Functional update to append tokens
 *         setResponse((prev) => prev + token);
 *       });
 *     } catch (err) {
 *       console.error(err);
 *     }
 *   };
 *
 *   return (
 *     <div>
 *       <form onSubmit={handleSubmit}>
 *         <input value={input} onChange={(e) => setInput(e.target.value)} />
 *         <button type="submit">Send</button>
 *       </form>
 *       <div>{response}</div>
 *     </div>
 *   );
 * };
 */

Line-by-Line Explanation

export const runtime = 'edge';
- Why: This tells the deployment platform (like Vercel) to run this function in the "Edge Runtime" rather than the standard Node.js runtime.
- Under the Hood: The Edge Runtime is based on the Web Standard APIs (Request, Response, ReadableStream) and is optimized for startup speed. It lacks the heavy Node.js ecosystem, keeping the bundle size small, which is critical for low latency.
async function* mockInferenceEngine(prompt: string)
- Why: AI models generate text sequentially (token by token). We use an AsyncGenerator to simulate this behavior without blocking the main thread.
- Under the Hood: Generators allow pausing execution after yielding each token. In a real scenario, this would wrap a WebAssembly (WASM) model or a streaming HTTP call to a specialized AI provider.
export async function POST(req: Request)
- Why: Standard API route handler for HTTP POST requests.
- Under the Hood: In the Edge Runtime, req is a standard Web API Request object, not a Node.js http.IncomingMessage.
const { prompt } = await req.json();
- Why: Parses the incoming JSON body to extract the user's prompt.
- Under the Hood: req.json() consumes the request body stream. This is asynchronous.
const stream = new ReadableStream({ ... })
- Why: This is the core of the streaming response. Instead of waiting for the full string and sending it (which increases Time to First Byte - TTFB), we construct a stream that emits data as it becomes available.
- Under the Hood:
  - start(controller): Called immediately when the stream is created.
  - controller.enqueue(chunk): Pushes data into the outgoing HTTP response stream.
  - controller.close(): Signals the end of the stream.
for await (const token of inferenceGenerator)
- Why: We iterate over the mock LLM generator.
- Under the Hood: This loop pauses every time the generator yields a token, allowing the ReadableStream to process and send that chunk to the client immediately.
controller.enqueue(new TextEncoder().encode(token))
- Why: Streams transmit binary data (Uint8Arrays). We must encode our string tokens into binary format.
- Under the Hood: TextEncoder is a Web API for efficient string-to-bytes conversion.
return new NextResponse(stream, { headers: ... })
- Why: Returns the stream as the HTTP response body.
- Under the Hood: Setting Content-Type: text/plain (or text/event-stream for SSE) tells the browser how to interpret the incoming data. Cache-Control: no-cache ensures the browser doesn't store the dynamic AI response.
fetch('/api/generate', { method: 'POST', ... })
- Why: Standard browser API to initiate the request.
- Under the Hood: The browser opens a network connection to the edge location closest to the user.
const reader = body.getReader();
- Why: To handle the response stream, we get a reader object. This allows us to consume the stream chunk-by-chunk.
- Under the Hood: This is part of the Streams API available in modern browsers.
while (true) { const { done, value } = await reader.read(); }
- Why: A loop that continuously reads from the stream until the server closes it.
- Under the Hood:
  - done: A boolean indicating if the stream has ended.
  - value: A Uint8Array containing the data chunk.
const chunk = decoder.decode(value, { stream: true })
- Why: Converts the binary chunk back into a readable string.
- Under the Hood: The { stream: true } option handles cases where a multi-byte character might be split across two chunks, ensuring correct decoding.
onToken(chunk)
- Why: This callback pattern decouples the streaming logic from the UI rendering logic. It allows the UI to update immediately with every token received.
- Under the Hood: This enables the "Optimistic UI Update" concept. The user sees text appearing in real-time, mimicking the speed of a conversation rather than waiting for a loading spinner.

Common Pitfalls

When implementing Edge Functions for AI, specifically with TypeScript and streaming, watch out for these specific issues:

Vercel/Edge Timeouts (The 10-Second Wall)
- Issue: Edge functions typically have strict execution time limits (often 10s for Hobby plans, 60s for Pro). AI inference can be slow, especially on cold starts.
- Symptom: The stream cuts off abruptly, or the function crashes with a timeout error.
- Solution:
  - Streaming is mandatory: Never buffer the entire LLM response before sending it. Stream immediately.
  - External Inference: For heavy models, do not run the model inside the Edge Function. Instead, use the Edge Function as a lightweight proxy that streams from a dedicated inference provider (like Replicate, HuggingFace, or a GPU instance).
Async/Await Loop Blocking
- Issue: Accidentally awaiting a heavy computation inside the Edge Function without yielding control back to the event loop.
- Symptom: The stream freezes; other requests on the same isolate are blocked.
- Solution: Ensure that any heavy processing (like token generation) is wrapped in a generator or broken into smaller chunks using setTimeout or queueMicrotask if necessary. In our example, await new Promise(...) simulates this non-blocking yield.
JSON Parsing Errors in Edge Runtime
- Issue: The Edge Runtime does not support the Node.js Buffer API or some legacy JSON parsing optimizations found in Node.js.
- Symptom: SyntaxError: Unexpected token or Buffer is not defined.
- Solution: Use standard Web APIs (TextDecoder, JSON.parse on strings). Avoid libraries that rely heavily on Node.js internals.
CORS (Cross-Origin Resource Sharing)
- Issue: If your frontend is on localhost:3000 and your Edge Function is deployed to a different domain (e.g., api.myapp.com), the browser will block the request by default.
- Symptom: Access to fetch blocked by CORS policy.
- Solution: Return proper CORS headers in the Edge Function response:
```
return new NextResponse(stream, {
  headers: {
    'Access-Control-Allow-Origin': '*', // Or specific domain
    'Access-Control-Allow-Methods': 'POST, OPTIONS',
  }
});
```
Hallucinated JSON Structures
- Issue: When integrating LLMs that are supposed to return JSON (e.g., for structured data extraction), LLMs often output valid text but invalid JSON (missing quotes, trailing commas).
- Symptom: JSON.parse() throws an error on the client side.
- Solution: Never trust the LLM to output perfect JSON directly. Use a "wrapper" approach or a validation library like zod on the client side to parse and validate the stream, or strictly constrain the LLM prompt to output a specific schema.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
