Chapter 15: Image Generation Pipelines (DALL-E / Flux)

Theoretical Foundations

The core challenge in building a scalable image generation service is not merely calling an API like DALL-E or Flux; it is architecting a resilient, cost-effective, and type-safe pipeline that can handle the inherent latency and variability of generative models. In modern web development, we often treat backend operations as synchronous request-response cycles. However, generating high-fidelity images is an asynchronous, resource-intensive process that defies standard REST paradigms. To understand this architecture, we must first look back at Book 6, where we established the principles of Strict Type Discipline. In complex AI pipelines, where data morphs from a simple string prompt to a binary image buffer and then to a cached URL, maintaining type safety is the only defense against silent failures.

The Asynchronous Nature of Generative Compute

Imagine a traditional web request, like fetching user data from a database. It is akin to ordering a coffee at a counter: you place the order, wait a moment, and receive the drink. Image generation, however, is like commissioning a custom painting from an artist. The artist (the GPU cluster) requires significant time to interpret the request, sketch, paint, and dry the canvas. Blocking the web server thread while waiting for this process would be catastrophic for scalability.

In the context of Edge Functions, we treat image generation as a "long-running task." The architecture must decouple the submission of the work from the retrieval of the result. This is where the concept of an Event Queue becomes paramount. When a user submits a prompt, the system does not wait for the image to be generated. Instead, it pushes a job into a queue (like a message broker) and immediately returns a "ticket" (a job ID) to the client. The client then polls or listens for the completion event.

This mirrors the Agent pattern discussed in previous chapters, where an Agent acts as an autonomous unit of work. In this pipeline, the "Generation Agent" is a serverless function that picks up a job from the queue, interfaces with the external provider (DALL-E/Flux), and handles the result. This decoupling allows the system to scale horizontally; if 10,000 users request images simultaneously, the queue absorbs the burst, and the Edge Functions scale up to process them in parallel without crashing the frontend.

The Role of tRPC in Orchestrating the Pipeline

tRPC serves as the nervous system of this pipeline. Unlike traditional REST APIs, which rely on implicit contracts, tRPC enforces a strict input/output schema. When dealing with image generation, the inputs are complex: a prompt string, model parameters (seed, guidance scale), and potentially reference images. The outputs are equally complex: a URL to a binary asset, a status enum, or an error message.

Using tRPC allows us to define a unified type contract that spans the client and the server. When a user submits a generation request, the tRPC router validates the prompt against a schema. Crucially, this is where we integrate LLM-based prompt engineering. Before the request hits the image generation queue, an LLM transform step can refine the user's vague input ("a cool cat") into a highly optimized, descriptive prompt ("a photorealistic tabby cat wearing sunglasses, cinematic lighting, 8k resolution"). This transformation is defined strictly in TypeScript, ensuring that the optimized prompt adheres to the character limits and safety guidelines of the image provider.

Visualizing the Pipeline Architecture

The flow of data through this system is non-linear. It involves a feedback loop where the client initiates a request, the server orchestrates background processing, and the client eventually retrieves the asset.

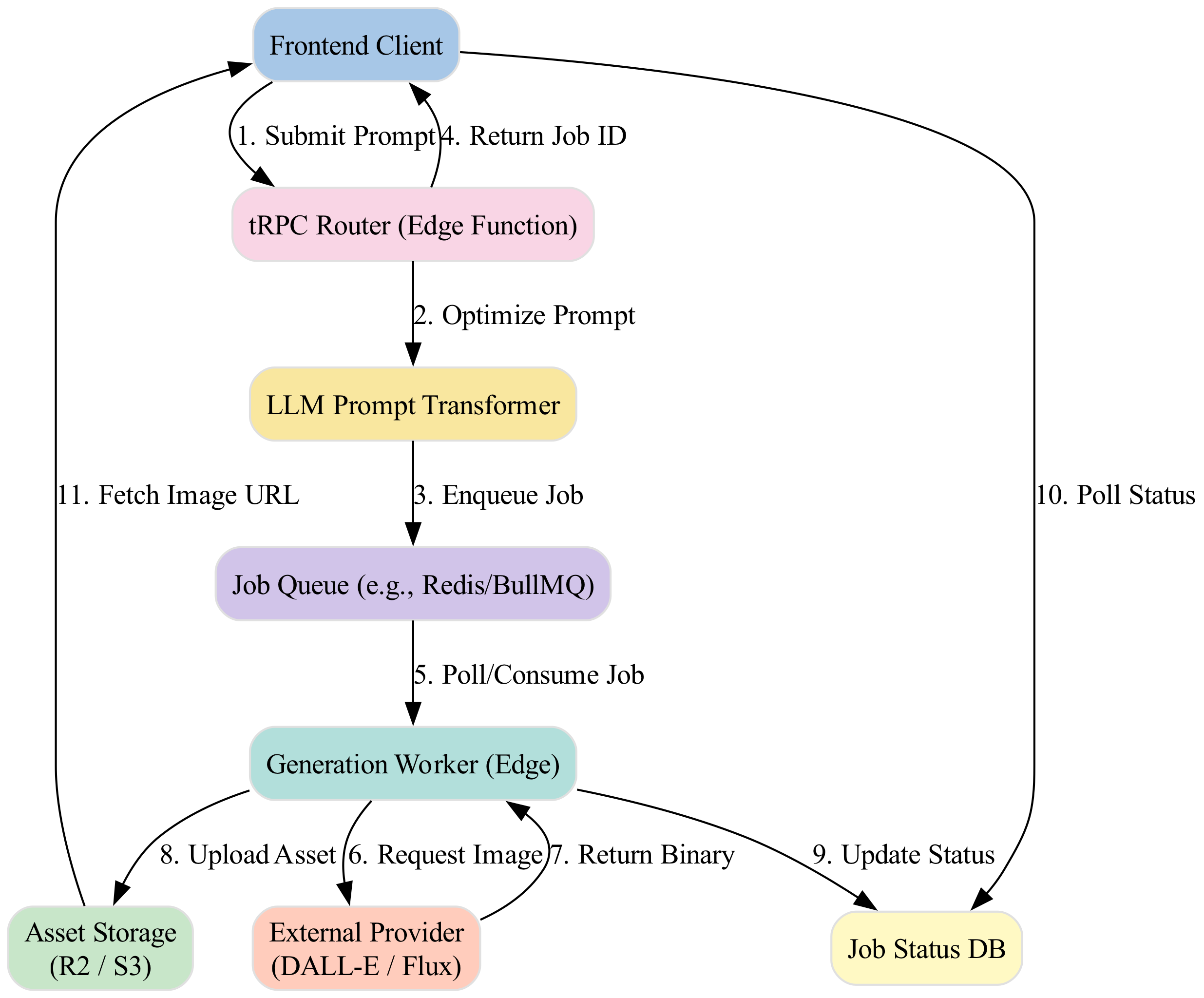

A diagram illustrating a feedback loop where a client initiates a request, the server orchestrates background processing, and the client retrieves the asset, highlighting the non-linear flow of data.

Context Augmentation for Prompt Engineering

In the previous chapter on RAG (Retrieval-Augmented Generation), we discussed Context Augmentation as the step where retrieved text chunks are packaged with the user query for the LLM. We apply the same principle here, but for a different purpose: Prompt Engineering.

Instead of retrieving documents to answer a question, we retrieve stylistic or technical constraints to optimize the image generation prompt. For example, if the user requests an image of a "cyberpunk city," the system might retrieve a stored context of "Cyberpunk Style Guidelines" (e.g., "neon colors, rain, high contrast, retro-futurism"). This retrieved context is concatenated with the user's raw query.

The LLM then synthesizes this augmented context to produce the final prompt. Raw User Input: "A city at night." Retrieved Context: "[Style: Cyberpunk. Keywords: neon, rain, blade runner, 8k, cinematic.]" LLM Synthesis (Context Augmentation): "A sprawling cyberpunk city at night, illuminated by vibrant neon signs, heavy rain reflecting the lights, blade runner aesthetic, cinematic composition, 8k resolution."

This process ensures that the image generation model receives a prompt that is not only descriptive but also aligned with specific aesthetic goals, dramatically improving the consistency of the output.

Handling Binary Data and Cost Management

A critical theoretical aspect of this pipeline is the handling of large binary outputs. Image generation models produce large blobs of data (often megabytes). In a standard serverless environment, piping this data directly through the Edge Function to the client can exceed memory limits or timeout constraints.

The architecture must treat the generated image as a reference rather than a value. Once the Generation Worker receives the binary data from the external provider, it immediately offloads it to durable object storage (like AWS S3 or Cloudflare R2). The pipeline then stores only the URL of the asset in the database.

This approach ties directly into Cost Management. External AI APIs are billed per token or per image, and storage costs accumulate over time. By implementing a caching strategy—checking if a prompt (or its semantic hash) has already been generated before enqueuing a new job—we avoid redundant costs. This is analogous to browser caching but at the application level. We store a mapping of PromptHash -> ImageURL. If a user requests the same prompt, we serve the existing URL instantly, bypassing the expensive generation step entirely.

Strict Type Discipline in Data Transformation

Finally, we return to the philosophy of Strict Type Discipline. An image generation pipeline involves data flowing through multiple stages: string (prompt) -> object (LLM parameters) -> string (optimized prompt) -> binary (image buffer) -> string (URL). Without strict typing, it is easy to misinterpret the state of the data.

For instance, in TypeScript, we define distinct types for each stage:

// The initial user input
type UserPrompt = string;

// The output of the LLM transformation
type OptimizedPrompt = string & { readonly _brand: 'OptimizedPrompt' };

// The job metadata stored in the queue
interface GenerationJob {
  id: string;
  prompt: OptimizedPrompt;
  status: 'pending' | 'processing' | 'completed' | 'failed';
  seed?: number;
}

// The final result from storage
interface GeneratedAsset {
  jobId: string;
  url: string; // URL to the image in R2/S3
  width: number;
  height: number;
}

By enforcing these types, we ensure that a raw user prompt cannot accidentally be passed directly to the image generation API without undergoing the LLM optimization step (transforming UserPrompt to OptimizedPrompt). This discipline prevents runtime errors where the API rejects a malformed prompt or returns an unexpected format, ensuring the pipeline operates with mathematical precision.

Basic Code Example

In a modern SaaS application, generating an image via an AI model like DALL-E or Flux is rarely a synchronous operation. A user submits a prompt, and the application must immediately acknowledge the request (returning a unique job ID) while the heavy lifting of image generation happens in the background. This prevents the user's browser from hanging on a long-running HTTP request and allows for scalable processing using serverless edge functions.

The following "Hello World" example demonstrates a simplified architecture using tRPC for type-safe API calls, Zod for input validation, and Node.js Async/Await patterns to handle the asynchronous nature of the task. We will simulate the external AI call to keep the code runnable without an actual API key.

The Code Example

/**

 * image-generation-pipeline.ts
 *
 * A self-contained TypeScript example demonstrating a basic asynchronous image generation pipeline.
 *
 * Dependencies:
 * - zod (for schema validation)
 * - @trpc/server (for API handling)
 *
 * Note: This code simulates external API calls to DALL-E/Flux.
 * In a production environment, you would replace the 'mockGenerateImage' function
 * with actual fetch calls to OpenAI or Stability AI.
 */

import { initTRPC } from '@trpc/server';
import { z } from 'zod';

// ==========================================
// 1. Define the Request Schema (Input Validation)
// ==========================================

/**

 * We use Zod to strictly define what the client can send.
 * This prevents malformed data from entering the pipeline and ensures type safety.
 *
 * @field prompt - The text description of the image to generate.
 * @field style - An optional enum to control the artistic style.
 */
const ImageGenerationInput = z.object({
  prompt: z.string().min(3).max(500), // Ensure prompt is reasonable length
  style: z.enum(['realistic', 'cartoon', 'watercolor']).default('realistic'),
});

type ImageGenerationInput = z.infer<typeof ImageGenerationInput>;

// ==========================================
// 2. Mock External AI Service (Simulating DALL-E/Flux)
// ==========================================

/**

 * Simulates the latency and behavior of a real external image generation API.
 *
 * In a real scenario:
 * 1. This function would make a POST request to OpenAI's DALL-E 3 endpoint.
 * 2. It would handle authentication headers (Bearer Token).
 * 3. It would parse the JSON response to get the image URL.
 *
 * @param input - The validated input from the client.
 * @returns A Promise resolving to a simulated image URL.
 */
async function mockGenerateImage(input: ImageGenerationInput): Promise<string> {
  console.log(`[System] Calling external AI with prompt: "${input.prompt}" (Style: ${input.style})`);

  // Simulate network latency (2 seconds)
  await new Promise(resolve => setTimeout(resolve, 2000));

  // Simulate a successful response
  const mockUrl = `https://example.com/generated-images/${Buffer.from(input.prompt).toString('base64')}.png`;
  return mockUrl;
}

// ==========================================
// 3. tRPC Router Definition (The API Layer)
// ==========================================

/**

 * Initialize the tRPC backend.
 * tRPC allows us to define backend procedures that are callable from the frontend
 * with full end-to-end type safety.
 */
const t = initTRPC.create();

/**

 * The main application router.
 * We define a mutation named 'generateImage'.
 */
const appRouter = t.router({
  generateImage: t.procedure
    // Validate input using Zod middleware
    .input(ImageGenerationInput)
    // The actual logic handler (Resolver)
    .query(async ({ input }) => {

      // Step A: Prompt Engineering (Optional but recommended)
      // In a real app, you might use a lightweight LLM (like GPT-3.5-Turbo) here
      // to refine the user's prompt for better image generation results.
      const optimizedPrompt = `[High Quality, 8k] ${input.prompt}`;

      // Step B: Asynchronous Processing
      // We await the image generation. In a serverless context (Vercel/AWS Lambda),
      // this must complete within the function timeout limit (usually 10-30s).
      try {
        const imageUrl = await mockGenerateImage({
          ...input,
          prompt: optimizedPrompt,
        });

        // Step C: Return Result
        return {
          success: true,
          imageUrl: imageUrl,
          generatedAt: new Date().toISOString(),
        };
      } catch (error) {
        console.error('[System] Image generation failed:', error);
        throw new Error('Failed to generate image');
      }
    }),
});

// ==========================================
// 4. Client-Side Usage (Simulation)
// ==========================================

/**

 * Simulates the frontend client calling the tRPC procedure.
 * In a real app, this would be inside a React component using @trpc/react-query.
 */
async function simulateFrontendCall() {
  console.log('--- Frontend: User submits prompt ---');

  const userInput: ImageGenerationInput = {
    prompt: 'A futuristic city skyline at sunset',
    style: 'realistic',
  };

  try {
    // In a real app: const result = await trpc.generateImage.query(userInput);
    // Here, we directly call the router logic:
    const result = await appRouter.generateImage.query(userInput);

    console.log('--- Frontend: Received Result ---');
    console.log(`Image URL: ${result.imageUrl}`);
  } catch (error) {
    console.error('Frontend Error:', error);
  }
}

// Execute the simulation
simulateFrontendCall();

Line-by-Line Explanation

1. Define the Request Schema (Input Validation)

const ImageGenerationInput = z.object({
  prompt: z.string().min(3).max(500),
  style: z.enum(['realistic', 'cartoon', 'watercolor']).default('realistic'),
});

Why: Security and reliability. Never trust user input. If a user sends a 10,000-character prompt, it could crash the AI model or incur massive costs.
How: We use zod, a TypeScript schema validation library. This creates a runtime object that validates incoming data.
Under the Hood: When tRPC receives a request, it passes the JSON payload through this schema. If validation fails, the request is rejected immediately with a clear error, preventing the code from executing with bad data.

2. Mock External AI Service

async function mockGenerateImage(input: ImageGenerationInput): Promise<string> {
  await new Promise(resolve => setTimeout(resolve, 2000));
  // ...
}

Why: To demonstrate Asynchronous Processing. Image generation is slow (seconds to minutes). We cannot block the Node.js event loop.
How: We use setTimeout wrapped in a Promise to simulate the network latency of calling an external API like DALL-E.
Under the Hood: In a real implementation, this function would use fetch() or an SDK (e.g., openai.images.generate). The await keyword suspends execution of this specific function instance until the external server responds, allowing Node.js to handle other incoming requests in the meantime.

3. tRPC Router Definition

const appRouter = t.router({
  generateImage: t.procedure
    .input(ImageGenerationInput)
    .query(async ({ input }) => {
      // ...
    }),
});

Why: Type safety. tRPC allows the backend to define procedures that the frontend can call as if they were local functions. If the backend changes the input shape, the frontend TypeScript build will fail immediately.
How: We define a router containing a procedure. We attach the Zod schema via .input().
Under the Hood: The .query method accepts an async resolver function. The input argument is already typed based on the Zod schema. We don't need to manually parse JSON or cast types.

4. The Processing Logic

const optimizedPrompt = `[High Quality, 8k] ${input.prompt}`;
const imageUrl = await mockGenerateImage({ ...input, prompt: optimizedPrompt });

Why: This demonstrates the LLM Data Transformation step mentioned in the chapter context. Raw user input is often vague; wrapping it in a prompt engineering template improves output quality.
How: We modify the input object locally, then await the image generation.
Under the Hood: The await keyword is crucial here. It pauses the execution of the generateImage function until mockGenerateImage resolves. This is non-blocking at the server level (other requests can be processed) but synchronous for this specific request context.

Visualizing the Pipeline

The flow of data from the user to the generated image involves several distinct stages. The following diagram illustrates the asynchronous nature of this process.

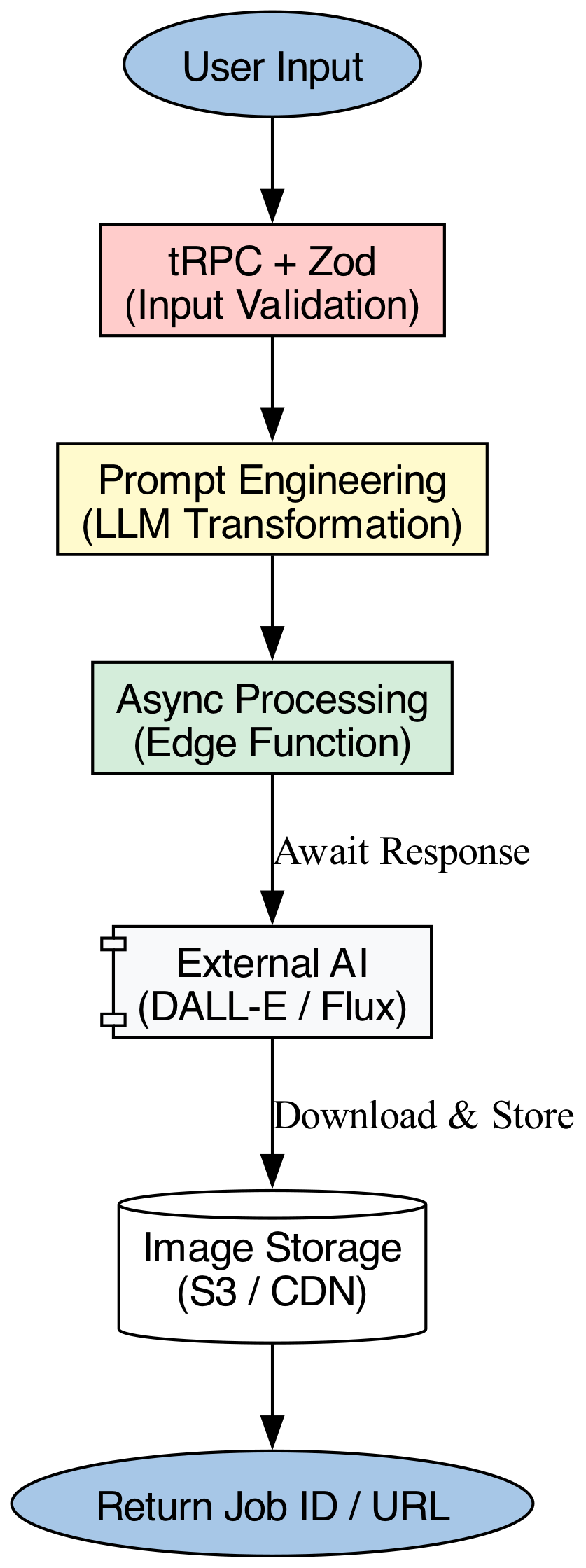

This diagram illustrates the asynchronous pipeline that transforms a user's textual prompt through multiple distinct stages—such as text encoding, diffusion model inference, and image decoding—to ultimately generate a visual output.

Common Pitfalls

When implementing this pipeline in a production SaaS environment (especially on serverless platforms like Vercel or AWS Lambda), watch out for these specific JavaScript/TypeScript issues:

Vercel/AWS Timeouts:
- The Issue: Serverless functions have strict execution time limits (e.g., 10 seconds on Vercel Hobby, 60 seconds on Pro). Image generation often exceeds this.
- The Fix: Do not await the image generation directly in the API response. Instead, use a Job Queue (like Inngest, BullMQ, or Redis). The API should immediately return a jobId, and the client should poll a status endpoint or listen for a webhook.
Async/Await Loops (Concurrency Control):
- The Issue: If 100 users click "Generate" simultaneously, and your function awaits the AI API, you might hit API rate limits (e.g., OpenAI's RPM limits) or exhaust your database connection pool.
- The Fix: Implement a queueing mechanism on the server. Process requests one by one or in small batches (e.g., 5 concurrent requests) rather than firing them all simultaneously.
Hallucinated JSON / Type Errors:
- The Issue: When calling external APIs (like OpenAI), the response structure can change or be inconsistent. Accessing response.data.url when the actual path is response.data[0].url results in a runtime crash.
- The Fix: Use Zod for output validation as well. Before using data from an external API, parse it against a strict schema.
```
const ExternalResponseSchema = z.object({ url: z.string().url() });
const parsed = ExternalResponseSchema.safeParse(rawResponse);
if (!parsed.success) throw new Error("API response format changed!");
```
Memory Leaks in Warm Starts:
- The Issue: In serverless environments, "Warm Starts" (reusing a container that has already loaded the Node.js process) are beneficial. However, if you store global state (like a database connection or a loaded ML model) in the global scope without checking if it's still valid, you might reuse a closed connection or stale data.
- The Fix: Always check the health of global connections before reusing them in a warm start. Avoid storing sensitive state in global variables; prefer ephemeral storage or managed databases.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
