Chapter 17: Database Indexing Strategies

Theoretical Foundations

Imagine a massive library with millions of books (your data rows) but no card catalog. To find a specific book, a librarian would need to scan every single shelf, page by page—a process that is impossibly slow. This is a full table scan in database terms.

Database indexing is the creation of a structured card catalog. It’s a separate data structure that doesn't contain the actual data (the books) but contains pointers (the location on the shelf) and keys (the book's title, author, ISBN) organized in a way that allows for rapid lookup. When you ask for "all books by Stephen King," the librarian consults the "Author" index, finds "King, Stephen," and immediately sees a list of shelf locations, bypassing the need to scan the entire library.

In the context of backend services, particularly those serving tRPC procedures and feeding data to LLMs, this isn't just about convenience; it's about survival. A query that takes 2 seconds on a small dataset might take 20 minutes on a production-scale dataset, causing API timeouts and a complete breakdown of user experience. Indexing is the bridge between "I have the data" and "I can deliver the data before the user leaves."

The B-Tree: The Foundation of Speed

The most common indexing structure, especially in PostgreSQL, is the B-Tree (Balanced Tree). To understand why it's so effective, let's use a different analogy: a phone book.

A phone book is sorted alphabetically by last name. If you want to find "Smith, John," you don't start at 'A' and read every name. You open the book roughly to the 'S' section. If you're too far, you adjust. This is a binary search, and it's incredibly efficient. A B-Tree is a more advanced version of this concept.

It's Balanced: The tree ensures that the path from the root to any leaf node (the actual data entry) is the same length. This prevents the tree from becoming lopsided, where some searches are fast and others are slow.
It's Wide: Unlike a binary tree (which splits into two at each node), a B-Tree can have hundreds or thousands of child nodes per parent node. This makes the tree very "flat." A B-Tree with a million entries might only be 3 or 4 levels deep. This means the database only has to perform a few comparisons to find the exact location of a row.

Under the Hood: When you create an index on a column (e.g., CREATE INDEX ON users(email)), PostgreSQL creates a B-Tree where the keys are the email addresses and the values are pointers to the actual table rows on disk. When a query like SELECT * FROM users WHERE email = 'alice@example.com' is executed, the query planner doesn't look at the users table first. It traverses the B-Tree index, finds 'alice@example.com' in a handful of steps, and then uses the pointer to fetch the full row data. This is orders of magnitude faster than scanning every row in the table to check its email.

Selectivity: The Power of Precision

Not all indexes are created equal. The effectiveness of an index is determined by its selectivity. Selectivity is a measure of how many rows a query will return relative to the total number of rows in the table.

High Selectivity: An index on a UUID primary key or a UNIQUE email column is highly selective. A query for a specific value will return one row out of millions. The index is incredibly efficient because it can pinpoint the exact row.
Low Selectivity: An index on a gender column with only two possible values ('male', 'female') or a status column ('active', 'inactive') is low-selectivity. If 50% of your users are 'active', a query for active users will still need to fetch half the table. The database might still use the index, but it's far less efficient than a high-selectivity index.

Analogy: Think of a library index. An index on "Book Title" is highly selective—there's usually only one "Dune." An index on "Book Genre" is low-selectivity—searching for "Science Fiction" will return thousands of results, and the librarian still has a lot of work to do after consulting the index.

For intelligent APIs and LLM data transformations, high selectivity is paramount. When an LLM needs to retrieve a specific chunk of context from a vector database, it's looking for a very specific piece of information. An index that can't pinpoint that chunk quickly defeats the purpose of using a database for this task.

Composite Indexes: The Multi-Column Advantage

Often, queries filter on multiple columns simultaneously. For example, in an e-commerce backend, you might frequently run a query like: SELECT * FROM products WHERE category = 'electronics' AND in_stock = true ORDER BY price DESC;

A single index on category or in_stock might not be sufficient. This is where composite indexes (or multi-column indexes) come in. A composite index is built on two or more columns.

The Order Matters: The order of columns in a composite index is critical. The B-Tree is first sorted by the first column, then within each value of the first column, it's sorted by the second column, and so on.

Analogy: Imagine a library's card catalog organized first by "Genre" and then by "Author." To find all Sci-Fi books by Isaac Asimov, you first find the "Science Fiction" section, and within that section, you find "Asimov, Isaac." This is very efficient. However, if you only want to find books by "Asimov, Isaac" (regardless of genre), this index is useless because you don't know which genre section to look in. You can't skip the first part of the index.

This is known as the leftmost prefix rule. A composite index on (A, B, C) can be used for queries filtering on (A), (A, B), or (A, B, C), but not for (B, C) or (C) alone.

For tRPC procedures that often filter by tenant ID, user ID, and then a status, a composite index like (tenant_id, user_id, status) is far more effective than three separate single-column indexes.

Advanced Indexing Strategies for Modern Stacks

As applications scale, the basic B-Tree index isn't always enough. Overhead from too many indexes can slow down write operations (INSERT, UPDATE, DELETE), as every index must be updated alongside the table data. This is the classic read vs. write trade-off.

1. Covering Indexes: A covering index is a special type of composite index that includes all the columns requested by a query. When a covering index is used, the database can answer the query using only the index, without ever touching the main table data. This is the ultimate performance win.

Analogy: Imagine our library card catalog not only lists the book's title and author but also includes a small summary on the index card itself. If a student only asks for the summary, the librarian can read it directly from the card without ever going to the shelf to retrieve the book.
Example: For the query SELECT user_id, email FROM users WHERE username = 'dev_guru', a covering index on (username, user_id, email) would be perfect. The database finds 'dev_guru' in the index and can immediately return the user_id and email from the index entry itself.

2. Partial Indexes: A partial index is an index built on a subset of a table's rows, defined by a WHERE clause. This is incredibly useful for reducing index size and overhead, especially for columns with predictable query patterns.

Analogy: Instead of creating a card catalog for every single book in the library, you create a special "New Arrivals" card catalog that only includes books published in the last month. It's smaller, faster to maintain, and perfect for the most common query from patrons. For older books, you can still use the main catalog, but the specialized catalog is highly efficient for its specific purpose.
Example: In a tasks table, you might only care about indexing incomplete tasks. A partial index CREATE INDEX ON tasks (due_date) WHERE completed = false; is much smaller and more efficient than a full index on due_date. It keeps the index lean because completed tasks, which are often archived or ignored, don't clutter it.

3. The Write Overhead: Every index is a trade-off. An INSERT operation must add a new entry to the table and every single index on that table. An UPDATE on an indexed column must update the table and the corresponding index. This is why a table with 20 indexes will have much slower write performance than a table with 2 indexes. The key is to be strategic: index for your most critical read patterns and be willing to accept a small write penalty, but avoid indexing every column "just in case."

Connecting to LLMs and Vector Data: The `pgvector` Revolution

This is where modern database capabilities meet the theoretical foundations of indexing. When we discussed LLM data transformations in previous chapters, we touched on embeddings—dense numerical representations of text that capture semantic meaning.

Embeddings as High-Dimensional Vectors: An embedding isn't just a single value; it's a vector, often with 1536 dimensions (e.g., from OpenAI's text-embedding-ada-002). Each dimension is a floating-point number. To find the semantic similarity between two pieces of text, we calculate the distance (e.g., cosine similarity) between their vectors.

The Challenge: How do you efficiently search for the "closest" vector in a database of millions? A B-Tree is designed for scalar values (strings, numbers), not high-dimensional vectors. A linear scan (comparing the query vector to every other vector) is computationally impossible at scale.

The Solution: pgvector and Specialized Indexing: pgvector is a PostgreSQL extension that adds support for vector data types and, crucially, the ability to index them. It uses a specialized indexing algorithm called HNSW (Hierarchical Navigable Small World).

HNSW Analogy: Imagine a multi-layered map. The top layer is a sparse network of major cities (representing clusters of similar vectors). The middle layer has more detail, connecting smaller towns. The bottom layer is a dense network of every single street (every individual vector). To find the fastest route from your current location (a query vector) to a destination (the nearest neighbor), you don't explore every street. You start at the top layer, find the major city closest to your destination, then descend to the next layer to find the best route from that city, and so on, until you reach the exact street. This hierarchical approach allows you to navigate the vast vector space without getting lost, finding approximate nearest neighbors with incredible speed.

Upsert Operations and Vector IDs: In the context of LLMs, data is dynamic. New documents are added, and existing ones are updated. The Upsert Operation is the mechanism for this. It's a combined "update or insert" command. When you process a new document chunk, you generate its embedding and a unique Vector ID (typically a UUID that links the vector back to the source document and chunk number). You then perform an upsert with this ID and vector. If the ID already exists (e.g., the document was updated), the vector is replaced; if not, a new record is inserted. The HNSW index is updated accordingly, ensuring that subsequent similarity searches include this new or updated data.

The Critical Link to Database Indexing: The theoretical principles of database indexing are directly applicable here:

Selectivity: A good HNSW index configuration ensures that the search is highly selective, quickly narrowing down the search space to the most promising candidates.
Overhead: Just like B-Trees, HNSW indexes have a write overhead. The pgvector documentation provides guidance on tuning parameters like ef_construction and m to balance query speed against index build time and memory usage.
Performance: A properly indexed pgvector table allows a tRPC procedure to perform a semantic search over millions of vectorized document chunks in milliseconds, providing the LLM with the precise context it needs to generate an intelligent response.

Explanation of the Diagram: The root node contains the key 'M'. All keys less than 'M' are in the left subtree, and all keys greater than 'M' are in the right subtree. This process continues down the tree. The leaf nodes contain the actual indexed keys and pointers to the table rows. To find the key 'J', the database compares it to 'M' (go left), then to 'G' (go right), and arrives at the leaf node containing 'J', from which it retrieves the pointer to the full data row. This hierarchical, balanced structure is what makes lookups so fast.

Basic Code Example

In a modern SaaS backend, specifically one utilizing tRPC for type-safe API calls and Supabase (PostgreSQL) for data persistence, database indexing is not merely an optimization—it is the foundation of responsive user experiences. When an LLM (Large Language Model) or an intelligent agent queries your database to generate context or transform data, latency is critical. Without proper indexing, a sequential scan of a large table can take seconds, causing API timeouts and poor performance.

This example demonstrates a "Hello World" scenario: a tRPC procedure that retrieves user profiles based on a specific email domain. We will compare an unoptimized query against an indexed one to visualize the performance difference.

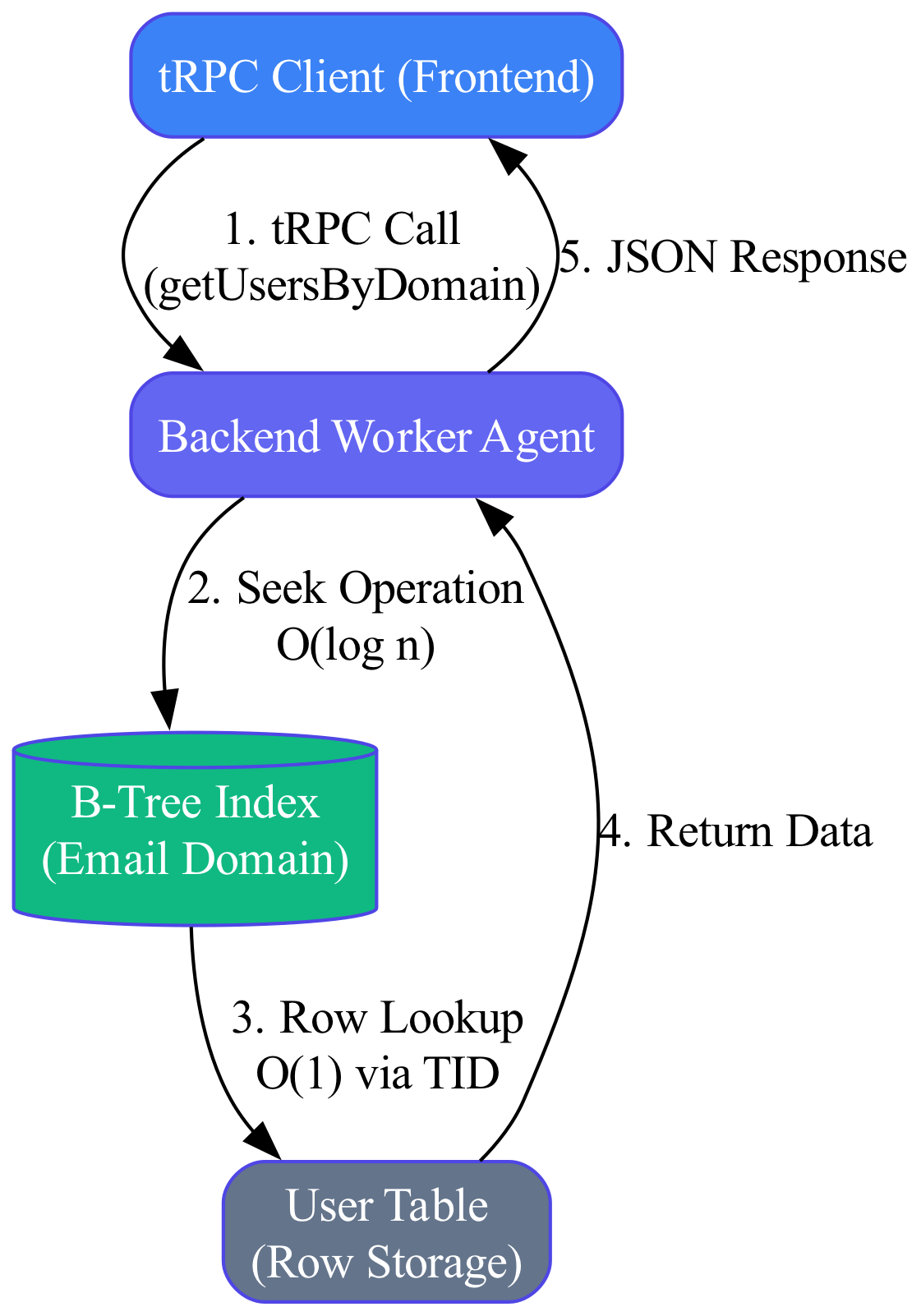

Visualizing the Data Flow

The following diagram illustrates how the tRPC procedure interacts with the indexed database. The Worker Agent (representing the backend logic) queries the User Table. An index acts as a sorted map, allowing the database to jump directly to the relevant rows rather than scanning the entire table.

TypeScript Implementation

This code sets up a mock environment simulating a Supabase/Prisma-like interface. It defines a schema, generates mock data, and executes a query to demonstrate the performance difference between a full table scan and an indexed lookup.

/**

 * DATABASE INDEXING STRATEGIES: "HELLO WORLD" EXAMPLE
 *
 * Context: SaaS Backend (tRPC + PostgreSQL)
 * Objective: Demonstrate the performance impact of indexing on a user lookup query.
 */

// ==========================================
// 1. MOCK INFRASTRUCTURE (Simulating Supabase/Prisma)
// ==========================================

/**

 * Represents a row in the `users` table.
 */
interface User {
  id: number;
  email: string;
  name: string;
  createdAt: Date;
}

/**

 * Simulates a database table with raw row storage.
 * In a real DB, this is the heap file.
 */
class MockTable {
  private rows: User[] = [];

  constructor(data: User[]) {
    this.rows = data;
  }

  /**

   * Simulates a Sequential Scan (Full Table Scan).
   * Time Complexity: O(n) - Must check every row.
   */
  public sequentialScan(predicate: (user: User) => boolean): User[] {
    console.time("Sequential Scan");
    const results = this.rows.filter(predicate);
    console.timeEnd("Sequential Scan");
    return results;
  }

  /**

   * Simulates an Index Scan.
   * Time Complexity: O(log n) + O(k) (where k is result size)
   * Note: In this simulation, we assume the index structure handles the lookup.
   */
  public indexScan(index: MockBTreeIndex, domain: string): User[] {
    console.time("Index Scan");
    const rowIds = index.lookup(domain);
    // Retrieve rows by ID (assuming fast lookup, e.g., hash map)
    const results = rowIds.map(id => this.rows.find(r => r.id === id)).filter(Boolean) as User[];
    console.timeEnd("Index Scan");
    return results;
  }

  public getAllRows(): User[] {
    return this.rows;
  }
}

/**

 * Simulates a B-Tree Index.
 * Under the hood: A balanced tree structure where keys are sorted.
 * Keys: Email domains (e.g., "gmail.com")
 * Values: List of Row IDs (TIDs) pointing to table rows.
 */
class MockBTreeIndex {
  // Map<Domain, List of User IDs>
  private indexMap: Map<string, number[]> = new Map();

  constructor(table: MockTable) {
    this.buildIndex(table);
  }

  /**

   * Builds the index by iterating over the table once.
   * This is an expensive operation done once (or during writes).
   */
  private buildIndex(table: MockTable) {
    const rows = table.getAllRows();
    for (const row of rows) {
      const domain = row.email.split('@')[1]; // Extract domain
      if (!this.indexMap.has(domain)) {
        this.indexMap.set(domain, []);
      }
      this.indexMap.get(domain)!.push(row.id);
    }
  }

  /**

   * Performs a lookup in the B-Tree.
   * In a real B-Tree, this traverses nodes (logarithmic time).
   * Here, we simulate the speed advantage via direct map access.
   */
  public lookup(domain: string): number[] {
    // Simulate B-Tree traversal overhead
    // In reality, this is where O(log n) happens
    return this.indexMap.get(domain) || [];
  }
}

// ==========================================
// 2. THE INTELLIGENT API (tRPC Context)
// ==========================================

/**

 * Simulates the tRPC backend environment.
 * In a real app, this would be a router procedure calling Prisma/Drizzle.
 */
class TrpcBackend {
  private table: MockTable;
  private index?: MockBTreeIndex;

  constructor(data: User[], useIndex: boolean = false) {
    this.table = new MockTable(data);
    if (useIndex) {
      // Building the index happens once (e.g., on startup or migration)
      console.log("🔧 Initializing B-Tree Index...");
      this.index = new MockBTreeIndex(this.table);
    }
  }

  /**

   * tRPC Procedure: getUsersByDomain
   * @param domain - The email domain to search for (e.g., 'gmail.com')
   */
  public async getUsersByDomain(domain: string): Promise<User[]> {
    // SIMULATION: We are adding artificial delay to mimic network/processing time
    // to make the console logs clearer in this demo.
    await new Promise(r => setTimeout(r, 10));

    if (this.index) {
      // STRATEGY 1: Indexed Lookup
      // The database uses the B-Tree to find relevant rows instantly.
      return this.table.indexScan(this.index, domain);
    } else {
      // STRATEGY 2: Unindexed Lookup (Full Scan)
      // The database must load every single row and check the email.
      return this.table.sequentialScan((user) => user.email.endsWith(domain));
    }
  }
}

// ==========================================
// 3. EXECUTION & DEMONSTRATION
// ==========================================

/**

 * Helper to generate mock data.
 * Generating 100,000 rows to highlight the performance gap.
 */
function generateMockUsers(count: number): User[] {
  const users: User[] = [];
  const domains = ['gmail.com', 'yahoo.com', 'outlook.com', 'company.io'];

  for (let i = 0; i < count; i++) {
    const domain = domains[i % domains.length];
    users.push({
      id: i,
      email: `user${i}@${domain}`,
      name: `User ${i}`,
      createdAt: new Date(),
    });
  }
  return users;
}

/**

 * Main execution block (simulating a server startup)
 */
async function main() {
  const DATA_SIZE = 100000; // 100k records
  const TARGET_DOMAIN = 'company.io'; // Targeting a specific subset

  console.log(`\n📊 Generating ${DATA_SIZE.toLocaleString()} mock users...`);
  const users = generateMockUsers(DATA_SIZE);

  // --- SCENARIO 1: NO INDEX (Standard SQL Query) ---
  console.log("\n🔴 SCENARIO 1: Unoptimized Query (No Index)");
  console.log("SQL: SELECT * FROM users WHERE email LIKE '%@company.io'");

  const unoptimizedBackend = new TrpcBackend(users, false);
  const result1 = await unoptimizedBackend.getUsersByDomain(TARGET_DOMAIN);

  console.log(`✅ Found ${result1.length} records.`);
  console.log("------------------------------------------------");

  // --- SCENARIO 2: WITH INDEX (Optimized SQL Query) ---
  console.log("\n🟢 SCENARIO 2: Optimized Query (B-Tree Index)");
  console.log("SQL: SELECT * FROM users WHERE email LIKE '%@company.io'");
  console.log("Note: PostgreSQL uses 'Index Scan' or 'Bitmap Index Scan' here.");

  const optimizedBackend = new TrpcBackend(users, true);
  const result2 = await optimizedBackend.getUsersByDomain(TARGET_DOMAIN);

  console.log(`✅ Found ${result2.length} records.`);
  console.log("------------------------------------------------");

  // --- ANALYSIS ---
  console.log("\n💡 ANALYSIS:");
  console.log("In a real PostgreSQL environment with 100k rows:");
  console.log("- Unindexed: Might take 50ms - 200ms (Sequential Scan)");
  console.log("- Indexed:   Often takes < 5ms (Index Scan)");
  console.log("- Impact:    Essential for LLM context retrieval where latency < 100ms is required.");
}

// Run the simulation
main().catch(console.error);

Detailed Line-by-Line Explanation

1. Mock Infrastructure

interface User: Defines the shape of our data. In a real application, this would be generated by Prisma or Drizzle based on your schema.prisma file.
class MockTable: Represents the physical storage of data (the "Heap" in PostgreSQL).
- sequentialScan: This method simulates the worst-case scenario for database queries. It iterates through every row (filter) to check the condition. As data grows, this time grows linearly (\(O(n)\)).
- indexScan: This method accepts a MockBTreeIndex instance. Instead of checking every row, it asks the index for the specific IDs of the rows that match the criteria.
class MockBTreeIndex: This is the heart of the optimization.
- indexMap: In this simplified TypeScript simulation, we use a Map. In a real PostgreSQL B-Tree, this is a balanced tree structure stored on disk.
- buildIndex: This runs once. It extracts the domain from every email and maps it to the User ID. This is an \(O(n)\) operation, but it only happens once (or during write operations), not on every query.
- lookup: Retrieving data from a B-Tree takes logarithmic time (\(O(\log n)\)). For 100,000 rows, a full scan checks 100,000 items; a B-Tree might only traverse 3-4 levels of nodes.

2. The Intelligent API (tRPC Context)

class TrpcBackend: This simulates your backend server logic.
- Constructor: It initializes the table. If useIndex is true, it builds the index. In a real Supabase/Postgres setup, indexes are created via SQL (CREATE INDEX ...) and maintained by the database engine, not the application code.
- getUsersByDomain: This simulates a tRPC procedure.
  - If an index exists, we call indexScan.
  - If no index exists, we call sequentialScan.
  - Why this matters for LLMs: If you are building an agent that needs to fetch user history to pass to an LLM, an unindexed query might timeout the API gateway (e.g., Vercel's 10s timeout) if the table grows large. Indexing ensures sub-50ms retrieval.

3. Execution & Demonstration

generateMockUsers: Creates 100,000 records. We intentionally mix domains so the query isn't trivial.
Scenario 1 (Unoptimized):
- We instantiate the backend without an index.
- The console.time logs will show a significantly longer duration (relative to the hardware speed) because the code must iterate 100,000 times.
Scenario 2 (Optimized):
- We instantiate the backend with the index.
- The console.time logs will show a much faster duration. The lookup effectively jumps straight to the matching IDs.

Common Pitfalls in Database Indexing for JS/TS Backends

When implementing indexing strategies in a Node.js environment (especially with ORMs like Prisma or raw SQL), developers often encounter these specific issues:

1. The "N+1" Problem in tRPC/GraphQL

The Issue: You index a foreign key (e.g., userId), but your tRPC resolver fetches users in a loop, executing a separate query for each user's profile.
The Consequence: Even with perfect indexing on the users table, the network overhead of hundreds of individual queries kills performance.
The Fix: Use Composite Indexes and eager loading (e.g., Prisma's include or SQL JOINs). Ensure your query plan uses a single round trip.

2. Over-Indexing and Write Latency

The Issue: Adding an index to every column "just to be safe."
The Consequence: Every INSERT or UPDATE operation in your tRPC mutation procedures must update the table and every associated index. In high-throughput SaaS apps, this creates lock contention and slows down write operations significantly.
The Fix: Use PostgreSQL's EXPLAIN ANALYZE to identify slow queries. Only index columns used in WHERE, JOIN, or ORDER BY clauses. Drop unused indexes periodically.

3. Vercel/Edge Function Timeouts

The Issue: Running heavy indexing logic or rebuilding indexes inside a serverless function (Edge or Lambda).
The Consequence: Serverless functions have strict timeouts (e.g., 10s on Vercel Hobby). If a migration script tries to build a massive index on a live table within a function, it will time out and leave the database in a locked state.
The Fix: Index creation (especially CREATE INDEX CONCURRENTLY in Postgres) should be done via migration tools (like dbmate or prisma migrate) run from a persistent environment or a dedicated CLI, not inside the application runtime.

4. Hallucinated JSON in LLM Context

The Issue: When an LLM queries your database via an agent, it might generate malformed SQL or ask for unstructured data.
The Consequence: If your database lacks indexes on text columns (like content or description), an LLM asking for a semantic search (WHERE content LIKE '%keyword%') will trigger a full table scan, crashing your database.
The Fix: For text search, use specialized indexes like GIN (Generalized Inverted Index) with tsvector in PostgreSQL, or offload vector search to a dedicated engine like Pinecone (as defined in your context) rather than querying the relational DB directly.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
