Chapter 18: Preventing N+1 Queries

Theoretical Foundations

At its heart, the N+1 query problem is a performance anti-pattern that occurs when an application executes one initial database query to fetch a list of items (the "1") and then executes an additional query for each individual item in that list to fetch related data (the "N"). This results in a cascade of database requests that scales linearly with the number of items, leading to significant latency, database load, and a poor user experience.

Imagine you are a librarian tasked with compiling a reading list for a book club. The club has provided you with a list of 50 book titles. Your process is as follows:

You query the main catalog to get the list of 50 book titles (the "1" query).
For each of the 50 titles, you walk to the "Author's Biography" section, look up the author's name, and retrieve their biography (the "N" queries).

This is wildly inefficient. You made 51 trips to the library shelves when you could have gathered all the information in a single, more comprehensive trip. The N+1 problem in software is exactly this: it's the digital equivalent of making a separate trip to the shelf for every single piece of related data.

The "Why": A Deeper Dive into the Mechanics

To understand the severity of this issue, we must look at the lifecycle of a typical web request in a system like a tRPC backend.

The Initial Request: A client (e.g., a React component) requests a list of Posts.

The "1" Query: Your tRPC router queries the database for all Posts. This is efficient.

// The initial, efficient query
const posts = await db.select().from(postsTable);

The "N" Queries (The Bottleneck): Now, the server needs to enrich this data. For each post, it needs to fetch the associated author. A naive implementation might look like this:
```
// This is the problematic pattern we must avoid
const postsWithAuthors = await Promise.all(
  posts.map(async (post) => {
    // This line executes a new database query for EACH post
    const author = await db.select().from(usersTable).where(eq(usersTable.id, post.authorId));
    return { ...post, author };
  })
);
```
If you fetch 100 posts, you are now executing 1 (for the posts) + 100 (for the authors) = 101 separate database queries. Each query has network overhead, connection pooling costs, and query parsing/execution time. This multiplicative effect cripples response times as the dataset grows.

This problem is particularly insidious in GraphQL APIs, where the schema is defined as a graph. A client might request a deeply nested structure like posts { author { profile { avatar } } }. Without careful resolver design, a naive GraphQL implementation will trigger a query at every level of the graph for every node, leading to an exponential explosion of database calls.

The Solution: Batching and Caching with DataLoader

The antidote to the N+1 problem is batching. Instead of making N separate trips, we collect all the required keys (e.g., all the authorIds) from the initial list and make a single, consolidated query to fetch all the related data. Then, we stitch the data back together on the server.

This is where DataLoader comes in. It is not a database itself, but a generic utility that solves this exact pattern. It provides a request-scoped cache and a batching mechanism.

The Web Development Analogy: A Smart Waiter

Think of a DataLoader as a highly efficient waiter in a busy restaurant.

The Problem (N+1): A table of 10 friends orders drinks. A naive waiter would take one person's order, walk to the bar, get that drink, bring it back, then take the next person's order, and so on. This is 10 separate trips.
The Solution (Batching): A smart waiter (the DataLoader) takes the entire table's drink order at once (collecting the keys). They walk to the bar once and place a single, batched order for all 10 drinks. They return with all the drinks on a tray and distribute them to the correct people (mapping the results back to the original keys).

DataLoader does this for your database queries. It allows you to define a "batching function" that takes an array of keys and returns a promise that resolves to an array of values. It ensures that all requests for data within a single tick of the event loop are batched together.

Under the Hood: The Batching Mechanism

Let's break down how this works in a tRPC context.

Request Context: When a request hits your tRPC router, you create a new instance of a DataLoader. This instance is scoped to that specific request. This is critical because you don't want data from one user's request to be cached and served to another user's request.

The Batching Function: You define a function that knows how to fetch a batch of items given an array of keys. For our author example, this function would take an array of authorIds and return a promise that resolves to an array of User objects.

// A conceptual batching function for fetching authors by ID
const fetchAuthors = async (authorIds: string[]): Promise<User[]> => {
  // This is a SINGLE database query, regardless of how many authorIds are in the array
  const authors = await db.select().from(usersTable).where(inArray(usersTable.id, authorIds));
  // DataLoader expects the returned array to be in the same order and length as the keys array.
  // We must map the results back to the original keys.
  const authorMap = new Map(authors.map(author => [author.id, author]));
  return authorIds.map(id => authorMap.get(id) || null);
};

The Magic of the Event Loop: The batching doesn't happen instantly. It happens on the "next tick" of the Node.js event loop. When you call loader.load(key) multiple times within the same synchronous block of code (or within the same microtask queue), DataLoader collects all those keys. It then waits for the current stack to clear and executes the batch function once with all the collected keys.

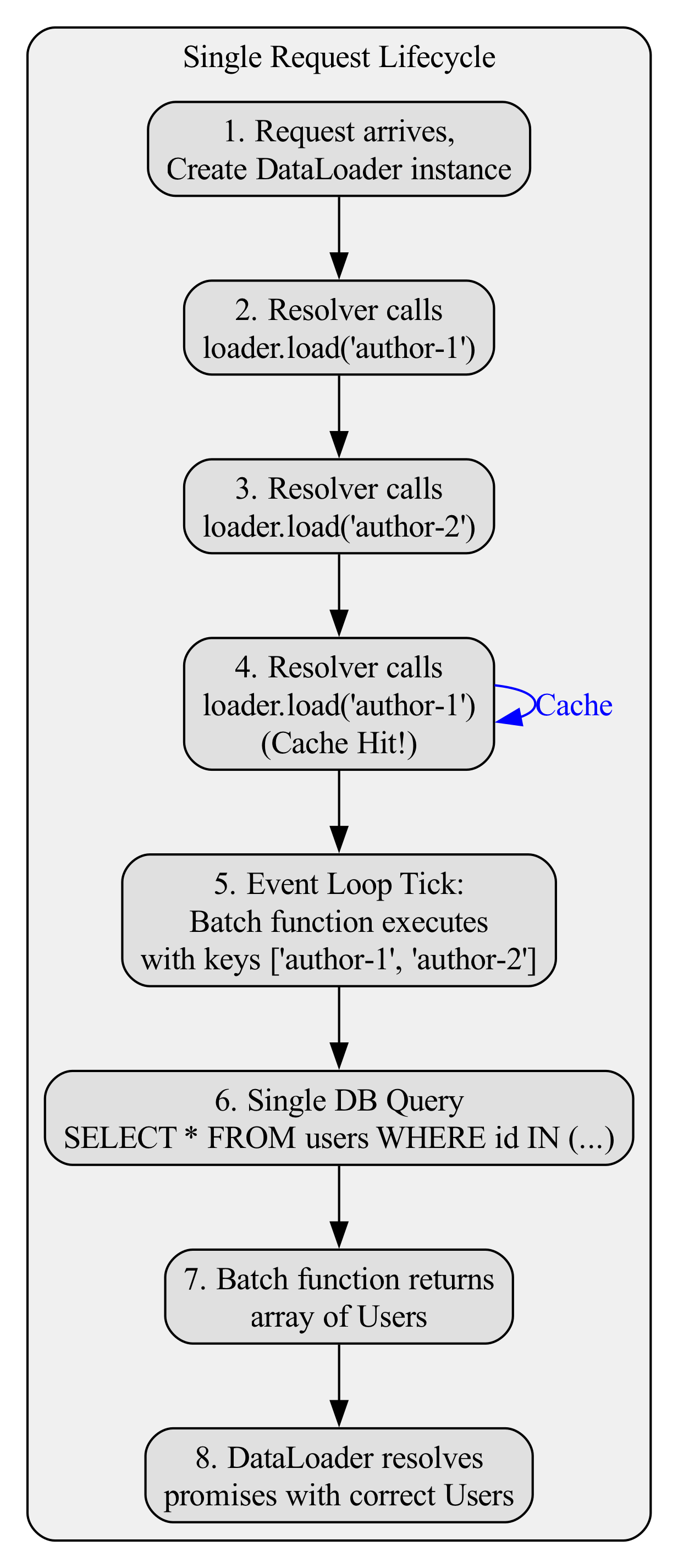

In the same synchronous execution block, DataLoader collects multiple load(key) calls, waits for the stack to clear, and then executes the batch function once with all the collected keys. — In the same synchronous execution block, DataLoader collects multiple `load(key)` calls, waits for the stack to clear, and then executes the batch function once with all the collected keys.

The Power of Caching

The second, equally important feature of DataLoader is its in-memory cache. When you call loader.load(key), the loader first checks its cache. If the key was previously loaded in the same request, it immediately returns the cached value without executing the batch function again.

This is incredibly powerful for resolving complex graphs. Imagine a Post has an authorId, and that Author has a coAuthorId. A single request might ask for a post and its author's co-author. Without caching, you might fetch the same author multiple times if they are referenced in different contexts within the same request. DataLoader's cache prevents this redundant work.

Crucially, this cache is request-scoped. It is cleared at the end of the request. This gives you the performance benefits of caching without the complexity of managing cache invalidation across different user requests.

Applying the Pattern to tRPC and Edge Functions

In a tRPC router, you would typically instantiate the DataLoader(s) for each request. This is often done within a context object that is passed to all your procedures.

// src/server/context.ts
import { CreateFastifyContextOptions } from '@trpc/server/adapters/fastify';
import DataLoader from 'dataloader';
import { db } from './db';
import { usersTable } from './db/schema';
import { eq, inArray } from 'drizzle-orm';

// Define the batching function
const createAuthorLoader = () => {
  return new DataLoader<string, User>(async (authorIds) => {
    // Batched query
    const authors = await db.select().from(usersTable).where(inArray(usersTable.id, [...authorIds]));
    const authorMap = new Map(authors.map(author => [author.id, author]));
    // Map results back to keys
    return authorIds.map(id => authorMap.get(id) || null);
  });
};

export const createContext = async (opts: CreateFastifyContextOptions) => {
  return {
    // Each request gets its own loader instance
    authorLoader: createAuthorLoader(),
    // ... other context properties
  };
};

// src/server/routers/posts.ts
import { router, procedure } from '../trpc';
import { z } from 'zod';

export const postsRouter = router({
  list: procedure.query(async ({ ctx }) => {
    const posts = await db.select().from(postsTable);

    // Now, resolve authors using the loader
    const postsWithAuthors = await Promise.all(
      posts.map(async (post) => ({
        ...post,
        // This will trigger the batching mechanism
        author: await ctx.authorLoader.load(post.authorId),
      }))
    );

    return postsWithAuthors;
  }),
});

Edge Functions Considerations

When moving to edge runtimes (like Vercel Edge Functions, Cloudflare Workers), the principles remain the same, but the implementation has constraints.

Statelessness: Edge functions are ephemeral and stateless. You cannot maintain a long-lived cache or connection pool outside a single request. This makes request-scoped DataLoader instances even more critical.
Resource Limits: Edge functions have strict CPU time and memory limits. The N+1 problem is even more dangerous here because it consumes precious CPU cycles and can lead to function timeouts. Batching is not just an optimization; it's a necessity for stability.
Database Connections: Connection pooling is less efficient or non-existent on the edge. A single, batched query is far more efficient for a database to handle than hundreds of individual, short-lived connections.

Preparing Data for LLM Consumption: The Final Frontier

This optimization pattern becomes paramount when your API's final consumer is a Large Language Model (LLM). LLMs operate on context windows—finite amounts of text they can process at once. The data you provide must be dense, relevant, and structured.

The Analogy: The Executive Briefing

Imagine you are preparing a briefing for a busy CEO (the LLM). You need to summarize the performance of 100 sales agents.

The Inefficient Way (N+1 for the LLM): You send the CEO 100 separate emails, one for each agent. The CEO has to mentally collate this information. This is slow, inefficient, and the context is fragmented.
The Efficient Way (Batching for the LLM): You prepare a single, well-structured document (e.g., a JSON object or a Markdown table) that summarizes the key performance indicators for all 100 agents in one place. The CEO can digest this dense, structured information instantly.

The N+1 problem directly impacts your ability to prepare this "executive briefing" for an LLM. If you fetch data for an LLM prompt in an N+1 pattern, you are:

Wasting Tokens: Each individual query and response adds overhead.
Increasing Latency: The round-trip time for each database call adds up, delaying the time it takes to generate the final prompt.
Creating Unstructured Data: It's harder to build a cohesive, structured context window from fragmented data fetches.

By using DataLoader to batch your data fetching, you are gathering all the necessary components for your LLM prompt in a single, efficient operation. This allows you to construct a rich, structured, and token-efficient context window, leading to faster, more accurate, and more reliable LLM interactions.

For example, if you were building an agent to summarize customer feedback, you would use a DataLoader to batch-fetch all relevant orders, customer profiles, and previous support tickets for a given set of feedback items. This consolidated data can then be formatted into a single, comprehensive prompt for the LLM, maximizing the quality of the generated summary.

In summary, preventing N+1 queries is not merely a performance tweak; it is a fundamental architectural principle for building scalable, responsive, and intelligent backend systems, especially when dealing with graph-like data structures and LLM integrations. It's the difference between a system that crumbles under load and one that gracefully handles complexity.

Basic Code Example

In a standard API request, fetching a list of items (e.g., Users) and then fetching a related entity for each item (e.g., Profile) results in the N+1 query problem. If you fetch 10 users, you might make 1 query to get the users, and then 10 separate queries to get their profiles. This is disastrous for performance, especially in serverless/Edge environments where database connections are expensive.

DataLoader solves this by creating a batching layer. It waits for a tiny window of time (usually a single tick of the event loop) to collect all requested IDs, then sends them as a single query (e.g., SELECT * FROM profiles WHERE id IN (...)).

Visualizing the Flow

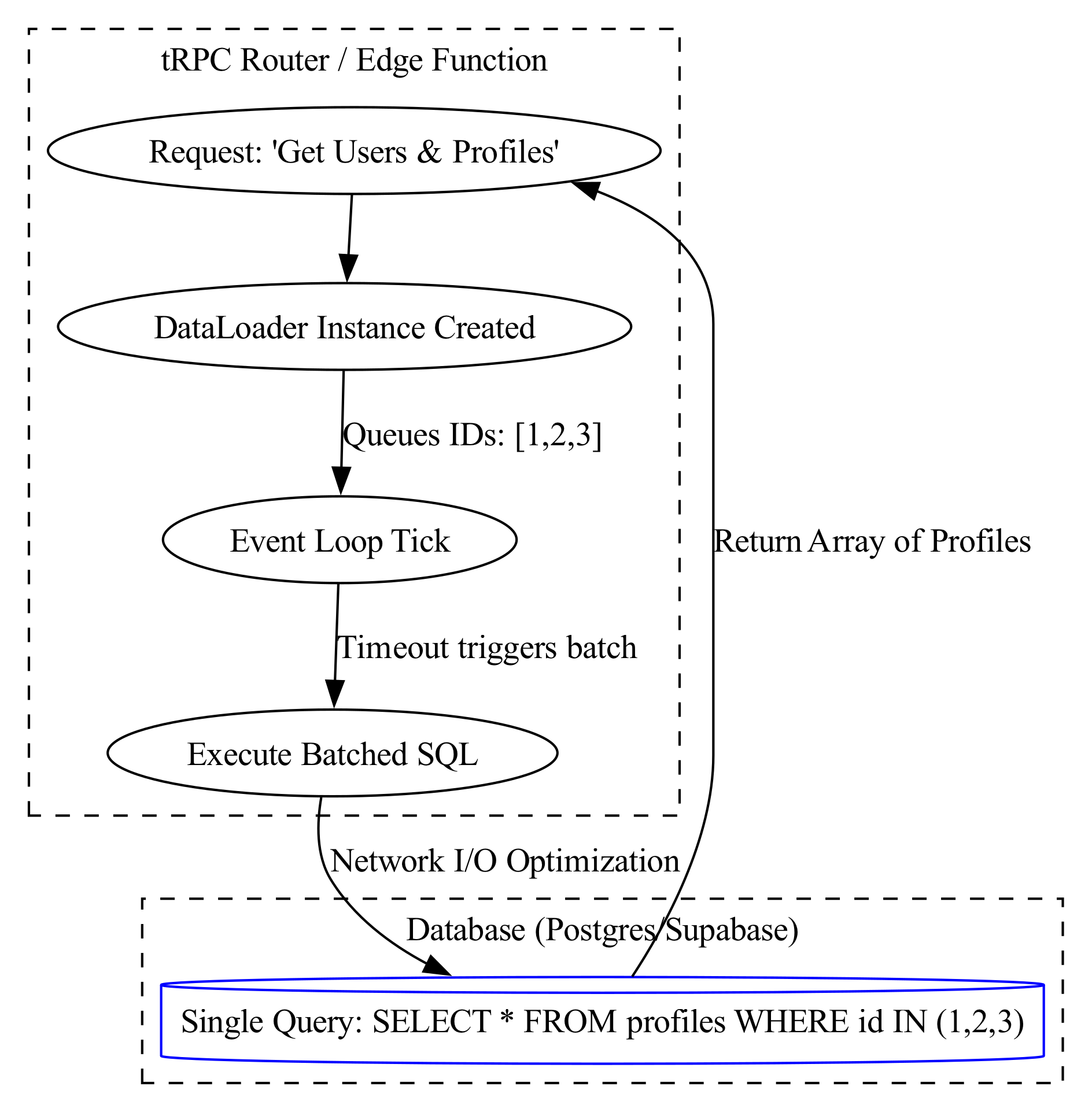

The following diagram illustrates how a cyclical tRPC router (simulating a ReAct loop) flattens multiple independent database requests into a single batched operation.

A diagram illustrating how a cyclical tRPC router simulates a ReAct loop, flattening multiple independent database requests into a single batched operation.

The "Hello World" Code Example

This example simulates a tRPC procedure that fetches a list of blog posts and their authors. Without a loader, this would be N+1 queries. With the loader, it is exactly 2 queries.

// ==========================================
// 1. Mock Database & Types
// ==========================================

/**

 * Simulates a database table for Users.
 */
type User = {
  id: string;
  username: string;
};

/**

 * Simulates a database table for Posts.
 */
type Post = {
  id: string;
  title: string;
  authorId: string; // Foreign Key
};

// Mock Data
const mockUsers: User[] = [
  { id: '1', username: 'Alice' },
  { id: '2', username: 'Bob' },
  { id: '3', username: 'Charlie' },
];

const mockPosts: Post[] = [
  { id: 'p1', title: 'Hello World', authorId: '1' },
  { id: 'p2', title: 'tRPC is Cool', authorId: '1' }, // Alice again
  { id: 'p3', title: 'Edge Computing', authorId: '2' },
];

// ==========================================
// 2. The Batched Database Layer (The "Loader")
// ==========================================

/**

 * A mock database function that simulates fetching multiple users by IDs.
 * CRITICAL: This accepts an ARRAY of IDs and returns an ARRAY of Users.
 * It represents a single SQL query: `SELECT * FROM users WHERE id IN (...)`
 */
async function fetchUsersByIds(ids: string[]): Promise<User[]> {
  console.log(`[DB] Executing Batched Query for IDs: [${ids.join(', ')}]`);

  // Simulate network latency
  await new Promise(resolve => setTimeout(resolve, 50));

  return mockUsers.filter(user => ids.includes(user.id));
}

// ==========================================
// 3. The DataLoader Implementation
// ==========================================

/**

 * A simplified implementation of the DataLoader pattern.
 *
 * @param batchLoadFn - The function that performs the actual batch fetch.
 * @returns A function that accepts a single ID and returns a Promise for that specific item.
 */
function createDataLoader<T, K>(batchLoadFn: (keys: K[]) => Promise<T[]>) {
  // The queue stores the pending requests (keys) for the current tick
  let queue: { key: K; resolve: (value: T) => void; reject: (reason?: any) => void }[] = [];

  // This is the function returned to the caller (e.g., the tRPC resolver)
  return async (key: K): Promise<T> => {
    return new Promise((resolve, reject) => {
      // 1. Add the request to the queue
      queue.push({ key, resolve, reject });

      // 2. Schedule the batch execution for the next tick of the event loop
      //    (If multiple calls happen in the same synchronous block, they share this timer)
      if (queue.length === 1) {
        process.nextTick(async () => {
          // Copy the queue and clear it immediately so new requests can queue up
          const currentQueue = [...queue];
          queue = [];

          // Extract just the keys
          const keys = currentQueue.map(item => item.key);

          try {
            // 3. Execute the single batched function
            const values = await batchLoadFn(keys);

            // 4. Map the results back to the individual promises
            //    (DataLoader assumes the return array order matches the keys array order)
            currentQueue.forEach(({ key, resolve, reject }, index) => {
              const value = values[index];
              if (value) {
                resolve(value);
              } else {
                reject(new Error(`Key not found: ${key}`));
              }
            });
          } catch (error) {
            // If the batch fails, reject all pending promises
            currentQueue.forEach(({ reject }) => reject(error));
          }
        });
      }
    });
  };
}

// ==========================================
// 4. The "App" Logic (Simulating a tRPC Query)
// ==========================================

/**

 * Simulates a tRPC router procedure.
 * This function fetches posts, and then resolves the author for each post.
 */
async function getPostsWithAuthors() {
  console.log("--- Starting Request ---");

  // A. Initialize the Loader (usually done once per request or globally)
  //    We pass our batch function to it.
  const userLoader = createDataLoader(fetchUsersByIds);

  // B. Fetch the list of Posts (1 Query)
  //    In a real app: const posts = await db.post.findMany();
  const posts = mockPosts;
  console.log(`[Resolver] Found ${posts.length} posts.`);

  // C. The N+1 Loop (Optimized)
  //    Even though we loop and call 'userLoader' for every post,
  //    the loader batches them internally.
  const postsWithAuthors = await Promise.all(
    posts.map(async (post) => {
      // This line looks like N+1, but it's actually batched!
      const author = await userLoader.load(post.authorId);

      return {
        ...post,
        authorName: author.username,
      };
    })
  );

  console.log("--- Result ---");
  console.log(JSON.stringify(postsWithAuthors, null, 2));
}

// Run the example
getPostsWithAuthors().catch(console.error);

Line-by-Line Explanation

Mock Database (fetchUsersByIds):
- This function represents the "expensive" operation. Notice it accepts ids: string[] (plural) and returns Promise<User[]> (plural). This signature is crucial; it allows the database to perform a single WHERE IN clause rather than a loop of WHERE id = ?.
The DataLoader Factory (createDataLoader):
- Closure State: It maintains a queue array inside its closure. This array persists across multiple calls to the returned function.
- The Returned Function: When userLoader.load('1') is called, it doesn't run the query immediately. It pushes an object containing the key and the resolve/reject callbacks into the queue.
- process.nextTick: This is the magic. It schedules the batch execution to run after the current synchronous code block finishes. If Promise.all triggers 100 .load() calls in a single millisecond, nextTick runs only once, processing the entire queue of 100 items.
- Mapping Results: When the batchLoadFn returns, the code iterates over the currentQueue. It assumes the database returns the users in the same order the IDs were requested (or it must map them manually by ID). It resolves the individual promises waiting in the application code.
The Resolver (getPostsWithAuthors):
- The Loop: The map function iterates over posts. Inside, userLoader.load(post.authorId) is called.
- The Illusion: To the developer, this looks like a standard async loop. However, because the loader buffers these calls, the execution trace looks like this:
  1. load('1') -> Queued
  2. load('1') -> Queued (duplicate ID, handled automatically by some libraries, ignored here)
  3. load('2') -> Queued
  4. (Loop ends, Promise.all waits)
  5. (Event Loop Tick) -> fetchUsersByIds(['1', '1', '2']) executes.

Common Pitfalls

When implementing this in a production SaaS or Web App (especially on Edge), watch out for these specific issues:

The "Per-Request" vs "Global" Instance Mistake:
- Issue: Instantiating a DataLoader outside the request handler (global scope).
- Consequence: In a long-running server (like a Node.js container), the cache persists across different users. User A's data might be served from cache when User B requests it. This is a data leak.
- Fix: Always instantiate loaders inside the request context/resolver.
Edge Function Timeouts & "Cold Starts":
- Issue: Edge functions (Vercel/Cloudflare) have strict timeouts (e.g., 10-30 seconds).
- Consequence: If your batching logic adds latency (waiting for nextTick), or if the batched query itself is slow because you requested too many IDs, you risk timeouts.
- Fix: Implement a "Max Batch Size". If the queue exceeds 100 IDs, split it into multiple batches immediately rather than waiting.
Async/Await Loops (The for...of Trap):
- Issue: Using array.map with async callbacks requires Promise.all. Using forEach or a standard for loop with await inside creates a sequential chain, defeating the purpose of batching.
- Consequence: for (const post of posts) { await loader.load(...) } executes one-by-one. The loader might batch them, but the loop waits for each result sequentially.
- Fix: Always use Promise.all combined with .map() to fire all load() requests concurrently.
Hallucinated JSON / Schema Drift:
- Issue: When passing data from the loader to the LLM, if the batch function returns data in an inconsistent order (e.g., ['Alice', 'Bob'] requested, ['Bob', 'Alice'] returned), the mapping logic fails.
- Consequence: The wrong author gets assigned to the wrong post.
- Fix: Do not rely on array order. Return an object keyed by ID from the batch function, or map the results explicitly by ID before resolving promises.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
