Chapter 2: Stripe Checkout vs Elements

Theoretical Foundations

At the heart of modern payment processing lies a fundamental architectural tension: the trade-off between speed of implementation and granular control. This tension is perfectly embodied in Stripe’s two primary integration paths: Stripe Checkout and Stripe Elements. To understand this dichotomy, we must first look at the underlying principle established in Book 1 regarding Data Flow Architecture.

In Book 1, we discussed the concept of the Monolithic Data Pipeline versus the Microservices Event Bus. Stripe Checkout functions like a Monolithic Data Pipeline—it is a pre-configured, end-to-end system that handles the entire transaction lifecycle within a controlled environment. Conversely, Stripe Elements operates like a Microservices Event Bus; it provides discrete, isolated components (UI elements) that you must orchestrate yourself, allowing for deep integration into complex, custom frontend architectures.

The "Black Box" vs. The "Glass Box" Analogy

Imagine you are building a house.

Stripe Checkout is the "Black Box" (or a Prefabricated Modular Home). You specify the floor plan, the materials, and the budget, and Stripe delivers a fully functional, code-free checkout page hosted on their servers. You don't need to worry about the plumbing (input validation), the electrical wiring (PCI compliance), or the structural integrity (3D Secure friction handling). It is optimized for conversion and security out of the box. However, you cannot easily move a wall or change the window shape without contacting the manufacturer. It is fast, secure, but rigid.

Stripe Elements is the "Glass Box" (or a Custom Home Build). Stripe provides you with high-quality, pre-fabricated windows, doors, and electrical fixtures (the UI components). You must build the house around them. You have total control over the architecture, the paint color, the layout, and the user flow. You can embed the payment form directly into your checkout page, ensuring a seamless brand experience. However, you are responsible for the structural integrity. You must ensure the foundation is secure (server-side validation) and that the safety inspections pass (PCI compliance).

The Technical Nuances: State Management and User Experience

To understand the "why" behind choosing one over the other, we must dissect the user experience (UX) and the technical state management involved.

The Redirect Flow (Checkout) vs. The Embedded Flow (Elements)

When a user initiates a payment, the system enters a state transition. In Stripe Checkout, this state transition involves a context switch. The user is redirected from your domain (yourstore.com) to Stripe’s domain (checkout.stripe.com).

Why this matters:

1. Trust Signals: The user sees the Stripe URL, which acts as a trust anchor.
2. Isolation: Your frontend JavaScript execution pauses. Stripe handles the complexity of 3D Secure authentication, wallet selection (Apple Pay/Google Pay), and local payment methods.
3. State Hydration: When the user returns to your site (via a redirect URL), the transaction state is hydrated from the URL parameters. This is a "fire-and-forget" state management strategy.

In contrast, Stripe Elements utilizes an Embedded Flow. The payment fields are hosted in an iframe within your DOM. The user never leaves your site.

Why this matters:

1. Brand Continuity: The checkout feels like a native part of your application.
2. State Synchronization: You are responsible for managing the "loading," "valid," and "error" states of the payment form using frontend state management tools (like React's useState).
3. Complex Orchestration: If you require a multi-step checkout (e.g., Shipping Address -> Billing Address -> Payment), Elements allows you to maintain a single page application (SPA) experience without jarring redirects.

The Impact on Downstream Data Flows: Smart Dunning and AI Agents

This architectural choice has profound implications for the Monetization Engine (Book 8), specifically regarding Smart Dunning and AI Customer Support Agents.

Smart Dunning and Data Granularity

Smart Dunning relies on high-fidelity data to predict and recover failed payments. The granularity of the data captured at the point of sale dictates the effectiveness of the dunning logic.

• Checkout Data Flow: When using Checkout, the data returned upon success is standardized but less granular regarding the interaction during the payment. You receive a successful PaymentIntent. However, if a payment fails due to a specific 3D Secure friction challenge, the nuances of that interaction are abstracted away behind the redirect flow.
• Elements Data Flow: With Elements, you have access to the raw events of the payment method collection. You can capture specific failure reasons (e.g., card_declined, incorrect_cvc, expired_card) before the final submission. This allows your Smart Dunning system to trigger specific retry logic. For example, if the AI detects an incorrect_cvc error, it can immediately prompt the user to re-enter just the CVC, rather than restarting the entire payment flow.

AI Customer Support Agents and Context

The AI Customer Support Agent (discussed in Book 8) acts as a Supervisor Node in a multi-agent system. It needs context to resolve user queries effectively.

• Checkout Context: If a user abandons a Checkout session, the AI agent has limited visibility into where in the flow the user dropped off. It only knows the session ended.
• Elements Context: Because Elements is embedded, you can track granular UI events (e.g., focus, blur, change). This data feeds into the AI agent's knowledge base. The agent can proactively ask, "I noticed you were entering your card number but didn't complete the purchase. Is there an issue with the form?" This is the difference between a reactive support system and a proactive one.

Visualizing the Architectural Flows

The following diagram illustrates the state management differences between the two approaches.

Hold "Ctrl" to enable pan & zoom

This diagram contrasts the reactive support system's delayed, post-incident response with the proactive system's predictive, pre-emptive state management flows.

The Tool Invocation Signature and State Persistence

In the context of building these systems, particularly when integrating with LangGraph for orchestration, the choice of integration method dictates how we handle Tool Invocation Signatures and Checkpointer logic.

When building an AI agent that triggers a payment, the agent must invoke a tool. The Tool Invocation Signature must match the expected input of the payment method.

If the agent decides to use Checkout, the tool signature is simple:

// A simplified representation of a tool call for Checkout
type CheckoutToolParams = {
    mode: 'payment';
    successUrl: string;
    cancelUrl: string;
    lineItems: Array<{ price: string; quantity: number }>;
};

The agent simply passes these parameters, and Stripe handles the rest. The Checkpointer (the persistence layer) only needs to store the sessionId and the status (pending, redirected, complete).

However, if the agent decides to use Elements (perhaps because the user is already inside a complex conversational UI and cannot be redirected), the tool signature becomes significantly more complex. The agent must orchestrate the collection of payment details via a frontend component, which requires a persistent state connection.

// A simplified representation of a tool call for Elements orchestration
type ElementsToolParams = {
    action: 'mount_payment_element';
    clientSecret: string; // Obtained from backend
    appearance: object; // Branding rules
    // The tool must return a promise that resolves when the user submits
};

// The Checkpointer must now track the intermediate state:
// 1. Element Mounted
// 2. Card Details Entered (Tokenized)
// 3. 3D Secure Challenge Pending
// 4. Final Confirmation

In a LangGraph context, using Checkout is akin to a single node that transitions the graph to a "waiting" state until the webhook fires. Using Elements requires a subgraph where multiple nodes handle the UI mounting, input collection, and final submission, with the Checkpointer saving the graph state after every interaction to ensure that if the user refreshes the page, the payment form can be re-hydrated to its previous state without losing data.

Theoretical Foundations

The choice between Stripe Checkout and Elements is not merely a UI preference; it is an architectural decision that defines the boundaries of your application's responsibility.

1. Checkout abstracts complexity, reducing the surface area for bugs and PCI compliance scope, but it limits the ability to capture granular interaction data needed for advanced AI-driven flows.
2. Elements provides maximum flexibility and data richness, enabling sophisticated state management and seamless UX, but it requires a robust frontend architecture and strict adherence to security protocols.

For the Monetization Engine, where the goal is to maximize revenue through Smart Dunning and AI support, the Elements approach is theoretically superior due to the depth of data it provides. However, for rapid deployment and minimizing initial friction, Checkout remains the pragmatic choice.

Basic Code Example

Here is a self-contained, "Hello World" level TypeScript example demonstrating the fundamental difference between Stripe Checkout and Stripe Elements. This code simulates a server-side rendering of a payment page, where the logic diverges based on the chosen integration method.

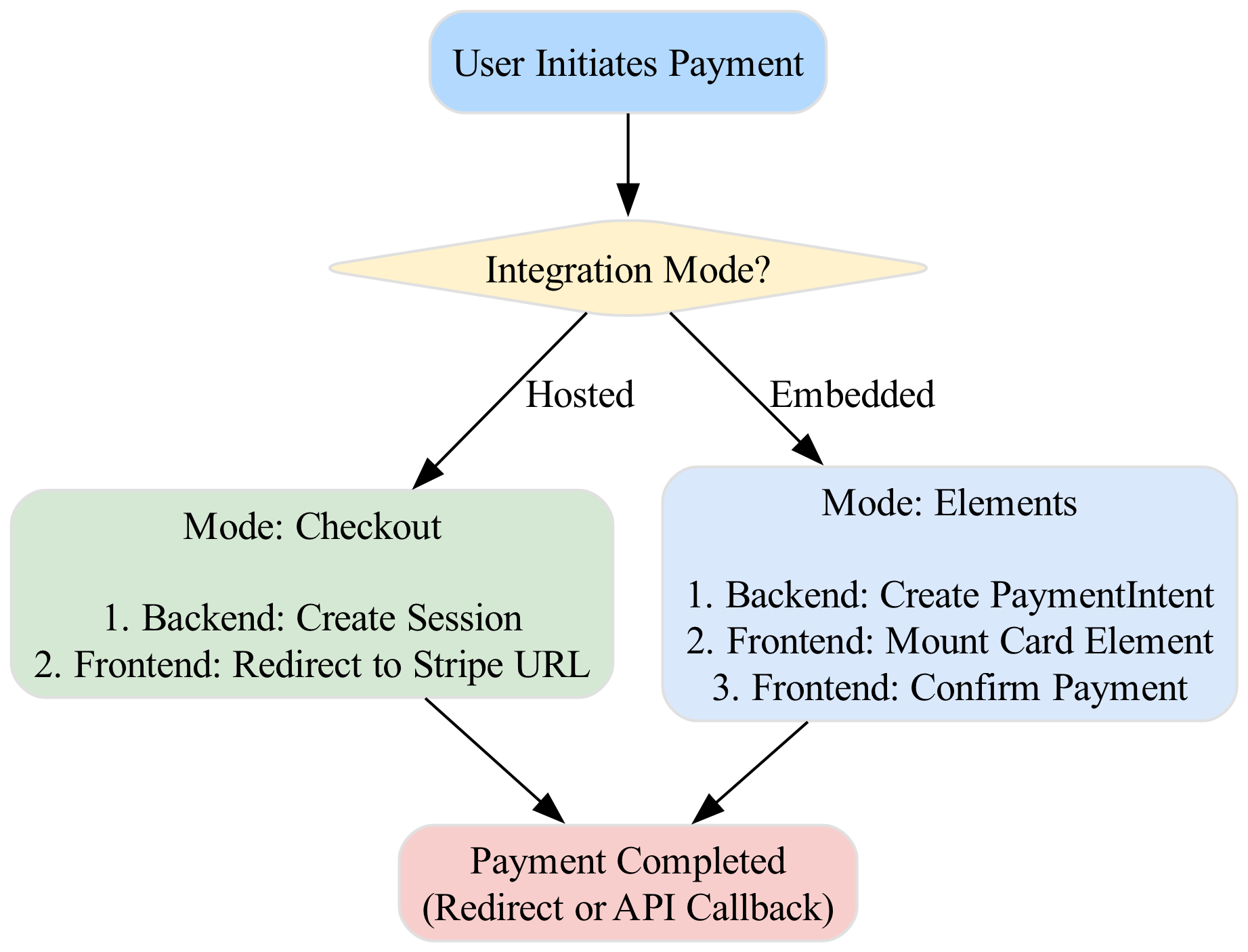

The Core Concept: Integration Patterns

In a SaaS context, the choice between Stripe Checkout and Stripe Elements dictates the architecture of your frontend and backend.

1. Stripe Checkout (Hosted): You create a session on your server and redirect the user to a Stripe-hosted page. It is fast to implement but offers limited branding control.
2. Stripe Elements (Embedded): You mount individual UI components (Card Input, Zip Code) directly into your own React/Vue/HTML form. This requires handling the PaymentIntent lifecycle manually but allows for a fully custom, seamless user experience.

TypeScript Code Example

This example uses a functional React component style to illustrate the logic flow. It assumes a backend context where a PaymentIntent or CheckoutSession ID is generated.

// ==========================================
// 1. TYPE DEFINITIONS & CONFIGURATION
// ==========================================

/**

 * Represents the two distinct integration strategies available in Stripe.
 * - 'checkout': Redirects to a Stripe-hosted page.
 * - 'elements': Embeds payment fields directly in your app.
 */
type IntegrationMode = 'checkout' | 'elements';

/**

 * Configuration object for the payment flow.
 * In a real app, these would be fetched from your backend API.
 */
interface PaymentConfig {
  mode: IntegrationMode;
  amount: number; // Amount in cents
  currency: string;
  successUrl: string;
  cancelUrl: string;
}

// Mock Data: Simulating a backend response
const mockPaymentConfig: PaymentConfig = {
  mode: 'checkout', // Change this to 'elements' to switch modes
  amount: 2000, // $20.00
  currency: 'usd',
  successUrl: 'https://my-saas-app.com/success',
  cancelUrl: 'https://my-saas-app.com/cancel',
};

// ==========================================
// 2. BACKEND LOGIC SIMULATION
// ==========================================

/**

 * Simulates the server-side creation of a Stripe resource.
 *
 * @param config - The payment configuration
 * @returns A promise resolving to the resource ID (Session ID or Intent ID)
 */
async function createStripeResource(config: PaymentConfig): Promise<string> {
  console.log(`[Server] Creating resource for mode: ${config.mode}...`);

  // In a real app, you would use the Stripe Node.js library here:
  // const stripe = require('stripe')(process.env.STRIPE_SECRET_KEY);

  if (config.mode === 'checkout') {
    // LOGIC BLOCK A: Checkout Session Creation
    // We tell Stripe we want a hosted page.
    // const session = await stripe.checkout.sessions.create({ ... });
    // return session.id;

    // Mock ID for demonstration
    return 'cs_test_a1B2C3D4E5F6...';
  } else {
    // LOGIC BLOCK B: PaymentIntent Creation
    // We create an intent to capture funds later on the client.
    // const intent = await stripe.paymentIntents.create({
    //   amount: config.amount,
    //   currency: config.currency,
    // });
    // return intent.client_secret; // Crucial for Elements

    // Mock Client Secret for demonstration
    return 'pi_test_XyZwVuTsRq..._secret_abc123...';
  }
}

// ==========================================
// 3. FRONTEND LOGIC (REACT COMPONENT)
// ==========================================

/**

 * A React component that renders the payment UI based on the selected mode.
 * This demonstrates the "Branching Logic" required in the frontend.
 */
const PaymentPage: React.FC = () => {
  const { mode, amount, currency, successUrl, cancelUrl } = mockPaymentConfig;

  // --- LOGIC FLOW CONTROL ---

  if (mode === 'checkout') {
    // -------------------------------------------------
    // PATH 1: CHECKOUT FLOW (The "Redirect" Pattern)
    // -------------------------------------------------

    // 1. The backend generates a Session ID.
    const sessionId = createStripeResource(mockPaymentConfig);

    // 2. The frontend constructs the Stripe Checkout URL.
    // Note: In a real app, this happens inside a useEffect or form submission handler.
    const stripeCheckoutUrl = `https://checkout.stripe.com/c/pay/${sessionId}?redirect=${successUrl}`;

    return (
      <div className="payment-container">
        <h2>Checkout Integration</h2>
        <p>Amount: {amount / 100} {currency.toUpperCase()}</p>

        {/*
          In a real app, you would use window.location.href or window.location.replace
          to redirect the user immediately or on button click.
        */}
        <a href={stripeCheckoutUrl} className="btn-primary">
          Pay with Stripe Checkout
        </a>

        <div className="explanation">
          <strong>Under the Hood:</strong> This link points directly to Stripe's servers.
          The user leaves your site, enters payment details on a Stripe-hosted page,
          and is redirected back to your `successUrl`.
        </div>
      </div>
    );
  }

  // -------------------------------------------------
  // PATH 2: ELEMENTS FLOW (The "Embedded" Pattern)
  // -------------------------------------------------
  else if (mode === 'elements') {
    // 1. The backend generates a PaymentIntent and returns the client_secret.
    // We simulate the async fetch of this secret.
    const clientSecretPromise = createStripeResource(mockPaymentConfig);

    // 2. The frontend renders input fields that will be mounted by Stripe.js
    // Note: This is pseudo-code for the UI structure.
    // Actual implementation requires `@stripe/react-stripe-js`.

    return (
      <div className="payment-container">
        <h2>Elements Integration</h2>
        <p>Amount: {amount / 100} {currency.toUpperCase()}</p>

        <form onSubmit={(e) => e.preventDefault()}>
          {/*
            These are standard HTML inputs that Stripe Elements will overlay or replace.
            In a real app, we use <CardElement /> from @stripe/react-stripe-js.
          */}
          <div className="form-group">
            <label>Card Number</label>
            <div className="stripe-input-mock">4242 4242 4242 4242</div>
          </div>

          <div className="form-row">
            <div className="form-group">
              <label>Expiry</label>
              <div className="stripe-input-mock">MM / YY</div>
            </div>
            <div className="form-group">
              <label>CVC</label>
              <div className="stripe-input-mock">123</div>
            </div>
          </div>

          <button type="submit" className="btn-primary">
            Pay Securely
          </button>
        </form>

        <div className="explanation">
          <strong>Under the Hood:</strong> The user stays on your site.
          You mount the `CardElement` using the `client_secret`.
          When the user clicks "Pay", you call `stripe.confirmCardPayment()`
          directly from your frontend code.
        </div>
      </div>
    );
  }

  return <div>Invalid Configuration</div>;
};

// Export for demonstration purposes
export default PaymentPage;

Detailed Line-by-Line Explanation

1. Type Definitions & Configuration

type IntegrationMode = 'checkout' | 'elements';
interface PaymentConfig { ... }
const mockPaymentConfig: PaymentConfig = { ... };

• Why: We define a strict type IntegrationMode to enforce that the application can only be in one of two states. This prevents logic errors where a developer might try to mount Elements while simultaneously redirecting to Checkout.
• Under the Hood: The mockPaymentConfig object represents the "Source of Truth" usually stored in your database or returned by your API. In a real SaaS app, this configuration might be dynamic (e.g., "Enterprise users get the embedded Elements flow, while anonymous users get the hosted Checkout flow").

2. Backend Logic Simulation (createStripeResource)

async function createStripeResource(config: PaymentConfig): Promise<string> { ... }

• Why: This function abstracts the server-side complexity. It highlights the critical divergence in API calls based on the mode.
• The checkout Path:
  • Logic: Calls stripe.checkout.sessions.create.
  • Output: Returns a session.id.
  • Context: This ID is useless to the frontend for rendering UI; it is only used to construct a URL for redirection.
• The elements Path:
  • Logic: Calls stripe.paymentIntents.create.
  • Output: Returns client_secret.
  • Context: This secret is the cryptographic key that allows the frontend (Stripe.js) to communicate with Stripe's API securely without exposing your secret key. It is essential for rendering the card input fields and confirming the payment.

3. Frontend Component Logic (PaymentPage)

This component acts as a Conditional Edge (as defined in your context instructions). It inspects the current state (mode) and dynamically determines the next node (UI branch) to execute.

Branch A: The Checkout Flow

const stripeCheckoutUrl = `https://checkout.stripe.com/c/pay/${sessionId}...`;
<a href={stripeCheckoutUrl}>Pay with Stripe Checkout</a>

• How it works: We construct a URL pointing to Stripe's domain. When the user clicks this link, the browser navigates away from your app.
• Data Flow Impact:
  • Smart Dunning: Stripe handles the initial failure and retry logic on their hosted page. You receive the result via webhooks or redirect parameters.
  • AI Agents: If the payment fails, the user is already on a Stripe page. Your AI support agent might need to instruct the user to "Check the Stripe tab" or "Retry on the hosted page," creating a disjointed support experience.

Branch B: The Elements Flow

<form onSubmit={...}>
  <div className="stripe-input-mock">...</div>
</form>

• How it works: We render standard HTML elements. In a production environment, the @stripe/react-stripe-js library would mount an iframe over these divs to capture sensitive card data securely.
• Data Flow Impact:
  • Smart Dunning: You have full control. If a payment fails (e.g., insufficient funds), you can catch the error code immediately in the frontend (error.code === 'card_declined') and display a custom UI modal asking the user to update their card.
  • AI Agents: Since the user never leaves your domain, your AI agent can inspect the PaymentIntent status in real-time and proactively offer help (e.g., "I see your card was declined. Would you like to try a different payment method?").

Common Pitfalls

When implementing these patterns, developers frequently encounter the following TypeScript and architectural issues:

1. Async/Await Handling in React Components:

   • The Issue: Calling createStripeResource directly inside the render body of a React component (as shown in the simplified example for clarity) causes a Promise to be rendered.
   • The Fix: In a real app, you must use useEffect to fetch the client_secret or session_id when the component mounts, store it in useState, and conditionally render the Stripe components only after the data arrives.
   • TypeScript Specific: Ensure you handle the undefined state in your types (e.g., clientSecret: string | null).

2. TypeScript Type Mismatches with Stripe.js:

   • The Issue: Stripe.js is a dynamic JavaScript library. When using TypeScript, you often need to install @types/stripe-js.
   • Common Error: Property 'Stripe' does not exist on type 'Window'.
   • Fix: You must extend the global Window interface or use the loadStripe helper provided by the React library, which handles the type definitions safely.

3. Vercel/Serverless Timeouts (Checkout Only):

   • The Issue: If you are using a serverless function (like Vercel Edge or AWS Lambda) to create a Checkout Session, the function might time out if the Stripe API is slow.
   • The Risk: The user clicks "Pay," the spinner spins, and then the request fails.
   • Fix: Always implement robust error handling on the backend. If the session creation fails, return a JSON error immediately rather than hanging. Use Stripe's idempotency keys to prevent duplicate charges if the user clicks the button multiple times.

4. Confusing sessionId with clientSecret:

   • The Issue: Attempting to pass a client_secret to the Checkout redirect URL, or trying to mount Elements with a session_id.
   • Result: The payment will fail immediately. Checkout requires a session ID in the URL path; Elements requires a client secret passed to the options prop of the Elements provider.
   • TypeScript Safety: Use distinct variable names (checkoutSessionId vs paymentIntentClientSecret) to leverage the compiler's type checking and prevent this logical error.

Visualization of Logic Flow

The following diagram illustrates the branching logic based on the IntegrationMode state.

Hold "Ctrl" to enable pan & zoom

This diagram visually explains how TypeScript’s type safety prevents logical errors by distinguishing between `checkoutSessionId` and `paymentIntentClientSecret` variables, ensuring the correct data is used within the branching logic of different `IntegrationMode` states.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
