Chapter 4: The Customer Portal

Theoretical Foundations

To understand the Customer Portal, we must first look back at the foundational architecture of the Monetization Engine established in previous chapters. In Chapter 2, we discussed the Subscription Lifecycle State Machine, where a customer transitions through states like trialing, active, past_due, and canceled. Historically, managing these transitions required direct intervention from backend developers or customer support agents—essentially, a centralized point of failure.

The Customer Portal represents a paradigm shift from a centralized command structure to a decentralized, self-service model. It is not merely a dashboard; it is a secure, hosted application provided by Stripe that acts as a direct interface to the billing database.

The Web Development Analogy: The API Gateway vs. The Direct Database Connection

In traditional web development, imagine a scenario where every client-side request for user data had to go through a monolithic API gateway, where a developer manually validated permissions and executed the SQL query. This is slow, error-prone, and scales poorly.

The Stripe Customer Portal is analogous to exposing a set of curated, read-optimized GraphQL resolvers or a specific REST endpoint with strict Row-Level Security (RLS). Instead of the client application handling the complexity of fetching invoice PDFs, updating payment methods, or calculating proration credits, the Portal abstracts these operations.

• The Analogy: Think of your application’s frontend as a Single Page Application (SPA). If you were to build a billing management view from scratch, you would need to:

  1. Fetch the customer’s payment methods (via GET /payment_methods).
  2. Fetch the subscription status (via GET /subscriptions).
  3. Fetch the invoice history (via GET /invoices).
  4. Handle the UI state for updating a card (requiring complex tokenization logic).

  The Customer Portal is like wrapping all these endpoints in a pre-built, secure React component that you embed via an iframe or redirect to. It handles the state management, the API calls, and the security validation (verifying the user's identity via a session token) automatically.

The "Why": Reducing Friction and Operational Overhead

The primary objective of the Customer Portal is to reduce the "Time to Resolution" (TTR) for billing inquiries. In the context of the Monetization Engine, friction equals churn.

1. The Support Ticket Reduction Mechanism

Without a portal, a simple request like "I need to download my invoice from last month" triggers a support ticket. A human agent must authenticate the user, locate the invoice in the Stripe dashboard, and manually email it. This creates a bottleneck.

The Portal as a Self-Healing System: By delegating these tasks to the user, the portal functions like a self-healing circuit breaker in a distributed system. It isolates the "billing noise" (high volume, low complexity requests) from the critical path of your core support team.

2. The Psychology of Control

From a behavioral economics perspective, the portal reduces the "pain of paying." When users feel in control of their recurring spend—able to cancel instantly or upgrade/downgrade without negotiation—they trust the vendor more. The portal acts as a transparency layer, removing the "black box" perception of automated billing.

The Technical Architecture: The Portal as a Stateful Intermediary

The Stripe Customer Portal is not a static page; it is a stateful application that interacts with the Stripe API in real-time. It maintains a session context, much like a WebSocket connection, to ensure data consistency.

The Session Object

When you redirect a user to the portal, you generate a portal_session. This session contains a configuration object that dictates what the user can and cannot do.

// Conceptual TypeScript definition of a Portal Configuration Object
// This defines the "permissions" granted to the user for this specific session.
interface PortalConfiguration {
  business_profile: {
    headline: string; // Custom branding
    privacy_policy_url: string;
    terms_of_service_url: string;
  };
  features: {
    customer_update: {
      enabled: boolean;
      allowed_updates: ('address' | 'billing' | 'email' | 'name' | 'phone')[];
    };
    invoice_history: { enabled: boolean };
    payment_method_update: { enabled: boolean };
    subscription_cancel: {
      enabled: boolean;
      mode: 'at_period_end' | 'immediately';
      cancellation_reason?: {
        enabled: boolean;
        options: ('too_expensive' | 'missing_features' | 'switched_service' | 'unused')[];
      };
    };
    subscription_pause: { enabled: boolean };
    subscription_update: {
      enabled: boolean;
      default_allowed_updates: ('price' | 'quantity' | 'promotion_code')[];
    };
  };
}

The Under-the-Hood Flow

1. Authentication Handshake: The backend generates a session using the Stripe API, passing the customer_id. This creates a secure, time-limited URL.
2. The Iframe/Redirect Context: The frontend redirects the user. Stripe serves the portal UI.
3. API Abstraction: Inside the portal, actions like "Update Card" trigger Stripe's internal endpoints, which handle the tokenization (using Stripe Elements) and update the PaymentMethod object attached to the customer.
4. Webhook Synchronization: Upon a successful update, Stripe emits a customer.subscription.updated or customer.updated webhook to your backend, ensuring your local database stays in sync with the source of truth.

Smart Dunning: The Automated Revenue Recovery Agent

Smart Dunning is the intelligence layer applied to the "past_due" state of the Subscription Lifecycle. It replaces the manual process of checking failed payments and sending "Hey, your card failed" emails.

The Analogy: The Exponential Backoff Strategy

In distributed systems, when a service call fails, we don't retry immediately and aggressively; we use exponential backoff to avoid overwhelming the failing service or the user.

Smart Dunning applies this same algorithmic logic to payment retries:

1. The Initial Failure: The payment fails (e.g., insufficient funds, expired card).
2. The Retry Schedule: Instead of retrying the next day, Stripe uses a machine learning model to determine the optimal retry time. It considers factors like the card issuer's behavior, the day of the week, and historical success rates.
3. The Communication Cadence: Emails are sent at specific intervals relative to the retry attempts (e.g., "Payment Failed" -> "Payment Failed Again" -> "Account Paused").

The State Machine of Dunning

Smart Dunning is effectively a sub-state machine running parallel to the main subscription state.

Hold "Ctrl" to enable pan & zoom

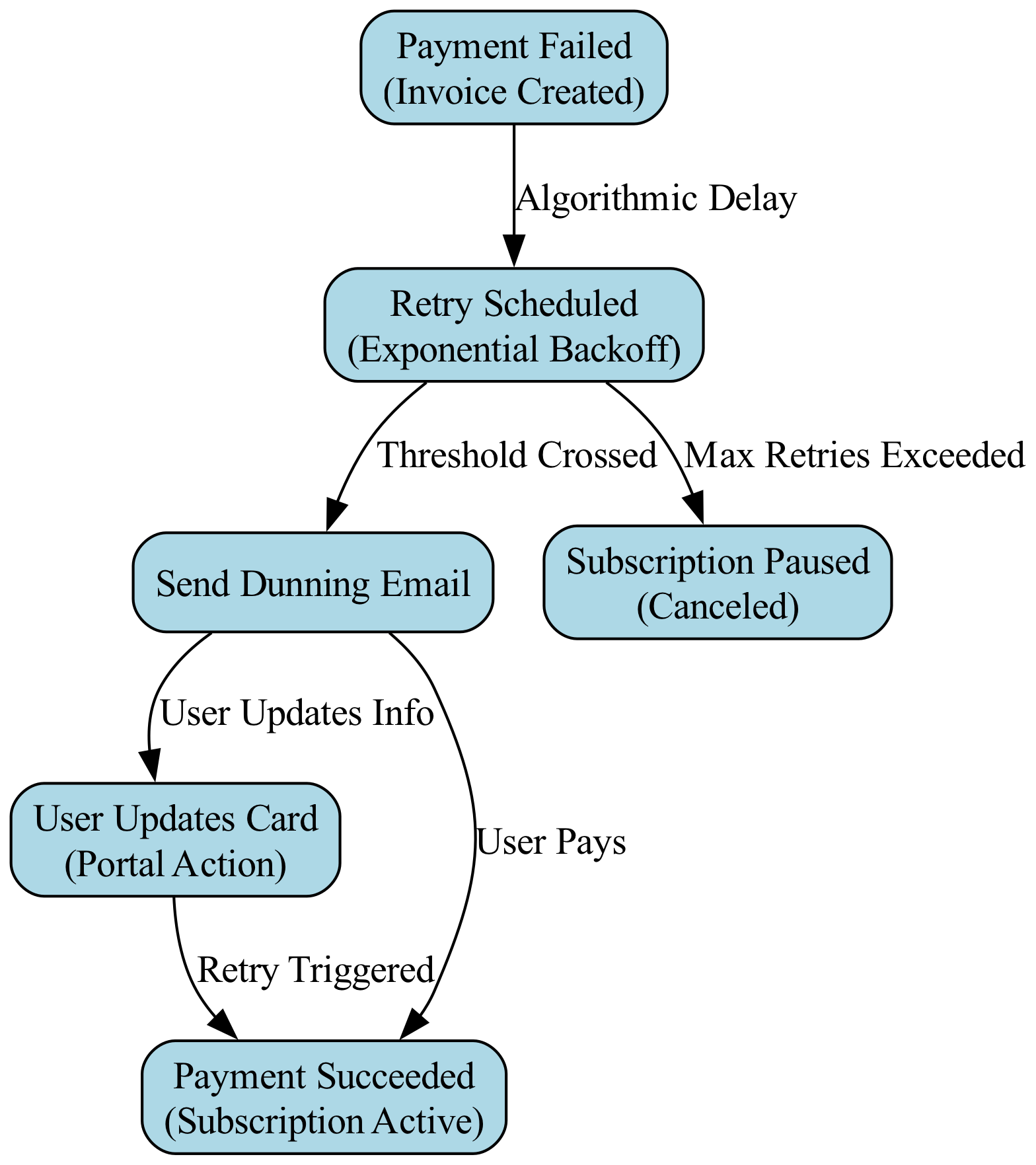

This diagram illustrates how the Smart Dunning sub-state machine runs in parallel to the main subscription lifecycle, handling a sequence of payment recovery states such as Payment Failed -> Payment Failed Again -> Account Paused.

The "Smart" Component

Why is it "Smart"?

• Local vs. Global Retries: Stripe distinguishes between retries for a specific invoice and retries for the customer's default payment method. If a user has multiple subscriptions and one fails, Smart Dunning can attempt to charge the backup method or the updated method without creating duplicate invoices.
• Bank Error Detection: If the decline code indicates a temporary bank error (e.g., "Do Not Honor"), the system extends the retry window. If it indicates a hard decline (e.g., "Lost Card"), it shortens the window to prompt the user to update their details faster.

AI Customer Support Agents: The Semantic Interface

The integration of AI Customer Support Agents bridges the gap between natural language queries and the structured data of the Customer Portal.

The Analogy: The Universal Translator

In a sci-fi universe, a universal translator takes a complex alien language and maps it to a specific, actionable command in the local system. The AI Agent acts as this translator.

• Input: "Why was I charged $50 yesterday?"
• Translation:
  1. Intent Recognition: Extract intent: "invoice_explanation".
  2. Entity Extraction: Extract date: "yesterday", amount: "50".
  3. Action: Query the database for invoices within the last 48 hours matching the amount.
  4. Response Generation: Formulate a natural language response containing the invoice line items.

Headless Inference and the streamable-ui

This is where the theoretical concepts of Headless Inference and streamable-ui become critical.

Traditionally, an AI agent responds with text. However, in a billing context, text is often insufficient. A user asking "How do I cancel?" needs more than a paragraph of text; they need the button to cancel.

The streamable-ui Pattern: This architectural pattern allows the server to stream not just text tokens (words), but React components (interactive UI elements) to the client.

1. The Agent's Thought Process: The AI Agent (running via Headless Inference on the server) analyzes the user's query.
2. Component Selection: Based on the intent, the Agent decides which UI element is required.
   • Query: "Show me my invoices." -> Component: <InvoiceList />
   • Query: "I want to cancel." -> Component: <CancellationFlow />
3. Streaming: The server begins streaming the React component code (or a reference to a pre-compiled component) to the client. The client renders this component immediately, allowing the user to interact with the billing portal within the chat interface.

The Integration with Supabase and pgvector

While the Stripe Portal handles the transactional logic, the AI Agent often needs context that lives in your application database (e.g., "Did the user use the feature they are complaining about?").

• Supabase Client (JS): Used to fetch user metadata or logs.
• pgvector: Used to semantically search through support documentation or past ticket history to provide context to the LLM before it generates a response.

The Workflow:

1. User asks a question.
2. Agent queries pgvector for relevant context (e.g., "What is our refund policy?").
3. Agent queries Stripe API (via the backend) for specific user data (e.g., "Last invoice").
4. Agent synthesizes the answer.
5. Agent determines if an interactive element is needed.
6. streamable-ui pushes the interactive component to the client.

Theoretical Foundations

The Customer Portal is the destination. Smart Dunning is the automated traffic controller ensuring the vehicle (revenue) keeps moving. The AI Agent is the concierge guiding the user to their destination, capable of handing them the keys (UI components) directly.

By decoupling the UI for billing management from the core application code, we reduce technical debt. By automating dunning, we reduce revenue leakage. By using AI agents with streamable-ui, we reduce support latency while increasing user satisfaction through immediate, actionable solutions.

Basic Code Example

This example demonstrates a minimal, self-contained Next.js Server Action that simulates an AI agent resolving a billing inquiry by interacting with a Stripe-like customer portal backend. The core logic uses the Vercel AI SDK to generate a structured response, which we then parse to perform a mock "upsert" operation (simulating a database update for a vector index that tracks user intent or billing history).

The architecture follows the AI Chatbot Architecture principle: all complex logic (model interaction, data parsing, and database operations) resides securely on the server. The client simply invokes the Server Action.

The Code

// app/actions/billing-agent.ts

'use server'; // Marks this function as a Server Action for Next.js

import { generateObject } from 'ai'; // Vercel AI SDK for structured generation
import { openai } from '@ai-sdk/openai'; // OpenAI provider
import { z } from 'zod'; // Schema validation

/**

 * @typedef {Object} BillingContext
 * @property {string} customerId - The unique identifier for the Stripe customer.
 * @property {string} query - The natural language billing inquiry from the user.
 */

/**

 * @typedef {Object} AgentResponse
 * @property {string} action - The specific billing action to take (e.g., 'retrieve_invoice', 'update_payment_method').
 * @property {string} explanation - A human-readable explanation of what the agent is doing.
 * @property {string} vectorId - A unique ID used for the simulated vector database upsert (representing the intent vector).
 */

// 1. SCHEMA DEFINITION
// We define a strict schema using Zod to ensure the AI returns predictable JSON.
// This prevents "hallucinated" or malformed data structures.
const billingResponseSchema = z.object({
  action: z.enum(['retrieve_invoice', 'update_payment_method', 'cancel_subscription', 'retry_payment']),
  explanation: z.string(),
  vectorId: z.string().uuid(), // Simulating a vector ID for the upsert operation
});

/**

 * Server Action: Handles billing inquiries via AI.
 *
 * @param {BillingContext} context - The customer ID and the user's natural language query.
 * @returns {Promise<AgentResponse>} - The structured response from the AI agent.
 */
export async function handleBillingInquiry(context: {
  customerId: string;
  query: string;
}) {
  // 2. AI INTERACTION
  // We use generateObject to force the LLM to adhere to our strict schema.
  // This is safer than generating text and parsing it manually.
  const { object } = await generateObject({
    model: openai('gpt-4o-mini'), // Using a fast, efficient model
    schema: billingResponseSchema,
    prompt: `
      You are a billing support agent for a SaaS platform.
      Customer ID: ${context.customerId}
      User Query: "${context.query}"

      Based on the query, determine the correct billing action.
      Generate a unique UUID for the 'vectorId' to represent this interaction in our vector database.
    `,
  });

  // 3. SIMULATED DATABASE UPSERT
  // In a real scenario, this would interact with a vector database (e.g., Pinecone, Qdrant)
  // or a relational database to log the intent.
  // We simulate the "Upsert Operation" here.
  await simulateVectorUpsert(object.vectorId, object.action, context.customerId);

  // 4. RETURN STRUCTURED RESPONSE
  // The client receives this JSON object to update the UI or trigger further actions.
  return {
    action: object.action,
    explanation: object.explanation,
    vectorId: object.vectorId,
  };
}

/**

 * Simulates an Upsert Operation in a Vector Database.
 * Upsert = Update if exists, Insert if new.
 *
 * @param {string} id - The unique Vector ID.
 * @param {string} intent - The billing intent/action.
 * @param {string} custId - The customer ID associated with the vector.
 */
async function simulateVectorUpsert(id: string, intent: string, custId: string) {
  // Mock latency for database operation
  await new Promise(resolve => setTimeout(resolve, 200));

  // In a real implementation, this would look like:
  // await pinecone.index('billing-intents').upsert([
  //   { id, values: generateEmbedding(intent), metadata: { customerId: custId } }
  // ]);

  console.log(`[DB UPSERT] Vector ID: ${id} | Action: ${intent} | Customer: ${custId}`);
}

Line-by-Line Explanation

1. Imports and Directives

• 'use server';: This directive is specific to Next.js. It automatically converts the function below into a Server Action, allowing it to be called directly from client components (e.g., a form submission) without manually configuring API routes.
• import { generateObject } from 'ai';: This function from the Vercel AI SDK is designed to generate structured data (JSON) based on a schema, rather than just raw text.
• import { z } from 'zod';: Zod is a TypeScript schema validation library. We use it to define the shape of the data we want the AI to produce.

2. Schema Definition (billingResponseSchema)

• We define a Zod object schema. This is the "contract" for our AI.
• action: Uses z.enum to restrict the AI's choice to specific strings. This prevents the AI from inventing new actions that our backend doesn't support.
• vectorId: We require a UUID. This simulates the unique identifier used in vector databases (like Pinecone or Weaviate) for the Upsert Operation.

3. The Server Action (handleBillingInquiry)

• Input: Accepts a context object containing the customerId (from Stripe) and the user's query.
• AI Generation:
  • We call generateObject with the openai model and our Zod schema.
  • The prompt instructs the AI on its role (billing agent) and provides the context. Crucially, we ask it to generate a UUID for the vectorId.
  • Why generateObject? If we used a standard text generation, the AI might reply with "I will retrieve your invoice." While readable, that string is hard to programmatically route. generateObject forces the output to be JSON like { "action": "retrieve_invoice", ... }, which is immediately usable by code.
• Output: The function returns the parsed object from the AI.

4. Simulated Upsert Operation (simulateVectorUpsert)

• This function represents the backend logic that follows the AI's decision.
• The Upsert Concept: In a vector database, an "upsert" is efficient because we don't need to check if a record exists before writing. If the vectorId exists, we update the metadata (e.g., the user asked a follow-up question); if it doesn't, we insert a new vector embedding.
• In this code, we simply log the operation to the console to demonstrate the flow. In a production app, this would trigger the Stripe API (e.g., stripe.invoices.retrieve) based on the action determined by the AI.

Logical Breakdown

1. Client Invocation: A user types "I need to update my credit card" into a chat interface. The client component calls handleBillingInquiry({ customerId: 'cus_123', query: '...' }).
2. Schema Enforcement: The Server Action sends the query to OpenAI. The Vercel AI SDK constrains the LLM to output JSON matching billingResponseSchema.
3. Decision Making: The AI analyzes the text. It determines the intent is update_payment_method and generates a unique UUID (e.g., a1b2c3d4...).
4. Data Persistence: The code calls simulateVectorUpsert. This logs (or writes to a DB) the correlation between the Vector ID and the billing action. This is useful for analytics or training future models on billing patterns.
5. Response to Client: The structured JSON is returned to the frontend. The UI can now confidently display a "Update Payment Method" button or a specific Stripe Customer Portal link, knowing the backend has processed the intent.

Common Pitfalls

1. Hallucinated JSON and Schema Validation

• The Issue: Even with strict prompting, LLMs can occasionally output invalid JSON or fields that don't match the schema (e.g., returning action: "change credit card" instead of update_payment_method).
• The Fix: Using zod with the Vercel AI SDK's generateObject handles this automatically. If the AI deviates, the SDK will retry or throw a validation error, preventing corrupted data from entering your database.
• Code Guard: Always validate the response on the server before acting on it.

2. Vercel/AI SDK Timeouts

• The Issue: Server Actions have execution time limits (e.g., 10 seconds on Vercel Hobby plans). If the AI model takes too long to respond or the network is slow, the Server Action will time out, leaving the client hanging.
• The Fix:
  • Use faster models (e.g., gpt-4o-mini instead of gpt-4).
  • Implement loading states on the client immediately upon invocation.
  • For long-running processes, offload the AI generation to a background job (e.g., Vercel Background Functions) and notify the client via Webhooks or polling.

3. Async/Await Loops in Server Components

• The Issue: While this example uses a Server Action, if you were to call this function inside a Server Component using await, you might block the rendering of the entire page tree.
• The Fix: Use Suspense boundaries in Next.js. Wrap the component calling the Server Action in <Suspense fallback={<LoadingSpinner />}>. This allows the static parts of the page to load while the AI agent fetches the data asynchronously.

4. Security of API Keys

• The Issue: Placing OpenAI API keys in client-side code exposes them to the public.
• The Fix: Because this code uses 'use server', it executes entirely on the server. The API key is stored in environment variables (.env.local) and never sent to the browser.

Architecture Diagram

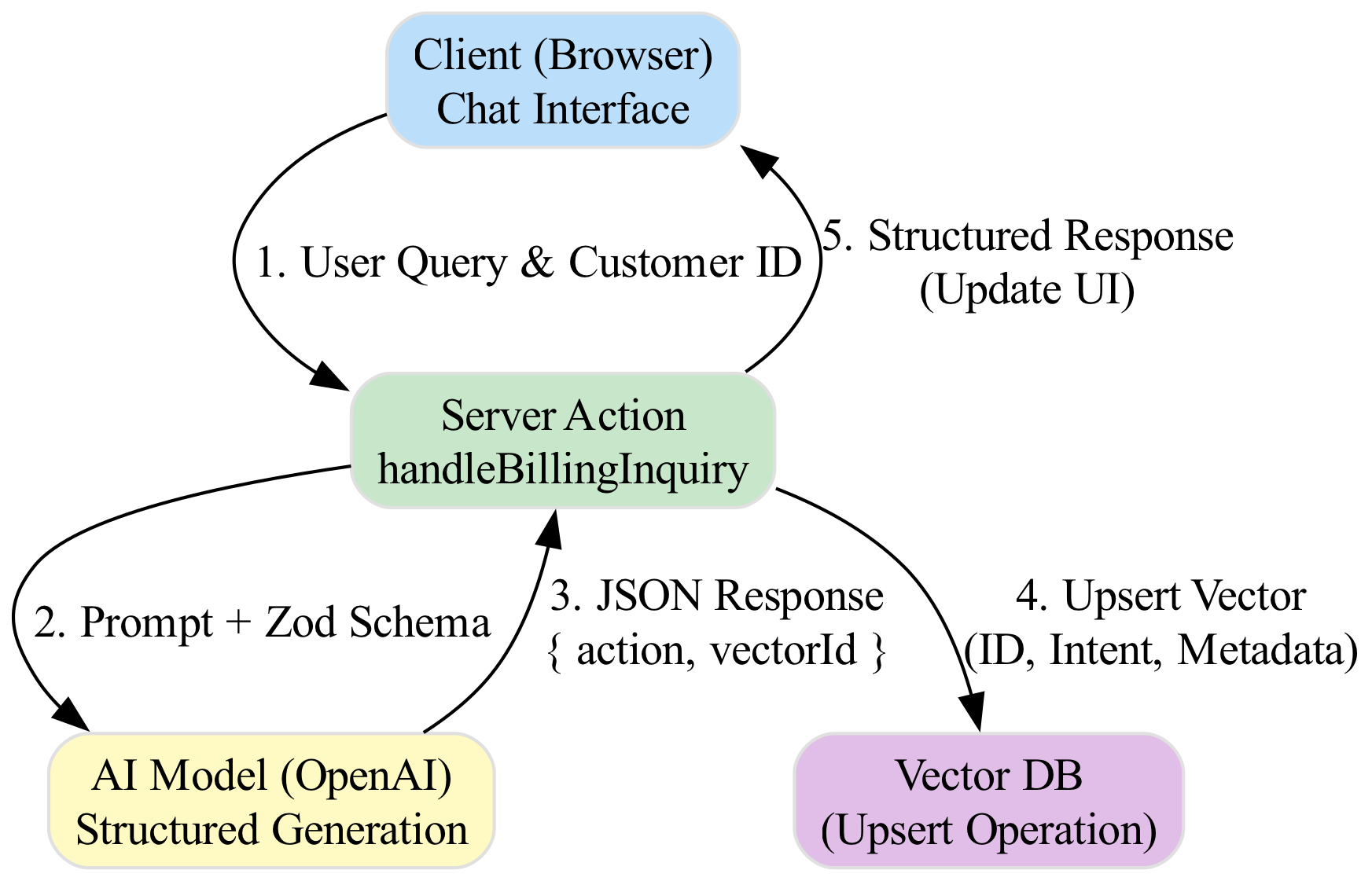

The following diagram illustrates the flow of data in this AI-driven billing architecture.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the complete data flow from a client-side billing request, through the secure server-side processing of sensitive data, to the final AI-driven analysis and result delivery.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
