Chapter 5: Smart Churn Prevention (AI Analysis of Usage)

Theoretical Foundations

At its core, Smart Churn Prevention is the application of predictive analytics to user behavior. It shifts the paradigm from reactive support (waiting for a user to complain or cancel) to proactive intervention (identifying risk signals before a user consciously decides to leave). To understand this theoretically, we must look at how we translate raw, unstructured user actions into structured, machine-readable insights, and how we define the "distance" between a user's current state and the state of a user who has already churned.

The Data Vector: From Actions to Coordinates

In the previous chapter, we discussed the Event Stream as a continuous flow of user interactions (logins, page views, API calls). The theoretical challenge in churn prediction is not merely storing these events, but aggregating them into a coherent "snapshot" of user health.

Imagine a user's activity not as a timeline of isolated points, but as a multi-dimensional coordinate in a vast abstract space. This space represents all possible behaviors of a user. A "healthy" user occupies a specific region of this space (high frequency, diverse feature usage), while a "churned" user occupies a different region (low frequency, single-feature reliance).

We must define a User State Vector. This is a mathematical representation of the user at a specific moment in time. It is constructed by aggregating discrete events into continuous features. For example:

Temporal Features: Days since last login, average session duration.
Behavioral Features: Ratio of "create" actions vs. "read" actions (indicating active vs. passive usage).
Technical Features: Latency tolerance, API error rates.

Analogy: The Web Development Hash Map Think of a user's profile in a traditional database as a Hash Map (or Object) where keys are static fields (e.g., email, plan_id). This is rigid. To detect churn, we need a dynamic representation. The User State Vector is more like a React Component's props object, but flattened into a numerical array. Just as props drive the rendering of a component, these numerical features drive the inference of the user's intent. If the props (features) change significantly, the rendered output (user behavior) changes.

The Embedding Space: Measuring Behavioral Similarity

Once we have these User State Vectors, we need to compare them. We cannot simply compare raw numbers because different features have different scales (e.g., login count is in the thousands, while session duration is in minutes). We need a way to map these vectors into a normalized space where similarity is meaningful.

This is where Embeddings come into play. In the context of churn, an embedding is a dense vector representation of a user's behavior. We transform the sparse, high-dimensional raw data (thousands of events) into a lower-dimensional, continuous vector space.

Analogy: The Library of Congress vs. The Dewey Decimal System Imagine the raw event stream is the Library of Congress—millions of books scattered randomly. Finding a specific book (insight) is impossible. Embeddings are the Dewey Decimal System. They organize these chaotic events into a structured shelf. Books (users) that are about the same topic (churn risk) are placed on the same shelf (close proximity in vector space).

To measure how close two users are on this shelf, we use Cosine Similarity.

What it is: It measures the cosine of the angle between two vectors.
Why it matters: It measures orientation, not magnitude. A user who logs in 100 times a day but uses the same features is directionally similar to a user who logs in 10 times a day but uses the same features. The magnitude (login count) might differ, but the direction (feature usage) is the same.
The Score:
- 1 (Angle 0°): Identical behavior patterns (High risk if compared to a churned user).
- 0 (Angle 90°): Orthogonal (No correlation).
- -1 (Angle 180°): Opposite behavior.

In our churn model, we calculate the cosine similarity between a current user's vector and the average vector of users who churned in the past. If the angle is small (similarity score approaches 1), the user is statistically walking the same path as those who left.

The Predictive Model: Decision Boundaries

The theoretical goal is to establish a Decision Boundary in this vector space. This is a hyperplane that separates "Churn" users from "Retained" users.

Analogy: The Spam Filter Think of email spam detection. The system doesn't just look for the word "Viagra." It looks at a combination of factors: sender reputation, header structure, word frequency. It draws a boundary in a multi-dimensional space. An email landing on one side is "Spam" (Churn); on the other, "Inbox" (Retained).

In our context, the model (often a Gradient Boosted Tree or a Neural Network) learns this boundary. It assigns weights to different features.

Example: The model might learn that a drop in login_frequency is a strong predictor, but only when combined with a decrease in feature_diversity.
Under the Hood: The model minimizes a loss function (like Log Loss) during training, adjusting its internal weights to ensure that known churned users fall on the "Churn" side of the boundary and active users fall on the "Retained" side.

Smart Dunning: The Intersection of Finance and Behavior

While the analysis above focuses on behavioral churn (user dissatisfaction), Smart Dunning addresses involuntary churn (payment failure). Theoretically, these are two distinct vectors that converge on the same negative outcome: loss of revenue.

Stripe's Smart Dunning is not merely a retry mechanism; it is a probabilistic engine. It analyzes the historical success rates of retries based on card type, bank, and failure code.

Analogy: The Microservice Retry Pattern In distributed systems, when a microservice call fails, we don't immediately crash the system. We implement a retry strategy with exponential backoff. Smart Dunning applies this same logic to financial transactions.

The Logic: If a payment fails due to "Insufficient Funds," retrying immediately is futile. The user needs time to transfer money. Retrying in 3 days (when payday hits) has a higher probability of success.
The Integration: This is where the theoretical model meets the practical engine. We treat payment failures as a high-weight feature in our churn vector. A user with a failed payment is not just a financial risk; they are a behavioral anomaly. By integrating Stripe's retry logic with our behavioral vector, we create a unified risk score.

The Intervention Workflow: From Prediction to Action

Finally, the theory extends to the intervention. Predicting churn is useless without action. We utilize an Event-Driven Architecture to bridge the gap between the AI model and the user interface.

Visualization of the Theoretical Flow

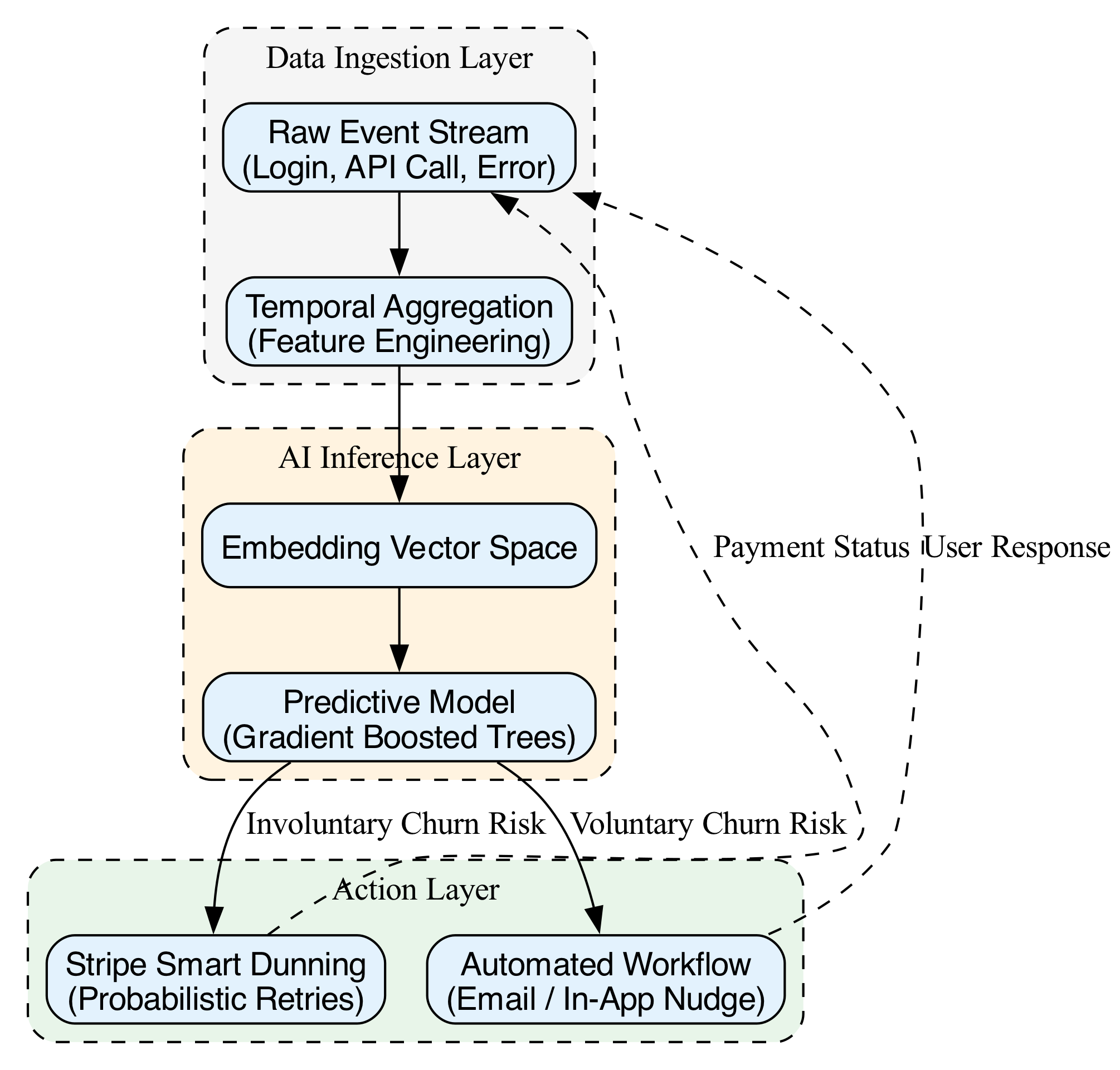

The following diagram illustrates how raw events flow through the vector space, are evaluated against the decision boundary, and trigger automated workflows via Stripe.

This diagram illustrates the event-driven architecture where raw user events are processed through a vector space, evaluated against a decision boundary to trigger automated workflows via Stripe.

Explanation of the Flow:

Ingestion: Raw events are aggregated into a feature vector.
Inference: The vector is mapped to the embedding space and passed through the model to calculate a churn probability.
Action:
- If the risk is Voluntary (behavioral), the system triggers a workflow (e.g., an email offering a tutorial).
- If the risk is Involuntary (payment), the system leverages Stripe's Smart Dunning to schedule retries and update the user's status.

By understanding these theoretical underpinnings—vectors, embeddings, decision boundaries, and probabilistic retries—we build a system that doesn't just react to churn but anticipates it, treating user retention as a solvable mathematical optimization problem.

Basic Code Example

In the context of a SaaS application, "Smart Churn Prevention" begins with data ingestion. Before an AI model can predict which user might leave, the application must capture and validate user activity. A common pattern is to log "feature usage events" (e.g., login, dashboard_view, report_export).

For this "Hello World" example, we will simulate a lightweight analytics pipeline. We will define a strict schema for a usage event using Zod. This ensures that any data entering our system is valid. We will then use Type Inference to automatically derive a TypeScript type from that schema, ensuring our code editor provides perfect autocomplete and type safety without manual interface definitions. Finally, we will process these events to detect a basic churn signal: a user who hasn't logged in for 7 days.

Code Example

This example uses ESM (ECMAScript Modules). To run this, you would typically have a package.json with "type": "module" and install zod (npm install zod).

// Import necessary modules from Zod and Node.js
import { z } from 'zod';
import { randomUUID } from 'node:crypto';

/**

 * 1. DEFINE THE ZOD SCHEMA
 * We define the shape of a "Usage Event" that our SaaS app will capture.
 * This acts as the single source of truth for our data structure.
 */
const UsageEventSchema = z.object({
  userId: z.string().uuid(), // Must be a valid UUID
  eventType: z.enum(['login', 'view_dashboard', 'export_report']), // Strictly limited values
  timestamp: z.date().default(() => new Date()), // Defaults to current time if missing
  metadata: z.record(z.unknown()).optional(), // Flexible object for extra data
});

// TYPE INFERENCE IN ACTION:
// We don't write an interface manually. Zod infers the TS type directly from the schema.
type UsageEvent = z.infer<typeof UsageEventSchema>;

/**

 * 2. SIMULATE DATA INGESTION
 * In a real app, this data comes from an API or frontend analytics tracker.
 * Here, we create a mock dataset with one valid event and one "at-risk" signal.
 */
const rawMockData: unknown[] = [
  // Valid login event
  {
    userId: randomUUID(),
    eventType: 'login',
    timestamp: new Date(Date.now() - 1000 * 60 * 5), // 5 minutes ago
  },
  // User who hasn't logged in for 8 days (Churn Risk Signal)
  {
    userId: randomUUID(),
    eventType: 'view_dashboard',
    timestamp: new Date(Date.now() - 1000 * 60 * 60 * 24 * 8), // 8 days ago
  },
  // Invalid event (missing userId) - will be filtered out
  {
    eventType: 'login',
    timestamp: new Date(),
  },
];

/**

 * 3. PROCESS AND ANALYZE
 * A function to parse, validate, and analyze the raw data.
 */
function analyzeChurnRisk(data: unknown[]): { safe: UsageEvent[]; atRisk: UsageEvent[] } {
  const safe: UsageEvent[] = [];
  const atRisk: UsageEvent[] = [];

  // Define the churn threshold (7 days in milliseconds)
  const SEVEN_DAYS_MS = 7 * 24 * 60 * 60 * 1000;
  const now = new Date();

  for (const item of data) {
    // Validate against the Zod schema
    const result = UsageEventSchema.safeParse(item);

    if (result.success) {
      const event = result.data;

      // Calculate time difference
      const timeDiff = now.getTime() - event.timestamp.getTime();

      // LOGIC: If the last event was more than 7 days ago, flag as at-risk
      if (timeDiff > SEVEN_DAYS_MS) {
        console.log(`[AI Analysis] Flagging User ${event.userId} as At-Risk.`);
        atRisk.push(event);
      } else {
        safe.push(event);
      }
    } else {
      // Handle validation errors (e.g., malformed JSON from client)
      console.warn(`[Validation Error] Skipping invalid event:`, result.error.errors);
    }
  }

  return { safe, atRisk };
}

// EXECUTE THE PIPELINE
const results = analyzeChurnRisk(rawMockData);

console.log('--- Analysis Results ---');
console.log(`Total Safe Users: ${results.safe.length}`);
console.log(`Total At-Risk Users: ${results.atRisk.length}`);

Line-by-Line Explanation

Imports:
- import { z } from 'zod': Imports the Zod library, which allows us to define validation schemas.
- import { randomUUID } from 'node:crypto': Imports a utility to generate unique IDs, simulating real user identifiers.
Defining the Zod Schema (UsageEventSchema):
- z.object({...}): Creates a schema that expects a JavaScript object.
- userId: z.string().uuid(): Enforces that the userId must be a string and specifically a valid UUID format. If data comes in with "user123", Zod will reject it.
- eventType: z.enum([...]): Creates a union type. It only allows one of the specific strings provided ('login', 'view_dashboard', etc.). This prevents typos like 'loggin' from entering the system.
- timestamp: z.date().default(...): Expects a Date object. If the data is missing a timestamp, it automatically defaults to the current time. This is crucial for handling incomplete data gracefully.
Type Inference (type UsageEvent):
- type UsageEvent = z.infer<typeof UsageEventSchema>: This is the "magic" of Zod. Instead of writing a separate TypeScript interface that mirrors the schema (which risks them getting out of sync), we ask TypeScript to look at the UsageEventSchema and generate the type for us. This guarantees that our runtime validation and compile-time types are always identical.
Mock Data (rawMockData):
- We create an array of unknown. In a real scenario, this is data coming from a POST request body or a database query. It is unknown because we haven't validated it yet.
- We intentionally include a valid user, a user with a timestamp 8 days in the past (a churn signal), and an invalid object (missing userId).
The Analysis Function (analyzeChurnRisk):
- Input: Takes the array of unknown data.
- Validation Loop: We iterate over every item.
  - UsageEventSchema.safeParse(item): This is the core validation step. Unlike .parse() (which throws an error and crashes), safeParse returns a result object with a success boolean. This allows us to handle bad data without stopping the entire process.
- Churn Logic:
  - If the data is valid (result.success is true), we extract the typed event.
  - We calculate timeDiff by subtracting the event timestamp from the current time.
  - If timeDiff > SEVEN_DAYS_MS, we push the event into the atRisk array. In a production system, this would trigger a webhook to send a re-engagement email or notify a Customer Success Manager.
Execution:
- The function is called with our mock data.
- The console logs output the summary, showing that the invalid data was skipped and the inactive user was flagged.

Visualizing the Data Flow

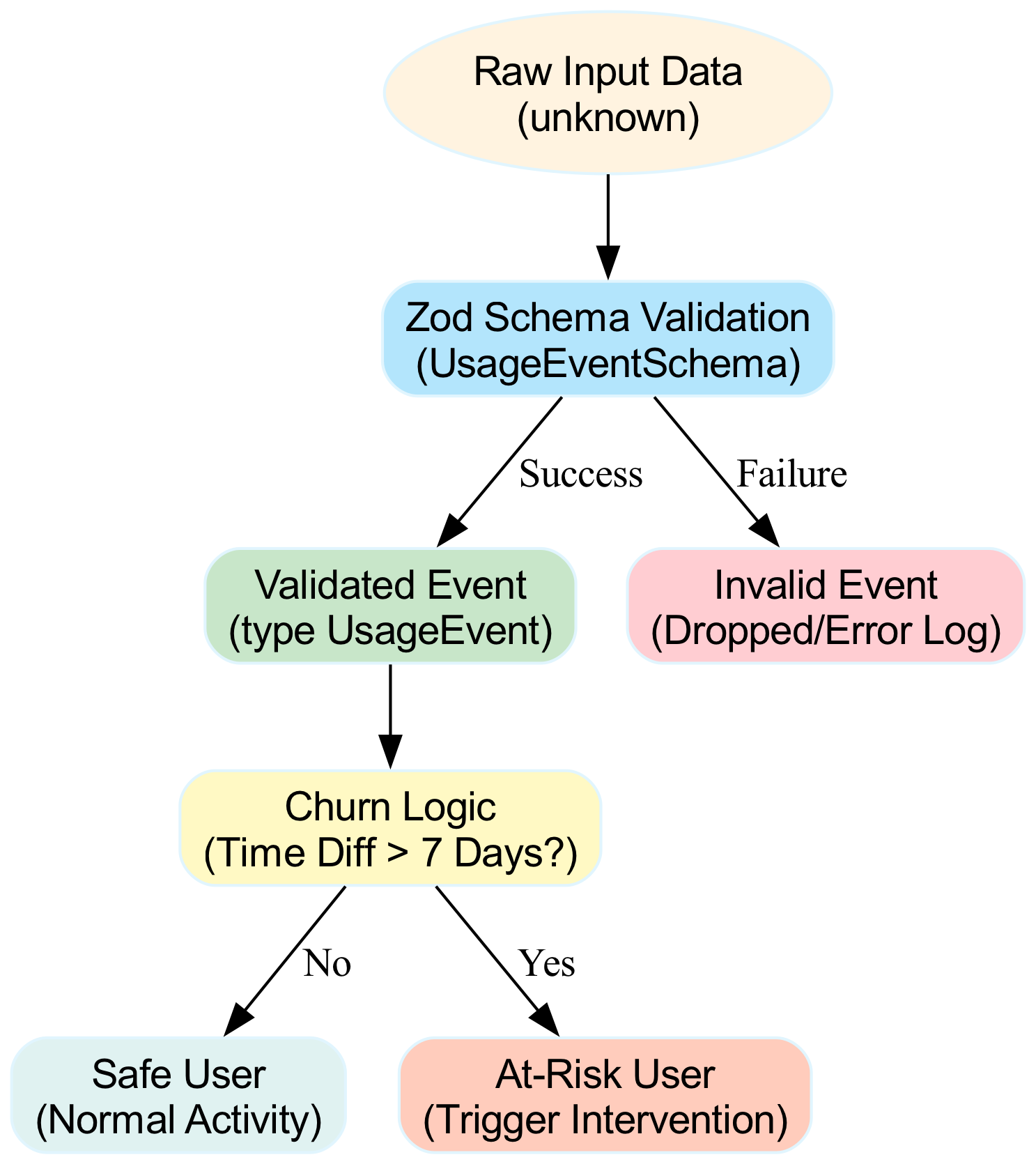

The following diagram illustrates how data moves from the raw input, through validation, and into the decision logic.

This diagram visualizes the data flow from raw input through validation and decision logic, highlighting how invalid data is skipped and inactive users are flagged.

Common Pitfalls

When implementing this logic in a production SaaS environment, watch out for these specific issues:

Date Object Mismatches (Timezones):
- The Issue: JavaScript Date objects are notoriously tricky. If your server is in UTC and your client sends a local timestamp string without a timezone offset, the calculation now - timestamp can be off by hours.
- The Fix: Always store timestamps as ISO 8601 strings (e.g., 2023-10-27T10:00:00Z). Use libraries like date-fns or dayjs for calculations, or ensure your Zod schema parses strings into Date objects consistently using .transform().
Async/Await Loops (The "Waterfall" Trap):
- The Issue: If you process events one by one using await inside a for loop (e.g., for (const item of data) { await validate(item); }), you serialize the process. If you have 10,000 events, this is incredibly slow.
- The Fix: Use Promise.all() for parallel processing. However, be careful not to overwhelm your database or API rate limits. A better pattern is batching: process 100 items in parallel, wait for them to finish, then process the next 100.
Vercel/Serverless Timeouts:
- The Issue: If you deploy this to a serverless function (like Vercel or AWS Lambda) and the rawMockData array grows large (e.g., analyzing 50,000 users), the function might hit the execution timeout limit (e.g., 10 seconds on Vercel Hobby plans) before finishing.
- The Fix: For heavy analysis, do not run it inside a synchronous HTTP request. Instead, offload the task to a background job queue (like BullMQ or Inngest) or a dedicated cron job that runs outside the request/response lifecycle.
Hallucinated JSON Structures:
- The Issue: When receiving data from a client or a third-party webhook, the JSON structure might not match what you expect. For example, a client might send userId as a number instead of a string UUID.
- The Fix: Never trust external data. The Zod safeParse method used in the example is your first line of defense. It acts as a firewall, ensuring only clean, correctly typed data enters your core logic.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
