Chapter 7: Usage Records Reporting to Stripe

Theoretical Foundations

At its heart, usage-based billing is not merely a financial calculation; it is a real-time data ingestion and aggregation pipeline. In a traditional subscription model, the state is static: a user pays a fixed fee for a fixed period. In a usage-based model, the state is dynamic and continuous. Every API call, every minute of compute time, or every gigabyte of data processed is a discrete event that must be captured, validated, and aggregated.

To understand this deeply, we must look back at Book 7, Chapter 4, where we discussed Agent State Management. We treated the agent's memory as a sequence of discrete events (messages, tool calls) that needed to be persisted and retrieved to maintain context. The architecture we built there is conceptually identical to the architecture required for Stripe Usage Records, but with a critical difference: latency tolerance.

In an agent's reasoning loop, we need immediate feedback to generate the next Thought. In usage billing, we often tolerate a delay between the event occurring and the invoice updating, provided the aggregation is accurate. This introduces the fundamental dichotomy of usage reporting: Real-Time vs. Cumulative Reporting.

Real-Time vs. Cumulative Reporting: The Waterfall vs. The Reservoir

Imagine you are managing a hydroelectric dam.

1. Real-Time Reporting (The Waterfall): In this model, every drop of water that flows over the dam is measured and immediately reported to the downstream power station. This is analogous to sending a Stripe API request for every single API call your application handles.

The Why: This provides the highest granularity. If a user spikes their usage, you know instantly.
The Under the Hood: This creates a massive volume of network requests. If your application handles 10,000 requests per second, you are attempting to make 10,000 HTTP requests to Stripe per second. This is inefficient, expensive (in terms of API call limits), and introduces a dependency on Stripe's API availability for your core application logic.
The Analogy: It is like a web server that makes a database query for every single user click to verify a session token, rather than using a cached session store. It works, but it does not scale.

2. Cumulative Reporting (The Reservoir): In this model, water collects in a reservoir. You measure the total volume at specific intervals (e.g., hourly) and release that total volume downstream.

The Why: This batches data. Instead of 10,000 requests per second, you might send one request per hour containing the total count of actions performed during that window.
The Under the Hood: This requires a local data store (the reservoir) to hold the running count. Your application increments a counter in Redis or a database table for every event. A background job (a cron or a scheduled worker) wakes up periodically, reads the current total, and reports that quantity to Stripe.
The Analogy: This is identical to how React's useEffect hook with a dependency array works (referencing Book 5, Chapter 2). You don't re-render the component on every keystroke; you batch updates or wait for a specific trigger (like a "Save" button) to flush the state to the DOM. Similarly, we batch usage events to flush to Stripe.

The Technical Challenge: Idempotency and Precision

The primary challenge in usage reporting is ensuring that the "Reservoir" never loses water and never counts the same water twice.

In web development, this is the classic problem of atomic transactions. If you increment a counter in a database, you must ensure that a server restart or a race condition doesn't cause you to lose that increment.

Stripe handles this via Idempotency Keys, but for usage, the logic is more complex. When you report usage, you are essentially telling Stripe: "Add this amount to the existing total for this billing cycle."

However, what if your background worker runs twice due to a network glitch? If you report quantity: 100 twice, you have overcharged the customer.

The Solution: The Delta Approach Instead of reporting absolute totals, we calculate the delta (the difference) since the last successful report.

Local State: last_reported_count = 500
Current State: current_count = 650
Action: Report quantity: 150 (650 - 500) to Stripe.
Update: Only update last_reported_count to 650 if the Stripe API returns a 200 OK.

This mirrors the Optimistic UI Updates pattern in frontend development (Book 4, Chapter 3). We assume the local state is correct until the server confirms it, at which point we synchronize the "source of truth."

Visualizing the Data Flow

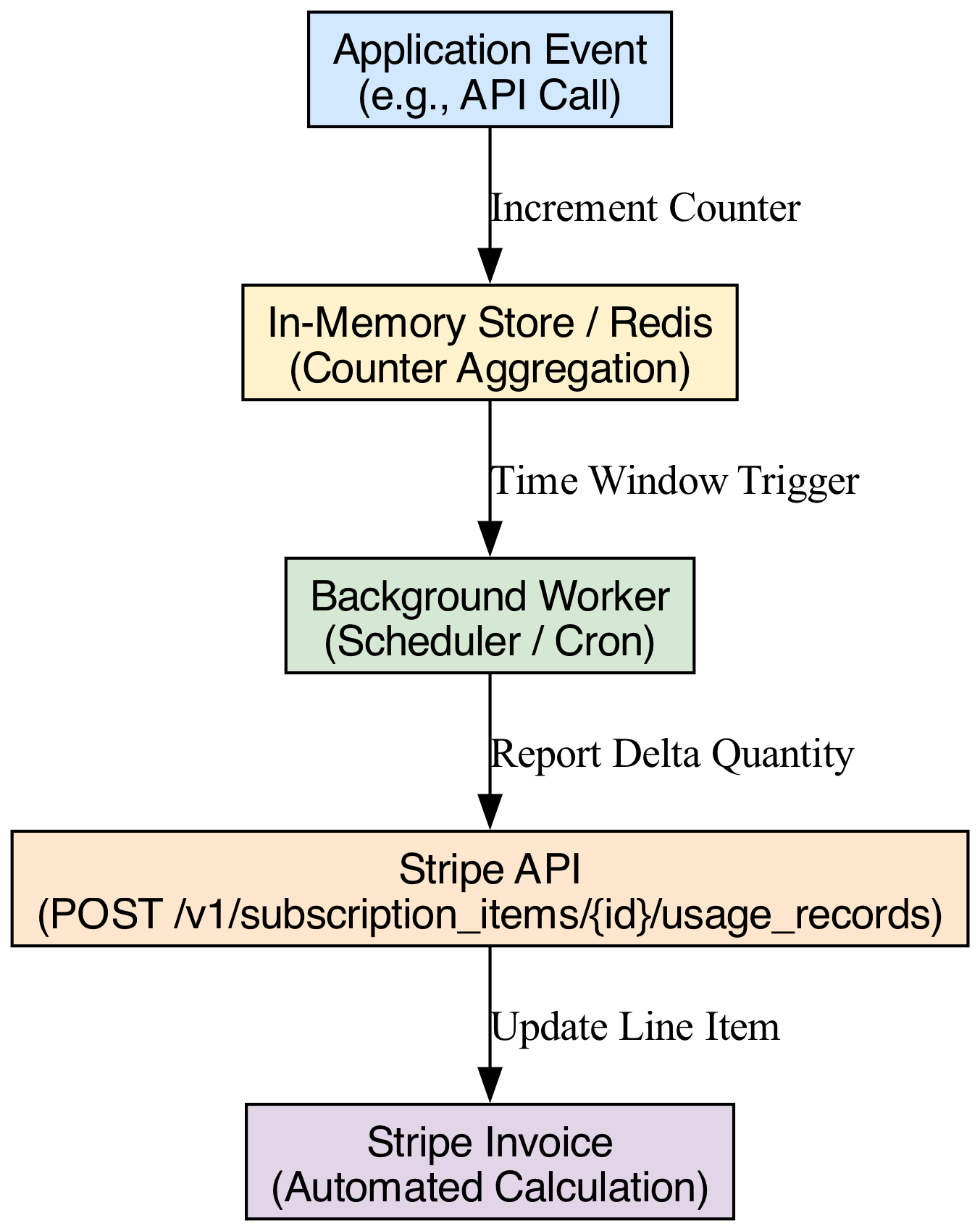

The following diagram illustrates the flow of data from the application event to the Stripe invoice. Note the buffer layer, which is the critical component for high-volume systems.

A high-level flowchart visualizes the data journey from an application event to a Stripe invoice, highlighting the buffer layer as a critical component for managing high-volume systems.

The "Why": Enabling Smart Dunning and AI Agents

The theoretical foundation of usage reporting is not just about billing accuracy; it is about data freshness. The quality of downstream automation—specifically Smart Dunning and AI Customer Support Agents—is directly proportional to the granularity and timeliness of the usage data.

1. Smart Dunning (The Reactive Loop) Dunning is the process of handling failed payments. In a subscription model, dunning is triggered by a payment failure event. In a usage model, dunning is more complex. A customer might exceed their credit limit mid-cycle, or their usage might predict an invoice amount that exceeds their available funds.

The Connection: If we use Cumulative Reporting, we have a "lag" in our data. If we report usage hourly, we might not know a user has hit their limit until an hour after the fact.
The Optimization: By implementing a tighter aggregation window (e.g., reporting every 5 minutes), we reduce this lag. This allows the "Smart Dunning" engine to intervene before the invoice is generated or the payment fails. It allows the system to send a proactive warning: "You have used 95% of your monthly compute budget."

2. AI Customer Support Agents (The Proactive Loop) This is where the architecture converges with the concepts from Book 8. We treat usage data as a stream of events that feeds an AI agent's context.

Referencing the ReAct Loop (Reasoning and Acting), an AI agent can be triggered not by a support ticket, but by a usage anomaly.

The Mechanism:
- Observation: The usage pipeline reports a sudden spike in API errors (e.g., 500 status codes) associated with a specific customer ID.
- Thought: The AI agent analyzes this against historical data. "Customer X typically averages 10 errors/day. They are currently at 500 errors in 10 minutes. This indicates a configuration issue or a code deployment failure."
- Action: The agent does not wait for a human. It uses a tool to send a proactive email or a Slack notification to the customer's technical contact: "We've detected an anomaly in your API usage. It looks like you might be experiencing a service outage. Here are some debugging steps..."

The Role of Model Compression in this Context While Model Compression (pruning, quantization, distillation) is typically associated with deploying LLMs to edge devices, it plays a role here in the AI Agent layer. To make the "Proactive Loop" cost-effective, the agent monitoring the usage stream must be lightweight.

If we run a massive, uncompressed model to analyze every usage event, the cost of inference might exceed the revenue from the usage itself. By applying Model Compression, we can deploy a smaller, faster model (perhaps a distilled version of a larger LLM) specifically trained to detect usage anomalies. This allows the agent to run continuously, scanning the usage stream in real-time without incurring prohibitive costs.

Zod Schemas as the Guardrails

Finally, we must ensure the data entering our pipeline is valid. In a distributed system, different microservices might emit usage events in slightly different formats.

This is where Zod Schemas become the theoretical foundation of data integrity. Before an event is added to the "Reservoir" (the Redis counter), it must pass through a Zod validator.

The Analogy: Think of Zod as the TypeScript compiler, but at runtime. Just as TypeScript prevents you from compiling code that passes a string where a number is expected, a Zod schema prevents a malformed usage event from polluting your billing data.

Example of a Usage Event Schema:

import { z } from 'zod';

// Defining the shape of a single usage event
const UsageEventSchema = z.object({
  customerId: z.string().startsWith('cus_'), // Must be a valid Stripe Customer ID
  resourceId: z.string().uuid(),             // The specific resource used (e.g., a specific VM ID)
  timestamp: z.number().int().positive(),    // Unix timestamp
  metric: z.enum(['compute_seconds', 'api_calls', 'bandwidth_mb']), // Strictly defined metrics
  value: z.number().gt(0),                   // Must be a positive number
});

// Inferring the TypeScript type for internal use
export type UsageEvent = z.infer<typeof UsageEventSchema>;

// Validation logic (Conceptual)
const validateEvent = (event: unknown): UsageEvent => {
  // This throws an error if the data is malformed, protecting the pipeline
  return UsageEventSchema.parse(event);
};

By enforcing this schema, we ensure that the aggregation logic (the background worker) only ever processes clean, predictable data. This prevents the "Garbage In, Garbage Out" scenario where a malformed event causes the worker to crash or report incorrect usage to Stripe.

The reporting of usage records to Stripe is a data engineering challenge disguised as a billing feature. It requires:

Batching Strategy: Choosing between Real-Time (Waterfall) and Cumulative (Reservoir) reporting based on volume and latency requirements.
Atomicity: Ensuring that usage counts are accurate and idempotent, using delta calculations to prevent double-billing.
Data Validation: Utilizing Zod Schemas to enforce strict typing and validation at the entry point of the pipeline.
Downstream Automation: Leveraging the aggregated data stream to power proactive AI agents and Smart Dunning systems, moving from reactive support to predictive account management.

Basic Code Example

In a SaaS environment with metered billing (e.g., API calls, storage used, or AI tokens consumed), the application must act as a "meter." It tracks usage internally and periodically reports these "ticks" to Stripe. Stripe does not automatically know about your internal events; you must push this data to them.

The fundamental unit of this interaction is the Stripe Usage Record. It represents a single data point of consumption for a specific metered subscription item at a specific point in time.

The following "Hello World" example demonstrates a simplified Cumulative Reporting strategy. We will simulate a backend service that aggregates usage for a user and reports the total count to Stripe. This is the safest and most common pattern for reporting.

// ==========================================
// stripe-usage-reporter.ts
// A self-contained TypeScript example for reporting usage.
// ==========================================

/**

 * Mocks the Stripe Node.js library.
 * In a real application, you would import: `import Stripe from 'stripe';`
 */
class MockStripe {
  private subscriptions: Map<string, any> = new Map();

  constructor() {
    // Seed some mock data: A subscription item ID that we will report usage against.
    this.subscriptions.set('si_123456789', {
      id: 'si_123456789',
      plan: { interval: 'month' },
      // We track the last reported usage to simulate cumulative logic
      lastReportedUsage: 0
    });
  }

  /**

   * Mocks `stripe.subscriptionItems.createUsageRecord`
   * @param itemID - The ID of the subscription item (e.g., 'si_...')
   * @param params - The usage record data (quantity, timestamp)
   */
  async createUsageRecord(itemID: string, params: { quantity: number; timestamp: number }) {
    const subItem = this.subscriptions.get(itemID);
    if (!subItem) {
      throw new Error(`Subscription item ${itemID} not found.`);
    }

    // Simulate Stripe API latency
    await new Promise(resolve => setTimeout(resolve, 100));

    console.log(`[Stripe API] Received Usage Report for ${itemID}:`);
    console.log(`   - Quantity: ${params.quantity}`);
    console.log(`   - Timestamp: ${new Date(params.timestamp * 1000).toISOString()}`);

    // Mock response object
    return {
      id: `ur_${Math.random().toString(36).substring(7)}`,
      object: 'usage_record',
      quantity: params.quantity,
      timestamp: params.timestamp,
      subscription_item: itemID
    };
  }
}

// Initialize the mock Stripe client
const stripe = new MockStripe();

/**

 * Interface representing our internal database record for a user's meter.
 */
interface UserMeter {
  userId: string;
  subscriptionItemId: string;
  currentUsageCount: number; // The usage accumulated since the last report
}

/**

 * The main reporting function.
 * 1. Fetches internal usage data.
 * 2. Formats the data for Stripe.
 * 3. Sends the report.
 * 4. (Crucial) Resets/Updates internal state to prevent double billing.
 */
async function reportUsageToStripe(meter: UserMeter): Promise<void> {
  console.log(`\n--- Processing User: ${meter.userId} ---`);

  // 1. Check if there is anything to report
  if (meter.currentUsageCount === 0) {
    console.log("No new usage to report. Skipping.");
    return;
  }

  // 2. Prepare the payload
  // In Cumulative Reporting, we send the *total* usage for the current billing period.
  // Stripe calculates the difference between the last report and this one.
  const usageRecordParams = {
    quantity: meter.currentUsageCount,
    timestamp: Math.floor(Date.now() / 1000), // Current Unix timestamp
  };

  try {
    // 3. Call the Stripe API
    const response = await stripe.createUsageRecord(
      meter.subscriptionItemId,
      usageRecordParams
    );

    console.log(`✅ Successfully reported usage. Stripe ID: ${response.id}`);

    // 4. Post-Report Logic (Critical for Data Integrity)
    // In a real app, you would now archive these usage logs or reset the counter
    // so you don't report the same events again next time.
    meter.currentUsageCount = 0;
    console.log("Internal meter reset to 0.");

  } catch (error) {
    // 5. Error Handling
    // If this fails, you must NOT reset the counter. It should retry later.
    console.error("❌ Failed to report usage:", error);
    throw error; // Bubble up to be handled by a retry mechanism (e.g., BullMQ, AWS SQS)
  }
}

/**

 * Simulation Runner
 * (This mimics a cron job or a background worker processing a queue)
 */
(async () => {
  // Simulate a user who has accumulated 150 API calls since the last report
  const myUserMeter: UserMeter = {
    userId: 'user_999',
    subscriptionItemId: 'si_123456789',
    currentUsageCount: 150
  };

  await reportUsageToStripe(myUserMeter);
})();

How It Works: Line-by-Line Breakdown

Mocking the Stripe SDK (class MockStripe):
- We cannot run a live Stripe connection in a static text example. This class mimics the behavior of the official stripe npm package.
- It maintains a Map to store "subscriptions" so we can pretend to look them up.
- createUsageRecord simulates the network request. It validates that the subscriptionItemId exists and logs the data as if Stripe received it.
The UserMeter Interface:
- This represents the Source of Truth inside your application (your database).
- currentUsageCount: This is the specific number we are about to send. In a real app, this number comes from querying your logs (e.g., "How many requests did User X make in the last hour?").
reportUsageToStripe Function:
- Guard Clause: if (meter.currentUsageCount === 0). We never make an API call if there is nothing to report. This saves API costs and processing time.
- Payload Construction:
  - quantity: The total count.
  - timestamp: Stripe requires a Unix timestamp. This marks exactly when the usage occurred. If you report late, Stripe uses this to backdate the usage (if allowed by the plan settings).
- The try/catch Block: This is the most critical part of the architecture. Network requests fail.
  - Success: We log the success and reset currentUsageCount to 0. This prevents double-billing.
  - Failure: We log the error and throw it. We do not reset the counter. This ensures that the usage data is preserved and a retry mechanism (like a cron job running 5 minutes later) can attempt to send it again.

Visualizing the Data Flow

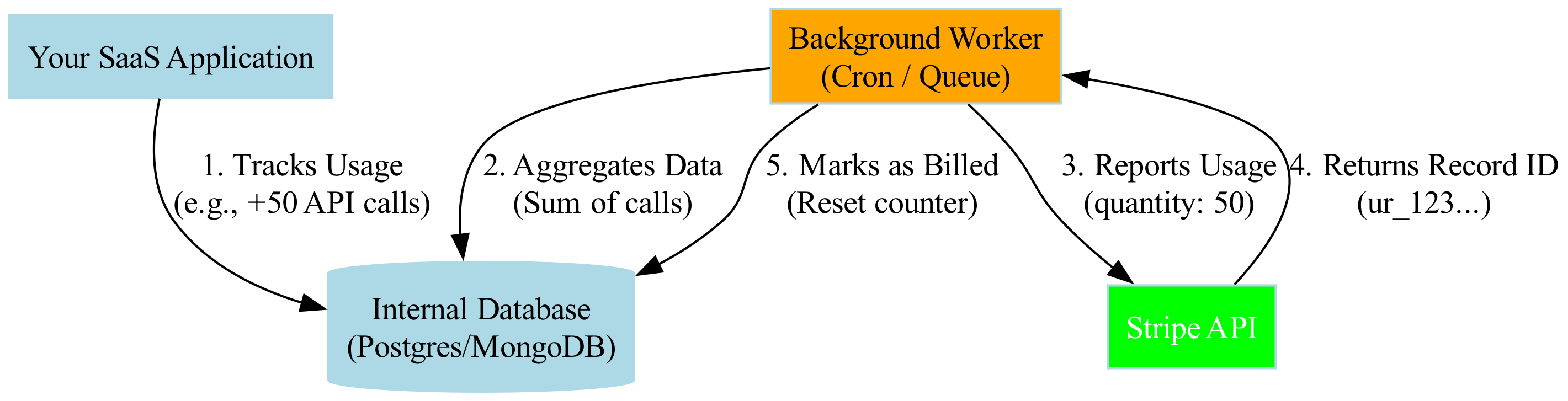

The following diagram illustrates the interaction between your internal application logic and the Stripe API.

The diagram illustrates the flow of usage data from an internal application to the Stripe API, highlighting a local persistence layer that safeguards data and triggers a retry mechanism (such as a cron job) to ensure eventual delivery.

Common Pitfalls in TypeScript/Node.js

When implementing usage reporting in a production Node.js environment, these are the specific errors that cause the most damage:

The "Vercel/Serverless Timeout" Trap:
- The Issue: Serverless functions (AWS Lambda, Vercel) have strict timeouts (e.g., 10 seconds). If you have a loop that reports usage for 1,000 users sequentially, the function will time out before finishing.
- The Fix: Never report usage inside the API request that generates the usage. Always push the event to a queue (like Redis/ BullMQ, SQS, or Trigger.dev) and process it asynchronously in a background worker.

Async/Await in forEach Loops:

The Issue:

// ❌ BAD: forEach does not wait for promises
users.forEach(async (user) => {
   await reportUsage(user);
});
// The loop finishes immediately, and the program exits before requests finish.

The Fix:

// ✅ GOOD: For loop or Promise.all
for (const user of users) {
   await reportUsage(user);
}
// OR
await Promise.all(users.map(u => reportUsage(u)));

Hallucinated JSON / API Types:
- The Issue: When using AI agents (like the Supervisor Node mentioned in your context) to generate the payload, they might hallucinate fields like usage_timestamp instead of the correct timestamp.
- The Fix: Always use a strict TypeScript interface or Zod schema to validate the data before sending it to Stripe.
```
import { z } from 'zod';
const StripePayload = z.object({
    quantity: z.number().int().positive(),
    timestamp: z.number().int(), // Unix timestamp
});
// Validate before calling stripe
const safePayload = StripePayload.parse(rawData);
```
Idempotency Issues:
- The Issue: If your worker crashes after Stripe receives the data but before your database resets the counter, you might report the same usage twice next time.
- The Fix: Stripe usage records are not idempotent by default. You must implement "At Least Once" delivery logic in your database (e.g., using a transaction to update the billing status and the usage counter simultaneously).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
