Chapter 10: Automated Invoice Data Extraction

Theoretical Foundations

The theoretical foundation of automated invoice data extraction rests on a fundamental principle of software engineering: the transformation of unstructured, human-readable data into structured, machine-interprettable data. Invoices, whether received as PDF attachments in emails or as scanned images, are the antithesis of structured data. They are a chaotic arrangement of visual elements—logos, tables, legal text, and numbers—whose semantic meaning is derived from context, layout, and convention. The goal of the pipeline is to impose a rigid, predictable schema upon this chaos, creating a canonical representation of the transaction that can be programmatically consumed by systems like Stripe Billing and accounting ledgers. This process is not merely a conversion; it is an act of semantic interpretation and validation.

The Unstructured Data Problem and the Role of AI

Traditional data extraction methods, such as regular expressions or rule-based parsers, are brittle. They fail because they cannot adapt to the myriad of invoice formats, languages, and layouts. An invoice from one vendor might place the total in the top-right corner, while another places it at the bottom. A rule-based system would require a new set of rules for each vendor, a maintenance nightmare. This is where AI, specifically the combination of Optical Character Recognition (OCR) and Large Language Models (LLMs), becomes the theoretical cornerstone.

Analogy: The Bilingual Librarian Imagine a library filled with books written in countless languages, each with its own unique structure (some are scrolls, some are codices, some are digital). A rule-based system is like a librarian who only knows how to find books by their title and author, and only if they follow a specific cataloging system. If a book is presented as a scroll without a title, the librarian is helpless.

An AI-powered system, however, is like a master librarian who is not only multilingual but also understands the concept of a story. They can glance at any page, in any language, and understand its meaning—the plot, the characters, the moral. They can then re-tell this story in a perfectly structured, standardized format (e.g., a JSON object). This is what the AI does: it reads the visual and textual elements of an invoice and understands the semantic relationships between them, regardless of their physical layout.

The process begins with OCR, which acts as the librarian's eyes, converting the visual pixels of a document into raw text. But this raw text is still just a stream of characters without context. The LLM is the librarian's brain, imbuing this stream with meaning. It identifies that the string "Total Due" is a label, and the number "$1,250.75" that follows (or appears nearby) is the value for that label. It understands that "Invoice #2023-001" is a unique identifier, and that "Line Item" entries correspond to specific products or services.

The Architecture: A Server-Centric, Secure Pipeline

The architecture for this pipeline is deliberately designed around the principle of "AI Chatbot Architecture" as defined in our context. All complex logic, data fetching, and model interaction must reside on the server. This is not an arbitrary choice; it is a critical security and performance decision.

Why Server-Side Processing is Non-Negotiable:

Security: Invoices contain sensitive financial data—vendor bank details, client information, purchase order numbers, and proprietary pricing. Transmitting this data to a client-side application (a browser) exposes it to interception and manipulation. The server acts as a secure enclave where the data is processed, validated, and then integrated into trusted systems like Stripe. The client's role is purely to initiate the process (e.g., upload a file) and receive a confirmation of success or failure.
Model Access: LLMs are computationally expensive and often accessed via API. These API keys and the model endpoints themselves must be protected. Exposing them in client-side code would be a catastrophic security vulnerability, allowing anyone to make unauthorized requests on your behalf. By keeping all model interactions on the server, we maintain complete control over access and usage.
Data Consistency and Validation: The server is the single source of truth. It is the only place where we can reliably perform Runtime Validation. As we've established, TypeScript's compile-time checks are stripped away when the code is built for the browser. The data returned from an external source—like an OCR service or an LLM—is an unknown entity until we verify it. The server is the gatekeeper that ensures the data it receives and passes on to Stripe or an accounting system conforms to a strict, expected structure.

The Data Flow: From Pixels to Ledger Entries

The theoretical flow of data through this system can be broken down into distinct stages, each transforming the data from one state to another.

Ingestion & Pre-processing: The pipeline begins when a user uploads a file (e.g., a PDF) or an email is forwarded to a dedicated address. The server receives the raw file data. In some cases, pre-processing is necessary, such as converting a multi-page PDF into individual image files for OCR or rotating a skewed scanned document to improve text recognition accuracy.
OCR (The "Eyes"): The pre-processed document is sent to an OCR service. This service returns the raw text and, crucially, its spatial coordinates on the page (bounding boxes). This geometric data is vital for the LLM, as it helps the model understand the layout (e.g., which text is in the header, which is in a table row).
LLM Interpretation (The "Brain"): This is the core of the extraction process. The raw text and bounding box data are packaged into a prompt and sent to an LLM. The prompt is engineered to instruct the model to act as an expert invoice parser. It specifies the desired output format—a strict JSON schema. For example:
```
{
  "vendorName": "string",
  "invoiceNumber": "string",
  "invoiceDate": "string (ISO 8601)",
  "totalAmount": "number",
  "lineItems": [
    {
      "description": "string",
      "quantity": "number",
      "unitPrice": "number",
      "total": "number"
    }
  ]
}
```
The LLM analyzes the semantic meaning of the text, maps it to this schema, and returns a structured JSON object.
Runtime Validation (The "Gatekeeper"): The JSON object returned by the LLM is still untrusted data. It could be malformed, missing required fields, or contain incorrect data types (e.g., a string for totalAmount instead of a number). This is where Runtime Validation with a library like Zod becomes essential. A Zod schema is defined on the server that mirrors the expected JSON structure. The LLM's output is passed through this schema for validation. If validation fails, the process is halted, and an error is logged. This prevents corrupt or incomplete data from ever reaching downstream systems.
Integration & Synchronization (The "Actuator"): Once the data is validated, it is transformed into the format required by the target systems. For Stripe, this might mean creating a Product or Price object for each line item and then creating an Invoice with those items. For an accounting ledger, it might mean creating a journal entry. This final step is the culmination of the pipeline, turning a static document into an actionable financial record.

Visualizing the Pipeline

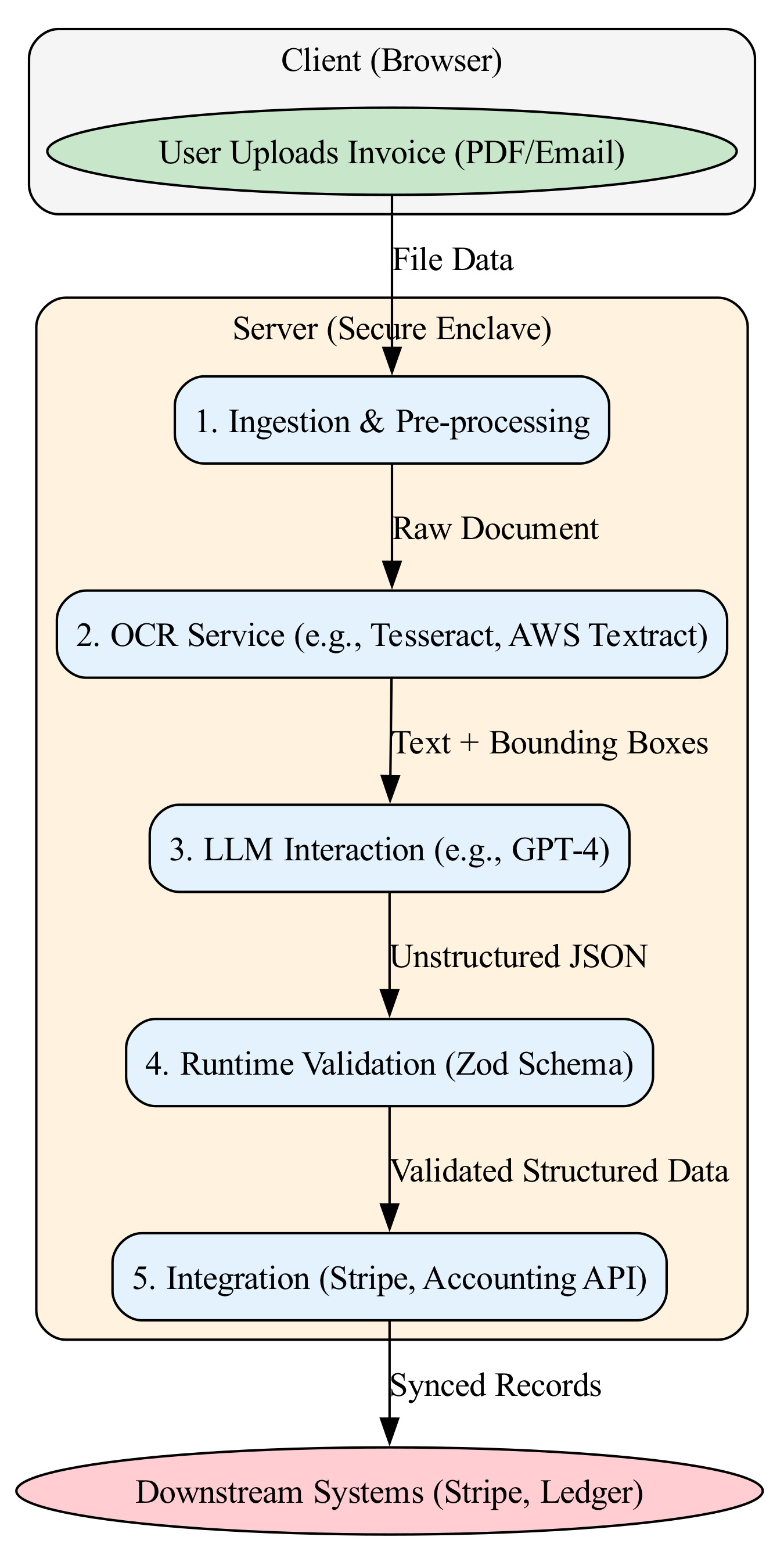

The following diagram illustrates the flow of data and control through the system, highlighting the server-centric nature of the architecture.

This diagram visualizes the end-to-end data flow of the pipeline, illustrating how the server-centric architecture transforms a static document into an actionable financial record.

The Critical Role of Runtime Validation

To understand the necessity of runtime validation, consider the analogy of a Webhook Endpoint. When you build an API endpoint that receives a webhook from a third-party service (like Stripe), you cannot trust the incoming payload. Even though the service might promise a specific structure, a bug on their end, a network issue, or a malicious actor could send you malformed data. Your code must validate the payload against a known schema before processing it. If you don't, your application could crash, or worse, corrupt your database with invalid data.

The LLM is an external service, just like a payment gateway. It is powerful but not infallible. It might misinterpret a handwritten note on an invoice or fail to parse a complex table. The JSON it returns is the "webhook payload" of our pipeline. The Zod schema is our validation logic, the gatekeeper that ensures only clean, trustworthy data proceeds. This is the essence of AI Chatbot Architecture: the server is not just a passive conduit; it is an active, intelligent agent that orchestrates tools (OCR, LLM), validates all inputs, and maintains the integrity of the entire system. The client remains simple, secure, and focused on the user experience, while the heavy lifting of intelligence and security is handled where it belongs: on the server.

Basic Code Example

The goal of automated invoice data extraction is to eliminate the tedious, error-prone process of manually entering data from PDFs or emails into a billing system. In a SaaS context, this involves a pipeline that takes unstructured invoice documents, uses AI to understand and parse them, and outputs structured data that can be programmatically synced with Stripe Billing or an accounting ledger.

The "Hello World" example below demonstrates the fundamental logic of this pipeline. It simulates the ingestion of a raw invoice object (representing data extracted from a PDF or email body), defines strict TypeScript interfaces to enforce data contracts, applies validation logic to ensure data integrity, and formats the result for integration into a system like Stripe.

This example emphasizes Strict Type Discipline. By using strict: true in the TypeScript configuration and defining explicit interfaces (InvoiceLineItem, StripeInvoiceItem), we shift potential runtime errors—like missing properties or type mismatches—to compile-time warnings. This is critical in AI data pipelines where the input (from an OCR or LLM) can be unpredictable.

/**

 * @fileoverview A "Hello World" example of an automated invoice data extraction pipeline.
 * This script simulates parsing unstructured invoice data and converting it into a structured
 * format suitable for Stripe Billing integration.
 *
 * Prerequisites: Node.js with TypeScript installed.
 * To run: Save as `invoice-processor.ts` and execute `npx ts-node invoice-processor.ts`.
 */

// ============================================================================
// 1. TYPE DEFINITIONS (Strict Type Discipline)
// ============================================================================

/**

 * Represents a single line item on an invoice, as extracted by an AI/OCR model.
 * This interface defines the data contract for the raw, unstructured input.
 * Note: All fields are explicitly typed to prevent `any` and ensure null-safety.
 */
interface InvoiceLineItem {
  description: string;
  quantity: number;
  unit_price: number; // In cents to avoid floating-point issues
}

/**

 * Represents the raw, unstructured invoice data object.
 * This simulates the output from an AI model that has processed a PDF or email.
 */
interface RawInvoiceData {
  invoice_number: string;
  vendor_name: string;
  total_amount: number; // In cents
  line_items: InvoiceLineItem[];
  due_date?: string; // Optional field
}

/**

 * Represents the final, validated data structure ready for Stripe API integration.
 * Stripe expects specific field names and data types for its `InvoiceItem` object.
 */
interface StripeInvoiceItem {
  customer: string; // Stripe Customer ID
  description: string;
  quantity: number;
  unit_price: number; // In cents
  currency: string; // e.g., 'usd'
}

// ============================================================================
// 2. MOCK DATA SIMULATION
// ============================================================================

/**

 * Simulates the output of an AI-powered OCR/LLM model that has parsed a PDF invoice.
 * In a real-world scenario, this data would come from a service like AWS Textract,
 * Google Document AI, or a custom LLM endpoint.
 */
const mockRawInvoice: RawInvoiceData = {
  invoice_number: "INV-2023-001",
  vendor_name: "Cloud Services Inc.",
  total_amount: 15000, // $150.00 in cents
  due_date: "2023-12-31",
  line_items: [
    { description: "Pro Plan Subscription", quantity: 1, unit_price: 10000 },
    { description: "API Overage (1M requests)", quantity: 5, unit_price: 1000 },
  ],
};

// ============================================================================
// 3. CORE PROCESSING LOGIC
// ============================================================================

/**

 * Validates the extracted invoice data against business rules.
 * This is a critical step to catch hallucinations or errors from the AI model.
 *
 * @param rawInvoice - The raw invoice data object.
 * @returns A boolean indicating if the data is valid.
 * @throws Error if validation fails (for demonstration).
 */
function validateInvoiceData(rawInvoice: RawInvoiceData): boolean {
  // Calculate the expected total from line items
  const calculatedTotal = rawInvoice.line_items.reduce(
    (sum, item) => sum + item.quantity * item.unit_price,
    0
  );

  // **Validation Logic:**
  // 1. Check if the calculated total matches the extracted total.
  // 2. Ensure required fields are not empty.
  if (calculatedTotal !== rawInvoice.total_amount) {
    throw new Error(
      `Validation Error: Total mismatch. Expected ${rawInvoice.total_amount}, but calculated ${calculatedTotal}.`
    );
  }

  if (!rawInvoice.vendor_name || !rawInvoice.invoice_number) {
    throw new Error("Validation Error: Missing critical vendor or invoice number.");
  }

  console.log("✅ Invoice data validated successfully.");
  return true;
}

/**

 * Transforms raw invoice line items into Stripe-compatible format.
 * This function handles the data mapping and formatting required by the target system.
 *
 * @param rawInvoice - The validated raw invoice data.
 * @param stripeCustomerId - The Stripe Customer ID to associate the invoice with.
 * @returns An array of StripeInvoiceItem objects.
 */
function transformToStripeItems(
  rawInvoice: RawInvoiceData,
  stripeCustomerId: string
): StripeInvoiceItem[] {
  // Map each line item to the Stripe structure
  return rawInvoice.line_items.map((item) => ({
    customer: stripeCustomerId,
    description: item.description,
    quantity: item.quantity,
    unit_price: item.unit_price,
    currency: "usd", // Assuming USD for this example
  }));
}

/**

 * Main processor function that orchestrates the pipeline.
 *
 * @param rawInvoice - The raw invoice data.
 * @param stripeCustomerId - The target customer ID in Stripe.
 * @returns The formatted Stripe invoice items ready for API sync.
 */
function processInvoice(
  rawInvoice: RawInvoiceData,
  stripeCustomerId: string
): StripeInvoiceItem[] {
  try {
    // Step 1: Validate the data integrity
    validateInvoiceData(rawInvoice);

    // Step 2: Transform the data into the target format
    const stripeItems = transformToStripeItems(rawInvoice, stripeCustomerId);

    console.log("✅ Data transformation complete.");
    return stripeItems;
  } catch (error) {
    // In a real app, this would trigger a "Smart Dunning" alert or a manual review queue
    console.error("❌ Pipeline failed:", (error as Error).message);
    return []; // Return empty array on failure
  }
}

// ============================================================================
// 4. EXECUTION
// ============================================================================

// Simulate a Stripe Customer ID (e.g., fetched from a database)
const STRIPE_CUSTOMER_ID = "cus_12345abc";

// Execute the pipeline
const processedInvoiceItems = processInvoice(mockRawInvoice, STRIPE_CUSTOMER_ID);

// Log the final output for integration
console.log("\n--- Final Stripe Invoice Payload ---");
console.log(JSON.stringify(processedInvoiceItems, null, 2));

Line-by-Line Explanation

Type Definitions (Strict Type Discipline):
- We start by defining InvoiceLineItem, RawInvoiceData, and StripeInvoiceItem. This is the foundation of Strict Type Discipline. By explicitly typing every field (e.g., unit_price: number), we prevent TypeScript from inferring types incorrectly or falling back to any.
- The RawInvoiceData interface models the output of an AI model, which might have optional fields like due_date.
- The StripeInvoiceItem interface models the strict requirements of the Stripe API, ensuring our final output is compatible with the target system.
Mock Data Simulation:
- The mockRawInvoice object represents the unstructured data extracted by an AI/OCR engine. In a real application, this would be the JSON response from an API endpoint that processes PDFs.
- Note the unit_price is in cents (e.g., 10000 for $100.00). This is a common practice to avoid floating-point arithmetic errors in financial calculations.
Validation Logic (validateInvoiceData):
- This function is the safety net of the pipeline. It performs a critical check: recalculating the total from line items and comparing it to the extracted total_amount.
- If the AI model hallucinates or misreads a number, this validation catches it before the data is synced to Stripe, preventing incorrect billing.
- It throws an error on failure, which is caught by the main processor.
Transformation Logic (transformToStripeItems):
- This function handles the data mapping. It iterates over the raw line items and transforms them into the structure expected by Stripe's API.
- It adds the currency field and maps the customer ID, which is not present in the raw data but is required for the integration.
Main Processor (processInvoice):
- This function orchestrates the entire flow: validate -> transform -> return.
- It uses a try...catch block to handle validation errors gracefully. In a production environment, this catch block would log the error to a monitoring service (like Sentry) and perhaps trigger a "Smart Dunning" alert to notify an administrator of a failed extraction.
Execution:
- The final block simulates running the pipeline with a mock Stripe Customer ID.
- It logs the final, structured payload that would be sent to the Stripe API.

Common Pitfalls

Hallucinated JSON from LLMs:
- Issue: AI models, especially LLMs, can generate JSON that looks syntactically correct but contains factually incorrect data (e.g., a total that doesn't match the line items).
- Mitigation: Always implement a validation layer (like the validateInvoiceData function) that cross-references calculated values against extracted values. Never trust the AI output blindly.
Floating-Point Arithmetic Errors:
- Issue: JavaScript's native number type uses floating-point arithmetic, which can lead to precision errors (e.g., 0.1 + 0.2 !== 0.3). This is dangerous for financial calculations.
- Mitigation: Always work with integers representing the smallest currency unit (e.g., cents). Convert to decimal only for final display. Our example uses unit_price: number in cents.
Vercel/AWS Lambda Timeouts:
- Issue: Processing large PDFs or complex invoices can be time-consuming, potentially exceeding the execution time limits of serverless functions (e.g., Vercel's 10-second limit for hobby plans).
- Mitigation: For heavy processing, use a background job queue (like BullMQ or AWS SQS) instead of a synchronous API route. The initial request should acknowledge receipt and process the invoice asynchronously.
Async/Await Loops:
- Issue: When processing a batch of invoices, using await inside a forEach loop will execute sequentially but not wait for all promises to resolve before moving on, leading to unhandled promises or race conditions.
- Mitigation: Use Promise.all() with map to process invoices in parallel, or use a for...of loop if sequential processing is required. Example:
```
// Correct parallel processing
const results = await Promise.all(invoices.map(inv => processInvoice(inv)));
```

Pipeline Architecture Visualization

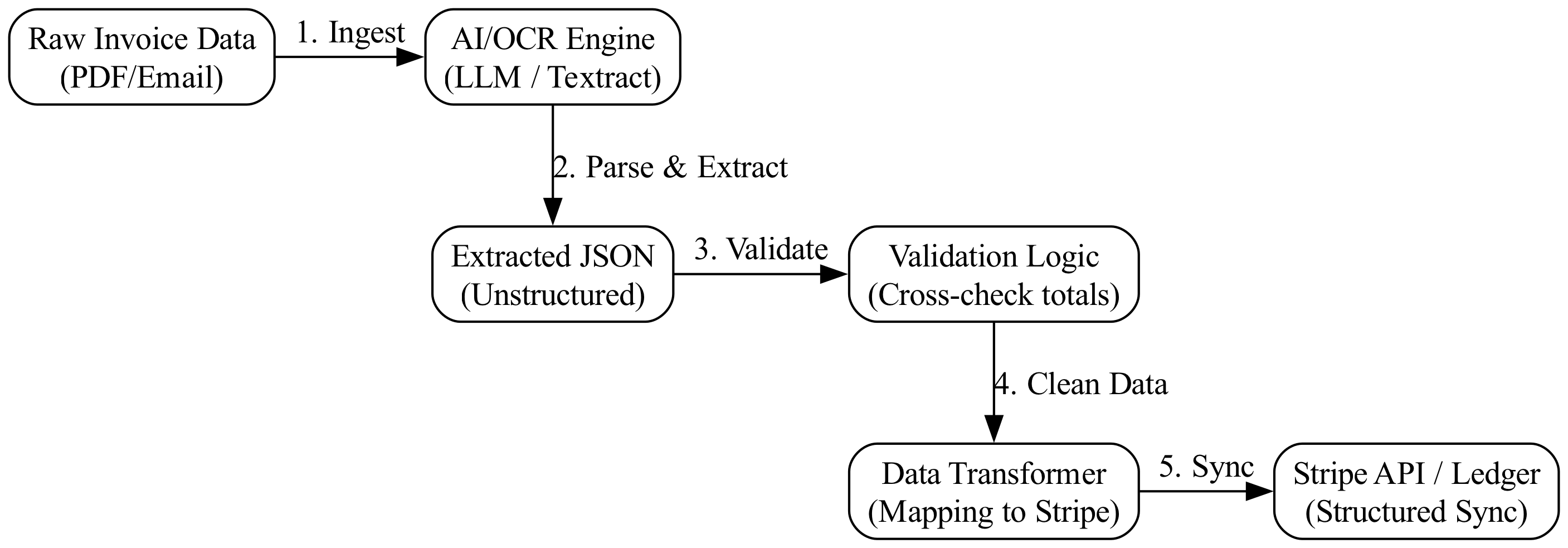

The following diagram illustrates the flow of data through the automated invoice processing pipeline.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
