Chapter 14: GDPR & Data Privacy in the AI Era

Theoretical Foundations

The integration of AI agents into financial systems, specifically within the context of Stripe’s monetization engine, introduces a profound tension between operational efficiency and regulatory compliance. The theoretical bedrock of this chapter rests on the concept of Data Sovereignty in a Distributed System. In previous chapters, we established the architectural pattern of using a Graph State as the singular, canonical data structure passed between nodes in a LangGraph execution. This architectural decision, while elegant for state management and context aggregation, creates a centralized repository of potentially sensitive information that becomes a high-value target for regulatory scrutiny under the General Data Protection Regulation (GDPR).

GDPR is not merely a set of rules; it is a framework of principles that mandates how data is collected, processed, and stored. The core theoretical challenge is that AI agents, by design, are data-hungry. They require context (past interactions, payment history, behavioral patterns) to function effectively. However, GDPR enforces principles of Data Minimization (collecting only what is strictly necessary) and Purpose Limitation (using data only for the specific purpose for which consent was given). In a traditional monolithic application, these boundaries are enforced by database schemas and access controls. In an agentic workflow, where data flows dynamically between nodes (e.g., a retrieval node fetching user history, a dunning node accessing payment status), the boundaries become fluid and difficult to police.

The Agentic Graph as a Data Processing Pipeline

To understand the compliance challenge, we must view the LangGraph execution not just as a flow of logic, but as a Data Processing Pipeline. Every node in the graph is a potential data processor. When a Smart Dunning agent retrieves a user's payment history to determine the best recovery strategy, it is processing personal data. When an AI Customer Support agent accesses a vector store (like pgvector) to find similar support tickets, it is processing personal data.

The Graph State acts as the central nervous system of this pipeline. In a strictly typed TypeScript environment, this state is defined by an interface. However, the mere existence of this state object implies that at any given moment, a snapshot of sensitive user data exists in memory, potentially across multiple distributed nodes.

Let us visualize the flow of data through this agentic pipeline. The diagram below illustrates how a single user request triggers a cascade of data processing steps, each requiring a distinct compliance checkpoint.

Hold "Ctrl" to enable pan & zoom

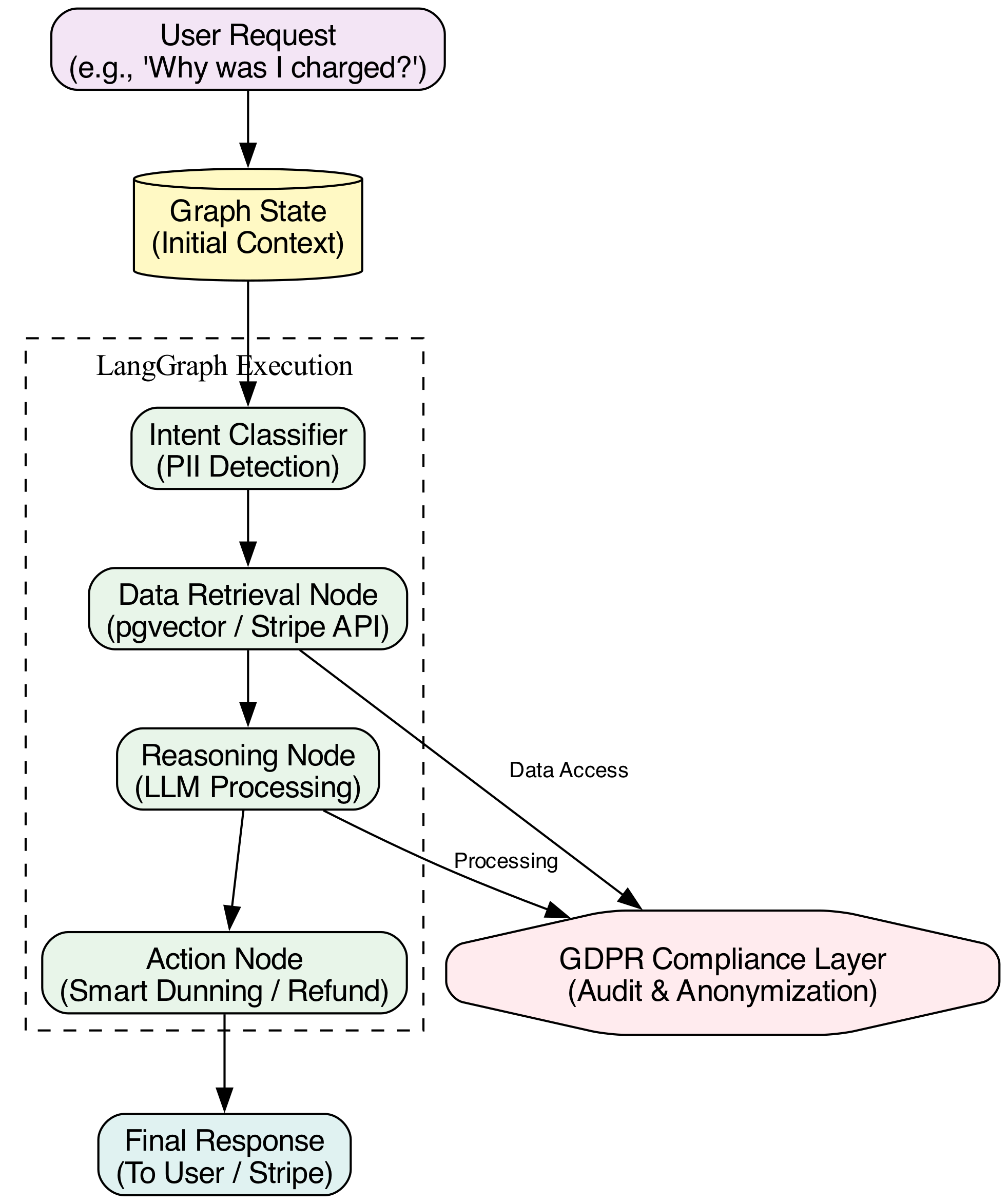

This diagram illustrates the sequential flow of a user request through an agentic pipeline, highlighting how data moves through distinct processing stages while passing through specific compliance checkpoints at each step.

In this flow, the Data Retrieval Node is particularly critical. It often interfaces with pgvector to perform similarity searches on historical data. While pgvector is efficient, it operates on high-dimensional vectors derived from raw text. If that raw text contains PII (Personally Identifiable Information), the vector embeddings themselves become a derivative form of personal data. The theoretical question arises: Can a vector representation of a user's address be considered anonymized? Under GDPR, if the vector can be reverse-engineered or linked back to an individual via other data points in the Graph State, it is not anonymized.

The "Strict Type Discipline" as a Compliance Mechanism

This is where Strict Type Discipline transitions from a software engineering best practice to a compliance necessity. In the context of GDPR, ambiguity is the enemy of security. Implicit any types in TypeScript allow data to flow through the system without definition, creating blind spots where PII might be inadvertently logged or exposed.

Consider the definition of the Graph State. Without strict typing, the state object is a loose bag of properties. With strict typing, we enforce a rigid contract. We can theoretically extend this concept to create "Privacy-Aware Types."

Let us look at how we might conceptually define a Graph State that segregates sensitive data using TypeScript's type system. This is a theoretical construct to illustrate how strict typing forces developers to consciously handle PII.

// Theoretical Type Definitions for a Privacy-Aware Graph State

// 1. Define a base type for PII.
// In a strict system, we treat this as a "tainted" type.
type PII = string;

// 2. Define non-PII data.
type NonPII = string | number | boolean;

// 3. The Graph State interface enforces strict segregation.
// Notice how PII is isolated in a specific property.
interface AgenticGraphState {
    // Non-sensitive context (safe to pass between nodes)
    sessionId: string;
    intent: string;
    riskScore: number;

    // Sensitive data (requires explicit handling and audit)
    // By isolating this, we can apply specific access controls.
    piiData?: {
        email: PII;
        stripeCustomerId: PII;
        ipAddress: PII;
    };

    // Derived data (e.g., embeddings) - requires strict validation
    vectorEmbeddings?: number[];
}

// 4. A function signature that explicitly requires PII handling.
// This prevents accidental leakage of PII into generic logs.
function processDunningStrategy(
    state: Pick<AgenticGraphState, 'riskScore' | 'intent'>,
    pii: NonNullable<AgenticGraphState['piiData']>
): void {
    // Logic here
}

In this theoretical model, Strict Type Discipline ensures that a node designed for generic reasoning (e.g., processDunningStrategy) cannot access the full Graph State. It is forced to accept only the specific slices of data it needs. This enforces the GDPR principle of Data Minimization at the compiler level. If a developer attempts to pass the entire AgenticGraphState object to a function that only requires non-PII data, TypeScript will throw a type error, preventing a potential data leak before the code ever runs.

Smart Dunning and the Ethics of Predictive Analytics

The theoretical foundation of Smart Dunning moves beyond simple automation into the realm of behavioral psychology and ethical data usage. Traditional dunning is a blunt instrument: a static sequence of emails sent at fixed intervals. Smart Dunning, powered by AI, is a dynamic system that predicts the optimal time and channel to contact a user based on their historical interaction data.

However, GDPR’s Article 22 restricts solely automated decision-making that produces legal or similarly significant effects concerning a data subject. This includes decisions that affect a user's financial status or access to services.

The theoretical challenge here is the Black Box Problem. If an AI agent decides to delay a payment reminder because it predicts the user is on vacation based on their IP address location history, that decision is based on automated profiling. Under GDPR, the user has the right to an explanation. The Graph State must therefore be designed to maintain an Audit Trail of the reasoning process, not just the outcome.

We can model this using the concept of Explainable AI (XAI) integrated into the Graph State. The state must carry not just the data, but the provenance of the data.

// Theoretical structure for an Explainable Decision in the Graph State

interface DecisionNode {
    nodeId: string;
    timestamp: Date;
    inputData: unknown; // The specific data slice used for this decision
    modelVersion: string;
    confidence: number;
    reasoning: string; // Natural language explanation of the AI's logic
    complianceCheck: {
        isAutomatedDecision: boolean;
        requiresHumanReview: boolean;
        legalBasis: 'consent' | 'contract' | 'legitimate_interest';
    };
}

interface AgenticGraphState {
    // ... other state properties
    decisionLog: DecisionNode[];
}

In this structure, the decisionLog array acts as a chain of custody for the AI's reasoning. If a user exercises their "Right to Explanation," the system can traverse this log to reconstruct exactly why a specific dunning action was taken. This transforms the Graph State from a simple data container into a Legal Compliance Ledger.

The Human-in-the-Loop (HITL) and the "Circuit Breaker"

The final pillar of our theoretical framework is the Human-in-the-Loop (HITL) requirement. For high-risk actions—such as permanently closing an account due to non-payment or issuing a refund above a certain threshold—the AI must not have unilateral authority.

In a distributed agentic system, enforcing a "circuit breaker" that pauses execution and routes the Graph State to a human operator requires specific architectural patterns. The Graph State must be designed to support suspended animation. It must be serializable and storable in a database (like PostgreSQL) in its exact current state, so that a human operator can pick it up hours later without losing context.

This introduces the concept of State Persistence and Resurrection. The theoretical model assumes that the Graph State is immutable during execution, but in a HITL scenario, it is mutated by external human input.

Let us visualize the HITL flow as a state machine:

Hold "Ctrl" to enable pan & zoom

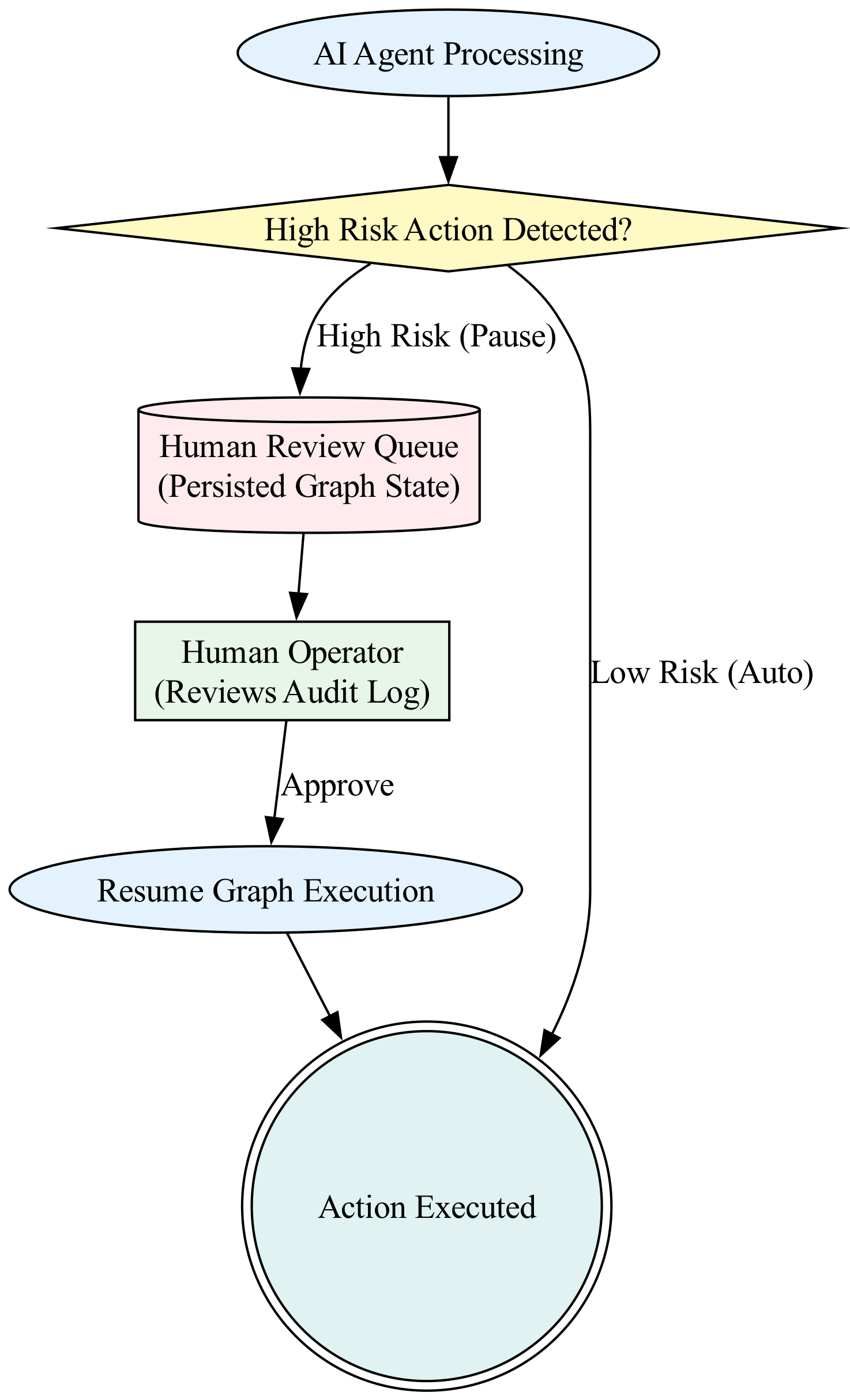

This state machine diagram illustrates how external human input interrupts the immutable execution of a Graph State, triggering a State Persistence and Resurrection cycle to integrate new data and resume processing.

The theoretical implication here is that the Graph State is no longer ephemeral. It becomes a persistent entity in the database. This necessitates the use of Strict Type Discipline even more rigorously. When a Graph State is serialized to a database and later deserialized, TypeScript cannot natively enforce type safety at runtime. Therefore, the theoretical foundation relies on Schema Validation (e.g., using Zod or similar libraries) to act as a runtime type guard. This ensures that when the state is resurrected for human review or resumed execution, the data structure has not been corrupted or tampered with.

1. The Graph State as a Legal Entity: The Graph State is not just a technical variable; it is a container of legal liability. Its design must reflect the segregation of PII and the auditability of decisions.
2. Strict Types as Guardrails: TypeScript’s strict compilation settings serve as the first line of defense against data leakage, enforcing data minimization through compile-time errors.
3. Vector Embeddings as Derivative PII: Storing data in pgvector does not absolve the system of GDPR responsibility; the vectors are merely a transformation of the original data and must be treated with the same security level.
4. HITL as State Persistence: Human-in-the-loop mechanisms require the Graph State to be fully serializable and resumable, turning the execution flow into a state machine that can be paused and resumed without data loss.

By understanding these theoretical foundations, we establish a framework where the monetization engine (Stripe, Smart Dunning, AI Support) operates not just efficiently, but ethically and legally within the strict boundaries of European data privacy laws.

Basic Code Example

This example demonstrates a simplified, asynchronous Node.js function that processes a Stripe payment, logs the transaction in a Supabase database (with pgvector for future analytics), and generates a GDPR-compliant consent log. This pattern is crucial for SaaS platforms handling EU customer data, where audit trails for data processing are mandatory.

The code simulates an API route handler (like those in Next.js or Express) that receives payment details, processes them asynchronously, and returns a result without blocking the main thread.

// File: processPayment.ts
// Purpose: GDPR-compliant payment processing with async Supabase logging.
// Dependencies: stripe, @supabase/supabase-js

import Stripe from 'stripe';
import { createClient, SupabaseClient } from '@supabase/supabase-js';

// 1. Configuration & Interfaces
// We define strict interfaces for type safety, a best practice in TypeScript
// to prevent runtime errors and ensure data structure consistency.

interface PaymentRequest {
  amount: number; // In cents
  currency: string;
  customerId: string; // Internal ID
  stripePaymentMethodId: string;
  consentToken: string; // A hash representing user consent for data processing
}

interface PaymentResult {
  success: boolean;
  transactionId?: string;
  message?: string;
  gdprLogId?: string;
}

// Initialize clients (In a real app, these keys come from environment variables)
// Using 'test' keys for demonstration purposes only.
const stripe = new Stripe(process.env.STRIPE_SECRET_KEY || 'sk_test_123', {
  apiVersion: '2023-10-16',
});

const supabase: SupabaseClient = createClient(
  process.env.SUPABASE_URL || 'https://dummy.supabase.co',
  process.env.SUPABASE_ANON_KEY || 'dummy_anon_key'
);

/**

 * @description Main asynchronous function to handle payment and GDPR logging.
 * @param {PaymentRequest} request - The incoming payment data.
 * @returns {Promise<PaymentResult>} - The result of the transaction.
 */
export async function processPaymentWithGDPR(request: PaymentRequest): Promise<PaymentResult> {
  // 2. Input Validation (Data Minimization Principle)
  // Before processing, we validate inputs to ensure we don't store malformed data.
  if (request.amount <= 0) {
    return { success: false, message: 'Invalid amount' };
  }

  try {
    // 3. Asynchronous Stripe Payment Intent
    // We use 'await' here. In a Node.js/Edge environment, this suspends the
    // execution of this specific function context but allows the event loop
    // to handle other incoming requests. This is non-blocking I/O.
    const paymentIntent = await stripe.paymentIntents.create({
      amount: request.amount,
      currency: request.currency,
      payment_method: request.stripePaymentMethodId,
      customer: request.customerId, // Assumes a Stripe Customer object exists
      confirm: true,
      metadata: {
        internal_id: request.customerId,
        consent_hash: request.consentToken,
      },
    });

    if (paymentIntent.status !== 'succeeded') {
      return { success: false, message: 'Payment failed at gateway' };
    }

    // 4. Asynchronous Database Logging (Supabase + pgvector)
    // We log the transaction to an audit table.
    // Note: We do NOT store full credit card details here (PCI compliance).
    // We store metadata and a vector representation (simulated) for analytics.

    // Simulating a vector embedding for the transaction description
    // (e.g., for fraud detection or spending pattern analysis).
    // In a real app, this would be generated by an AI model.
    const transactionVector: number[] = [0.1, 0.5, 0.9, 0.2];

    const { data: auditLog, error: dbError } = await supabase
      .from('payment_audit_logs')
      .insert([
        {
          user_id: request.customerId,
          amount: request.amount,
          currency: request.currency,
          status: 'success',
          consent_token: request.consentToken,
          transaction_vector: transactionVector, // Storing vector for pgvector search
          processed_at: new Date().toISOString(),
        },
      ])
      .select('id') // Return the ID of the inserted row for the receipt

    if (dbError) {
      // Critical: If DB logging fails, we should ideally trigger a manual alert
      // as the payment succeeded but the audit trail is missing.
      console.error('GDPR Audit Log Failure:', dbError);
      // We still return success because the payment went through,
      // but this creates a compliance gap that must be monitored.
      return {
        success: true,
        transactionId: paymentIntent.id,
        message: 'Payment succeeded, but audit logging failed. Manual review required.',
      };
    }

    // 5. Return Success
    return {
      success: true,
      transactionId: paymentIntent.id,
      gdprLogId: auditLog?.[0]?.id,
      message: 'Payment processed and GDPR compliant log created.',
    };

  } catch (error: any) {
    // 6. Error Handling
    // Catch Stripe errors, Supabase errors, or network timeouts.
    // Never return raw stack traces to the client (security risk).
    console.error('Payment Processing Error:', error.message);
    return { success: false, message: 'Internal server error during processing.' };
  }
}

Visualization of the Asynchronous Flow

The following diagram illustrates the non-blocking nature of the code. The Node.js event loop continues processing other requests while waiting for Stripe and Supabase to respond.

Hold "Ctrl" to enable pan & zoom

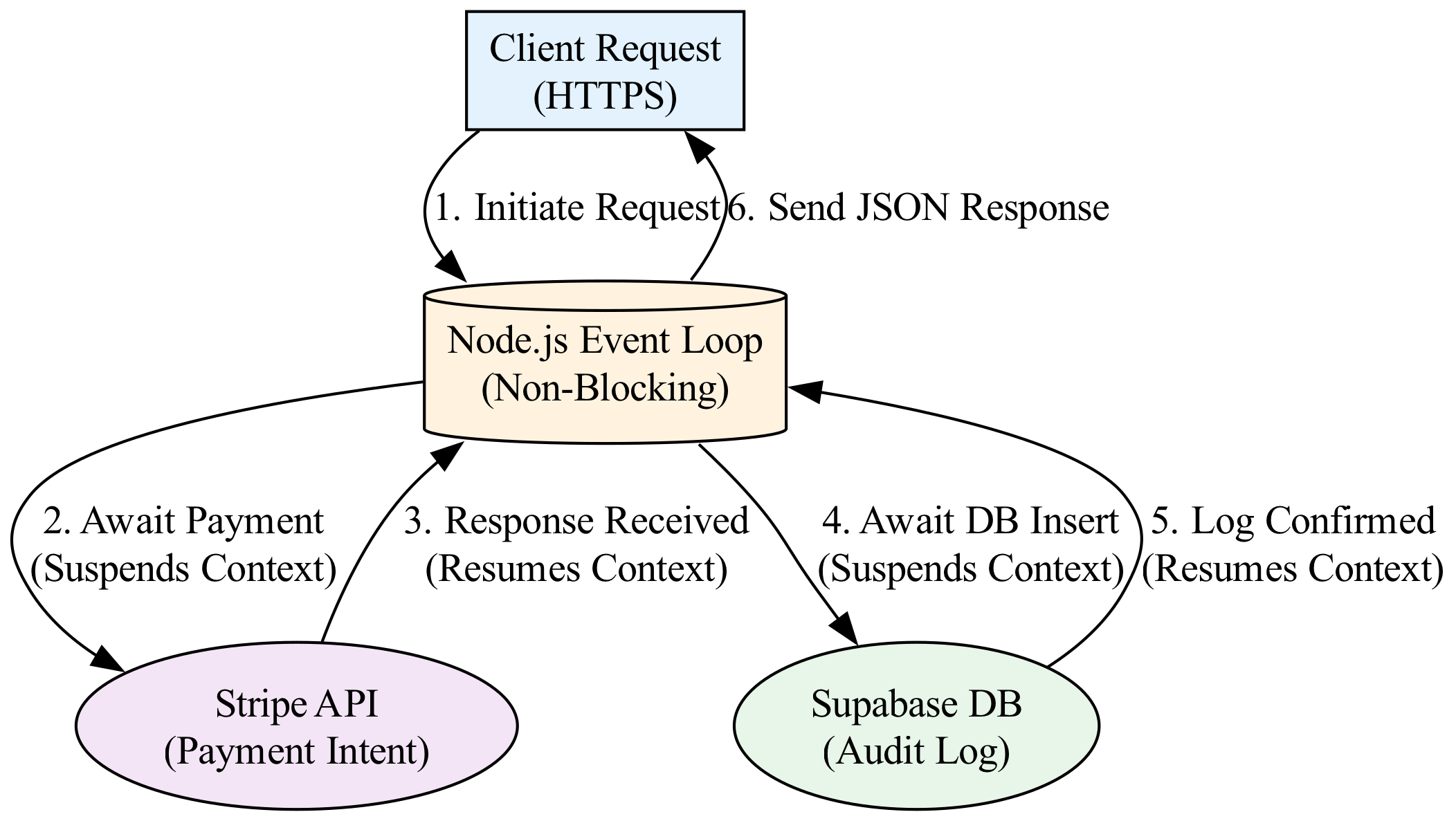

The diagram illustrates how Node.js's event loop efficiently processes multiple incoming requests concurrently, demonstrating non-blocking I/O by handling other tasks while asynchronously awaiting responses from external services like Stripe and Supabase.

Line-by-Line Explanation

1. Imports and Configuration:

   • import Stripe from 'stripe';: Imports the Stripe Node.js library.
   • import { createClient, SupabaseClient } from '@supabase/supabase-js';: Imports the Supabase client to interact with the PostgreSQL database.
   • We define PaymentRequest and PaymentResult interfaces. This enforces strict typing, ensuring that the function always receives the expected data structure, which is vital for preventing bugs in a production environment.

2. Client Initialization:

   • We instantiate the Stripe and supabase clients using environment variables. In a real application, these keys must be kept secret and never hardcoded.

3. Function Definition (processPaymentWithGDPR):

   • The function is marked async, which automatically returns a Promise.
   • Input Validation: We check if (request.amount <= 0) immediately. This adheres to the principle of data minimization and integrity—we refuse to process invalid data before it touches external services.

4. Stripe API Call (The await keyword):

   • await stripe.paymentIntents.create(...): This is the first major asynchronous operation.
   • Under the Hood: When Node.js encounters await, it initiates the API request to Stripe. Instead of freezing the entire server, it pauses the execution of this specific function and yields control back to the event loop. The event loop can now handle other incoming HTTP requests or perform background tasks.
   • Once Stripe responds (which might take 500ms to 2 seconds), the event loop resumes the execution of this function at the exact point where it left off, assigning the result to paymentIntent.

5. Supabase Database Insert (The second await):

   • We prepare the data for the payment_audit_logs table.
   • GDPR Compliance: We store consent_token and processed_at. We explicitly do not store the raw credit card number or CVC.
   • Vector Storage: We insert a simulated transactionVector. In a real AI context, this vector might represent the semantic meaning of the transaction description (e.g., "Monthly Subscription - Pro Plan") to allow for fuzzy searching of spending habits later.
   • await supabase.from(...).insert(...): This is the second suspension point. The function waits for the database write confirmation.

6. Error Handling:

   • The try...catch block wraps the asynchronous operations.
   • If Stripe times out or Supabase rejects the query (e.g., due to a constraint violation), the error is caught.
   • Security: We log the error to the server console (console.error) for the developer but return a generic error message to the client ('Internal server error') to avoid leaking sensitive system information.

Common Pitfalls in TypeScript & Async Processing

When implementing this pattern in a production SaaS environment, watch out for these specific issues:

1. Vercel/Edge Timeouts (The "Pending Promise" Trap):

   • Issue: Serverless functions (like Vercel or AWS Lambda) have strict execution time limits (e.g., 10 seconds). If you await a Stripe webhook or a heavy Supabase query that takes too long, the serverless platform may kill the function mid-execution.
   • Fix: For non-critical logging (like the GDPR audit log), consider using a "fire-and-forget" pattern or a queue (like Upstash Redis or AWS SQS). Do not block the response to the user for logging operations if possible. In the code above, if the DB insert fails, we still return success for the payment to ensure the user experience isn't ruined, but we alert internally.

2. Hallucinated JSON in AI Responses:

   • Issue: If you are using AI agents to generate the paymentIntent metadata or the consentToken, LLMs often return unstructured text or malformed JSON.
   • Fix: Never trust raw AI output for critical financial logic. Always use a library like zod to parse and validate the AI's output against a schema before passing it to Stripe or Supabase.
   • Example: const validatedMetadata = metadataSchema.parse(aiResponse);

3. Race Conditions in Async/Await Loops:

   • Issue: Using forEach or map with async functions inside does not work as expected. Array.prototype.forEach does not wait for promises to resolve.
   • Bad Code: payments.forEach(async (p) => await process(p)); (This fires all requests instantly).
   • Fix: Use for...of loops or Promise.all if concurrency is safe.
   • Good Code: for (const p of payments) { await process(p); } (Sequential processing).

4. GDPR "Right to be Forgotten" vs. Financial Auditing:

   • Issue: You cannot simply delete a user's data if they invoke GDPR Article 17 (Right to Erasure) if that data is required for financial auditing or tax purposes.
   • Fix: Your Supabase schema must distinguish between personal data (name, email) and transaction metadata. You might anonymize the personal data (replace name with "Deleted User") while keeping the transaction vector and amount intact for the required retention period (usually 7 years).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
