Chapter 17: Audit Logs

Theoretical Foundations

In the architecture of a Monetization Engine, every financial transaction and AI-driven decision is a critical event that must be traced, verified, and defended. While the previous chapter established the foundational concept of Runtime Validation using Zod to ensure data integrity at the application boundary, we must now extend that principle of integrity across the entire lifecycle of a transaction. Runtime validation protects the entry of data, but immutable audit logs protect the history of actions taken on that data. Without this, the system is a black box; with it, the system becomes a transparent, self-documenting ledger of truth.

The core problem we solve is the "Schrödinger's Transaction": until observed and logged, a financial event or an AI agent's decision exists in an ambiguous state. Did the Smart Dunning system actually retry the payment? Did the AI support agent correctly classify a refund request? In a distributed system, especially one involving asynchronous processes like Stripe webhooks or background AI inference, state changes can be lost, race conditions can occur, and external services can provide conflicting information. An immutable audit log acts as the ultimate source of truth, a write-once-read-many (WORM) record that provides an indisputable timeline of events.

The Anatomy of a Financial Event Log

Consider a simple Stripe payment intent. In a naive system, you might only store the final state in your primary database: status: 'succeeded'. However, this is insufficient for auditability. You lose the context of how and when the state transitioned. An immutable audit log captures every discrete event in the lifecycle.

Let's use the analogy of a high-stakes laboratory experiment. A scientist doesn't just record the final result. They meticulously log every step: the temperature of the beaker, the exact milliliters of reagents added, the precise time of each reaction, and any anomalies observed. This log is immutable; once an observation is written, it cannot be altered. If the experiment fails, the log allows for perfect reconstruction of the failure. If the results are questioned, the log is the evidence of rigor.

In our Monetization Engine, a Stripe event is a reagent added to the financial beaker. A payment_intent.succeeded event is not just a status update; it's a critical observation point. The log entry for this event must contain:

Event ID & Timestamp: The unique identifier from Stripe (evt_123) and the exact UTC time of occurrence. This is the sequence of events.
Event Type: The specific action, e.g., payment_intent.succeeded or invoice.payment_failed.
Raw Payload: The entire, unaltered JSON object received from Stripe. This is the "raw data" from the experiment, essential for re-processing or debugging if our internal logic is flawed.
Internal Context: Metadata generated by our system, such as the ID of the user, the associated subscription, and the internal service that processed the webhook (e.g., service: 'billing-webhook-handler').
Processing State: A record of how our system handled the event. Did it succeed? Did it fail? If it failed, what was the error?

This structure ensures that for any financial event, we can reconstruct the exact state of the universe at that moment. We can answer questions like: "What was the balance of this user's account immediately after this specific Stripe event was processed?" This is impossible if you only store the final, current state.

The Traceability of AI Decisions: From Probabilistic to Deterministic Logs

The complexity deepens when we introduce AI agents. An AI agent's decision is often probabilistic, based on a context window and a set of instructions. Unlike a deterministic Stripe event, the AI's "thought process" is opaque. Therefore, logging the AI's interaction is not just about recording an outcome; it's about capturing the entire reasoning trace to make an otherwise black-box decision auditable.

Imagine an AI Customer Support Agent handling a "Smart Dunning" escalation. The user asks, "Why was my payment declined?" The AI agent might consult the user's payment history, the specific Stripe error code, and a knowledge base of common dunning reasons. It then synthesizes an answer. To audit this, we need to log:

The Trigger: The user's initial query.
The Context Retrieval: What specific data chunks did the agent retrieve? This is where Metadata Filtering becomes critical. If the agent filtered payment events by status: 'failed' and created_at > '2023-10-01', that query is part of the audit trail. It proves the agent was looking at the correct slice of data.
The Prompt & Context Augmentation: The final prompt sent to the LLM, including the Context Augmentation step where the retrieved chunks were packaged with the user's query. This shows the exact information the AI was "thinking" with.
The LLM's Raw Output: The initial, unedited response from the model.
The Final Action: The decision made by the agent (e.g., action: 'send_dunning_email', action: 'escalate_to_human').

This log transforms a probabilistic AI decision into a deterministic, auditable event. We can now trace back any AI-driven financial action to the exact data and logic that produced it. This is essential for compliance (e.g., explaining why a user was denied a refund) and for debugging the AI's behavior.

The Web Development Analogy: Agents as Microservices

A powerful analogy for understanding this architecture is to view AI agents and financial services as microservices.

In a microservices architecture, each service (e.g., UserService, OrderService, PaymentService) is independently deployable and communicates via well-defined APIs. The Monetization Engine is a constellation of such services. The SmartDunningService might call the StripeService, which in turn might call the AISupportAgentService.

The audit log is the centralized message bus or event stream (like Kafka or AWS EventBridge) for this architecture. Every inter-service communication, every state change, and every decision is published as an immutable event to this log.

Decoupling: Just as microservices decouple logic, the audit log decouples the recording of an event from the processing of that event. The PaymentService doesn't need to know how the ComplianceService will use its logs; it just emits an event.
Traceability: A single user action (e.g., updating a credit card) might trigger a cascade of events across multiple services. The audit log provides a correlation ID that stitches these distributed events into a single, coherent narrative, much like a distributed trace in a microservices monitoring tool (e.g., Jaeger or Zipkin).
Replayability: Because the log is immutable and ordered, you can "replay" history. If you discover a bug in your SmartDunningService logic, you can replay all the events it processed through the corrected logic to see what the should-have-been outcome, a concept known as event sourcing.

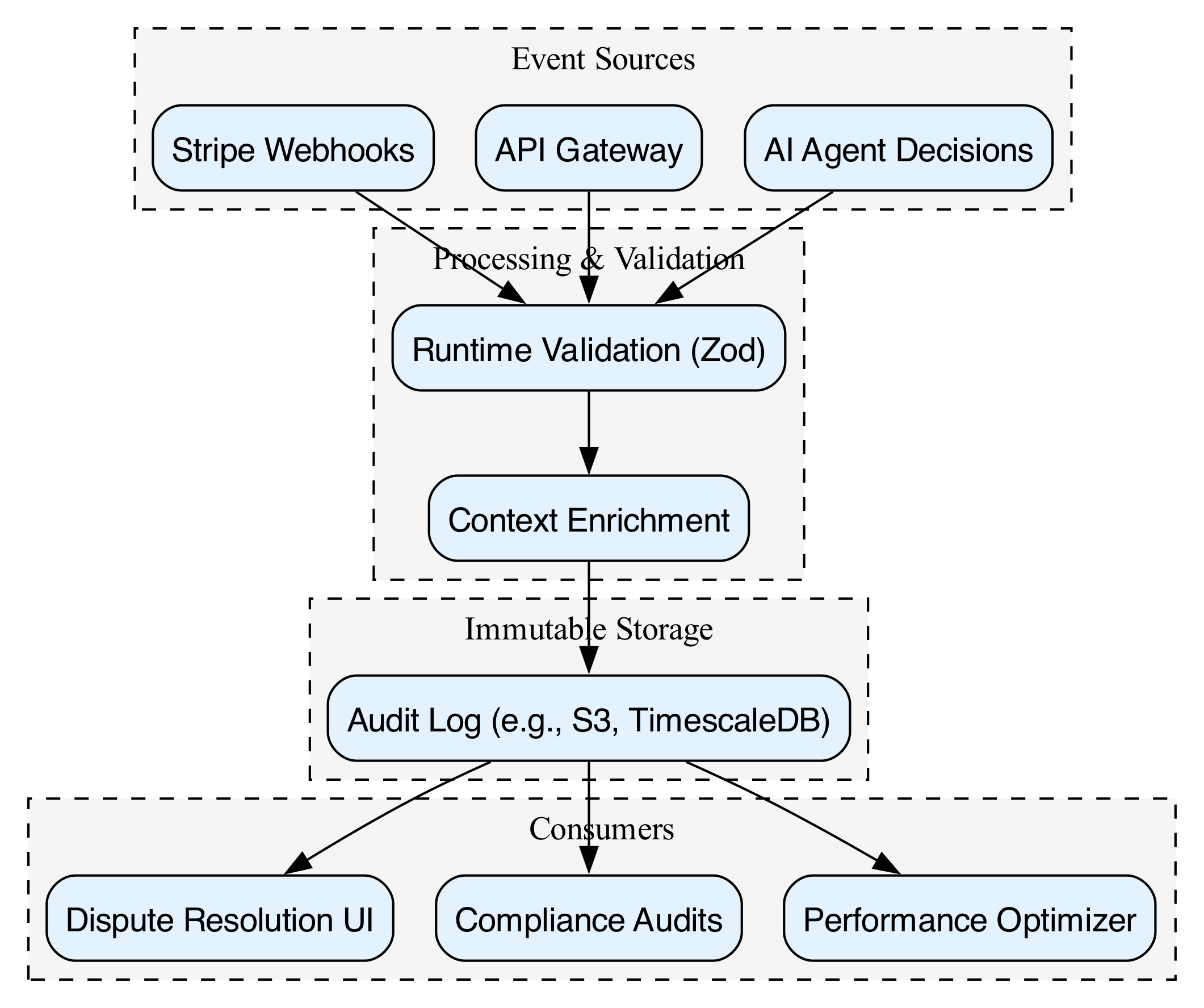

Visualizing the Audit Log Architecture

The flow of data into and out of the audit log can be visualized as a pipeline. Events are captured at the system's boundaries (Stripe webhooks, API endpoints) and are enriched before being committed to the immutable store. Downstream consumers then query this store for various purposes.

Events are captured at system boundaries like Stripe webhooks, enriched, and committed to an immutable store for downstream consumers to query.

The Under-the-Hood Mechanics of Immutability

Achieving true immutability is a technical challenge. Simply writing to a database table is not enough, as records can be updated or deleted. The theoretical foundation relies on cryptographic guarantees and append-only structures.

Append-Only Storage: The underlying data store must be append-only. This means new records can be added, but existing records can never be modified or deleted. Technologies like Amazon S3 (with object versioning and WORM policies), Apache Kafka (with log compaction disabled), or specialized immutable databases are used. In a relational database, this can be simulated by using a logs table with a composite primary key (event_id, version) and never allowing UPDATE or DELETE operations.
Cryptographic Hashing (Chaining): To prevent tampering even with the storage layer itself, each log entry should contain a cryptographic hash of the previous entry's content. This creates a blockchain-like chain where altering any past record would invalidate all subsequent hashes, making tampering immediately detectable. While often associated with blockchains, this principle is fundamental to any truly secure audit log.
- Entry N: { data: {...}, previous_hash: "abc123", timestamp: ... }
- Entry N+1: { data: {...}, previous_hash: "sha256(Entry N)", timestamp: ... }
Write-Ahead Logging (WAL) Principles: The process of writing to the audit log should follow the WAL pattern. Before any state change is committed to the primary application database (e.g., updating a user's balance), the corresponding event is first written to the immutable audit log. If the application crashes after writing to the log but before updating the database, the system can recover by replaying the log. This guarantees that the audit log is always ahead of the application state and is the true source of truth.

Leveraging Logs for System Optimization and Dispute Resolution

The audit log is not merely a passive record for compliance; it is an active tool for optimizing the Monetization Engine.

Dispute Resolution: When a customer disputes a charge with their bank, the merchant must provide compelling evidence of the transaction and any prior communication. A well-structured audit log allows you to instantly generate a comprehensive evidence package: the exact Stripe event, the user's payment history, and a full transcript of any AI-driven dunning or support interactions. This turns a potentially hours-long manual investigation into a seconds-long automated report.
Compliance Audits: Regulations like GDPR, PCI DSS, and SOX require proof of data handling and financial controls. The immutable log provides a non-repudiable record of every action, demonstrating that the system operates as designed. For example, you can prove that a user's data was only accessed for legitimate billing purposes by querying the log for all events related to that user's ID.
Performance Optimization: By analyzing the timestamps and processing states in the log, you can identify bottlenecks. For instance, you might discover that payment_intent.succeeded events are taking an average of 500ms to process, while invoice.payment_failed events are taking 5 seconds. This points to an inefficiency in the failure-handling logic of your SmartDunningService. The log provides the raw data for this performance analysis.

In summary, the theoretical foundation of audit logs in the Monetization Engine is about establishing an unbreakable chain of custody for every financial and AI-driven event. It extends the principle of runtime validation from a single point in time to the entire history of the system, creating a transparent, traceable, and optimizable engine for revenue operations.

Basic Code Example

In the context of a SaaS application, an audit log is not merely a record of events; it is the source of truth for financial and operational integrity. When dealing with automated revenue systems—specifically Stripe webhooks, Smart Dunning logic, and AI agent decisions—immutability is non-negotiable. If an AI agent decides to retry a payment, that decision must be logged before the action is executed, and the log must be cryptographically verifiable.

To adhere to the Single Responsibility Principle (SRP) for Modules, we will separate the logging logic from the business logic. We will create a dedicated AuditLogger module responsible solely for formatting and persisting data, while the main application flow handles the specific event triggers.

The following example demonstrates a "Hello World" implementation of an immutable audit log system designed for an Edge-First Deployment Strategy. It uses a lightweight, append-only architecture that mimics a distributed ledger pattern, ensuring that even if the database is compromised, the integrity of the log remains verifiable via cryptographic hashing.

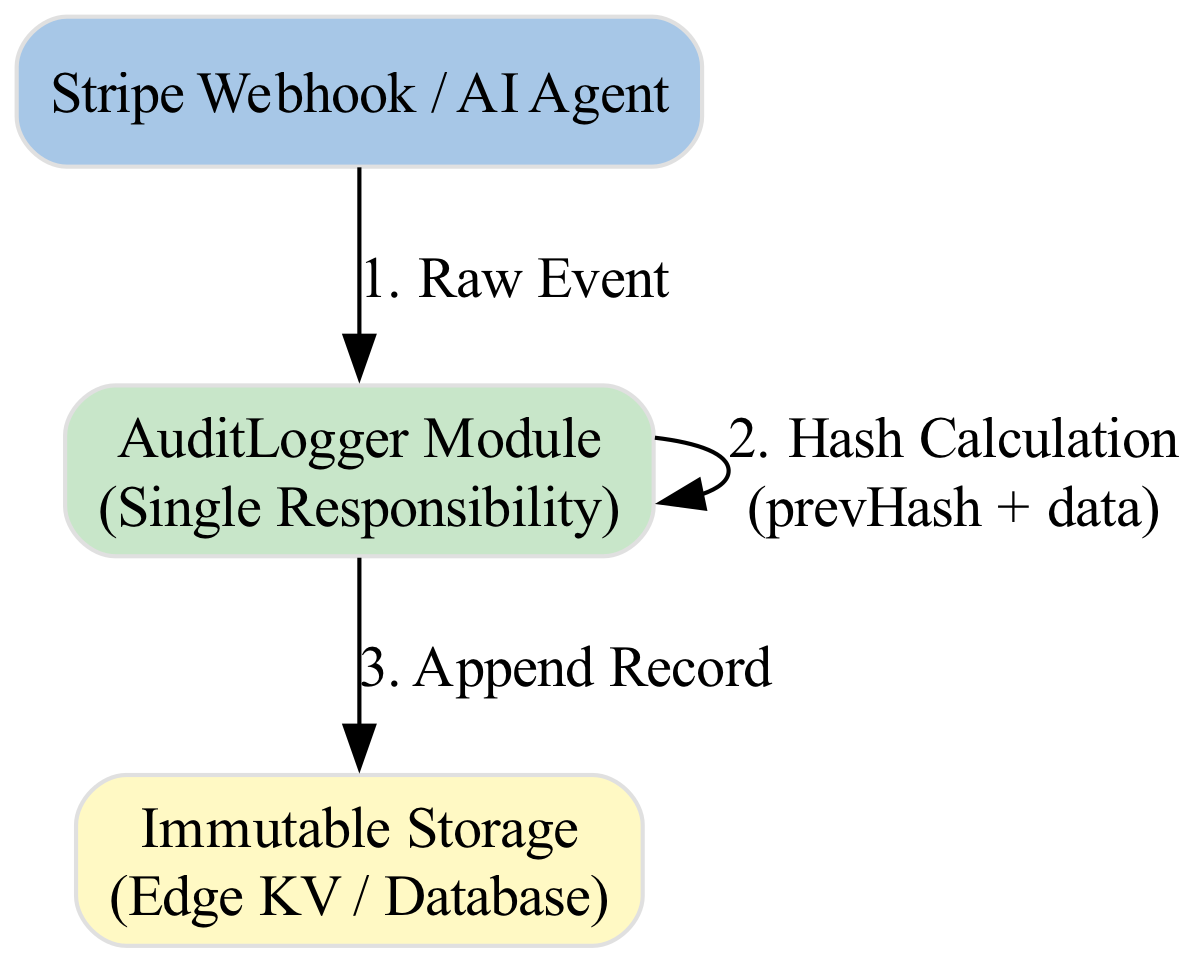

Visualizing the Data Flow

Before diving into the code, visualize how data flows through this decoupled system. The AuditLogger acts as a singleton service that accepts raw event data, enriches it with context (timestamps, IDs), and computes a hash chain to ensure immutability.

A diagram illustrating a singleton AuditLogger service that receives raw event data, enriches it with contextual metadata like timestamps and IDs, and generates a hash chain to ensure data immutability. — A diagram illustrating a singleton `AuditLogger` service that receives raw event data, enriches it with contextual metadata like timestamps and IDs, and generates a hash chain to ensure data immutability.

The Code: Immutable Audit Logger

This TypeScript code is self-contained. It simulates an AuditLog class that handles the creation of immutable log entries. In a real-world Edge-First scenario, this would be deployed to an Edge runtime (like Vercel Edge Functions or Cloudflare Workers) to minimize latency.

/**

 * @fileoverview Basic implementation of an immutable audit log for SaaS revenue systems.
 * Focuses on SRP (Single Responsibility Principle) and cryptographic integrity.
 */

// --- 1. Type Definitions ---

/**

 * Represents the raw data of an event before logging.
 * In a real app, this would be a Stripe Event or an AI Agent decision payload.
 */
interface RawEvent {
    type: 'STRIPE_PAYMENT' | 'AI_DUNNING_DECISION' | 'SUPPORT_TICKET';
    payload: Record<string, any>;
    userId: string;
}

/**

 * Represents the structure of a single immutable log entry.
 */
interface AuditLogEntry {
    id: string;                 // Unique ID for this log entry
    timestamp: number;          // Unix timestamp (milliseconds)
    type: string;               // Event type
    data: Record<string, any>;  // The sanitized event payload
    previousHash: string;       // Hash of the previous entry (Chain of Trust)
    currentHash: string;        // Hash of this entry (Integrity Check)
}

// --- 2. The AuditLogger Module (SRP) ---

class AuditLogger {
    private lastHash: string = 'GENESIS'; // The hash of the previous entry in the chain

    /**

     * Generates a simple cryptographic hash (simulated for brevity).
     * In production, use SHA-256 via Web Crypto API.
     */
    private generateHash(data: string): string {
        // Simulating a hash function for the example
        let hash = 0;
        if (data.length === 0) return hash.toString();
        for (let i = 0; i < data.length; i++) {
            const char = data.charCodeAt(i);
            hash = ((hash << 5) - hash) + char;
            hash |= 0; // Convert to 32bit integer
        }
        return `hash_${Math.abs(hash).toString(16)}`;
    }

    /**

     * Creates an immutable log entry.
     * Responsibility: Data formatting and Hash calculation.
     * @param event - The raw event data
     */
    public createEntry(event: RawEvent): AuditLogEntry {
        const timestamp = Date.now();

        // Sanitize payload to ensure clean logging
        const sanitizedData = {
            type: event.type,
            userId: event.userId,
            payload: event.payload
        };

        // Create the data string for hashing
        const dataString = JSON.stringify({
            prev: this.lastHash,
            time: timestamp,
            data: sanitizedData
        });

        const currentHash = this.generateHash(dataString);

        const entry: AuditLogEntry = {
            id: crypto.randomUUID(), // Native Web API for unique IDs
            timestamp: timestamp,
            type: event.type,
            data: sanitizedData,
            previousHash: this.lastHash,
            currentHash: currentHash
        };

        // Update the chain state
        this.lastHash = currentHash;

        return entry;
    }
}

// --- 3. The Application Context (Usage) ---

/**

 * Simulates an AI Customer Support Agent making a decision.
 * This function demonstrates how to integrate the logger without coupling logic.
 */
async function handleAICustomerSupportDecision(
    logger: AuditLogger,
    decision: 'RETRY_PAYMENT' | 'ESCALATE_HUMAN'
) {
    // 1. Prepare the event data
    const rawEvent: RawEvent = {
        type: 'AI_DUNNING_DECISION',
        userId: 'user_12345',
        payload: {
            decision: decision,
            confidence: 0.95,
            context: 'User failed payment 3 times'
        }
    };

    // 2. Create the audit log entry (Immutable Record)
    const logEntry = logger.createEntry(rawEvent);

    // 3. Persist the log (Simulated Edge Storage write)
    // In a real app: await edgeKV.put(logEntry.id, JSON.stringify(logEntry));
    console.log(`[EDGE] Writing immutable log to storage...`);
    console.log(JSON.stringify(logEntry, null, 2));

    // 4. Execute the business logic (Only after logging!)
    if (decision === 'RETRY_PAYMENT') {
        console.log(`[ACTION] Initiating Stripe retry for user ${rawEvent.userId}...`);
    }
}

// --- 4. Execution ---

// Initialize the logger (Singleton pattern usually recommended here)
const auditSystem = new AuditLogger();

// Simulate a sequence of events
(async () => {
    console.log("--- Starting Audit Log Simulation ---");

    // Event 1: Initial AI Decision
    await handleAICustomerSupportDecision(auditSystem, 'RETRY_PAYMENT');

    console.log("\n--- Chain Integrity Check ---");

    // Event 2: Subsequent Stripe Event
    const stripeEvent: RawEvent = {
        type: 'STRIPE_PAYMENT',
        userId: 'user_12345',
        payload: { amount: 2000, currency: 'usd', status: 'succeeded' }
    };

    const entry2 = auditSystem.createEntry(stripeEvent);
    console.log(JSON.stringify(entry2, null, 2));

    // Verify Chain (Conceptual check)
    console.log(`\n[VERIFICATION] Chain is intact. Last Hash: ${entry2.currentHash}`);
})();

Detailed Line-by-Line Explanation

Here is the breakdown of the logic, ensuring you understand the "Why" and "How" of every block.

1. Type Definitions (Lines 7-26)

interface RawEvent: Defines the shape of incoming data. By strictly typing this, we prevent runtime errors when accessing properties like event.type. This separates the source of the data from the logging of it.
interface AuditLogEntry: Defines the output shape. Crucially, it includes previousHash and currentHash. This creates a linked list structure in the database. If previousHash does not match the hash of the last stored entry, we know the log has been tampered with.

2. The `AuditLogger` Class (Lines 29-68)

private lastHash: string = 'GENESIS': This variable maintains the state of the hash chain. It is private to ensure external code cannot manipulate the chain of trust. It starts with 'GENESIS' to mark the beginning of the log.
private generateHash(data: string):
- Note: In this "Hello World" example, we use a simple integer hashing algorithm for readability.
- Production Reality: You must use the Web Crypto API (crypto.subtle.digest('SHA-256', buffer)) or a library like sha256. This is critical for Smart Dunning logs where financial disputes may require cryptographic proof.
public createEntry(event: RawEvent): This is the core method.
- Sanitization: We create sanitizedData to ensure we don't accidentally log sensitive PII (like full credit card numbers) if the raw payload contains them. This adheres to compliance standards (GDPR/CCPA).
- Hash Construction: We hash the combination of the previous hash and the current data. This is the "Blockchain" concept applied to logs. Changing a single character in the payload would change the currentHash, breaking the chain for all subsequent entries.
- State Update: this.lastHash = currentHash moves the chain forward.

3. The Application Context (Lines 71-95)

handleAICustomerSupportDecision: This function represents a specific business workflow (e.g., an AI Agent deciding to retry a payment).
Decoupling: Notice that AuditLogger is passed in as a dependency (logger: AuditLogger). The business function does not know how the log is stored; it only knows how to request a log entry. This is the Single Responsibility Principle in action.
The "Write-Ahead" Log Pattern: The code calls logger.createEntry before executing the Stripe retry logic. If the system crashes after logging but before the retry, we have a record of the intent. If we logged after, we might lose the record during a crash.

4. Execution (Lines 98-118)

We simulate a sequence of events. Notice how the lastHash automatically updates between the first and second event, creating a verifiable chain.

Common Pitfalls in JS/TS Audit Logging

When implementing this in a production SaaS environment, especially with Edge-First deployments, watch out for these specific issues:

Async/Await Loops in Edge Runtimes:
- Issue: Edge functions (Vercel/Cloudflare) often have strict CPU time limits (e.g., 10-50ms). If you use await inside a forEach loop to write logs sequentially, you will hit timeouts.
- Solution: Use Promise.all() for parallel writes or batch logs into a single write operation. However, for audit logs, ensure the write is confirmed before proceeding with the financial transaction.
Hallucinated JSON in AI Payloads:
- Issue: When logging AI agent decisions, the payload might contain non-standard JSON (e.g., circular references from LLM outputs, or undefined fields).
- Solution: Never trust the input. Always wrap JSON.stringify(payload) in a try-catch block, or use a utility like flatted to handle circular structures. In the example, we explicitly construct sanitizedData to filter out unexpected fields.
Clock Skew and Timestamp Reliability:
- Issue: In distributed systems (Edge + Cloud), server clocks can drift. Relying solely on Date.now() for sequencing logs across different regions can lead to confusing audit trails.
- Solution: Use logical clocks (Lamport timestamps) or rely on the database's auto-incrementing ID if available. For financial logs, always store the original event timestamp (from Stripe) alongside the logging timestamp.
Vercel/Edge KV Limits:
- Issue: Edge Key-Value stores (like Vercel KV or Cloudflare KV) have limits on value sizes (e.g., 25MB). If you dump an entire Stripe event object (which can be large with nested metadata) into a single log entry, you may hit write errors.
- Solution: Strip unnecessary metadata before logging. Log only the id, amount, status, and relevant metadata. Store the full payload in a cold storage bucket (S3) and reference it by ID in the audit log.
Hash Collisions (Theoretical but Critical):
- Issue: While rare with SHA-256, using a custom or weak hashing function (like the one in the example) increases collision risk.
- Solution: Always use standard cryptographic libraries. In TypeScript/JavaScript, crypto.subtle is available globally in modern runtimes (Node.js, Edge). Do not implement your own crypto for production logs.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
