Chapter 19: API Keys Management for Users

Theoretical Foundations

At its heart, API key management is not merely a technical chore of generating random strings; it is the enforcement of a fundamental security philosophy known as the Principle of Least Privilege (PoLP). This principle dictates that any entity (a user, a process, a system component) must only have the absolute minimum level of access—permissions and privileges—necessary to perform its specific function. In the context of our Monetization Engine, where we integrate Stripe for payments and Pinecone for vector storage, an API key is the digital identity of a user or service. If that identity is compromised or over-permissioned, it becomes a master key that can unlock far more than intended, leading to financial fraud, data breaches, or system sabotage.

To understand this deeply, we must move beyond the notion of keys as simple passwords. In a modern, distributed system like the one we are building, keys are scoped credentials. They are not just "access tokens"; they are contracts that define boundaries. The "why" is rooted in risk mitigation: a single key with unrestricted access represents a single point of failure. If a developer's key is leaked from a public GitHub repository, and that key has administrative privileges over the entire Stripe account, the blast radius is catastrophic. However, if that key is scoped only to read customer metadata from a specific environment, the damage is contained.

This concept directly builds upon the architectural principles of Microservices and Isolation discussed in Book 7. In that book, we decomposed the monolithic application into discrete, independent services (e.g., a Payment Service, a Vector Search Service). Each service has its own data store and logic. The Principle of Least Privilege extends this isolation to the access layer. Just as the Payment Service should not be able to directly manipulate the Vector Search Service's database, a key used by the AI Customer Support Agent should not be able to issue refunds in Stripe. The key acts as the gatekeeper between these isolated domains.

Analogy: The Corporate Office Building

Imagine a large corporate office building (your application infrastructure).

The Master Key (Admin Key): This key opens every single door in the building—executive offices, server rooms, finance departments, and even the janitor's closet. If this key is lost or copied, the entire company is vulnerable.
The Developer Key (Scoped Key): A developer needs access only to their specific floor (the development environment) and the shared resource room (the test database). They are issued a key that works only on those specific doors. If they lose this key, the damage is limited to that floor, and a security guard can quickly revoke access to just that floor without disrupting the rest of the company.
The AI Agent Key (Service Key): The AI Customer Support Agent is like a specialized cleaning robot. It needs access only to the customer support lobby (the support ticket system) and the knowledge library (the vector database). It has no business being in the finance department (Stripe payment processing). Its key is physically shaped to fit only the specific locks it needs.

This analogy illustrates environment scoping (development vs. production floors), role-based access (developer vs. admin vs. agent), and blast radius containment. The goal is to ensure that a single compromised key does not grant the attacker the keys to the kingdom.

The Mechanics of Secure Key Management: Generation, Storage, and Rotation

The lifecycle of an API key must be managed with the same rigor as a physical security credential. This involves three distinct phases: secure generation, secure storage, and proactive rotation.

1. Secure Generation and Entropy

A key is only as strong as its randomness. Predictable keys are easily brute-forced. Secure generation relies on cryptographically secure pseudo-random number generators (CSPRNGs). In Node.js, this is typically handled by the crypto module. The key must be long enough and complex enough to resist guessing attacks. For instance, Stripe's API keys typically follow a pattern like sk_live_... where the suffix is a high-entropy string.

Under the Hood: When we generate a key for a new user role, we are essentially creating a unique identifier that will be hashed and stored in our database. The raw key is shown to the user once upon creation and is never stored in plaintext. This is similar to how we handle passwords. The system stores a hash (e.g., using bcrypt or Argon2), and the user is responsible for saving the raw key in their secure environment.

2. Secure Storage: The Role of Secrets Managers

Storing API keys in environment variables (.env files) is a common practice for local development but is perilous in production. These files can be accidentally committed to version control, exposed through logs, or leaked via misconfigured CI/CD pipelines.

The professional standard is to use a dedicated Secrets Manager (e.g., AWS Secrets Manager, HashiCorp Vault, Azure Key Vault). These services provide:

Encryption at Rest: Keys are stored in an encrypted data store.
Access Control: Access to the secrets is governed by IAM (Identity and Access Management) policies, enforcing the Principle of Least Privilege at the infrastructure level.
Audit Logging: Every access attempt to a secret is logged, providing a clear audit trail.

Analogy: Think of a secrets manager as a bank's safe deposit box vault. You don't leave your valuable documents on your desk (environment variables); you place them in a secure box. The bank (secrets manager) controls who can enter the vault and logs every time a box is accessed. The application retrieves the key from the vault at runtime, uses it, and then discards it from memory.

3. Automated Key Rotation

Keys should not be static. Regular rotation (e.g., every 90 days) limits the window of opportunity for an attacker if a key is compromised. Manual rotation is error-prone and often neglected. Automated rotation is the gold standard.

How it works:

A scheduled job (e.g., a cron job or a Lambda function) triggers the rotation process.
The system generates a new API key.
It updates the secret in the Secrets Manager with the new key.
It updates the corresponding service (e.g., Stripe, Pinecone) to accept the new key.
It invalidates the old key after a grace period to ensure zero downtime for in-flight requests.

This process is analogous to a corporate policy of changing office keycards every quarter. The security team (automation script) issues new cards, deactivates the old ones, and ensures no employee is locked out during the transition.

Environment Scoping and Permission Granularity

In our Monetization Engine, we operate in two primary environments: Test and Live. These are not just different data sets; they are completely isolated security domains.

Test Keys: These keys are scoped to the test environment of a service (e.g., Stripe's test mode). They can simulate transactions without moving real money. A test key has no power in the live environment. This is a critical safety net for developers.
Live Keys: These keys operate on real customer data and financial transactions. They must be protected with the highest level of security.

Permission Granularity takes this a step further. Even within a single environment, a key should not have blanket permissions. For example:

Admin Role: Can create, read, update, and delete resources (e.g., create a new Stripe product, update a Pinecone index).
Developer Role: Might only have read permissions on live data but full read/write on test data.
AI Agent Role: Might only have permission to query the Pinecone vector database and update a support ticket, but not to create new users or process payments.

This is implemented by assigning specific scopes or roles to the API key at the moment of its creation. The service (e.g., Stripe) then enforces these scopes on every API request.

Monitoring, Anomaly Detection, and Revocation

A key's lifecycle does not end with rotation. Continuous monitoring is essential to detect misuse in real-time.

Key Usage Logging: Every API request made with a key should be logged. This includes the endpoint accessed, the timestamp, the source IP address, and the user agent. This log data is invaluable for forensic analysis.

Anomaly Detection: By analyzing usage logs, we can establish a baseline of normal behavior for a key. For example, a key used by an AI agent might typically make 100 queries per minute from a specific IP range. An alert should be triggered if:

The key suddenly makes 10,000 requests in a minute (potential DDoS or data exfiltration).
The key is used from an unfamiliar geographic location.
The key attempts to access an endpoint it doesn't have permission for (e.g., a read-only key trying to delete a record).

Immediate Revocation: When a key is suspected of being compromised or is no longer needed, it must be revoked immediately. Revocation is the process of invalidating the key at the service level (e.g., in Stripe's dashboard or via API), so all subsequent requests using that key are rejected with a 401 Unauthorized error.

Analogy: This is the security system's motion detectors and alarms. The usage logs are the security camera footage. Anomaly detection is the AI that flags suspicious activity (e.g., someone trying to open a door at 3 AM). Revocation is the security guard hitting the "disable key" button the moment an intruder is spotted.

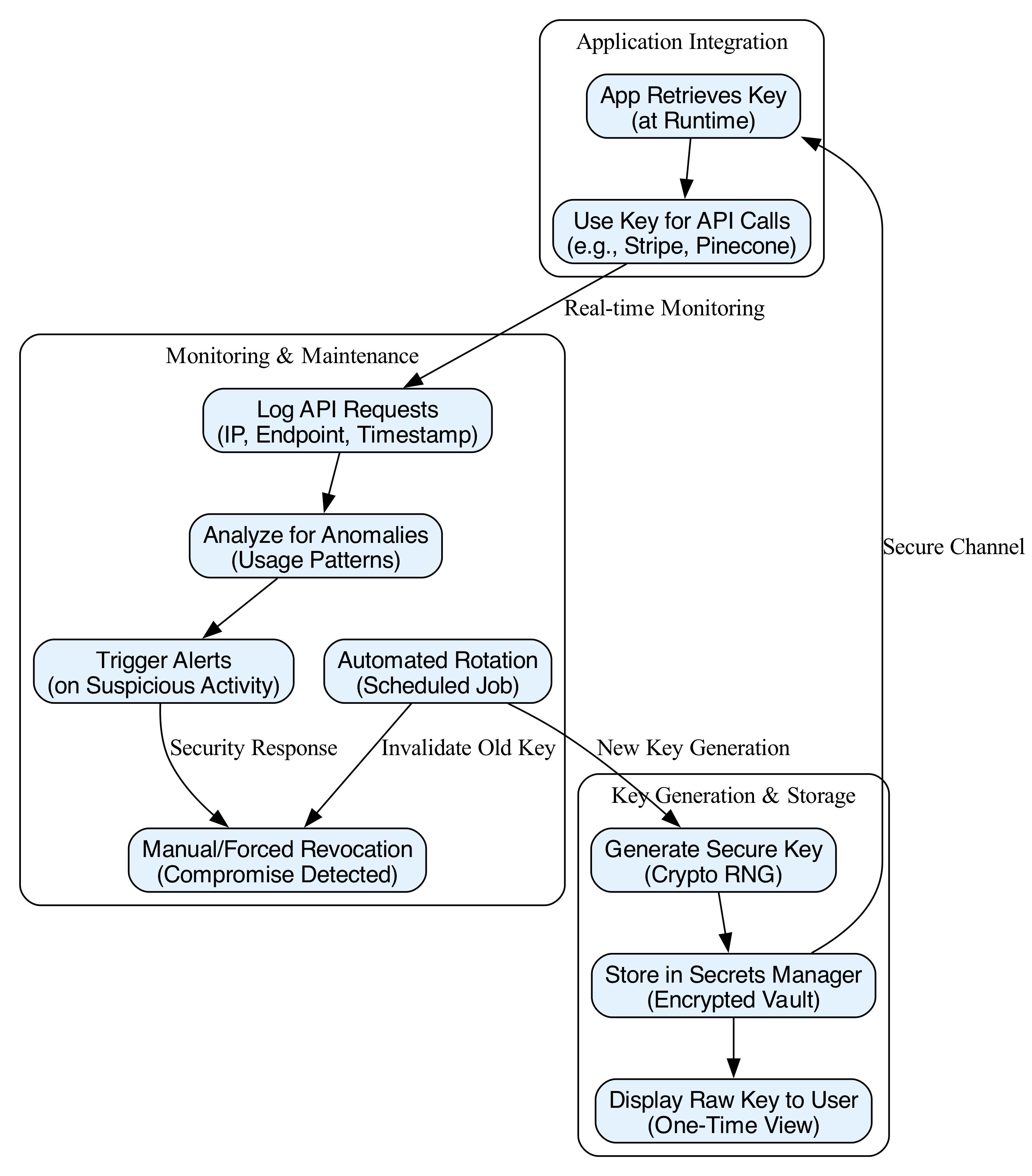

Visualization: The API Key Lifecycle

The following diagram illustrates the complete lifecycle of an API key, from creation to revocation, highlighting the flow of secure data and the points of control.

This diagram visualizes the API key lifecycle, tracing its journey from secure creation and active use to the critical revocation point, where access is instantly terminated to prevent unauthorized data flow.

Immutable State Management in Key Configuration

While the keys themselves are dynamic, the configuration governing their use should be treated as immutable. This concept, borrowed from functional programming and state management libraries like Redux, dictates that configuration objects (e.g., a user's role permissions, environment scopes) should not be modified in place.

Why is this critical for security? Imagine a scenario where a process dynamically changes a key's permissions in memory. If another process reads that configuration concurrently, it might see a partially updated state, leading to a security vulnerability where a key temporarily has more access than intended. By treating configuration as immutable, we ensure that any change to permissions results in a brand-new configuration object. The old object remains unchanged and can be safely used by other processes until they are explicitly updated to use the new configuration.

Example in TypeScript (Conceptual):

// Define an immutable interface for API Key Configuration
interface ApiKeyConfig {
    readonly keyId: string;
    readonly scopes: ReadonlyArray<string>; // e.g., ['read:customers', 'write:logs']
    readonly environment: 'test' | 'live';
    readonly expiresAt: Date;
}

// Function to update a key's scope immutably
function updateKeyScopes(
    currentConfig: ApiKeyConfig,
    newScopes: string[]
): ApiKeyConfig {
    // Instead of mutating currentConfig.scopes, we create a new object
    return {
        ...currentConfig, // Spread existing properties
        scopes: Object.freeze([...newScopes]), // Create a new, frozen array
        // The old config object remains untouched and valid for audit trails
    };
}

// Usage
const originalConfig: ApiKeyConfig = {
    keyId: 'sk_123',
    scopes: Object.freeze(['read:customers']),
    environment: 'live',
    expiresAt: new Date('2024-12-31'),
};

// This operation does not change originalConfig
const updatedConfig = updateKeyScopes(originalConfig, ['read:customers', 'write:logs']);

// originalConfig.scopes is still ['read:customers']
// updatedConfig.scopes is ['read:customers', 'write:logs']

This immutability ensures that audit logs can point to a specific, unchanging configuration state at the time of an API call, which is invaluable for compliance and debugging.

Conclusion: A Holistic Security Posture

Effective API key management is a multi-layered strategy. It begins with the philosophical foundation of the Principle of Least Privilege, is operationalized through secure generation, storage, and rotation, and is enforced via environment scoping and granular permissions. Continuous monitoring and immutable configuration practices provide the final layers of defense and accountability. By treating API keys not as simple strings but as powerful, scoped identities, we build a resilient and secure Monetization Engine capable of handling sensitive financial and user data with confidence.

Basic Code Example

In a SaaS application, managing API keys for services like Stripe or Pinecone requires a strict separation between server-side secrets and client-side components. This example demonstrates a "Hello World" level implementation: a Next.js Server Component fetches data from a Pinecone vector database (simulating a SaaS feature like semantic search) and passes only safe, non-sensitive data to a Client Component for display. We will use the @pinecone-database/pinecone SDK for the vector database interaction.

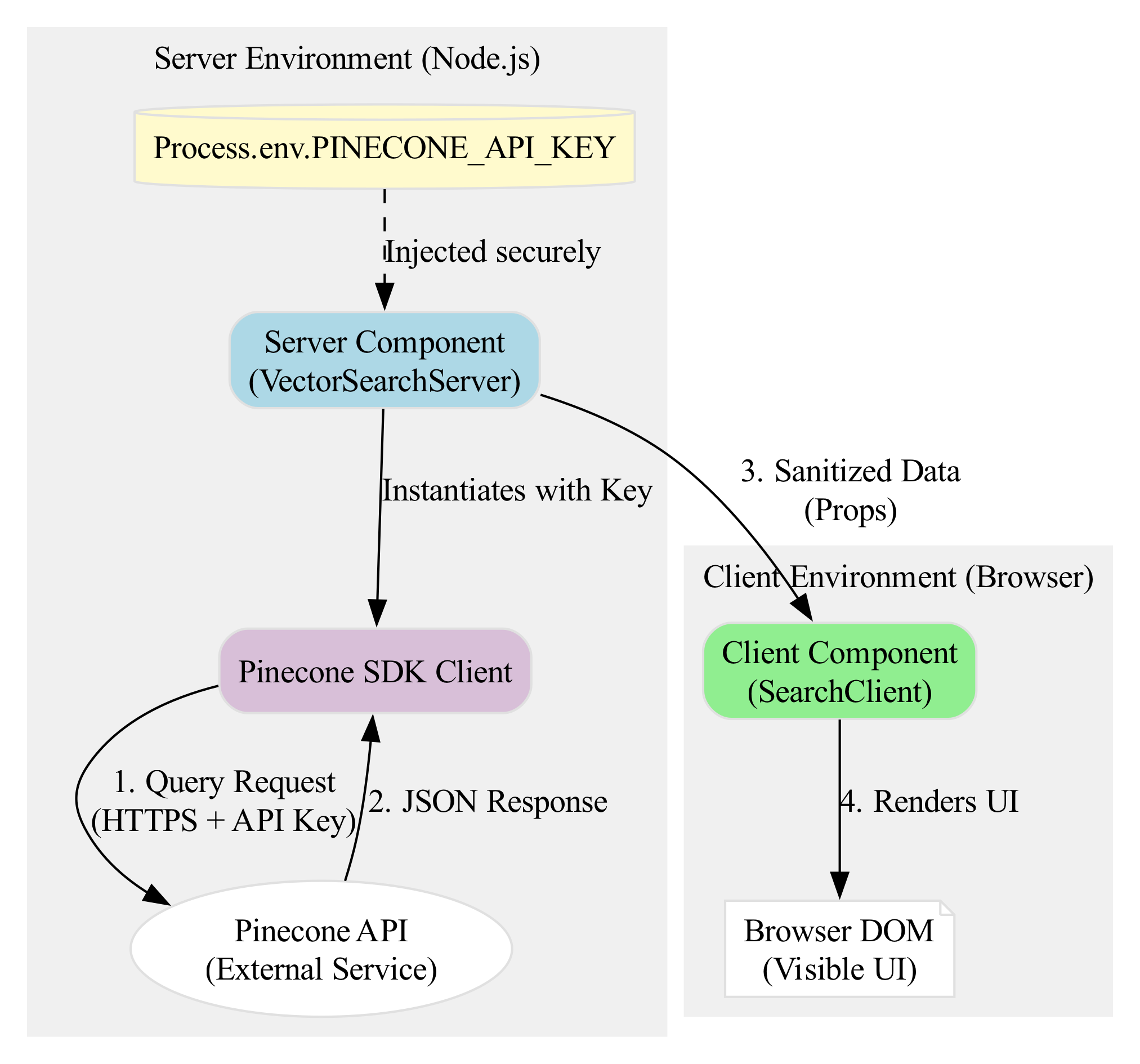

This approach illustrates the Principle of Least Privilege: the API key is never exposed to the browser. It is loaded from environment variables on the server, used within a secure context, and the result is sanitized before being sent to the client.

The Code

// File: app/components/VectorSearch.tsx
// This file contains both the Server Component (Parent) and Client Component (Child).

import { Pinecone } from '@pinecone-database/pinecone';
import { SearchClient } from './SearchClient'; // Assuming a separate Client Component file for clarity

// ============================================================================
// 1. SERVER COMPONENT: Secure Data Fetching
// ============================================================================

/**

 * @description A Server Component that runs exclusively on the server.
 * It initializes the Pinecone client using a server-side environment variable
 * and performs a vector similarity search.
 *
 * @returns {Promise<JSX.Element>} Renders the client component with fetched data.
 */
export default async function VectorSearchServer() {
  // -----------------------------------------------------------------------
  // SECURITY: Environment Variable Access
  // -----------------------------------------------------------------------
  // In Next.js, process.env variables are only accessible on the server
  // unless explicitly prefixed with NEXT_PUBLIC_.
  const pineconeApiKey = process.env.PINECONE_API_KEY;
  const pineconeEnvironment = process.env.PINECONE_ENVIRONMENT;
  const pineconeIndexName = process.env.PINECONE_INDEX_NAME || 'default-index';

  if (!pineconeApiKey || !pineconeEnvironment) {
    // Fail fast: Do not render if secrets are missing.
    return <div>Error: Pinecone configuration missing.</div>;
  }

  // -----------------------------------------------------------------------
  // CLIENT INITIALIZATION (Server-Side Only)
  // -----------------------------------------------------------------------
  // The Pinecone client is instantiated here. This is safe because
  // this code executes in the Node.js runtime environment, not the browser.
  const pc = new Pinecone({
    apiKey: pineconeApiKey,
    environment: pineconeEnvironment,
  });

  // Access the specific index.
  const index = pc.Index(pineconeIndexName);

  // -----------------------------------------------------------------------
  // DATA FETCHING: Vector Similarity Search
  // -----------------------------------------------------------------------
  try {
    // Example query vector (in a real app, this would come from an embedding model).
    const queryVector = [0.1, 0.2, 0.3, 0.4]; // Dummy vector for demonstration

    // Perform the query. This executes against the Pinecone API.
    const queryResponse = await index.query({
      vector: queryVector,
      topK: 3,
      includeMetadata: true,
    });

    // ---------------------------------------------------------------------
    // DATA SANITIZATION
    // ---------------------------------------------------------------------
    // We only extract the necessary data to send to the client.
    // We strip out internal IDs or sensitive metadata if present.
    const safeResults = queryResponse.matches.map((match) => ({
      id: match.id,
      score: match.score,
      // Assuming metadata has a 'text' field we want to display.
      text: (match.metadata as { text?: string })?.text || 'No text available',
    }));

    // ---------------------------------------------------------------------
    // RENDER PASS
    // ---------------------------------------------------------------------
    // Pass the sanitized data to the Client Component.
    return <SearchClient initialResults={safeResults} />;

  } catch (error) {
    console.error('Pinecone Query Error:', error);
    return <div>Error performing search.</div>;
  }
}

// File: app/components/SearchClient.tsx
// This is the Client Component responsible for interactivity.

'use client'; // Marks this as a Client Component for the Next.js App Router.

import { useState } from 'react';

/**

 * @description A Client Component that renders in the browser.
 * It receives initial data from the server but handles user interactions
 * like re-querying or filtering locally.
 *
 * @param {Object} props
 * @param {Array<{id: string, score: number, text: string}>} props.initialResults
 */
export function SearchClient({ initialResults }: { initialResults: any[] }) {
  const [results, setResults] = useState(initialResults);
  const [loading, setLoading] = useState(false);

  // This function simulates a client-side action, like filtering the existing data
  // or triggering a new server action (which would require a Server Action API route).
  const handleFilter = () => {
    setLoading(true);
    // Simulate async delay
    setTimeout(() => {
      // Filter locally (mock example)
      const filtered = results.filter((r) => r.score > 0.1);
      setResults(filtered);
      setLoading(false);
    }, 500);
  };

  return (
    <div className="p-4 border rounded">
      <h2 className="text-lg font-bold mb-2">Search Results</h2>
      <button
        onClick={handleFilter}
        className="bg-blue-500 text-white px-3 py-1 rounded mb-4"
        disabled={loading}
      >
        {loading ? 'Filtering...' : 'Filter Low Scores'}
      </button>

      <ul>
        {results.map((result) => (
          <li key={result.id} className="mb-2 border-b pb-2">
            <p><strong>ID:</strong> {result.id}</p>
            <p><strong>Score:</strong> {result.score.toFixed(4)}</p>
            <p><strong>Text:</strong> {result.text}</p>
          </li>
        ))}
      </ul>
    </div>
  );
}

Line-by-Line Explanation

import { Pinecone } from '@pinecone-database/pinecone';
- Why: Imports the official Node.js SDK for Pinecone.
- Under the Hood: This library handles the HTTP requests, authentication headers, and JSON serialization required to communicate with the Pinecone API. It is optimized for Node.js environments.
export default async function VectorSearchServer()
- Why: Defines a Server Component. The async keyword is essential because Server Components in Next.js can perform asynchronous data fetching directly within the component body.
- Under the Hood: Next.js detects the async function and suspends rendering (showing a loading state if configured) until the data fetching logic (the await calls) resolves.
const pineconeApiKey = process.env.PINECONE_API_KEY;
- Why: Retrieves the API key from the environment variables.
- Under the Hood: In Next.js, variables accessed via process.env in Server Components are injected at build time or runtime by the Node.js server. They are not bundled into the client-side JavaScript, making them secure from inspection in the browser.
if (!pineconeApiKey) { ... }
- Why: Defensive programming. If the secret is missing, the application should fail gracefully or throw an error immediately rather than attempting a connection with invalid credentials.
- Under the Hood: This prevents "undefined" errors deep within the SDK, which might be harder to debug.
const pc = new Pinecone({ apiKey: pineconeApiKey, ... });
- Why: Instantiates the Pinecone client class.
- Under the Hood: This object holds the configuration state. It is created in the server's memory (Node.js heap) for the duration of this request. It is ephemeral and destroyed after the response is sent.
const index = pc.Index(pineconeIndexName);
- Why: Selects the specific database index to query.
- Under the Hood: This returns a specialized client instance scoped to that specific index, allowing methods like .query(), .upsert(), and .fetch().
const queryResponse = await index.query({ ... });
- Why: Executes the actual vector similarity search.
- Under the Hood:
  - The SDK constructs a POST request to https://controller.{environment}.pinecone.io/databases/{index}/query.
  - It attaches the API key in the headers (Api-Key: ...).
  - The await pauses execution until the external API responds (network I/O).
const safeResults = queryResponse.matches.map((match) => ({ ... }));
- Why: Data Sanitization. The raw response from Pinecone might contain internal fields, large blobs of metadata, or structures not suitable for the client.
- Under the Hood: We create a new array of plain JavaScript objects. This ensures that only id, score, and text are passed down. This is crucial for security (preventing accidental leakage of internal metadata) and performance (reducing payload size).
return <SearchClient initialResults={safeResults} />;
- Why: Renders the Client Component and passes the sanitized data as a prop.
- Under the Hood: Next.js serializes the safeResults array into JSON and embeds it into the HTML response (usually in a <script> tag or inline state). This is how data is transferred from the server environment to the browser environment safely.
'use client';
- Why: Explicitly tells the Next.js compiler that this component should be rendered in the browser (client-side) rather than the server.
- Under the Hood: Without this directive, Next.js would attempt to render this component on the server, which would fail because it uses browser-specific hooks like useState.
import { useState } from 'react';
- Why: Imports the React hook for managing component state.
- Under the Hood: This state is maintained exclusively in the browser's memory (the V8 JavaScript engine). It is not shared across users or requests.
export function SearchClient({ initialResults })
- Why: Defines the component function. It accepts initialResults as a prop.
- Under the Hood: The initialResults prop contains the data serialized from the Server Component. This is the standard "Server-to-Client" data passing pattern in Next.js.
const [results, setResults] = useState(initialResults);
- Why: Initializes the local state of the component using the data fetched by the server.
- Under the Hood:
  - On the first render (hydration), useState uses the initialResults prop.
  - If the user interacts with the component (e.g., filtering), setResults updates the state, triggering a re-render of just this component in the DOM.
const handleFilter = () => { ... }
- Why: Defines an event handler for user interaction.
- Under the Hood: This function runs entirely in the browser. It does not have direct access to the Pinecone API key (which is good). If it needed to fetch new data, it would have to call a Server Action or API Route, which would then use the key securely on the backend.
return ( ... )
- Why: Renders the JSX for the UI.
- Under the Hood: The browser DOM is updated based on the current results state. Because this is a Client Component, standard event listeners (like onClick) work immediately without a page reload.

Visualizing the Data Flow

The following diagram illustrates the boundary between the Server (where secrets live) and the Client (where the UI lives).

The diagram visually separates the Server, where sensitive data and business logic reside, from the Client, where interactive UI elements like onClick event listeners operate without requiring a page reload. — The diagram visually separates the Server, where sensitive data and business logic reside, from the Client, where interactive UI elements like `onClick` event listeners operate without requiring a page reload.

Common Pitfalls

When implementing API key management in a Next.js SaaS app, developers often encounter these specific issues:

Accidental Client-Side Exposure (NEXT_PUBLIC_ Prefix)
- The Issue: Developers often prefix environment variables with NEXT_PUBLIC_ to make them accessible in the browser for quick testing.
- The Consequence: Any variable starting with NEXT_PUBLIC_ is embedded in the client-side JavaScript bundle. Anyone can open "Inspect Element" in their browser, view the source code, and steal your API keys.
- The Fix: Never use NEXT_PUBLIC_ for secrets. Always access secrets inside Server Components, Server Actions, or API Routes.
Vercel/AWS Lambda Timeouts
- The Issue: Server Components run on serverless functions (like Vercel Lambdas). These functions have strict execution time limits (e.g., 10 seconds on the Vercel Hobby plan).
- The Consequence: If the Pinecone query is slow (e.g., high latency or large datasets) or if you are performing complex data processing, the function may time out before returning a response, resulting in a 504 Gateway Timeout error.
- The Fix: Optimize database queries (use topK limits, efficient filters). If a task takes longer than the timeout, move it to a background job queue (like Vercel Background Functions or AWS SQS) and poll for results.
Async/Await Loops in Client Components
- The Issue: Attempting to use await directly inside a loop (e.g., for (const id of ids) { await fetch(...) }) in a Client Component.
- The Consequence: This blocks the main browser thread, freezing the UI and making the application feel unresponsive. It also triggers React warnings about setting state during render.
- The Fix:
  - Server Side: Perform the loop in a Server Component (Node.js handles async loops efficiently).
  - Client Side: Use Promise.all() to run requests in parallel, or move the logic to a Server Action.
Hallucinated JSON Serialization
- The Issue: Passing complex objects (like class instances, Dates, or Maps) from a Server Component to a Client Component.
- The Consequence: Next.js serializes props to JSON automatically. If you pass a Date object, it becomes a string on the client. If you pass a custom class instance, methods are stripped, and only data properties remain. This often leads to runtime errors like date.getTime is not a function.
- The Fix: Always transform data into plain JSON-serializable objects (arrays, objects, strings, numbers, booleans) before passing them as props. Use .map() to convert Dates to ISO strings if needed.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
